Stream Deck Module (15 keys) Wall Mount Enclosure

A sleek, wall mount enclosure designed specifically for the Stream Deck Module (15 keys). It features a completely symmetrical design for both vertical and horizontal orientation, fits perfectly with no wobble, and includes internal mounting points for a Raspberry Pi Zero 2 W. Perfect for smart home control panels, exhibition displays, or pegboard setups.

Detailed Description

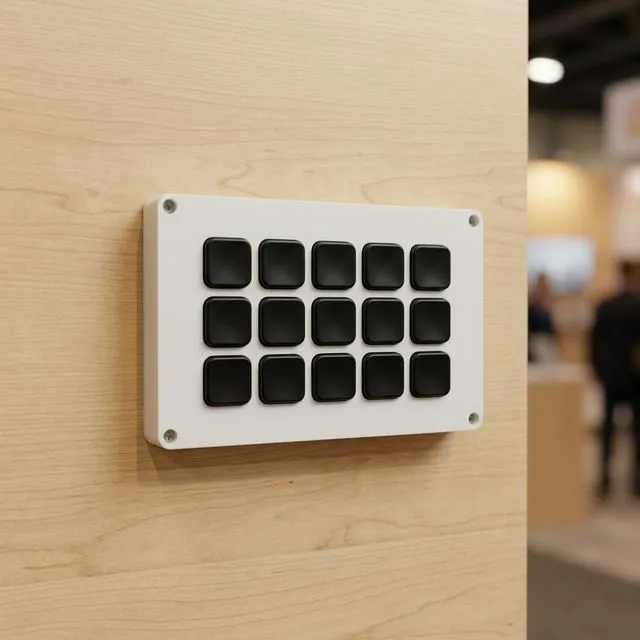

Transform your Stream Deck Module (15 keys) into a stationary control hub with this flush wall mount enclosure. With a total depth of just 20mm, it keeps your setup looking clean and professional without any unnecessary decorations.

Key Features:

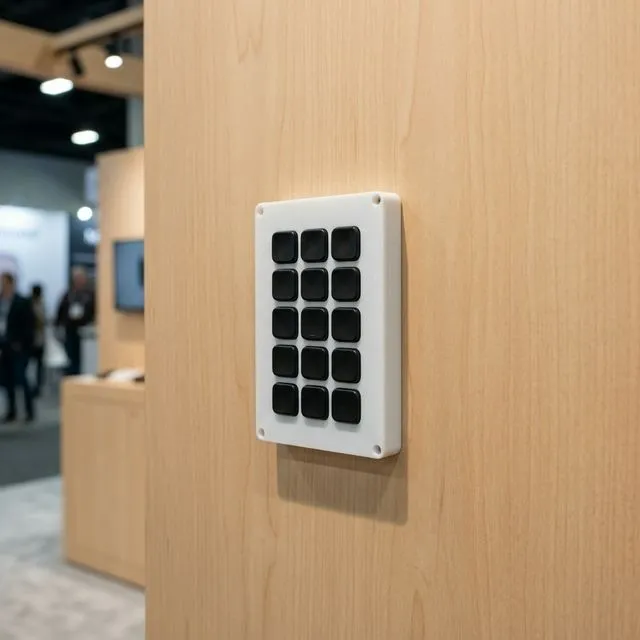

• Versatile Orientation: The top/bottom and left/right symmetrical design allows you to mount it vertically or horizontally according to your specific needs.
• Perfect Fit: Precision-engineered for a snug fit. Once assembled, there is absolutely no wobbling when pressing the buttons.
• Embedded Computing: Internal standoffs provide secure mounting for a Raspberry Pi Zero 2 W, making it ideal for self-contained IoT or smart home projects.

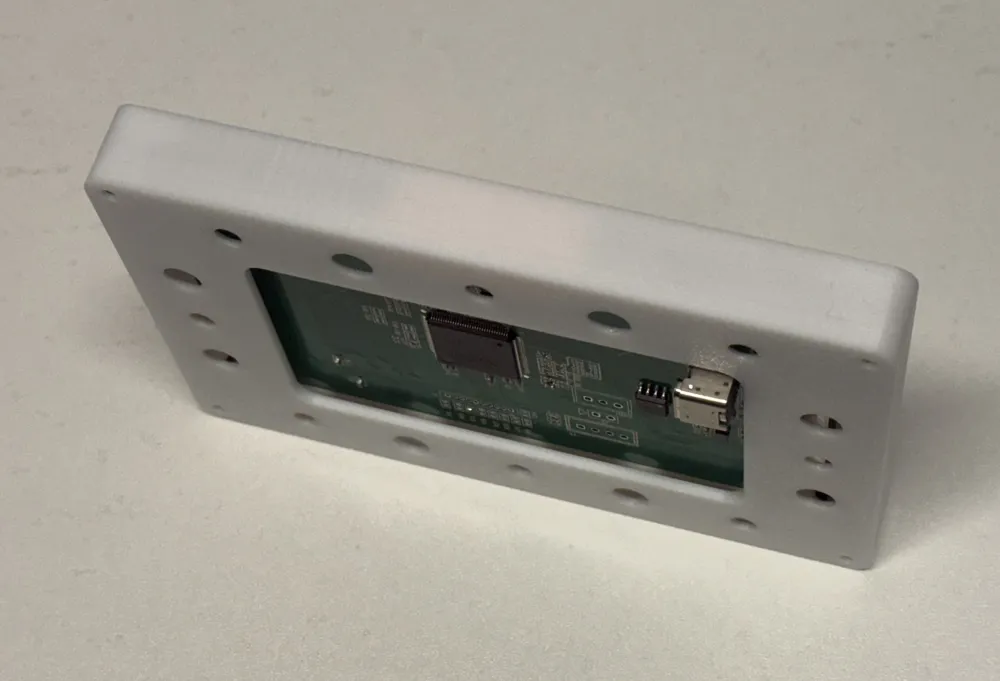

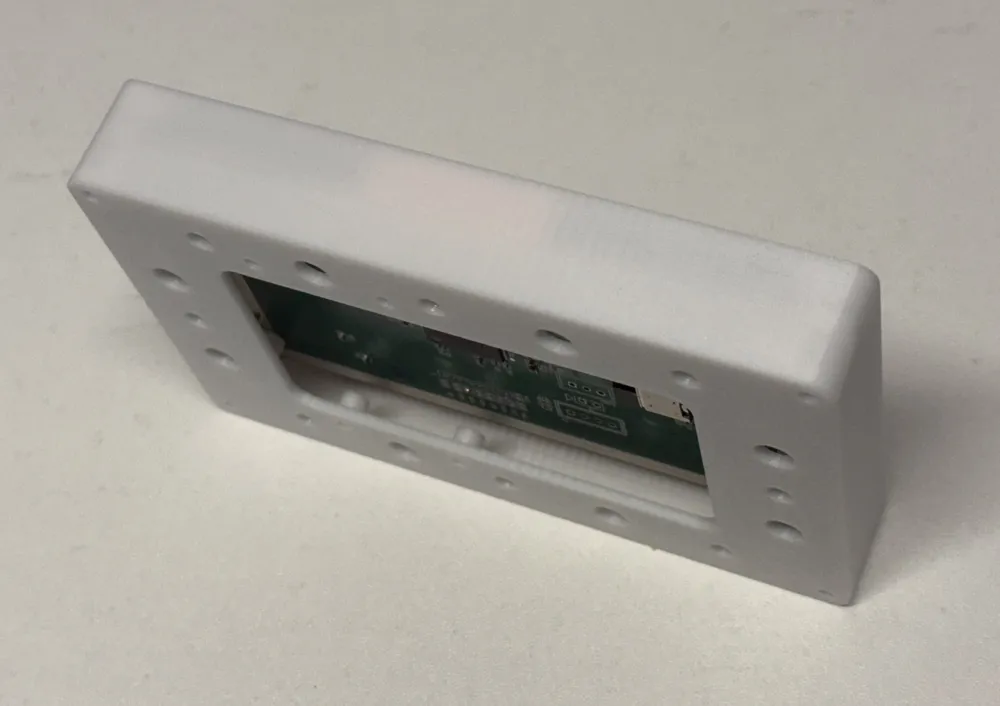

• Ultra-Slim Profile Options: The standard bracket provides a 20mm depth, ensuring a low-profile installation against any flat surface. An alternative 14mm ultra-thin bracket is also included, allowing you to reduce the thickness to the absolute limit (Please note: using the 14mm bracket requires making a hole in the mounting wall to accommodate the rear USB-C plug).

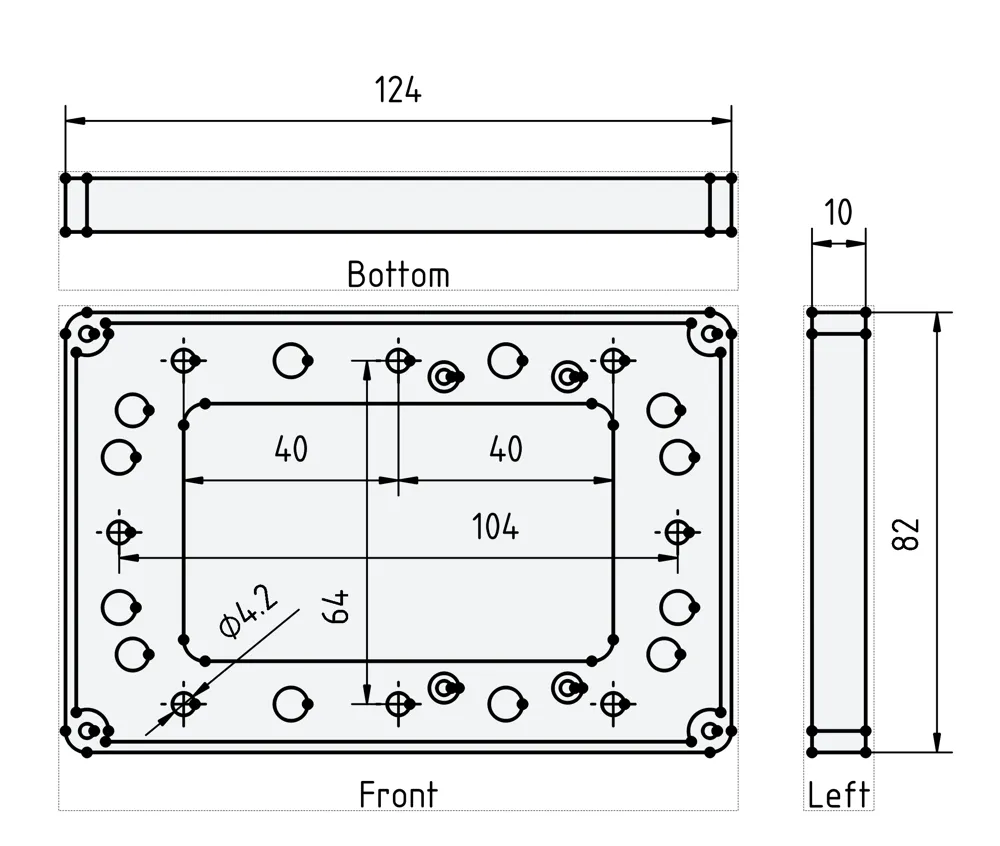

Dimensions:

• Size: 124 mm x 82 mm x 20 mm (or 14 mm with the ultra-thin bracket)

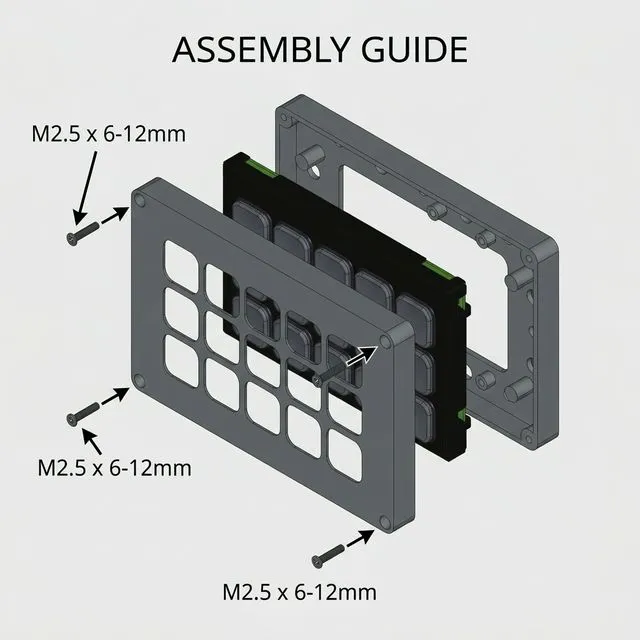

Assembly Instructions:

• Secure the front panel using 4 x M2.5 screws (Recommended length: 6-12mm).

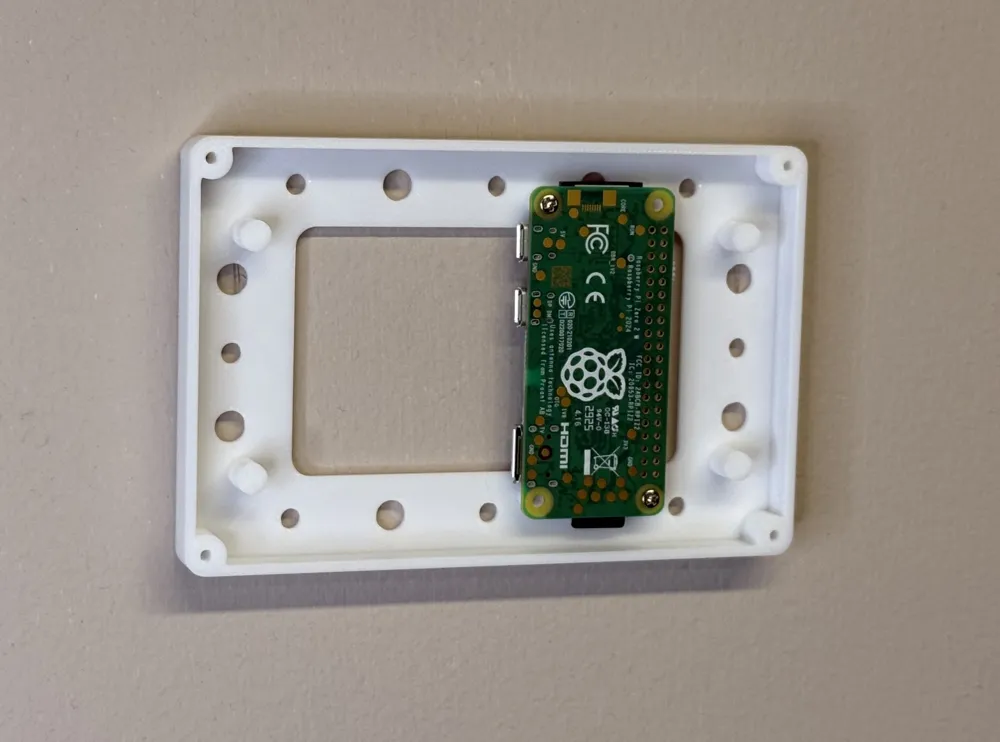

• (Optional) If mounting a Raspberry Pi Zero 2 W internally, use 4 x M2.5 short screws (Recommended length: 4-6mm) for the motherboard base.

Applications:

• Exhibition and showroom interactive displays.
• Smart home and home automation wall switches.

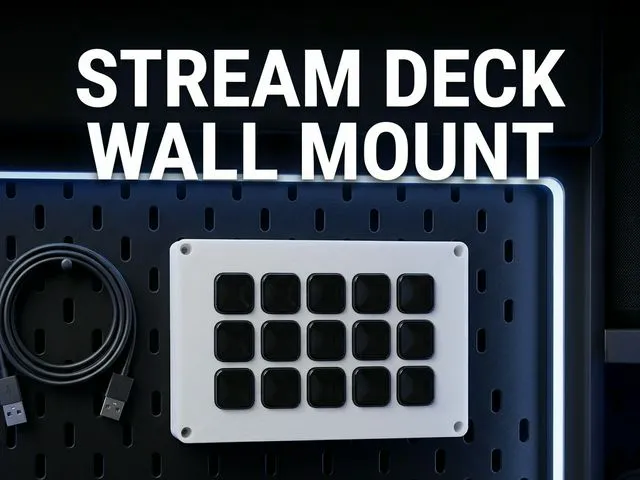

• Stream Deck integration into pegboards or custom workstations.
