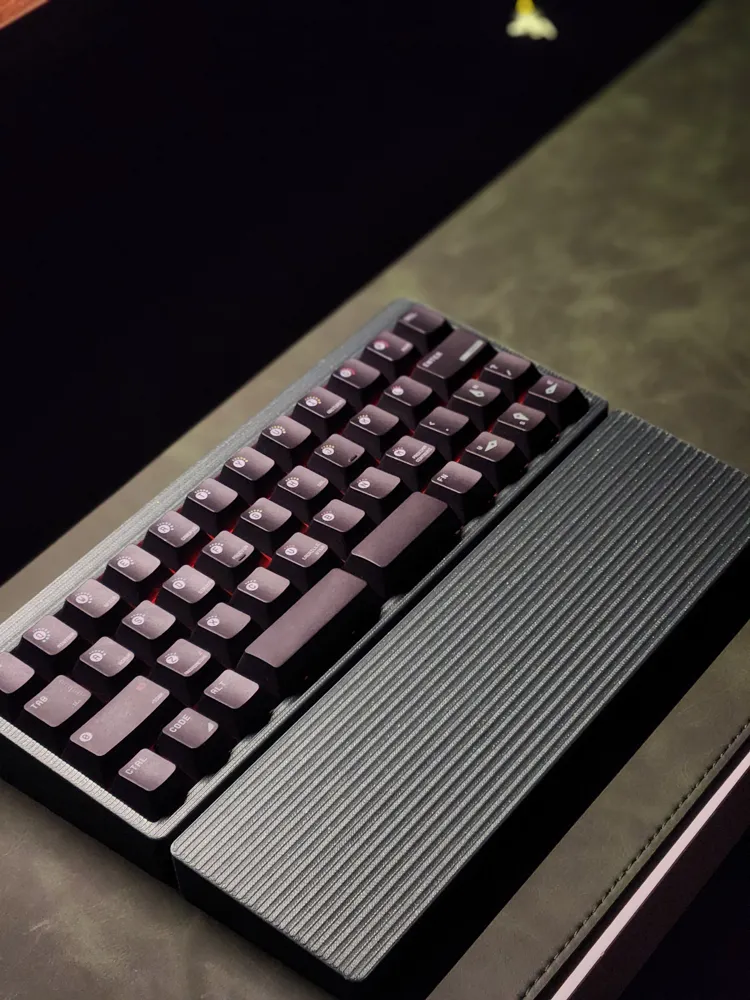

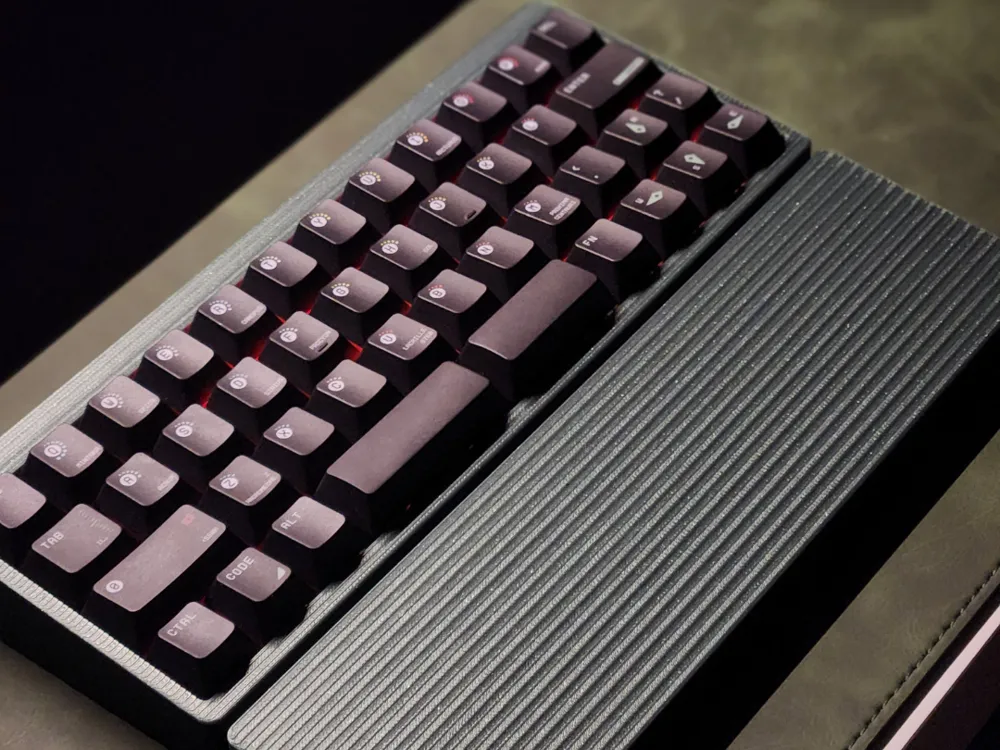

BM43 40% Keyboard- Case & Wrist Rest
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
6.7 h
2 plates
0.08mm layer, 2 walls, 20% infill
23.3 h
2 plates
Open in Bambu Studio
Boost
7
11
0
0
15
4
Released
Bill of Materials
List other parts
- 1/4 oz Wheel Weights x 17:
- M2x6 Self Tapping Screws x 5:
- Internal Keyboard Case Foam x 1:
- 8mm (5/16) Silicone Rubber Pads x 8:
Description

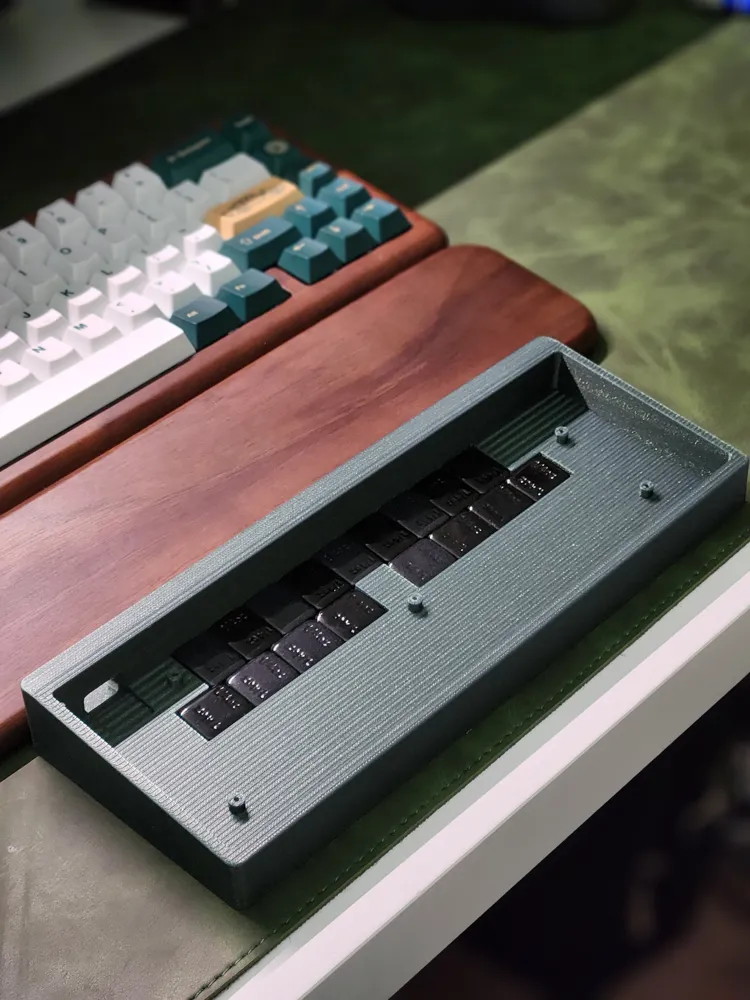

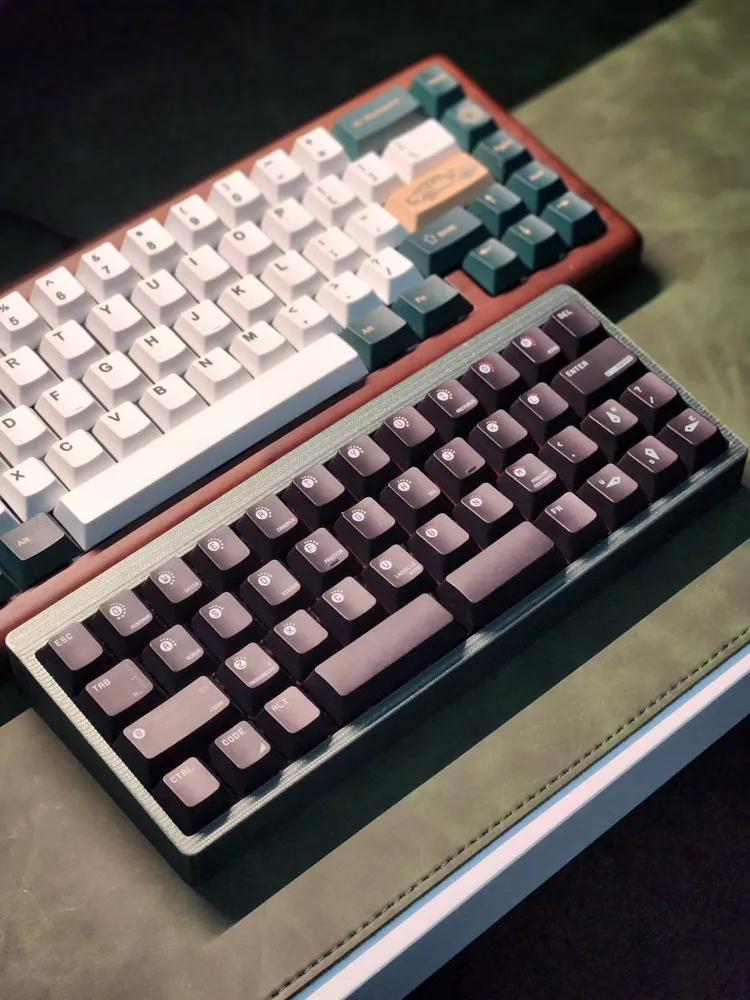

A simple wedge look for the BM43. As with many 3D printed keyboards, a higher percentage infill can only do so much with case hollowness, so I made slots for wheels weights to add some heft.

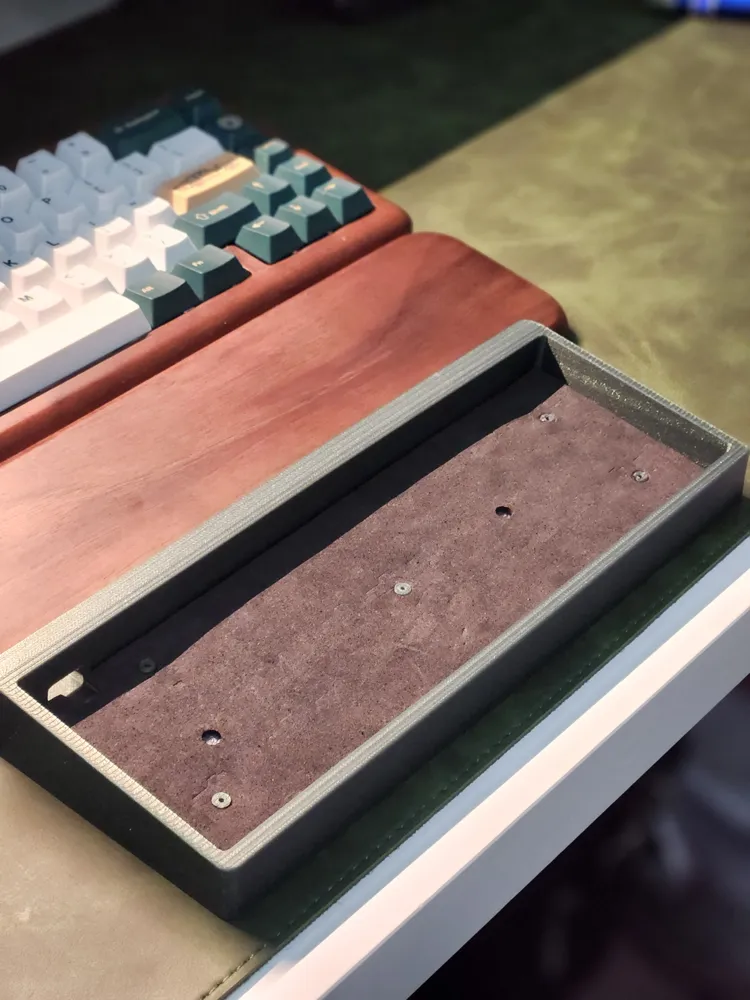

Note: The PCB standoffs are made for M2x6 self-tapping screws. Rubber feet accommodates 8mm silicone pads. Case foam will be necessary to provide separation between wheel weights and PCB. Model was printed with 30% infill, however the current profile is set to 15% infill. Please adjust to your preferences.
