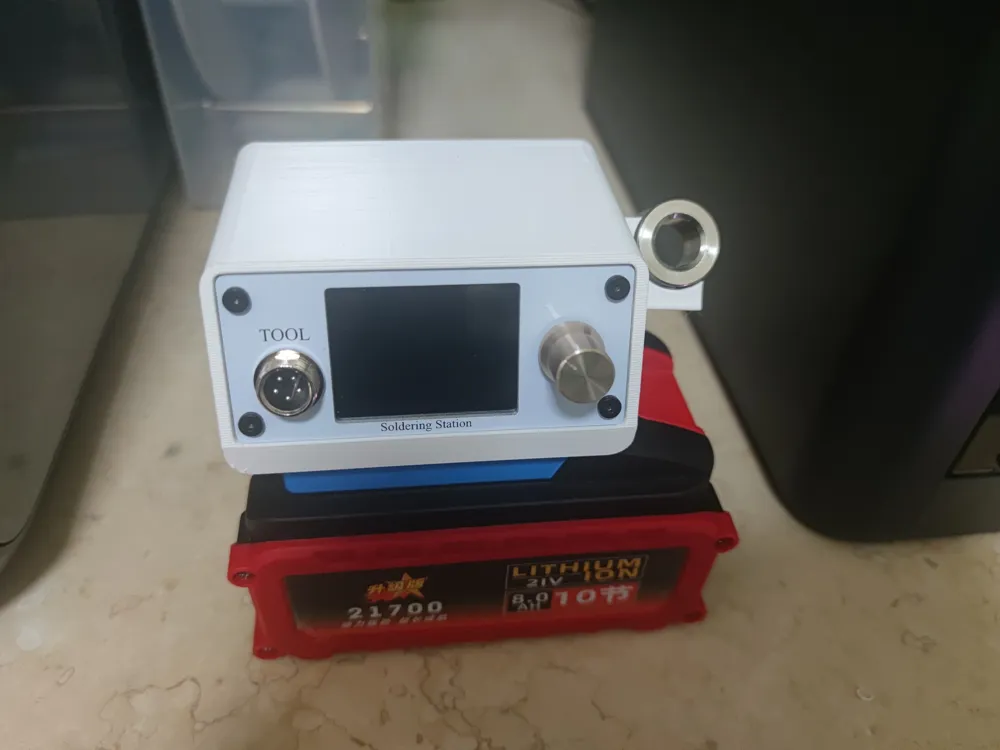

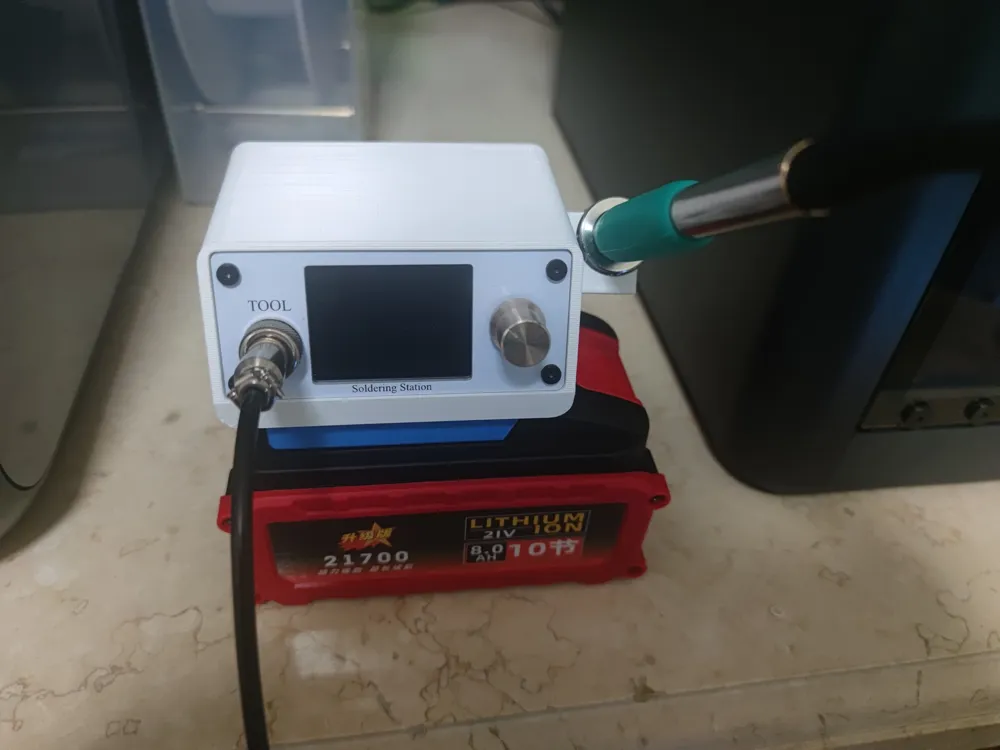

Lithium Battery 245 Soldering Station
Print Profile(1)
Description
Suitable for Technician No. 9 open-source T12/210/245 soldering station control board 8838 panel, supports Dayi A3 lithium battery
Uses 14 M3*8 self-tapping flat-head screws
The soldering iron stand uses a stainless steel fixing ring with an inner diameter of 12, outer diameter of 22, thickness of 12, M6 screw hole, and 2 M6*10 screws

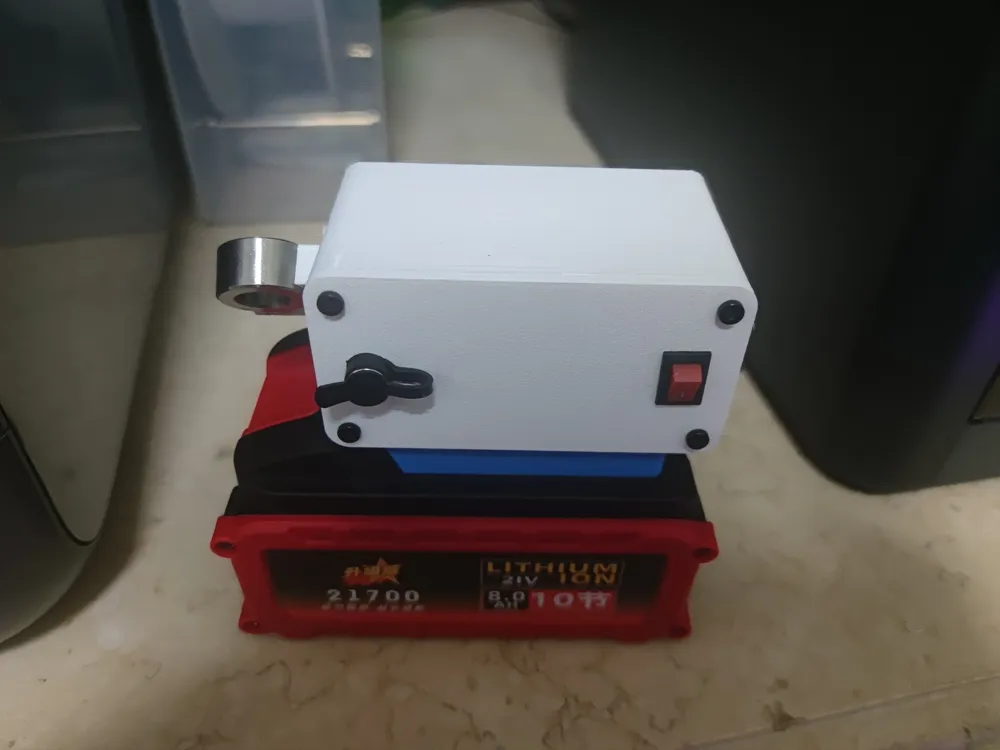

The switch used is a KCD11 10*15 rocker switch
The external power port is DC 5.5*2.1
