🖥️ iOS & macOS app icon coaster set with Mac Mini M4 holder 📱

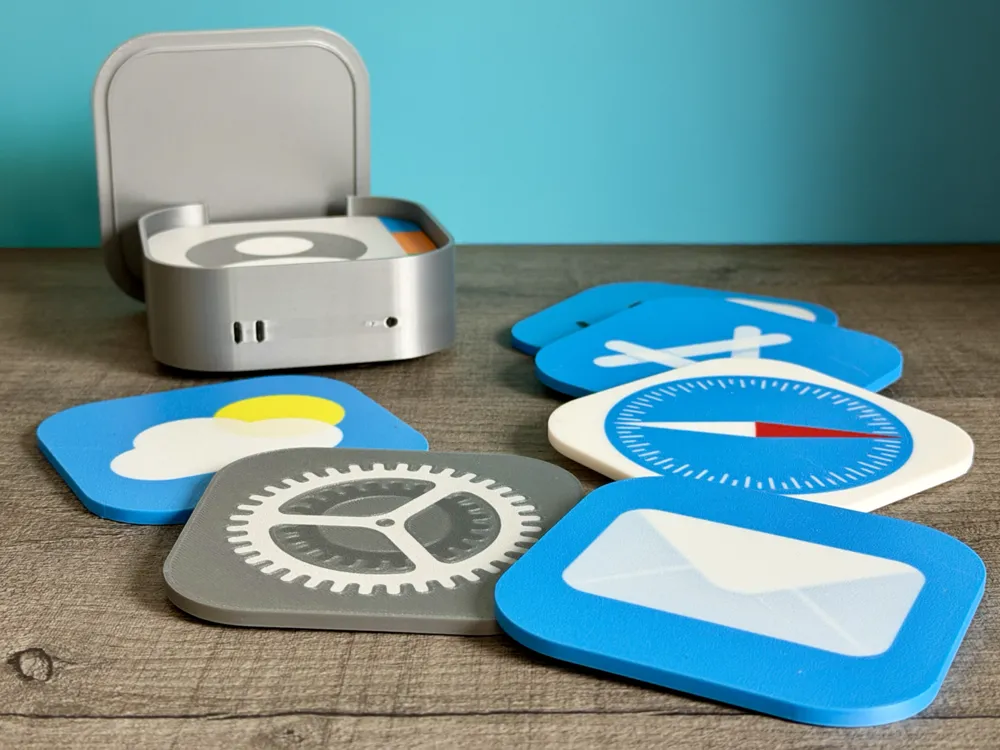

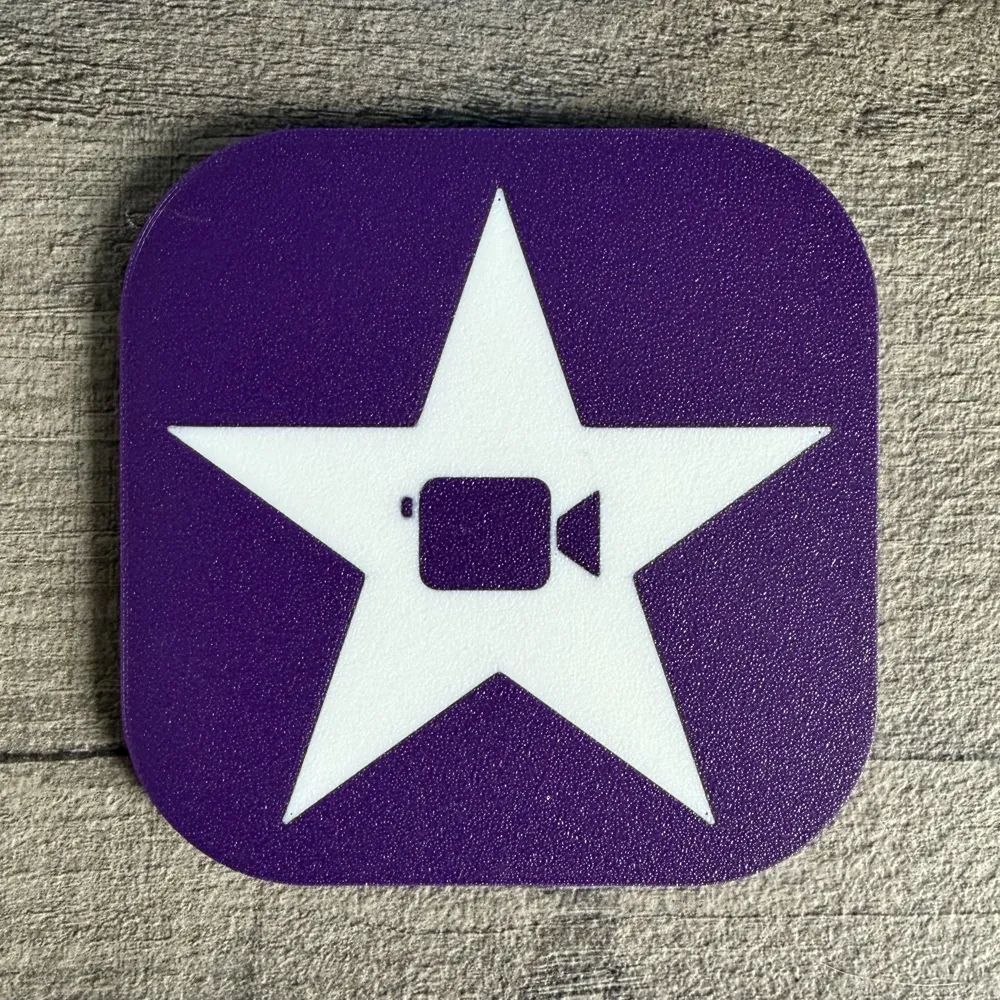

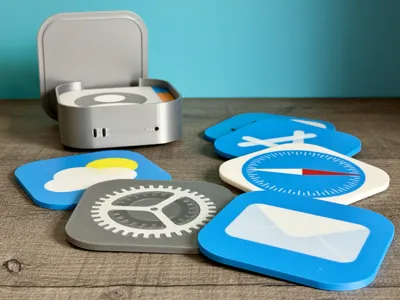

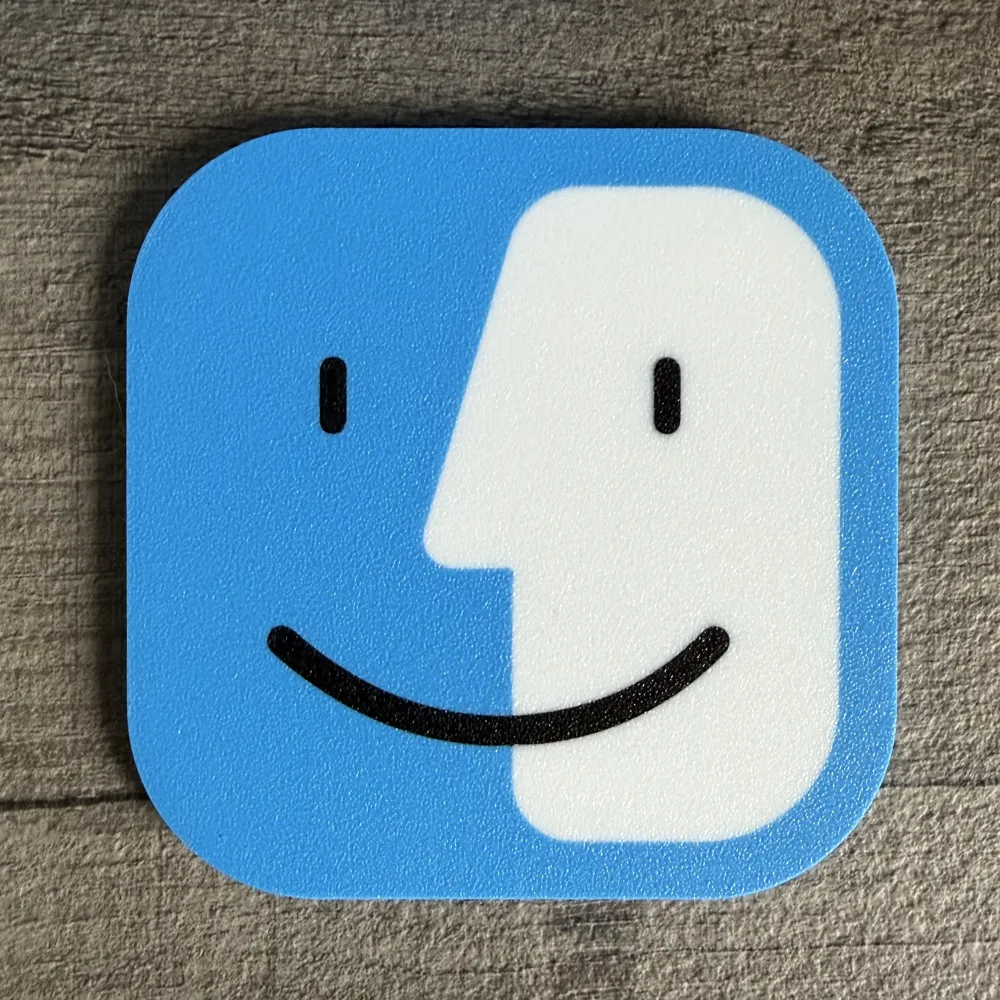

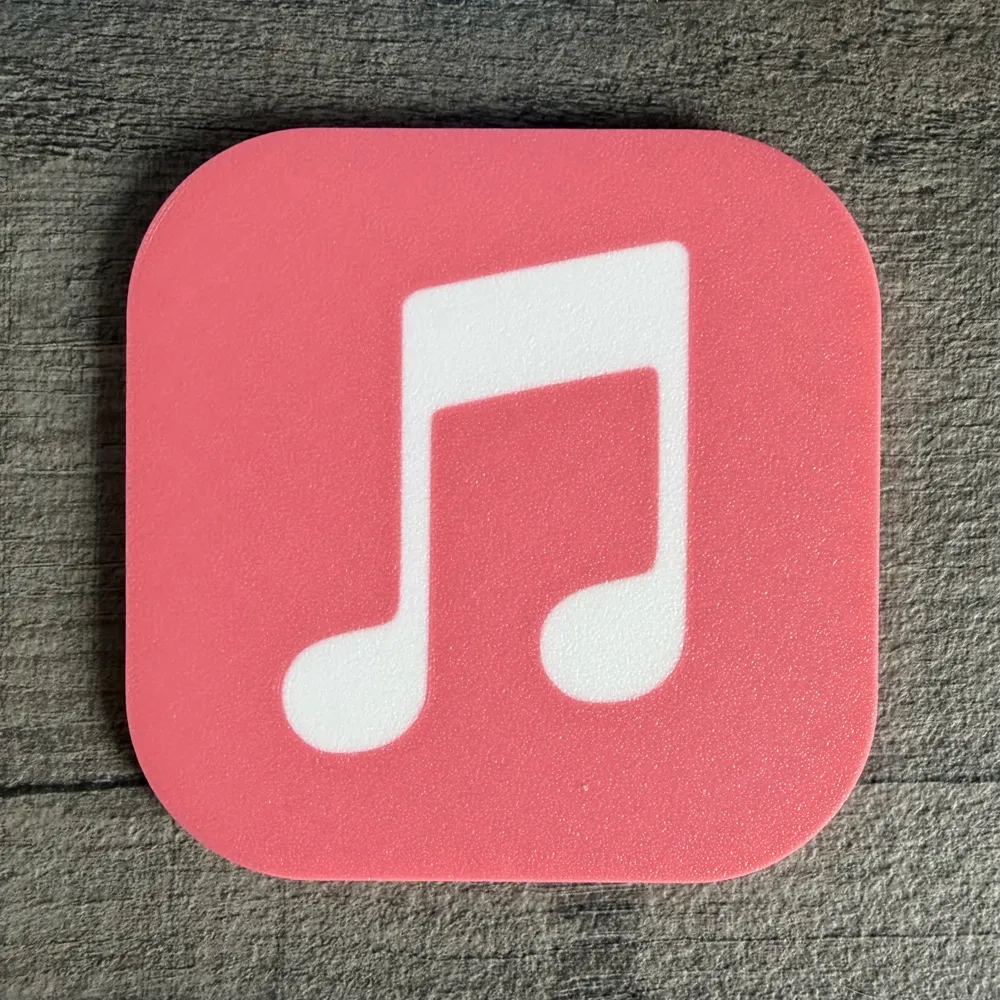

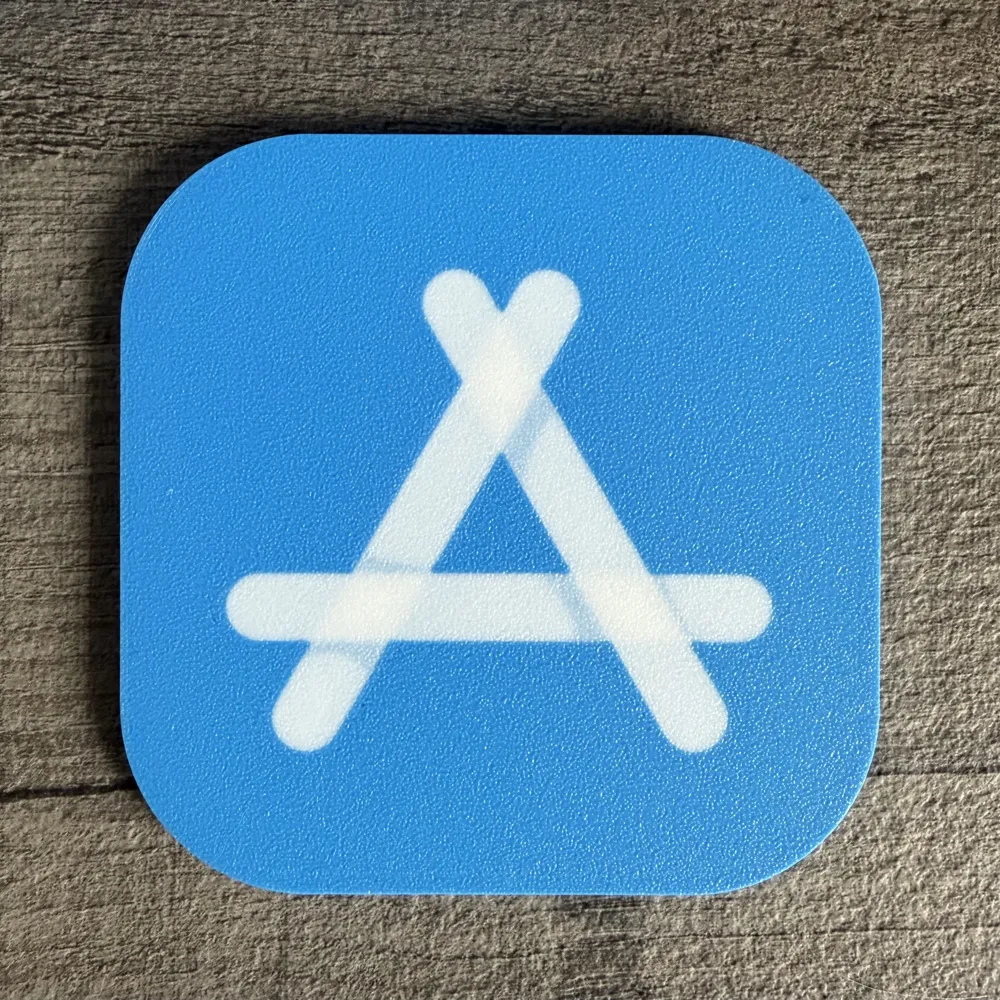

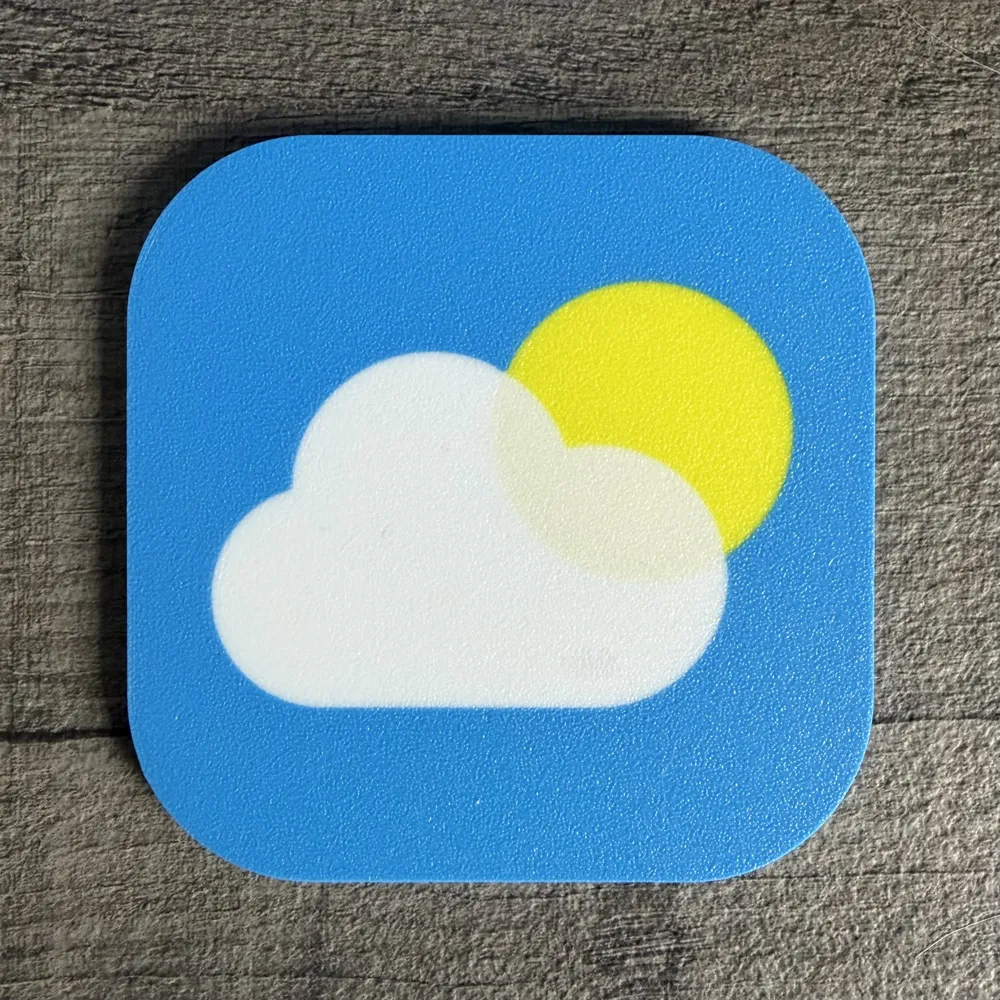

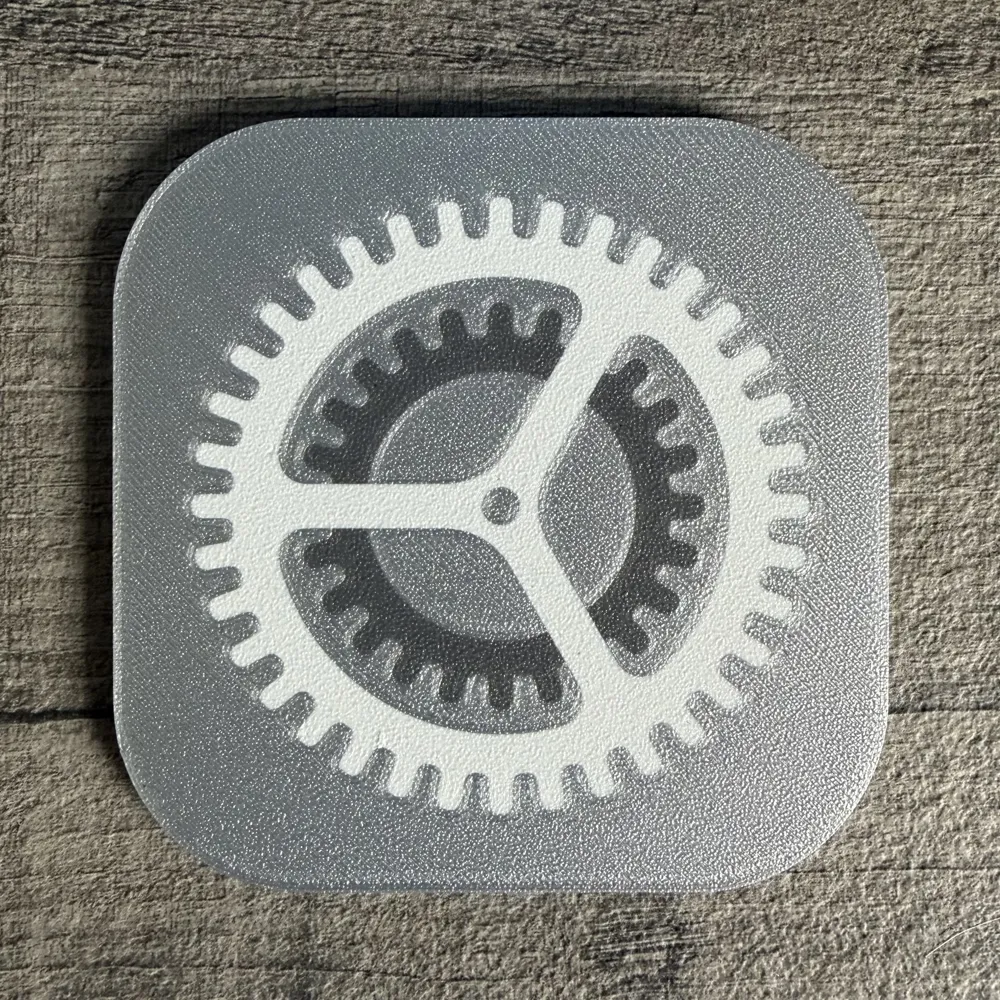

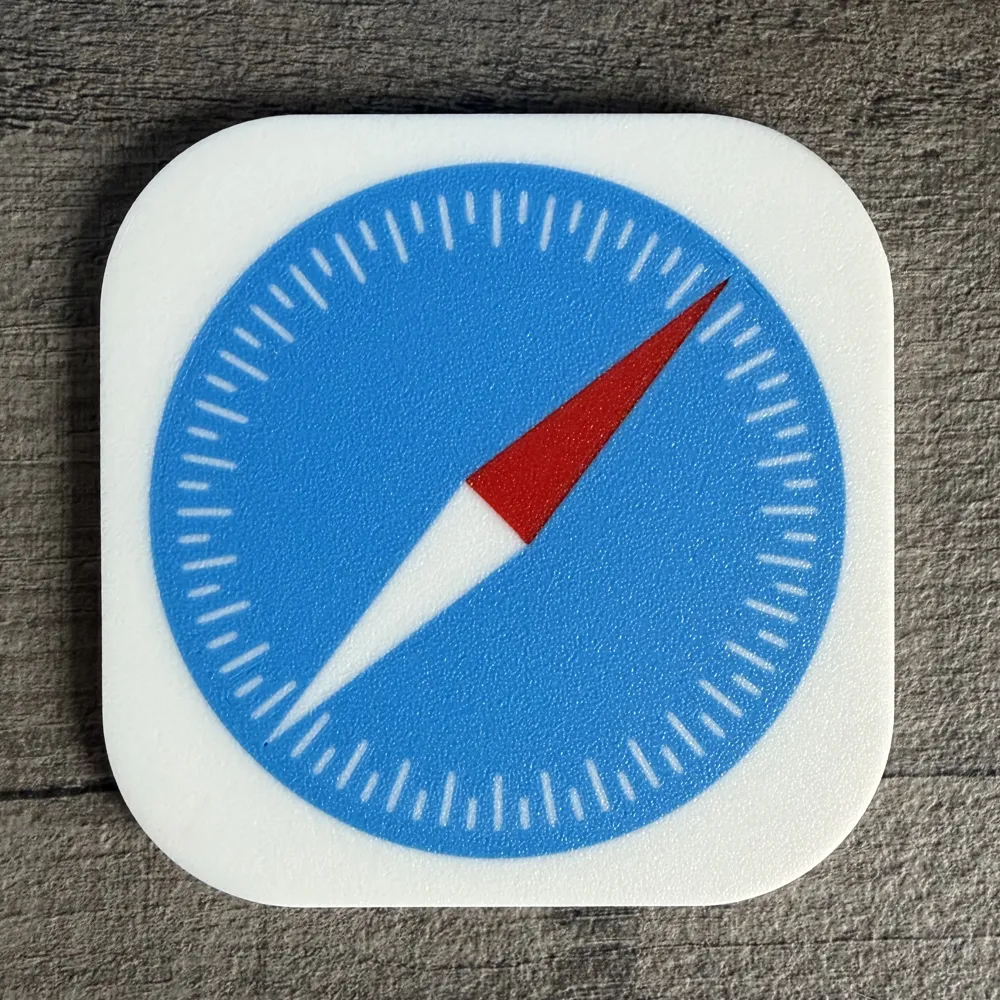

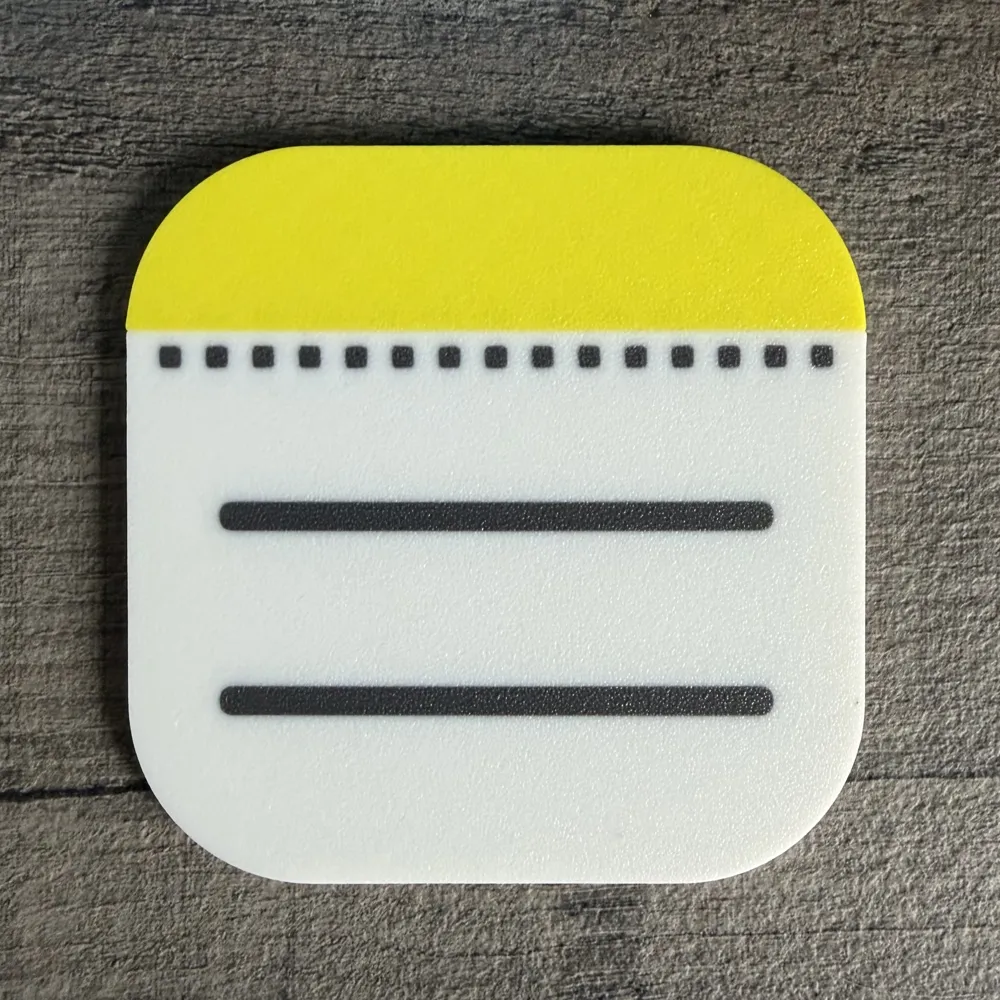

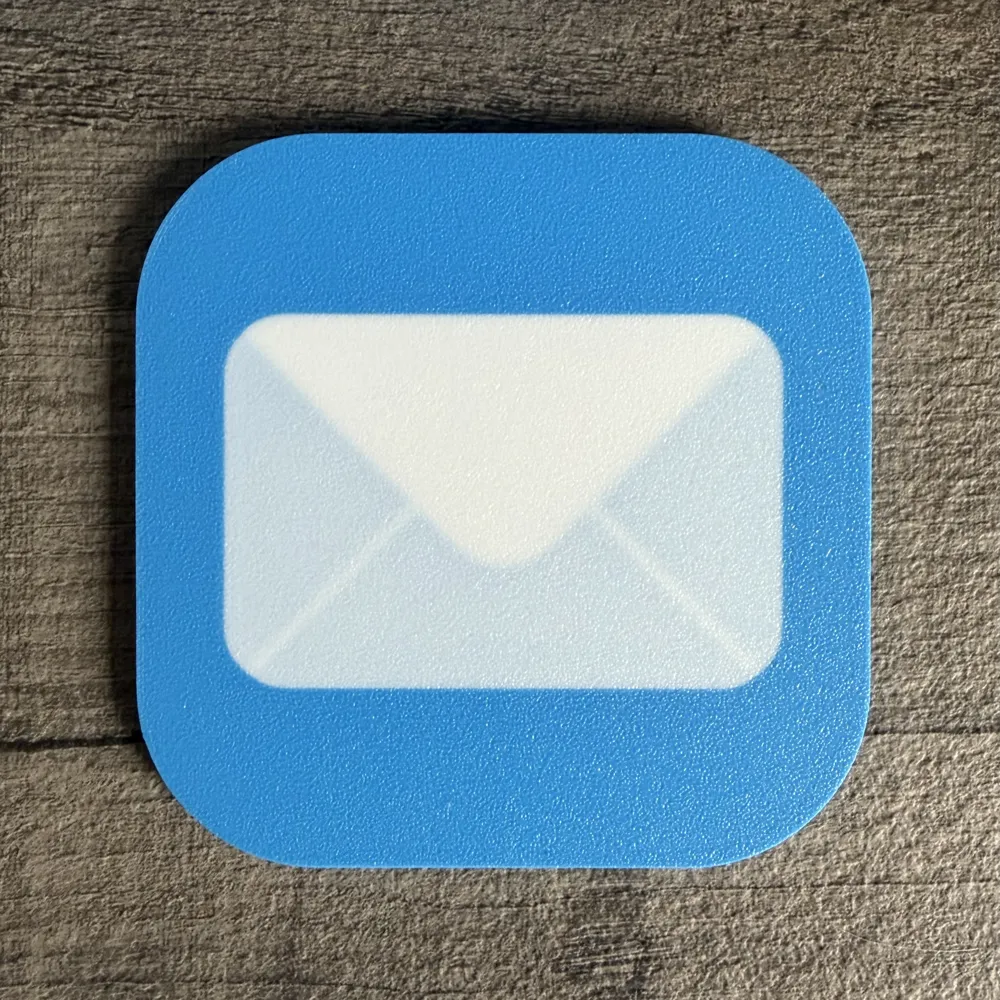

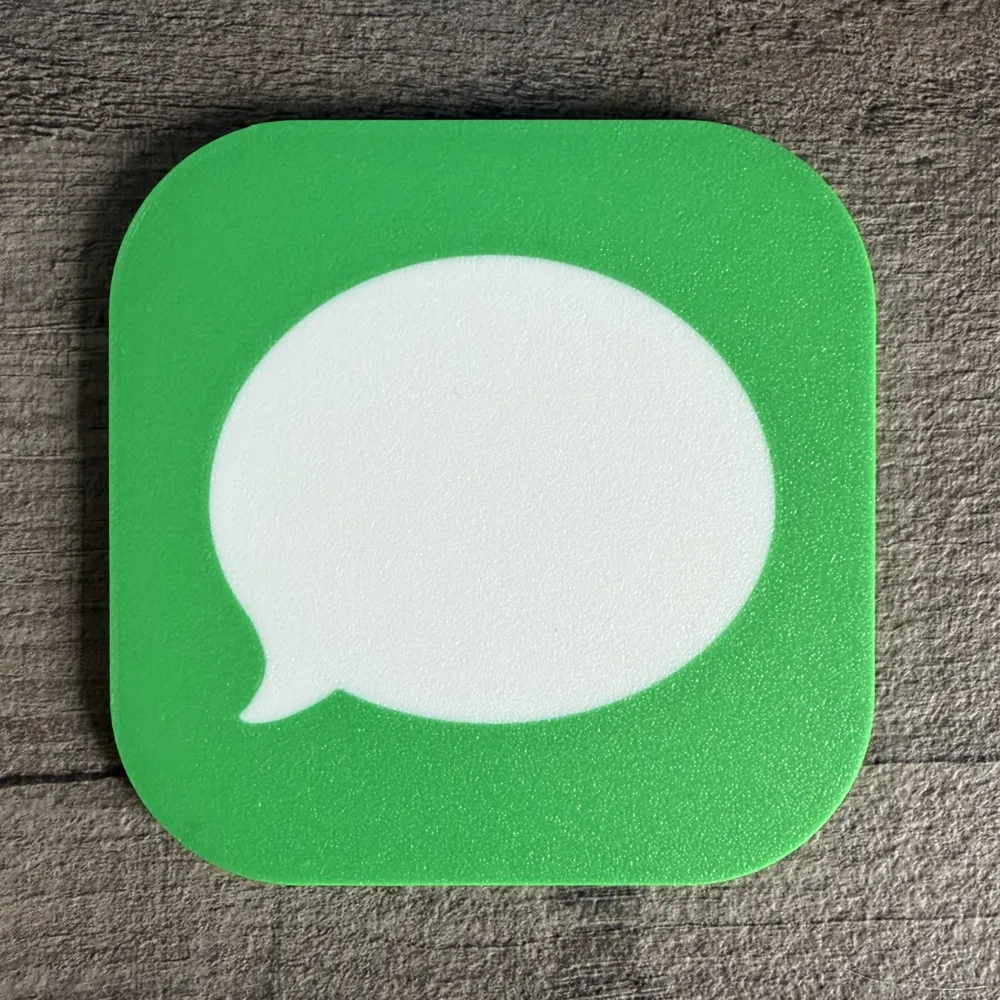

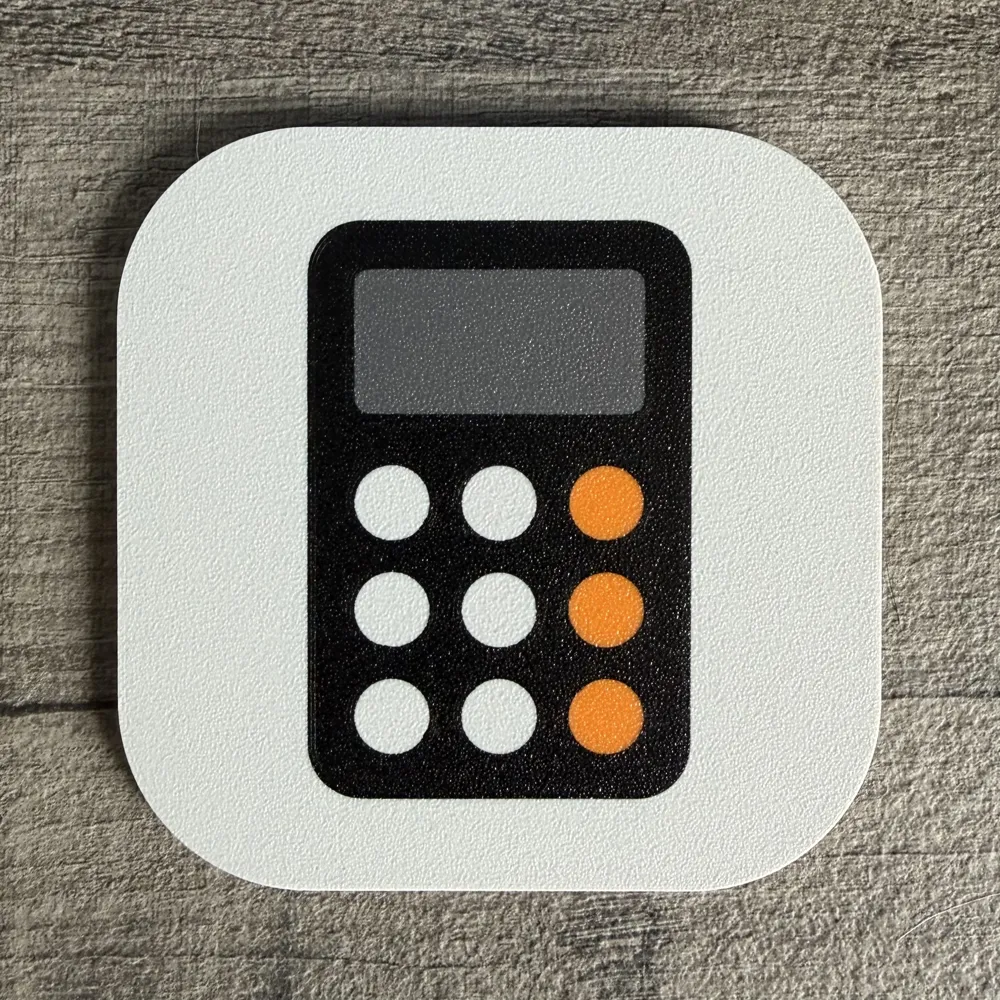

Bring some Apple inspired style to your setup with this set of coasters based on familiar iOS and macOS app icons. At the time of publishing, there are 12 different coaster designs to choose from, ranging from the Weather icon through to the App Store icon, and each one has its own separate print profile so you can print only the designs you want.

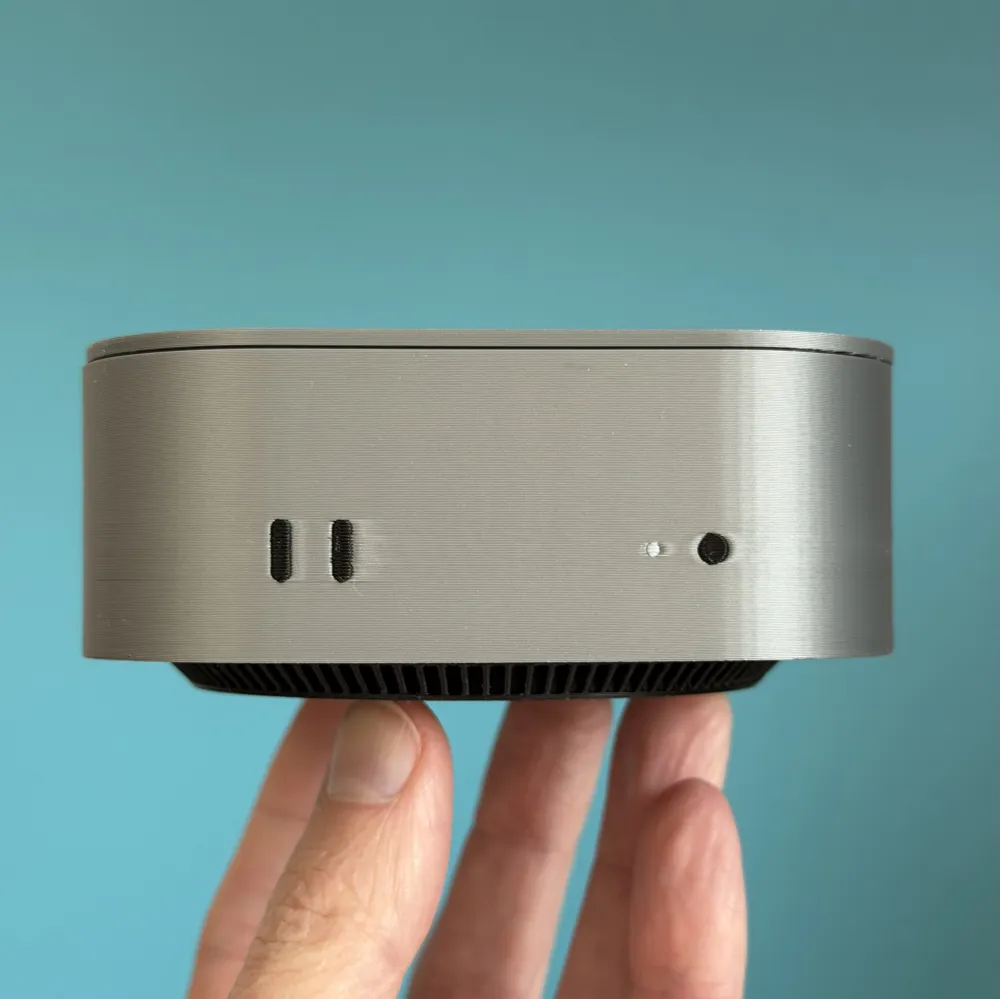

The set also includes a matching coaster holder styled to resemble a Mac Mini M4, with space to hold up to 8 coasters neatly on your desk or shelf. The holder features a playful twist on the classic Apple aesthetic, including a mug style logo with a section removed and the slogan “Drink Different” styled in the same font as the original Think Different campaign.

These coasters are designed as multicolour prints for AMS use. Most of the coaster designs use 4 colours to suit a printer with a single AMS, while the Contacts coaster uses 5 colours. Some of the icons also use colour layering within the supplied 3MF files to help recreate the soft fade effects seen in the real app icons, so it's important to use the provided 3MF profiles rather than the STL files.

The coaster holder requires minimal assembly with some glue, with the black vent section attaching to the underside once printed.

✏️ Customising your Mac Mini tray lid

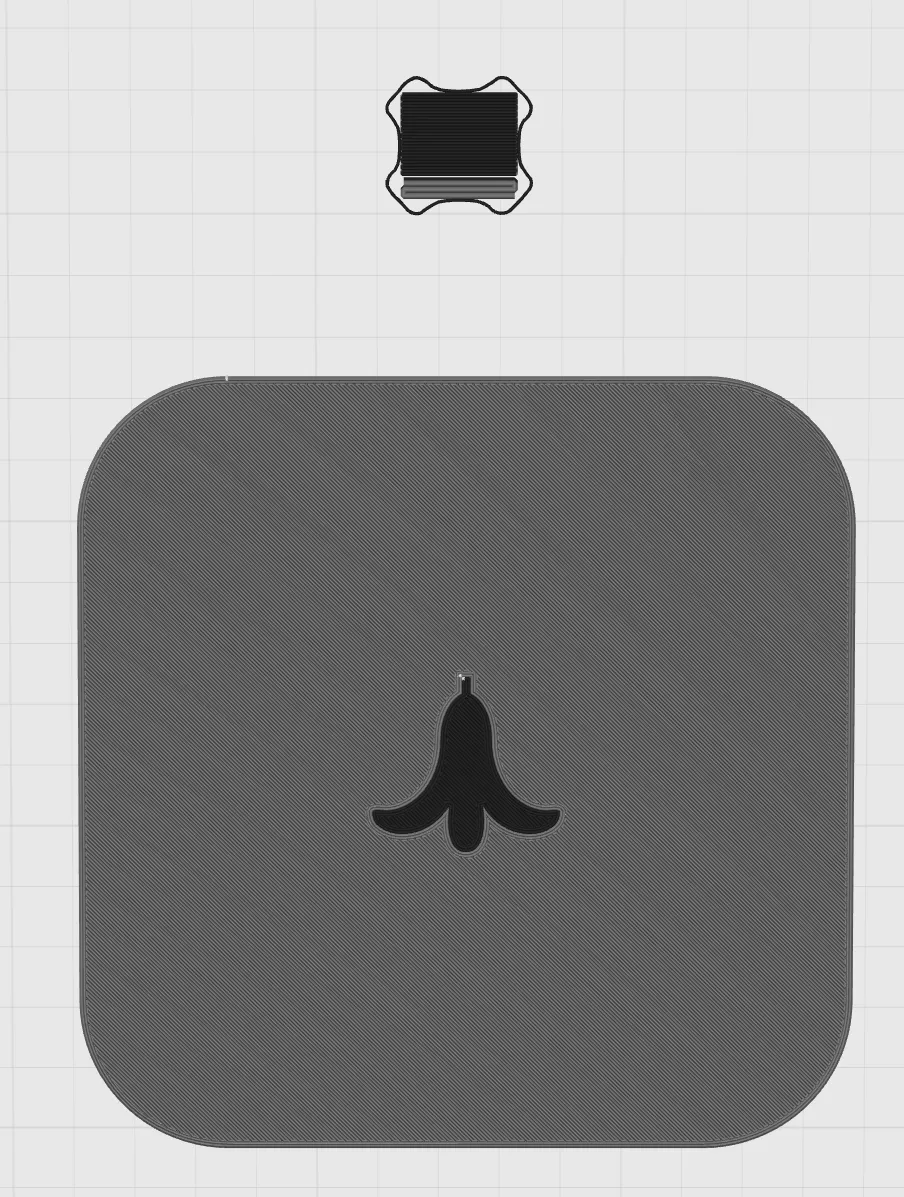

If you'd like to add your own logo or design to the lid, you can easily do this using an SVG file (do a google search, or convert a PNG on one of the many free conversion sites online). The lid is designed to print face down, which gives a really clean top surface finish, especially on a textured plate.

🧾 Adding your own logo

1. Go to the lid plate in Bambu Studio, flip the view of the lid round, so you can see the bottom of it.

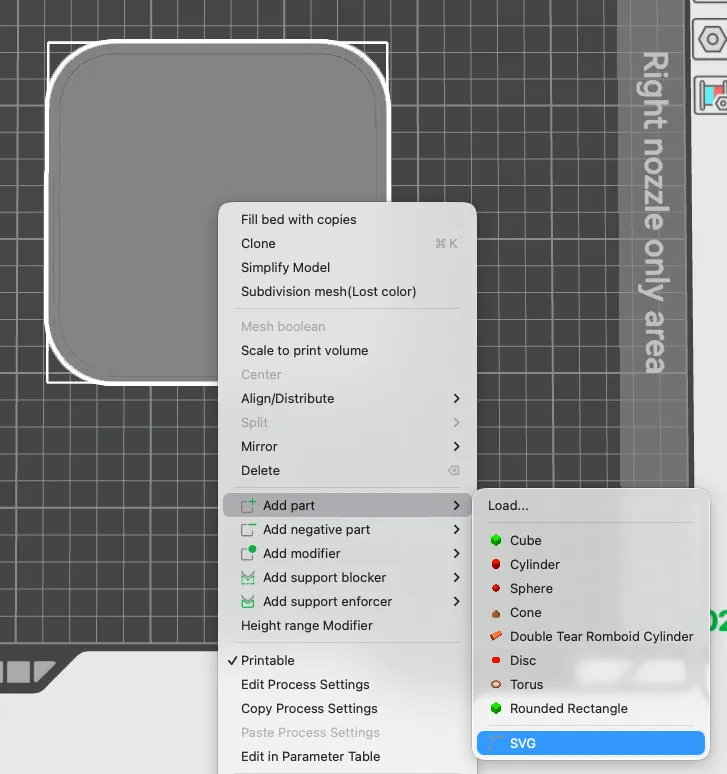

2. Right click on the lid and choose Add part > SVG




3. Import your SVG into Bambu Studio.

4. Change the Depth of the part to be 1mm (lid is 2mm deep) and change the type to be Modifier. Then resize (you can click and drag within the Size box, or type in the details) appropriately.




5. Once done, you can now place it where needed, ideally the centre. You can do this easily by using the Move (top left icon in the below screenshot) tool. You can use Align Object, then click on Align left-right center (middle icon in the left 3 options) and then Align front-back centre (middle option in the middle 3 options)




6. Once done, change the filament colour of the SVG in the Objects list to black, or whatever colour you'd prefer.

7. Slice and you are good to print your custom logo






💾 Final check

• Double check placement and scaling
• Ensure colours are assigned correctly
• Save your project before slicing

·····

🔥 Tips before you start

Having a clean print bed and hot end(s) free from filament is essential in getting that crisp, clean look. Here's some tips on what to do to get the best print possible;

🧼 Cleaning

Clean your plate first, following your usual routine. Dish soap works best, clean and then rinse thoroughly, ensure the plate is dry and free of debris before putting back in the printer.

Leftover filament residue on your hot end can cause unwanted colour streaks, which will show very clearly against the lighter parts of the print. Please inspect your hot end before starting the print, if you spot any clumps or leftover filament, follow Bambu's recommended cleaning guide to remove.

👀 Watch the first layers

Even with the best pre-printing cleaning routine, filament can sometimes surprise you and some small strands can sometimes get dragged into areas they shouldn’t be. Watch the first couple of layers go down, if you spot any potential colour bleed, you can pause and remove any stray filament from where it shouldn't be.

·····

🖨️ Printing setup

Each coaster and the holder has its own print profile, so you can pick and choose exactly which parts you want to make.

Please use the supplied 3MF files so the colour assignments, positioning, and layered colour effects are preserved correctly. Some of the icon designs rely on colour layering to recreate the subtle fade effect used in the original app icons, and that setup is only included in the 3MF profiles.

The coaster designs are intended for AMS printing. Most use a maximum of 4 colours, which suits a single AMS setup, while the Contacts coaster uses 5 colours.

The coaster holder is a separate print and can be completed alongside whichever coaster designs you choose. It is a straightforward print with only a small amount of assembly needed afterwards. This print profile is made up of three plates, the main unit, the lid (you might be able to fit the lid on the same plate as the main unit, depending on your print bed size) and the vented base unit.

Build plate

• Recommended: Textured PEI plate
• Coasters should be printed face down on the textured PEI surface to give a more natural, less “printed” finish to the visible face
• Coasters: print from the supplied coaster specific 3MF profile, feel free to tweak the assignments if you have some filament better suited to the app icon you are printing.

Filament suggestions

For the cleanest results, use strong solid colours with a good contrast between light and dark areas. A bright white, deep black, a bold blue, and saturated accent colours will help the icons stand out clearly. Silk filaments can look nice for display pieces, but standard PLA usually gives the sharpest icon definition.

·····

🏗️ Assembly

The coaster set itself prints as separate finished pieces, but the holder needs a small amount of assembly once printed.

What you will need

• Printed holder body
• Printed black vent piece
• A small amount of glue

Build plate and setup

Print the holder parts using their supplied profiles. Make sure both parts are fully cooled before removing them from the plate to avoid any slight warping on the contact surfaces.

Assembly steps

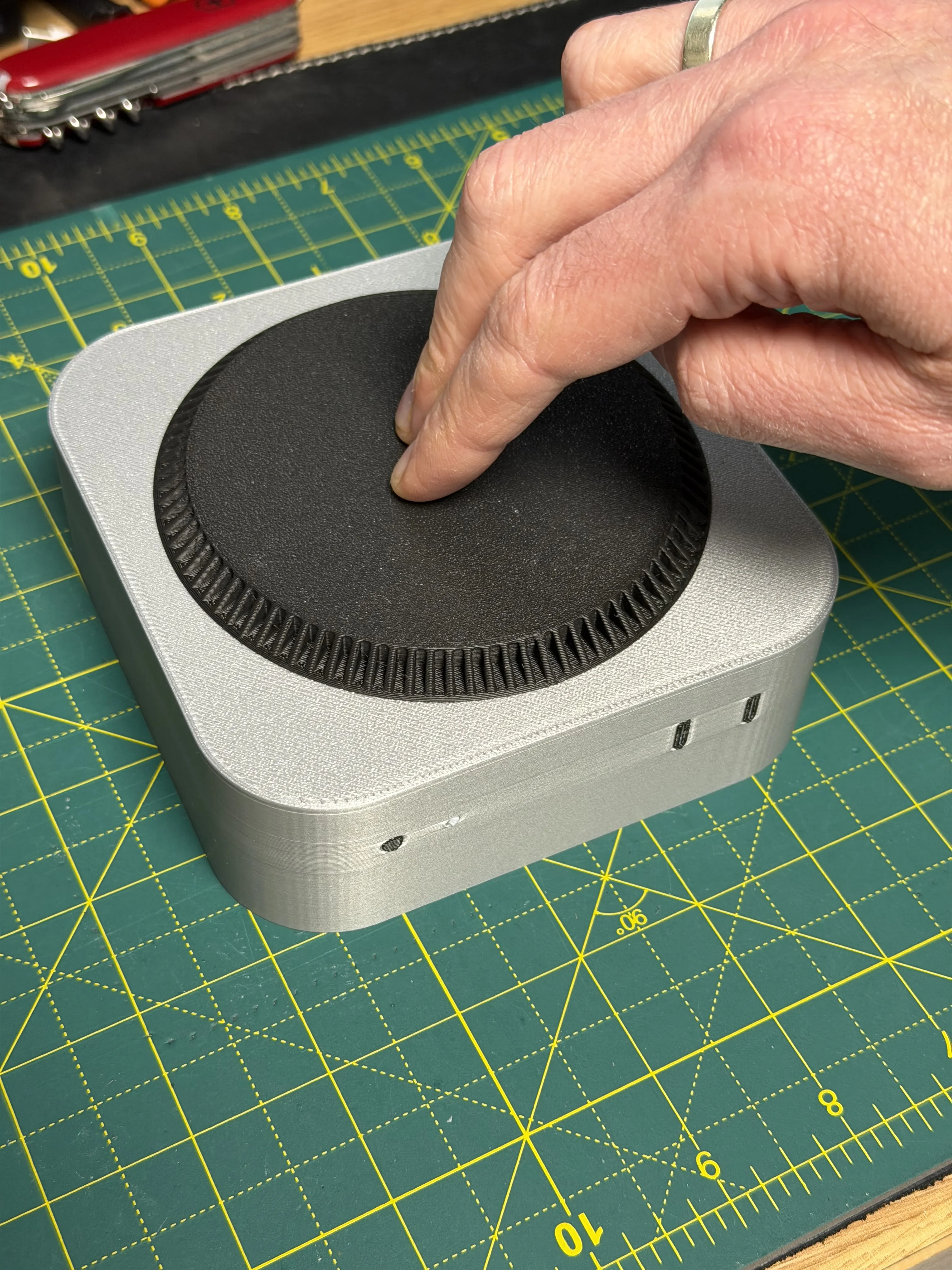

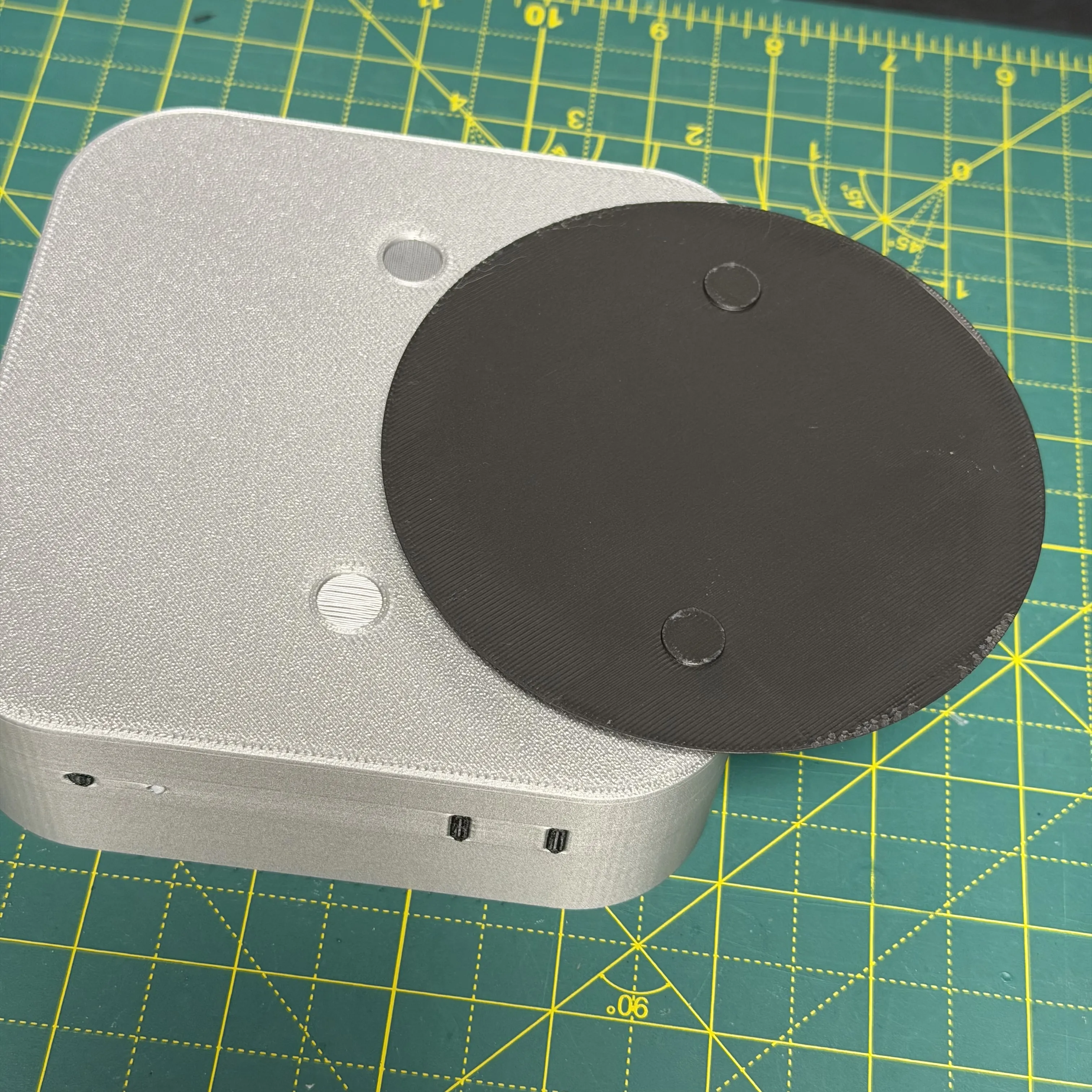

1. Take the bottom vent piece and test fit into the underside of the main body. The body has two cutouts and the vented part has two plugs that match up to help you align the two parts together.




2. Apply a small amount of glue either on the top of the vent, or the bottom of the body, then put both parts together, lining it up do the plugs go into the holes.

3. Press firmly into place and hold for a few seconds.




4. Allow to fully cure before use.

Once assembled, the holder is ready to store up to 8 coasters and looks great alongside the full icon set. Enjoy putting your own favourite combination together, a lid is included to rest in place to keep things looking tidy (and Mac like) when not in use.

·····

🧰 Troubleshooting

Model Doesn’t Match Preview / Wrong Colours / Odd Layout

If your model looks misaligned, missing colours, or prints incorrectly, please make sure you are using the supplied 3MF print profiles, not the raw STL or STEP files.

The 3MF files contain all the model specific tuning, including:

• Correct object positioning
• Bottom shell thickness (which is very important for avoiding seeing the infill through the design)
• Colour allocations
• Print specific adjustments

To use them properly:

• Either click “Open in Bambu Studio” directly from MakerWorld,
• Or download the .3MF file and open it manually in Bambu Studio.

Avoid using the raw STL or STEP files unless you specifically want to rebuild your own profiles, they do not include the tuned print settings.

Colours look flat or the fade effect is missing

Some of these coaster designs use colour layering within the supplied 3MF to recreate the softer gradient style seen in the original app icons. If that effect is missing, double check that you opened the correct 3MF profile for that coaster and did not import only the STL.

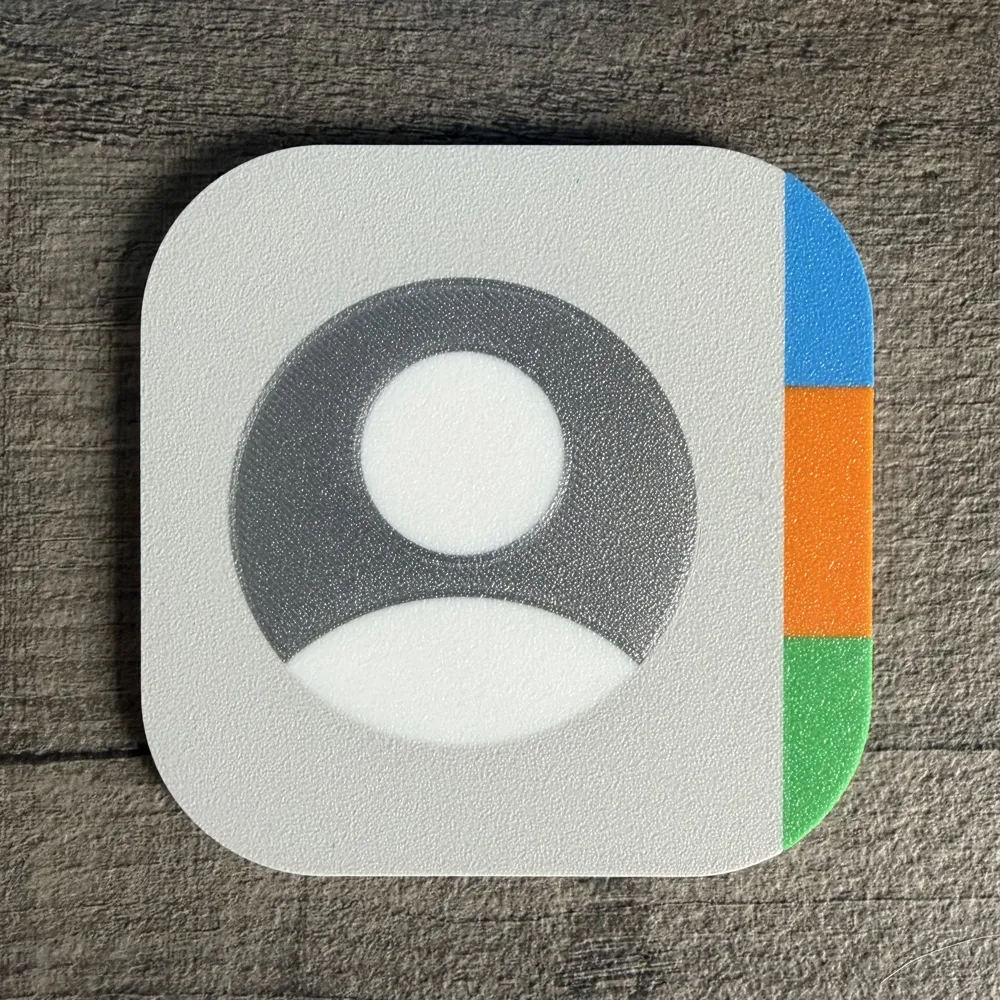

Contacts coaster is not matching the other profiles

The Contacts coaster uses 5 colours rather than 4, so make sure you have assigned all required colours before slicing and printing.

·····

⚠️ Copyright / Safety / Final notes

These coasters are fan made designs inspired by familiar iOS and macOS app icon styling and are intended for personal use and display.

These files are for personal use only and must not be sold, redistributed, or used for commercial purposes in any form, whether physical or digital.

Please note that brand names, product names, and visual references remain the property of their respective owners.

As with any printed coaster, avoid placing extremely hot items on them unless you are confident in the material you have used and the environment they will be used in. I've personally been using PLA printed coasters for over a year without issue, but your experience may differ.
