YiBOX-Simple Filament Sealed Box

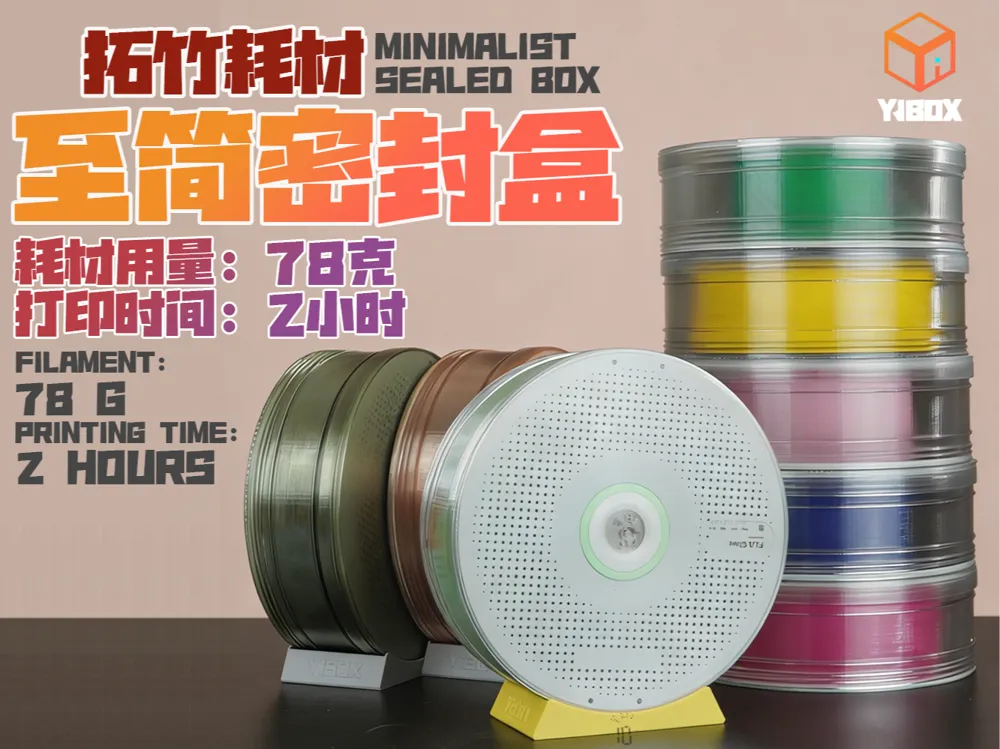

This model is printed using vase mode, using minimal filament (70+g), minimal time (around 2 hours), and a tight structure to achieve moisture-proof sealing for filament(Configuration 1 Enhanced Version (recommended), wall thickness 0.8, filament 90g; Configuration 2 Standard Version, wall thickness 0.6, filament 78g) For detailed information, please watch the video

Note: All configurations can be printed with a 0.4mm nozzle (standard)

Version update notes:

Version 1.02: Optimized the curvature of some threads, improving strength after printing (Configurations 1, 2)

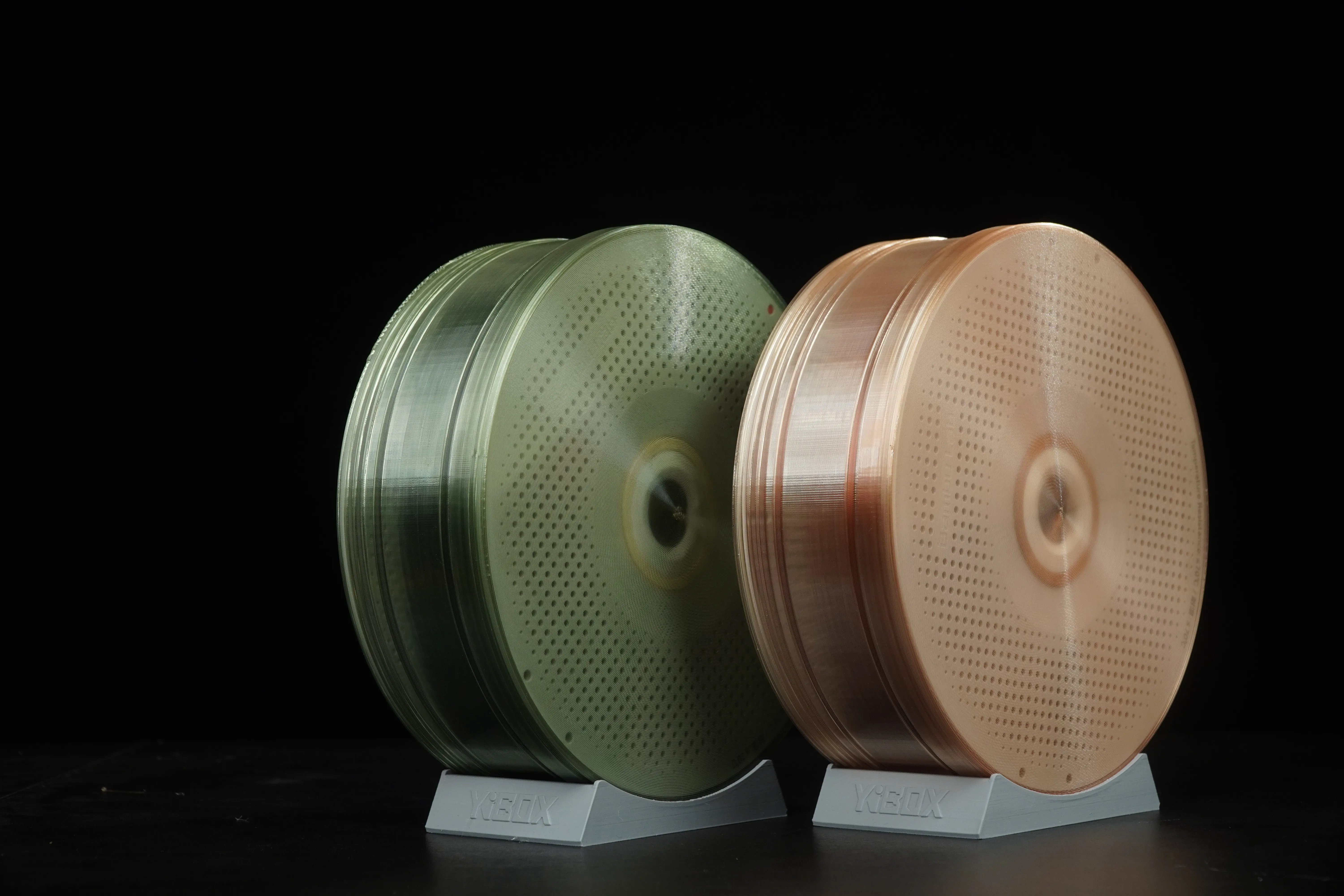

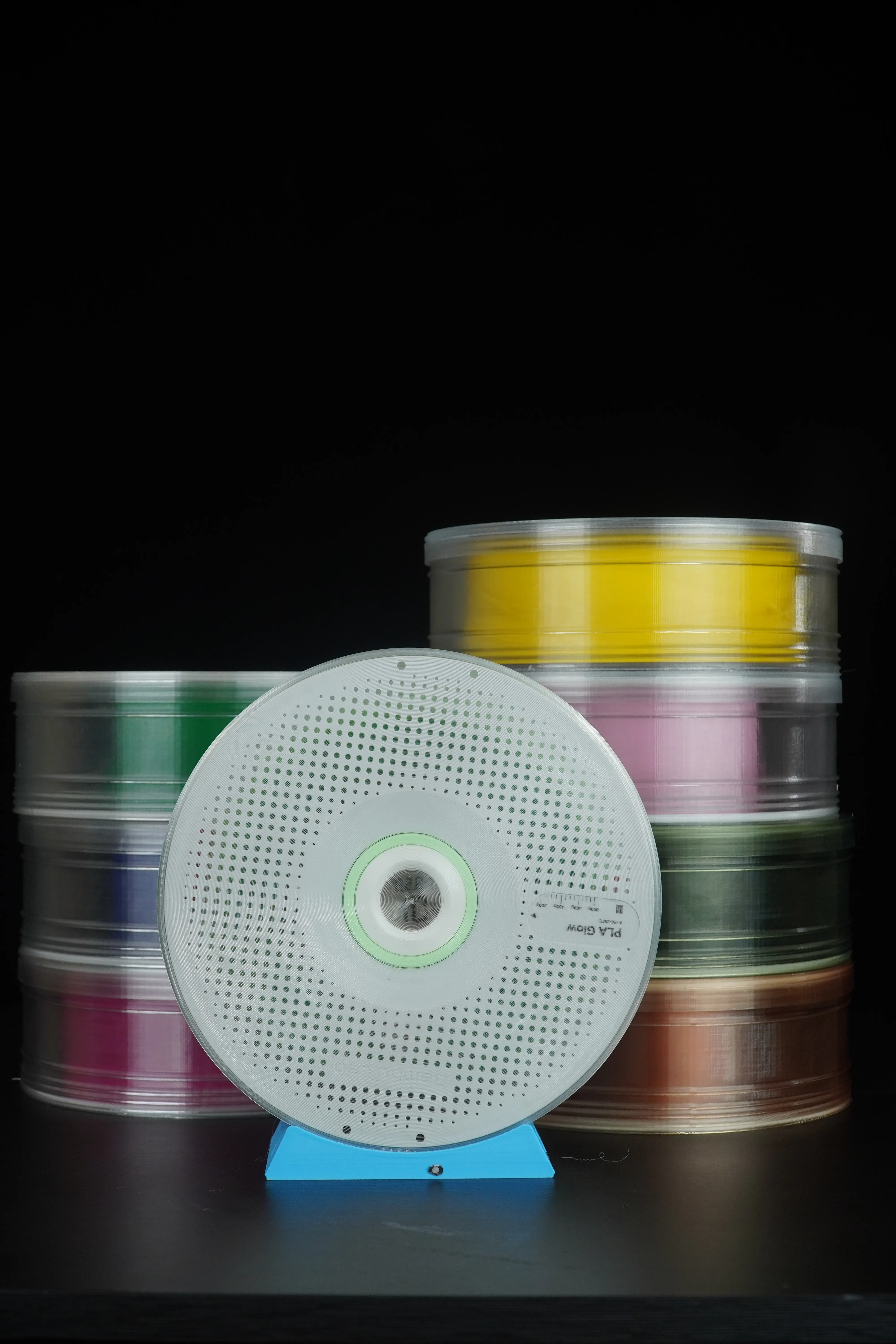

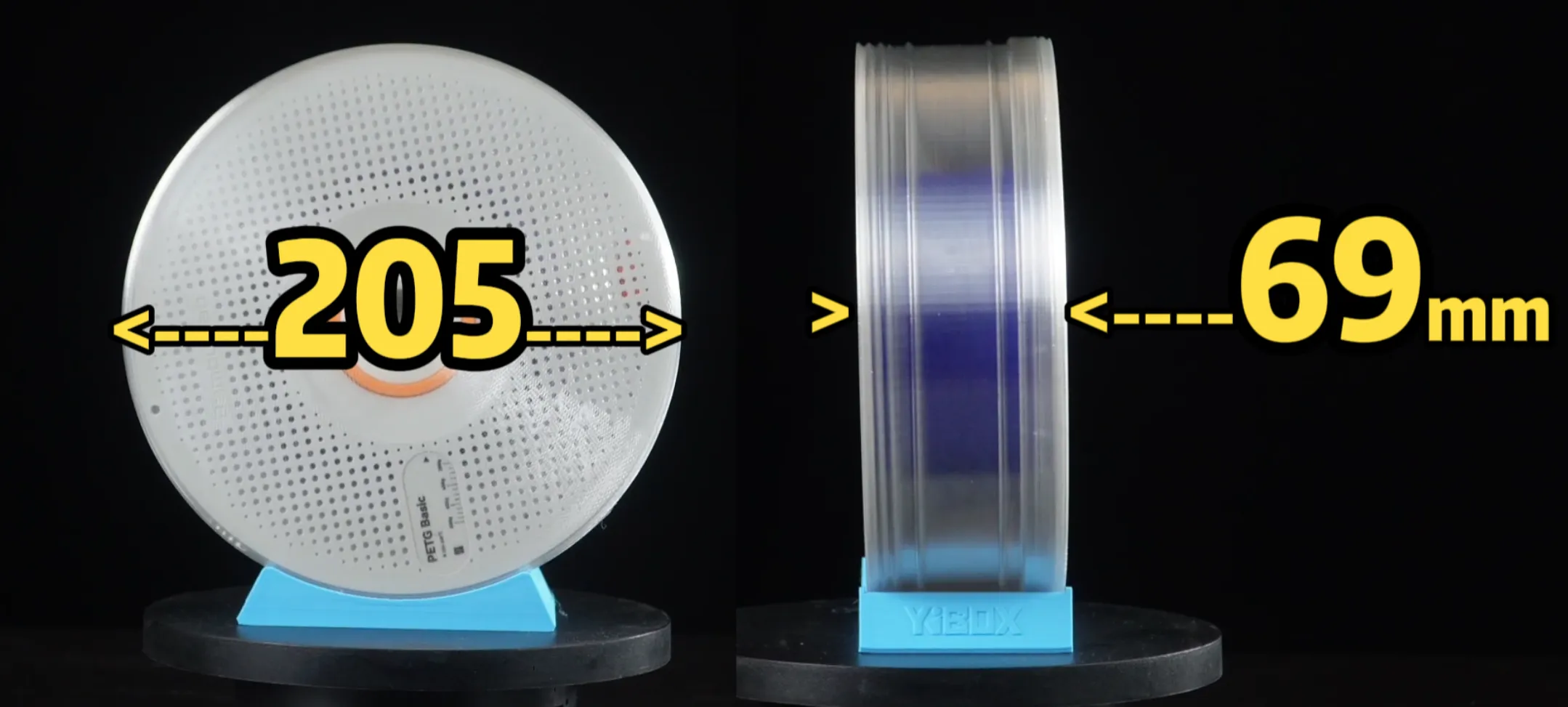

The model has a diameter of 205mm and a thickness of 69mm, which can almost seamlessly wrap around a Bambu Lab standard filament spool

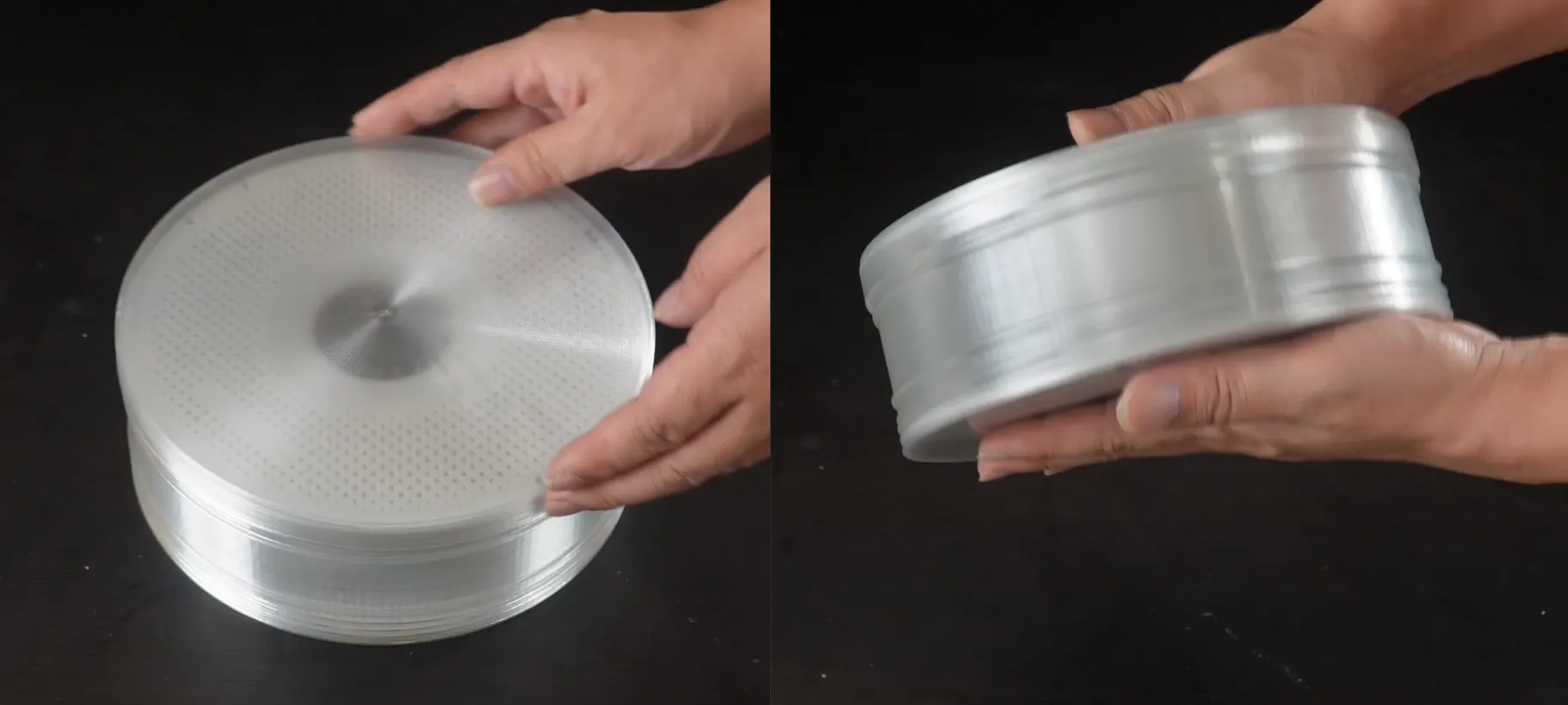

The box body uses a rib-like structure to ensure basic strength; after inserting the filament, the spool itself acts as internal support, providing overall strength

The lid and box cover dimensions are precisely calculated, with a layer height of 0.28 and line width of 0.6, twist-closed; after oil seal treatment, it can achieve a leak-proof sealing effect

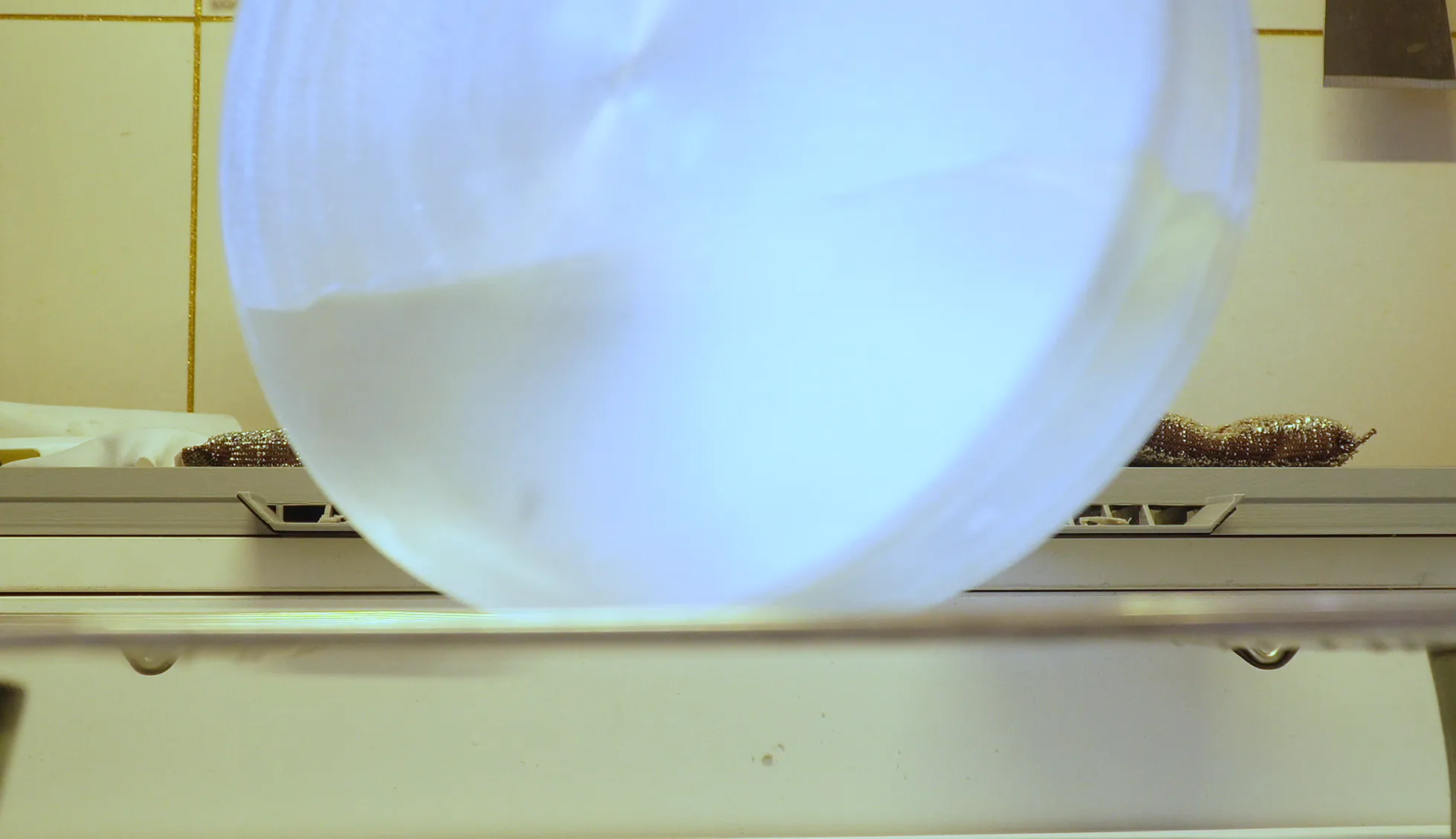

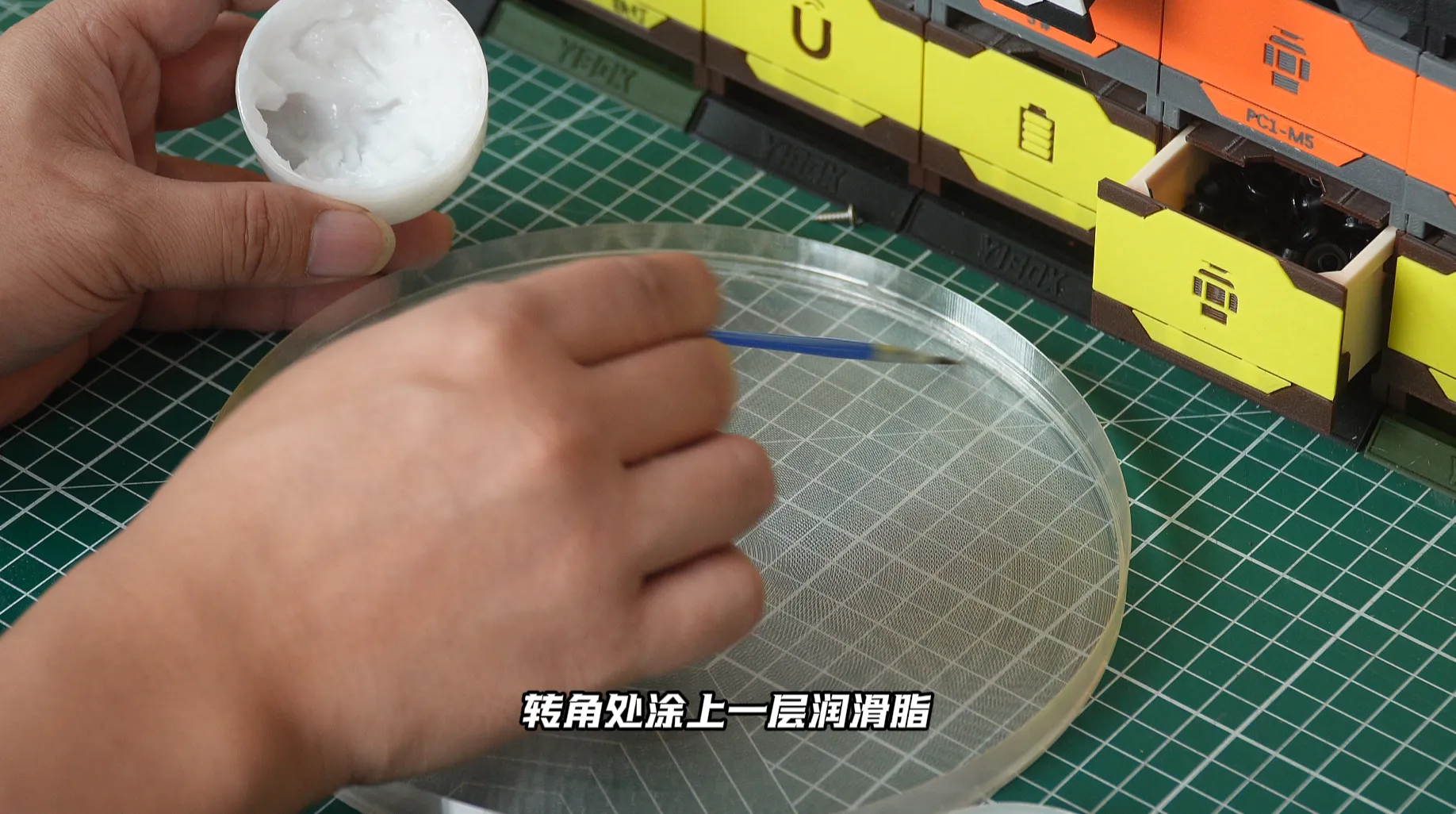

A sealed box with grease applied to the corners can be completely leak-proof:

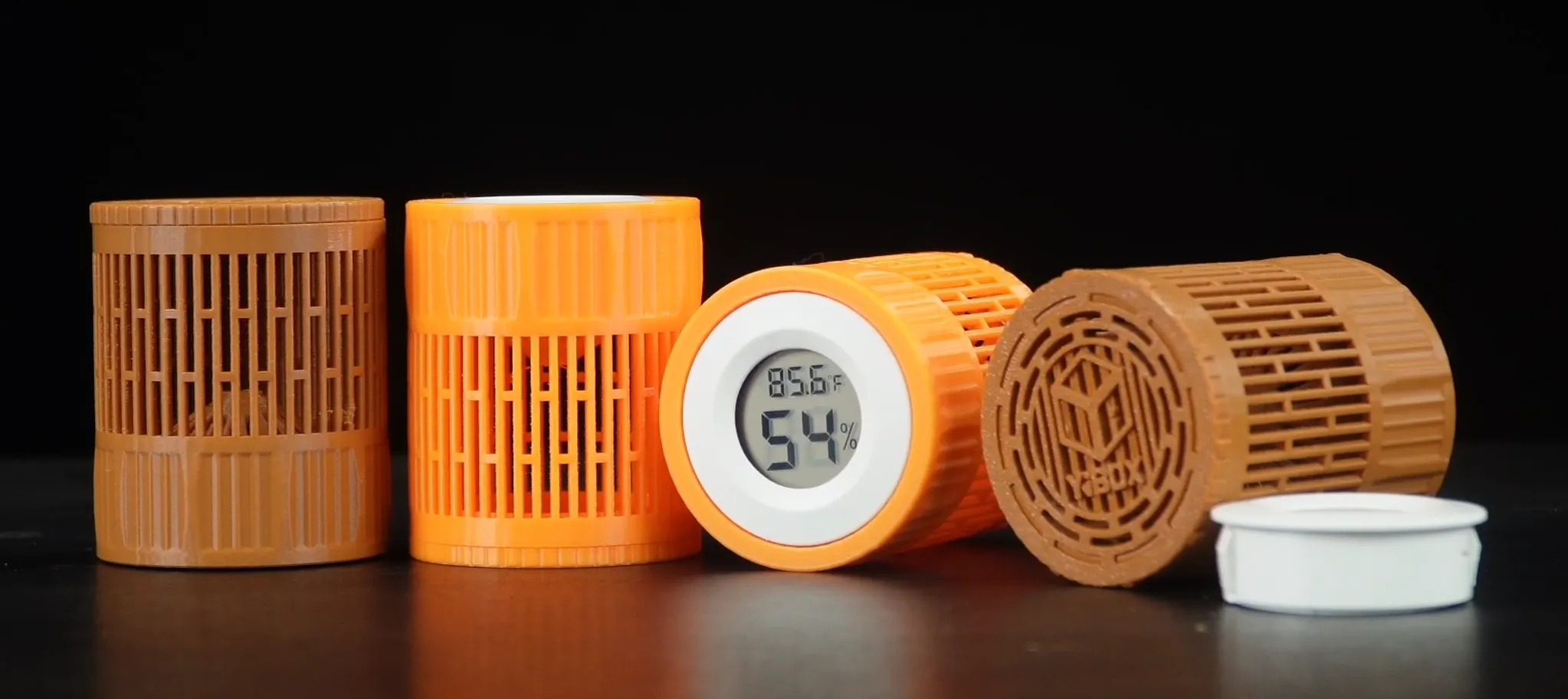

By placing the matching desiccant box (Configuration 2) and molecular sieves inside, the humidity inside the box can be quickly reduced to below 10% and maintained for a long time

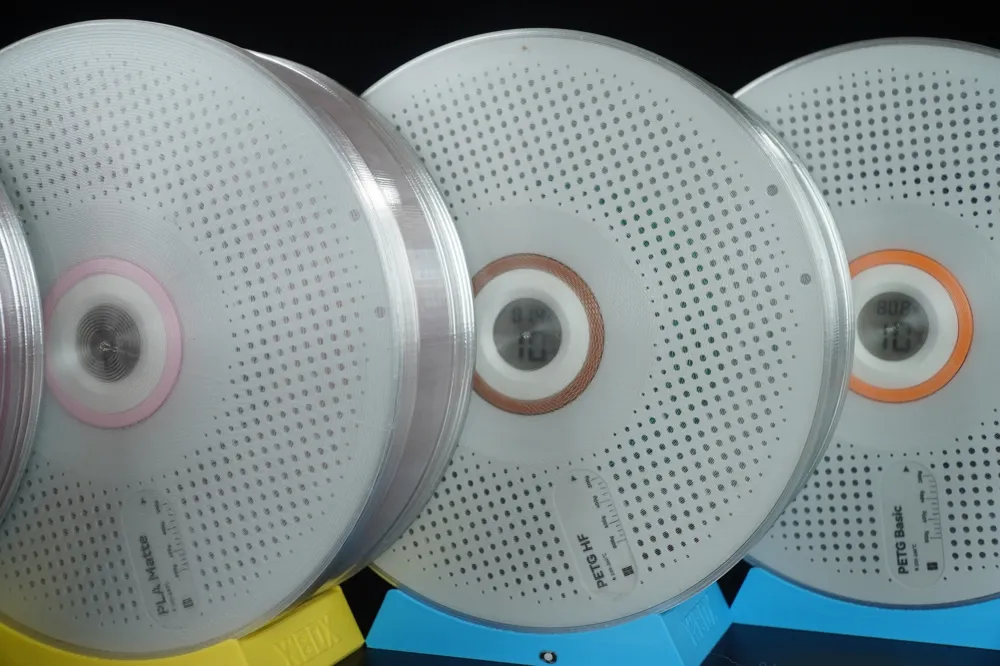

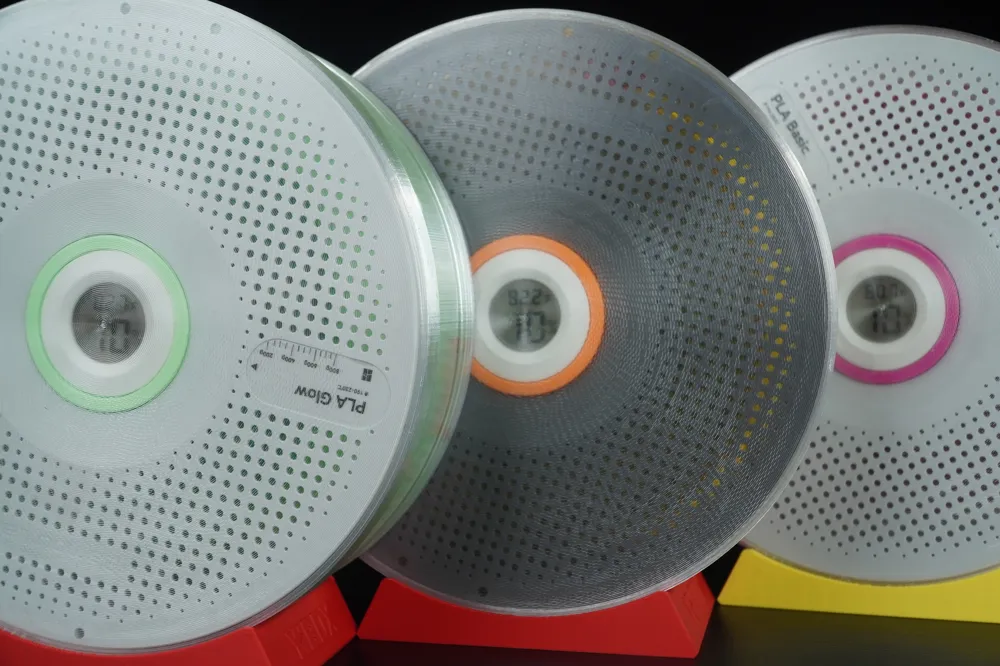

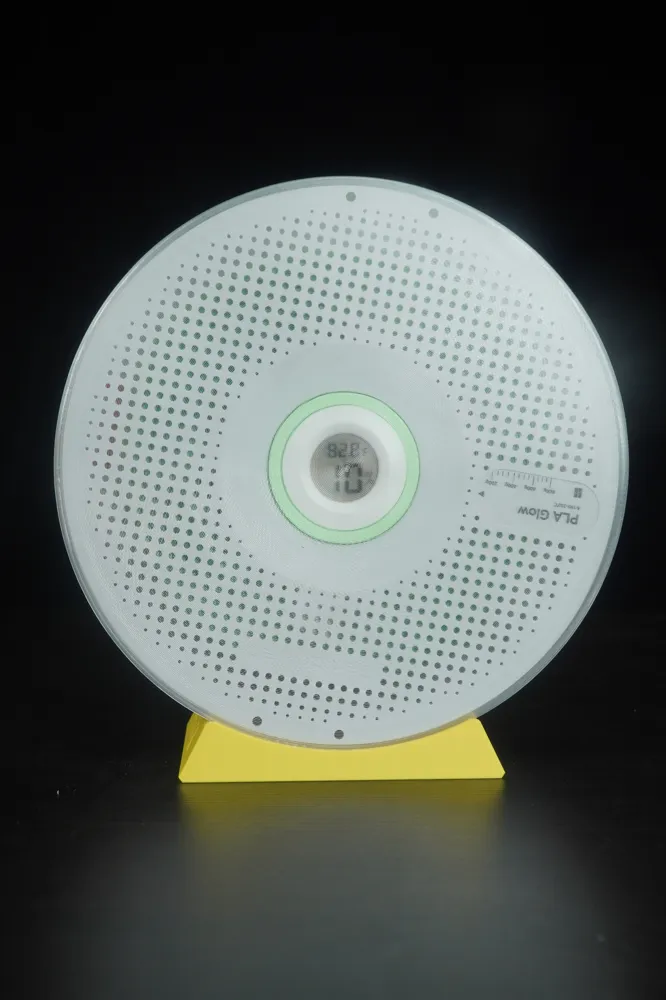

The hygrometer uses the XF 001 round hygrometer, sold on the official website https://s.click.taobao.com/NyTDK3n You can also find alternatives on Taobao The size is the same

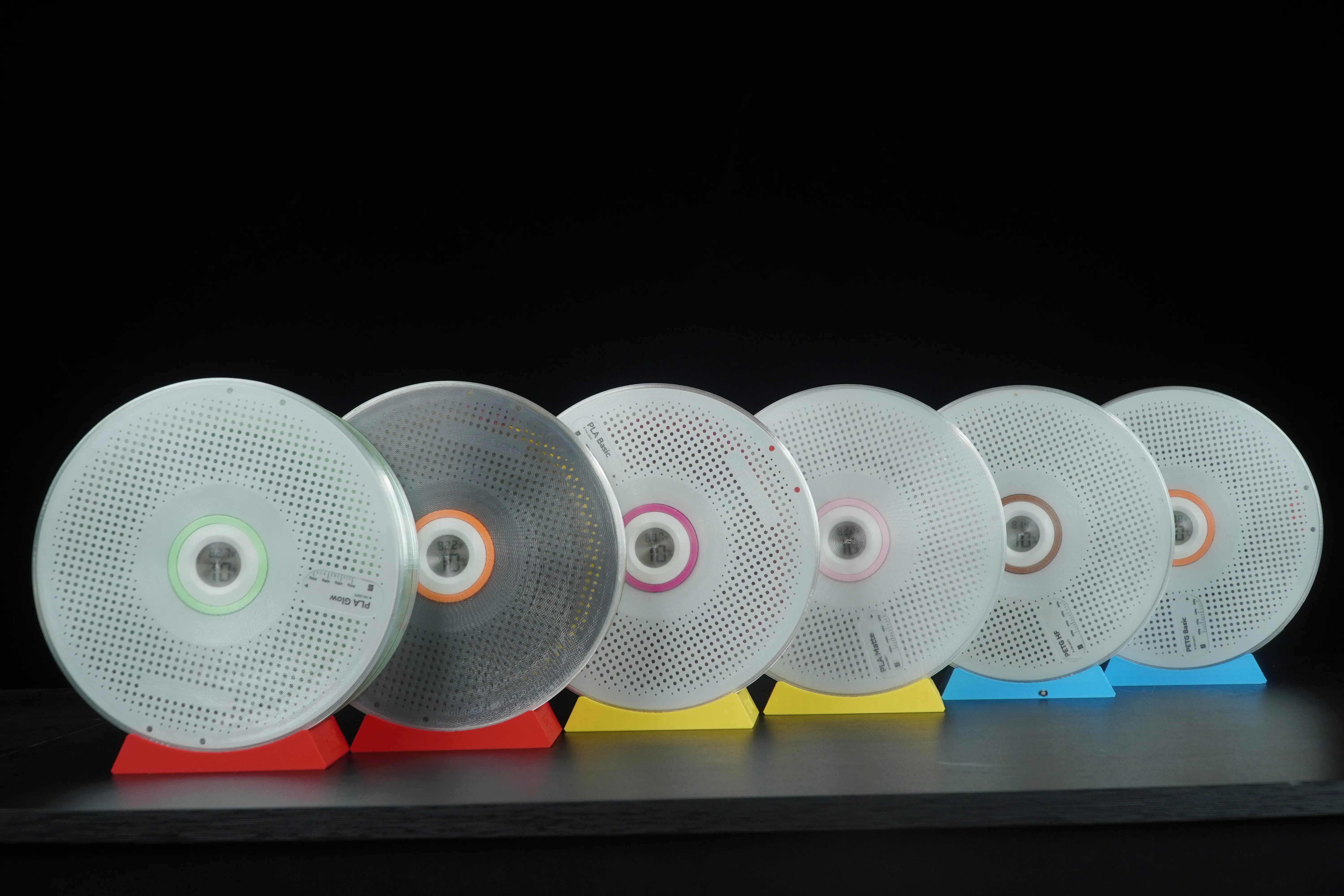

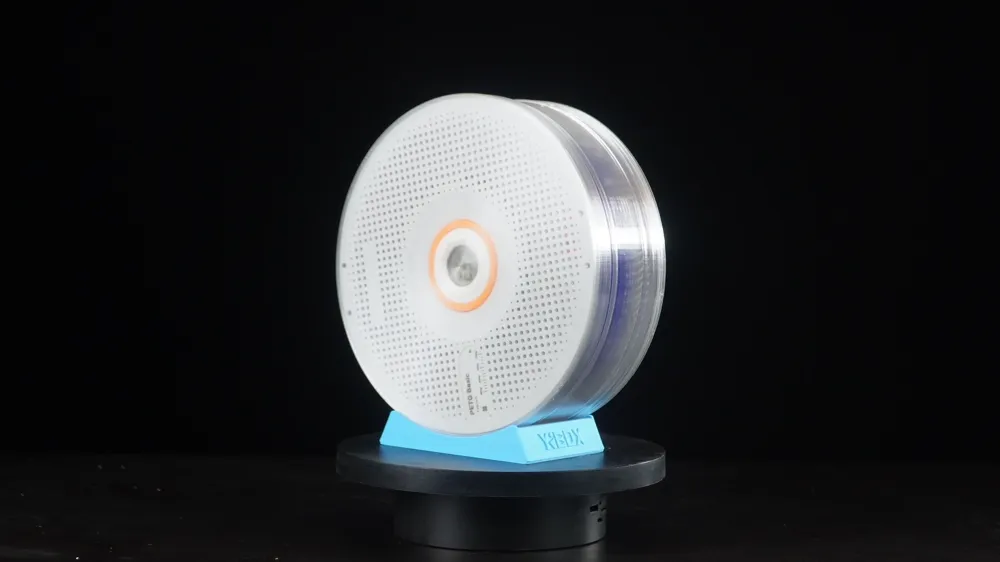

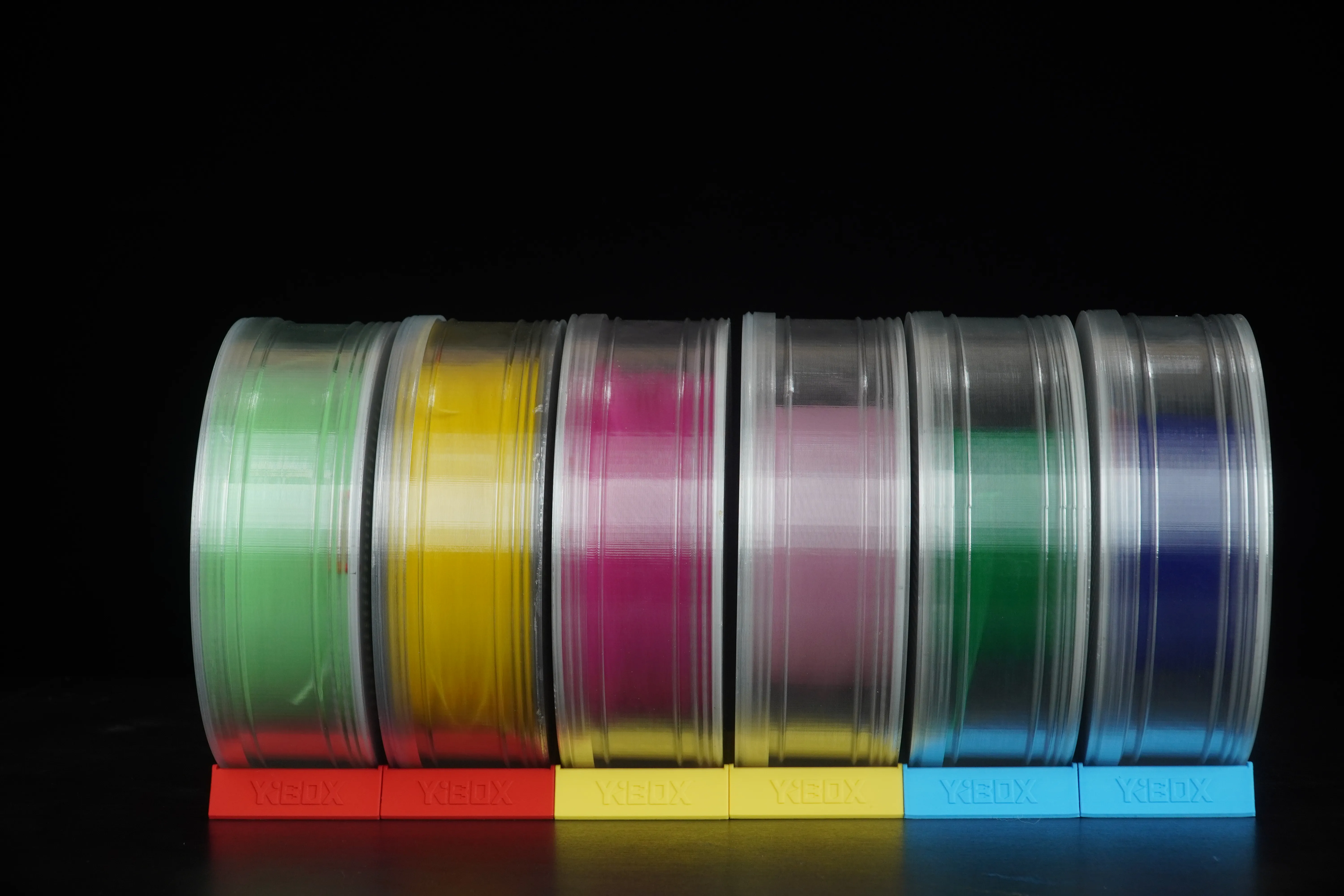

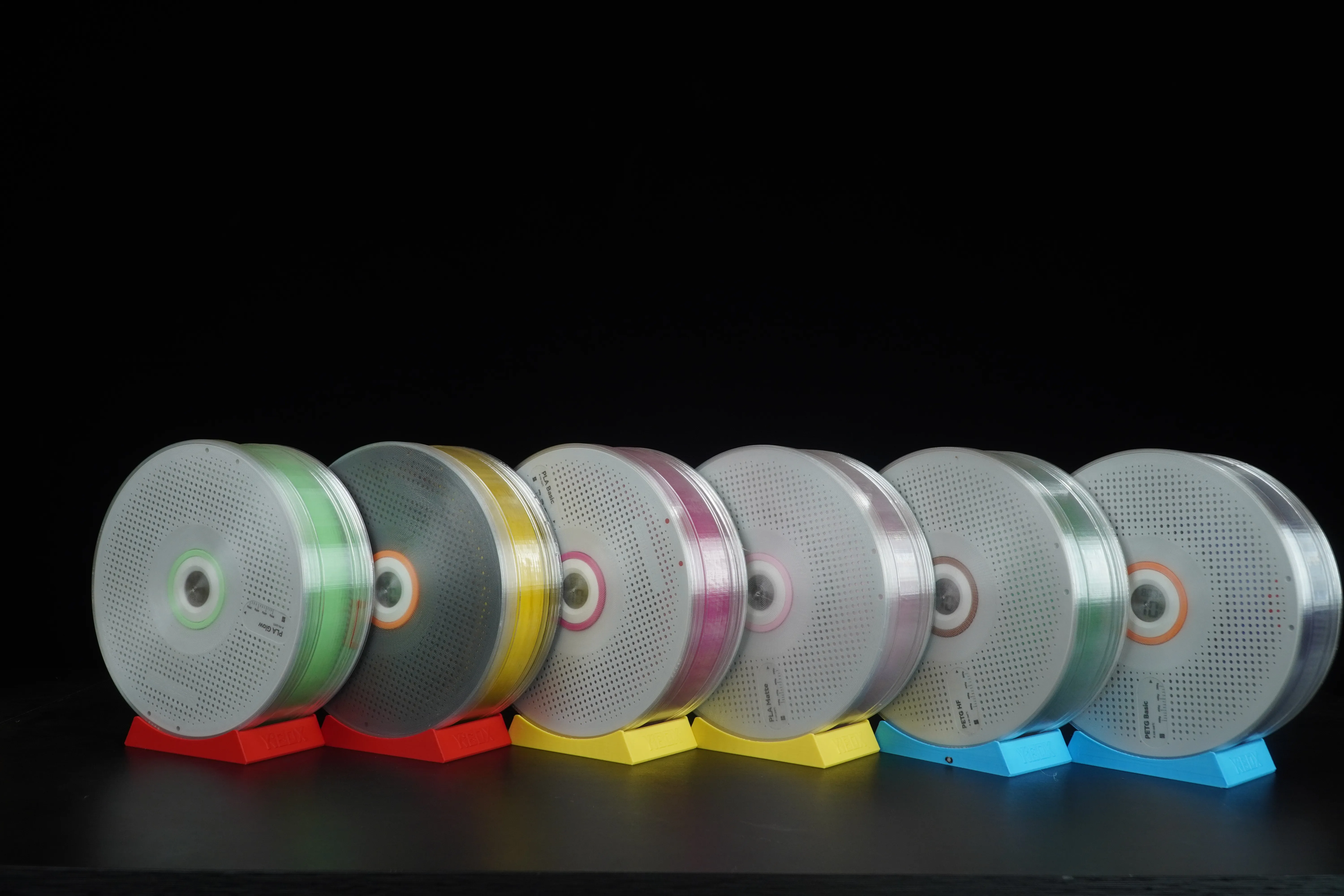

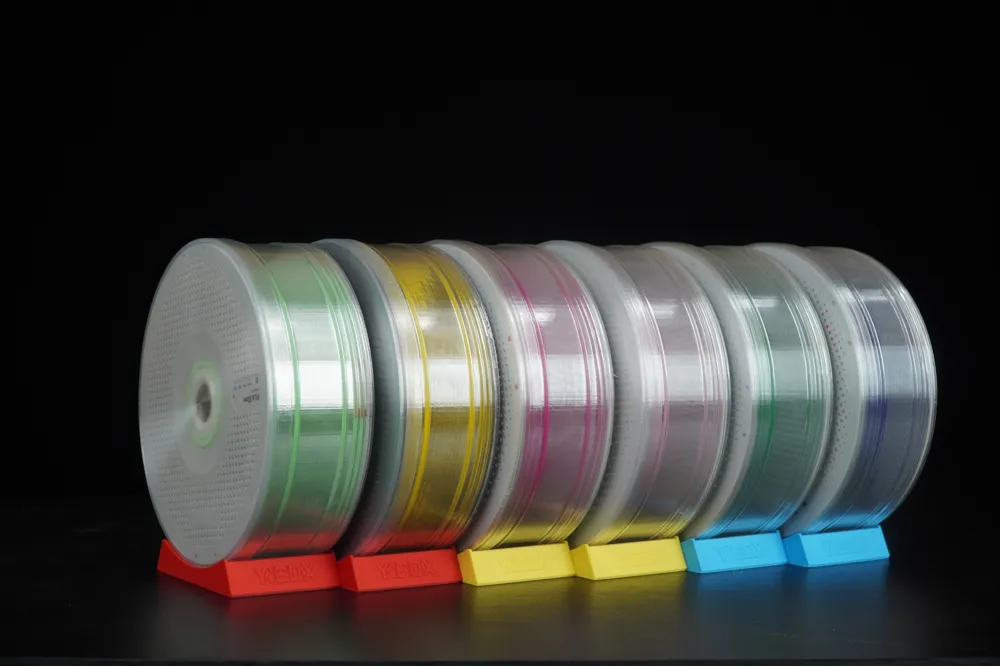

A matching minimalist independent base (Configuration 3) is designed for aesthetically pleasing and elegant filament storage

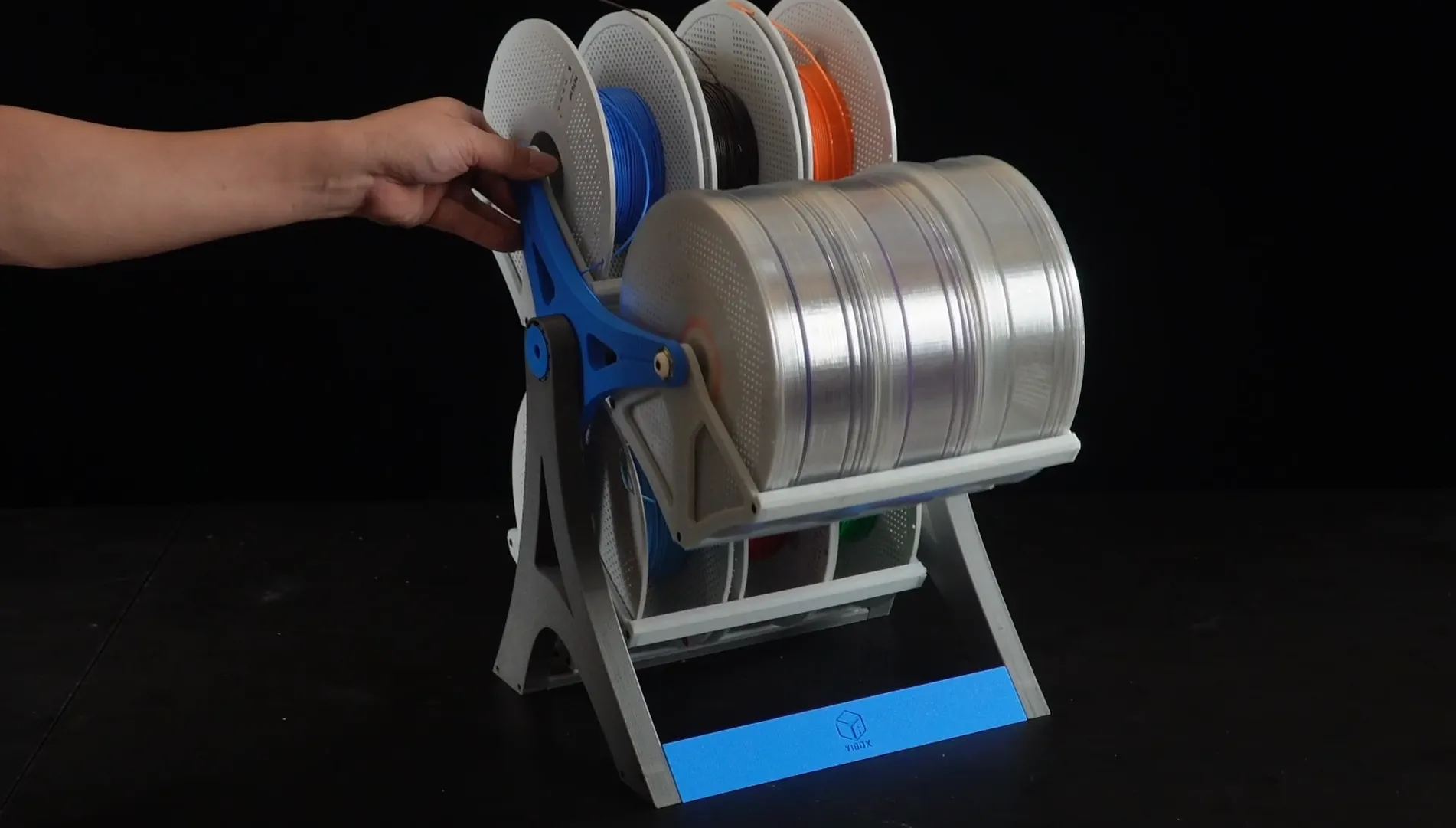

This sealed box is also compatible with the YiBox rotating filament rack

Filament rack model link: https://makerworld.com.cn/zh/mod止els/1992324-yibox-xuan-zhuan-hao-cai-jia-hao-cai-shou-na-mo-ti#profileId-2218367

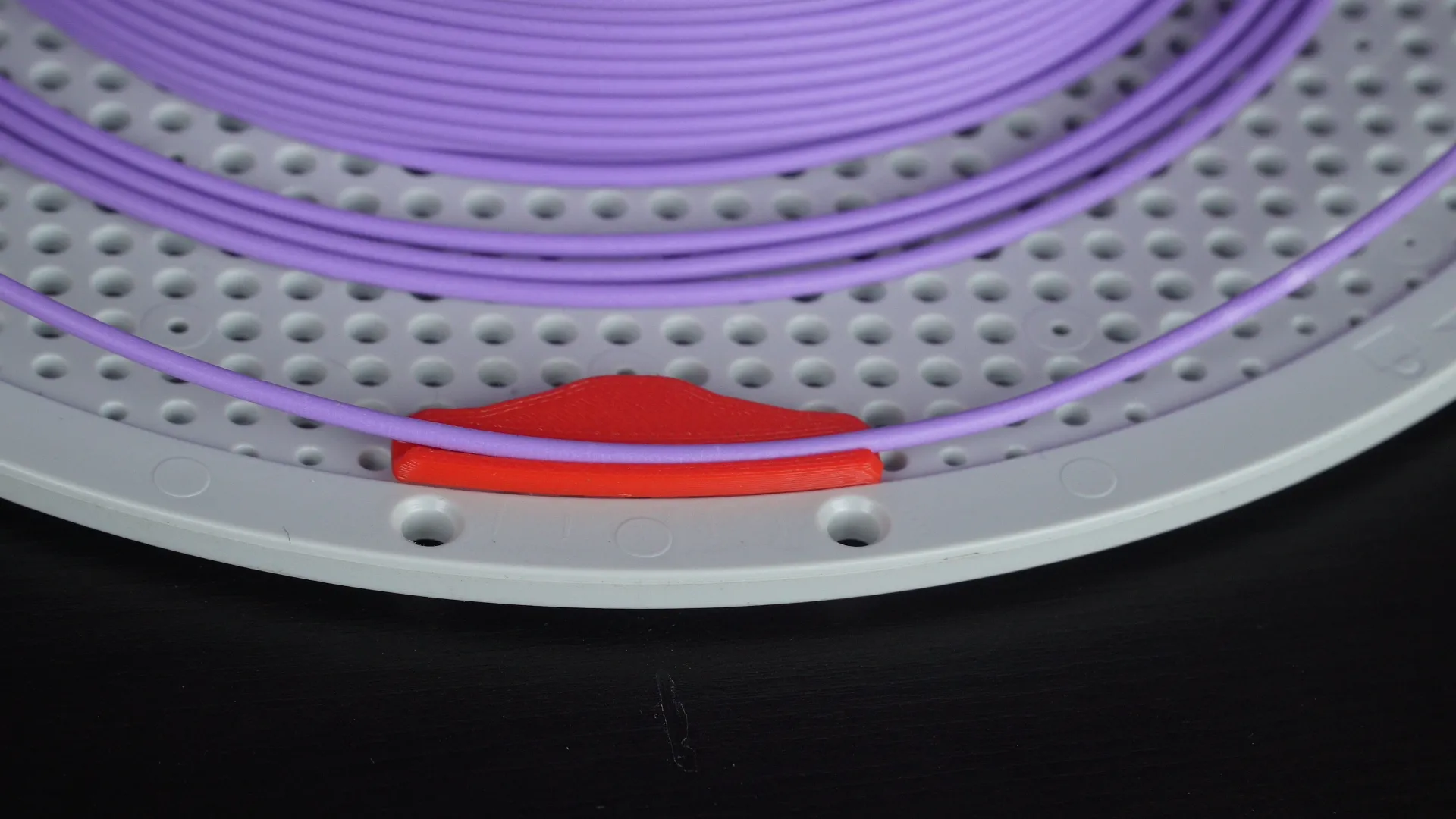

Additionally, for better spool organization, an internal filament guide clip (Configuration 4) has also been designed

Important notes!

1: This model has a certain printing difficulty Please use qualified filament for printing, and be sure to use PETG-type filament Filament personally tested

JAYO Transparent PETG: https://s.click.taobao.com/NuhgL3n

Bambu Lab PETG Translucent: https://s.click.taobao.com/Cl8ghsm

Filament brands successfully used by fellow modelers: R3D, Sanci

For other filament brands, please feel free to add them in the comment section!

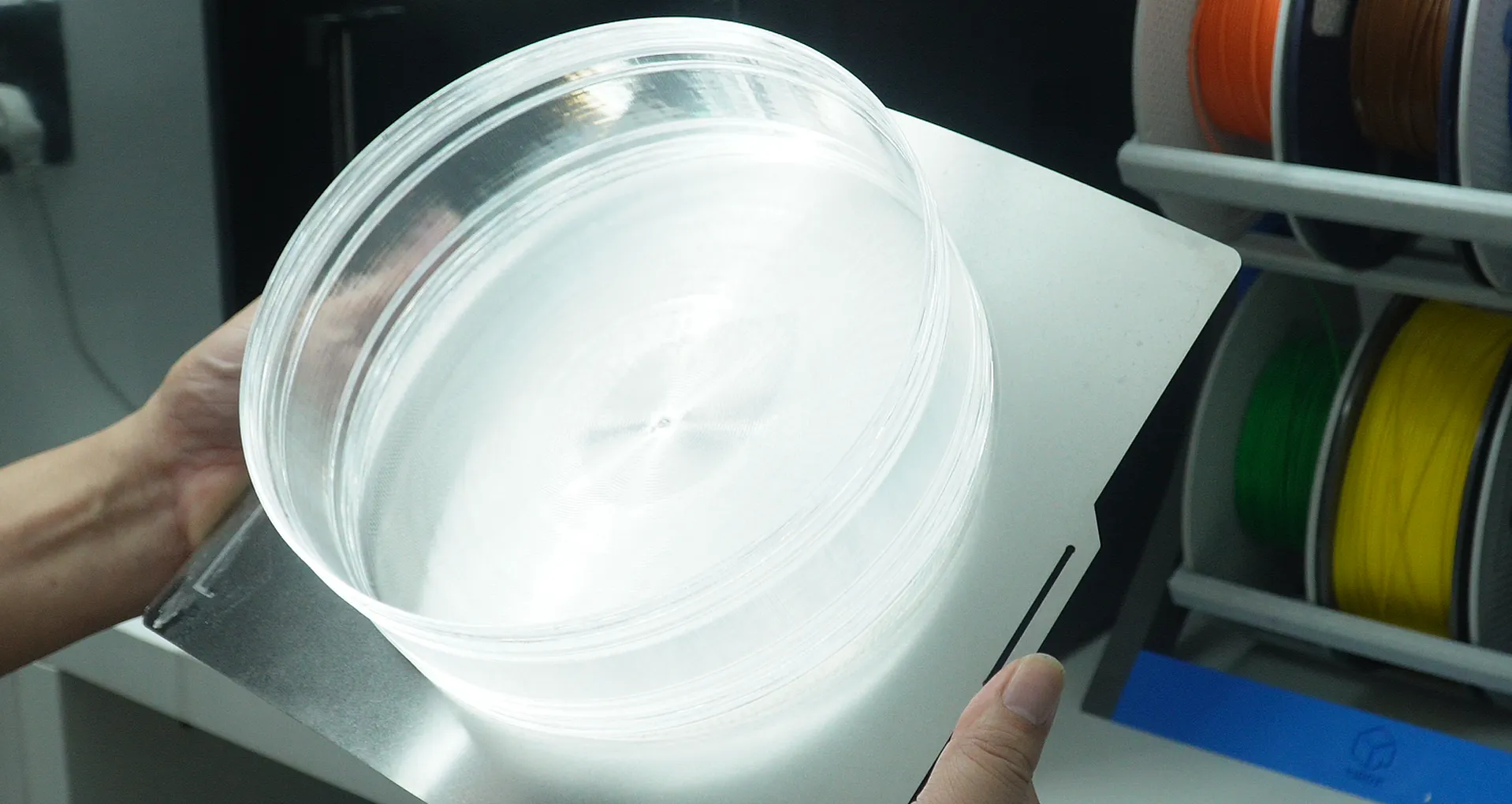

This model is recommended to be printed on a smooth plate If not available, a standard textured plate can also be used The transparency will be slightly lower, but you can still see the spool inside When using a smooth plate, glue must be applied, otherwise the filament will not stick!!!!! Never use a cold plate; the bottom cools too quickly, and the layers will delaminate without enough bonding time!!!!!!!!

For sealing tests of various filaments, please refer to my Bilibili video: AMSLIT Super Tight Sealed Box Official Version

2: In vase mode printing, some connecting points are very fragile After printing is complete, be sure to let the heated bed cool down completely before removing the part!

Come give your opened filament a good home!
