DeWalt Plunge Router Jig
Print Profile(1)
Description
Just a regular guy designing prints for the masses.
Hey Everyone!

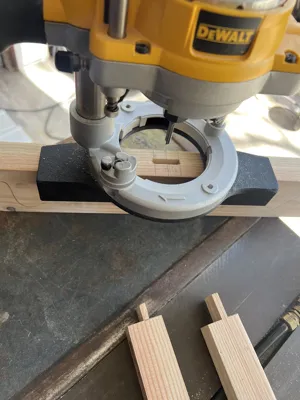

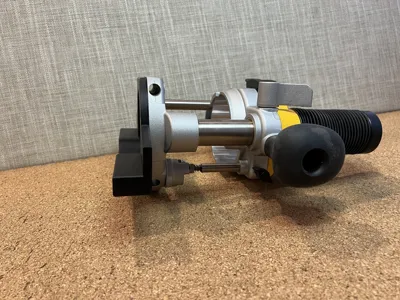

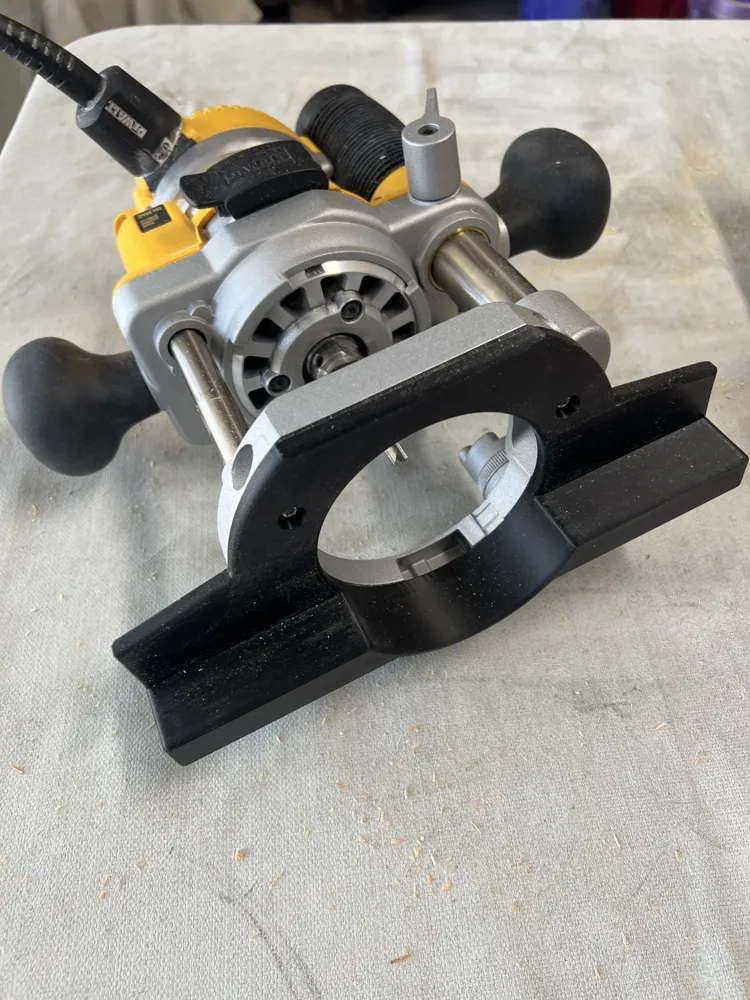

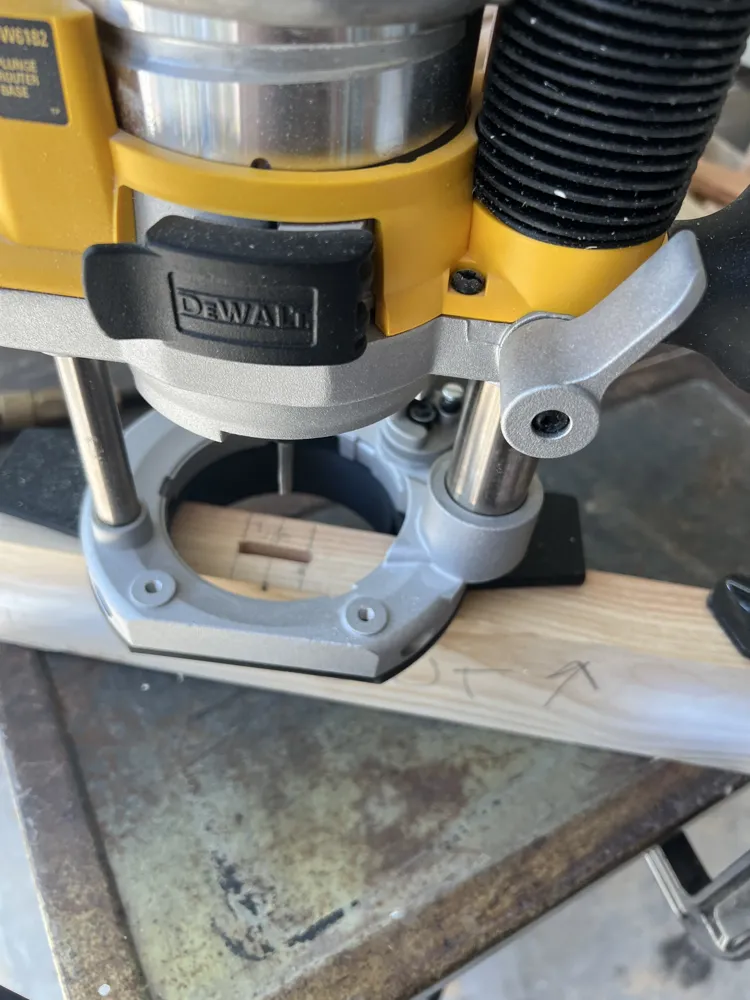

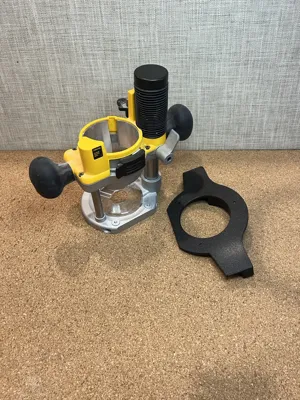

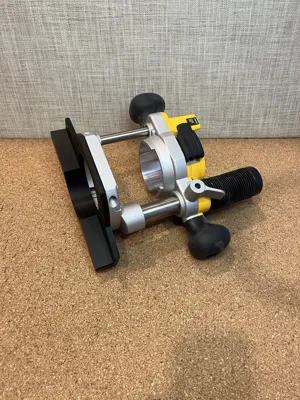

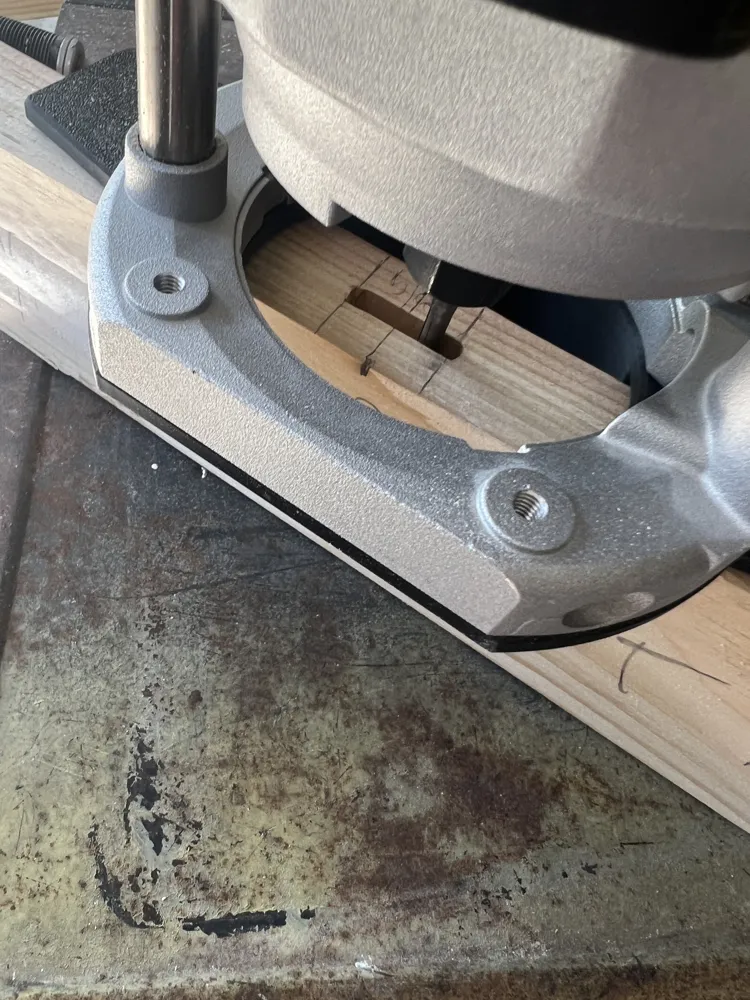

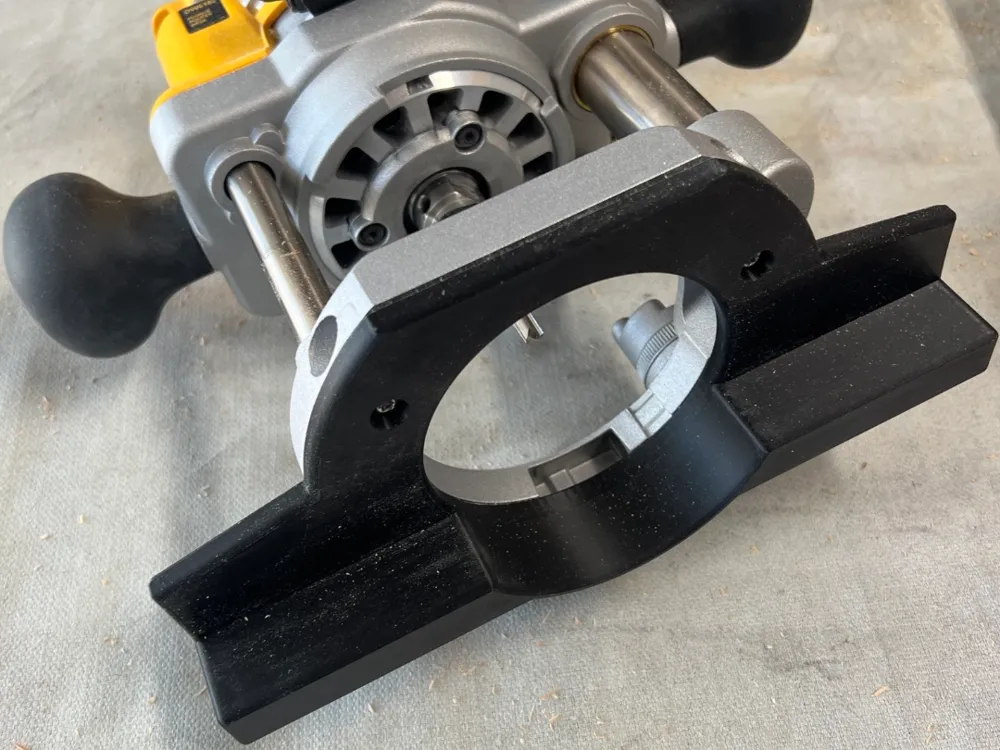

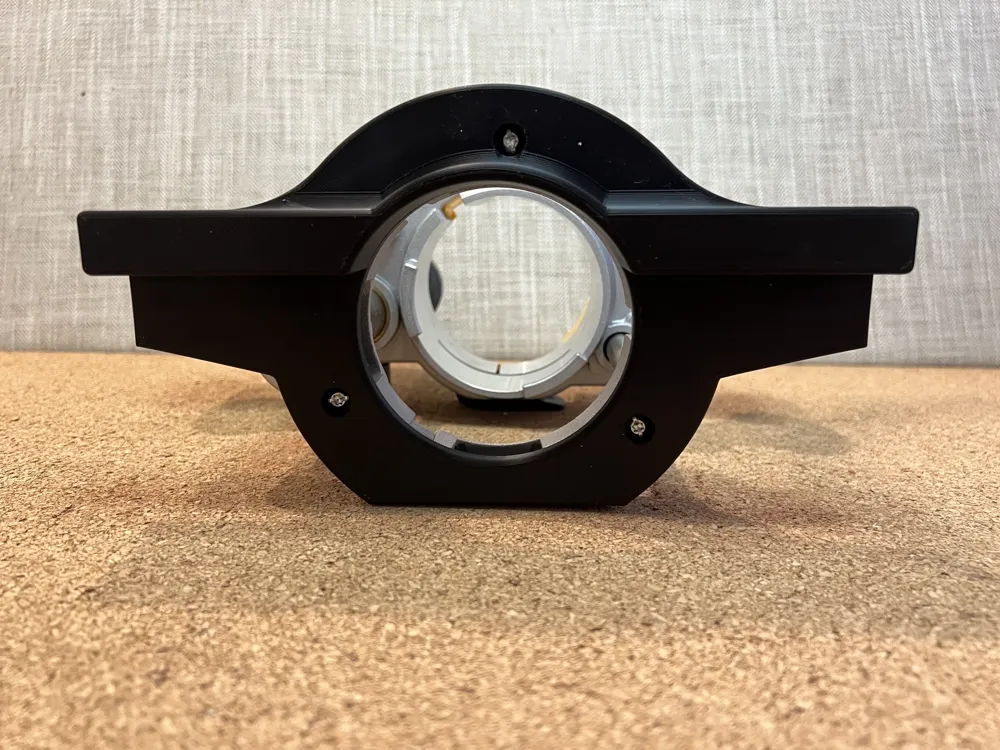

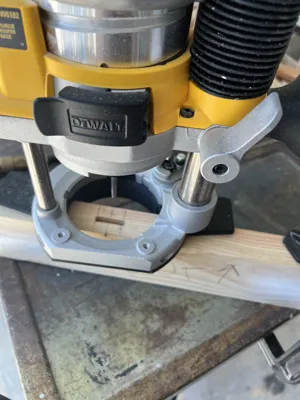

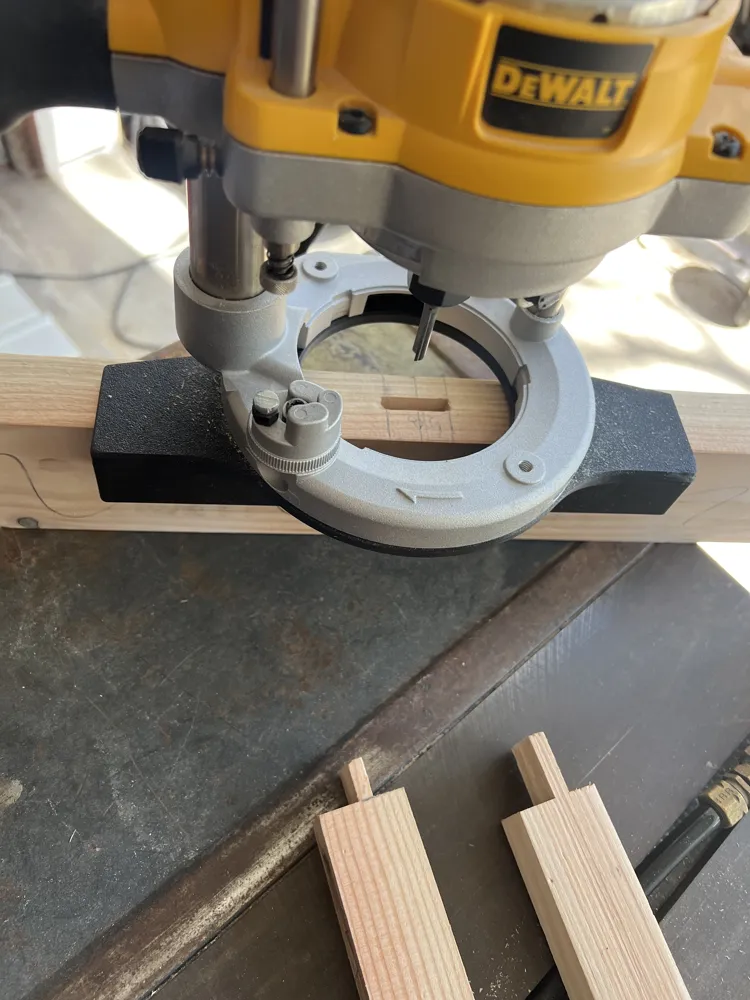

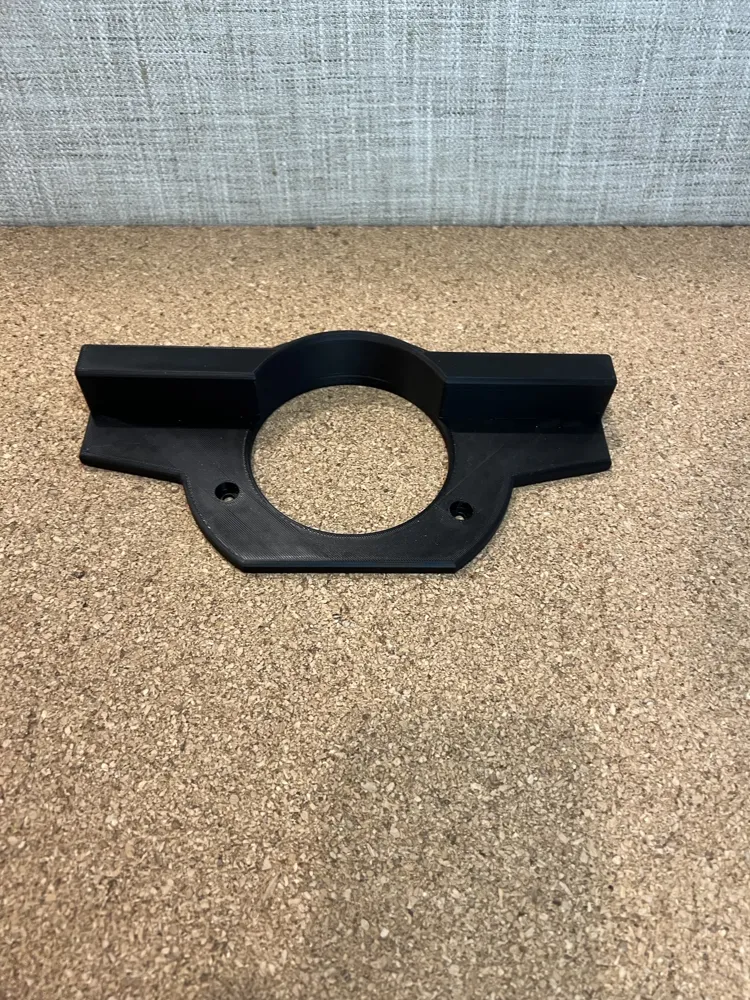

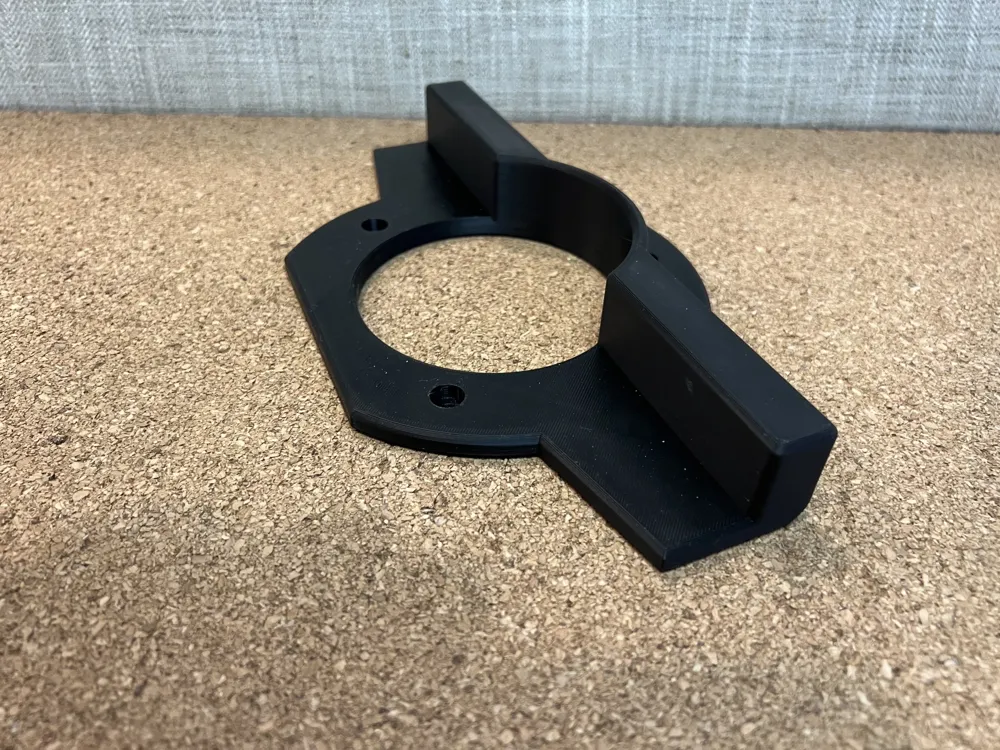

This guide is set up to work with the DeWalt DW 618 router and the DW 6182 plunge base. I'm not sure of other fitments so you may have to do a little research for compatibility if your router base is different. I spent a little extra time with R&D and can say the 3 factory mounting screws line up perfectly. Its designed to offset a 1/4 inch plunge bit 5/8 of an inch from the edge of your styles and rails. It works great to mortise the holes when building wooden sash windows. I have used mine on several occasions with great results!
Print Specifications:
0.4 mm nozzle
0.2 layer height
3 wall loops
5 shell layers top and bottom
10 % infill
no supports needed
Boost Me (for free)
If you enjoy my models, please consider following me, leaving a comment, like, and Boost!
Link to my models:
https://makerworld.com/en/@Little_Eddy_M/upload
Instagram link:
https://www.instagram.com/lem_little_eddy_m?igsh=MWl3NHloOTBiaHY3OQ%3D%3D&utm_source=qr
YouTube:
https://www.youtube.com/@LittleEddyM
IMPORTANT:
CAUTION: Printed models may contain small parts or parts that may break during use, creating a choking hazard. Keep away from young children and always provide adult supervision
These models are for "PERSONAL USE ONLY" and are provided "AS IS" without any expressed or implied warranty of safety, functionality.
Use of these files and any printed parts is at your own risk.
