Description

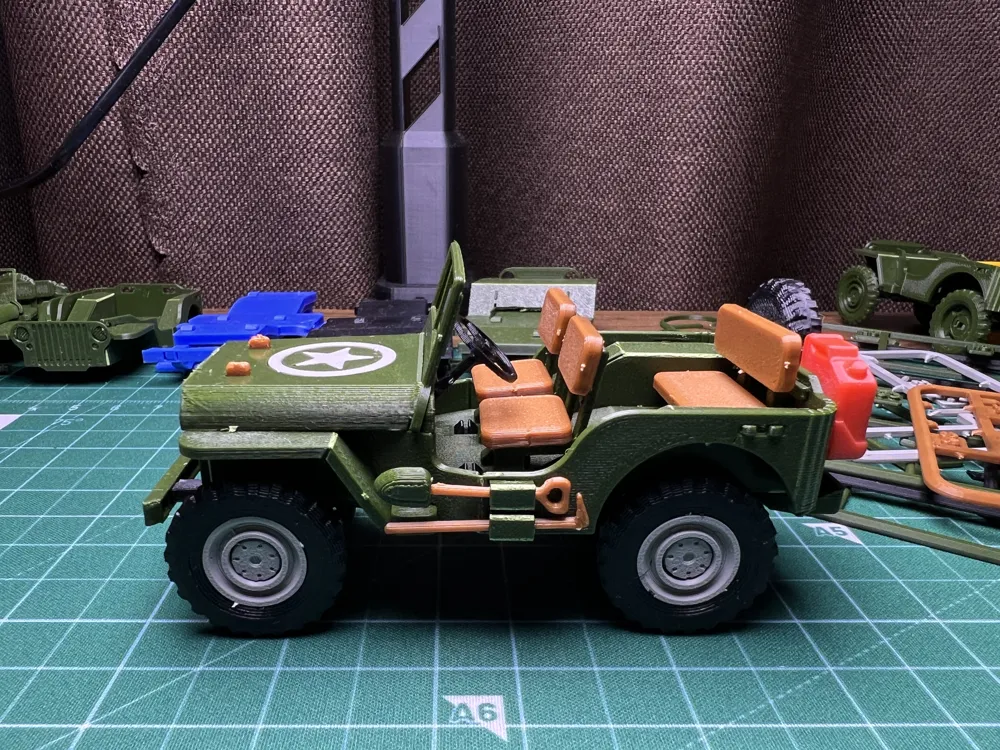

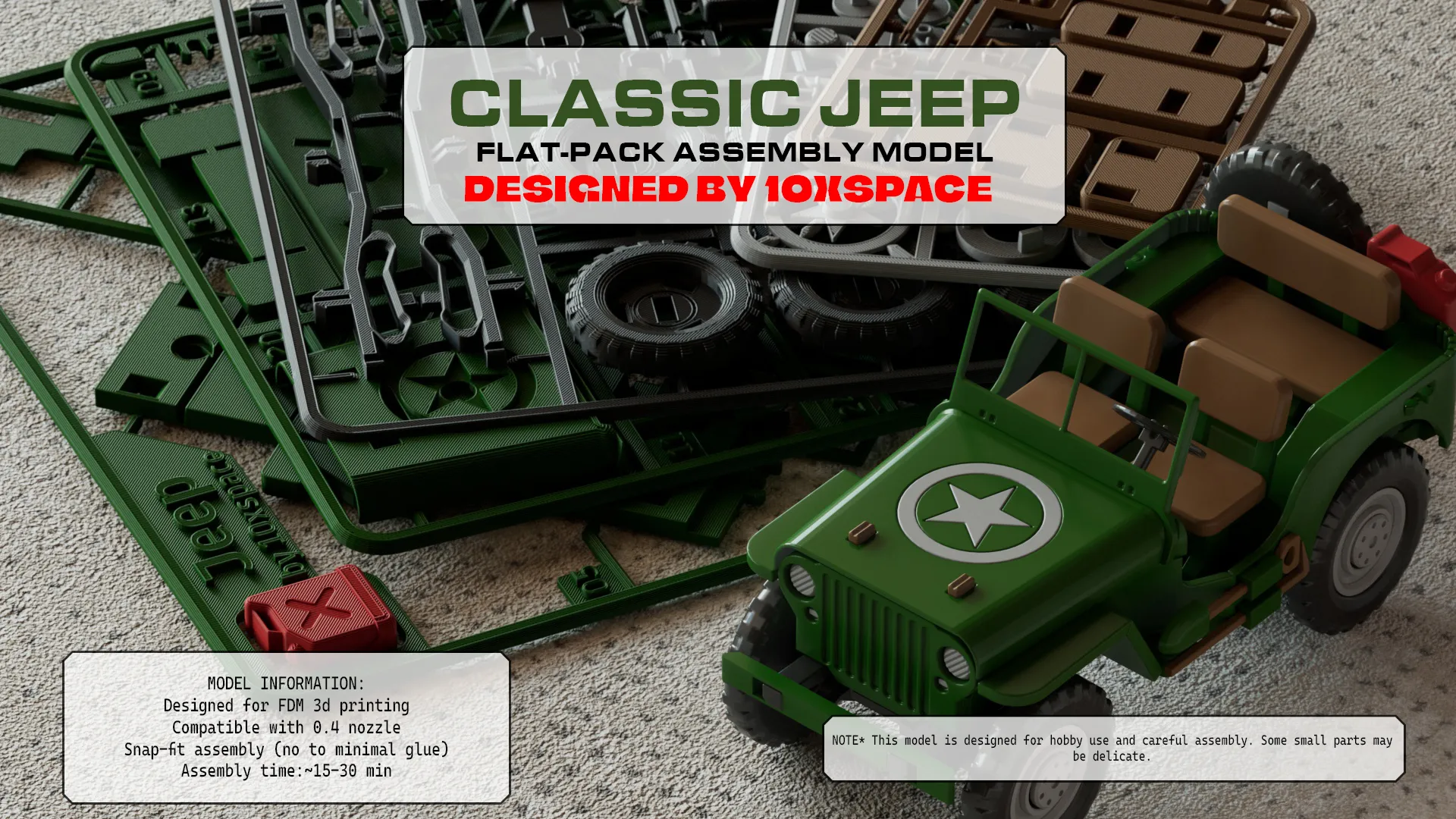

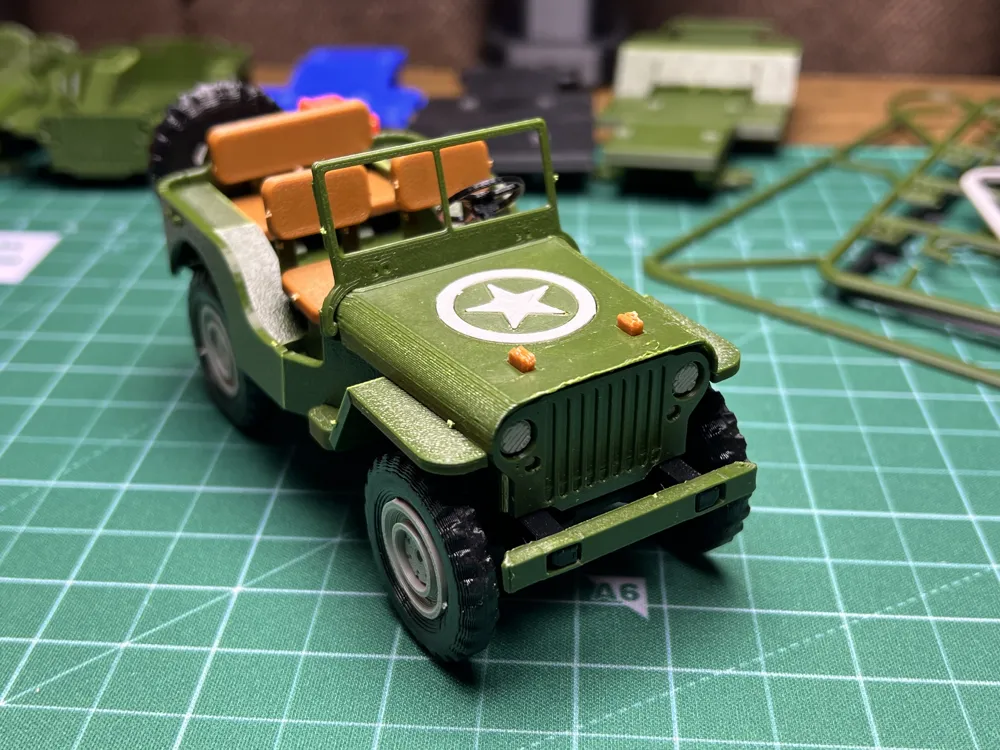

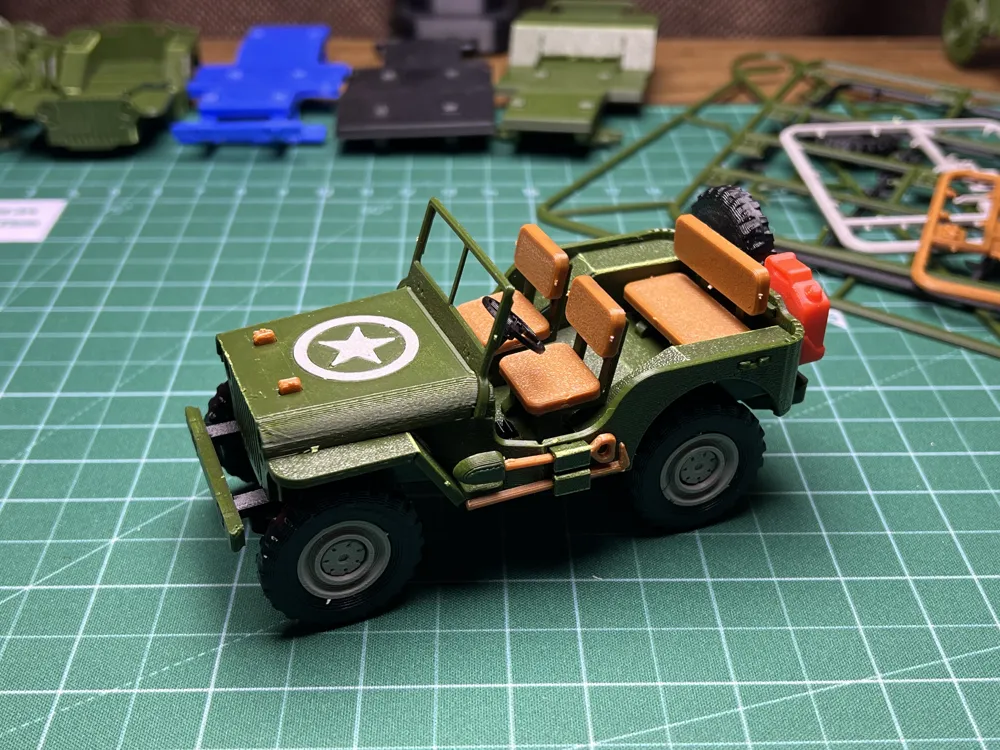

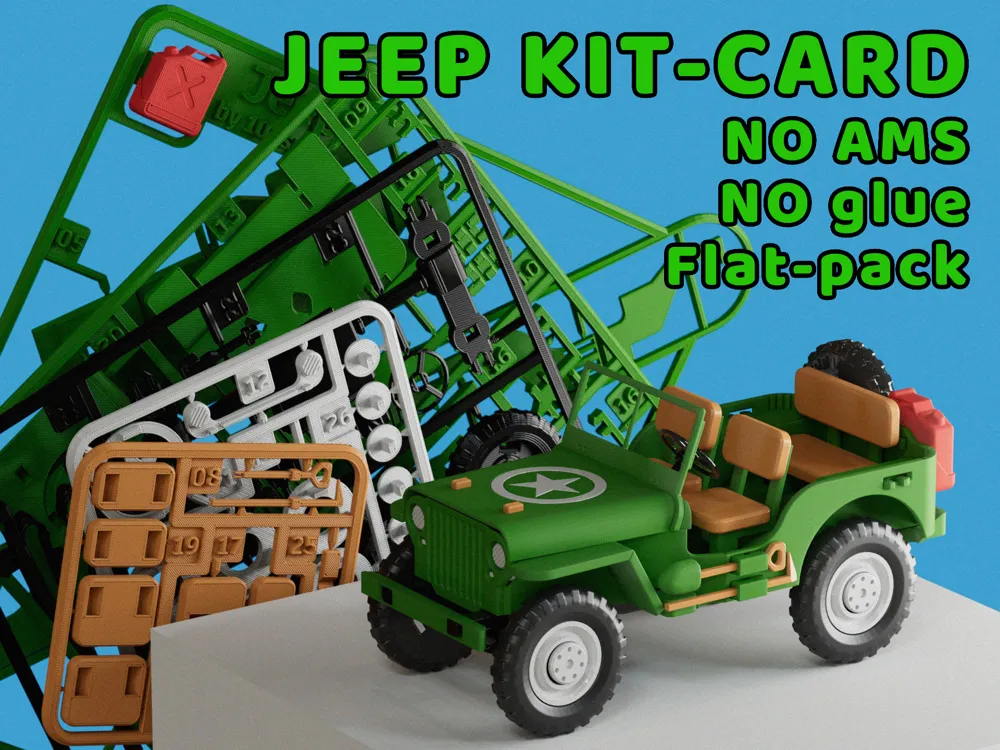

Build your own Jeep from a flat pack. Clean. Precise. Satisfying.

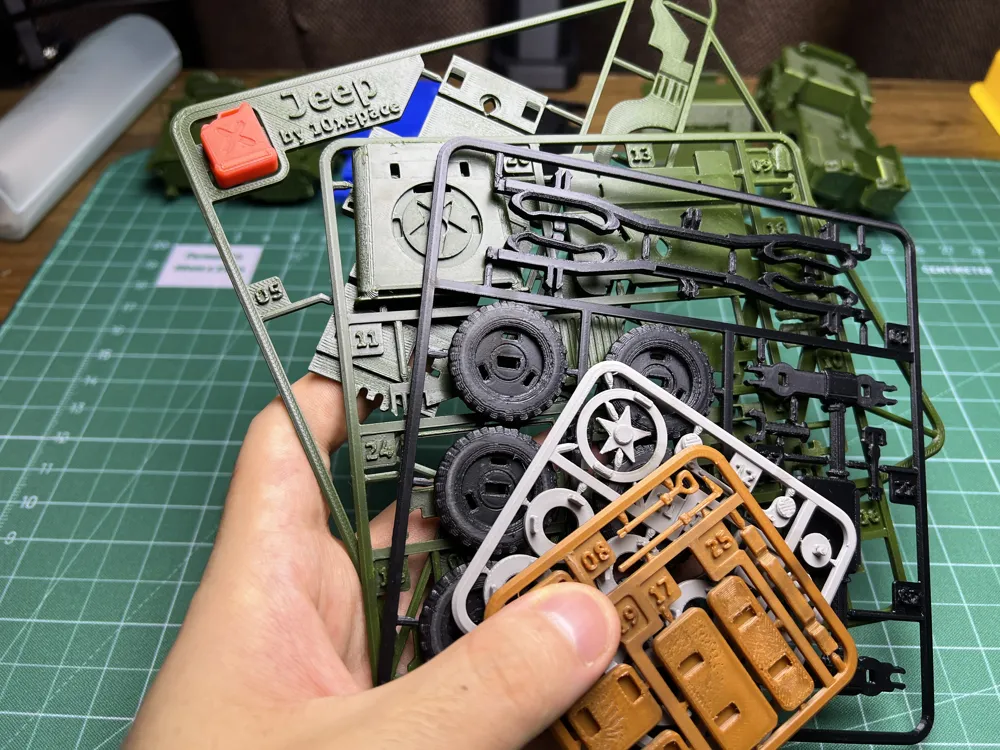

This Jeep Kit Card is designed as a multi-plate flat-pack assembly with a clean snap-fit system.
Each plate is printed in a single color. No AMS needed, then assembled into a detailed Jeep model.
UPDATE NOTE (V2)

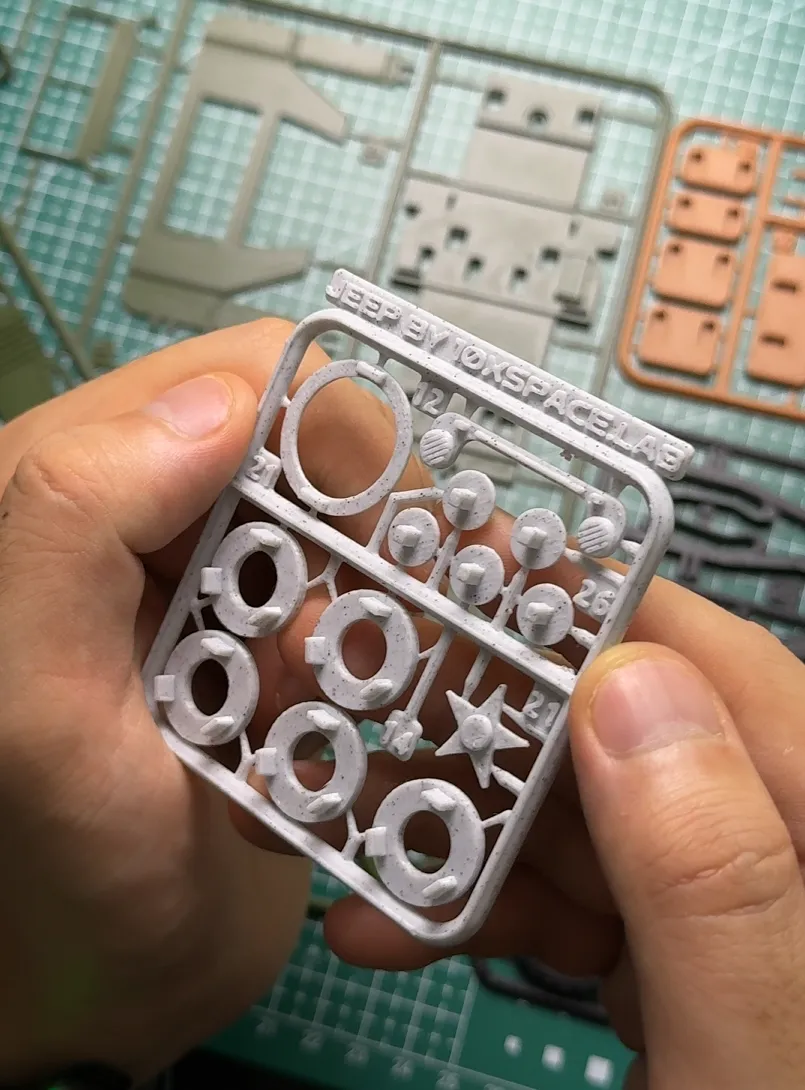

The model has been updated with an improved kit-card sprue layout for a cleaner and more reliable printing experience.
No major changes have been made to the model itself, assembly process, or functionality. This update focuses only on refining the sprue design while keeping the original design unchanged.
Key Features
- 4 Colors – each plate prints in a single color
- No AMS Required – simple multi-plate workflow
- Snap-Fit Assembly – no glue needed. (But glue can be used for a stronger, more durable build.)
- Clean Minimal Build – refined and efficient design
- Fun Assembly Experience – precise and satisfying
Important Notes
- Designed more for car enthusiasts than children
- Contains small and delicate parts
- Some parts require careful handling during assembly
- Assembly Difficulty: Medium-Harder (Slightly challenging for beginners due to small and precise parts. If you have experience with kit-cards, the assembly should be straightforward.)
Print Info
- Material: PLA recommended
- Supports: Not required
- Scale: Use original size (strongly recommended)
⚠️ Scaling down is not recommended. Smaller sizes become fragile and harder to assemble.
Assembly Notes
- Check part orientation carefully before snapping
- Some connections are intentionally tight for a secure fit
- Slight bending may be required during assembly (see guide)
📄 Scroll down for the assembly guide PDF

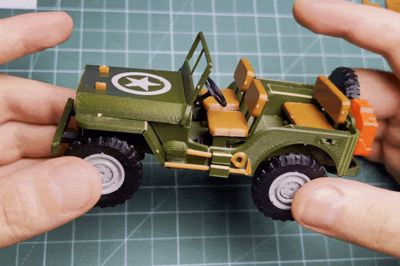

🎥 Prefer video? Full Assembly Video.
Pre-Assembly Tip

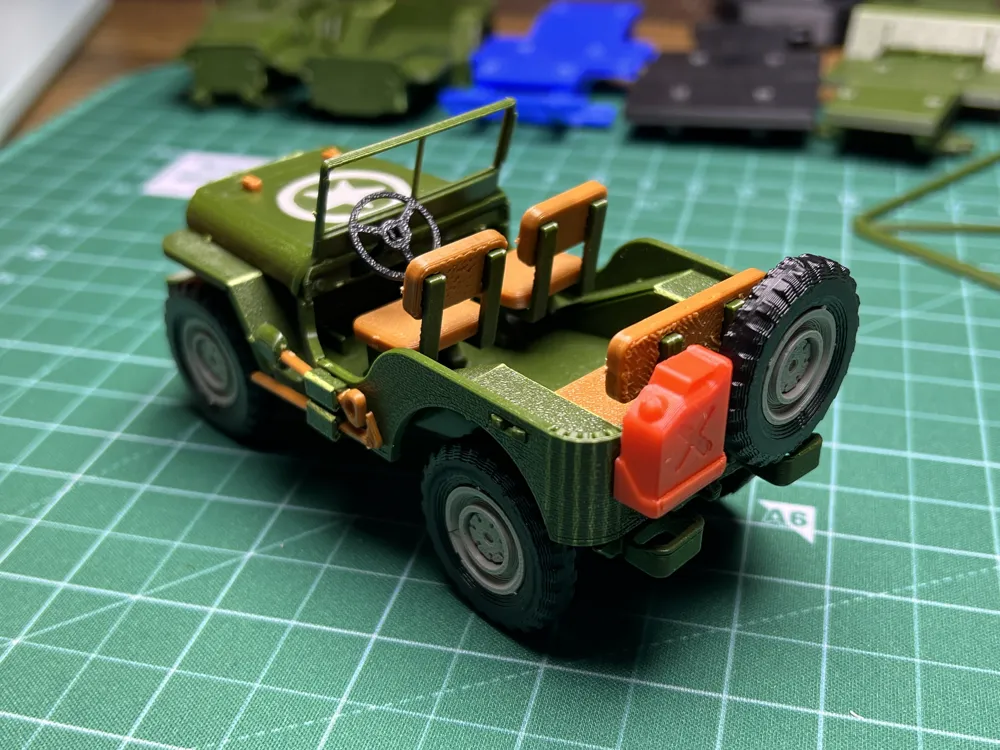

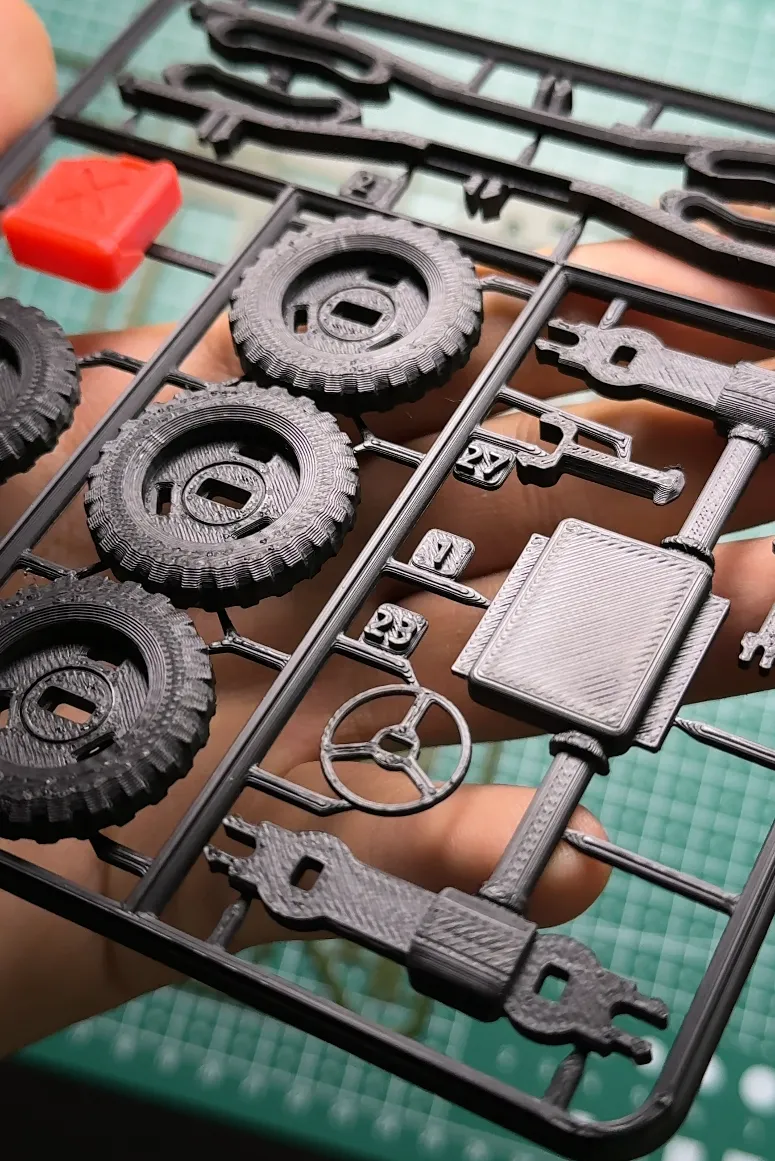

After printing all plates, place the red fuel canister into its designated slot on the GREEN_1 plate.
It is designed to store securely there before assembly.
Share Your Print
I’d love to see your results, post your make 🙌
If you enjoy it, a Boost helps a lot and supports more designs like this.
Boost Me (for free)
If you enjoy this model, a Boost really helps and supports future designs. Thank you!
More Designs
Check out my other work 👉
https://makerworld.com/en/models/2306664-hot-rod-kit-card-no-ams#profileId-2543902
Follow
Instagram: https://www.instagram.com/10xspace/
YouTube: https://www.youtube.com/@10xspace.design
Safety Warning
⚠️ CHOKING HAZARD — Small parts. Not for children under 3 years.
