Gusset Bracket (2020)
Print Profile(2)
Description

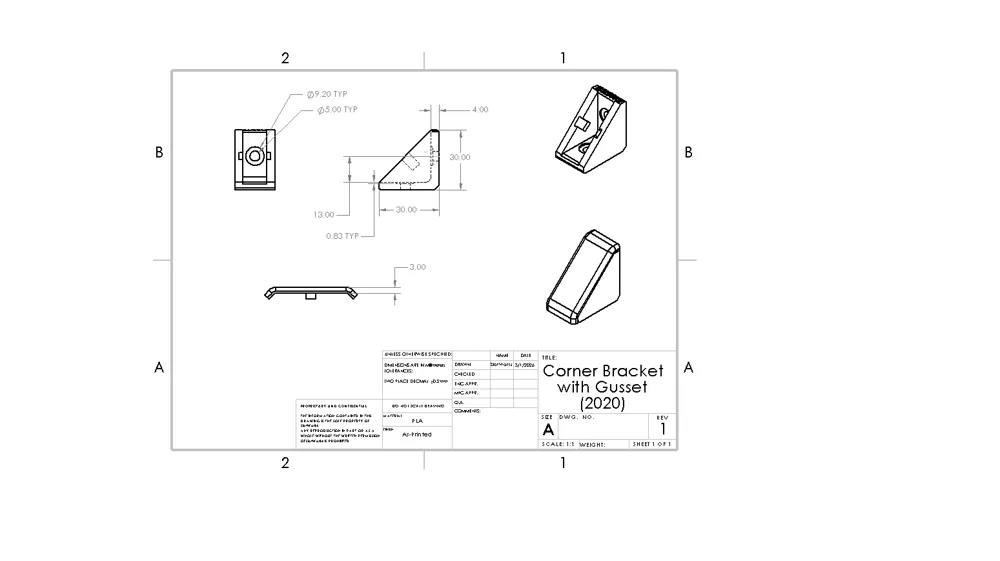

Optimized prints. Clean CAD. Complete drawings. Modular T-slot accessories for engineers who care about complete design packages.

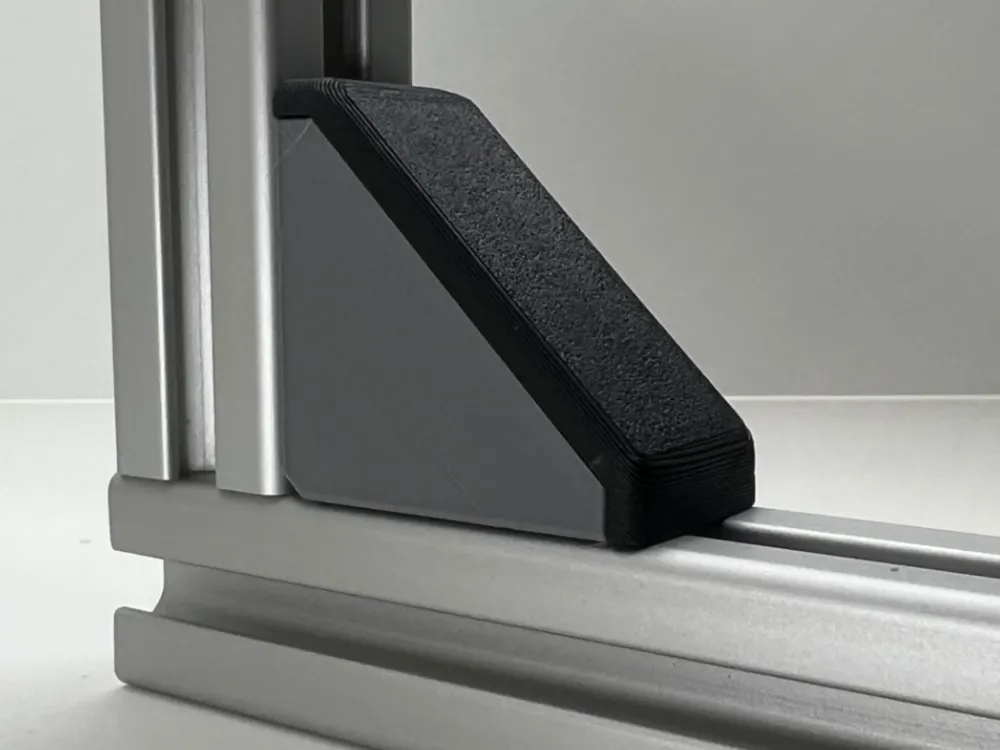

This is an L-shaped corner connector with a Gusset and Cover for 20x20 T-slot aluminum extrusion profiles strong enough for moderate strength structures. The cover snaps on and is easily removed by hand. The gusset greatly improves strength.
If two colors are desired, print them separately!
All dimensions are in millimeters.
Like, Boost and Follow me for more!
Recommended Print Settings
Material: PLA
Layer Height: 0.2 mm
Wall Loops: 4+
Infill: 15-100% up to solid (depending on strength needs)
Supports: Engineered Supports (Do not include supports)
Orientation: Print on corner (This is done for optimal strength)
Compatibility
Designed for M5 Screw with 8mm length: T-Slotted Framing, End-Feed Nut and M5 Thread Button Head for 20 mm High Rail | McMaster-Carr
Designed and Tested on 2020 T-slot Aluminum Extrusion: T-Slotted Framing, Single Four Slot Rail, Silver, 20 mm Square, Solid | McMaster-Carr
