Arrakeen: The Imperial Residency | A Dune-Inspired Wall Diorama

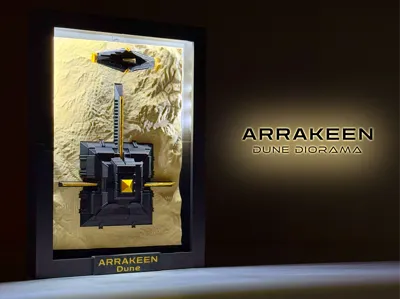

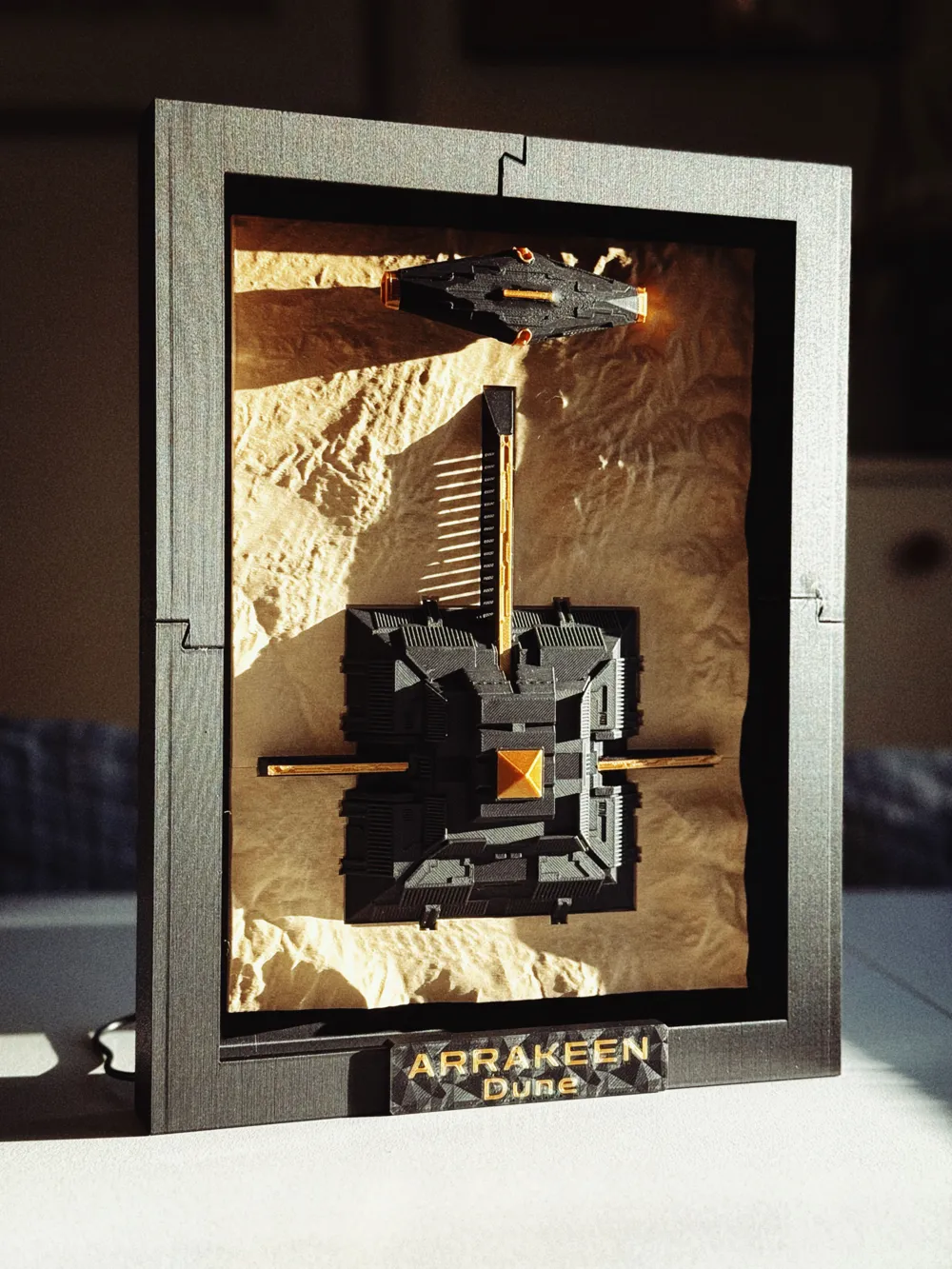

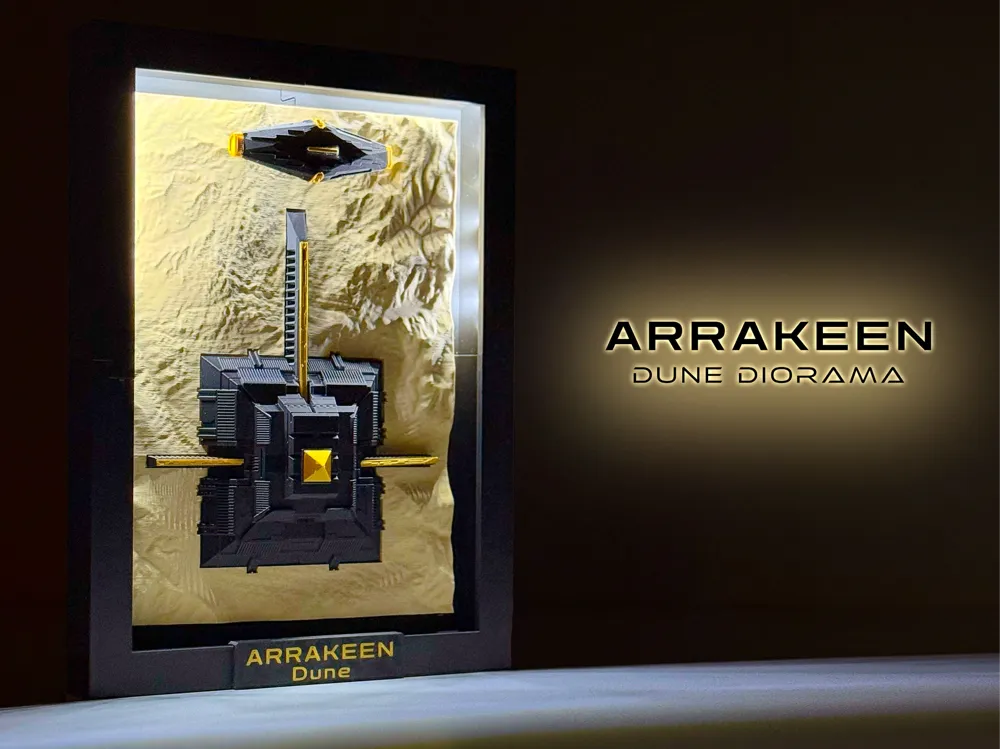

Bring the harsh, brutalist beauty of Arrakis to your walls. This diorama captures the scale and atmosphere of the  Arrakeen palace  and shadowed by the presence of a Guild Heighliner.

The Design

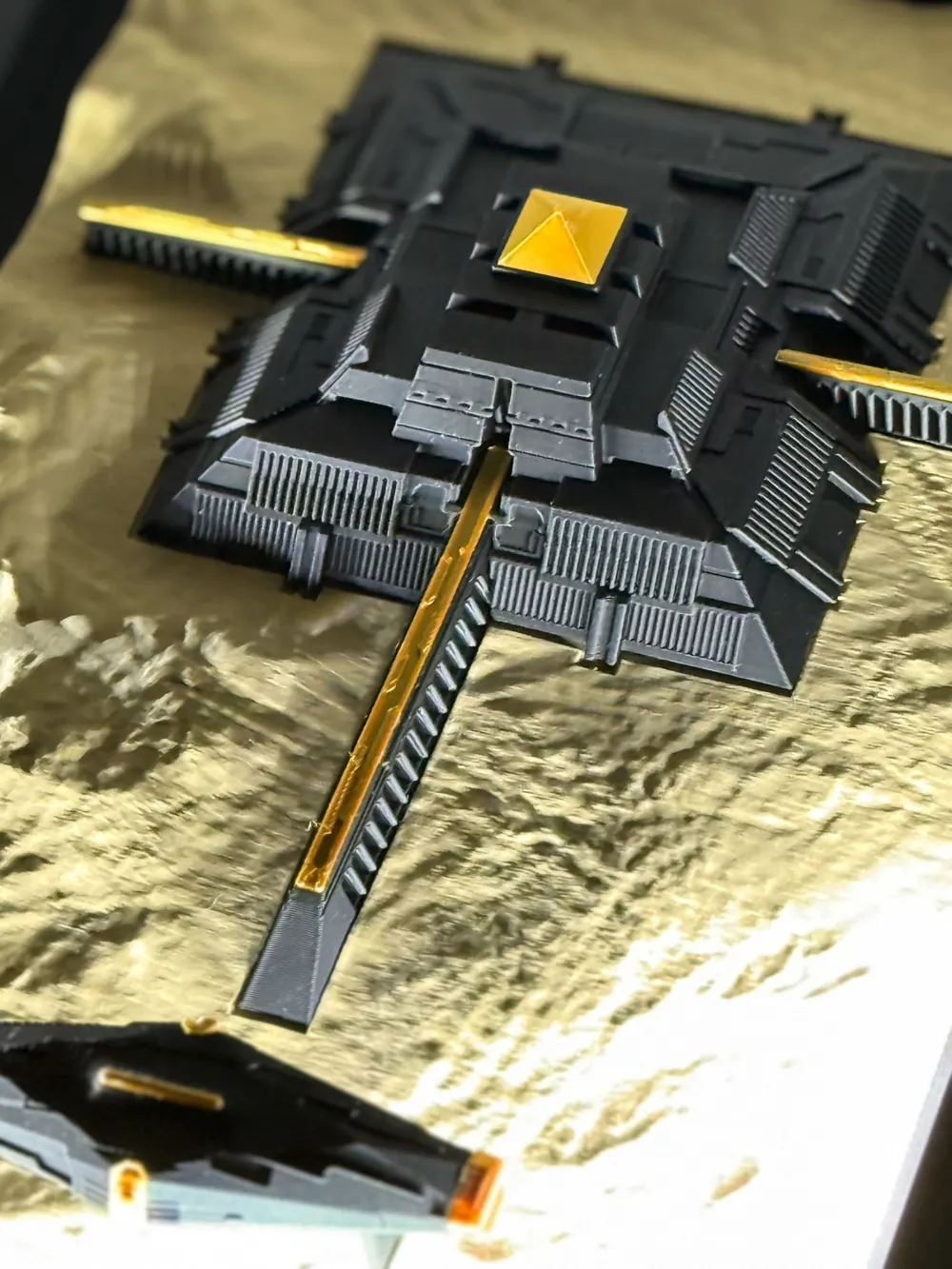

This model is inspired by the "Brutalist" architectural language of the Dune universe. It features the massive, stepped Residency of the Atreides, a structure designed to withstand 800 km/h Coriolis storms. Suspended above the city is a Spacing Guild Heighliner, representing the vital link to the Spice and the rest of the Imperium.

Model Features

• Layered Depth: Designed to be printed in separate components for a true 3D effect.
• Scale & Detail: Includes the central palace, the protective mountain range, and a high-altitude spacecraft.
• Integrated Nameplate: Features a stylized "ARRAKEEN DUNE" embossed title at the base.
• Wall Mountable: Balanced for easy hanging or shelf display.
• NO AMS needed except for nameplate

✨ Integrated LED Lighting

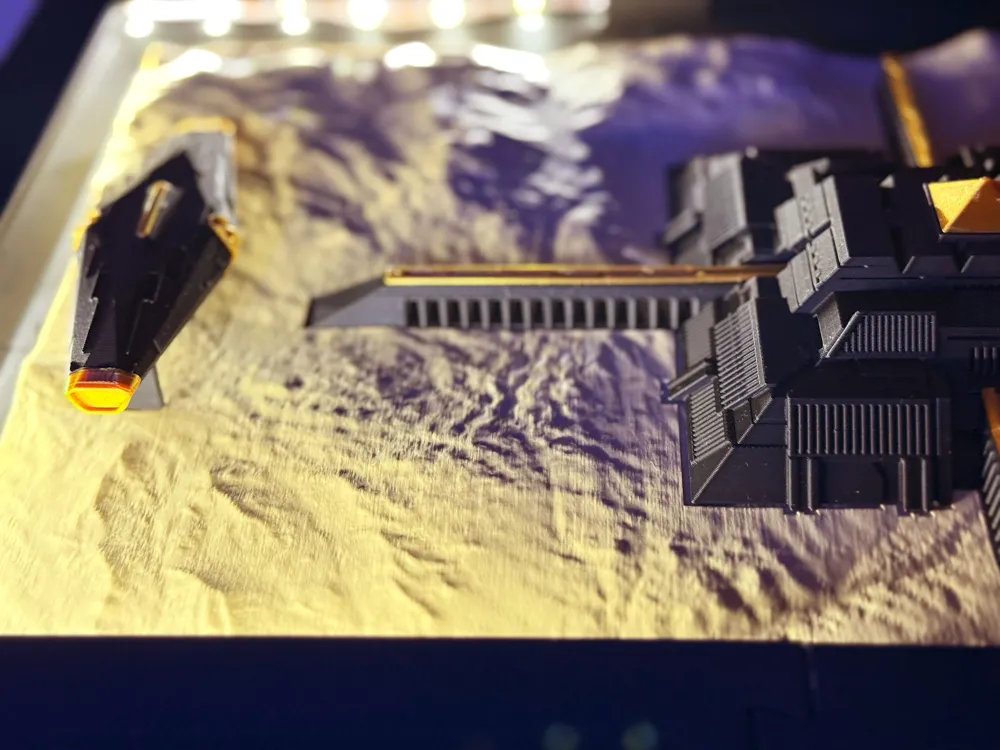

The frame includes a hidden internal channel designed to house a standard LED strip.

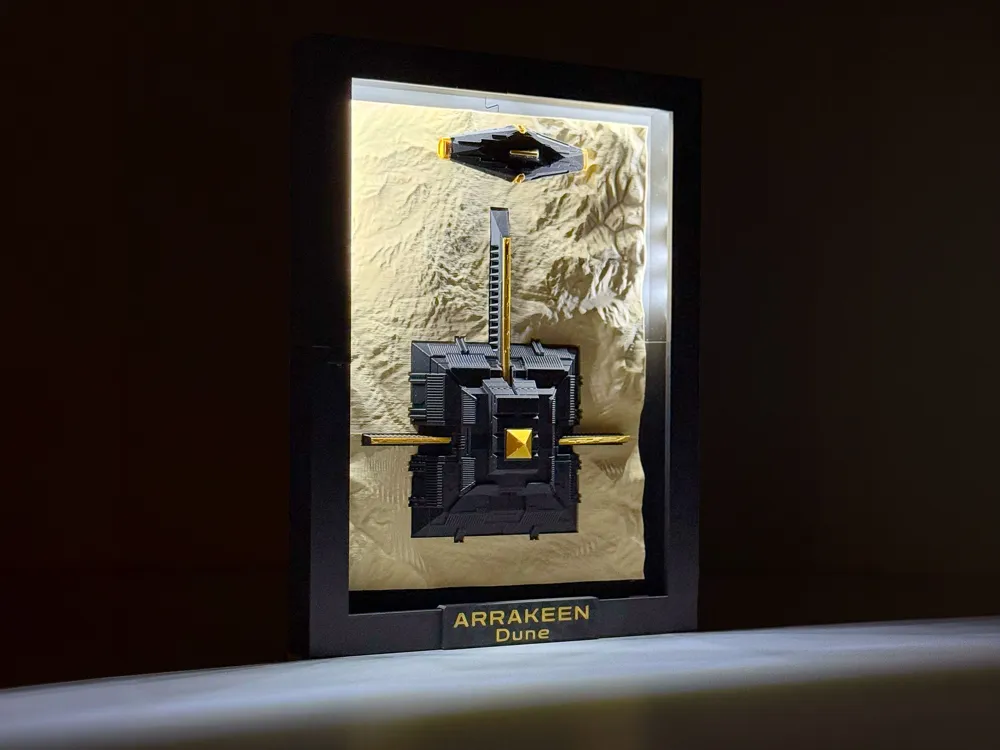

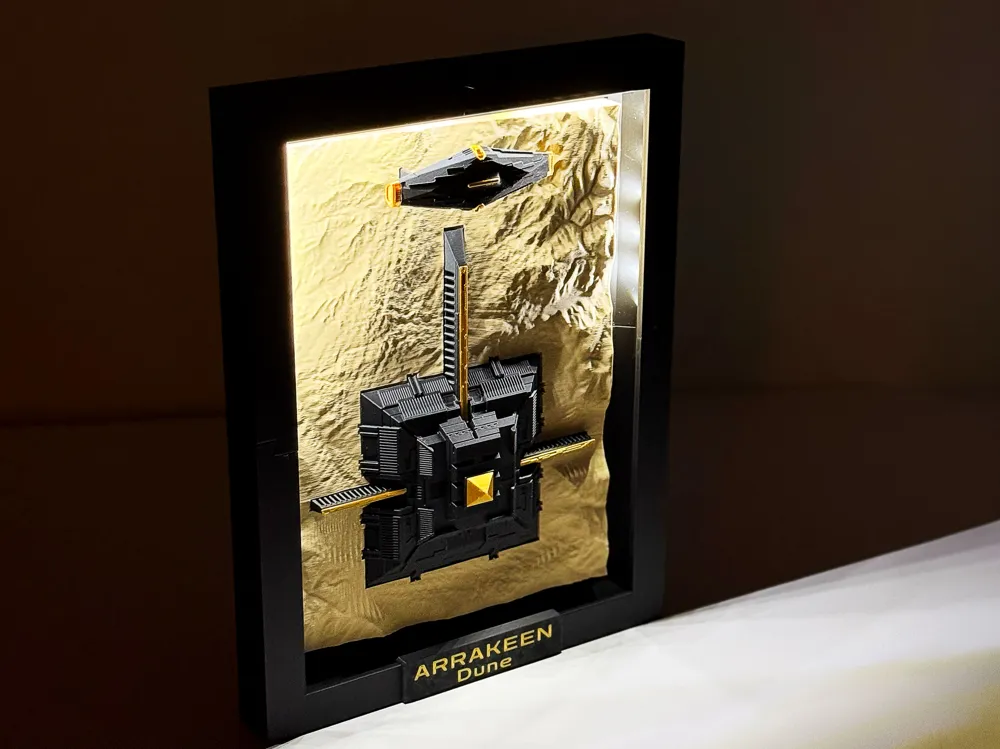

• The Effect: When turned on, the light bleeds from the edges of the frame, silhouetting the Palace and the Freighter.

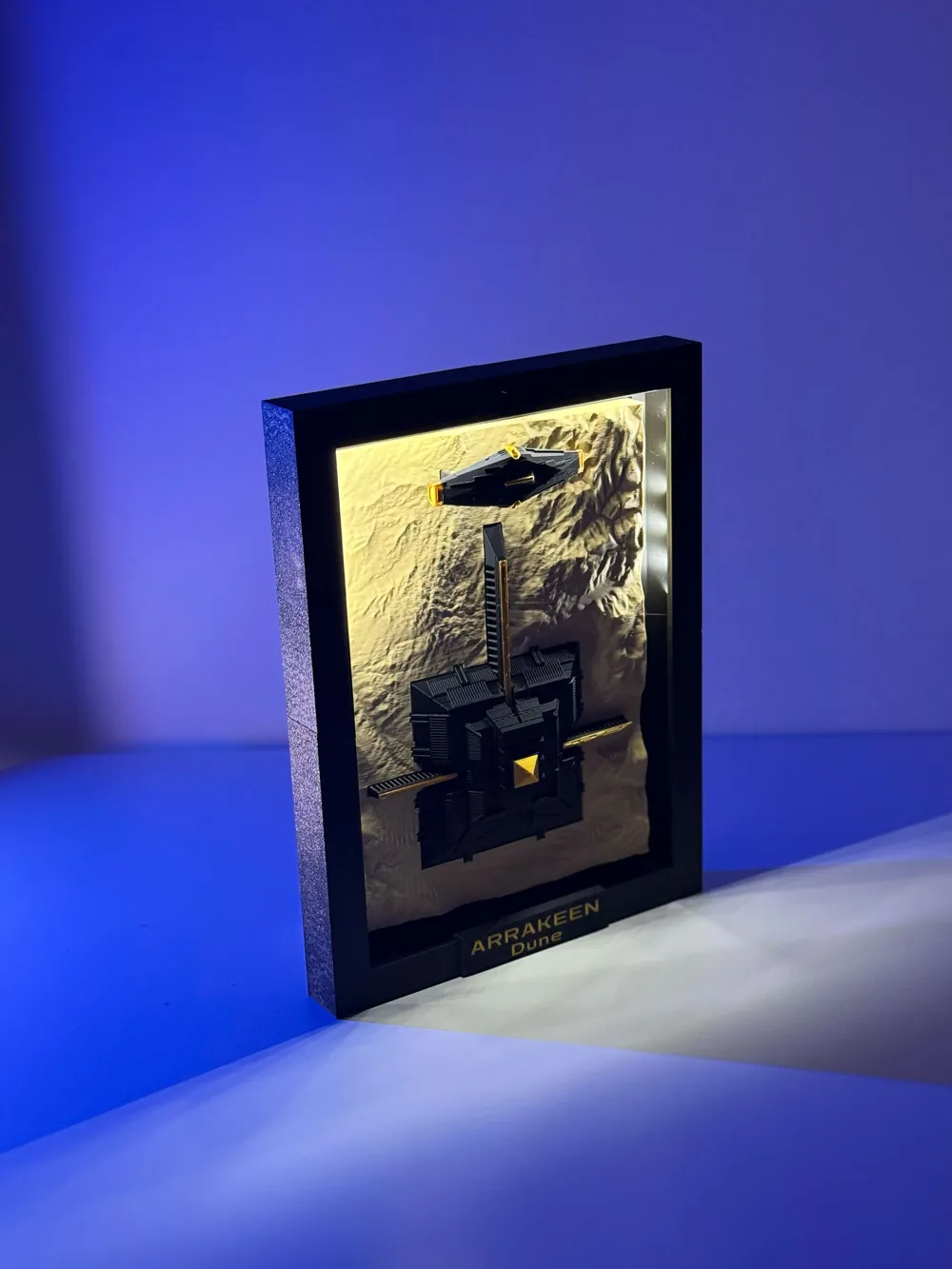

• Pro Tip: Use a Warm White or Amber LED to replicate the desert heat, or a Deep Blue to simulate the "Night of the Arrakis."

Recommended Print Settings

• Material: PLA (Matte Black for the architecture, Gold/Copper for the spire, and  Sand-colored matte pla for the background).
• Nozzle: 0.4mm (Standard)
• Layer Height: 0.2mm (0.12mm recommended for the ship and palace).
• Infill: 10-15% (Gyroid).
• Supports: Mostly not required for most parts if printed flat; supports needed for printing the frame parts.
