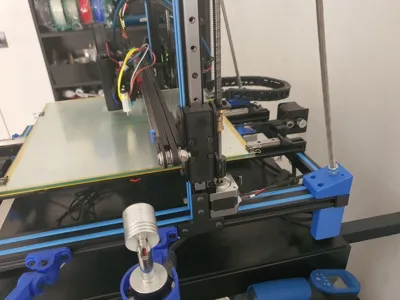

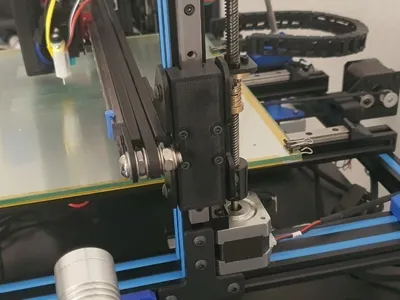

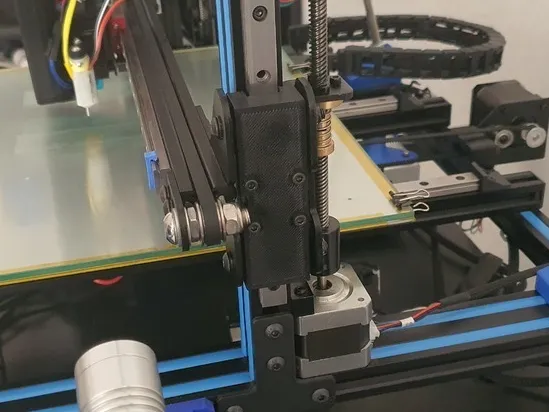

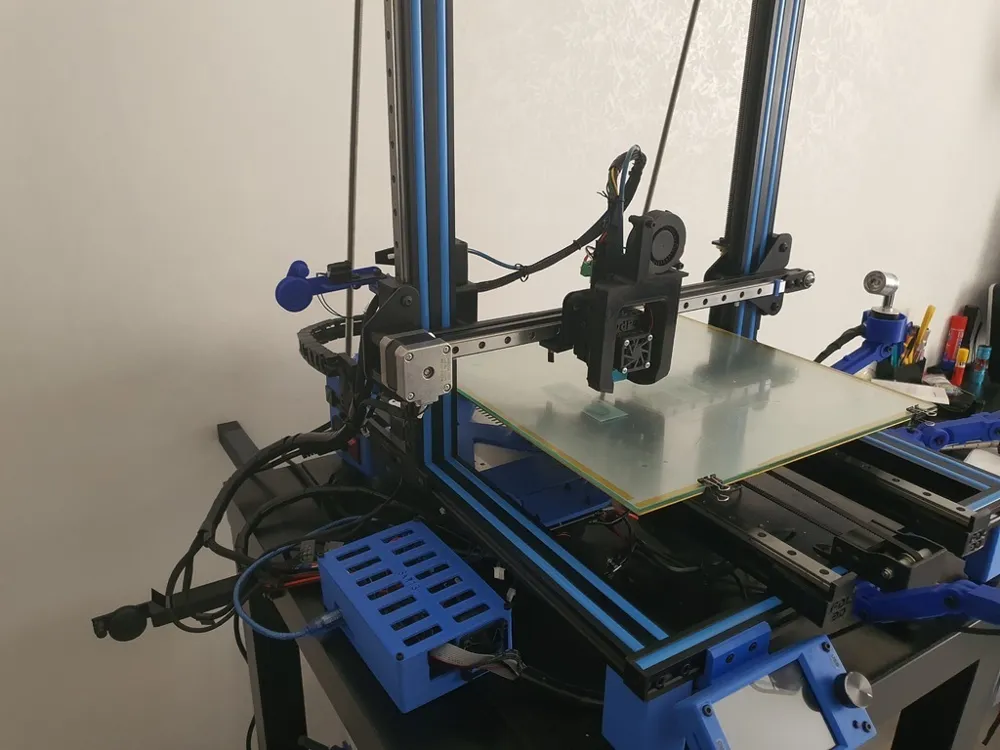

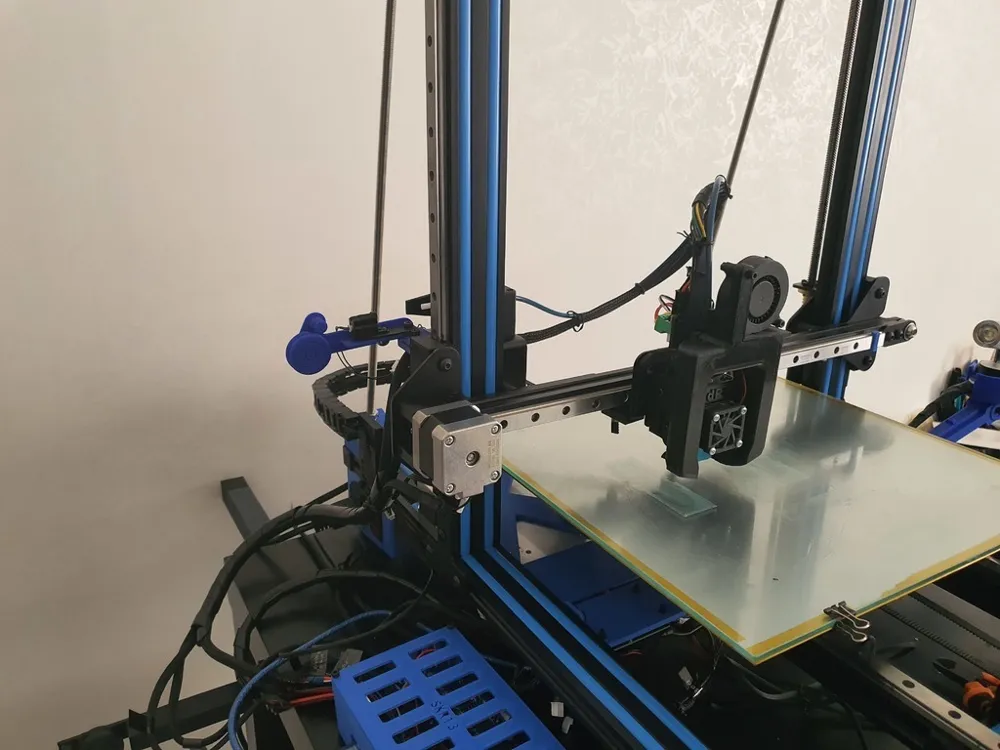

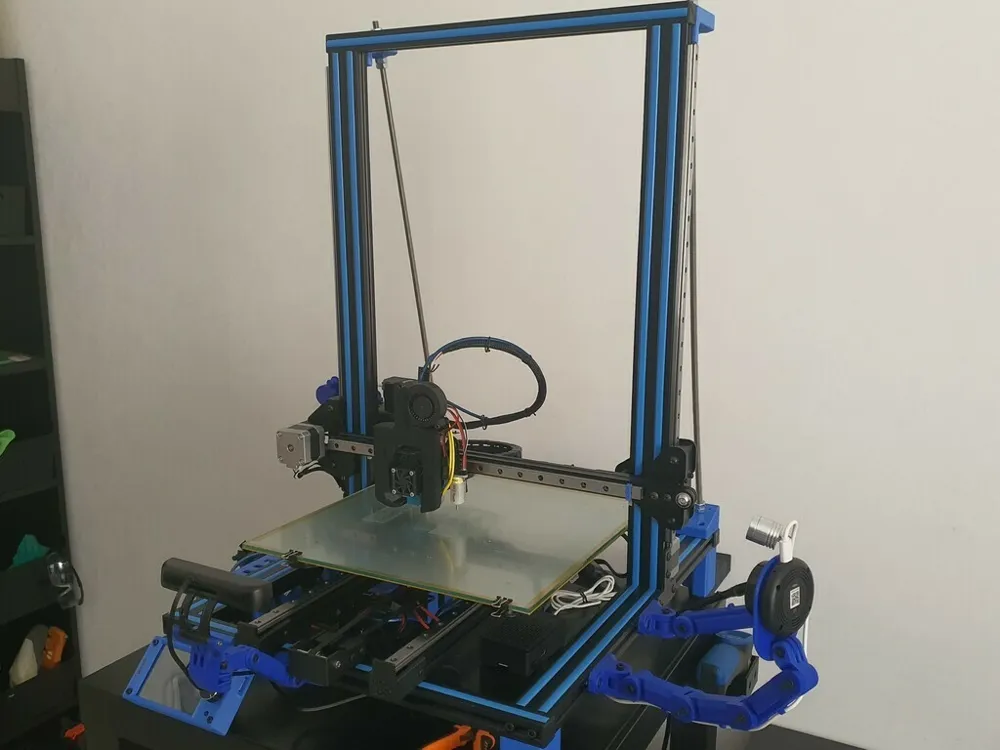

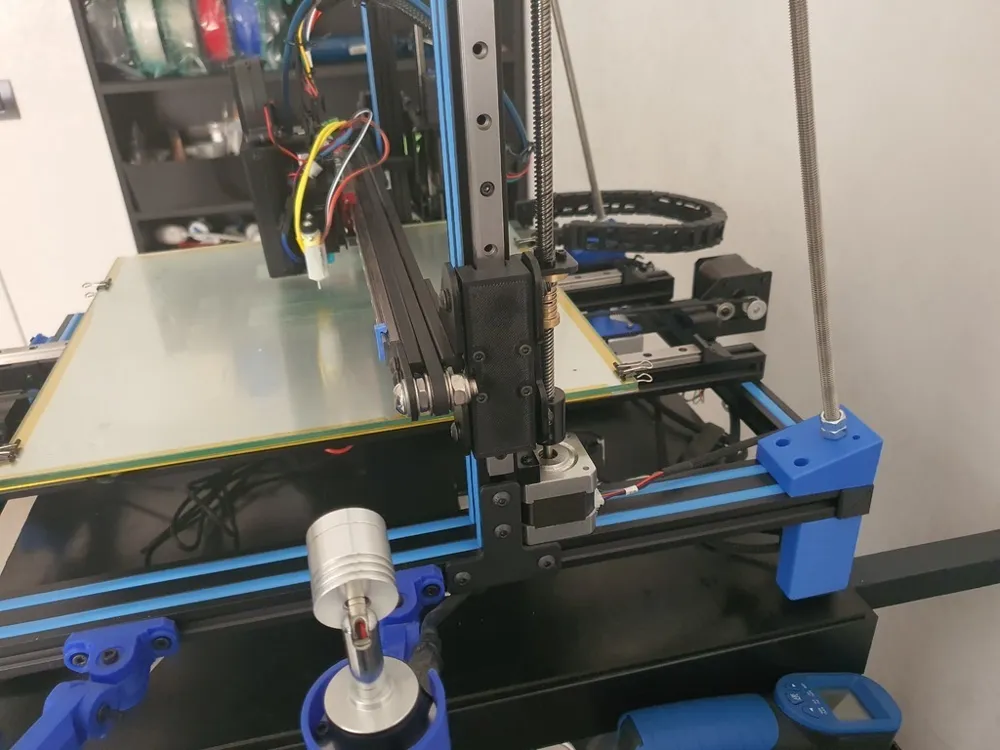

Geeetech A30 Z MGN12H Linear rail mod
Print Profile(1)
Description
This is a great mod for A30, but it isn't "plug&play" like the X and Y axis. It requires several calibrations.
I had to drill the 4 holes of metal supports with a 6mm tip, to have a little bit of "play"
You need
- 2x 500mm MGN12H rail, 2x MGN12H blocks
http://s.click.aliexpress.com/e/FRtpNpfK
- 8x M3x8 screws for MGN12H blocks and about 8x M3x8 screws
https://s.click.aliexpress.com/e/_c3oW0Do3 - M3 T-nuts for rail
https://s.click.aliexpress.com/e/_c2uhjhKn

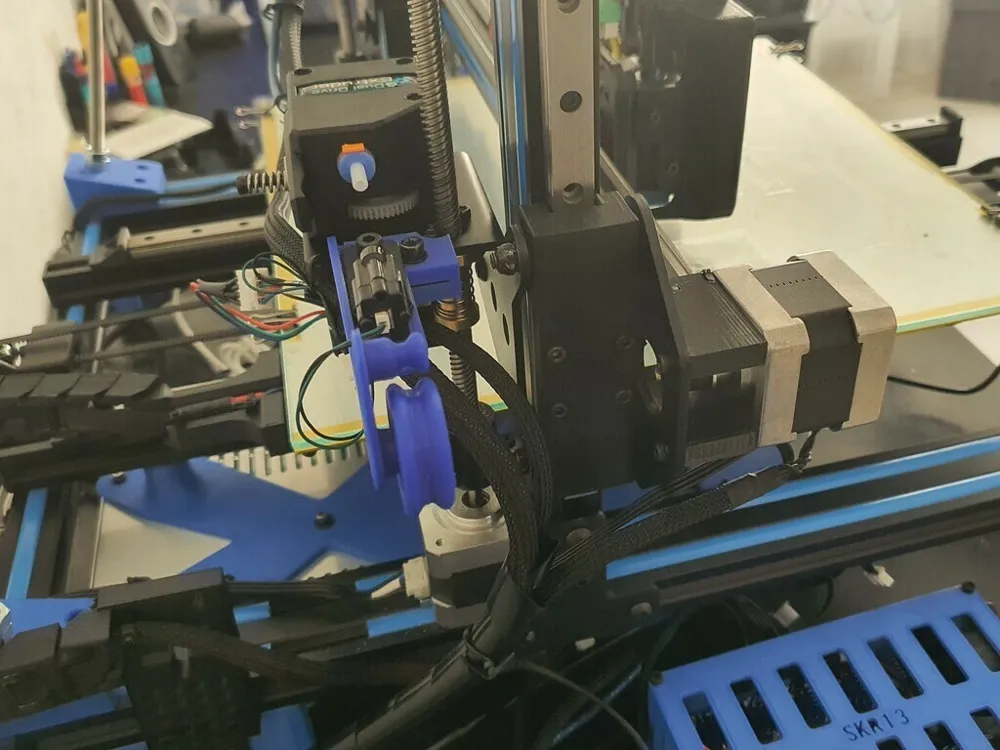

The X motor needs to be reversed. So You need to change direction. I suggest to do this via software. Otherwise You can reverse phisically wires.
For installation 4x M3x30 are required
A demo video here
https://youtu.be/G24iAQPMsy8
