DJI Mic / Mic Mini Exhaust Mount (License Plate)

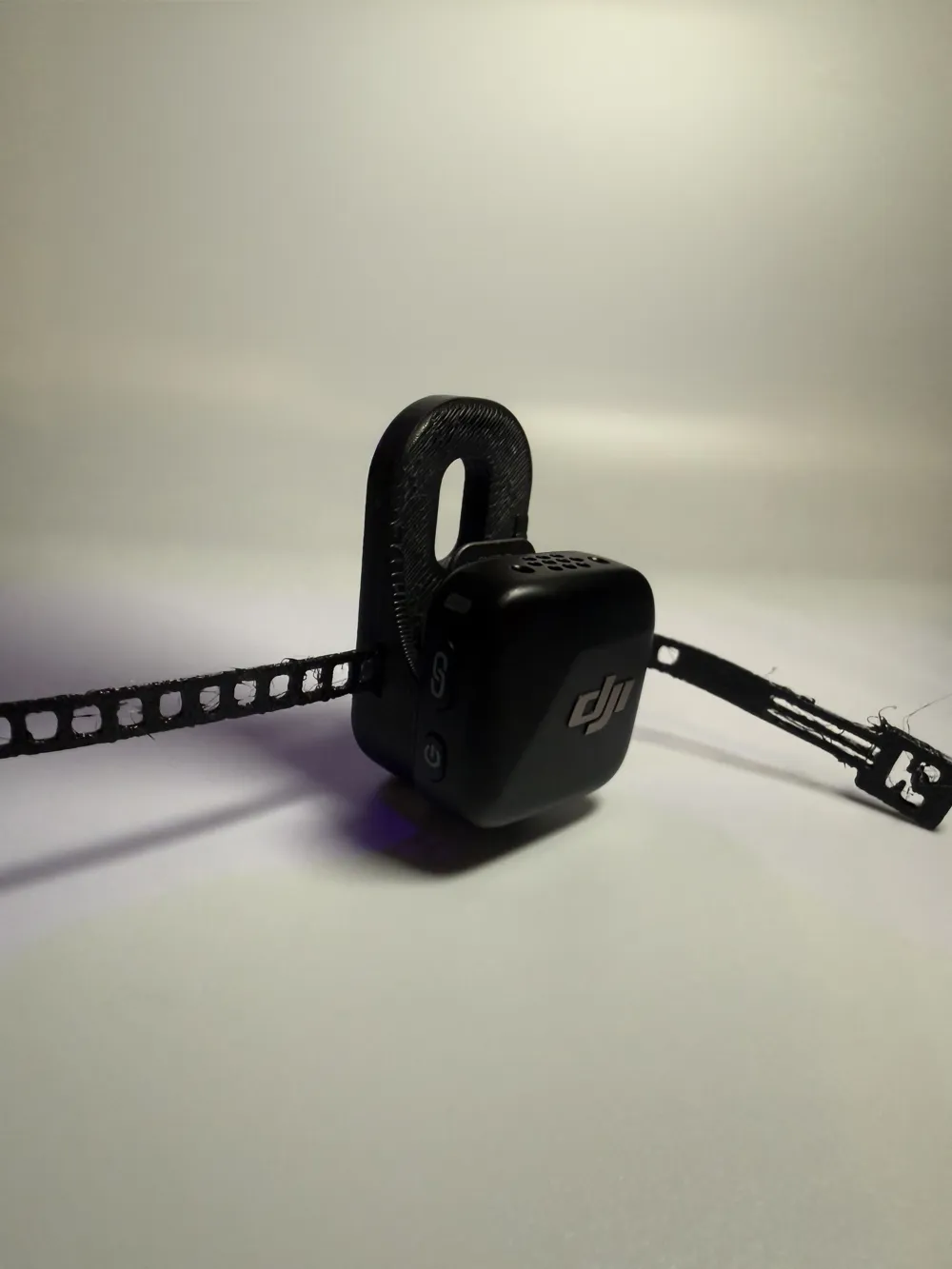

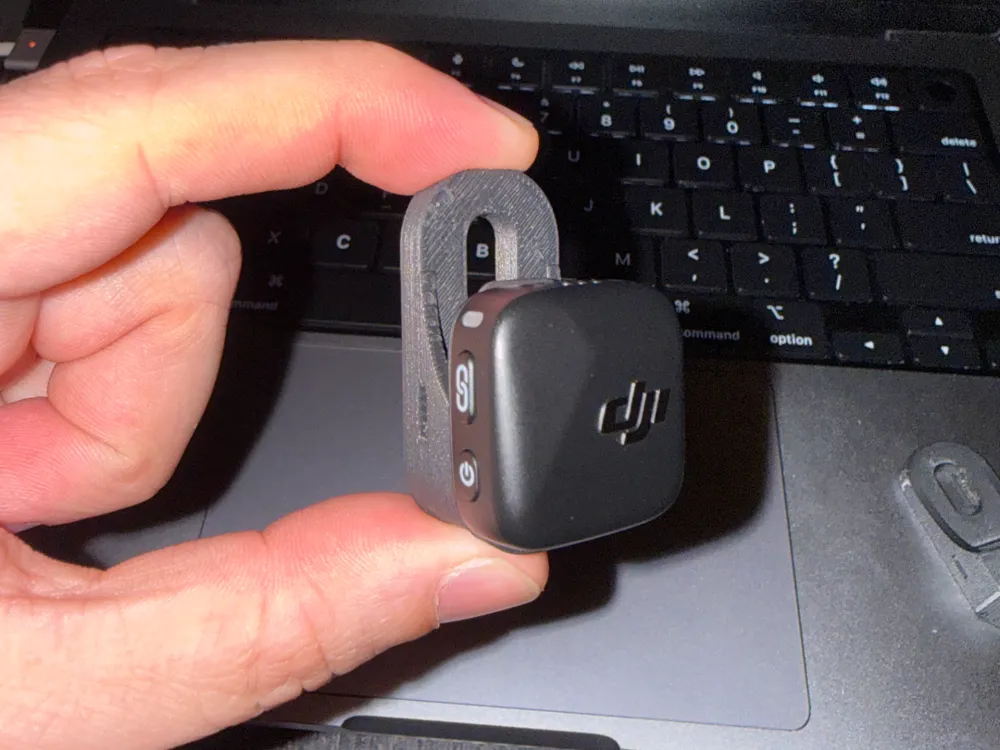

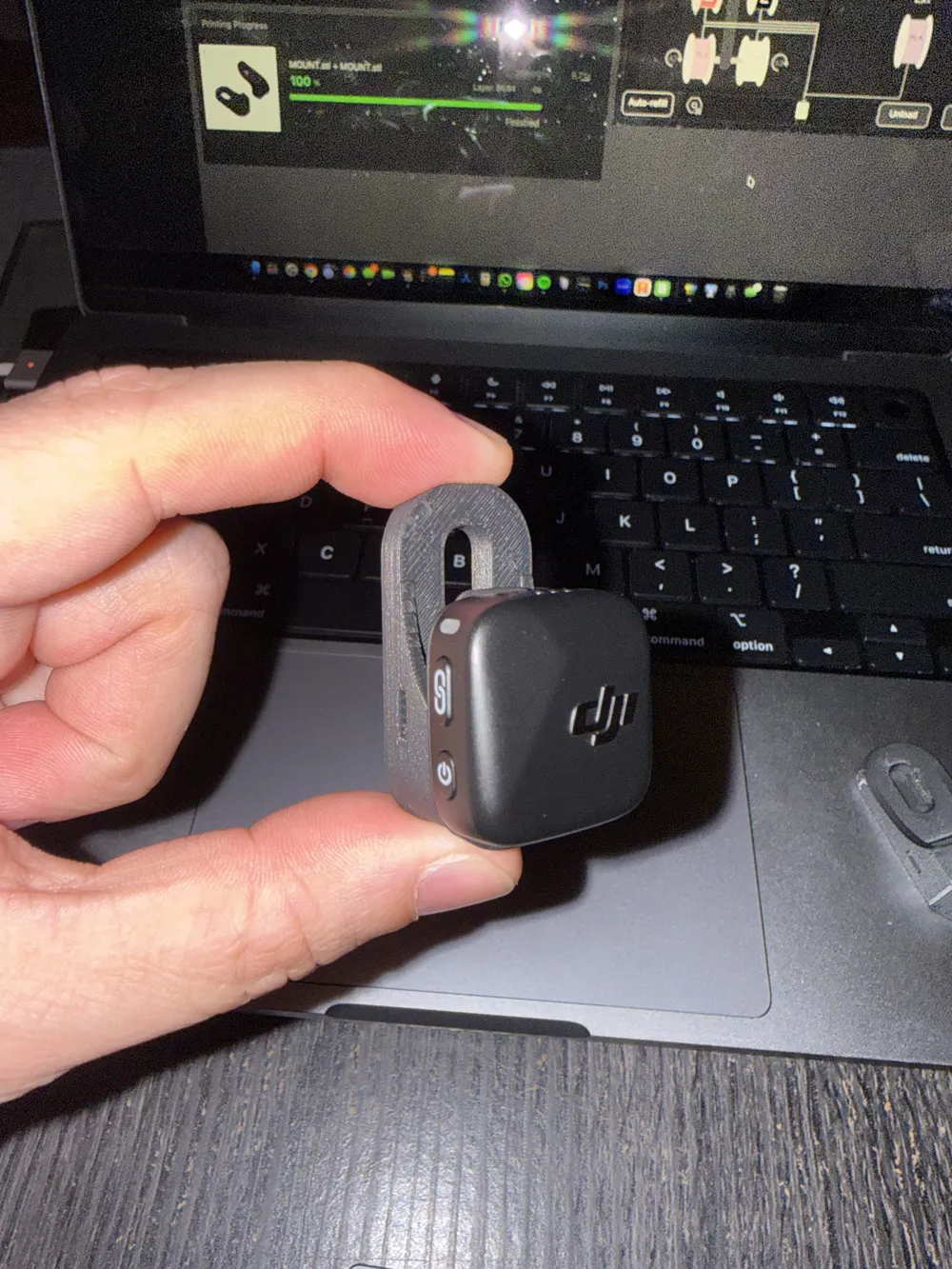

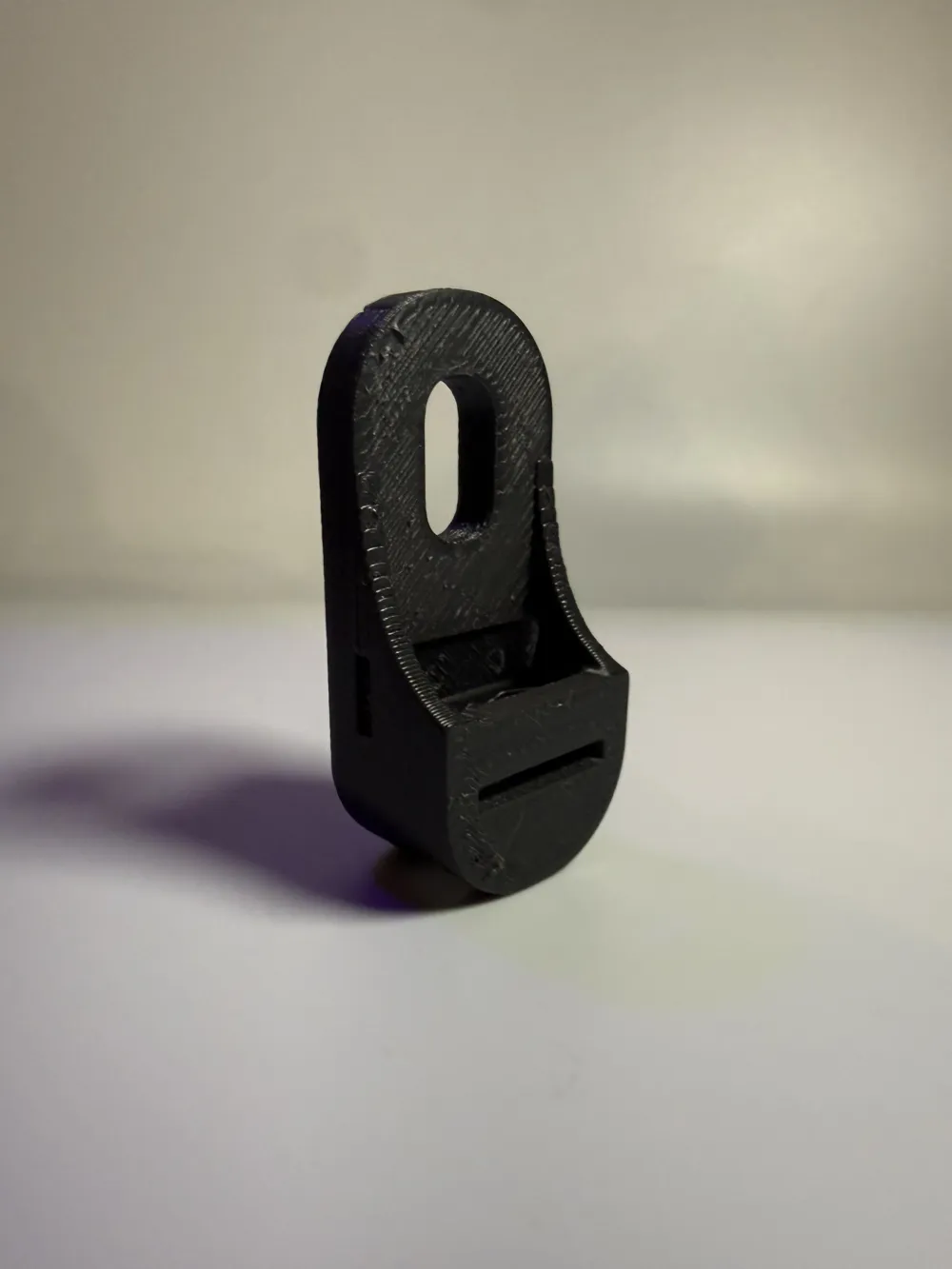

Mount your DJI Mic Mini (or potentially similar clip mics) directly to your license plate bolt to record clean exhaust clips.

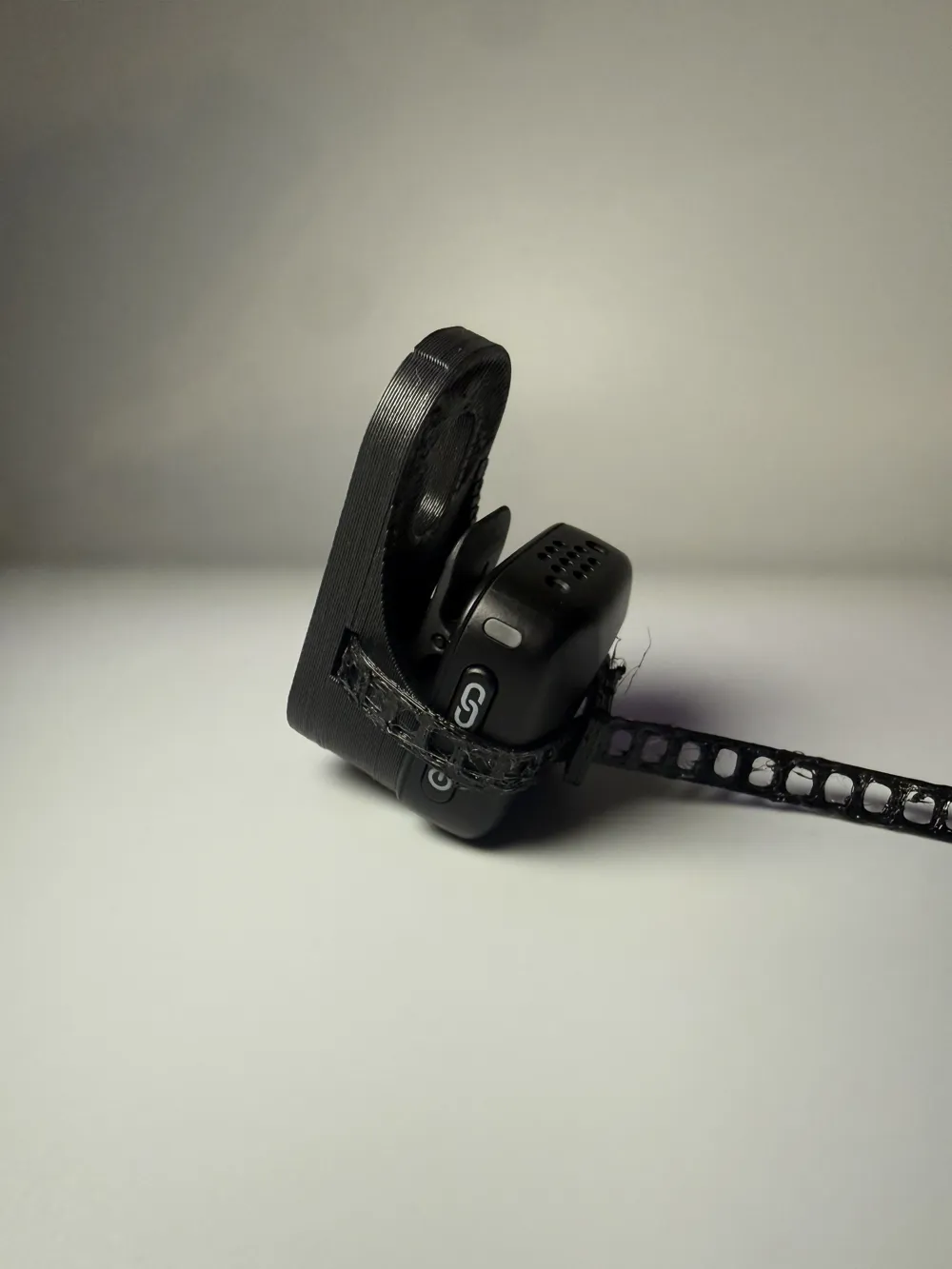

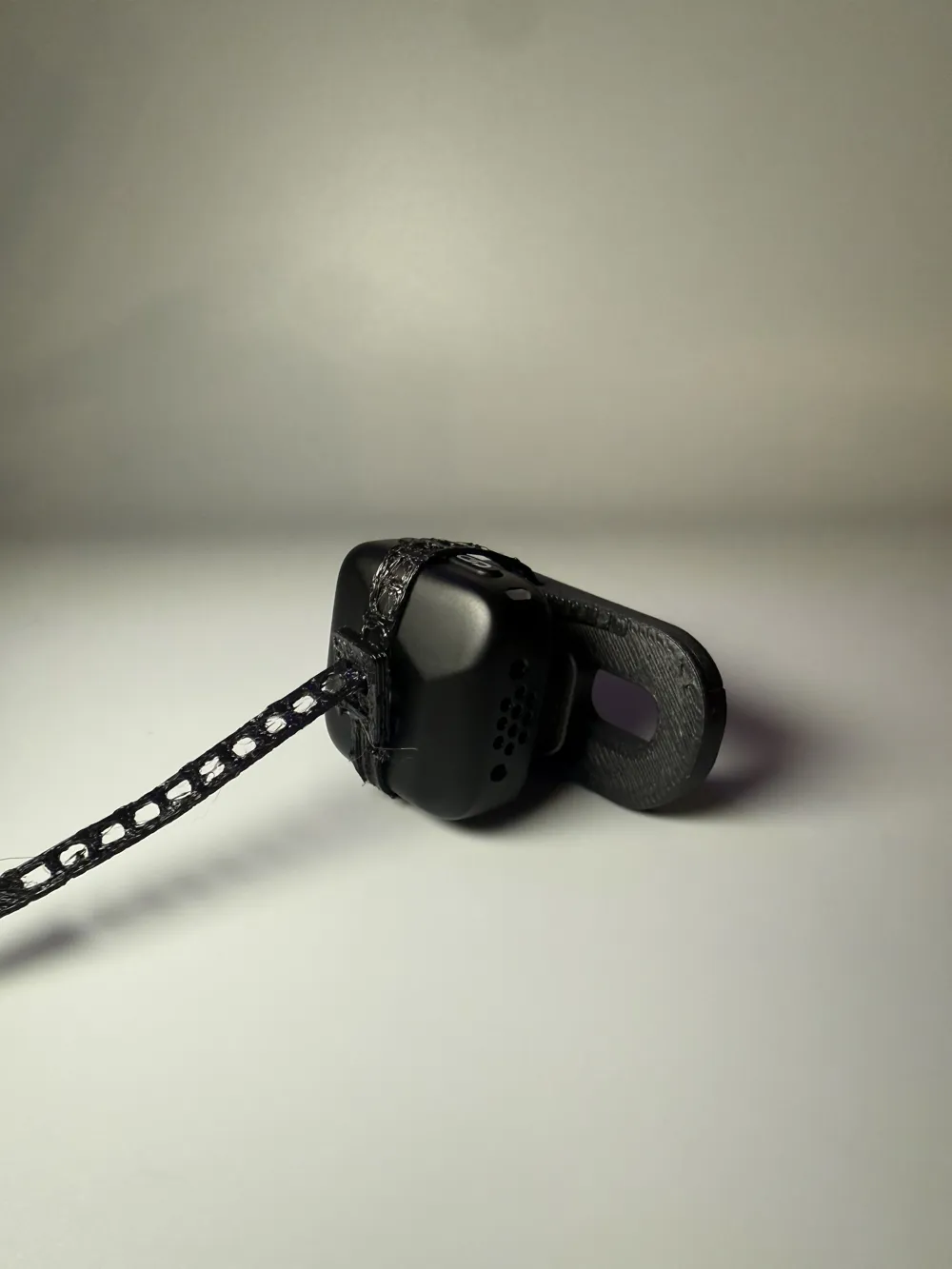

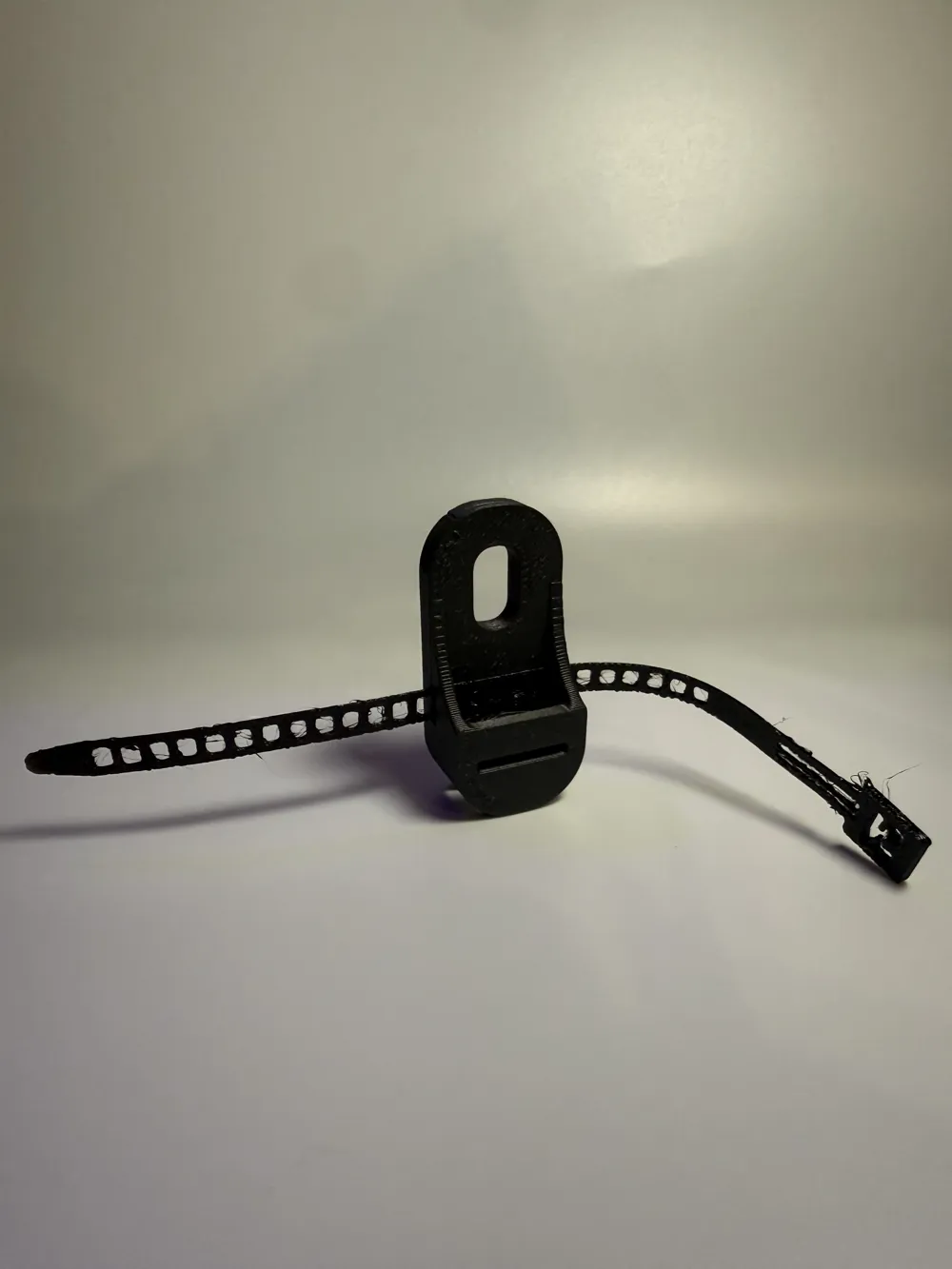

Tether / Safety Slot:

Features a side cutout to run a safety tether. Use a standard zip tie or a 3D-printed TPU tie to help secure your mic.

Tested without tether and should be okay, but recommended to use zip tie.

⚠️ Print & Material Settings ⚠️

• Materials: PETG, ASA, ABS, are recommended.
• PLA / PLA+: Okay for short filming sessions. Radiant exhaust heat and direct sun can quickly warp PLA and drop your gear. Remove right after use.

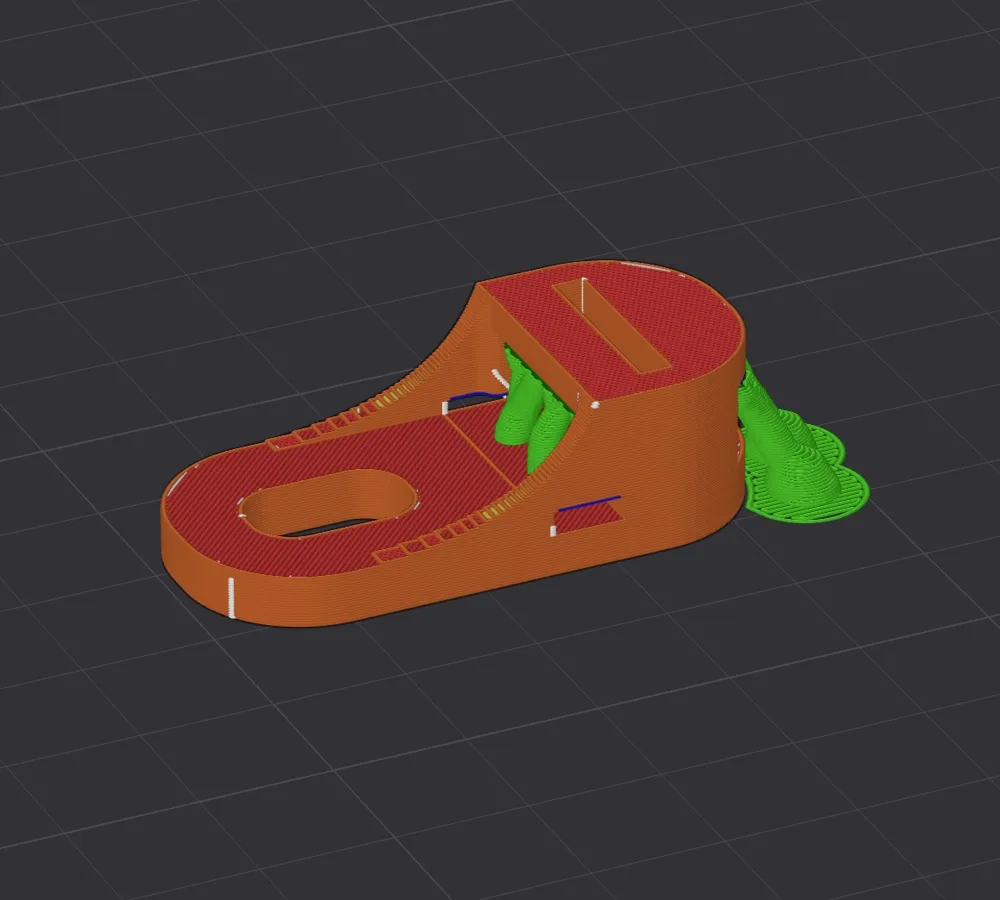

• Orientation: Print laying completely flat on its back or side. Do not print standing upright or it will snap at the layer lines from vibration.
• Settings: 4 wall loops and 30%+ Gyroid infill for rigidity.

Let me know in the comments if you want me to design a tow hook version next!

Hear the exhaust clips recorded with this exact mount on IG: @vestedamg

Disclaimer: I designed this for personal use and it has held up great using PLA +, but use it entirely at your own risk. I am not responsible for any lost or damaged gear! :)
