Description

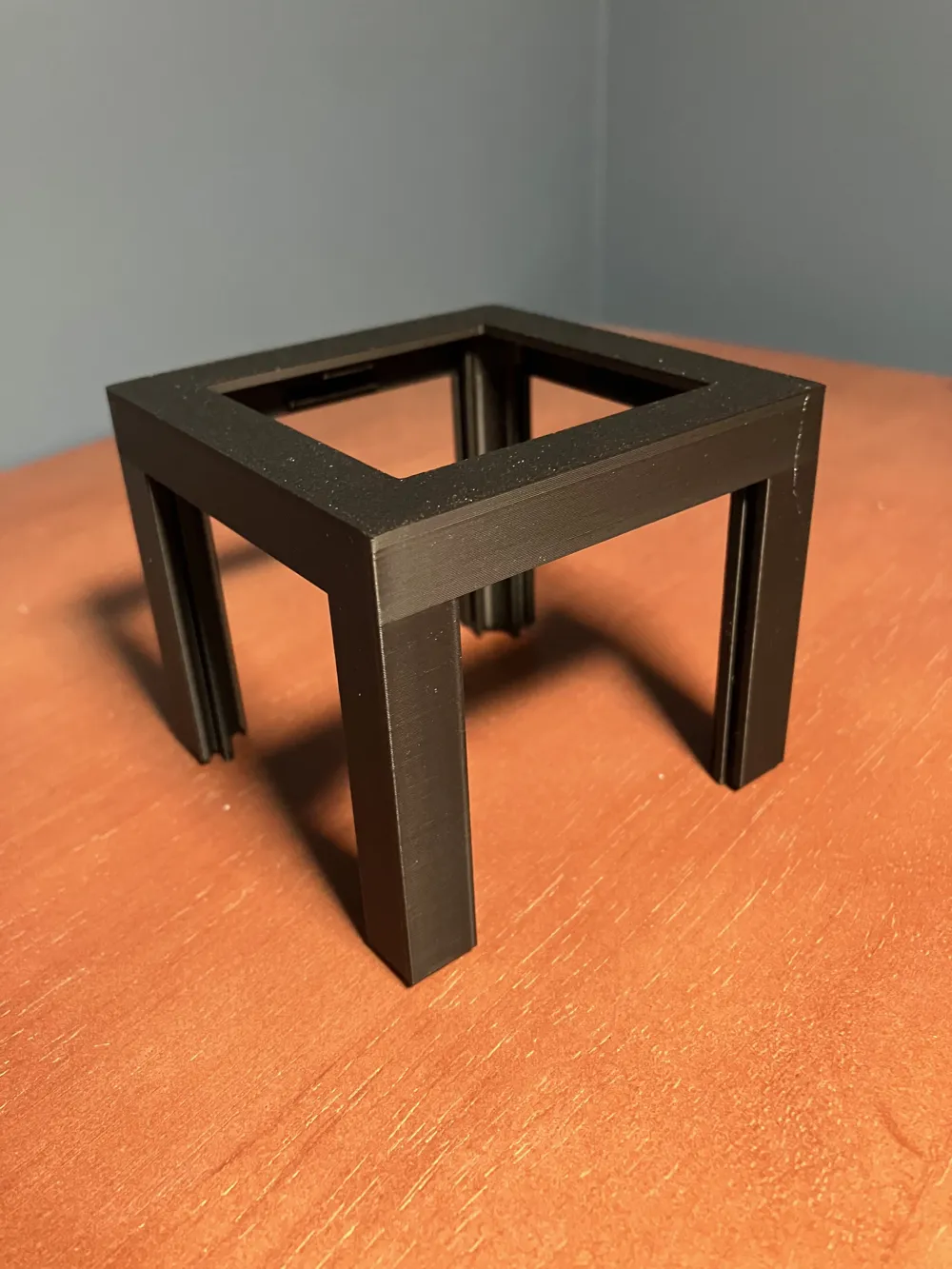

QB1 is a rapid prototyping system for ESPHome and ESP32. This is the top piece that forms the main part of the enclosure. The file also includes a bar that can be used to hold a plate in the top window. If you plan to use the top window, you will need to print two of these bars. If you don't plan to use the top window, you can glue a blank plate in the top window using super glue.

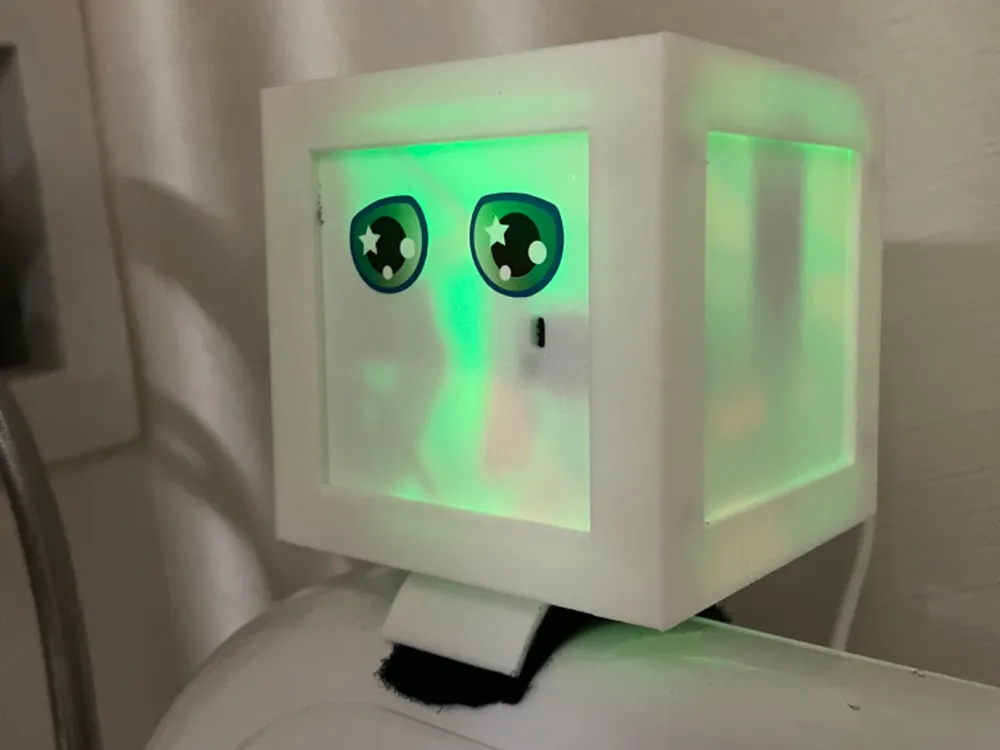

A complete QB1 enclosure requires a top piece, a bottom piece, and a peripheral/mounting/blank plate for each cube face. All enclosure pieces are listed in the QB1 collection. For more information about QB1, see the project page on GitHub.
