Meshtastic Enclosure — Heltec WiFi LoRa 32 V3
Print Profile(2)
Bill of Materials
- Heltec WiFi LoRa 32 V3 x 1:
- 3.7V LiPo with JST connector x 1:
- SMA pigtail or antenna x 1:
- Latching panel-mount switch x 1:
Description

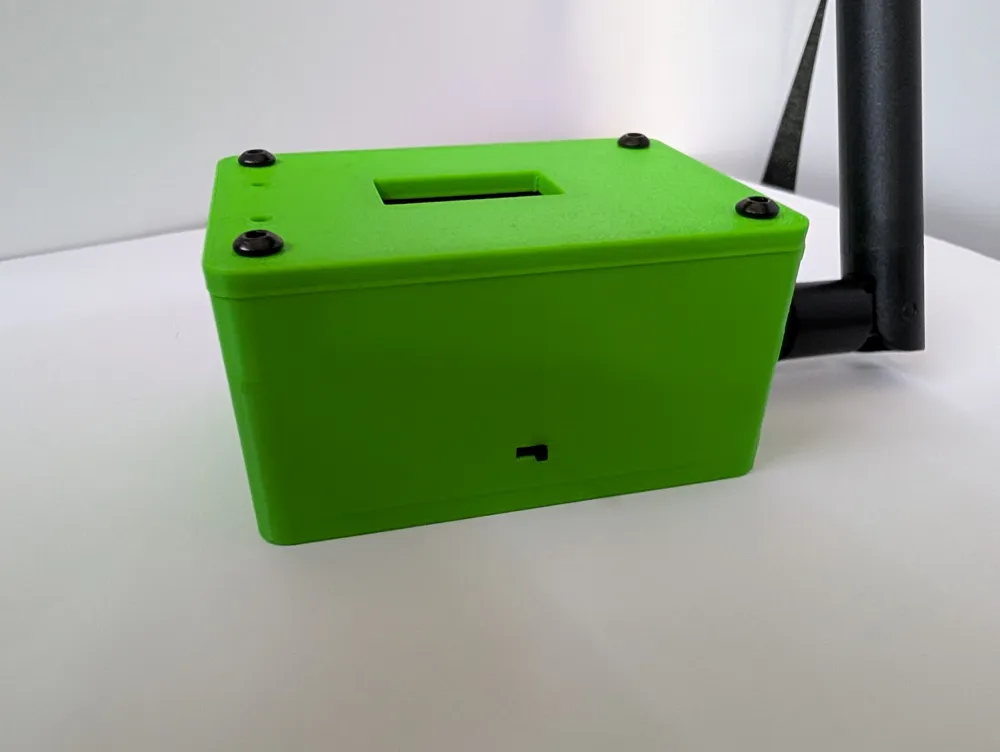

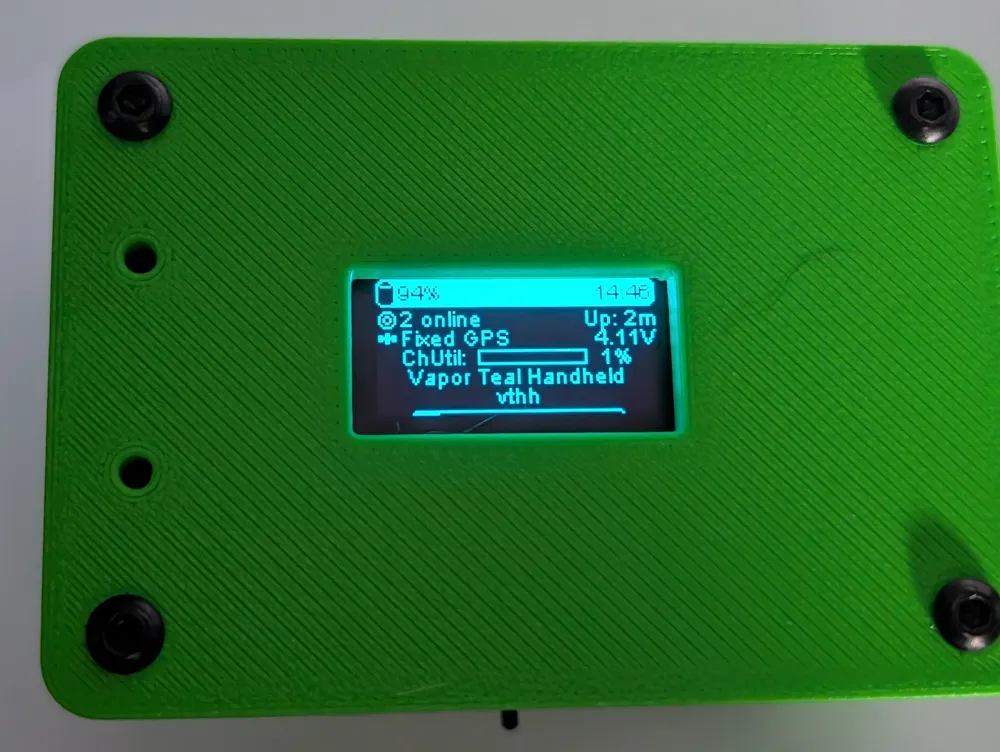

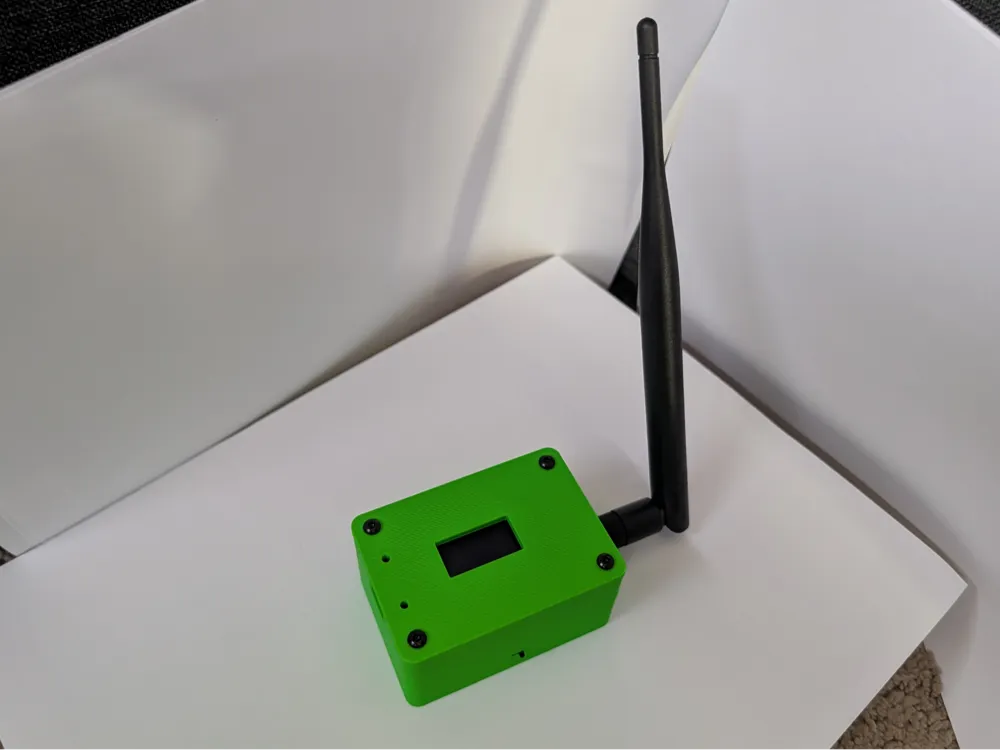

A clean, printable enclosure for the Heltec WiFi LoRa 32 V3 running Meshtastic — designed to sit on a desk as a permanent indoor node.

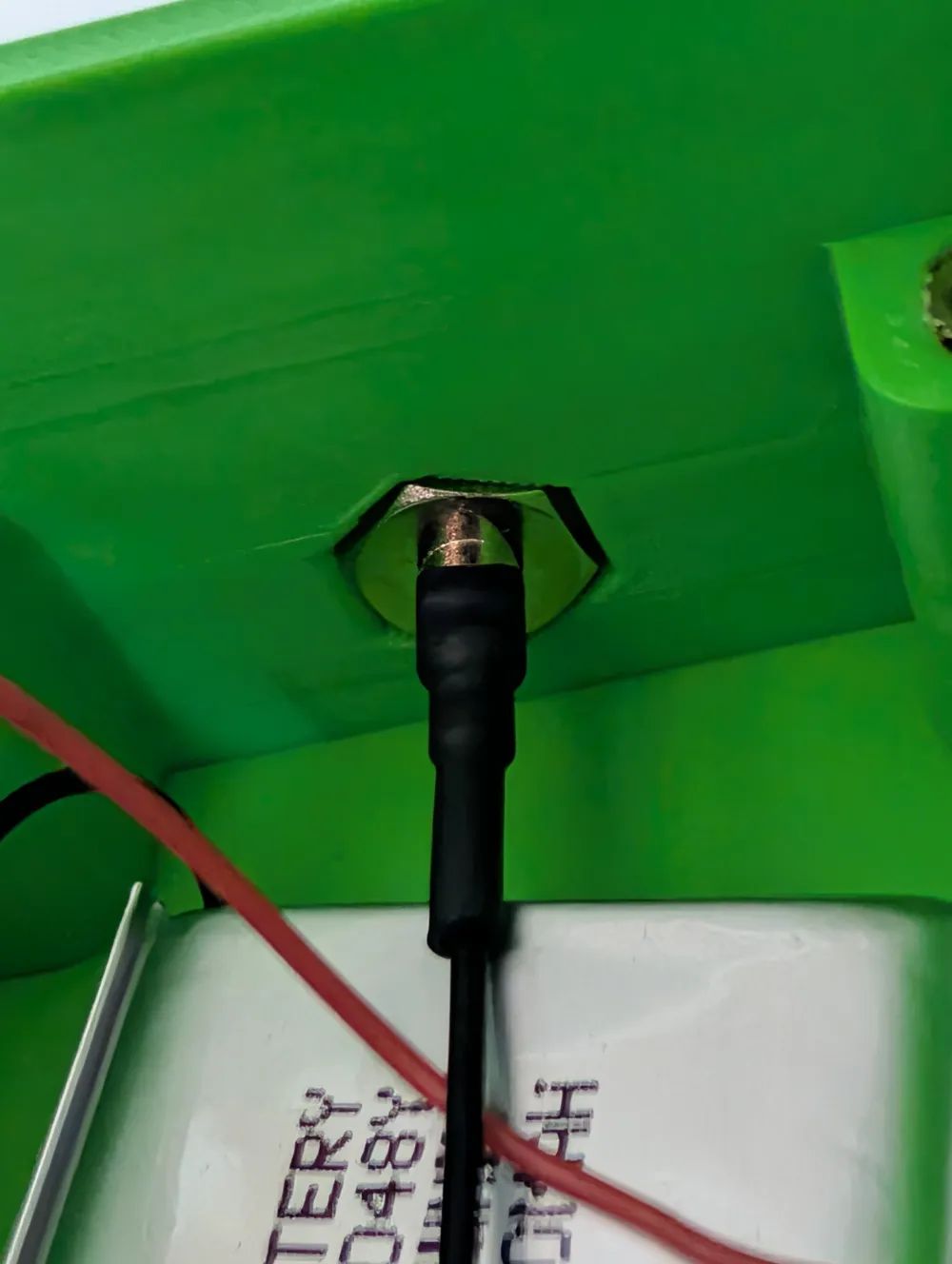

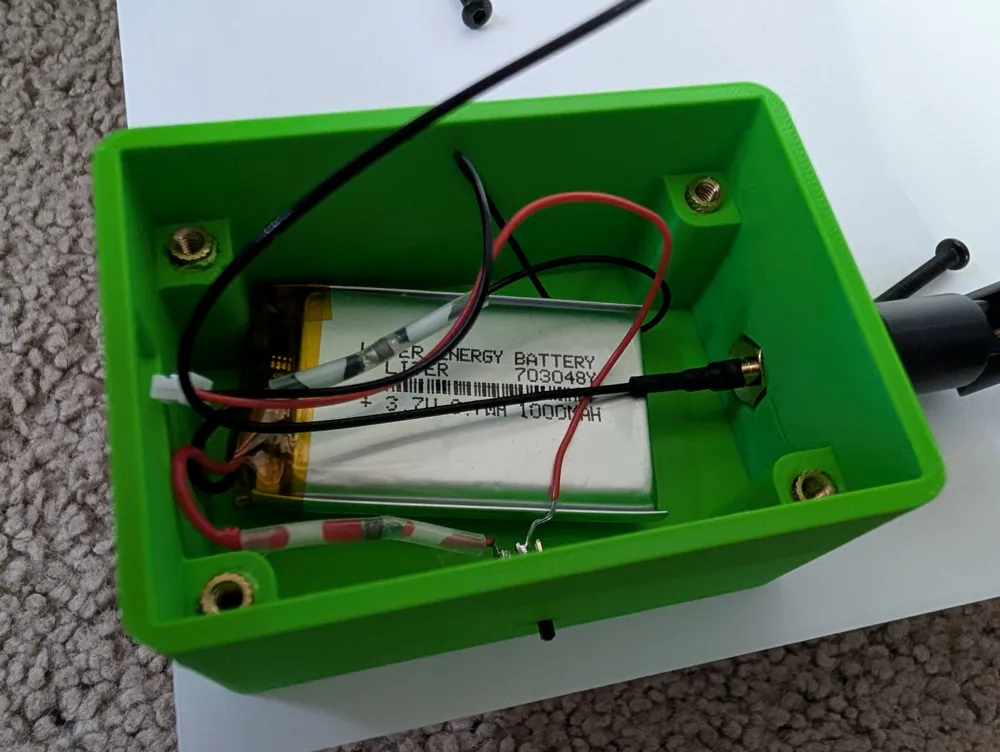

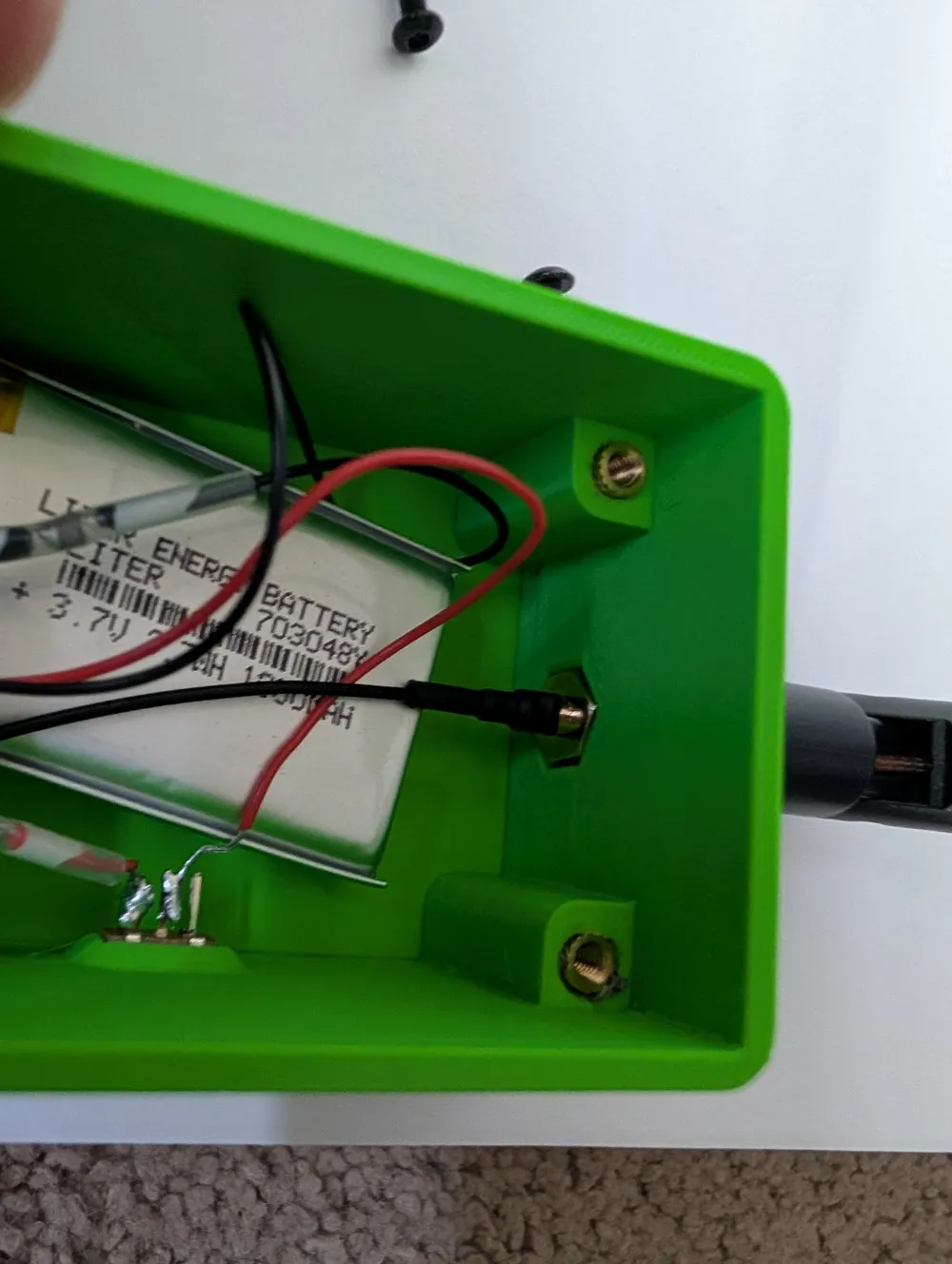

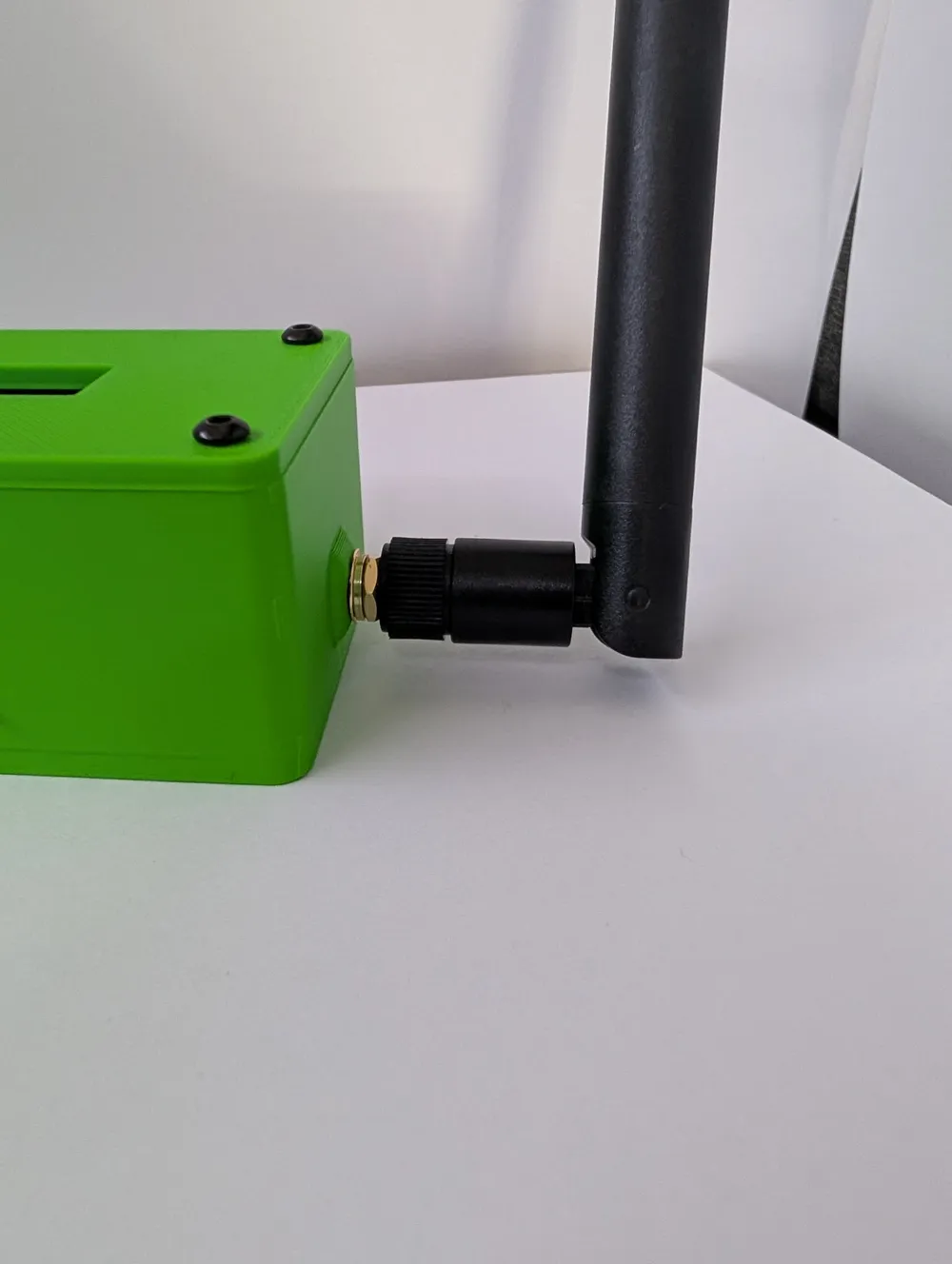

Holds a 1000mAh LiPo for brief power backup, has a latching power switch on the outside, and a clean SMA antenna passthrough. No frills, no fuss.
---
What's included:

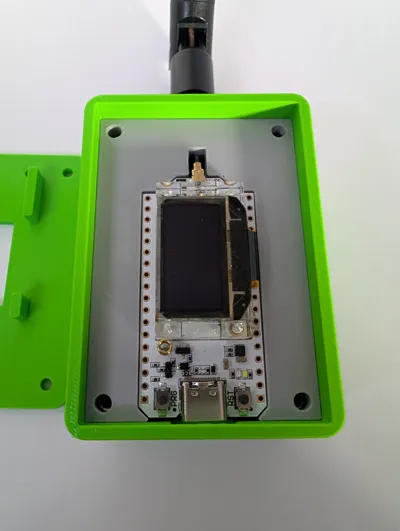

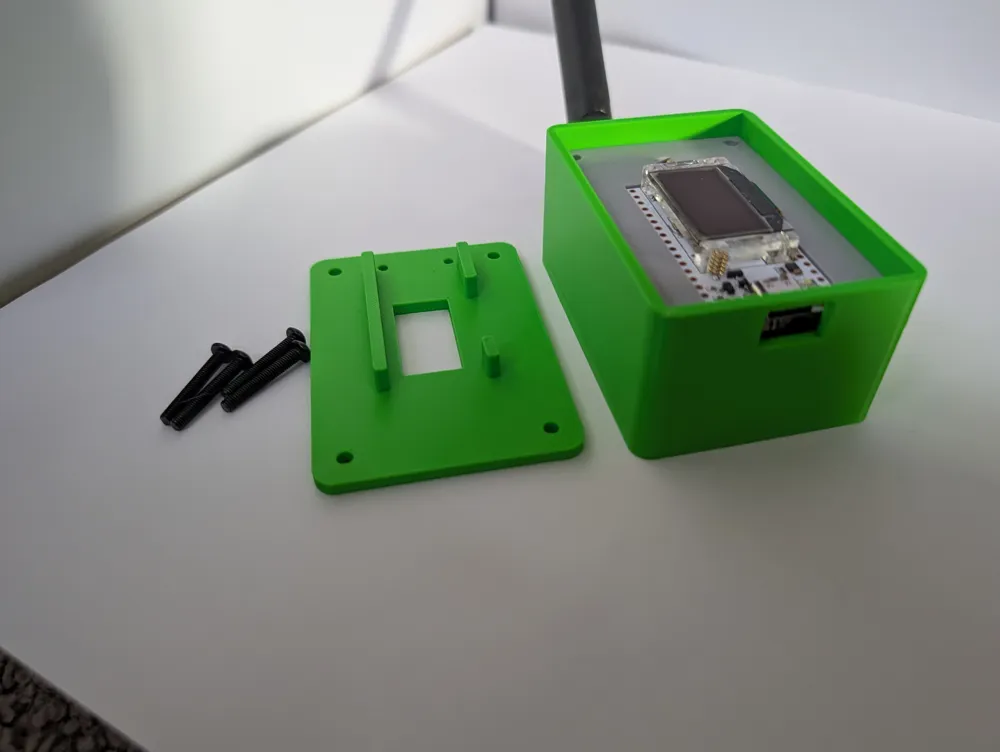

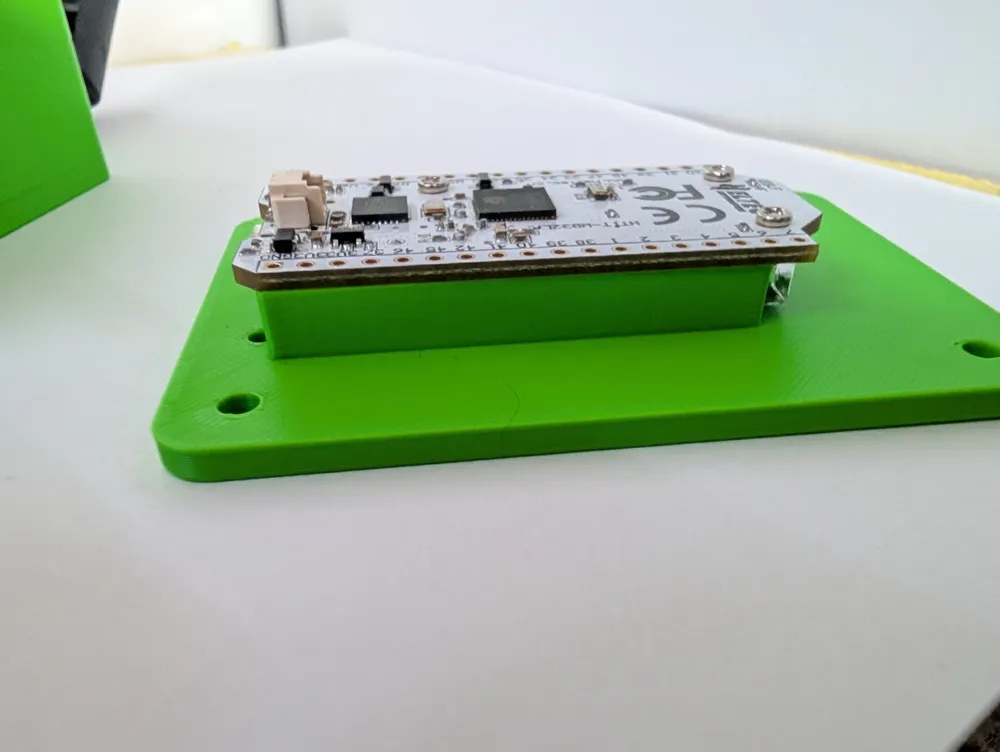

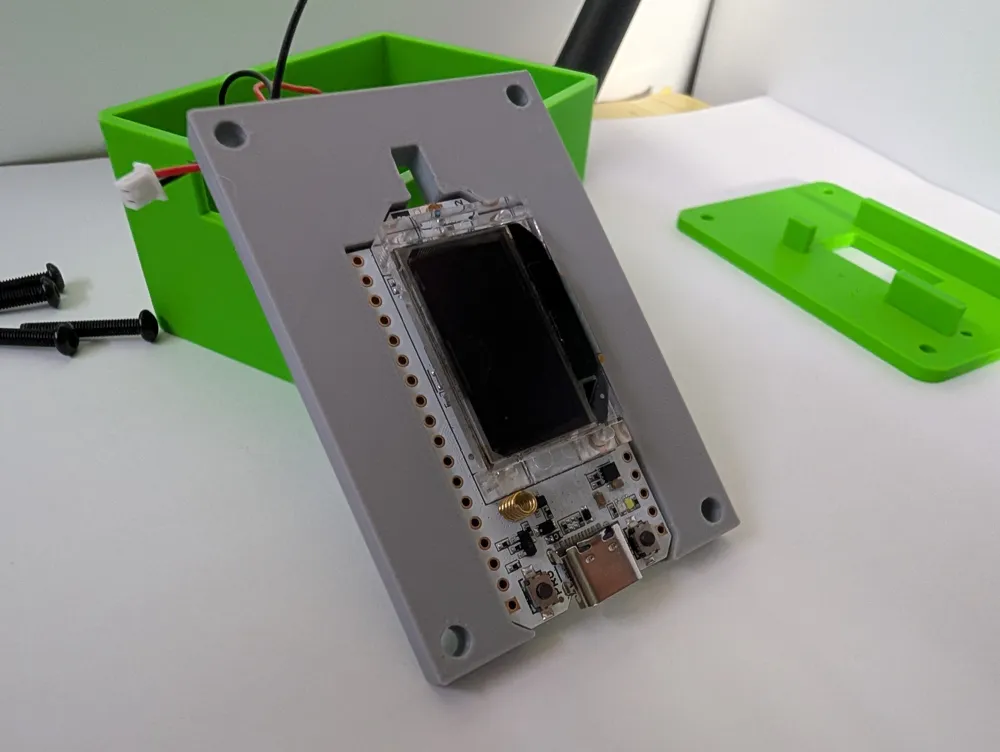

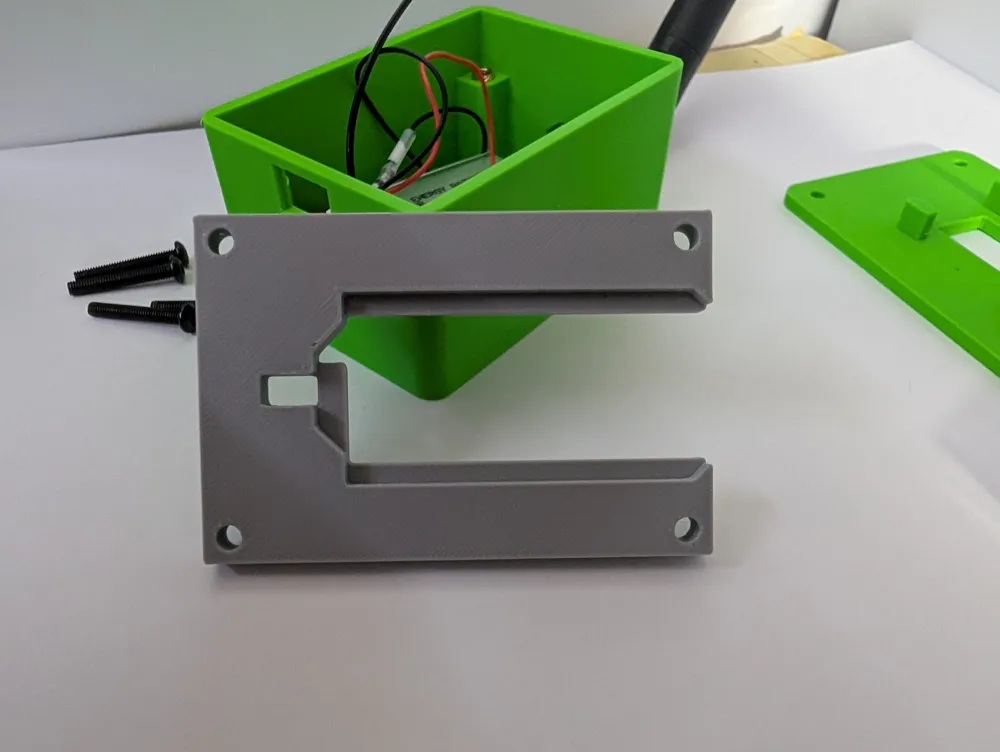

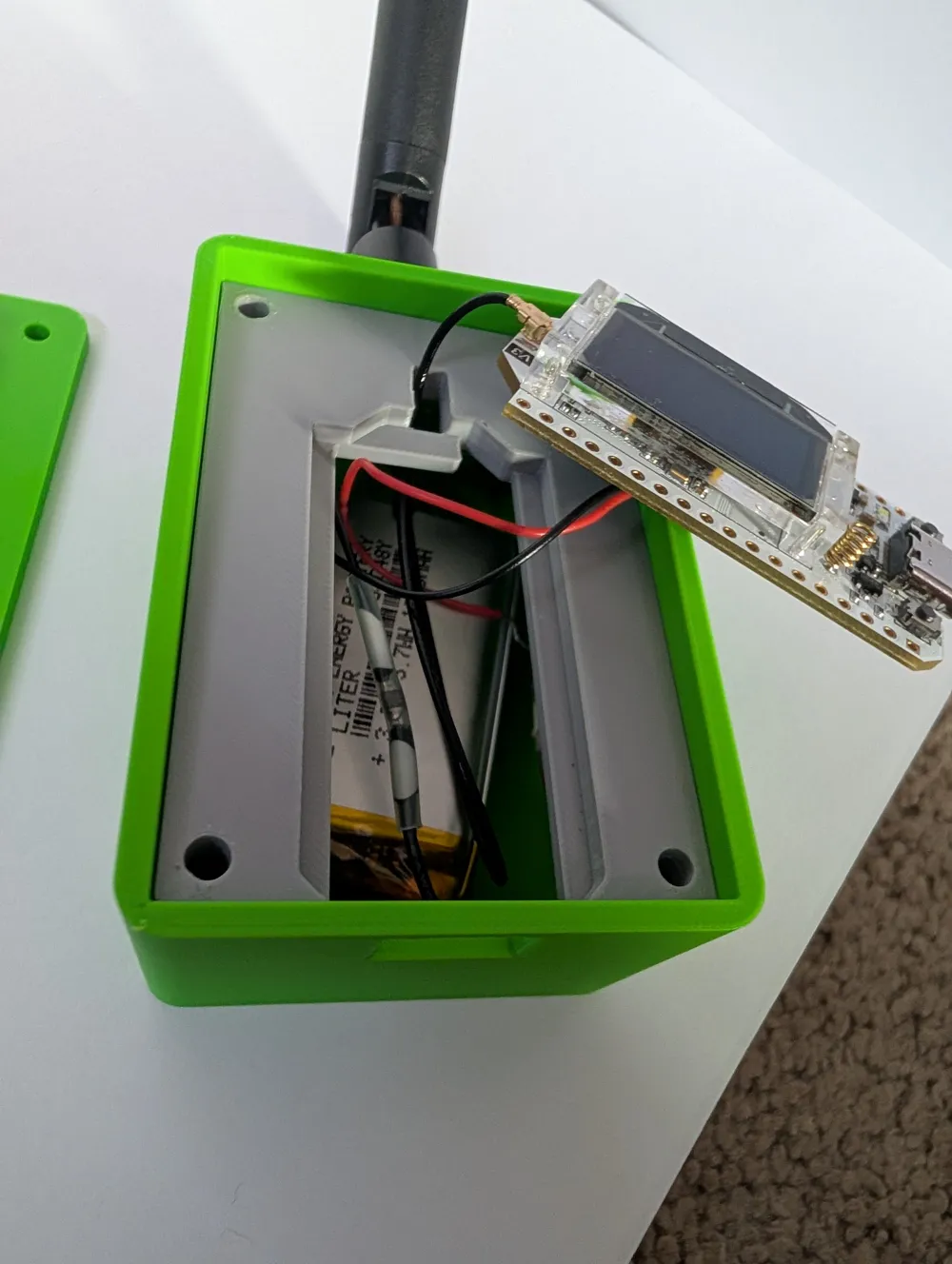

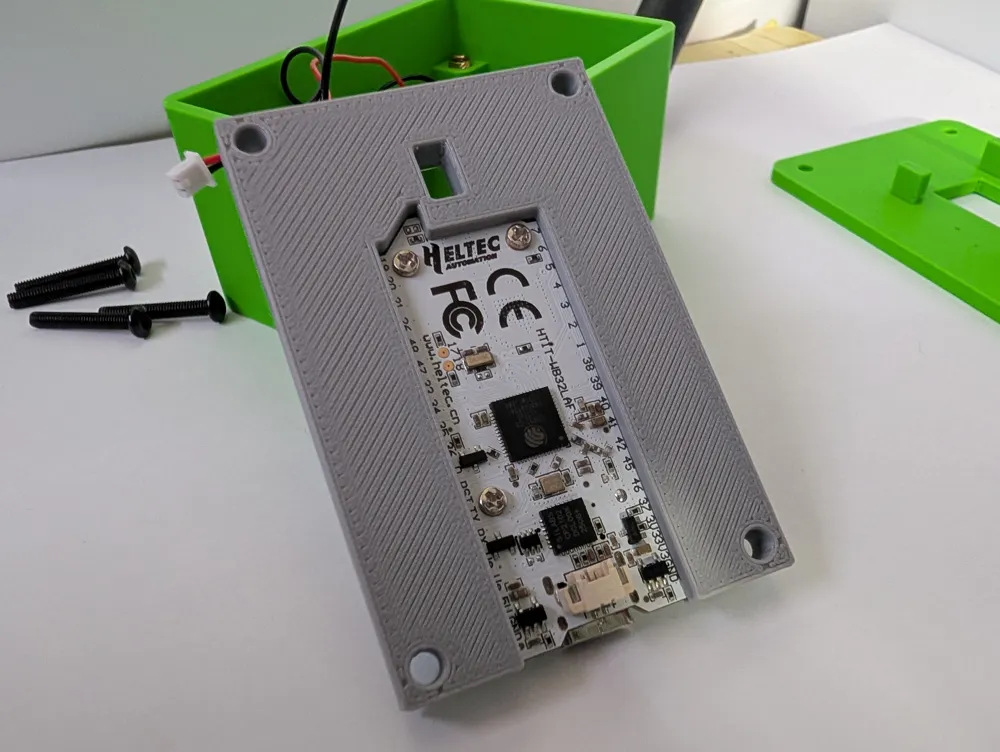

- Body, tray, and lid
- Full build guide with wiring notes
- Bill of materials with sourcing links
- Meshtastic firmware config notes
---

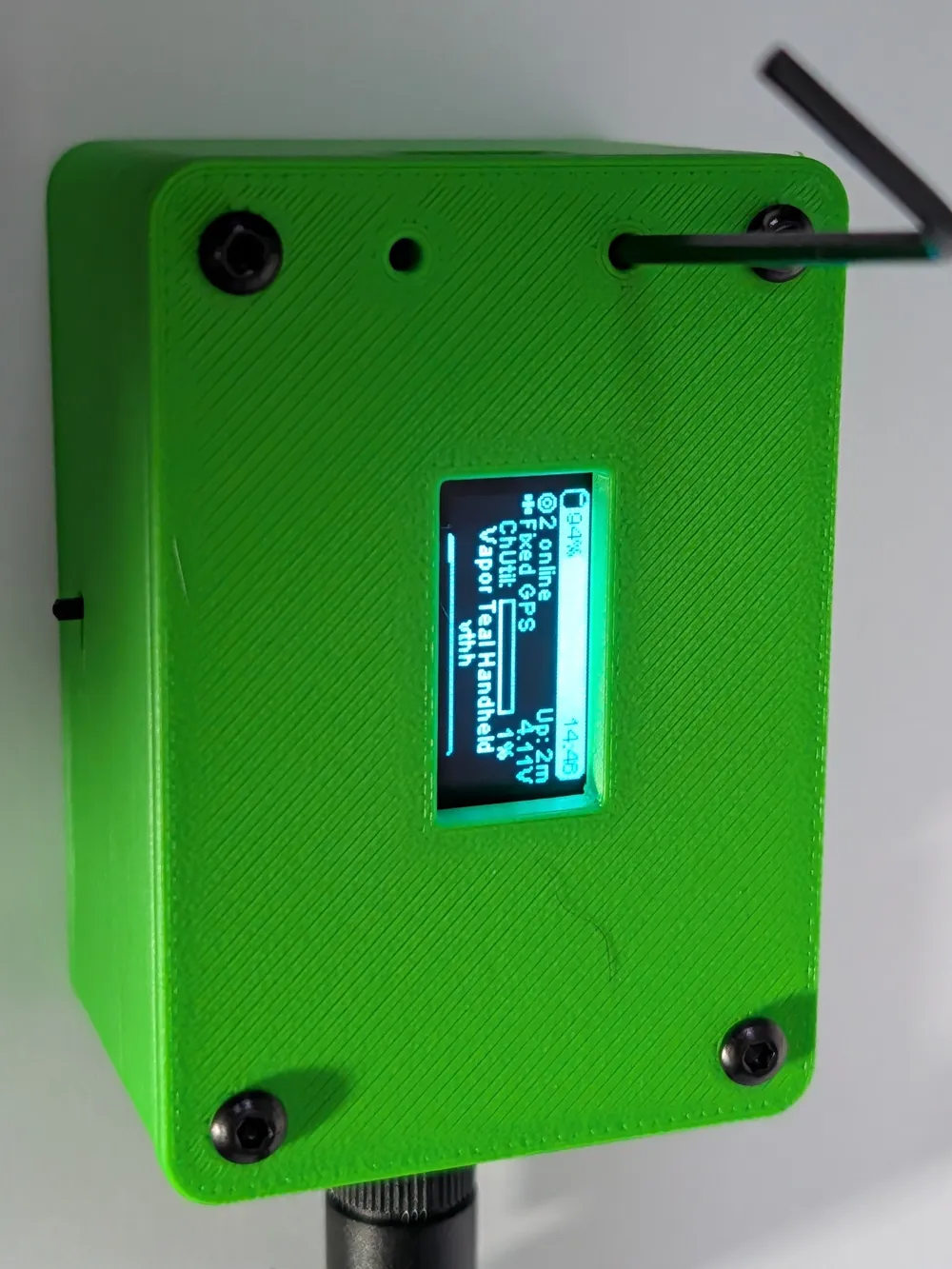

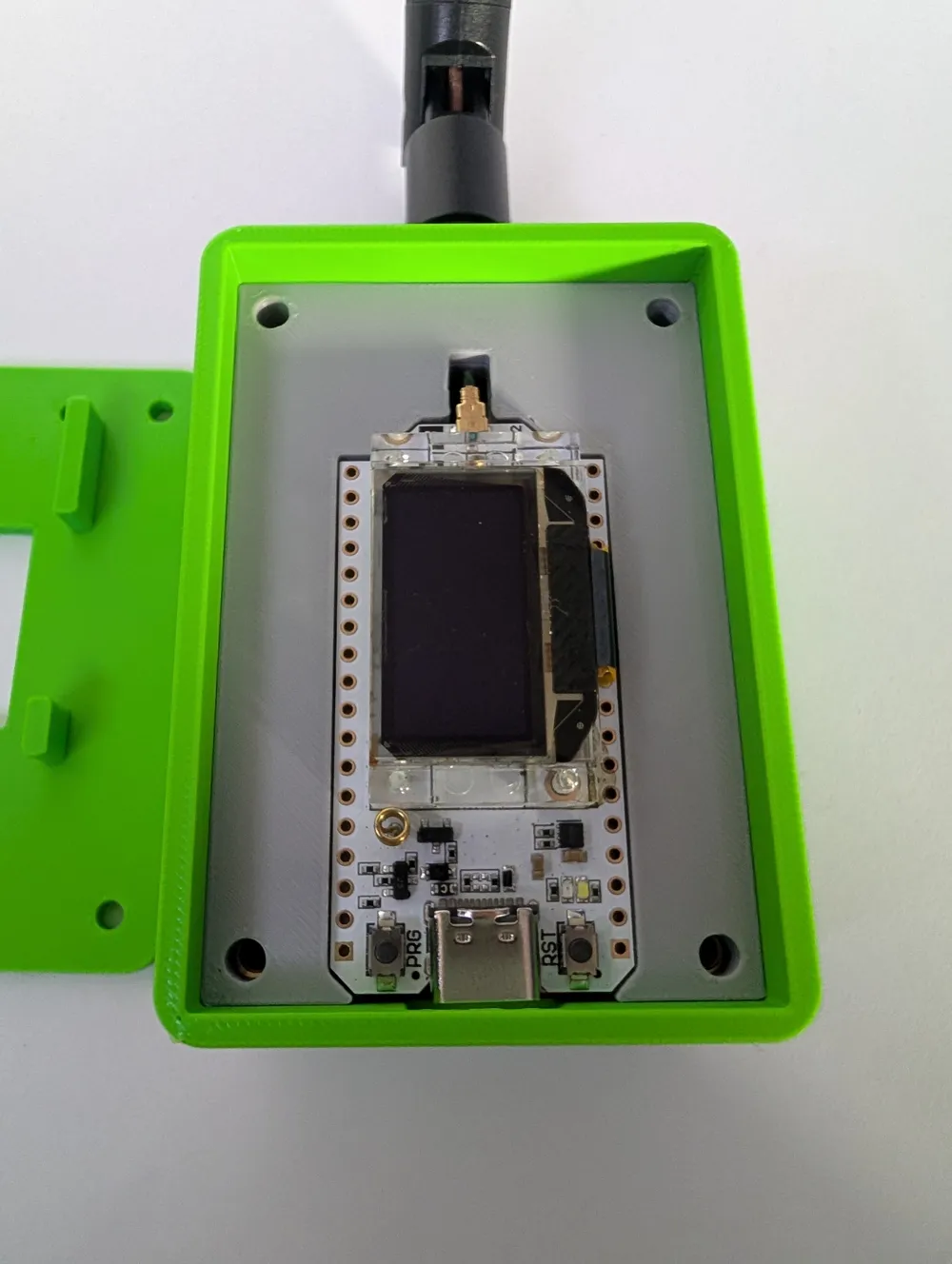

Button access: The V3 has RST and PRG buttons. In normal Meshtastic use you rarely need them,
so instead of plungers there are small holes — poke through with a pin, toothpick, or pen if needed.
---
Part of an open-source enclosure library for Meshtastic nodes.
More board variants and outdoor/solar configs coming. GitHub link - https://github.com/elipwns/meshtastic-enclosures/tree/main/hardware/heltec-v3-desktop
