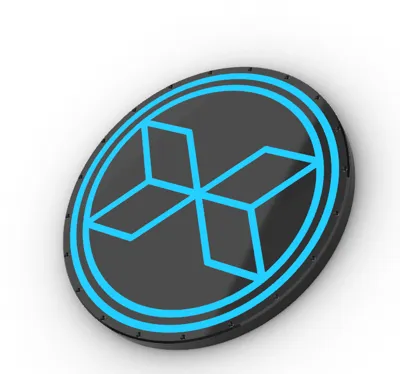

Stormbringer Magic Array Wireless Charger
IP Report

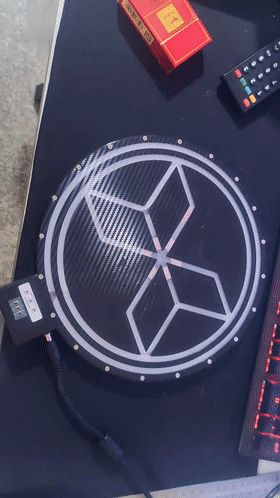

GIF
Print Profile(1)
0.2mm layer, 2 walls, 25% infill
Designer
11.1 h
3 plates
Open in Bambu Studio
Boost
0
1
0
0
0
0
Released
Description
Content has been automatically translated.

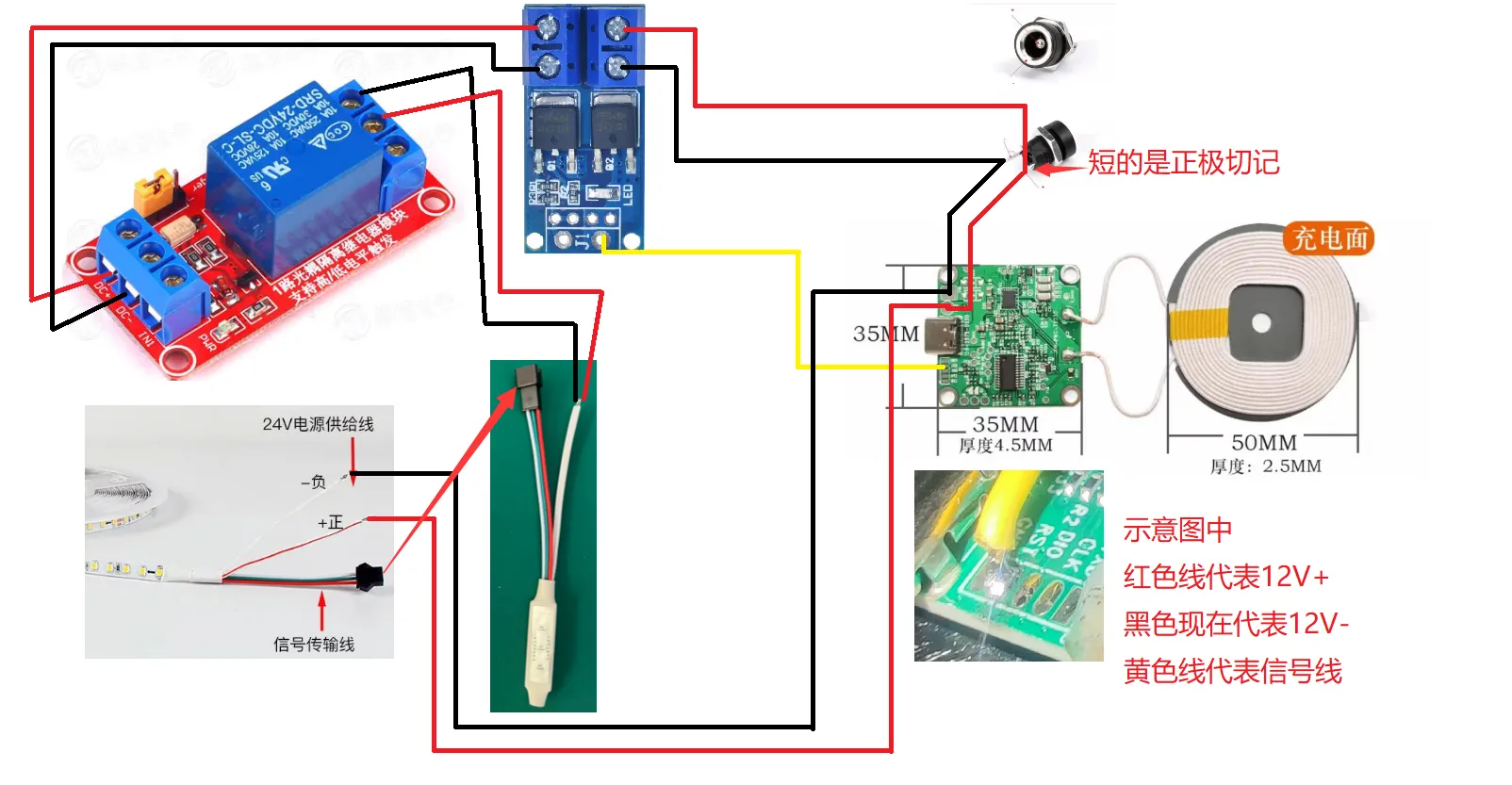

Wiring diagram: For LED control, the casing needs to be peeled open for installation, and for the MOSFET trigger switch, the screws on top need to be removed. Beforehand, you'll need 20 2.6*14 self-tapping screws, glue, and hot melt adhesive (Because I hadn't thought about it before, I assembled and sealed everything at once for open source. This means I can't take detailed photos of the inside now. You'll need to figure out how to install the controller casing yourself. If you really can't, you can leave a comment, and I'll reply as soon as I see it.)
This schematic diagram can be used as a reference to create light shows or articulated models for any wireless charger (such as wireless chargers with retractable wings or magic array chargers sold on certain platforms). The main point is that these modules, when combined, can ignore voltage and switches (crucially, no programming is required, making it more suitable for novice DIY enthusiasts).

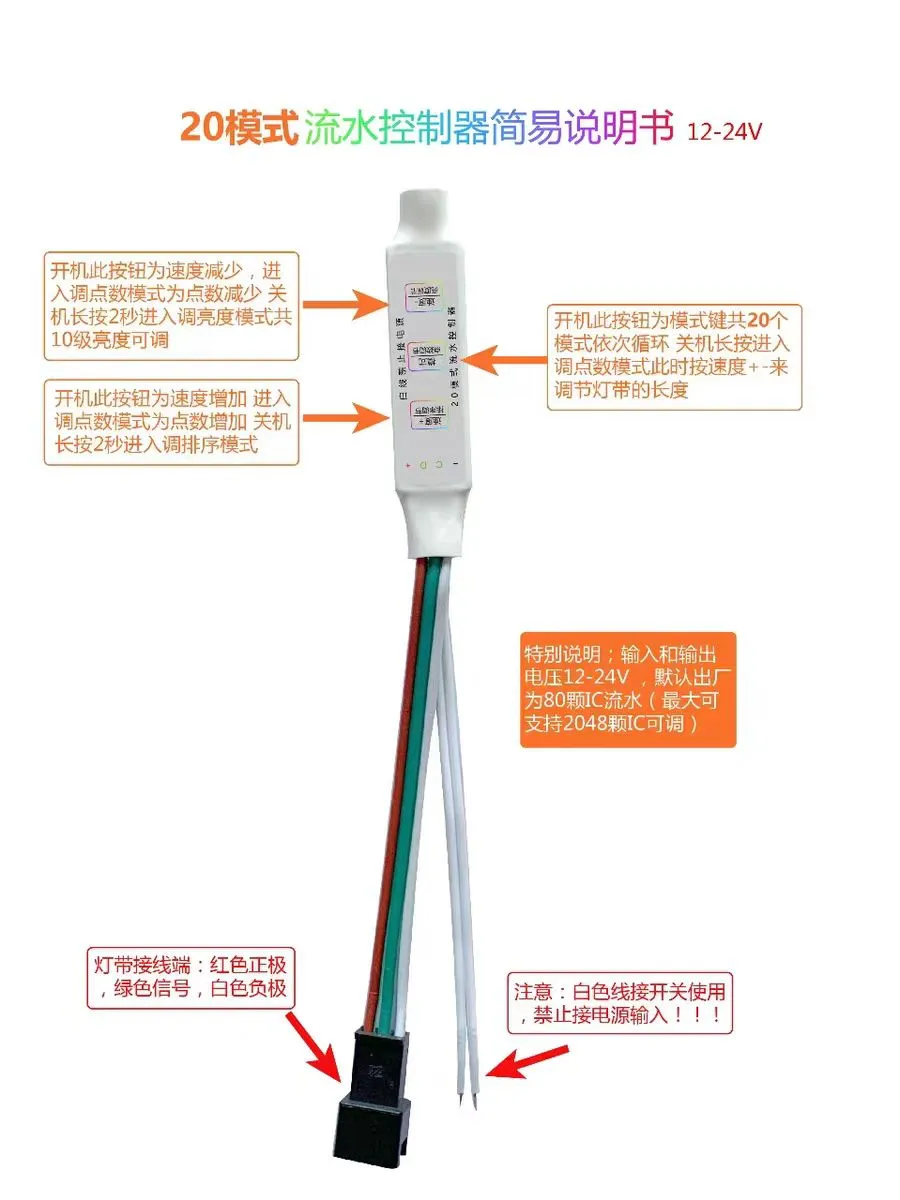

This image explains the controller's functions.
