Jean Paul Gaultier "Le Beau" Display box
Print Profile(4)
Bill of Materials
- Steel/Aluminium rods x 2: ø6mm - 200mm long
Description
Boost Me (for free)
Boosting this design is free for you, yet it makes a huge difference for me. Thanks for helping me keep creating!
Membership
Commercial License
If you find my designs interesting and useful, and would like to see more in the future, please consider giving me a boost and becoming a supporting member.
Also, if you need parts for any of my designs, please use the BOM link provided on the model page when buying. This gives me a small commission.
Jean Paul Gaultier “LE BEAU” Folding door display box.
From Whiskey to Fragrance: The Next Level of Mechanical Displays
If you've followed my work, you know I love a good mechanical reveal. I’ve built everything from whiskey and soda cases to Pokémon displays and jewelry boxes.
My friend asked me to make one for his favorite JPG fragrance.

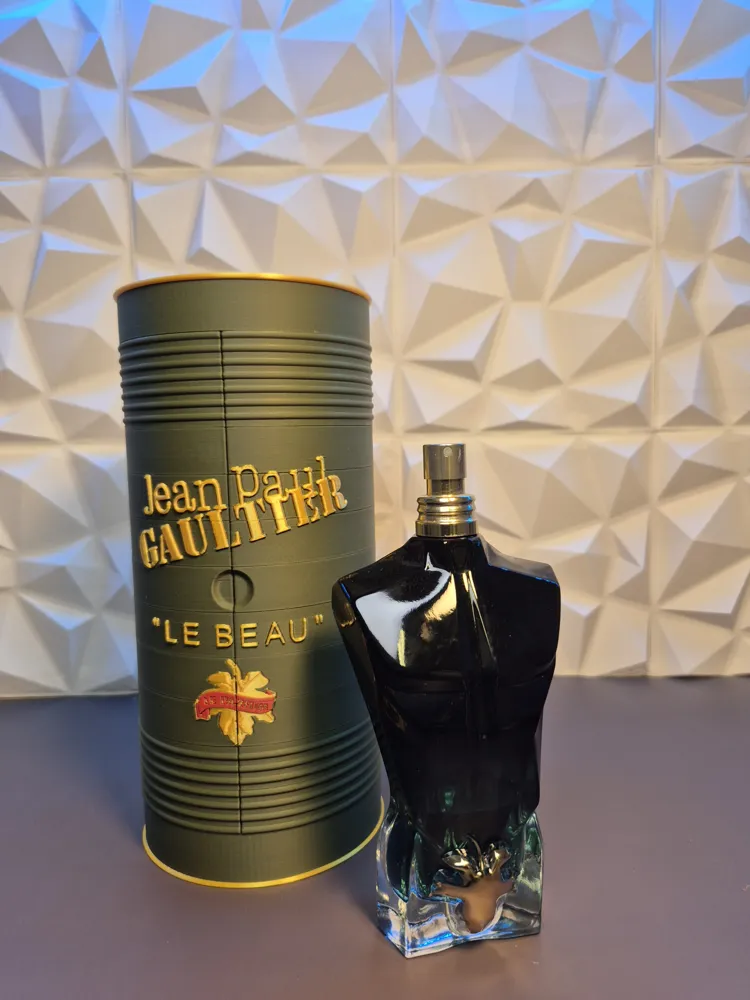

This is a custom Folding Door Box designed specifically for the Jean Paul Gaultier "Le Beau" fragrance. Instead of a simple lid or a nesting shell, I engineered a multi-segmented door system that retracts smoothly to the sides.
It's designed to print without any support material waste. I have carefully layed out the pieces so that there is minimal waist when printing with ams.
Want it to look just like my printed model? Use these filaments. Buy through BOM.
- Bambu Dark green PLA Matte
- Bambu Gold PLA silk +
- Bambu Candy red PLA silk +
3D printed parts :
- Top pins x 2
- Base x 1
- Top x 1
- Back pcs x 11
- Door parts x 22
- (Alternative base for LED)
Other parts required :

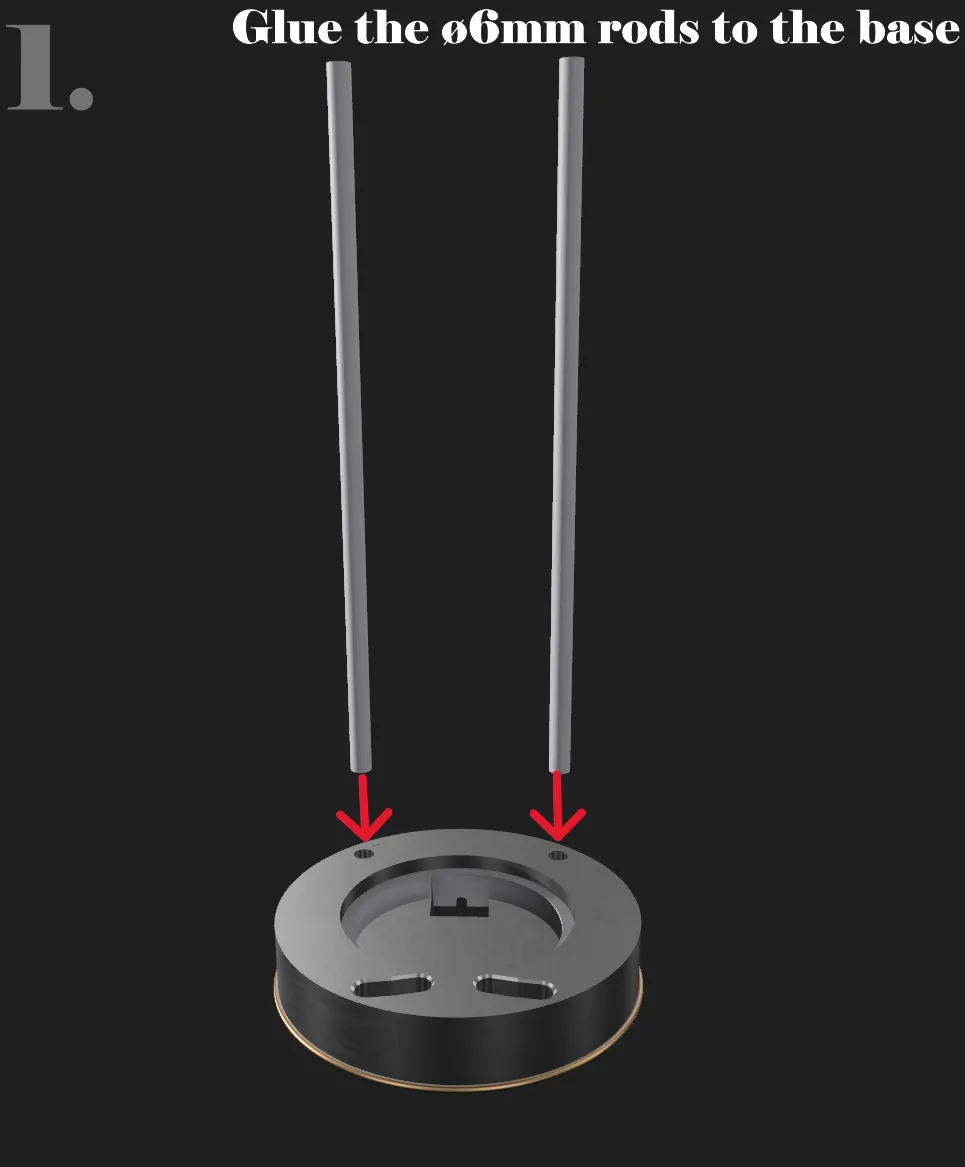

- 2 pcs Steel/alu rods ø6mm x 200mm long. !!Link bellow!!

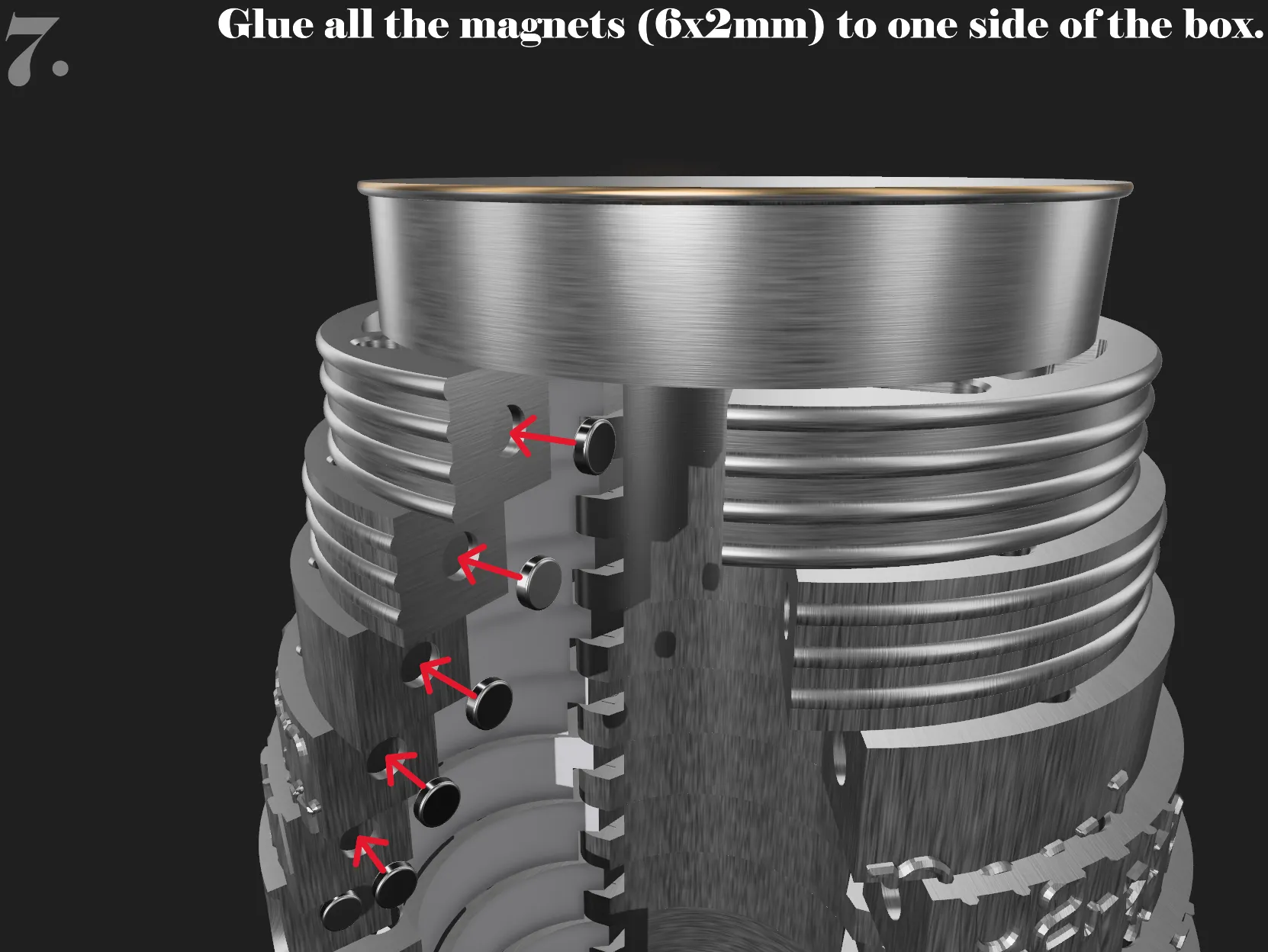

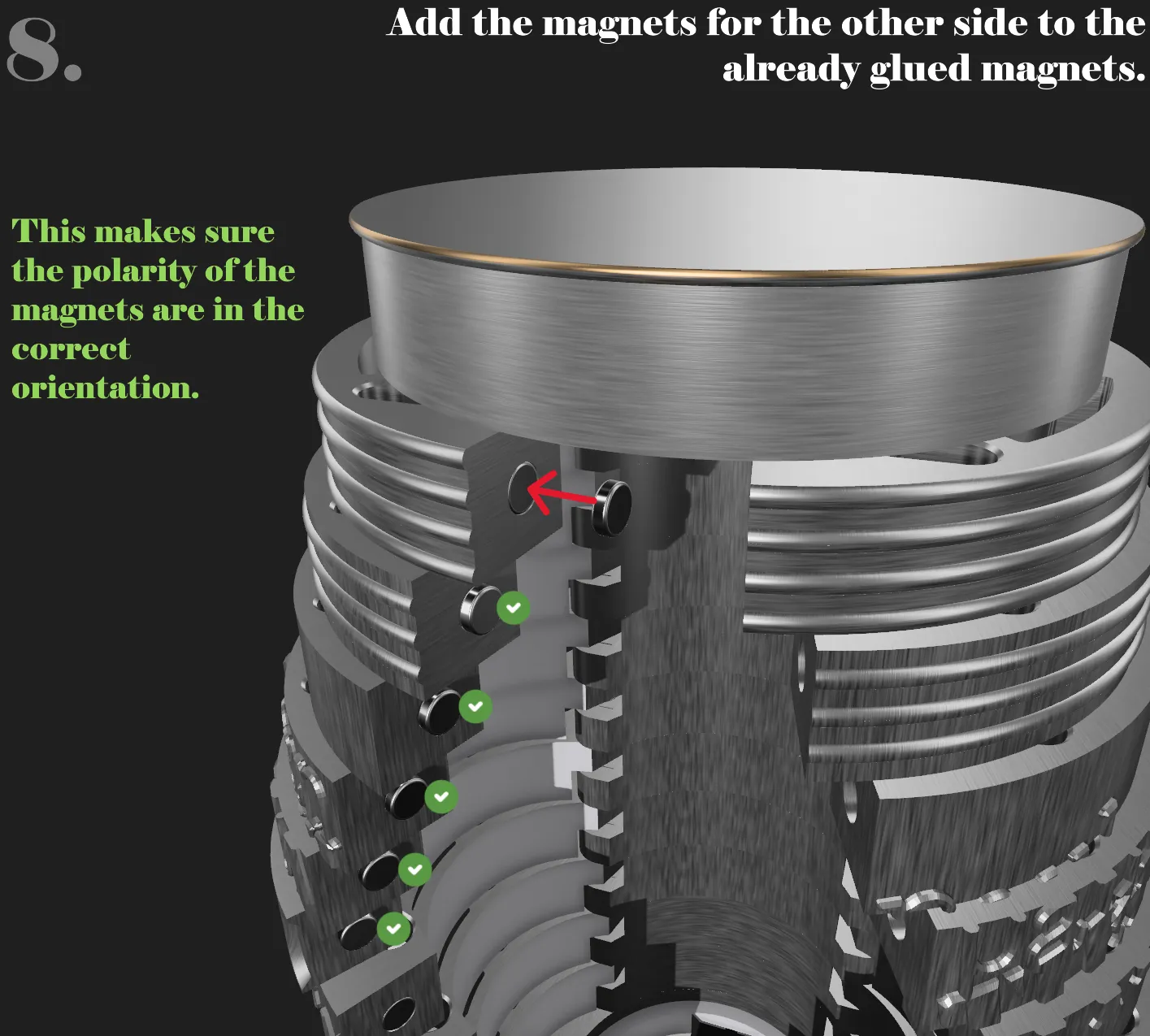

- 22 pcs Round Magnets 6x2mm
- Ca glue.
Optional : Led Lamp Kit 001 or KC007
You can find the steel rods you need here → (affiliate link)
If Bambu i out of stock, buy LED here → (affiliate link)
Round magnets → (affiliate link)
(Everything you buy through these links give me a small commission, so thank you for using them)

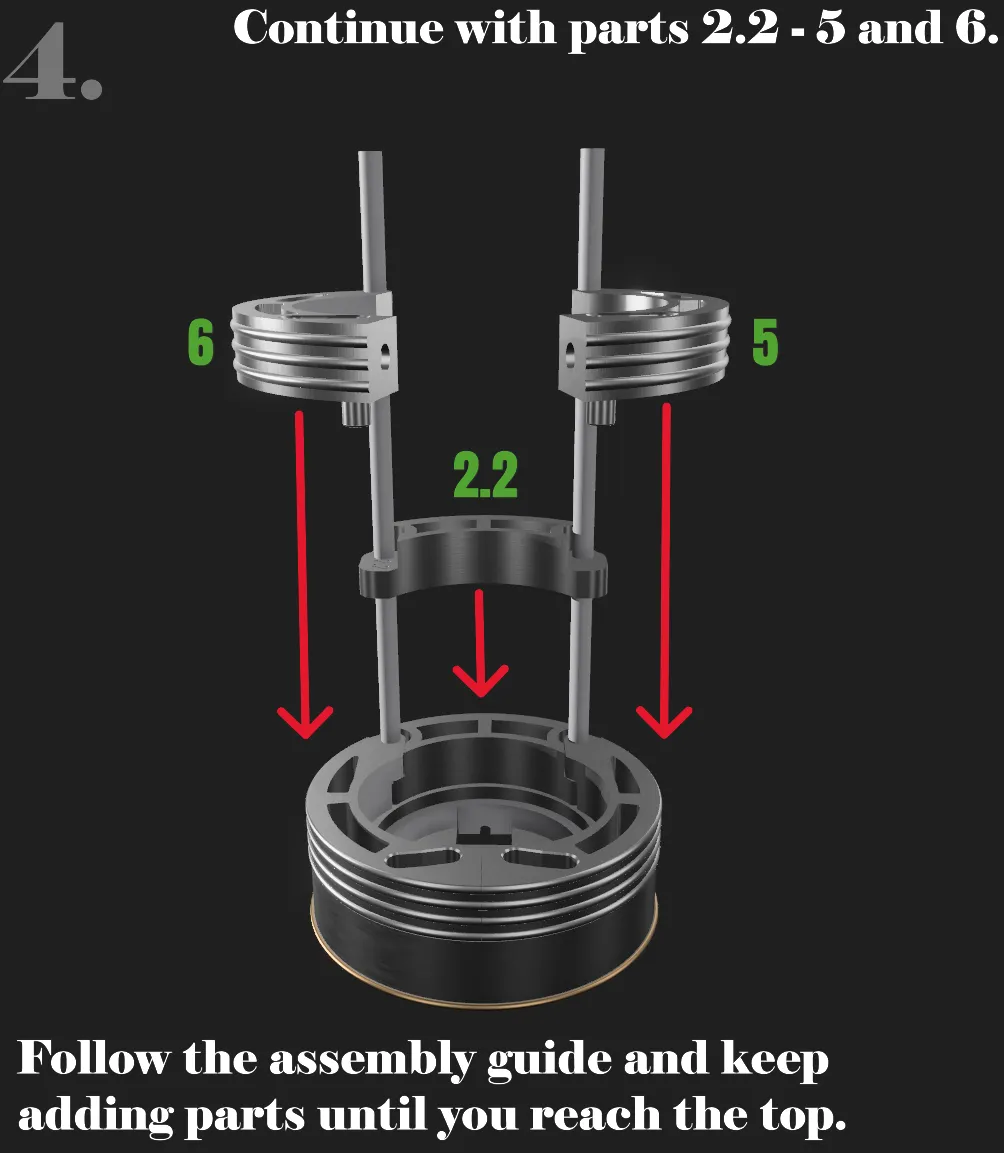

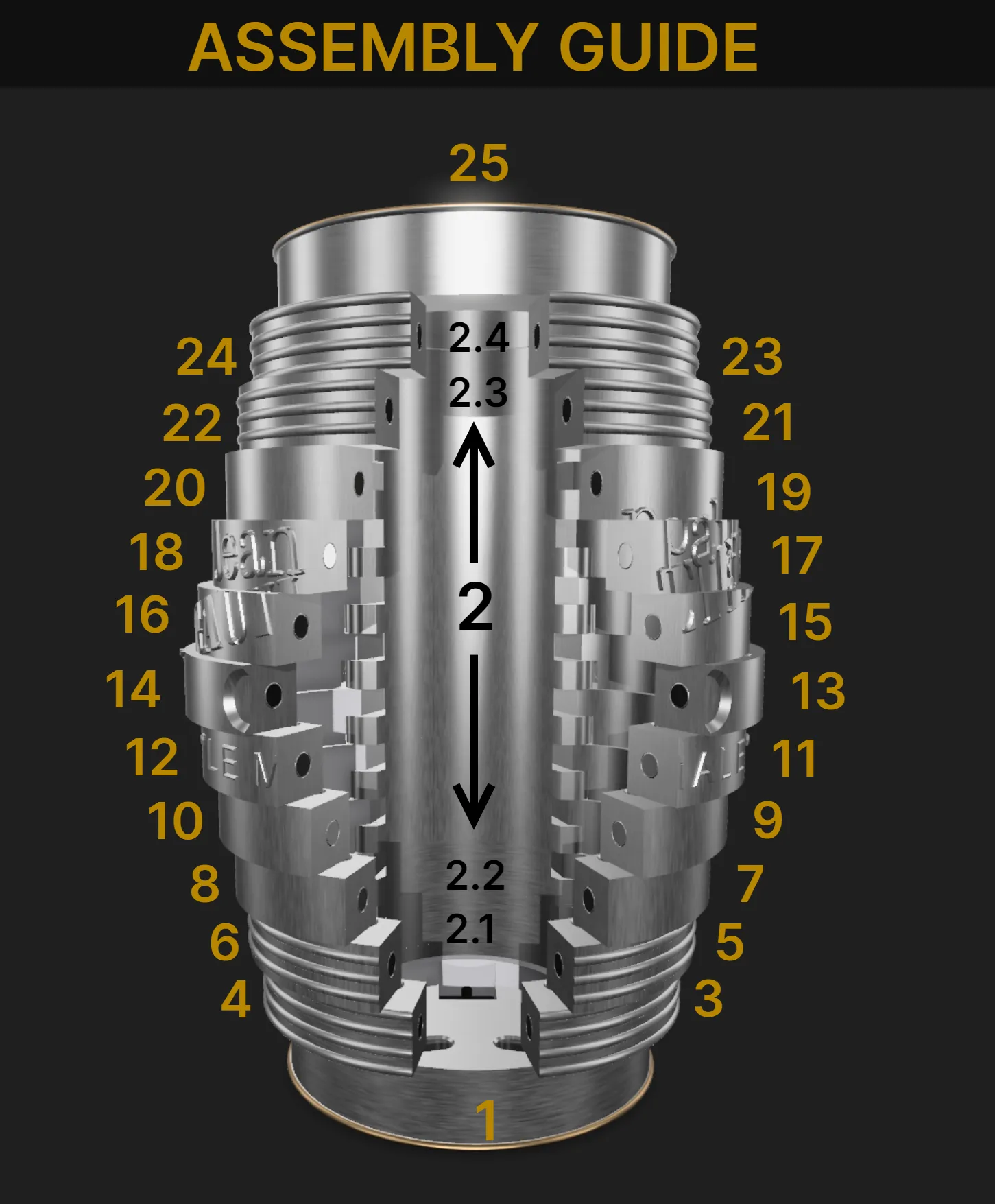

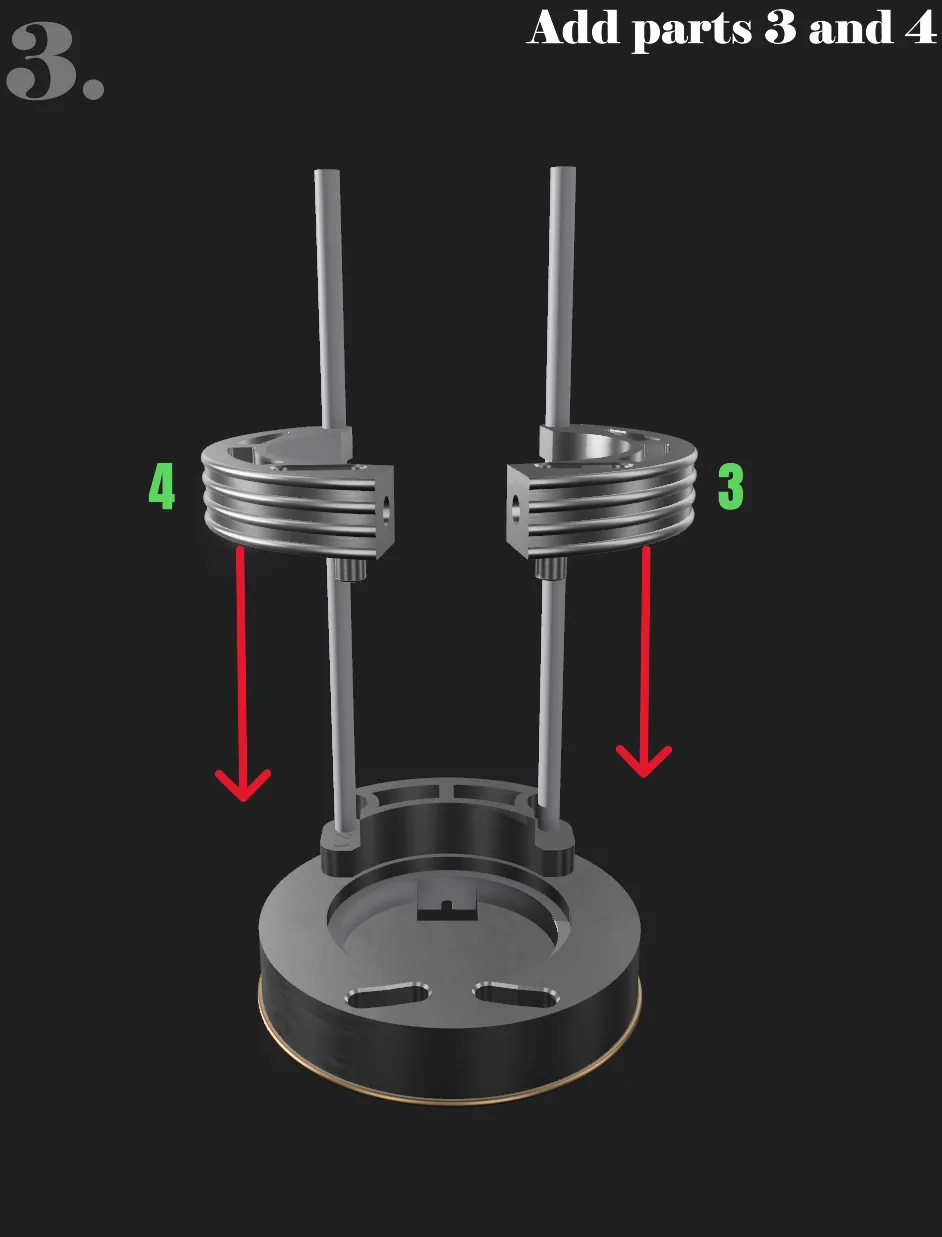

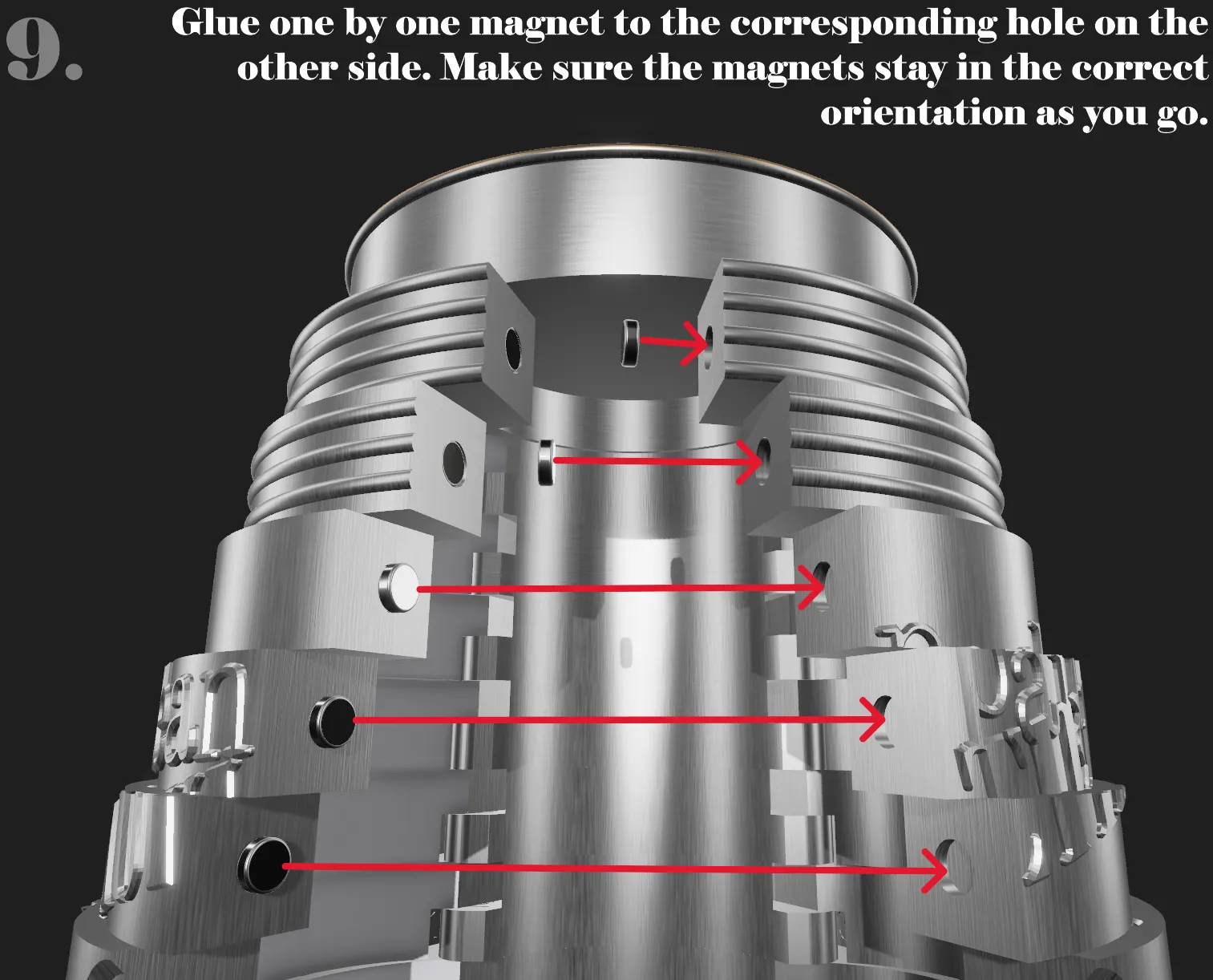

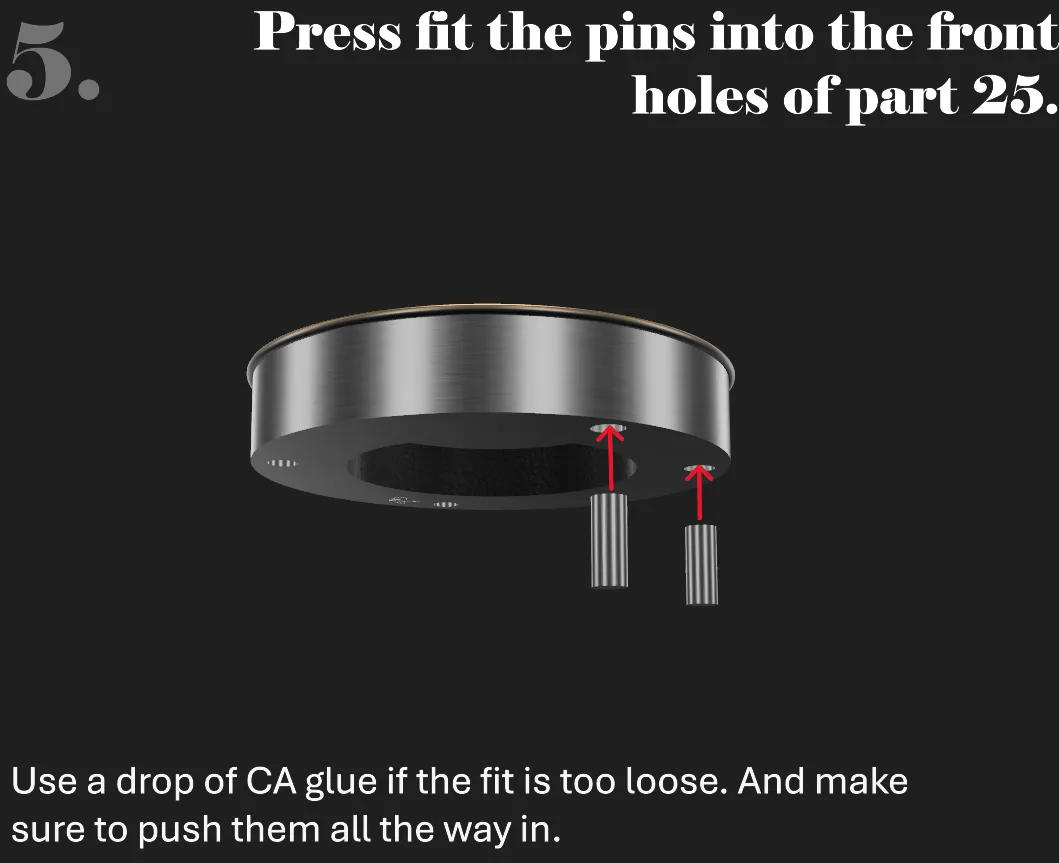

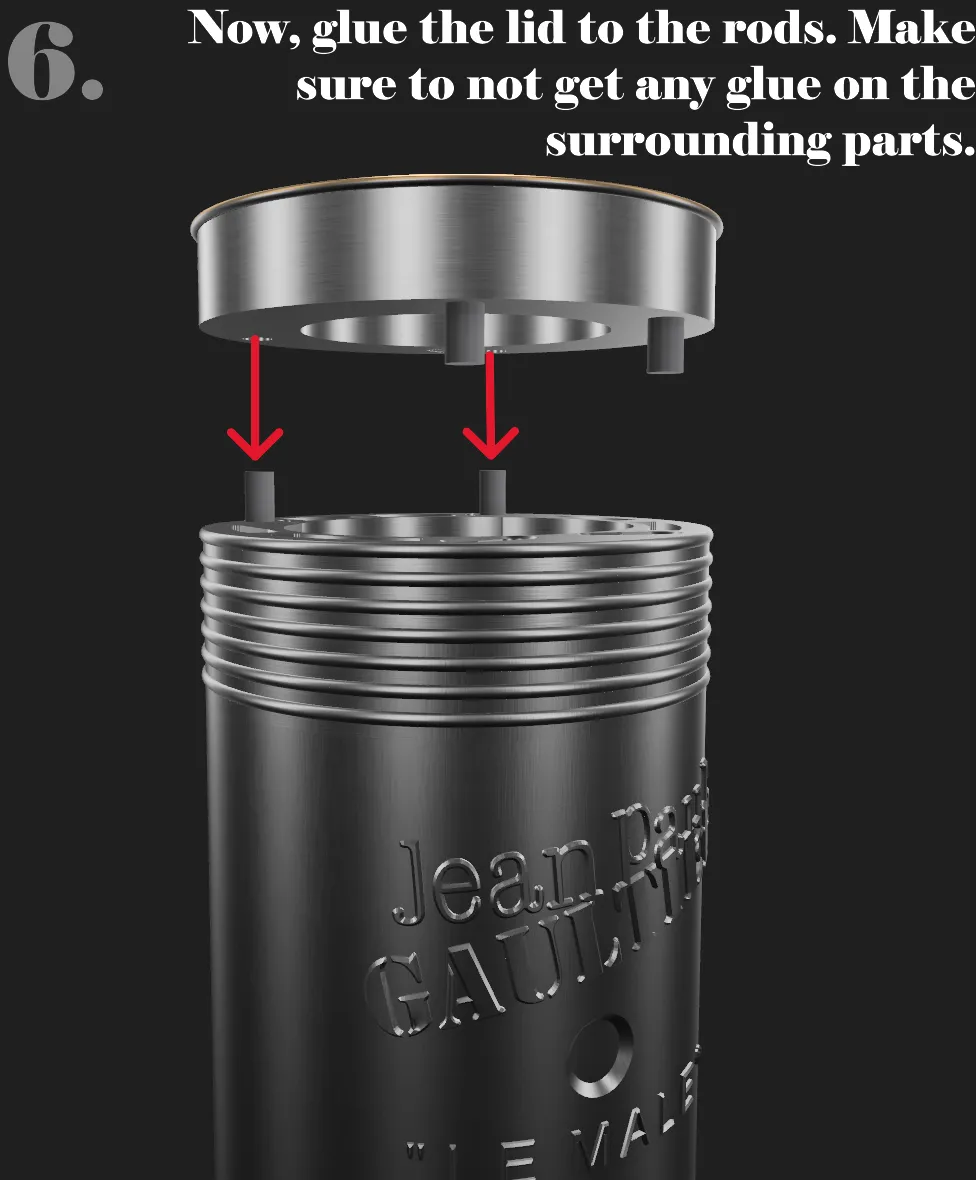

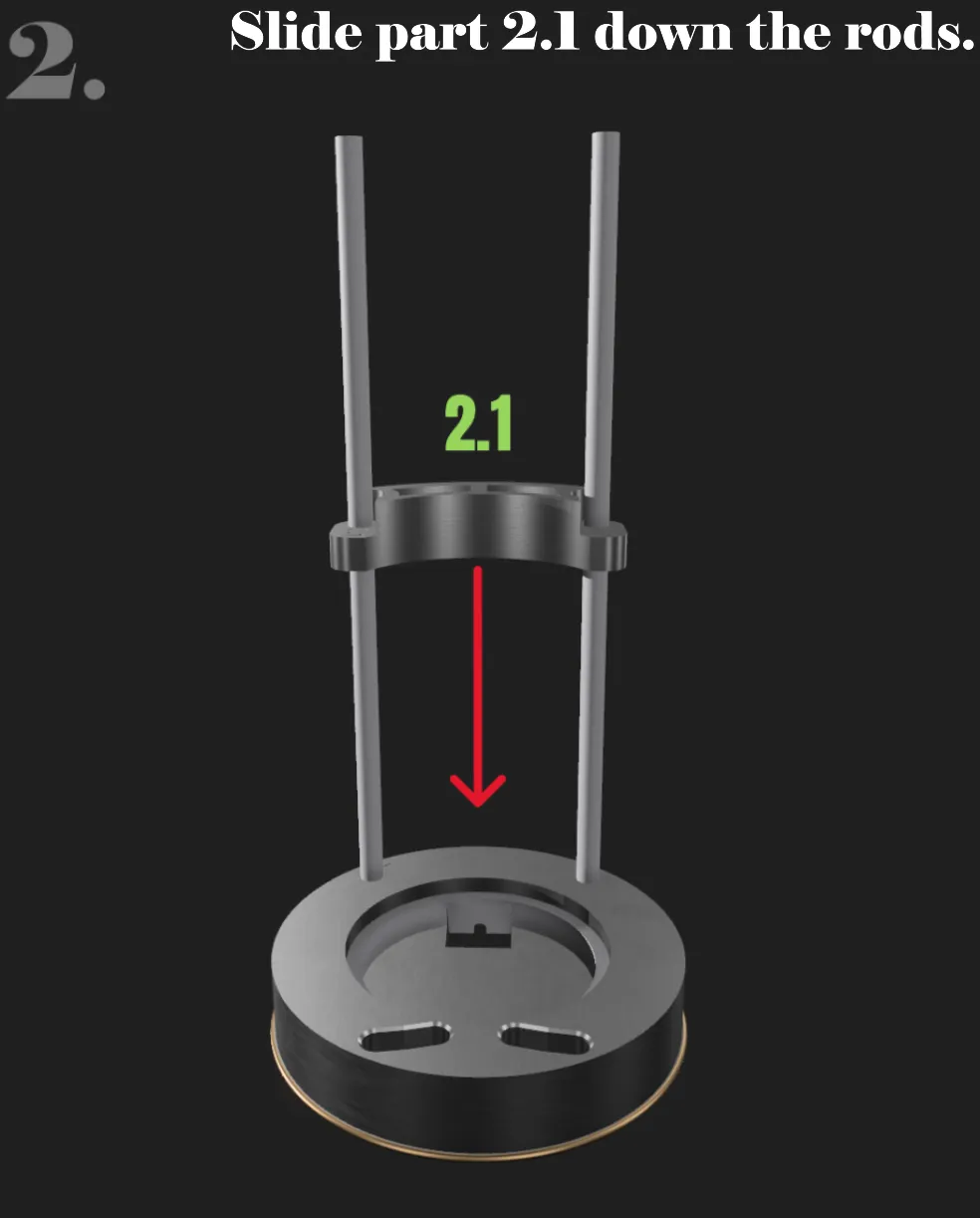

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.

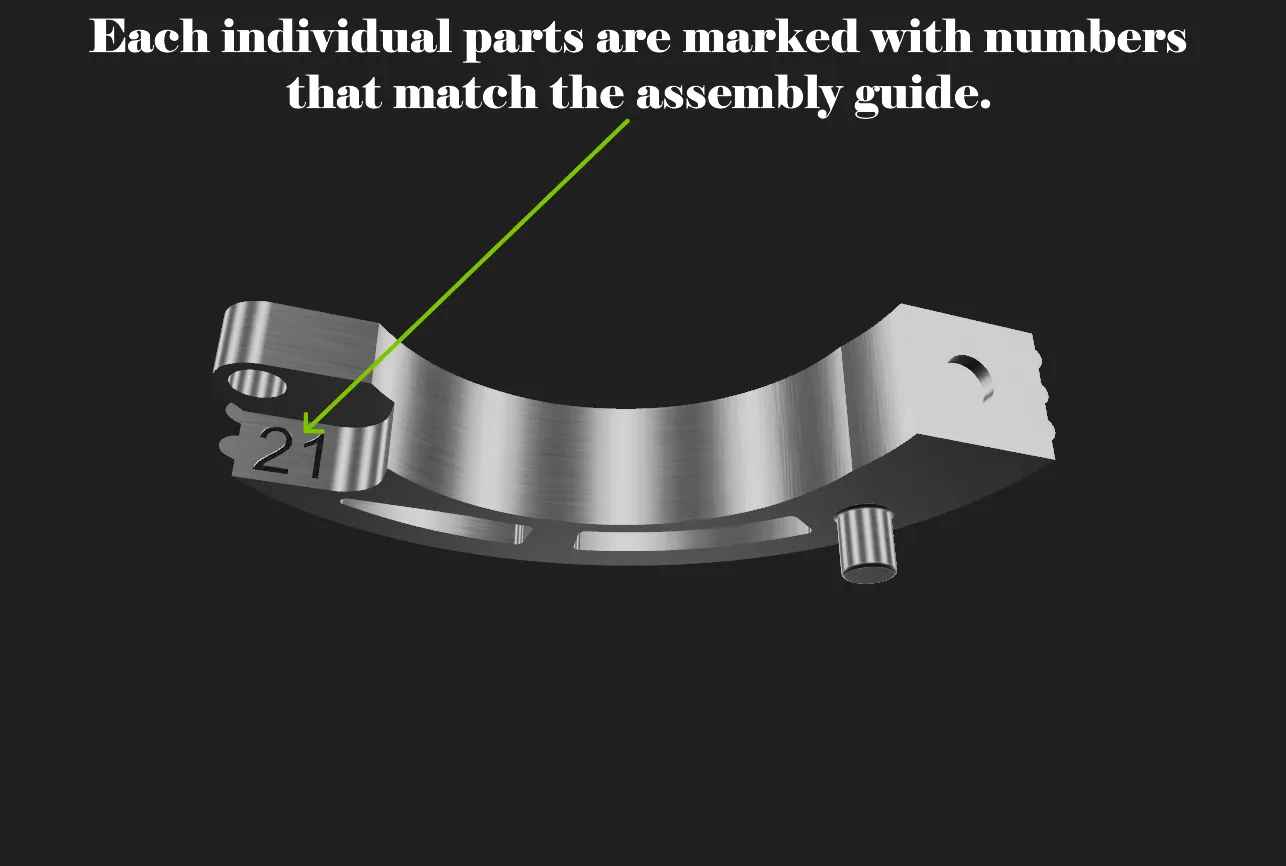

Each individual part is marked with a number, making it very easy to assemble.

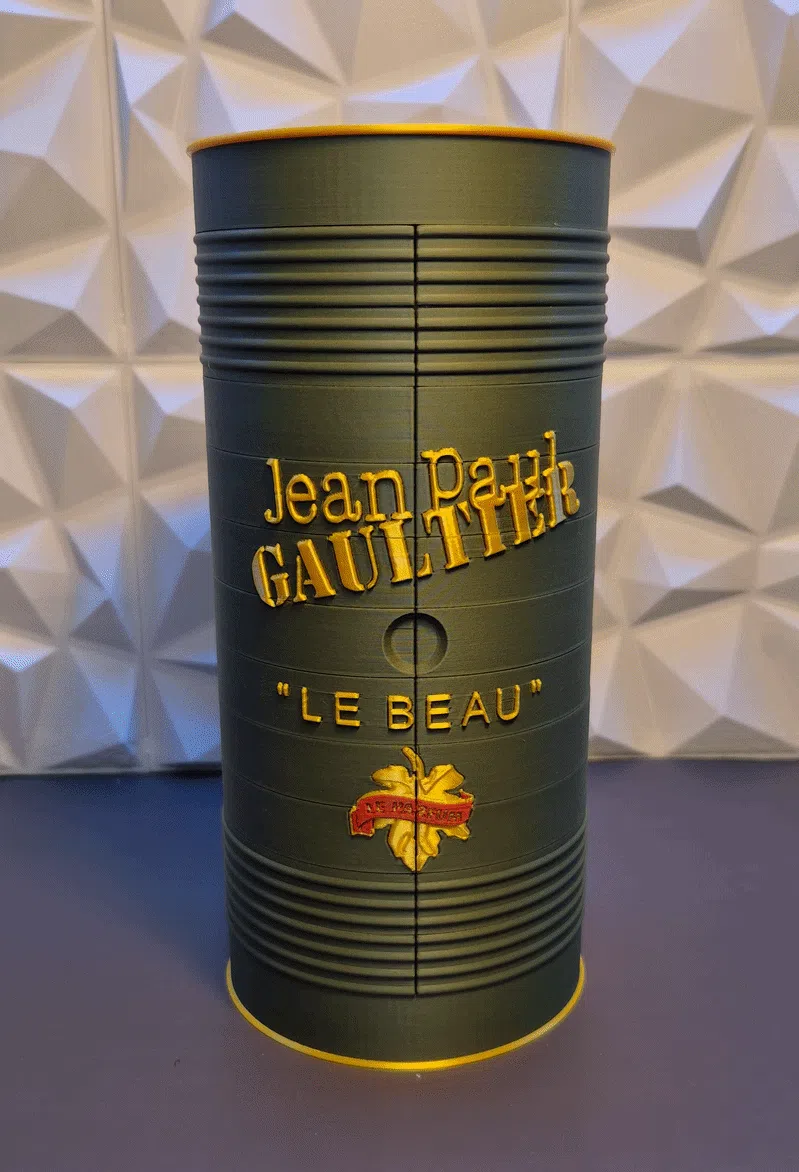

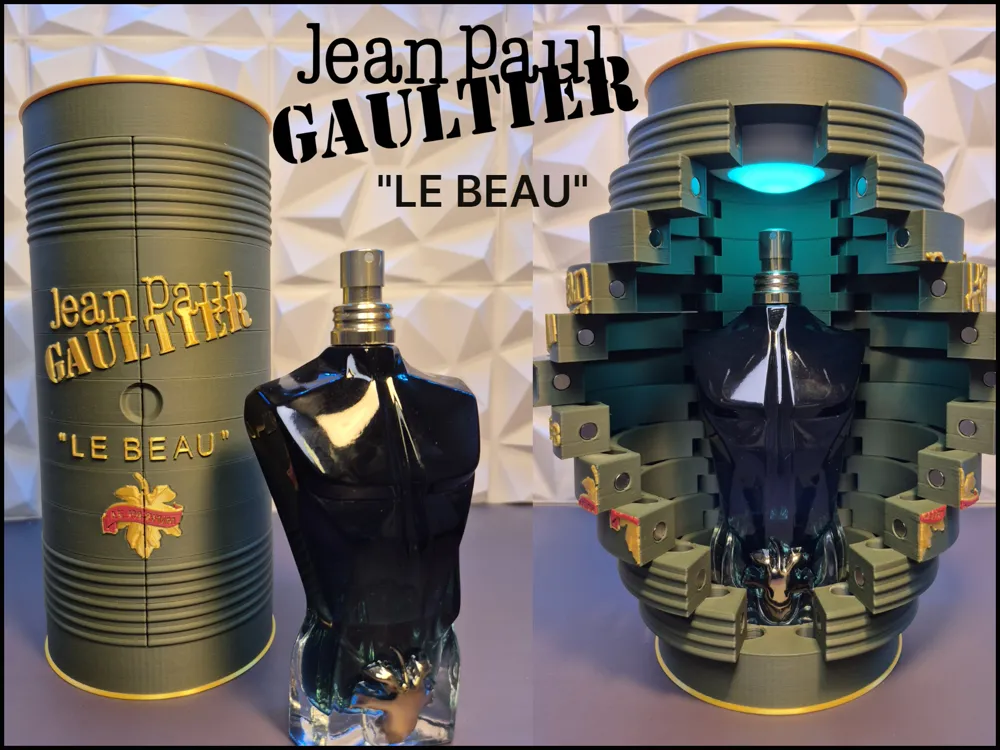

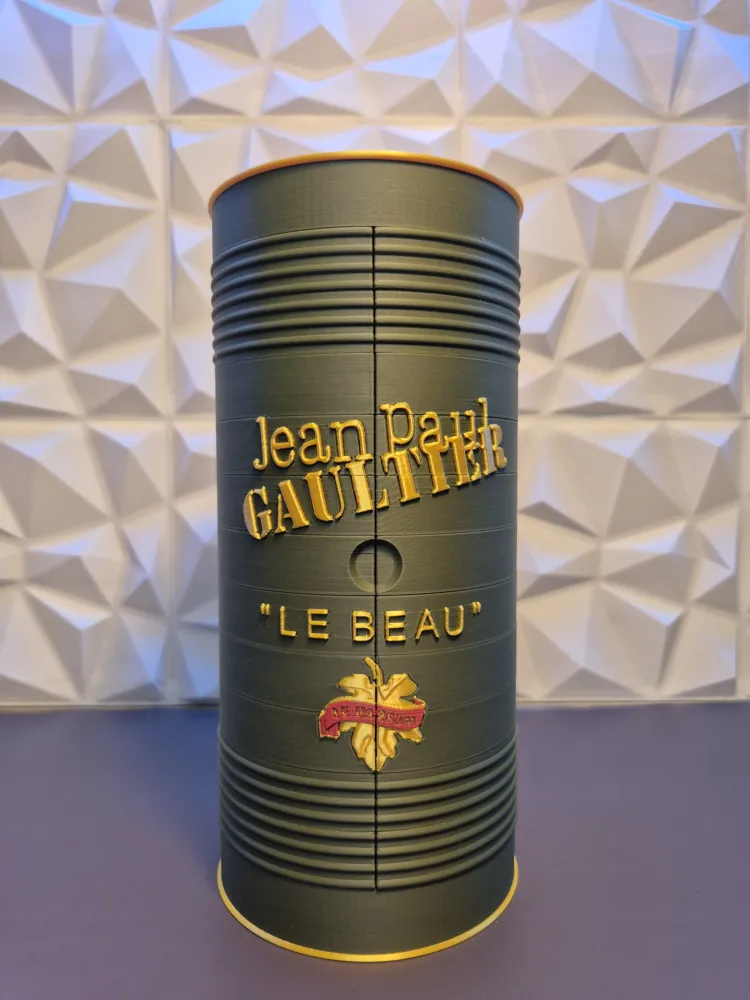

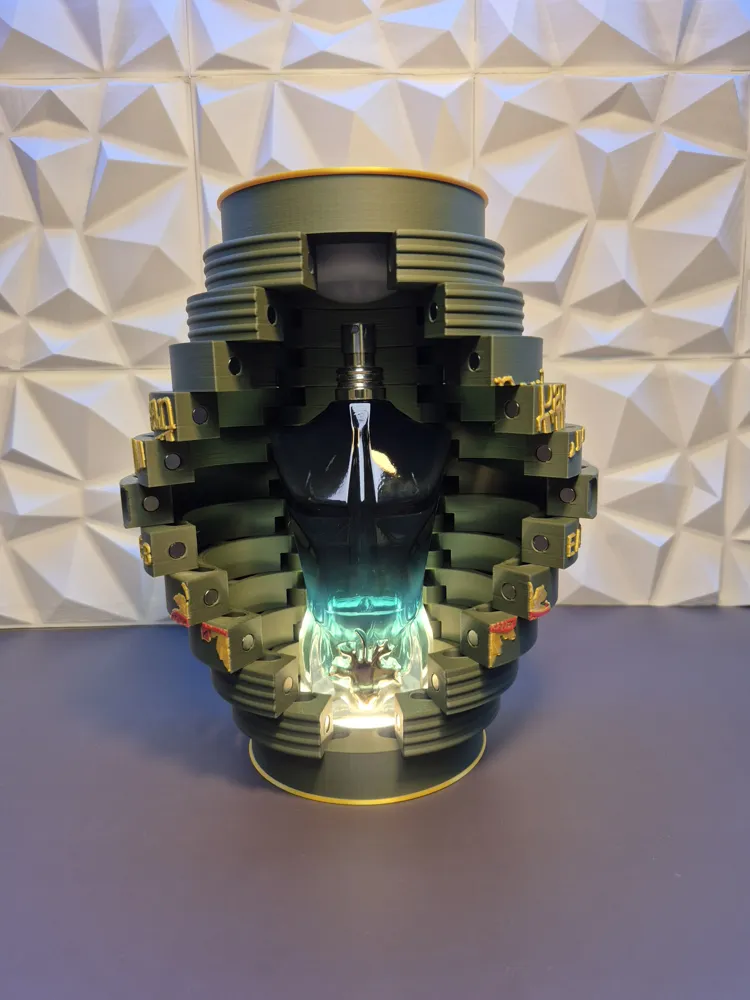

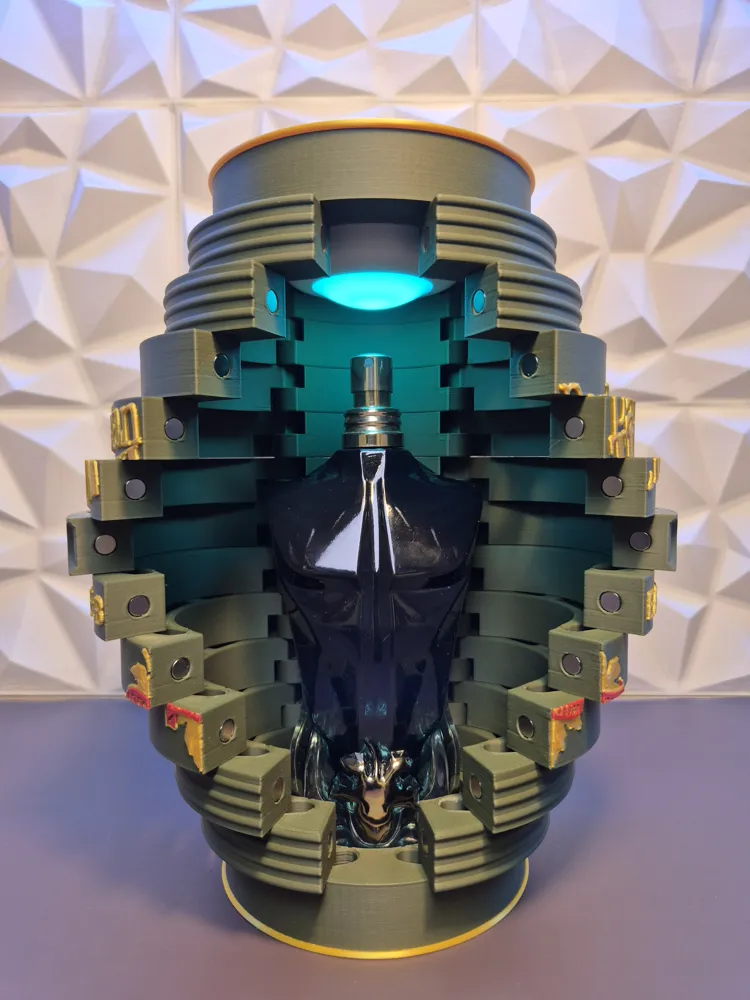

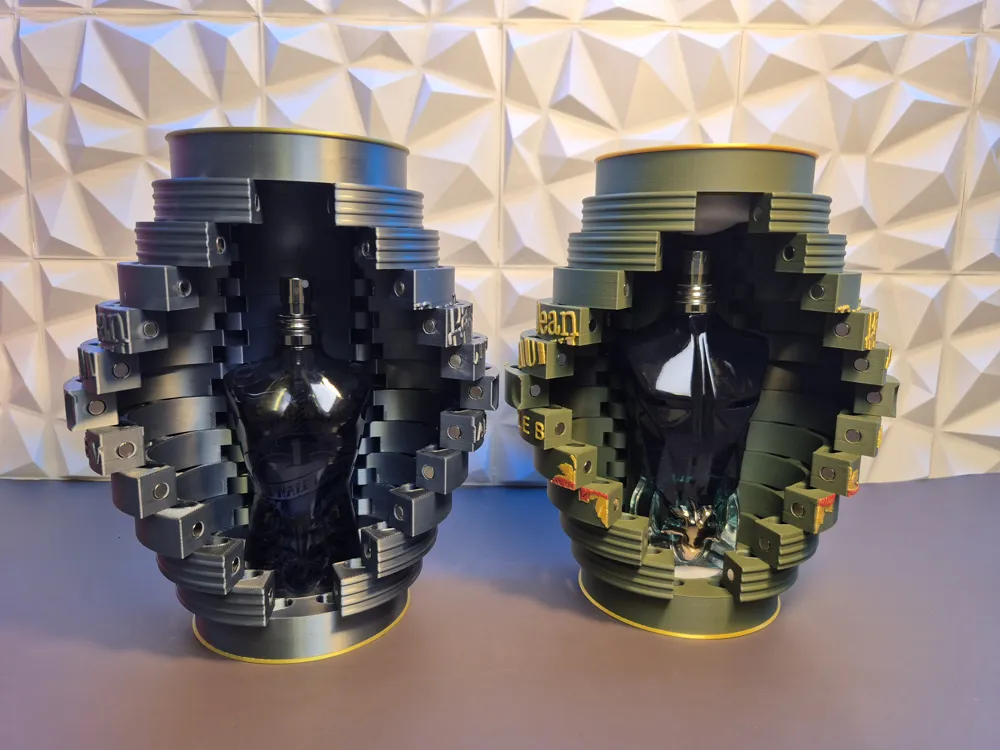

When your done, it should look something like this.
Follow me if you want to see more of my designs in the future!
