UPDATE: Now available multi colour top shell without AMS. Added a modified model and print profile with pause to manually change filament.

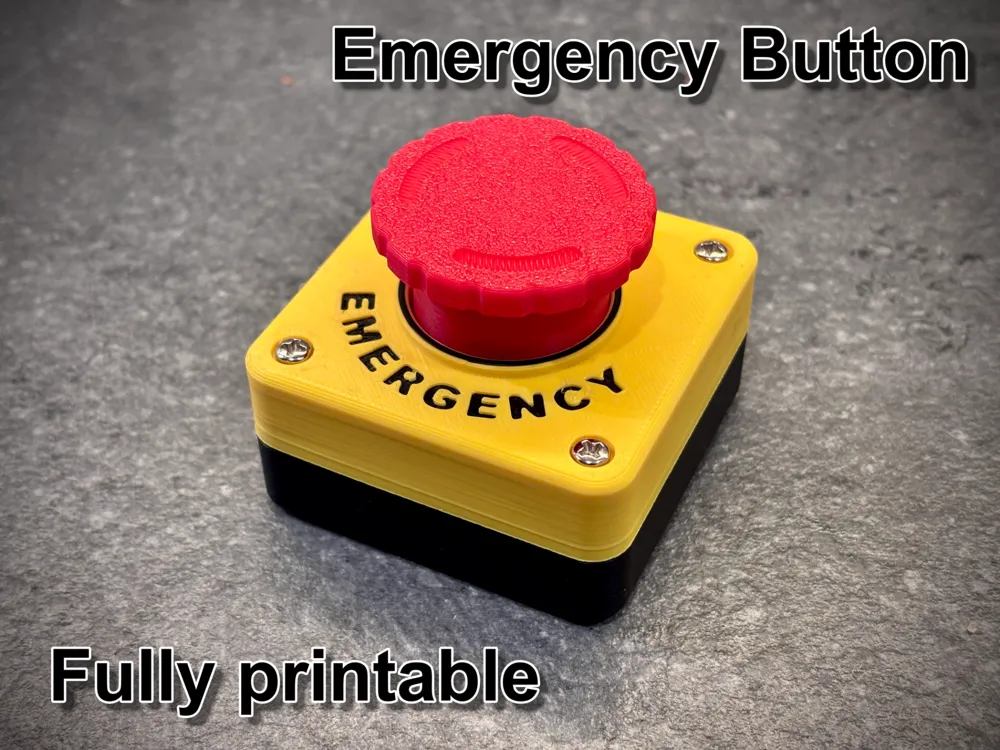

Emergency Big Red button
Fully printable emergency button. This is a variation of my previous models. I wanted to have industrial version of the emergency button. Here it is!

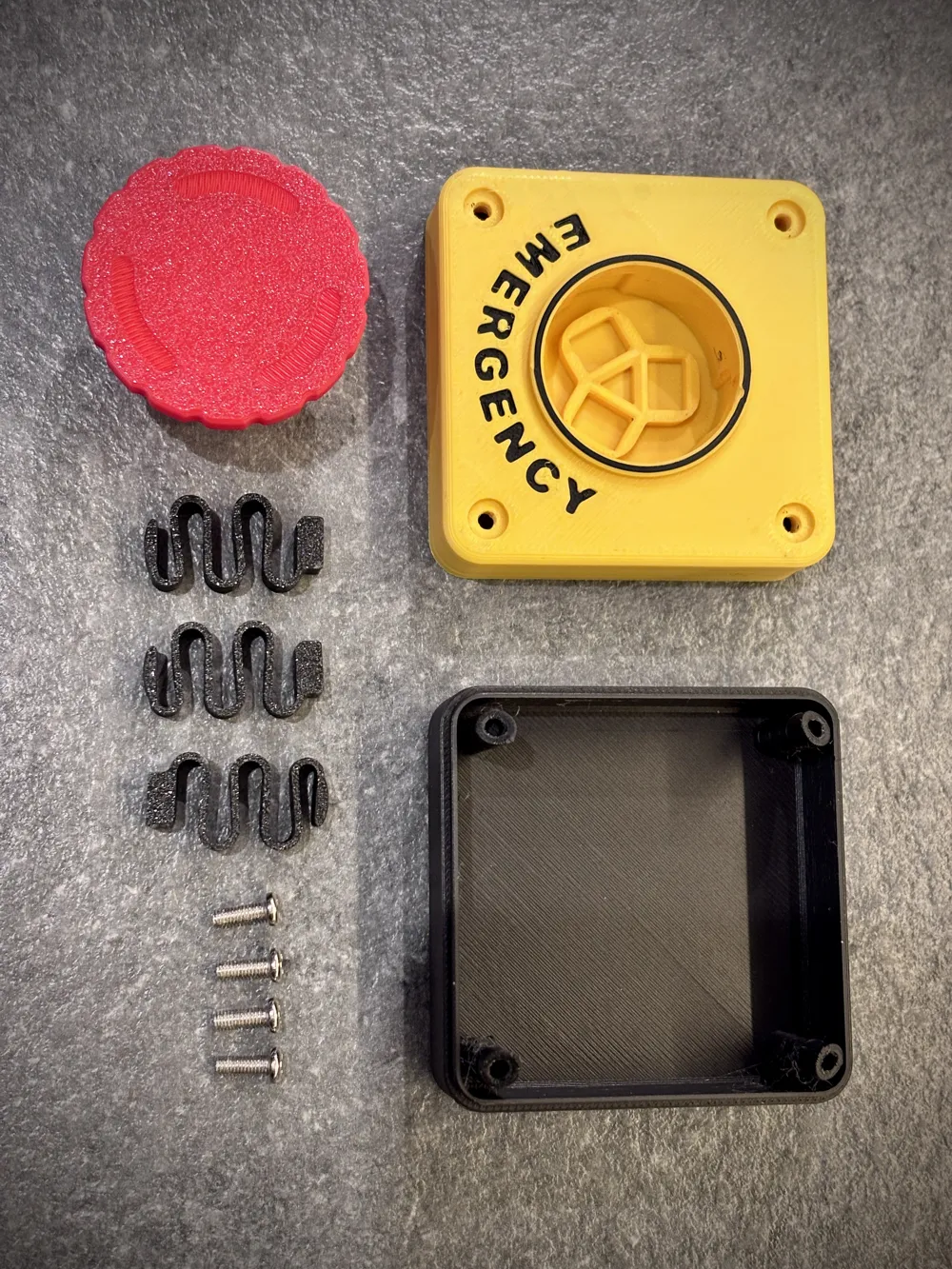

4pcs of M3 screws needed - around 9-10mm long.
Here's a version that does not need screws: https://makerworld.com/en/models/2631603-emergency-big-red-button-no-screws-version#profileId-2905955
Assembly instructions

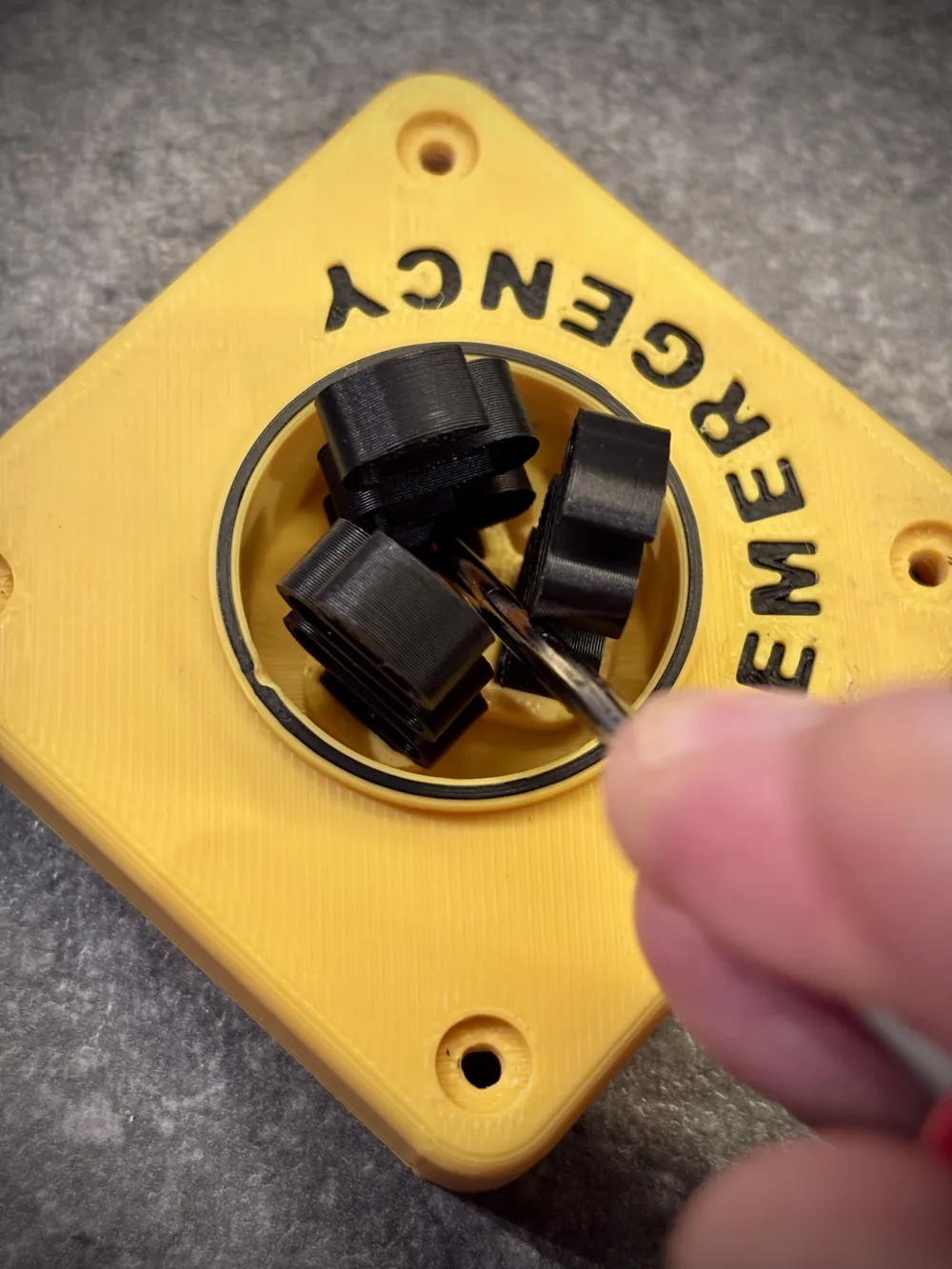

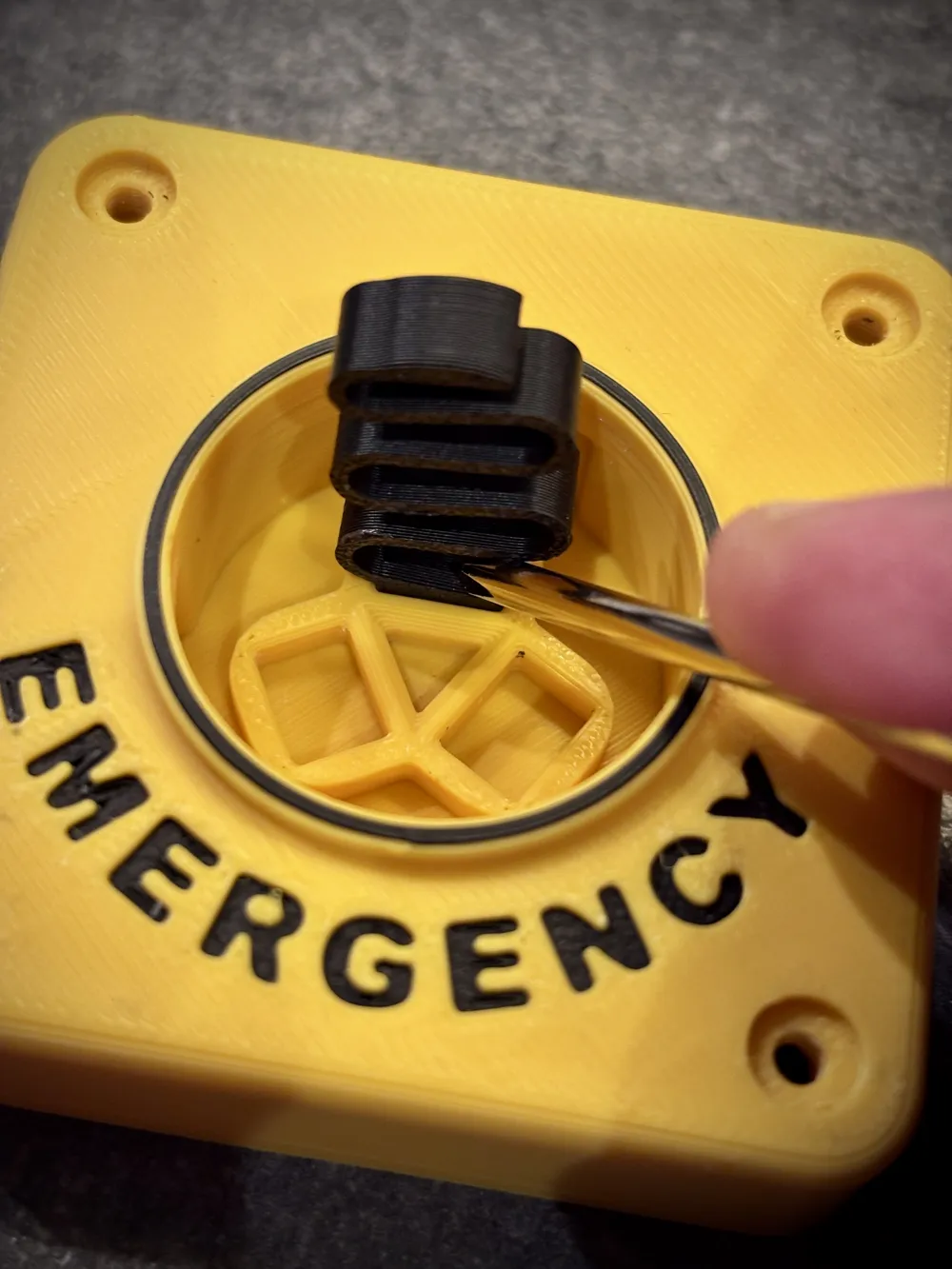

- Insert three springs into slots - use something pointy (i.e. thin screwdriver, pencil, pen) to fully push the springs into slots - they fit in tight to avoid unwanted falling out

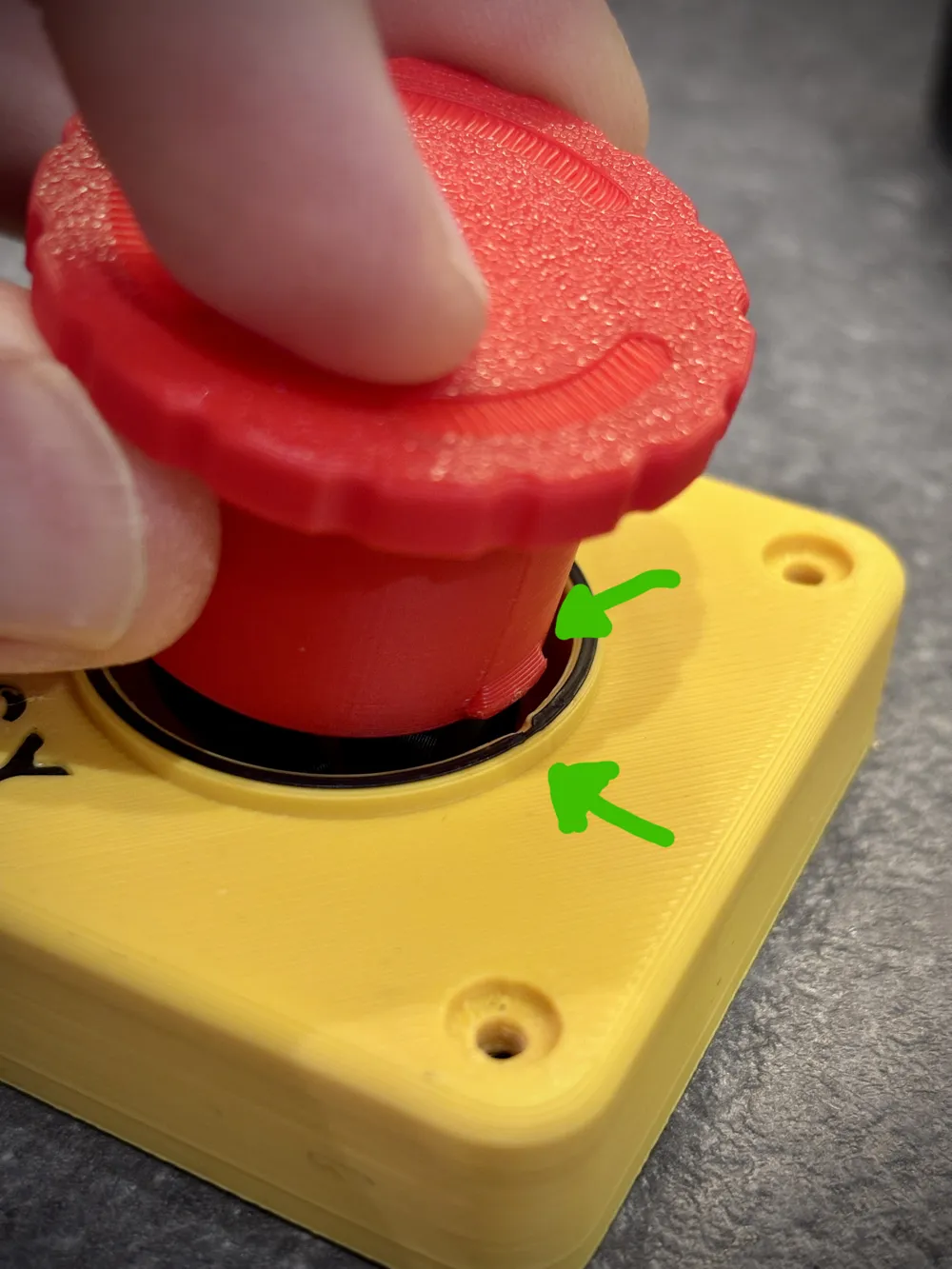

- Find a mark on the case and align one of the guides on the button to it

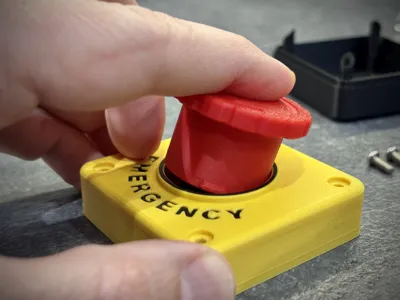

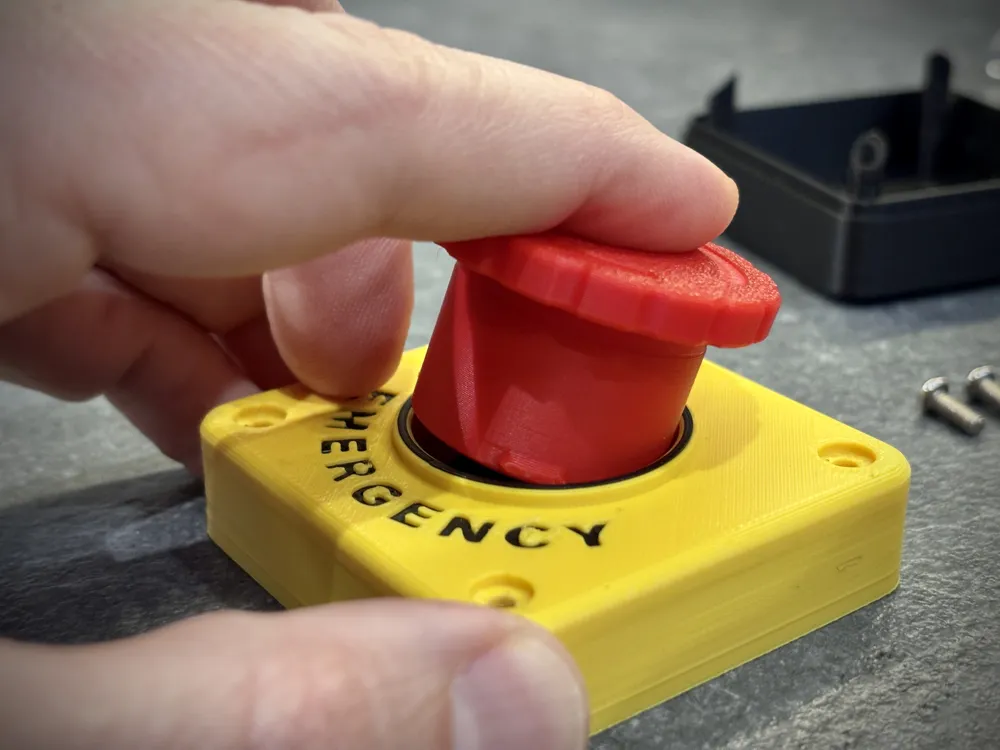

- Push the button into case at angle - aligned guide and marker
- Fully push the button into the case - some force needed
- Have fun :)
