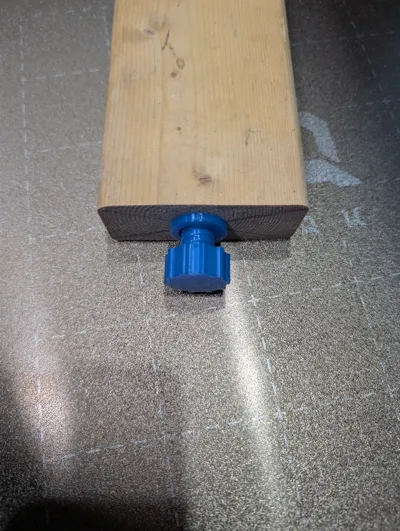

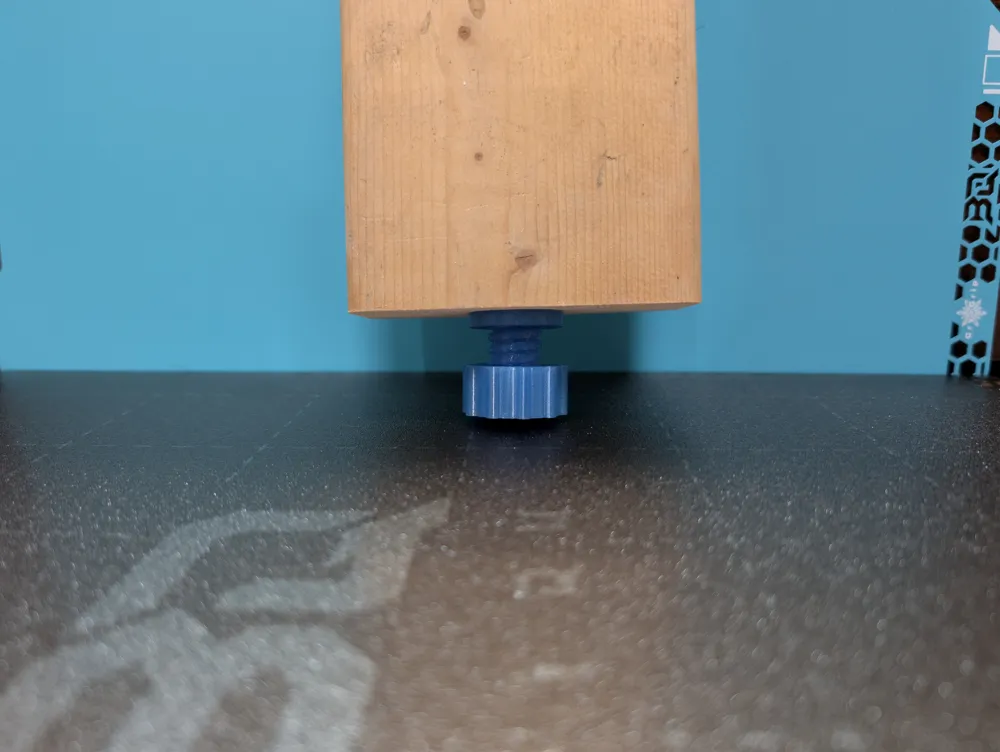

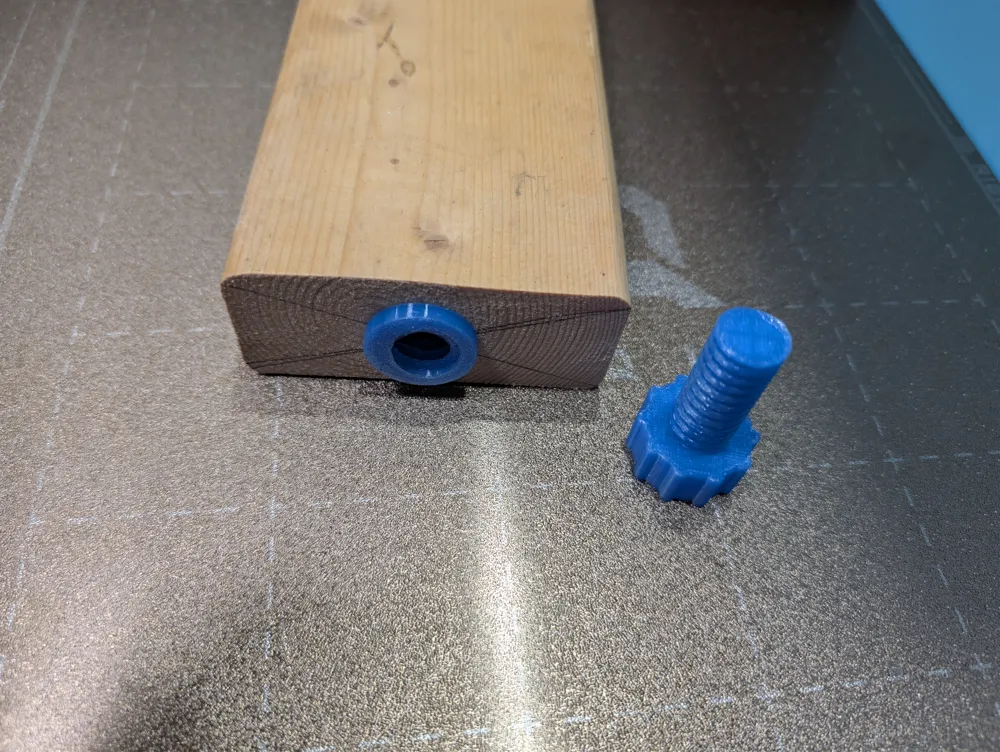

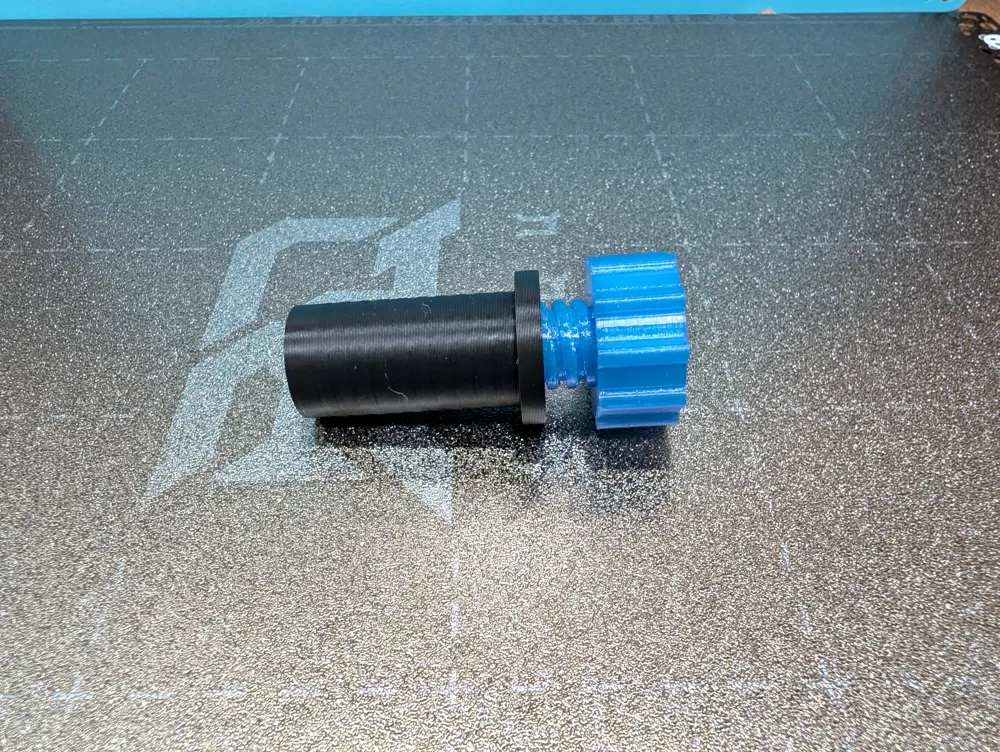

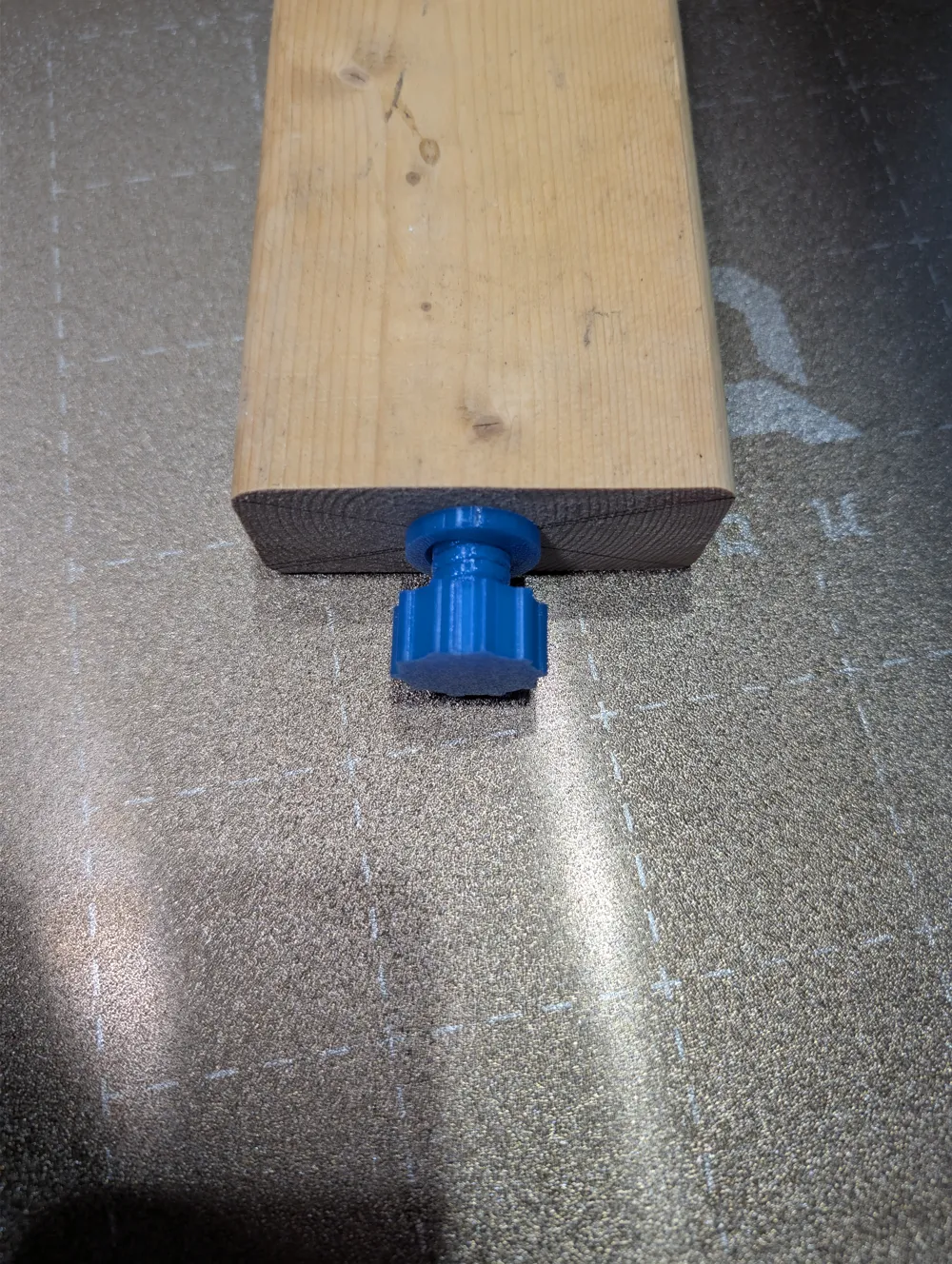

This adjustable foot is meant to fit in a 2x4.  Use a 3/4 inch drill bit for the hole and use glue to secure the foot in the 2x4.

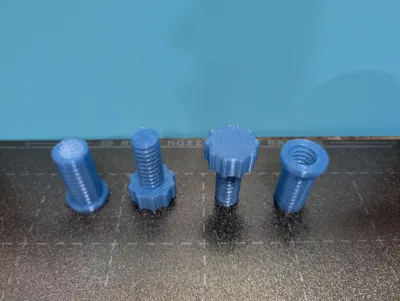

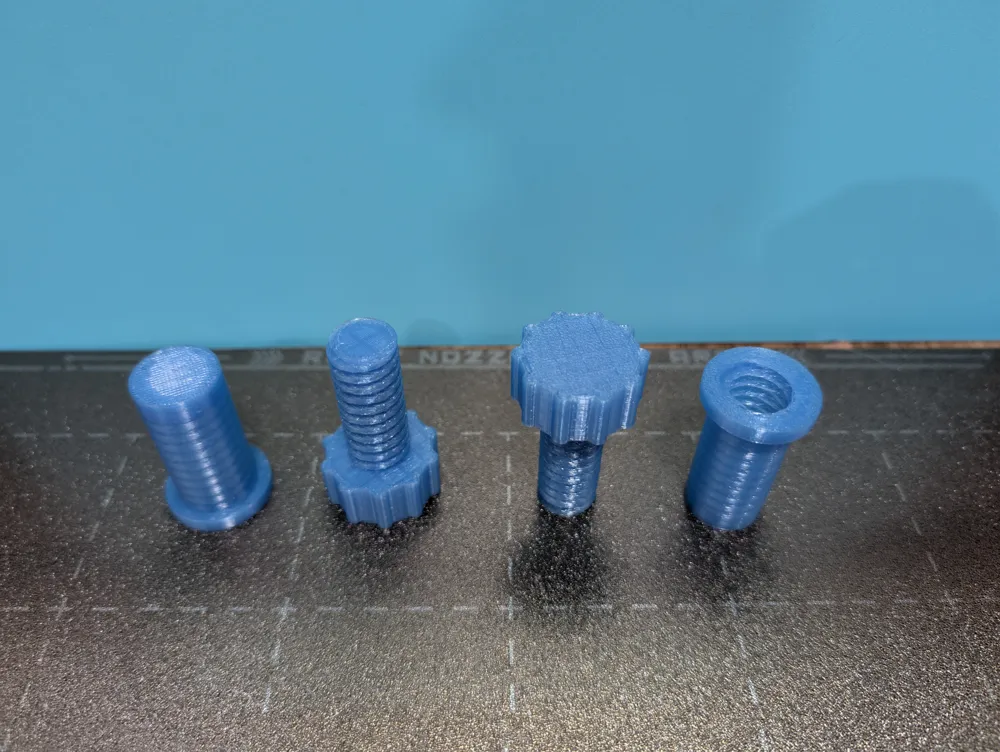

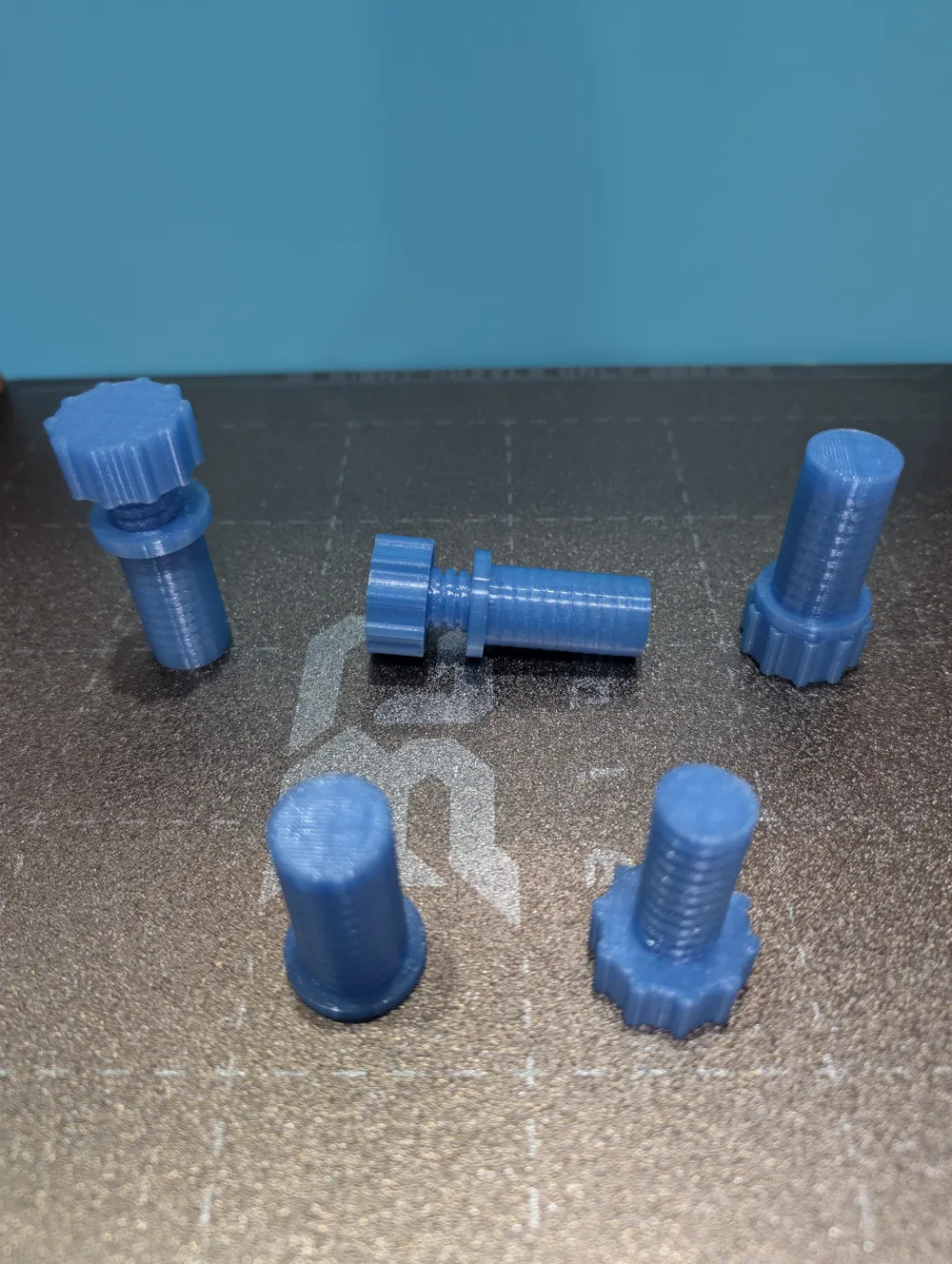

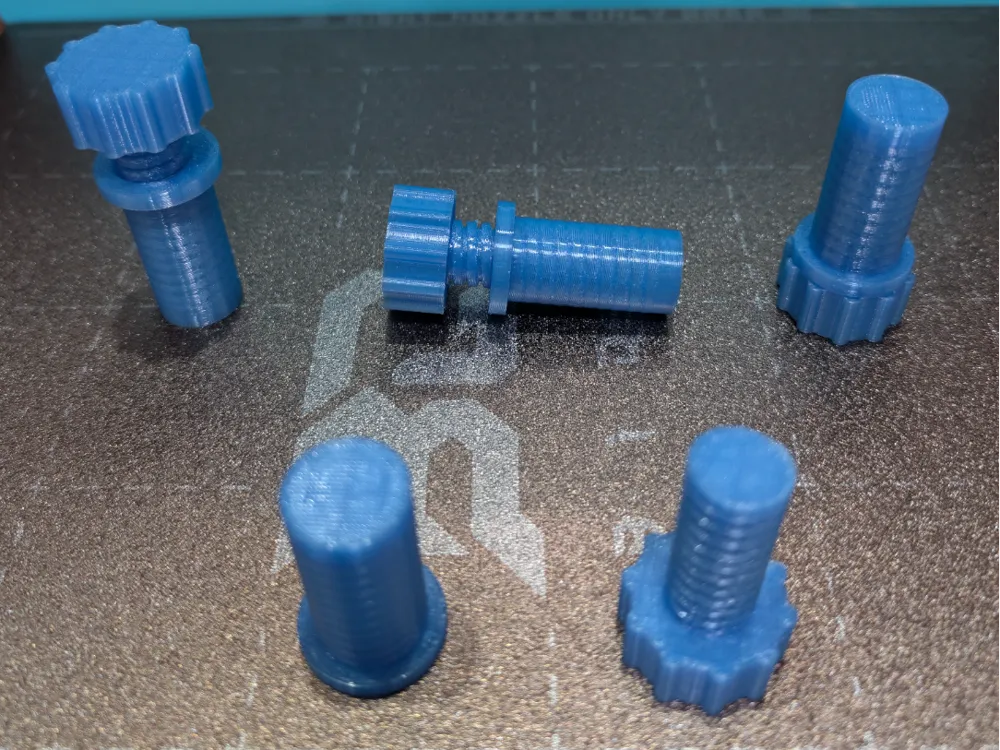

This is meant to be printed entirely in TPU.  The tolerances of the threads are set high to allow for the TPU to thread smoothly.

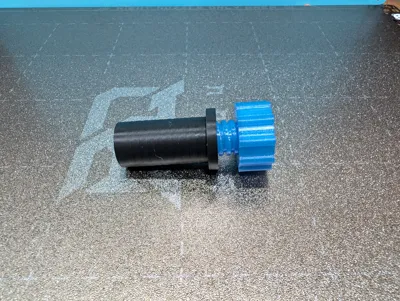

You can print the female side in rigid filament like PLA, PETG, ABS, etc., and the threading will still work.  If you print both pieces in a rigid filament, the threads will be loose.  I have included the step file if you want to adjust yourself.

I used Overture High Speed TPU 95A.  I tried Bambu 90A but found it to be too soft for my use case.


I am using these on a table in my workshop but did not do any official load tests on this, so please use your own judgement on how much load you place on these.
