100x100mm VESA Monitor Mount , 20mm Tube
Print Profile(1)
Description

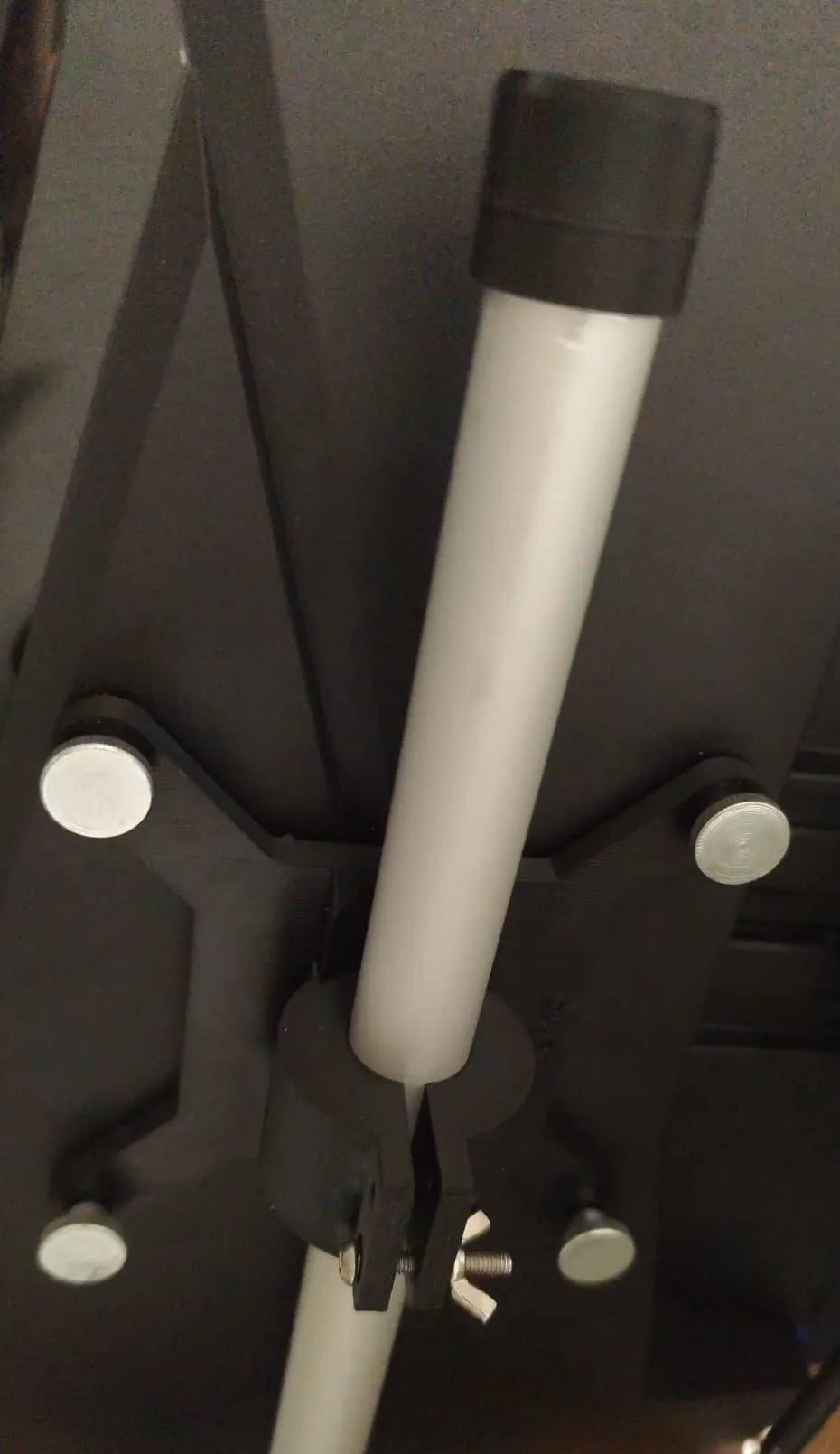

This adapter allows for converting a VESA 100x100 mount to a 20 mm ring receptacle
The model is deliberately simple and functional, making it ideal for individual mounts, monitor mounts, or DIY projects where a round receptacle is needed
⚙️ Features
- Suitable for VESA 100x100 hole pattern
- Central 20 mm ring receptacle
- Robust, functional design
- Ideal for custom mounting solutions
🖨️ Print Recommendations
- Layer height: 0.2 mm
- Walls: 4–6 lines
- Infill: 30–50%
- Material: PETG, ABS or ASA recommended
- Supports: possibly if needed

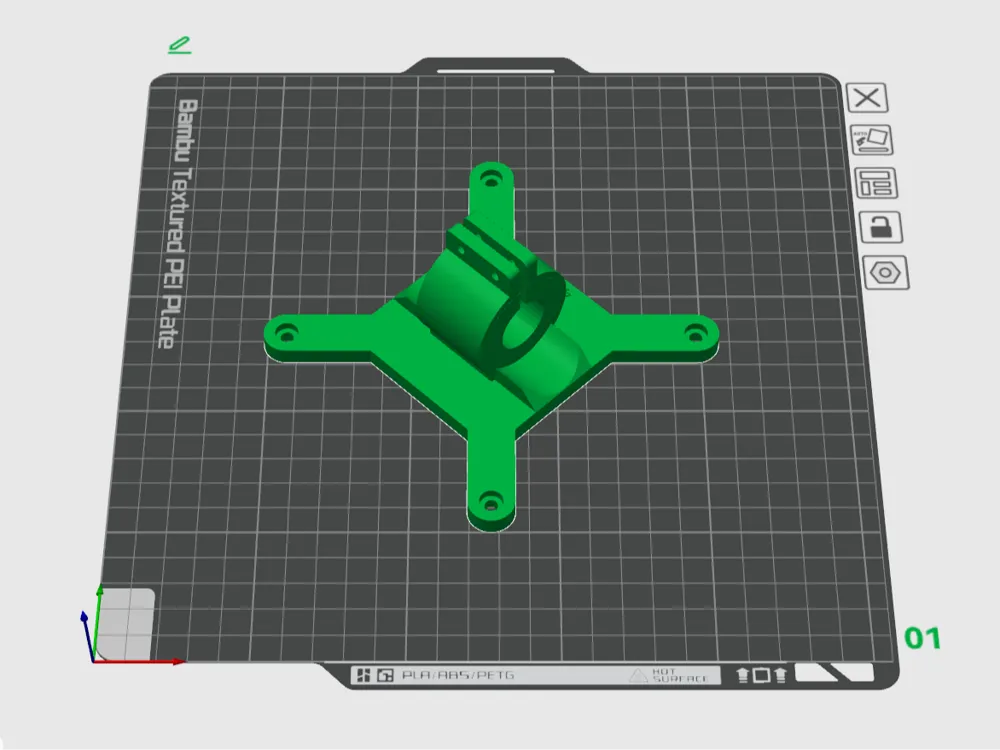

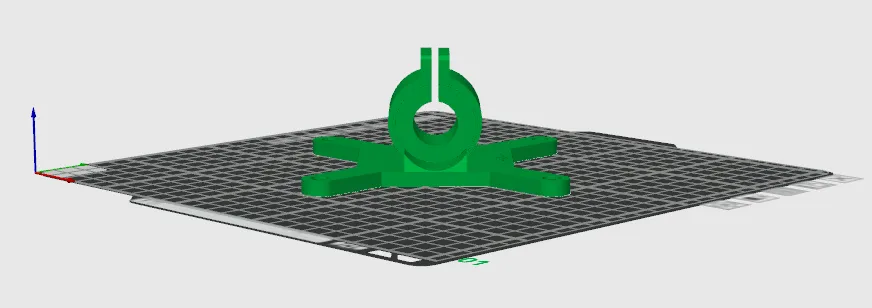

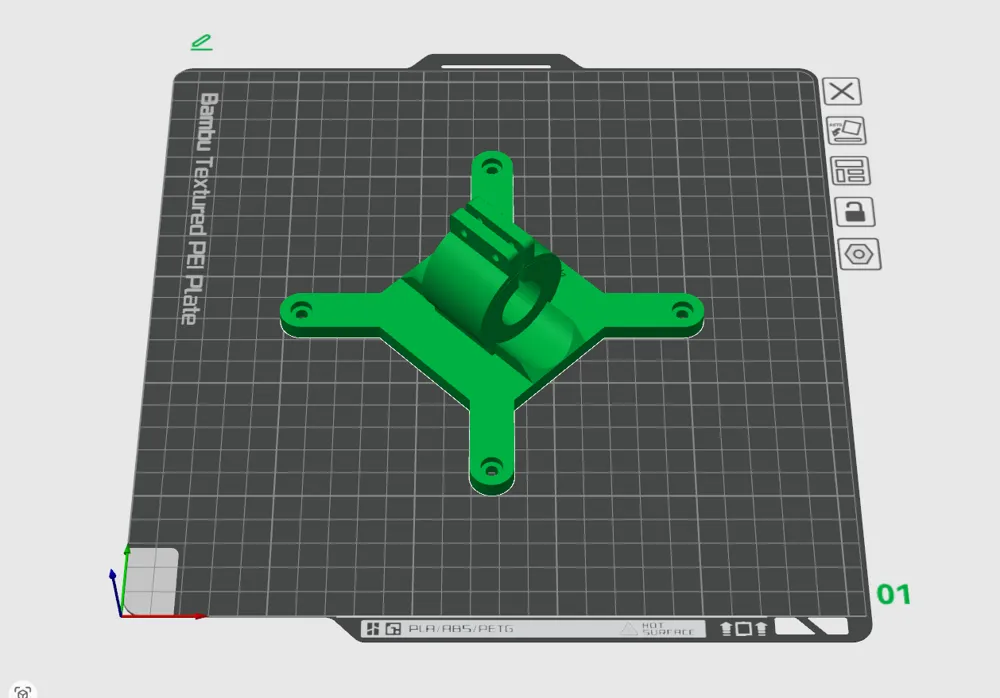

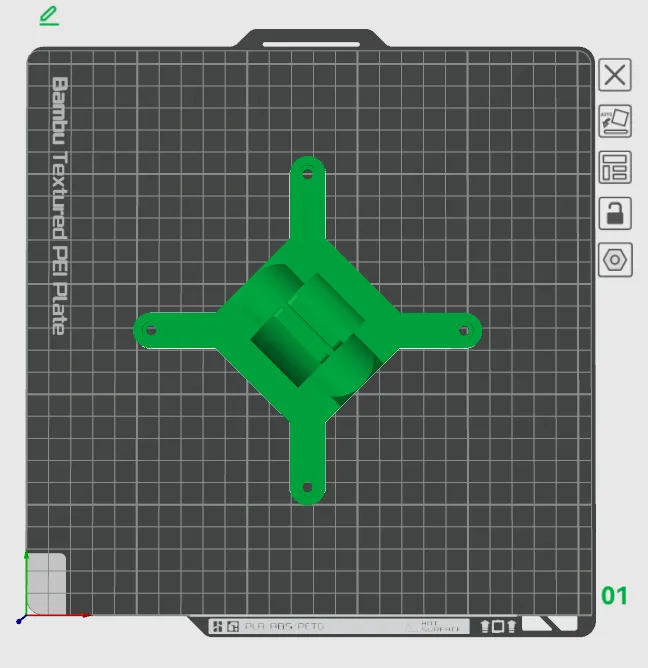

- Orientation: flat on the print bed
🔩 Assembly & Notes
- Use appropriate VESA screws (M4)
- Check screw length before assembly
- Always test fit before final use
- For higher loads: use more walls + higher infill
⚠️ Note
Use is at your own risk. Depending on the application and load, the component should be dimensioned and tested accordingly
I have also developed a stand for this so that you can hang your monitor, just check my models
