TQ Holster for CAT with marker slot

Print Profile(5)

All
P2S
A1
H2C
P1S
P1P
H2D Pro
X1
X1E
H2D
X1 Carbon
X2D
H2S
A2L

2in loop - A1 size plate 0.4mm nozzle
2in loop - A1 size plate 0.4mm nozzle
Designer
3.6 h
1 plate
5.0(4)

1in Clip - A1 size plate 0.4mm nozzle
1in Clip - A1 size plate 0.4mm nozzle
Designer
3.6 h
1 plate
5.0(2)

No clip - A1 size plate 0.4mm nozzle
No clip - A1 size plate 0.4mm nozzle
Designer
3.5 h
1 plate
5.0(1)

1.5in Loop - A1 size plate 0.4mm nozzle.
1.5in Loop - A1 size plate 0.4mm nozzle.
Designer
3.6 h
1 plate
Click to see more

Open in Bambu Studio
Boost
117
434
19
8
152
97
Released

Description

Follow so you don't miss more awesome preparedness models!

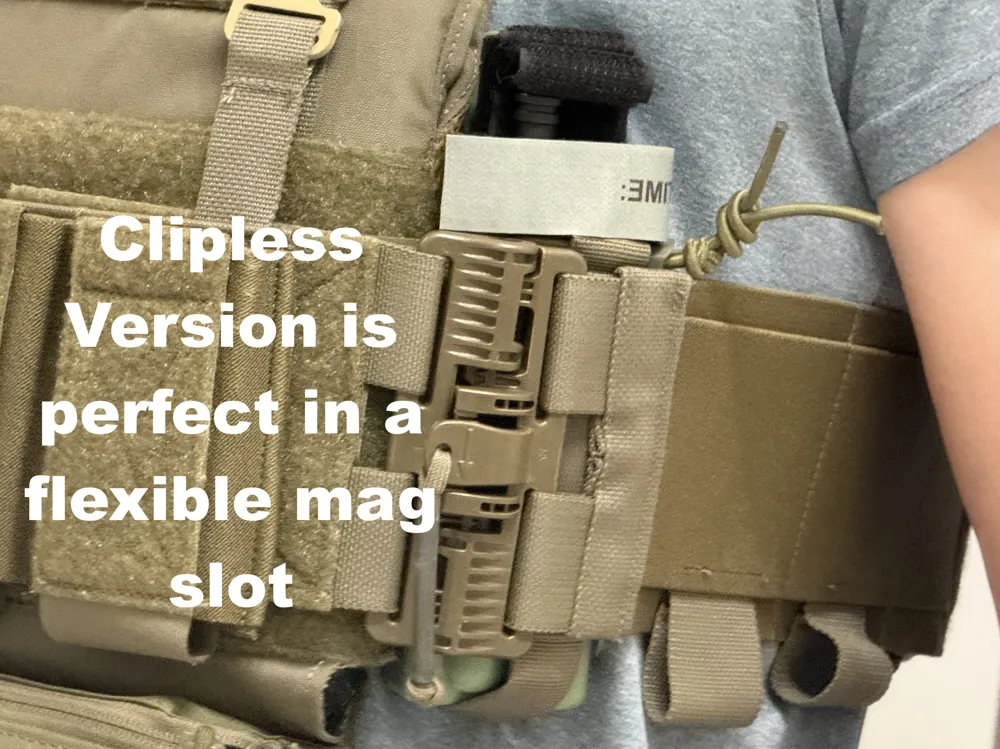

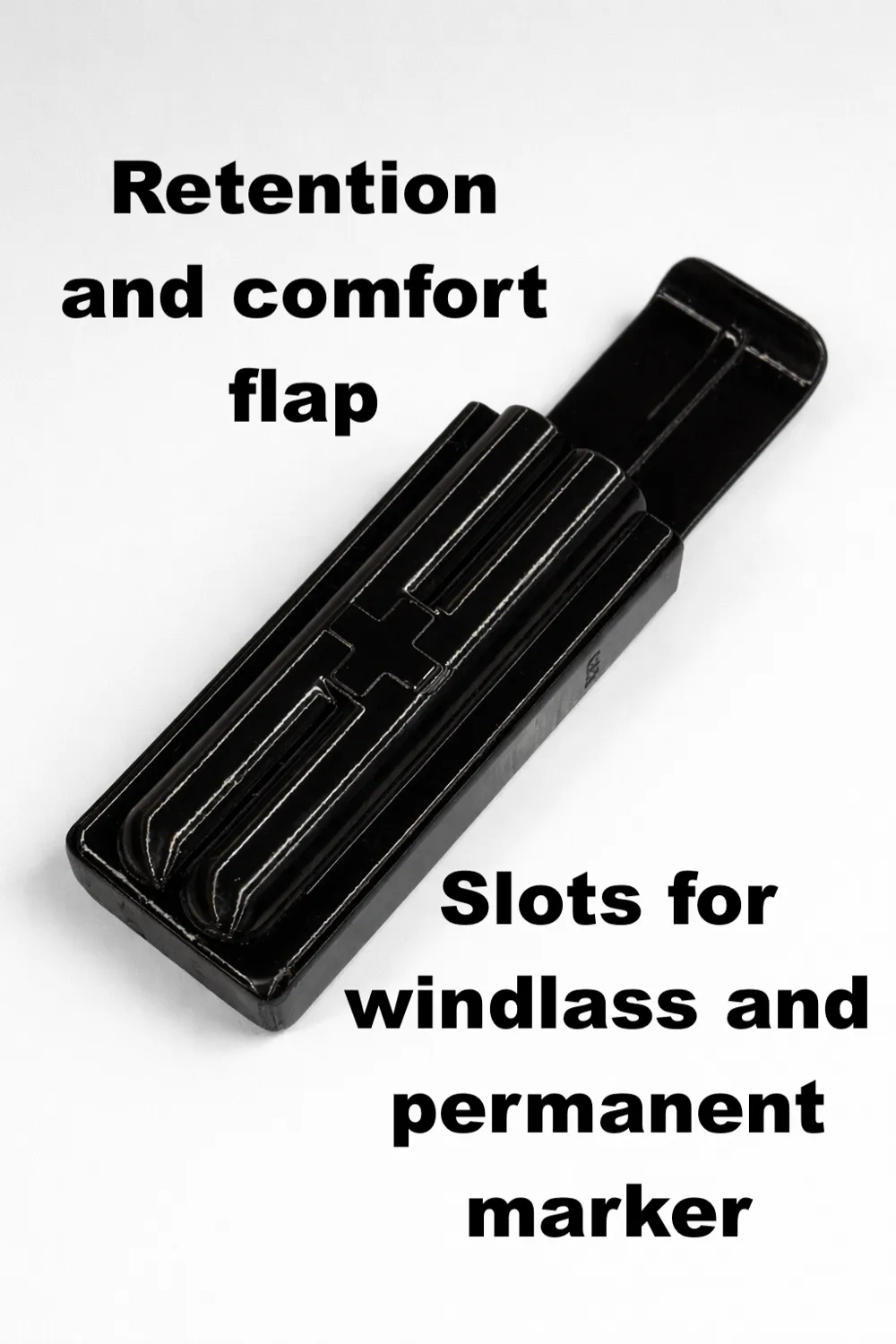

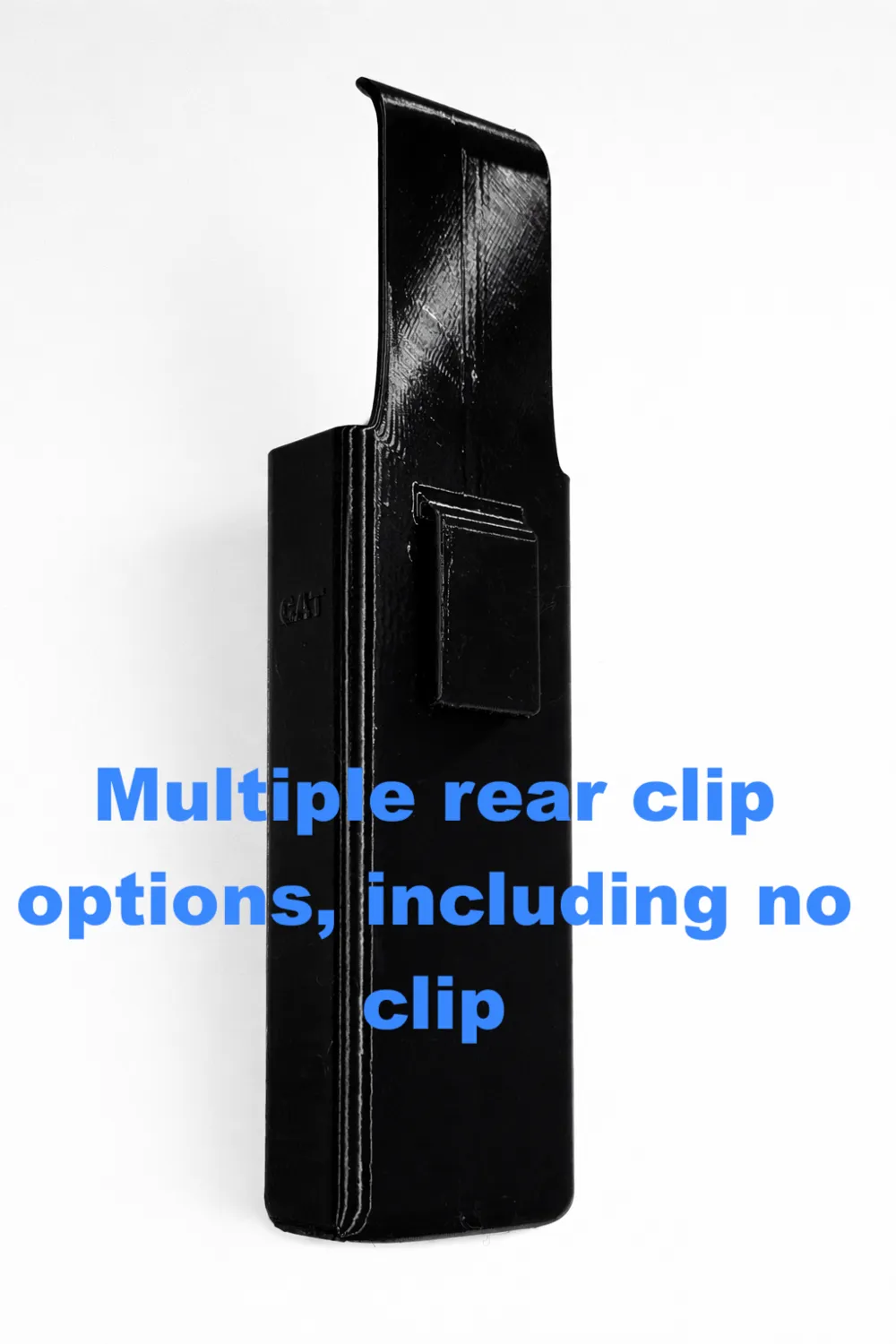

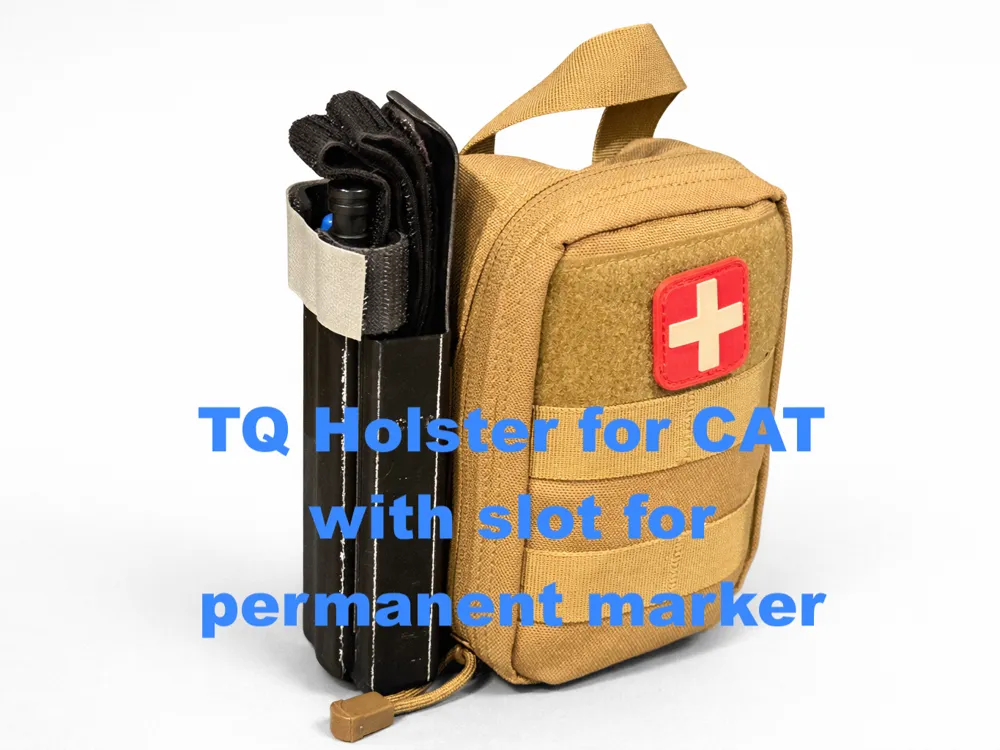

This holster features an extra front slot to allow for easy storage of a permanent marker inside the holster alongside the windlass of a CAT7 tourniquet. A raised rear flap increases retention of the TQ, and provides a barrier between clothing or skin and the velcro of the TQ. There is a version with a 1" clip designed for connecting to MOLLE, a no-clip version that is perfect to throw in a soft mag slot for easy carry on a chest rig or plate carrier, and versions with 1.5", 2" and 2.25" belt loops. Additional clips are in the works, let me know if there is a specific clip you would like me to work on first!

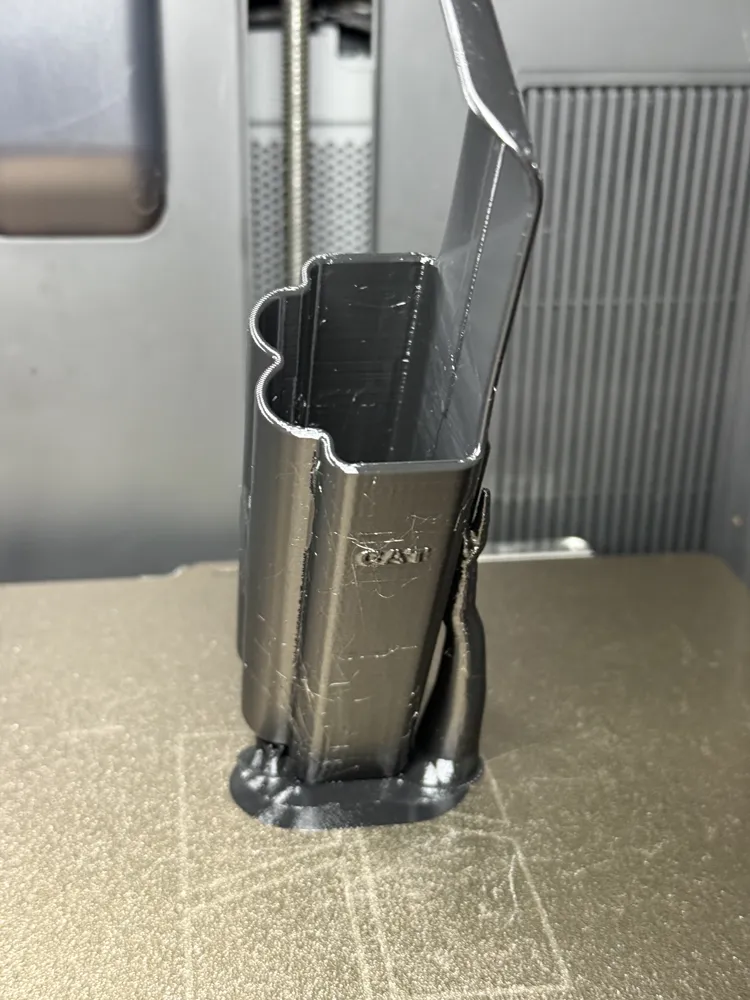

Works great on an A1 size print plate, but when I put it into a Mini I got a warning for max height being violated. Profiles are setup for A1 size plate. Print with 3 wall loops, supports enabled, and the part tilted 30 degrees. The tilt is extremely important, otherwise the rear flap and clip are likely to snap under stress. Has been tested in PETG with great success, that's the recommended material due to the use case and the likelihood of getting left in hot cars.

Boost Me (for free)

Thanks for the support and don't forget to follow!

Change log:

7/3/26: Added vertical MOLLE version (2 loops to attach to vertical MOLLE webbing).

5/12/26: Added 2.25in loop with 0.25in clearance.

3/19/26: Added 1.5in and 2in loop models and print profiles.

3/18/26: Initial release with no-clip and 1in clip versions at RevA.
