Yaesu 2m FT-3185 Manpack Rails

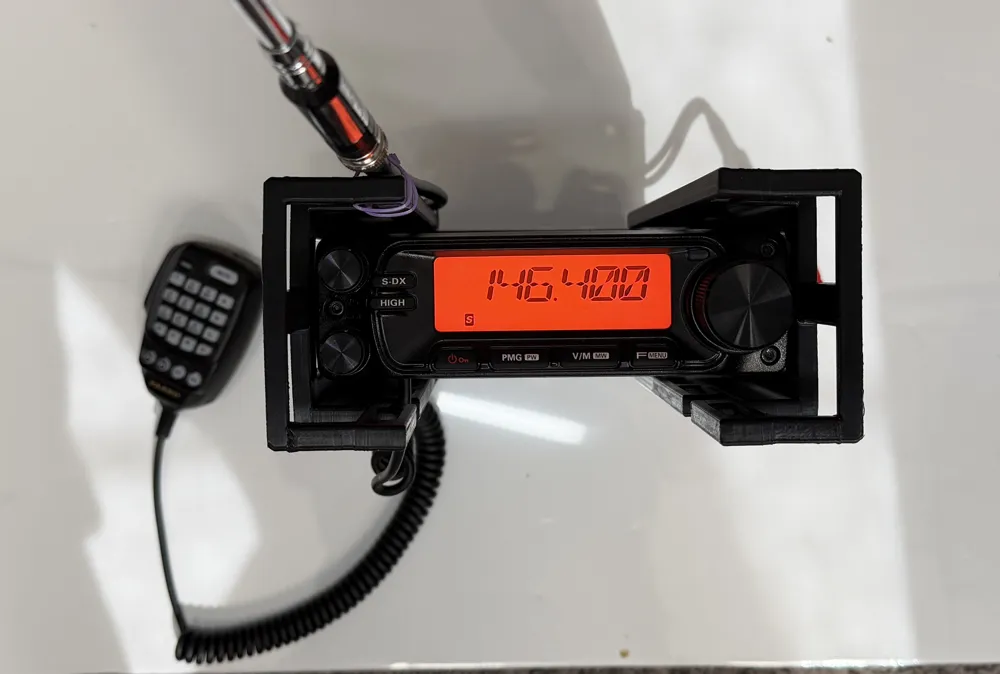

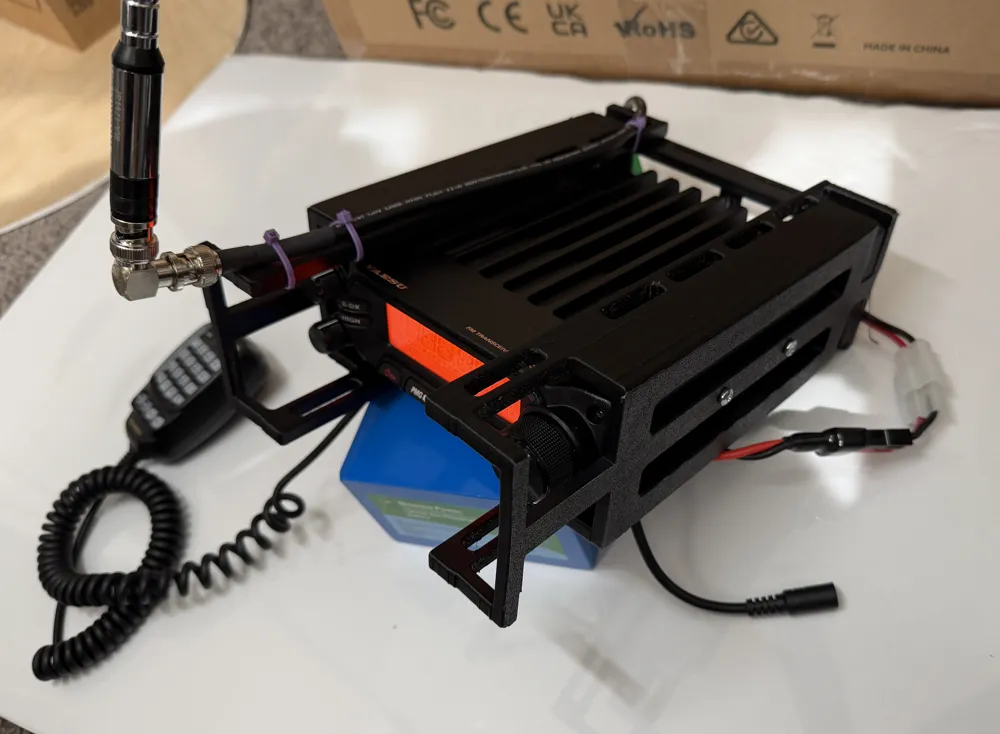

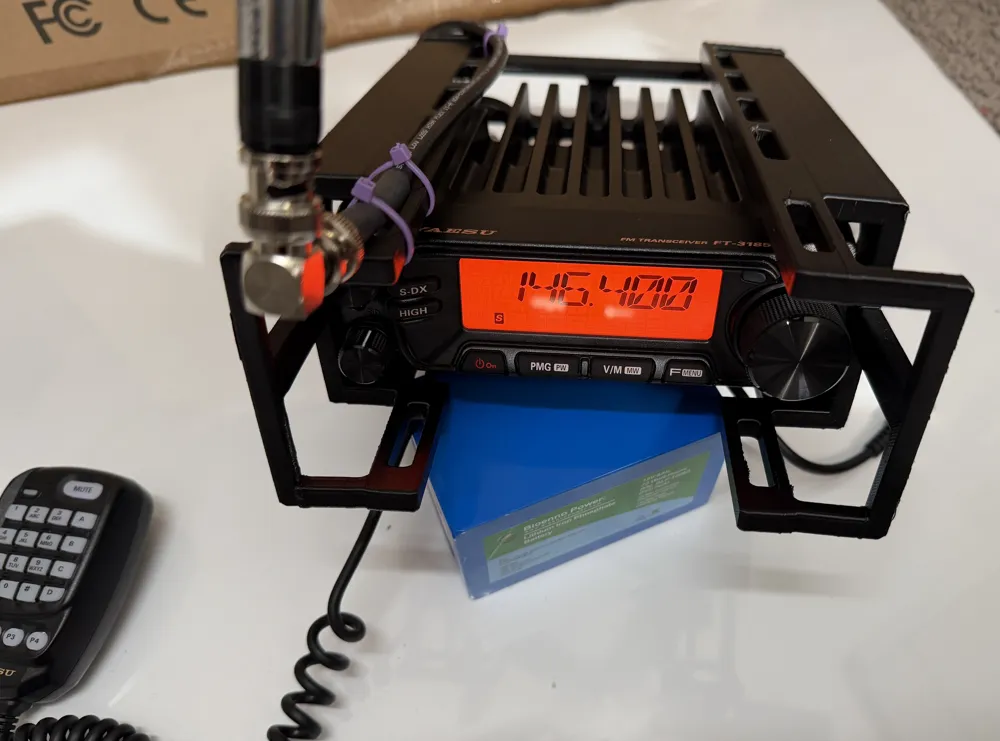

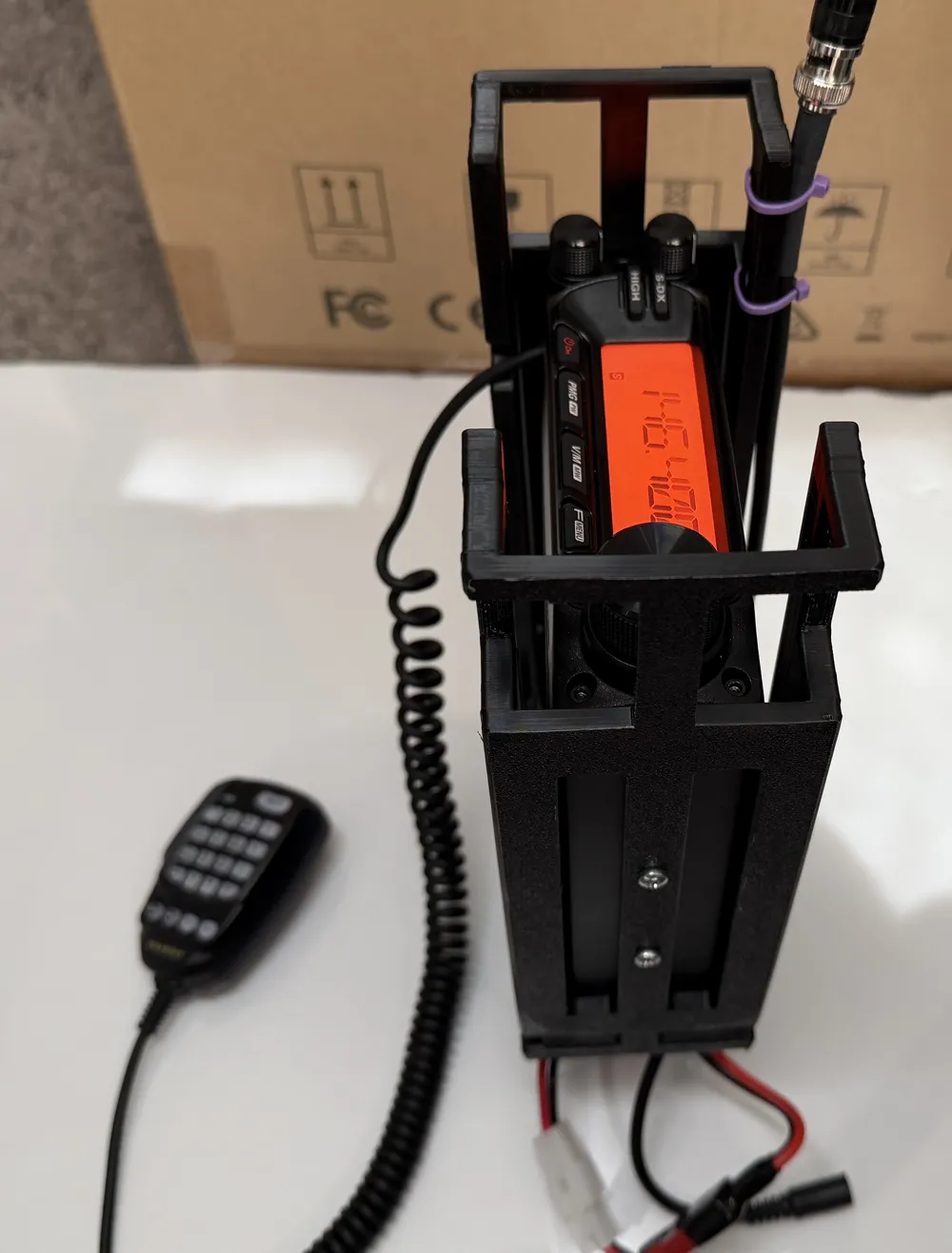

Manpack rails for a Yaesu FT-3185 2M Radio.  Rails are ¼" Thick and pretty sturdy when printed from PLA.  Other stiffer filaments like ABS or PET-G would be even stronger.  The mounting hole spacing is 2" apart and will likely work on other Yaesu mobile radios with a similar bolt pattern for example the FT-2980 has the same bolt pattern.  You may need to run a #19 or #20 drill bit through the mounting holes first to give a little bit of room for the screws.  The slots along the rails are standard mlock dimensions if you want to mount additional accessories such as a PowerPole block, PL-259 bulkhead, etc..

Mounting screws are M4x10mm

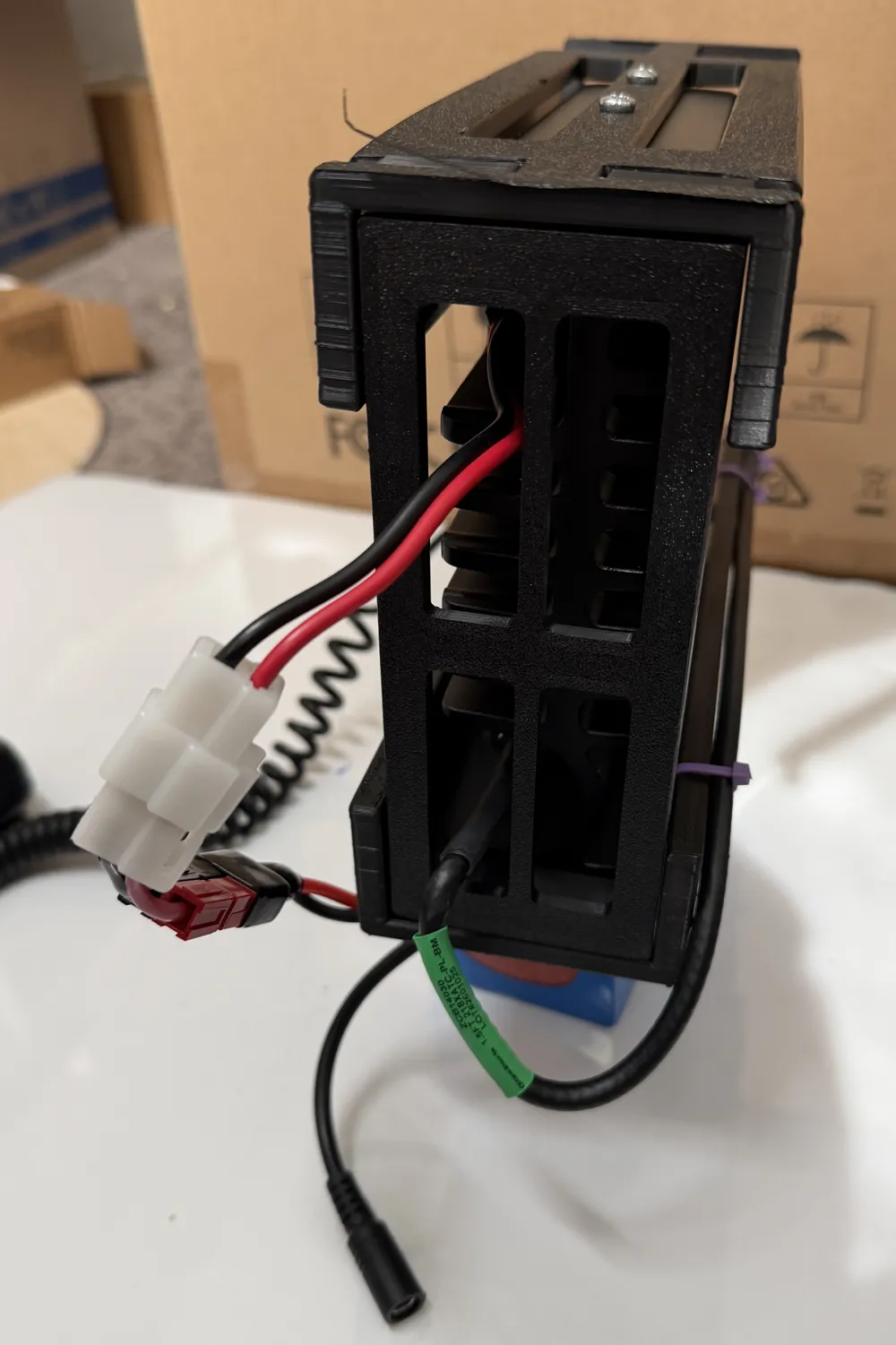

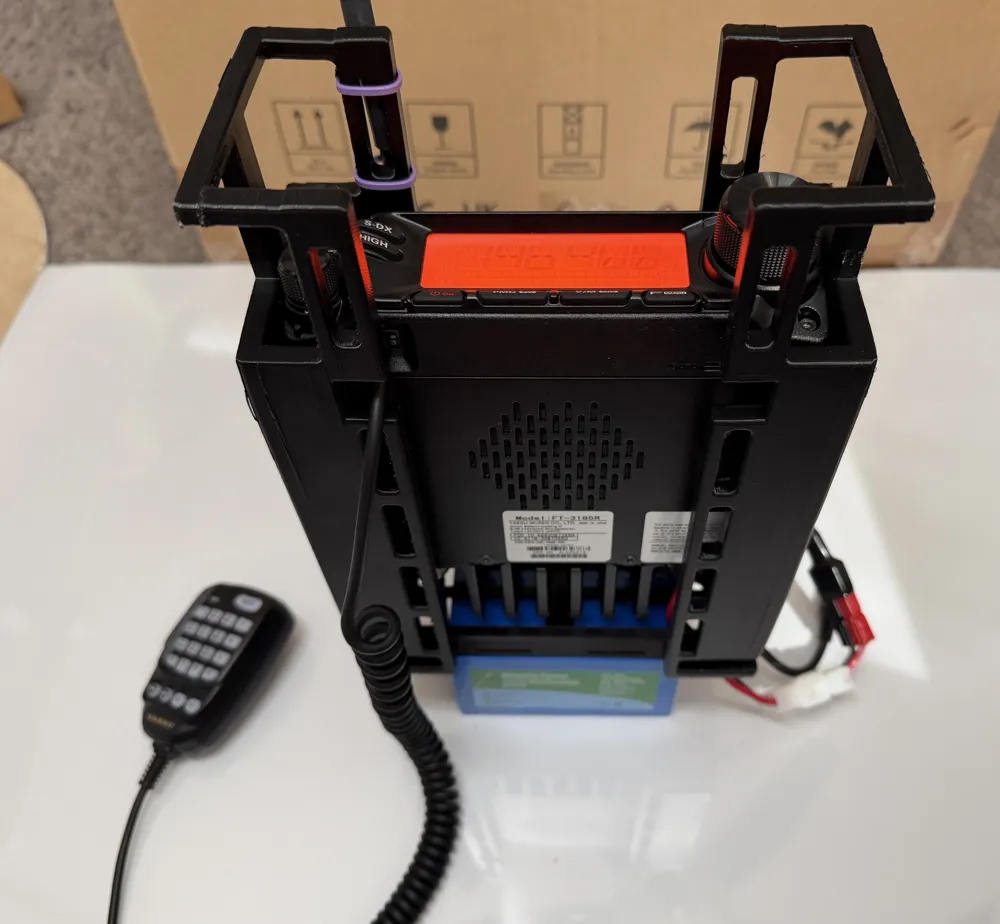

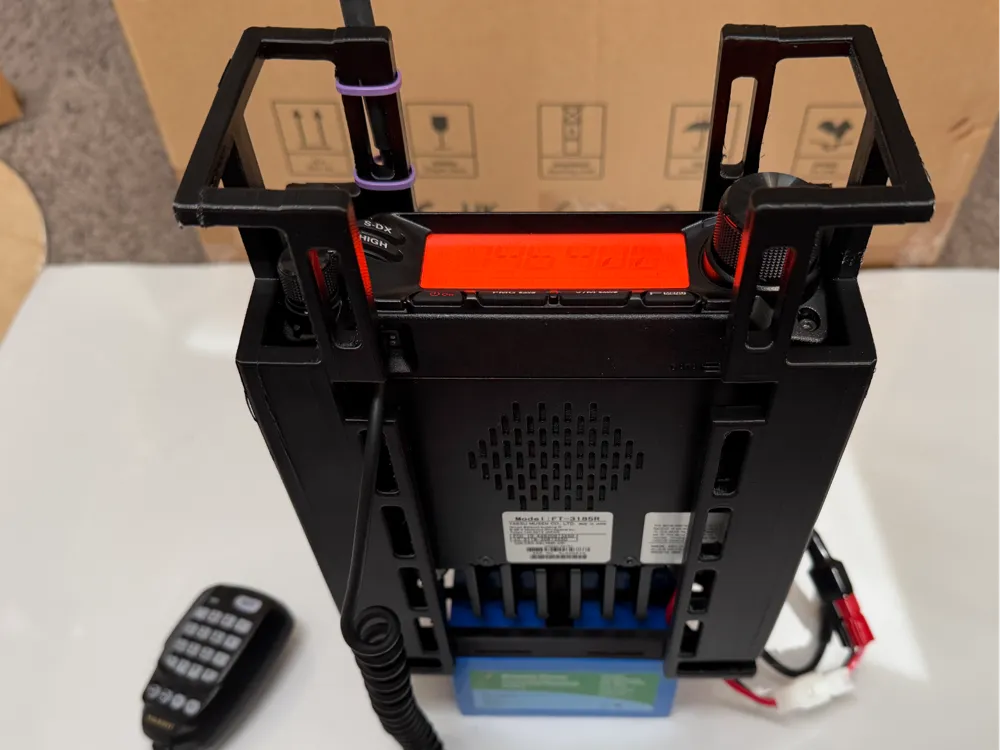

I updated the model to include a back plate that slots into the two side rails.  The backplate includes 1" slots for velcro straps to be used to attach a LiFePO battery.  A PL-259 or Yaesu Power Plug will fit through the slots.
