Panasonic BQ-CC63 (Magnetic) Wall Mount
IP Report
Print Profile(2)
0.2mm layer, 2 walls, 15% infill
Designer
3 h
1 plate
PETG-HF, 0.2mm layer, 2 walls, 15% infill
Designer
3 h
1 plate
Open in Bambu Studio
Boost
0
2
0
0
3
1
Released
Description

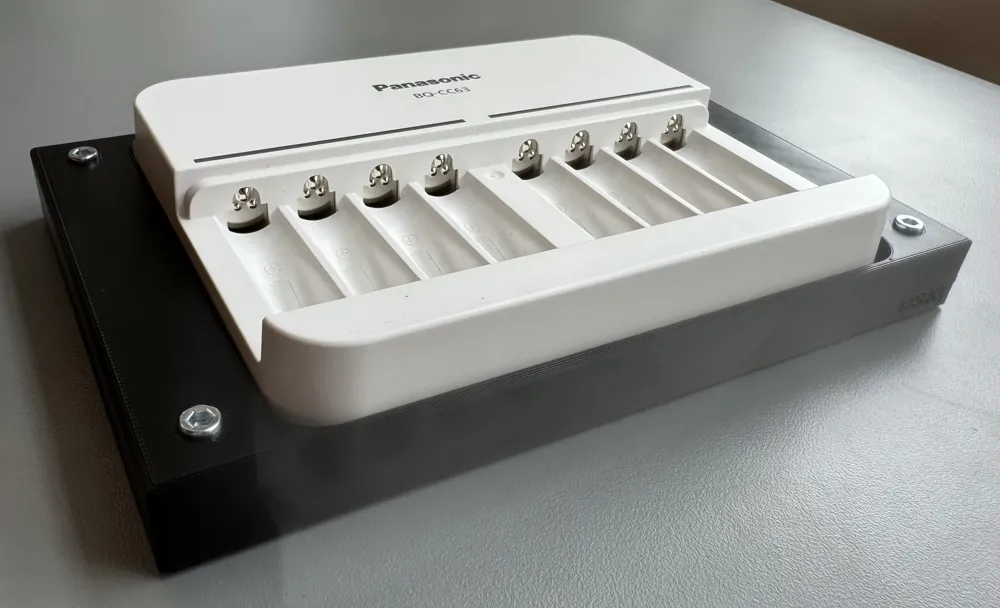

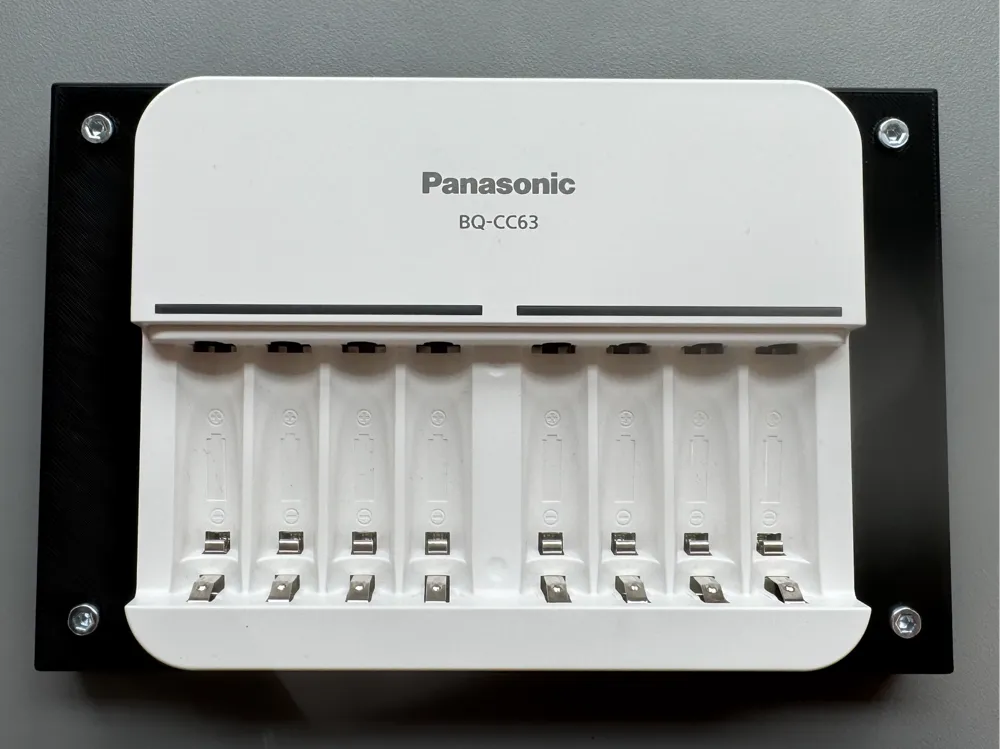

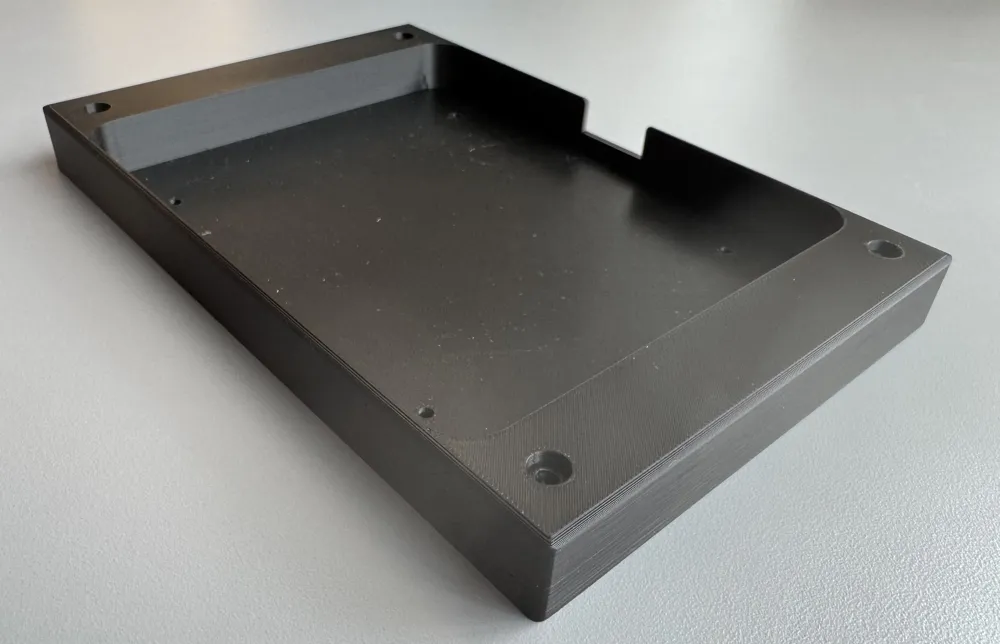

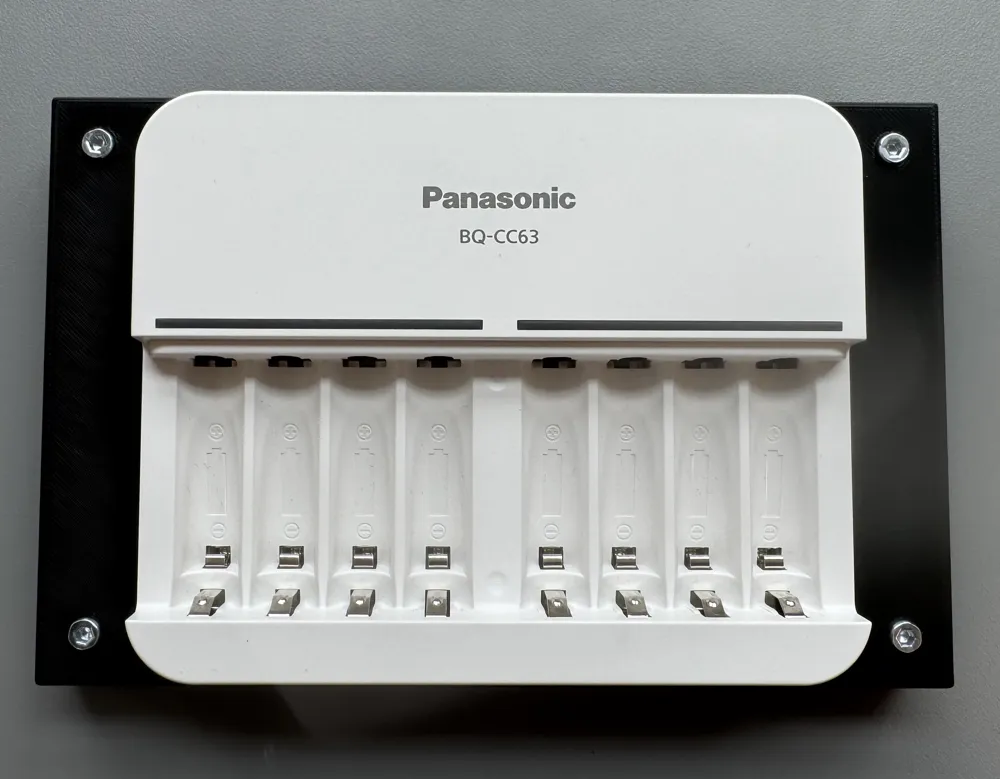

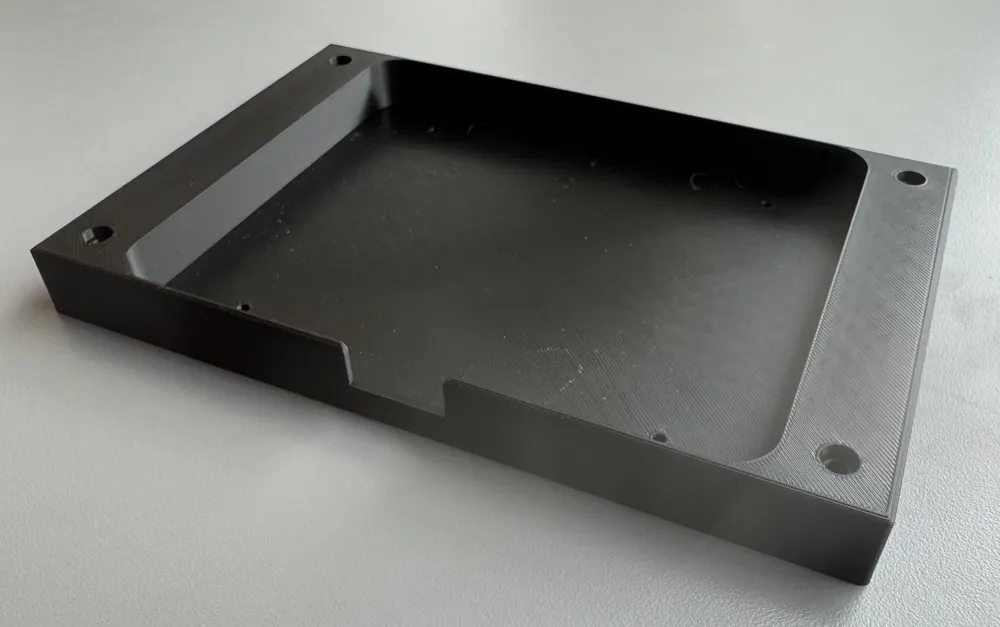

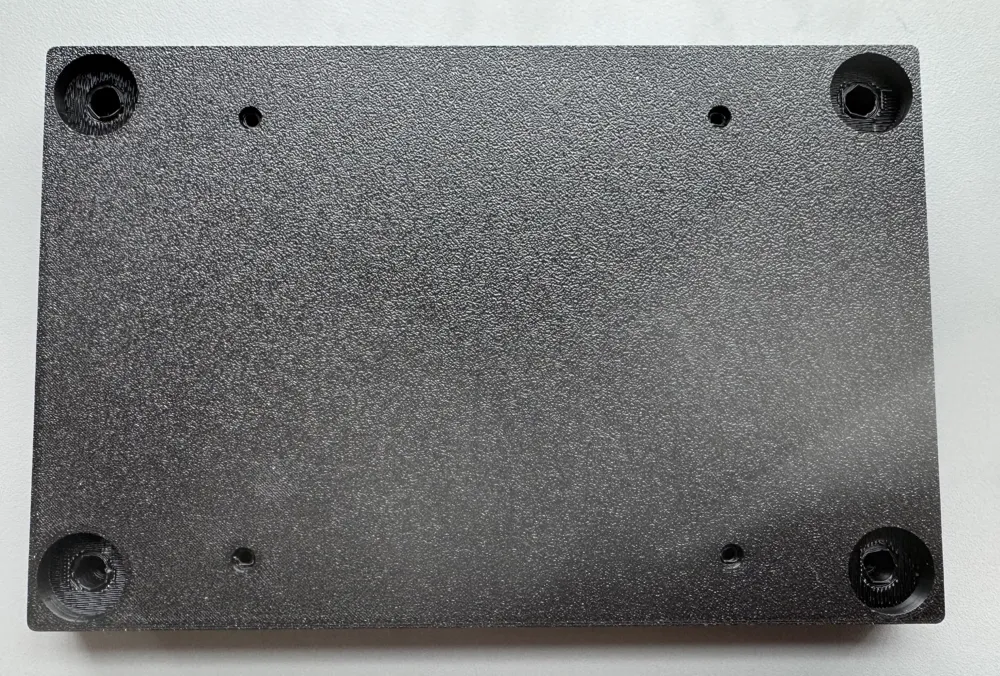

This is a holder for mounting a Panasonic BQ-CC63 8 slots battery charger to a wall or a magnetic surface.
Neosmuk Black Magnetic Hooks (ø17mm)
https://www.amazon.de/-/en/dp/B09LQG23LM
Magnetic base:
ø17mm
6mm high
Thread part:
Tread: M4
Outer part diameter: ø6,50mm
Outer part high: 5,90mm

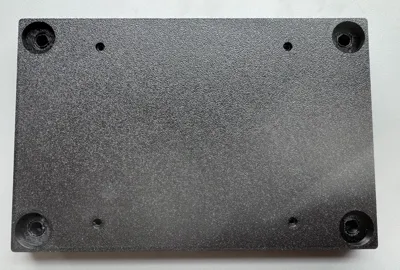

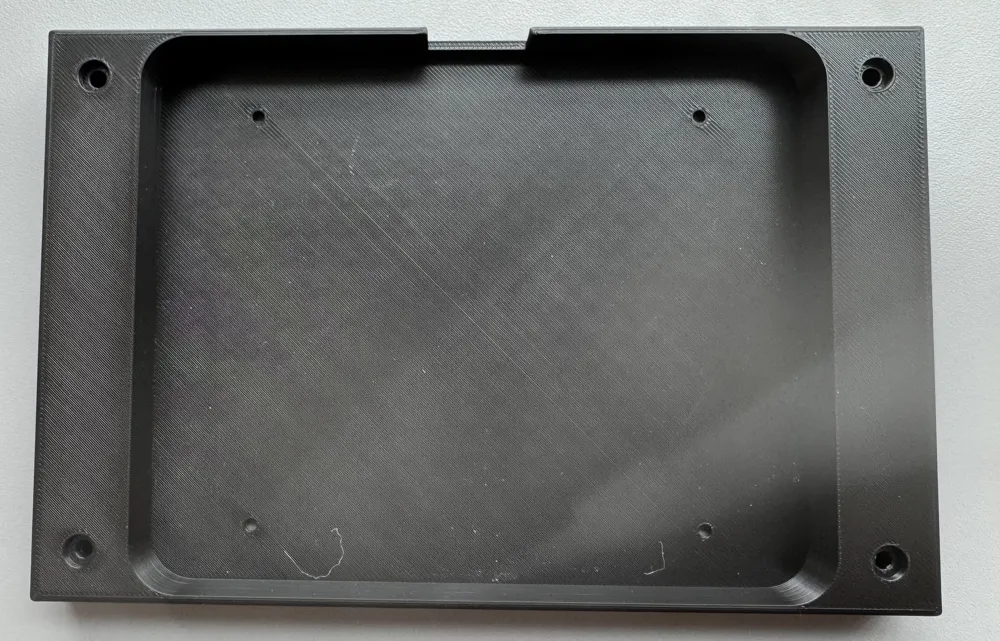

But can also be secured with normally screws to a wall. (Holes are ø4mm)

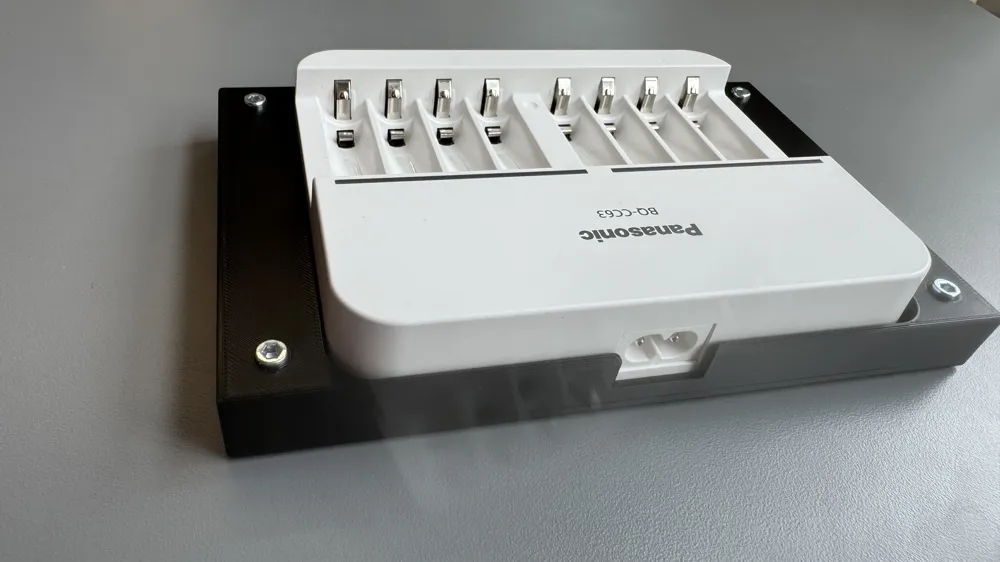

The charger can be screwed to the mounting plate, but also fit very firmly without securing it to the plate with screws.
Documentation (1)
Assembly Guide (1)
Assembly Guide.pdf
