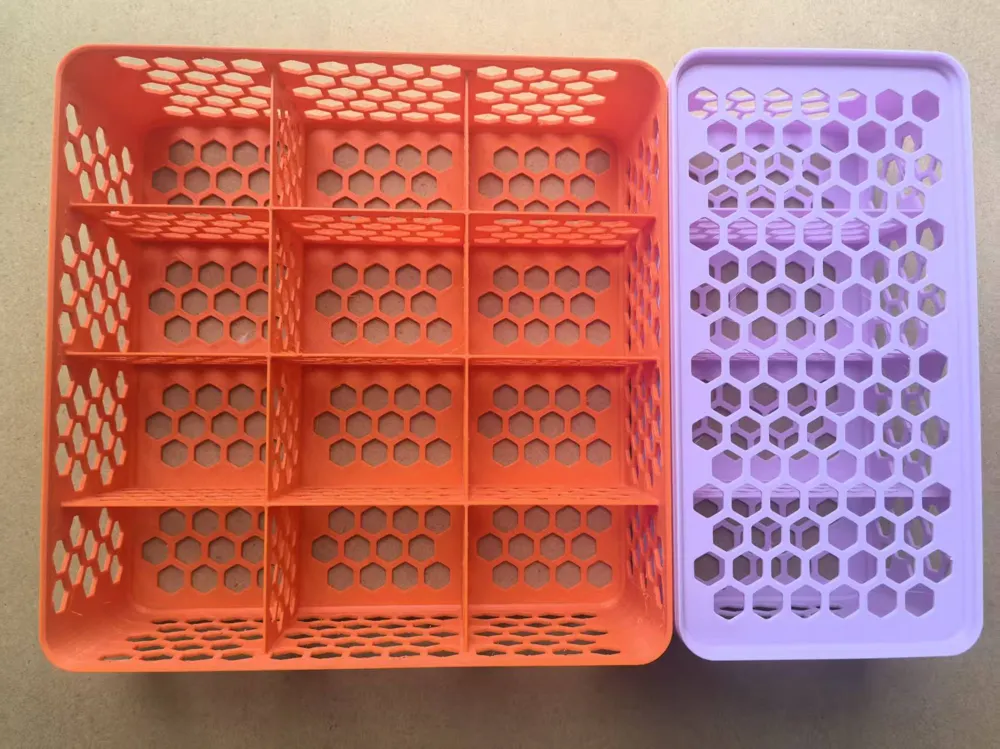

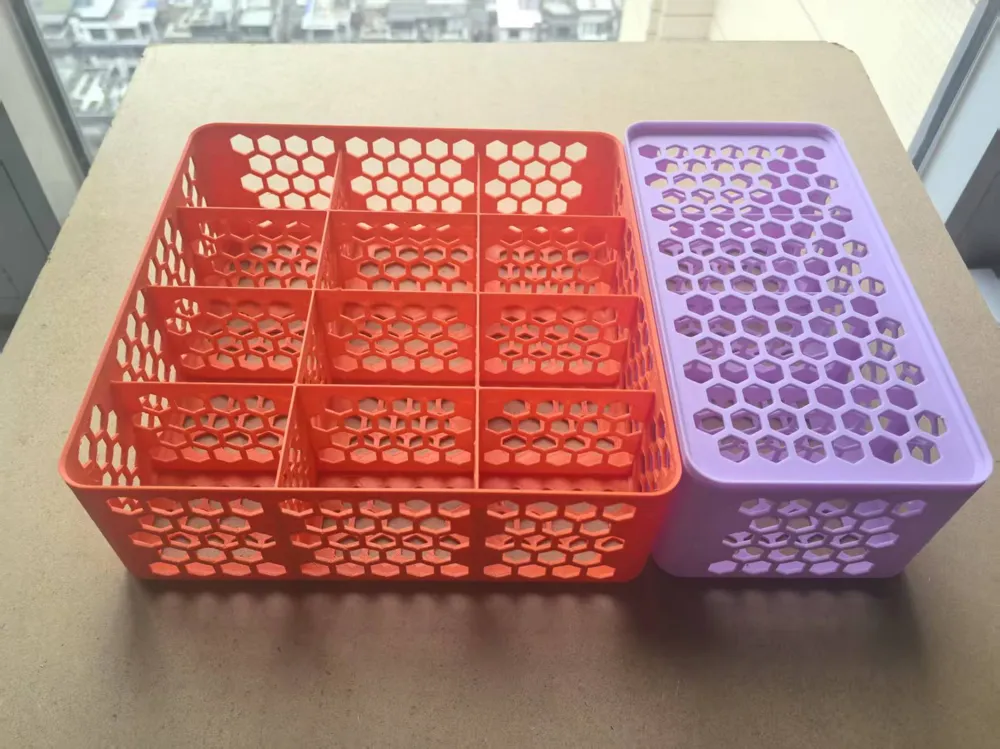

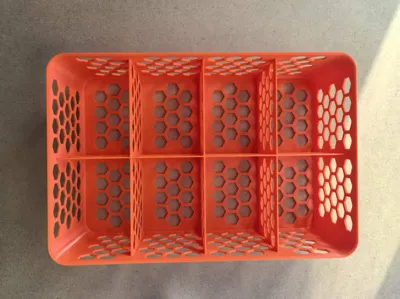

Stackable Box (hollowed out for material saving) - underwear/panties/socks
Print Profile(6)
Description
Stackable Box (Hollowed for Material Saving) - Underwear/Panties/Socks
Dimensions
Socks:
- 234x234x80
- 156x2234x80
- 77x234x80
Panties:
- 234x234x80
- 116x234x80
Underwear:
- 234x234x110

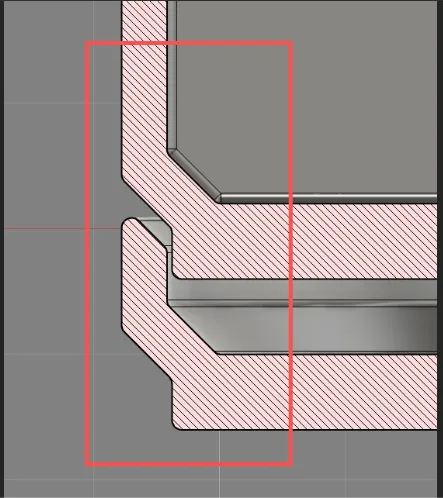

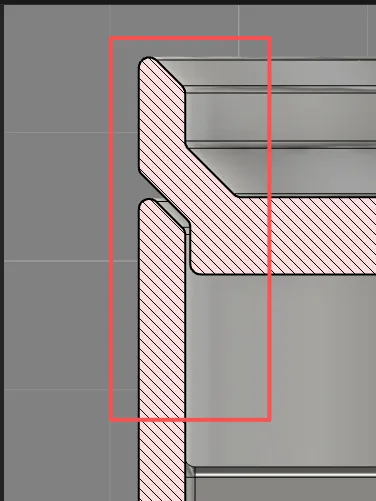

Sectional Stacking Effect (Close-up of Angled Interlocking Structure)
The red box highlights the critical interlocking area:
Both the upper edge of the box body and the lower edge of the lid are designed with symmetrical bevels, forming a "guided nesting" structure

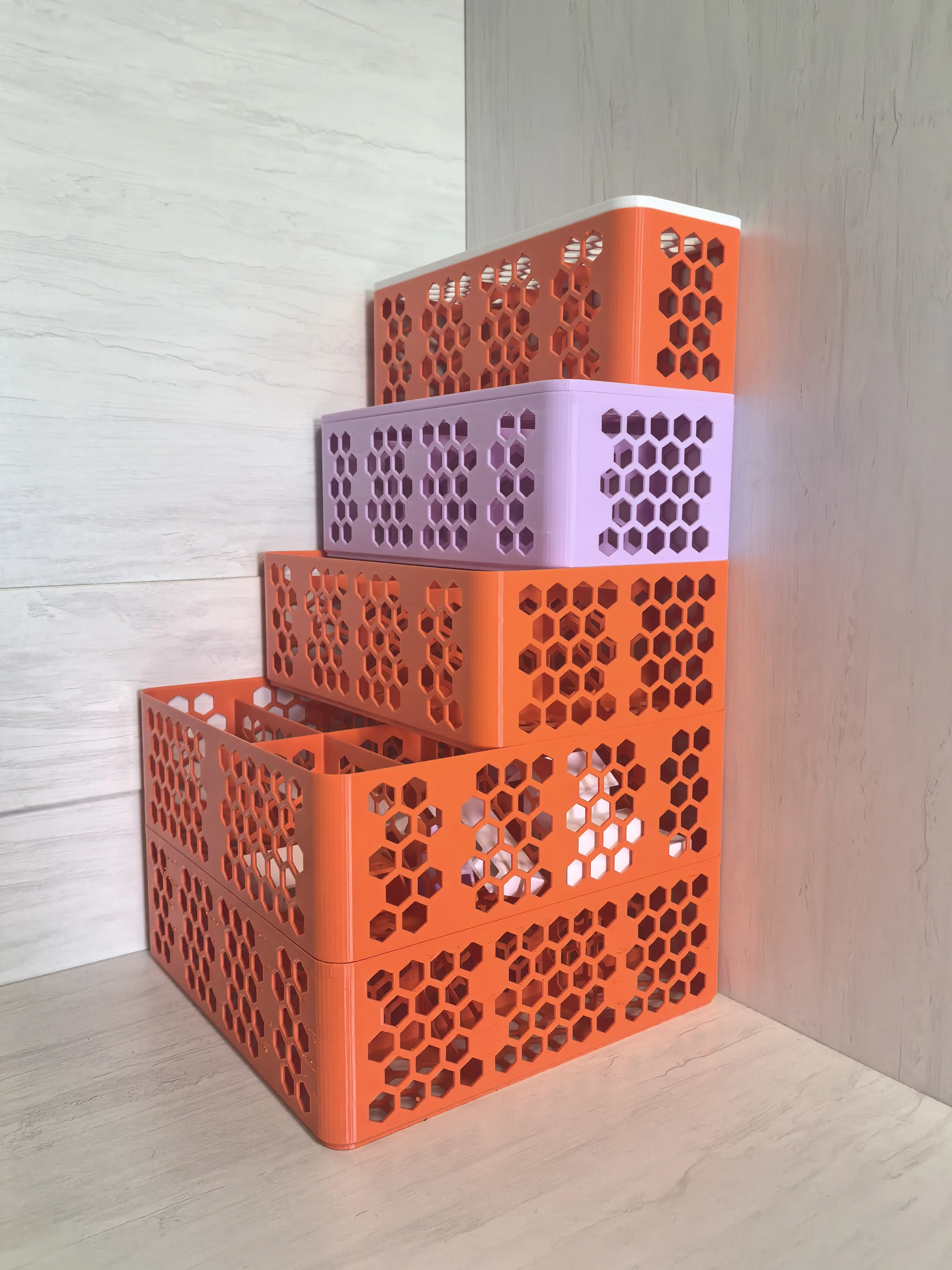

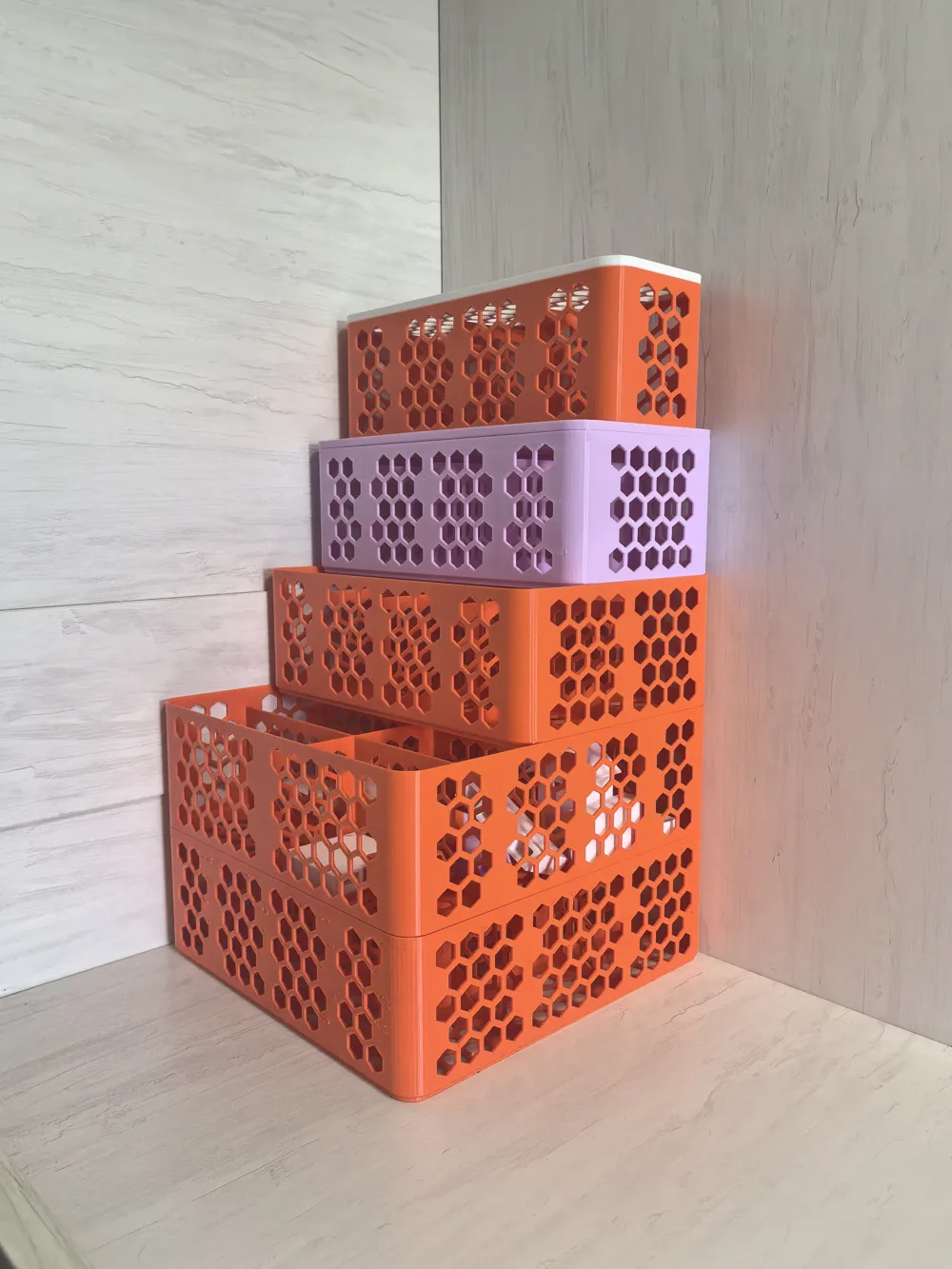

During stacking, the bevels automatically correct the position, achieving precise interlocking, effectively preventing lateral sliding or displacement, ensuring stability and neatness even after long-term use
🖨️ Printing Instructions
| Item | Recommendation |
|---|---|
| Recommended Material | PLA / PETG (balancing strength and precision) |
| Layer Height | 0.2 mm (balancing speed and detail) |
| Infill Density | 15%~20% (sufficient load-bearing, saving filament) |
| Supports Needed | No (all models optimized for no supports) |
| Print Orientation | Print with box opening facing up (ensures flat bottom, more stable stacking) |
💡 Tip: For best stacking results, ensure the build plate is accurately leveled, the first layer adhesion is good, and avoid base warping affecting nesting precision
Same specifications and dimensions as the model below
Click to view: Stackable Box - Underwear/Panties/Socks
