Height Vernier Scale

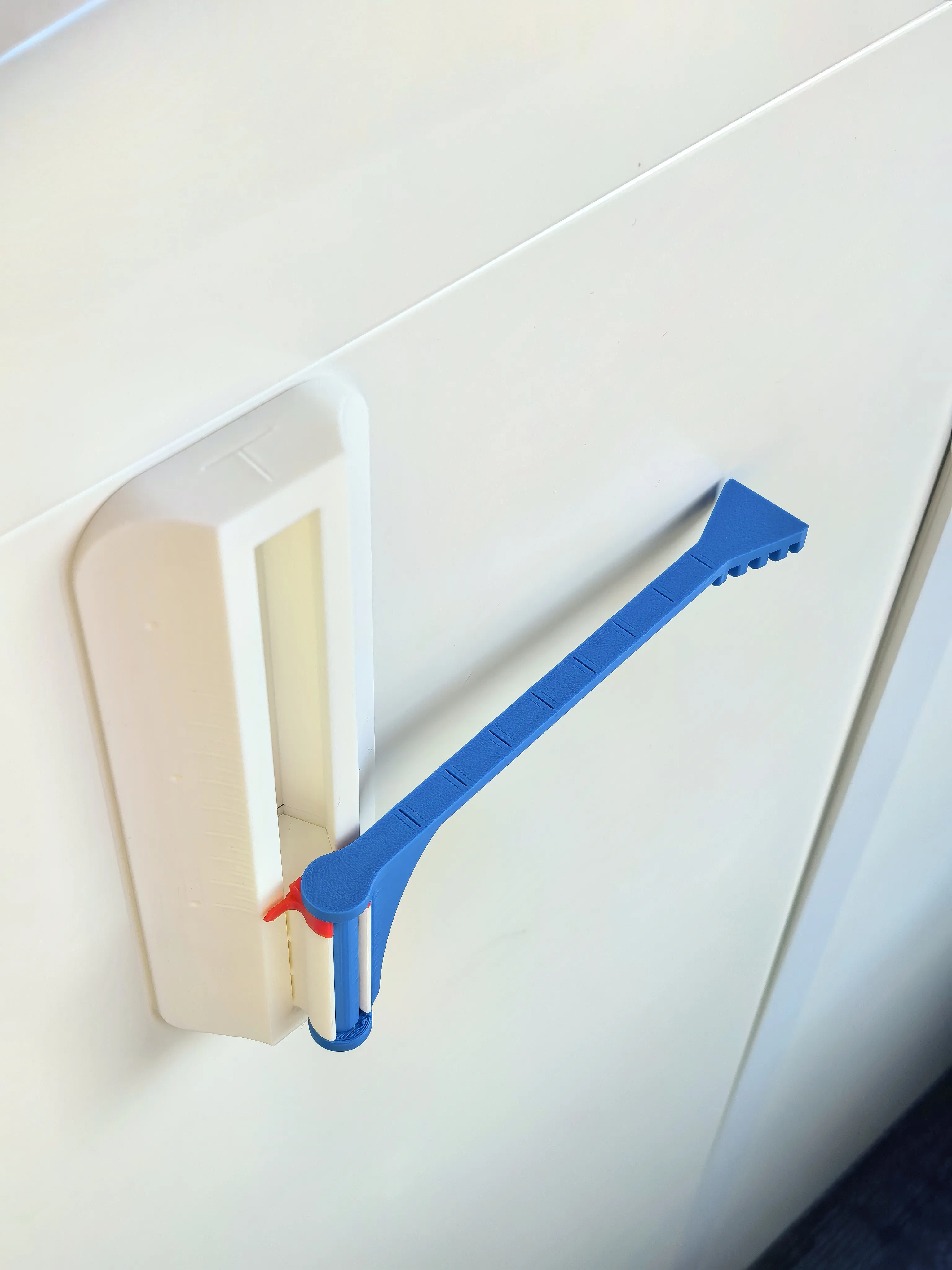

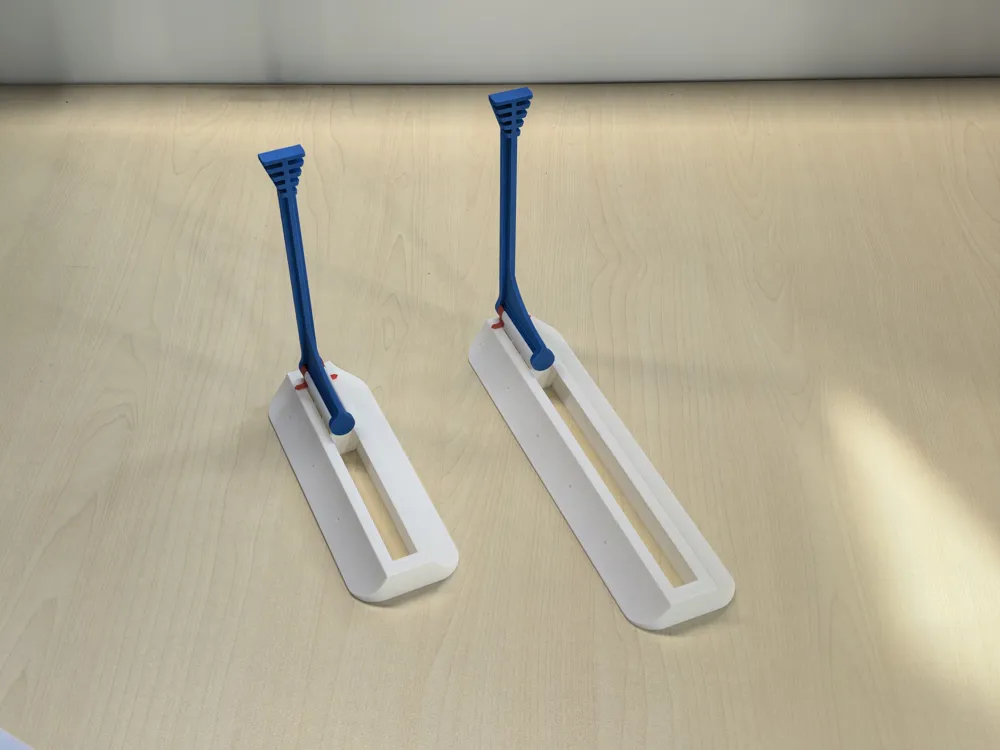

It can be installed on walls, doors, or refrigerators, using a reference height + vernier measurement method, with four ranges: 100mm/120mm/150mm/200mm.
The 100mm/120mm versions are printable on an A1 mini.

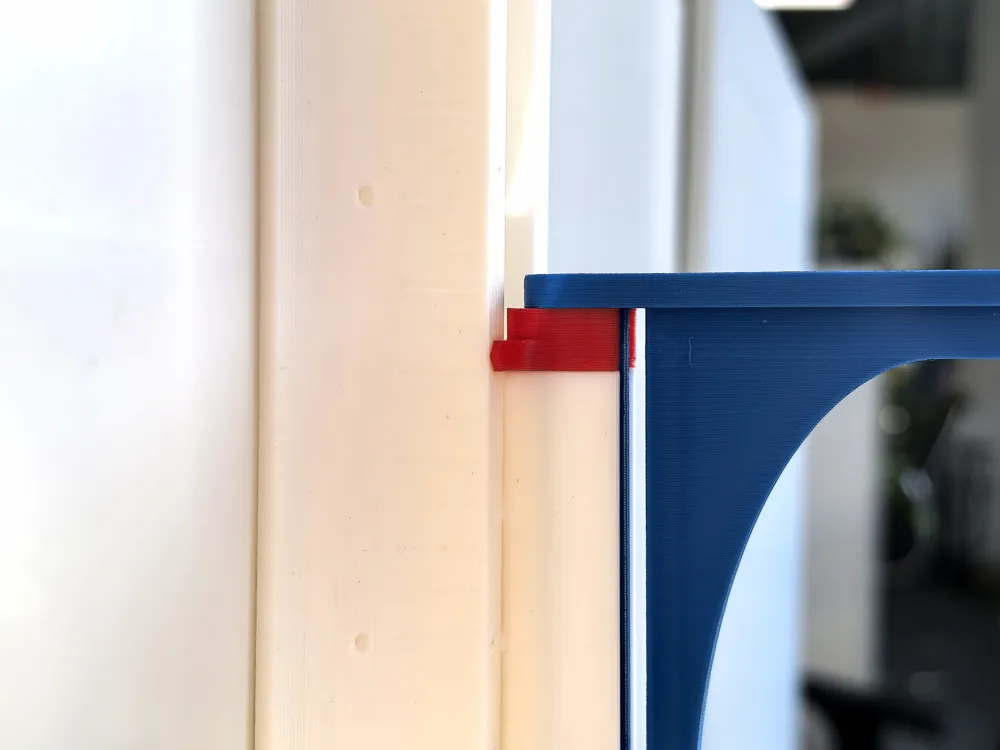

The measuring scale has a reference line inside; for example, if the reference height is 1 meter and a 200mm range scale is installed, heights between 1 meter and 1.2 meters can be measured.
The specific installation method is as follows.

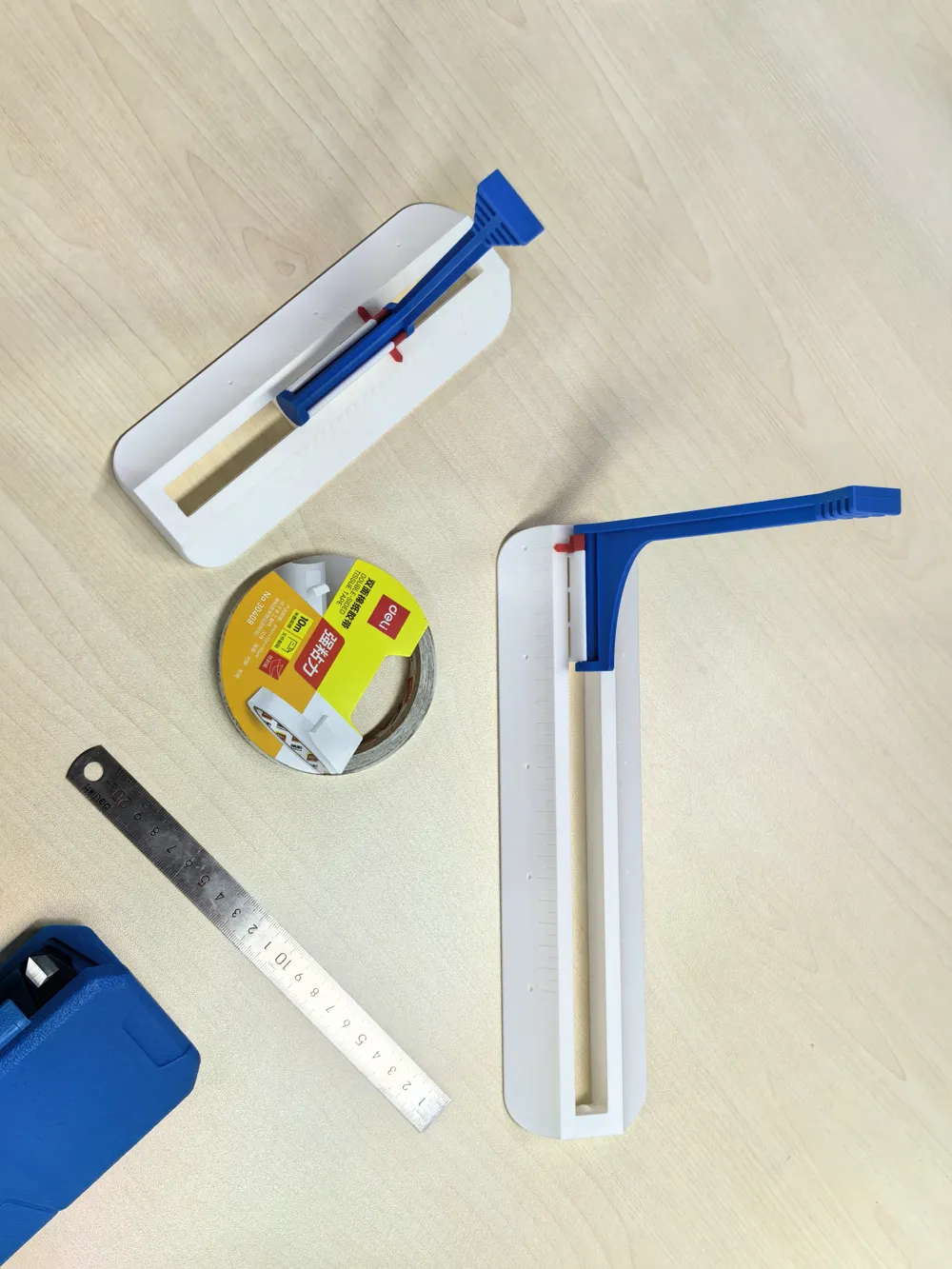

The model consists of three parts: slider, scale, and vernier.

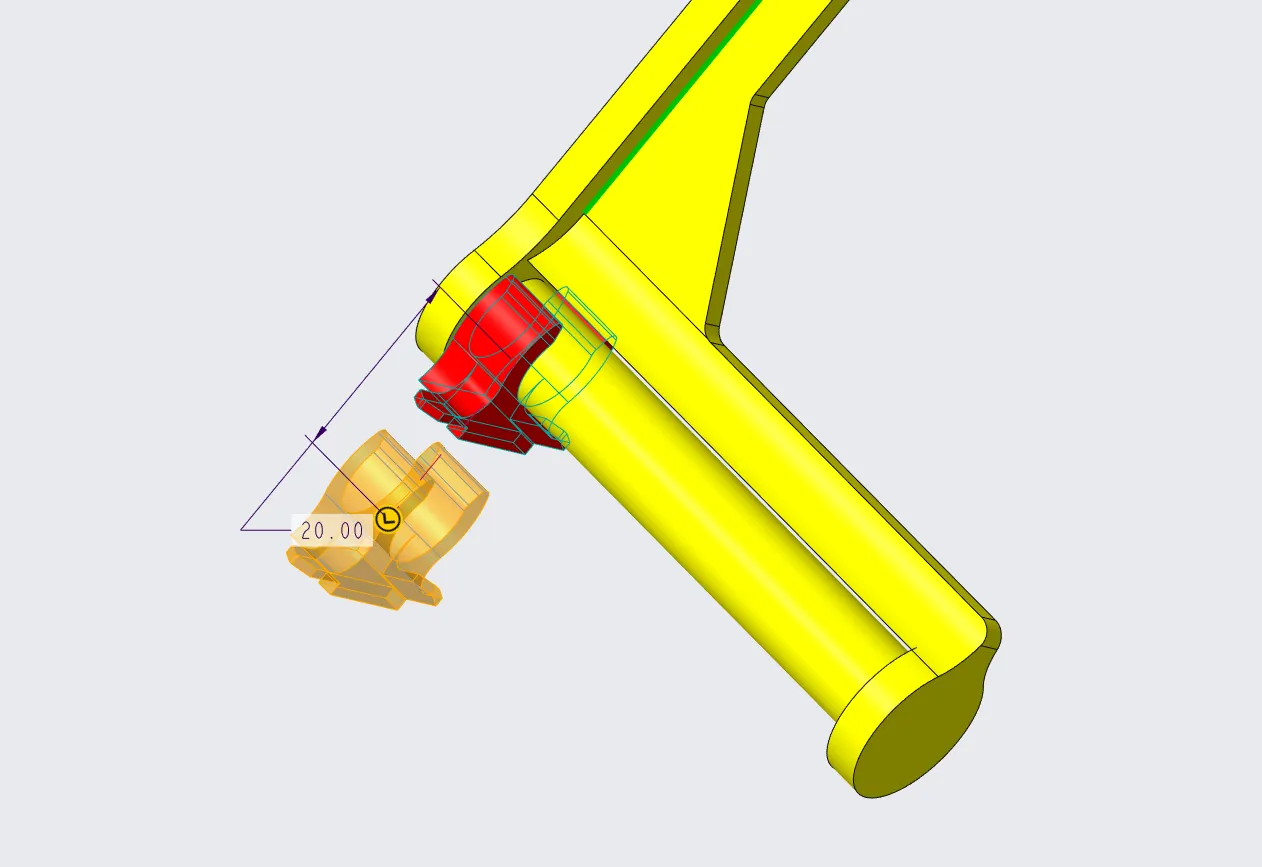

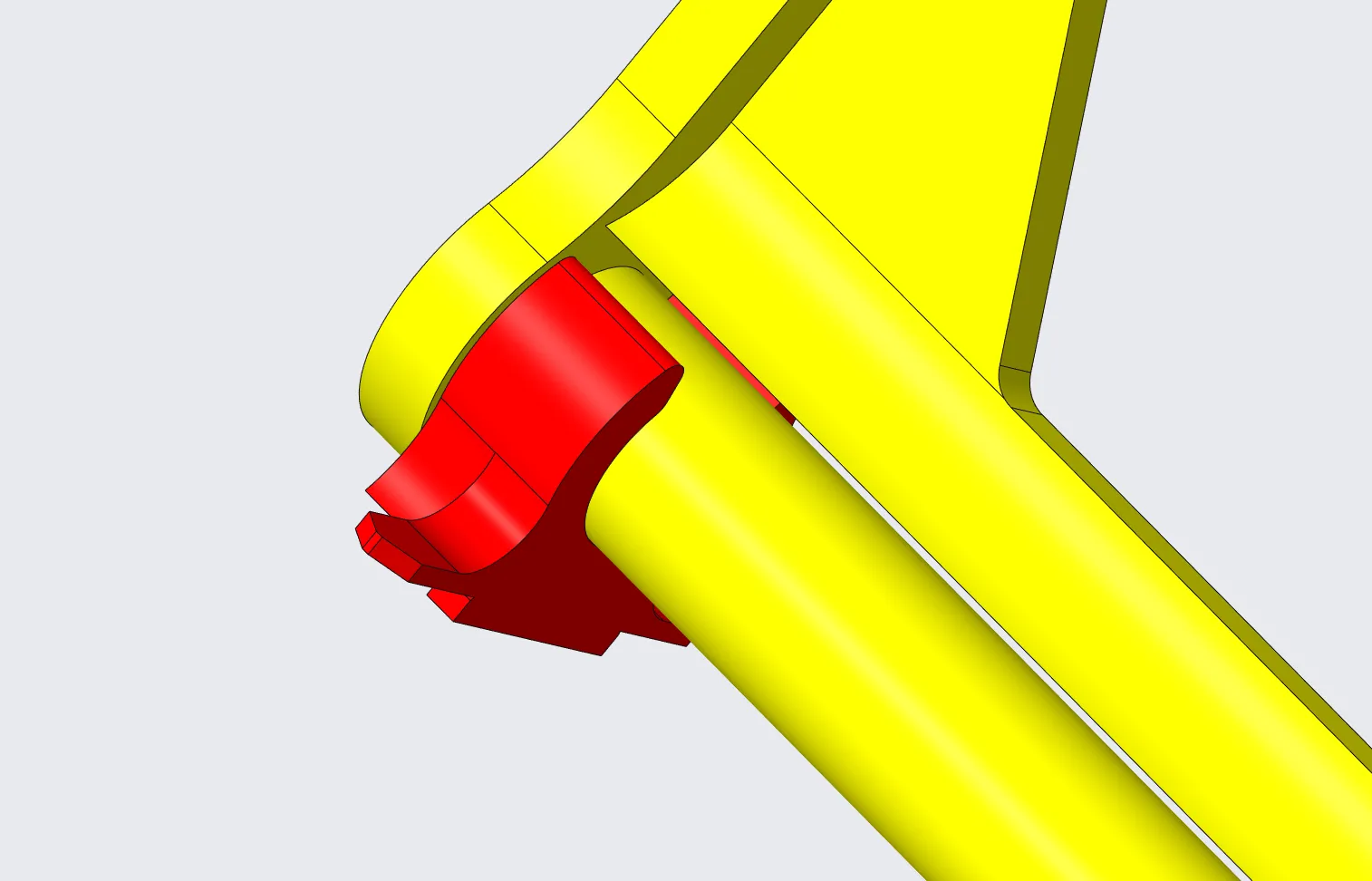

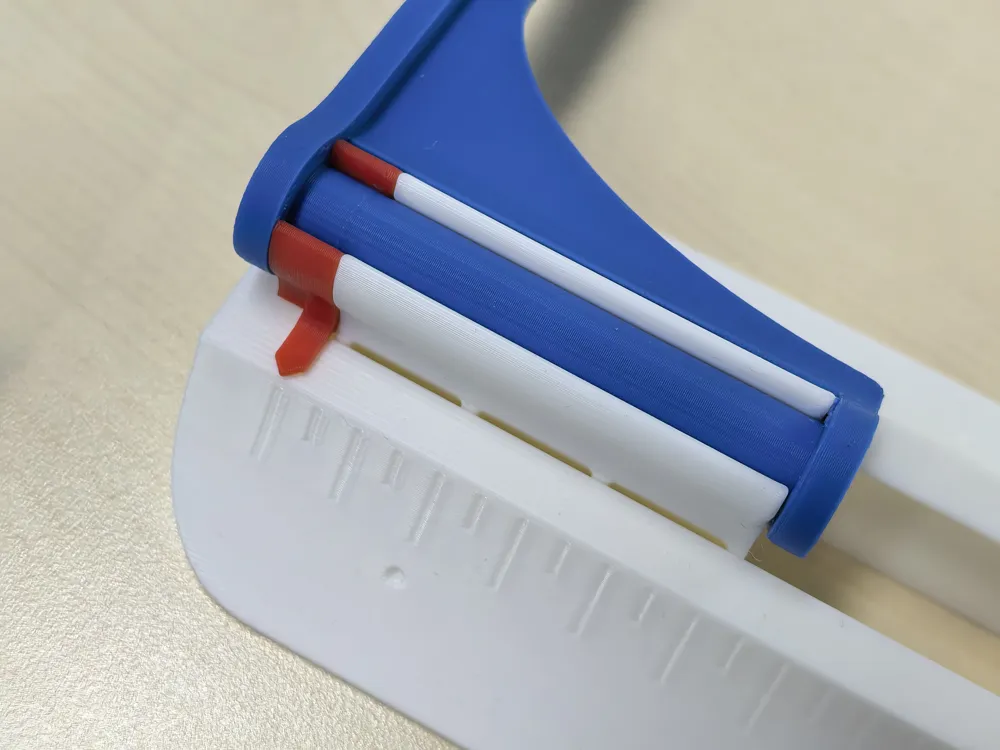

Step1: Install the vernier onto the scale

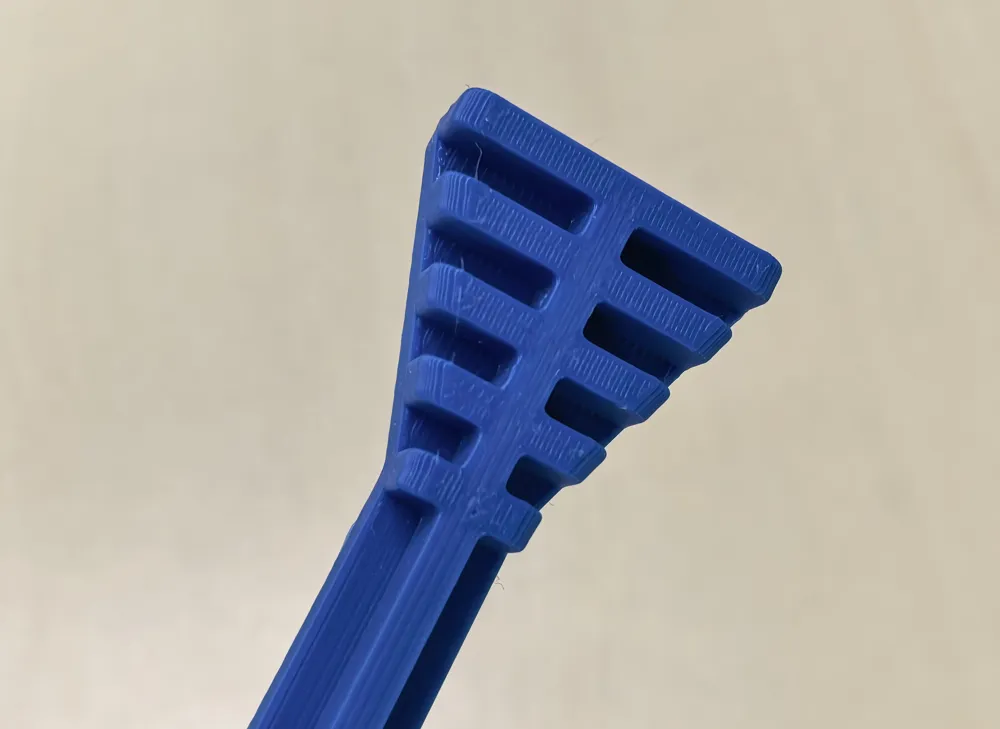

Step2: Check if the vernier installation direction is correct

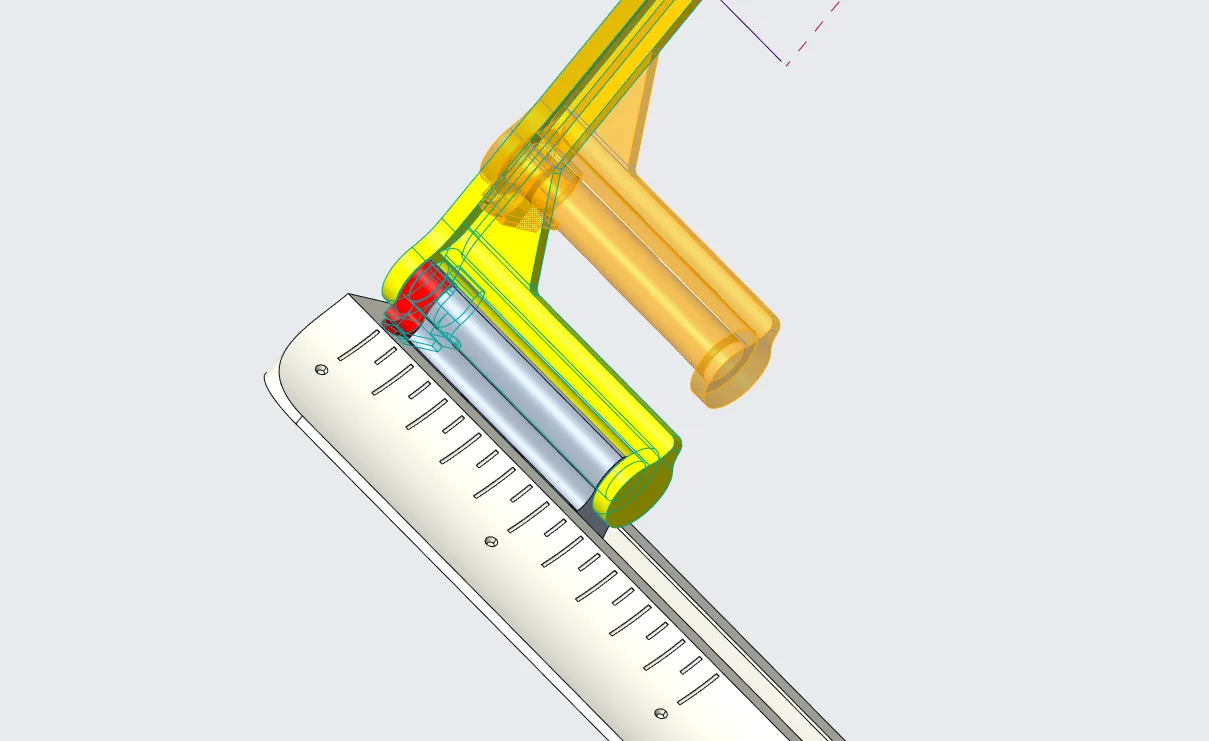

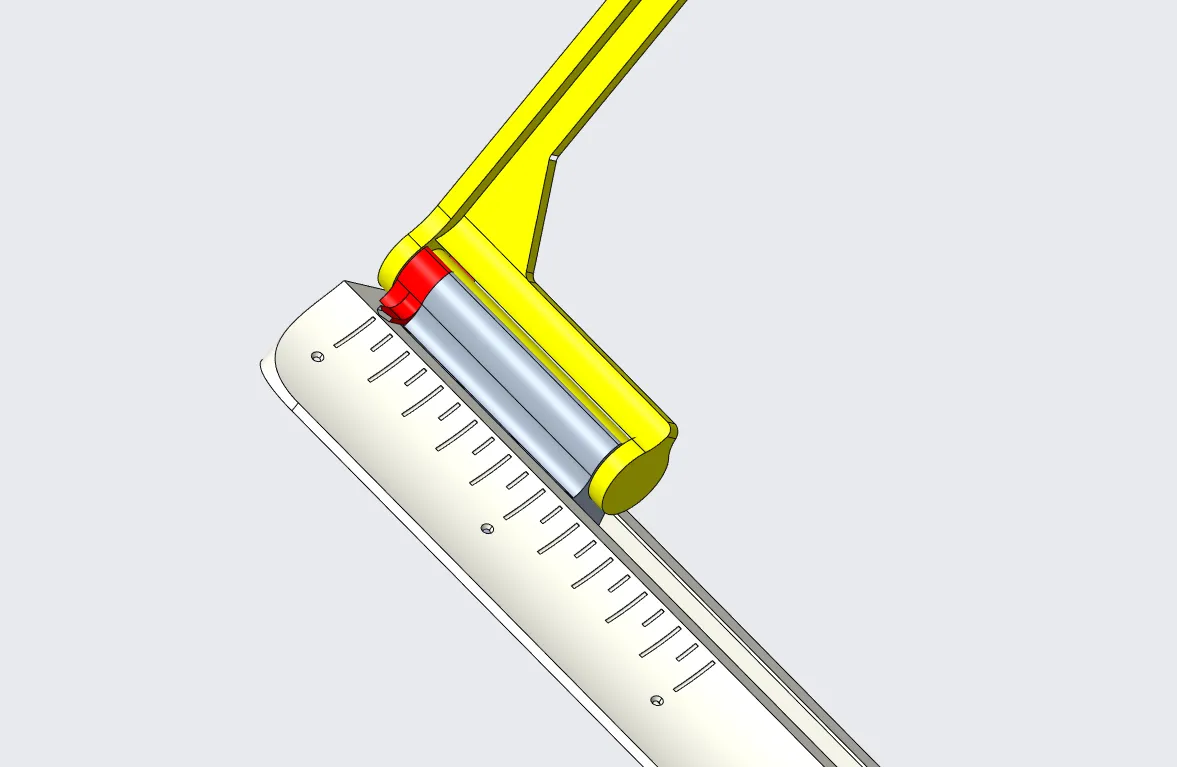

Step3: Install the scale onto the slider of the rail
Step4: Check if the installation position is correct

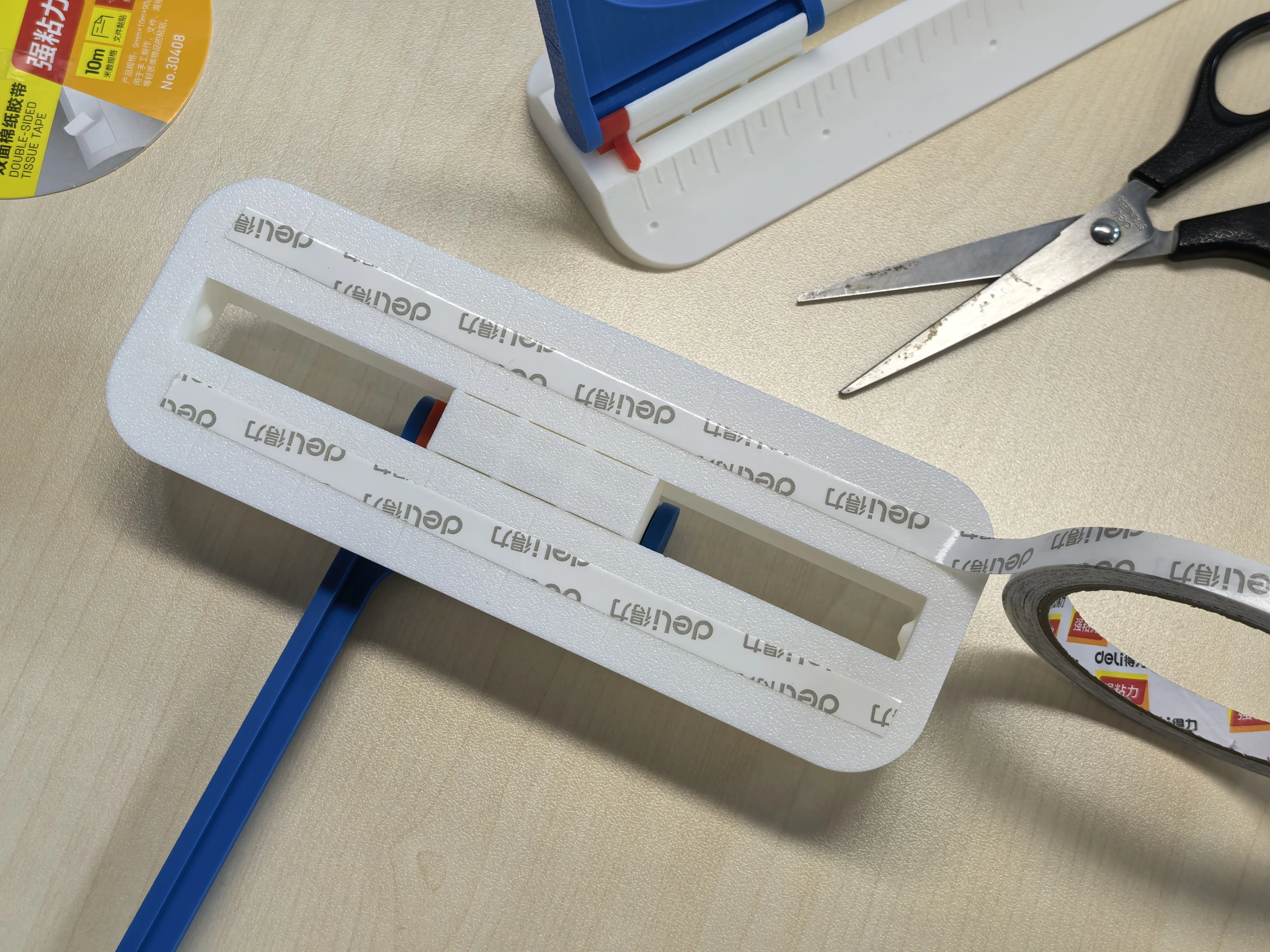

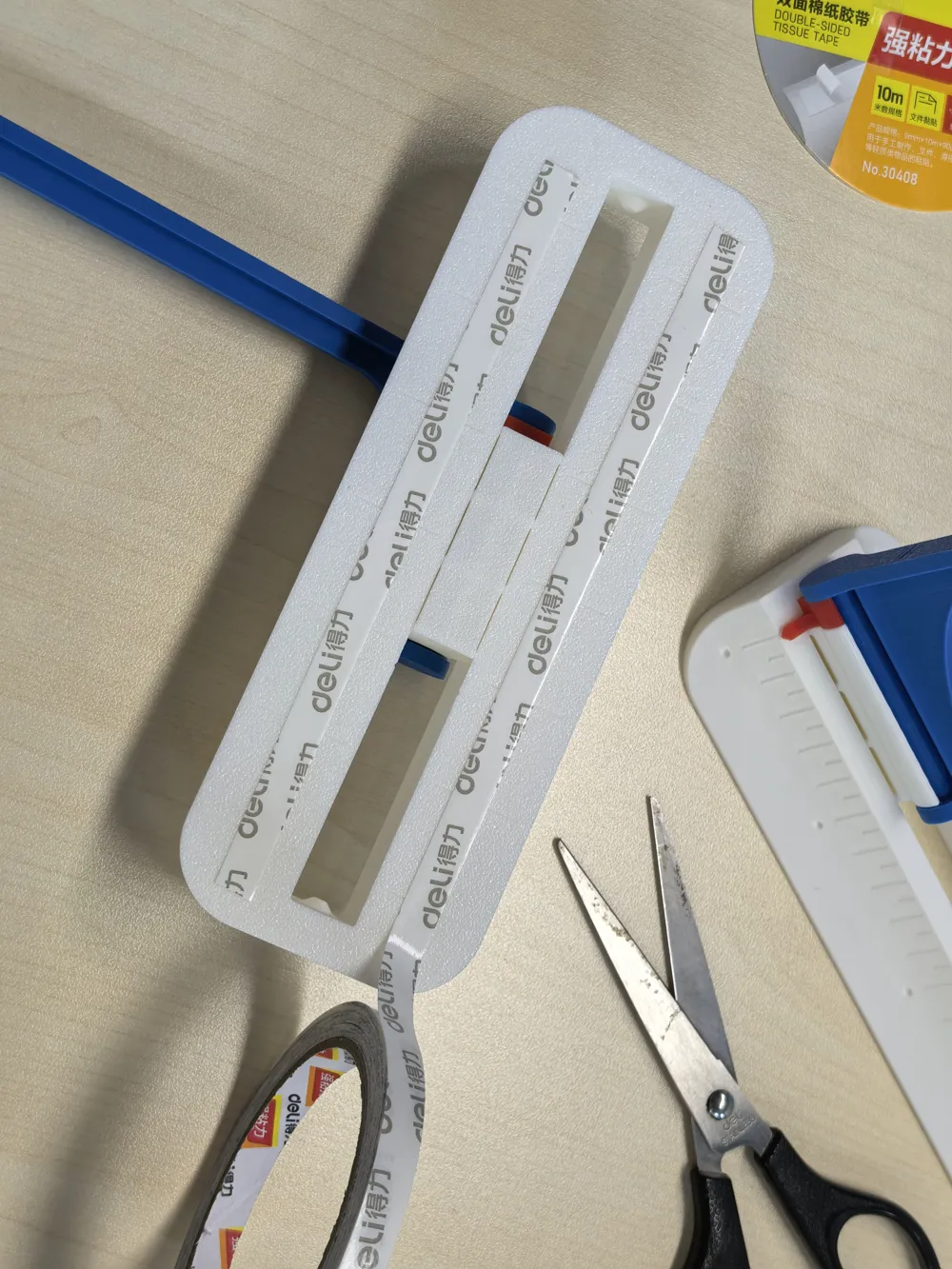

Step5: Attach double-sided tape to the back of the rail (magnetic adsorption may slide, not recommended)

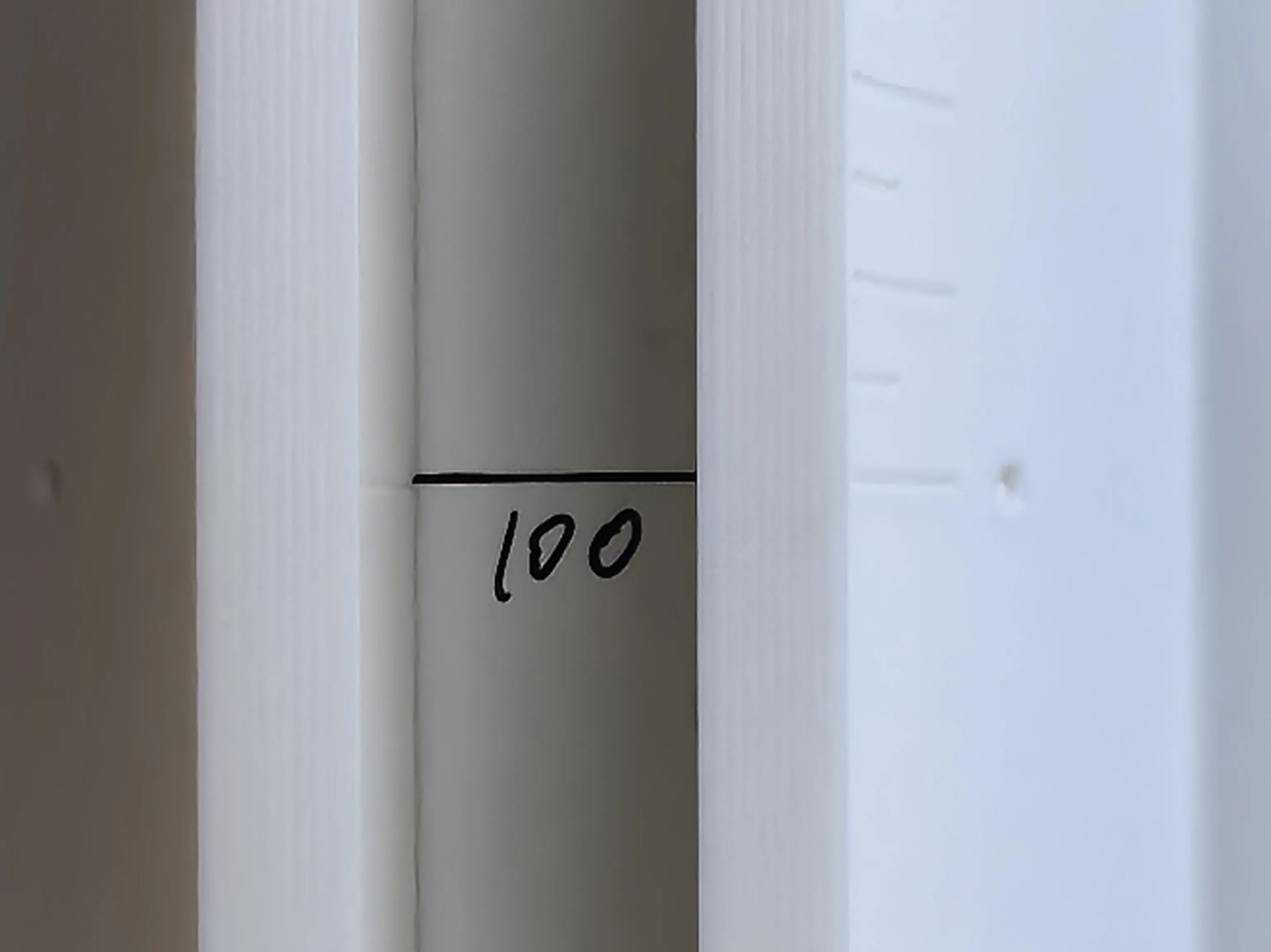

Step6: Measure and mark the reference line

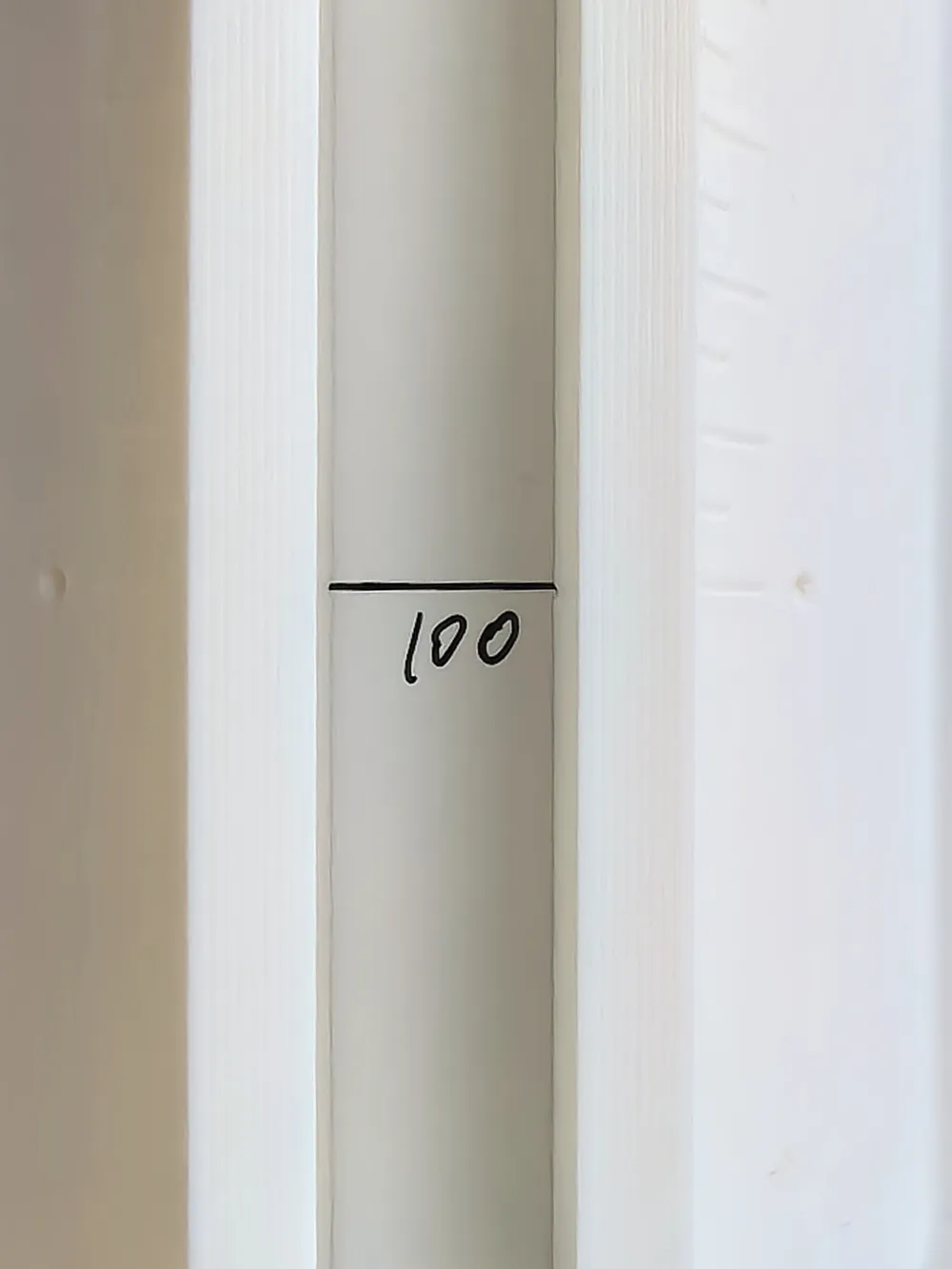

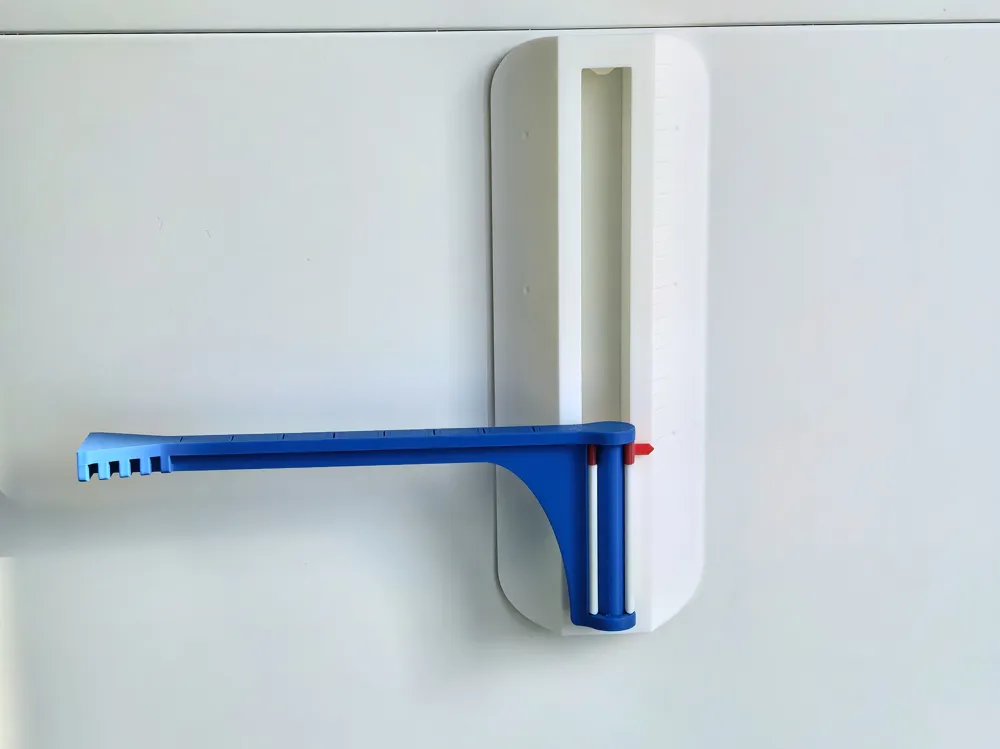

Step7: Align the inner marking line of the rail with the reference line, and paste with the vertical mark facing up as shown in the figure
