2.8" TFT Screen - Autodesk Fusion Model
Print Profile(1)
Description
Could find this exact model anywhere .. so that i could model cases/enclosures etc.. so made one based on Engineering Drawings and actual measurements from the product. (2.8 inch TFT Module 240×320 ILI9341 GMT028-06T / 2.8 Inch SPI TFT LCD ILI9341 Driver Chip SPI With Touch)
PCB Dimensions: 81.70mmn x 50mm
LCD Dimensions : 57.60mm x 43.20mm

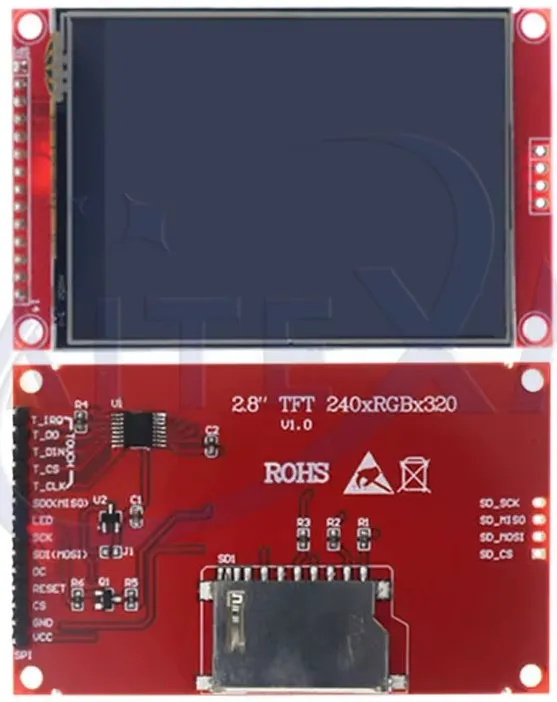

The Actual product looks like this (but my PCB reads v1.1) this model should work with both v1.0 and v1.1 based on my findings.
The units i got from AliExpress came with Header Pins already soldered on one side (SPI & touch).

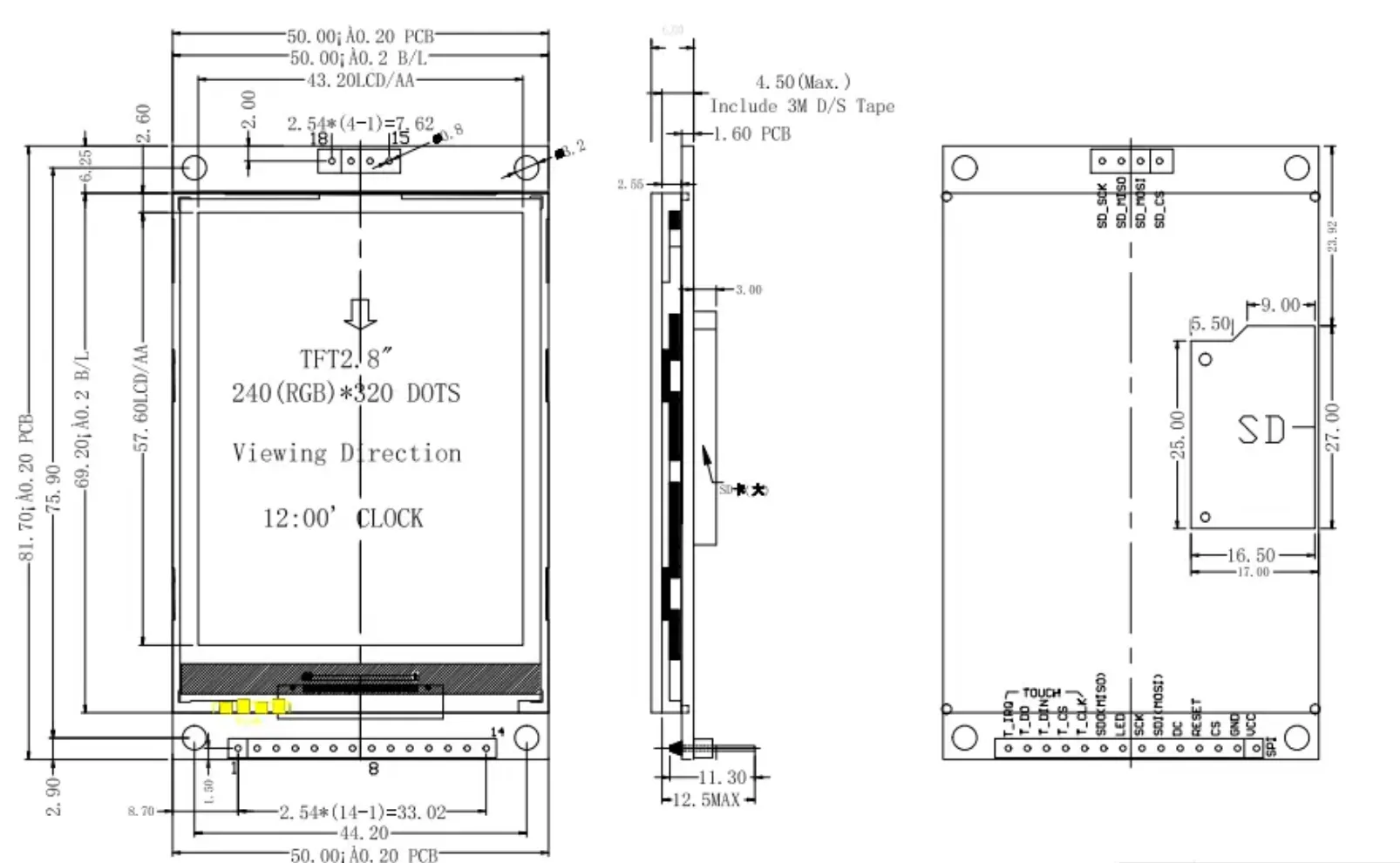

Mechanical Drawing:
Based on my research, this display is made by a company called Golden Morning, and their model number is : GMT028-06T.
https://goldenmorninglcd.com/tft-display-module/2.8-inch-240x320-ili9341-gmt028-06t/
This display is relatively cheap and great of DIY home projects and sold by various sellers on AliExrpess/Amazon/Temu etc..
