Moza SRP Lite Pedal Anti-slip Suction Cup
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
1.7 h
1 plate
Open in Bambu Studio
Boost
3
4
0
0
3
1
Released
Description
Content has been automatically translated.
Suitable for Moza SRP Lite pedals (SRP also usable in theory) This model can help when your pedals cannot brace against a wall or desk
Requires M4 countersunk screws (dual pedal users will find 4 unused clutch pedal mounting screws in the package), and suction cups

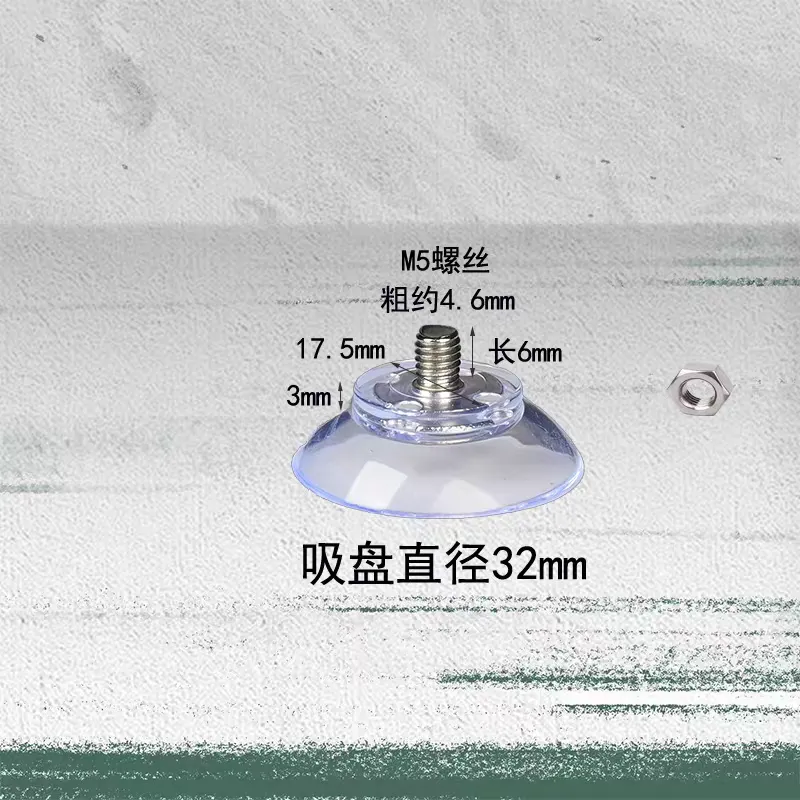

Actual testing shows that two small suction cups are sufficient to prevent sliding

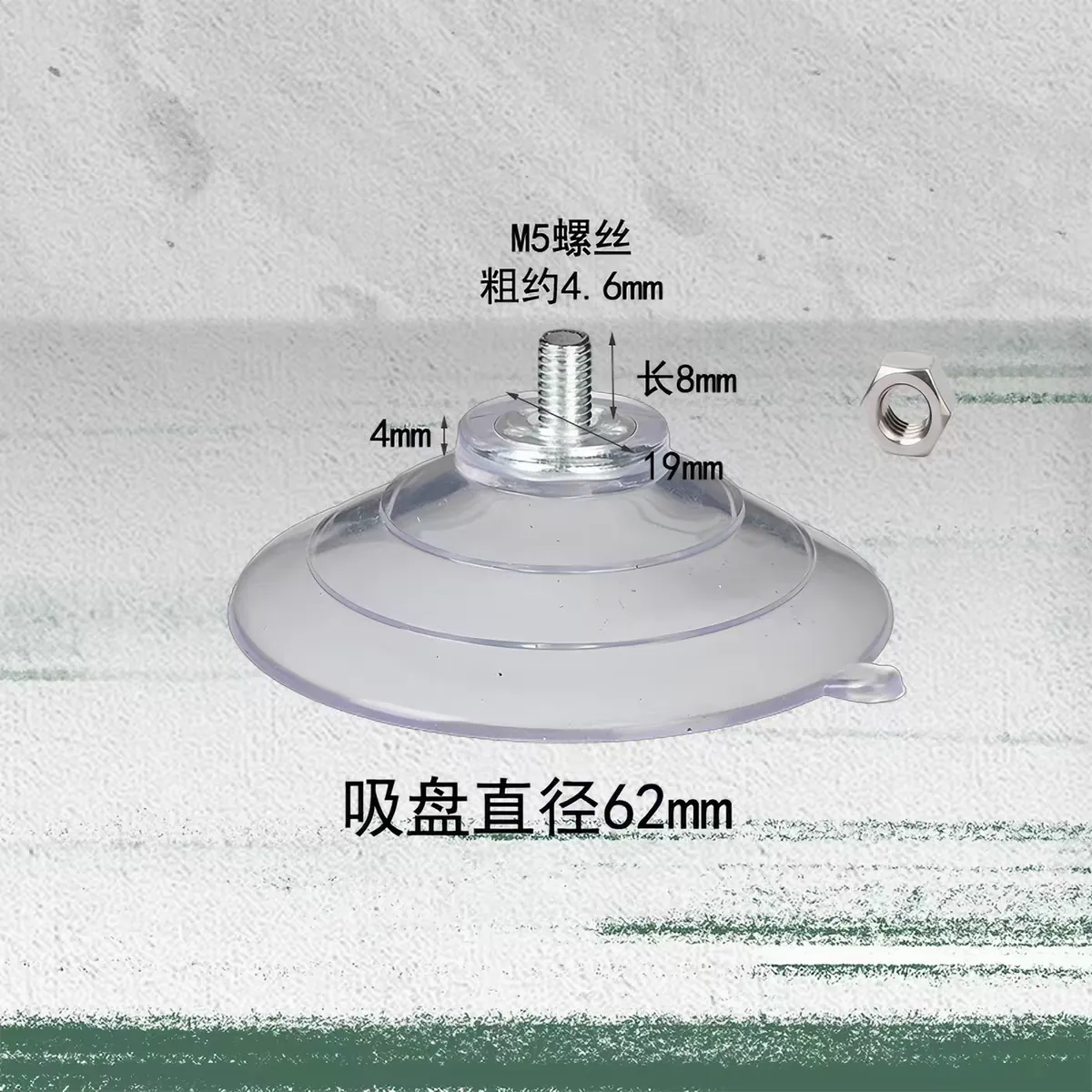

If the brake enhancement kit is installed, four suction cups are needed (2 large and 2 small recommended)
(I installed another modified model to extend the pedals it's currently unclear how much it helps with anti-slip but that model apparently does not permit derivative works)

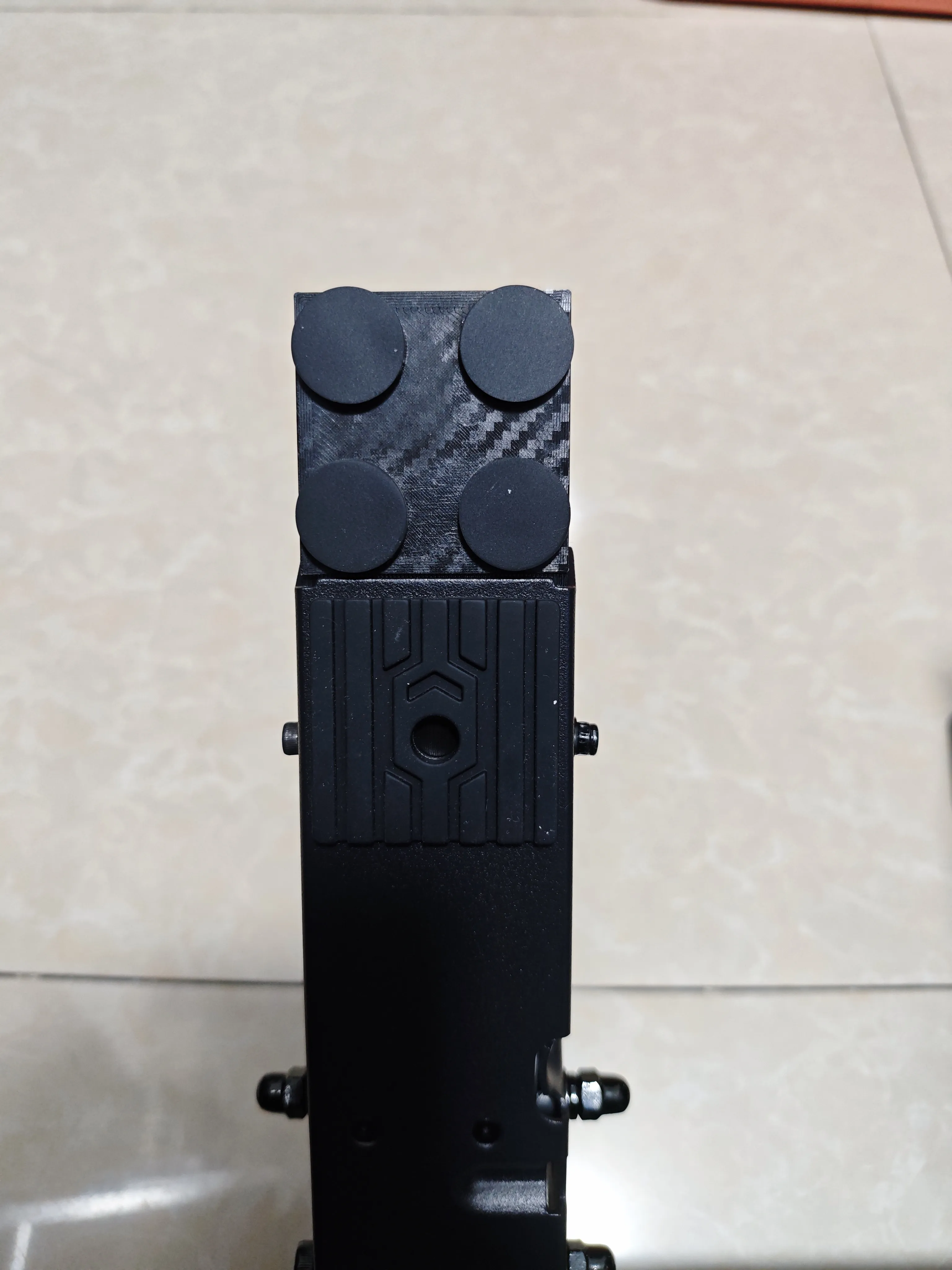

(shortened by 3mm for installing non-slip foot pads)

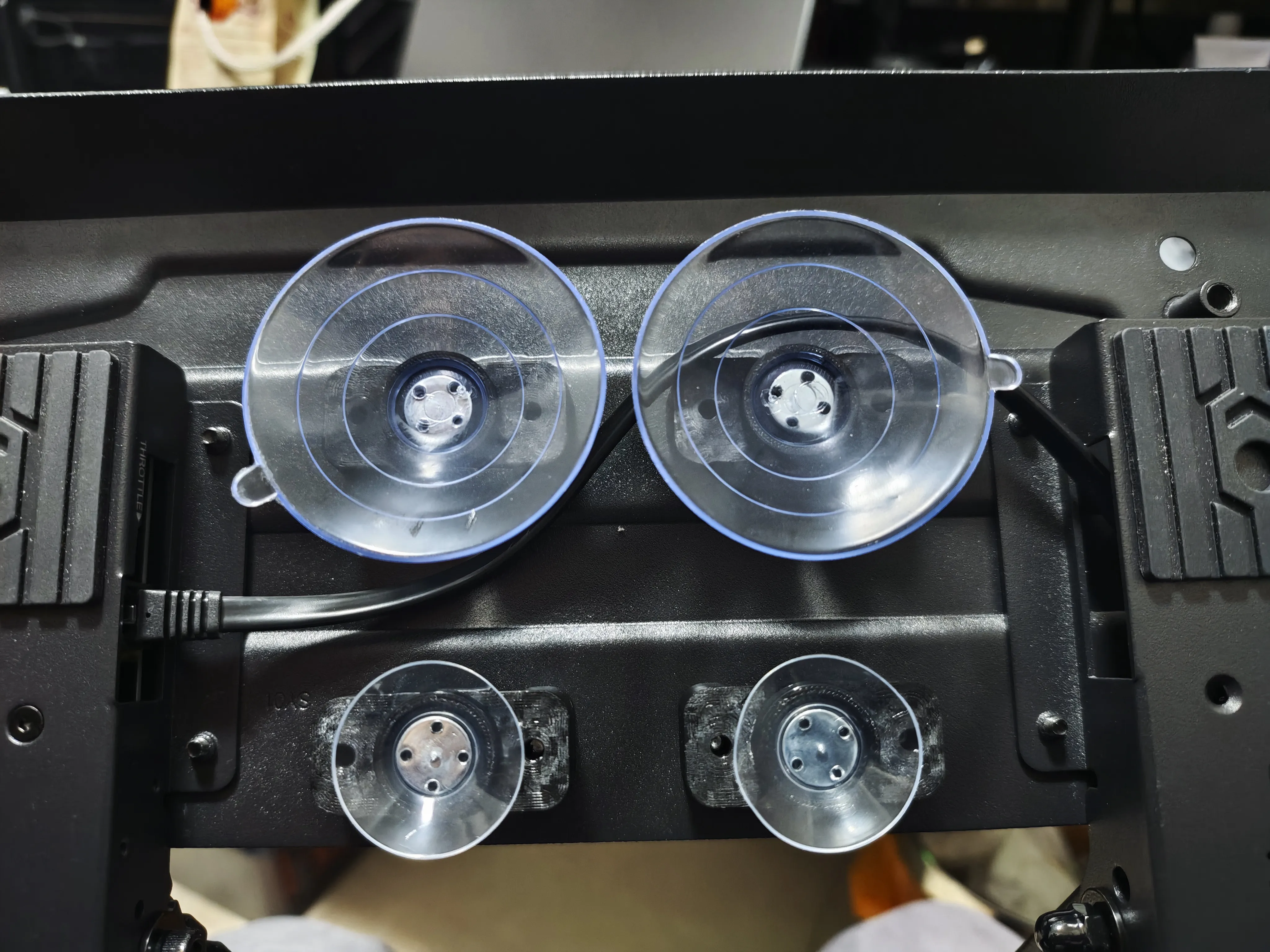

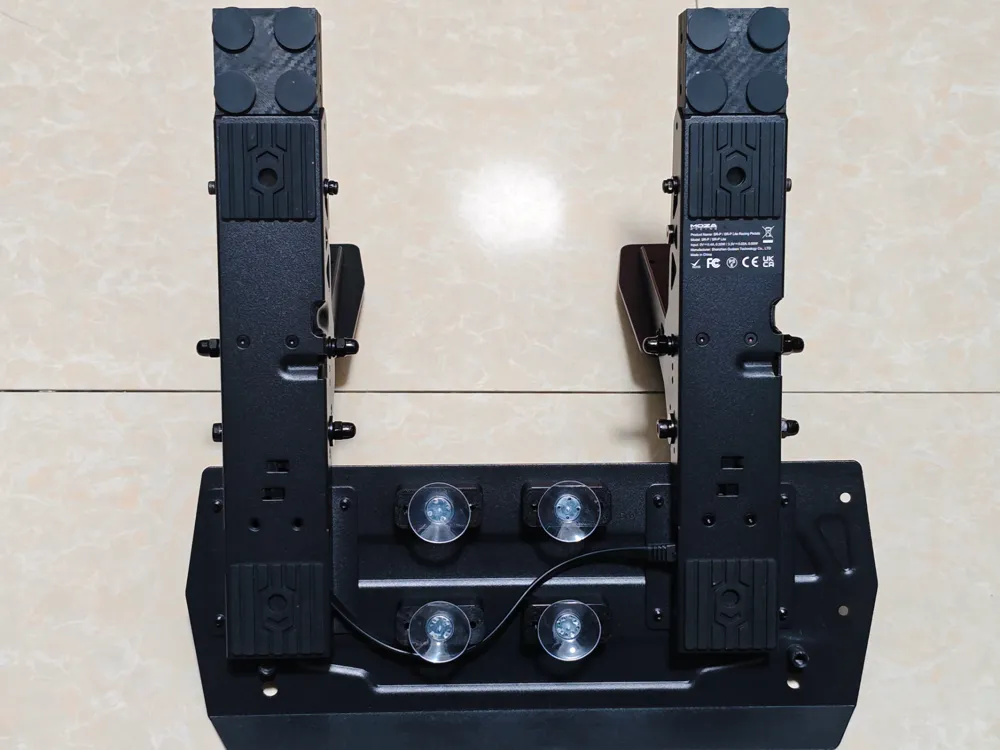

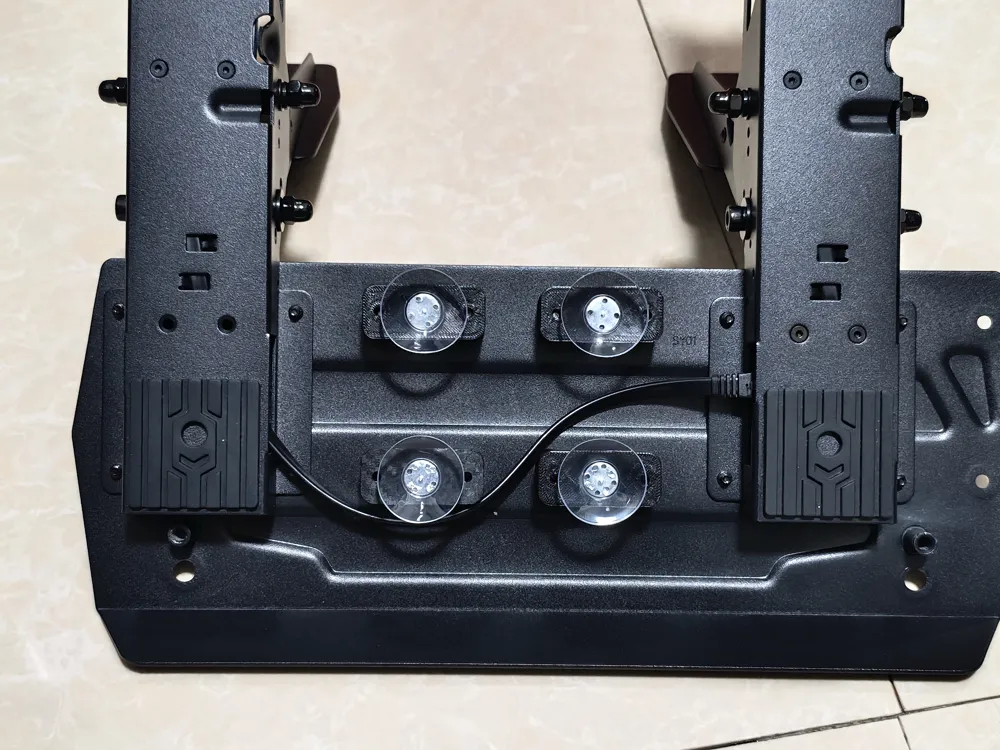

The final product looks like this
