Description

Content has been automatically translated.

Show original

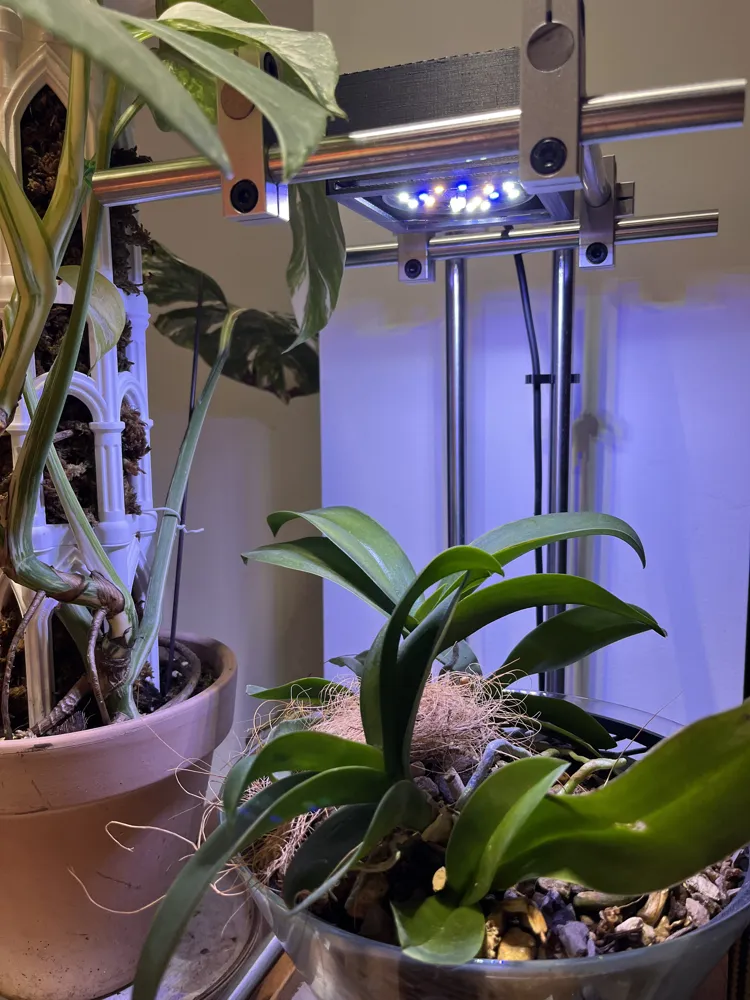

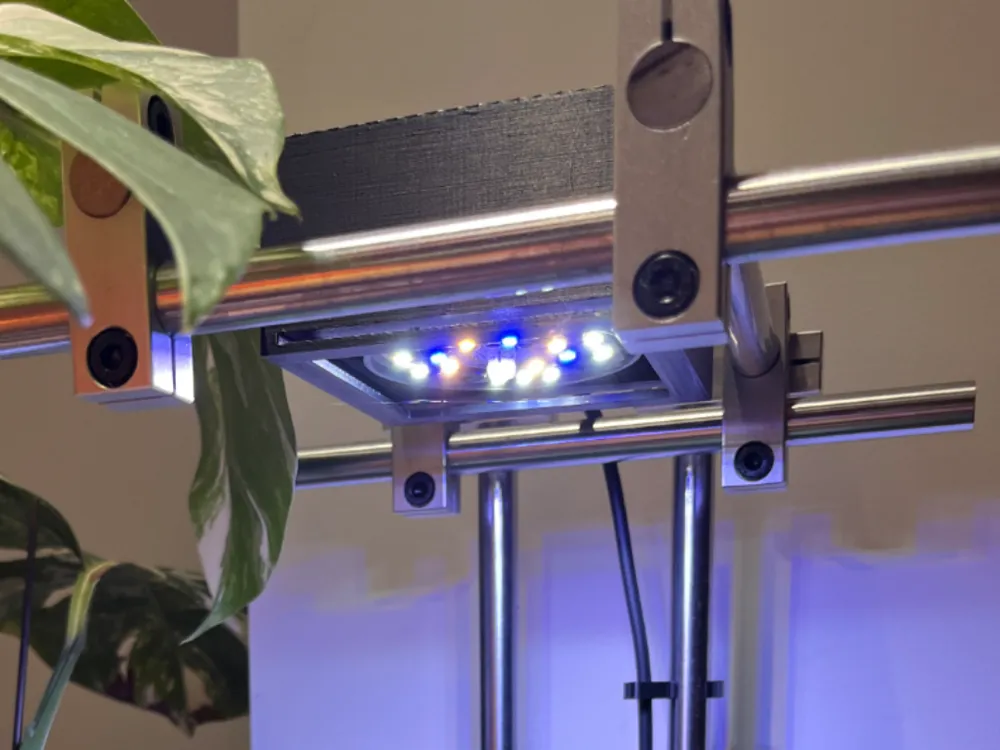

I set up an optical rod grow light stand for my orchid, hoping it will bloom quickly 🌼. The BOM only includes light-related accessories, not the optical rod stand itself.

Overview

3D Printed

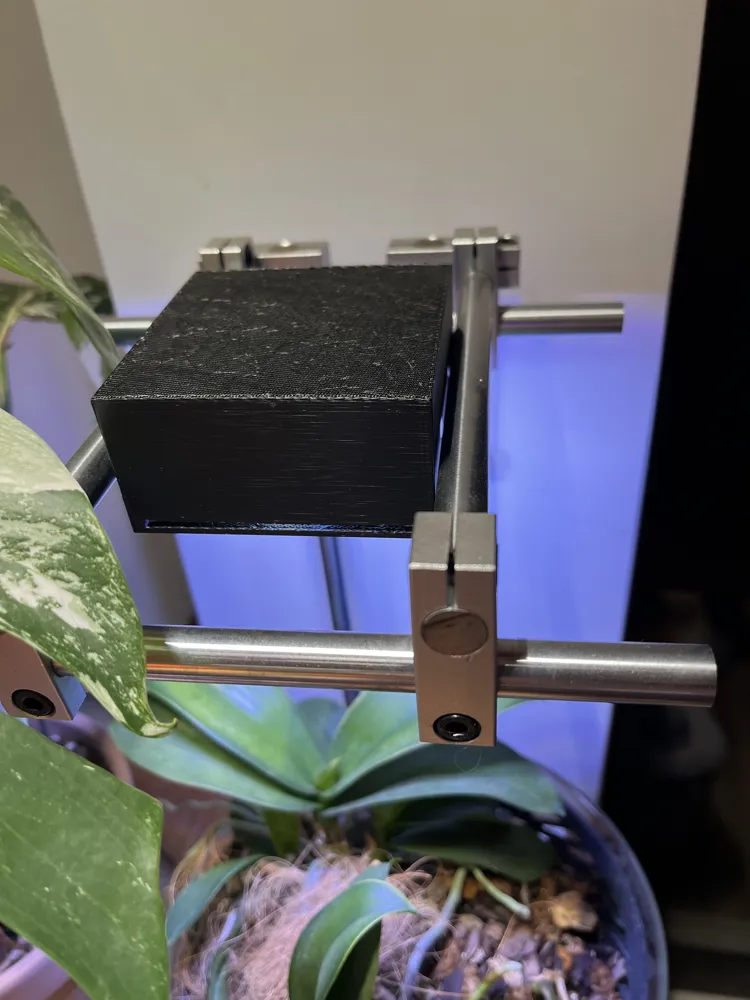

Black appearance, uses PETG
9.9 RMB micro interface, requires built-in conversion
5V voltage

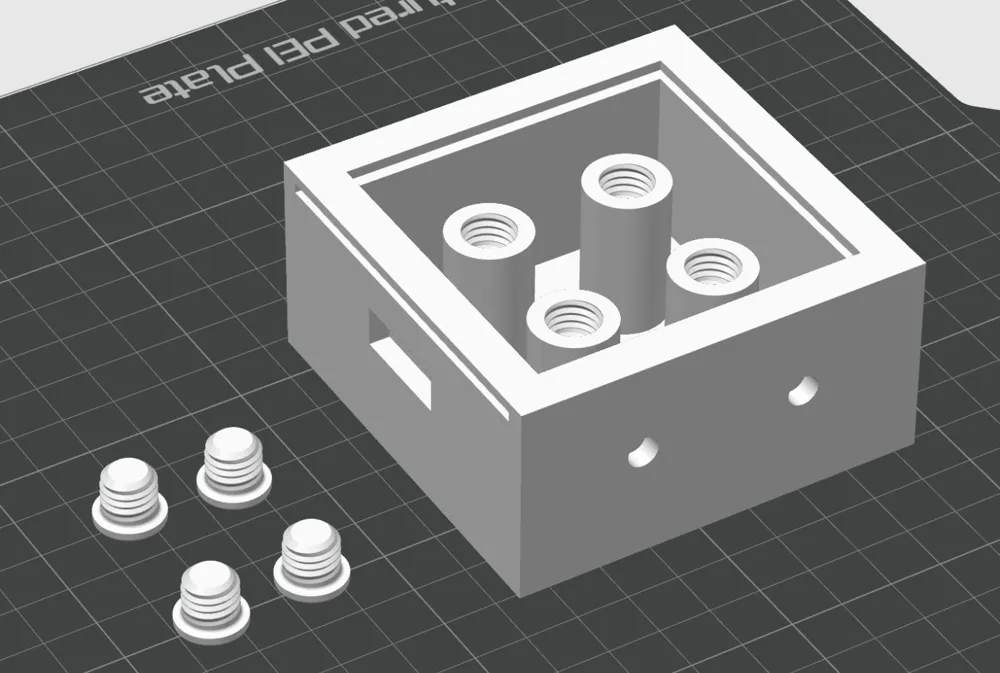

Installation Diagram

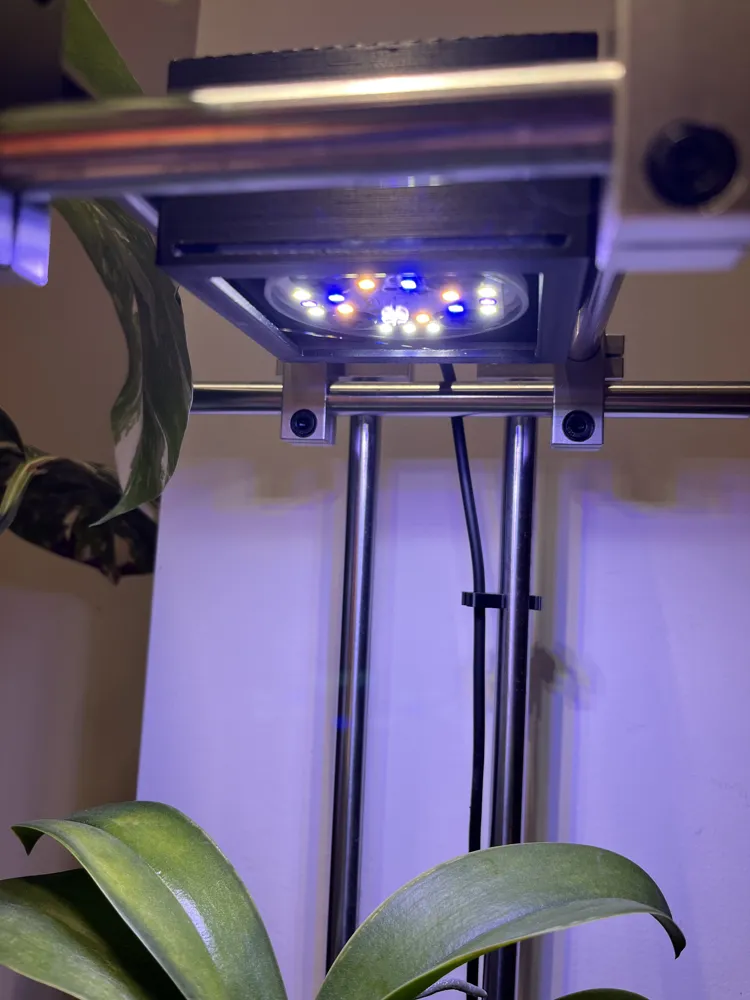

The light panel requires 4 posts for screw locking

The magnets require pre-drilled holes

The Type-C interface also requires reserved screw holes and an embedded position

Internal connections are made with DuPont wires

BOM

Category	Name	Specification/Notes	Unit	Estimated Quantity	Purchase Link
Casing	Light Casing	3D Printed	pcs	1
Circuit	DuPont Wire Connector Housing	2P - 2.54 single row	pcs	1	https://item.taobao.com/item.htm?id=647914809360
Circuit	DuPont Male Terminal	2.54	pcs	2	https://item.taobao.com/item.htm?id=647914809360
Circuit	DuPont Female Terminal	2.54	pcs	2	https://item.taobao.com/item.htm?id=647914809360
Circuit	Type-C Fixed Female Connector	2P - with board	pcs	1	https://item.taobao.com/item.htm?id=824641290199
Circuit	Micro Connector	2P	pcs	1
Circuit	Full Spectrum Plant Grow Light	20 core, micro interface	pcs	1	https://item.taobao.com/item.htm?id=582460989951&skuId=5397474694550
Bracket	Optical Rod Wire Clip	Optional	pcs	4
Circuit	USB Type-C Cable	2 meters, black	pcs	1
Circuit	USB Timer Switch	Built-in cycle, optional	pcs	1
Casing	Magnet	Diameter 6mm	pcs	4	https://item.taobao.com/item.htm?id=595666159763&sku_properties=1627207%3A27497297058%3B-2%3A-11
