Printable Pulley System
Print Profile(1)
Description
š¹ Description

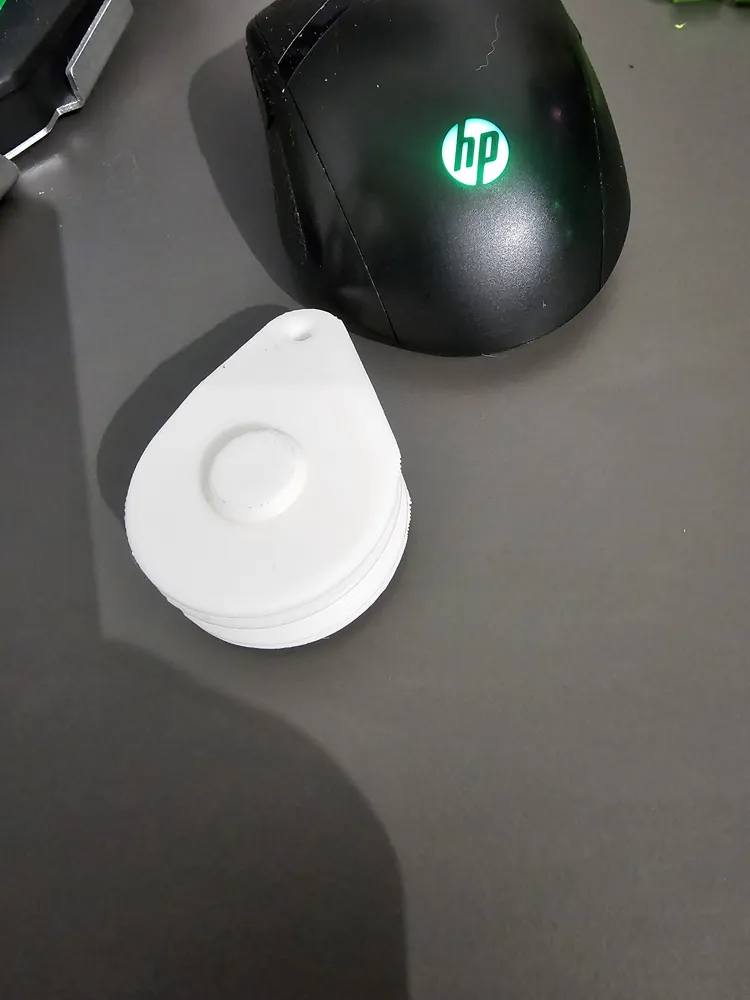

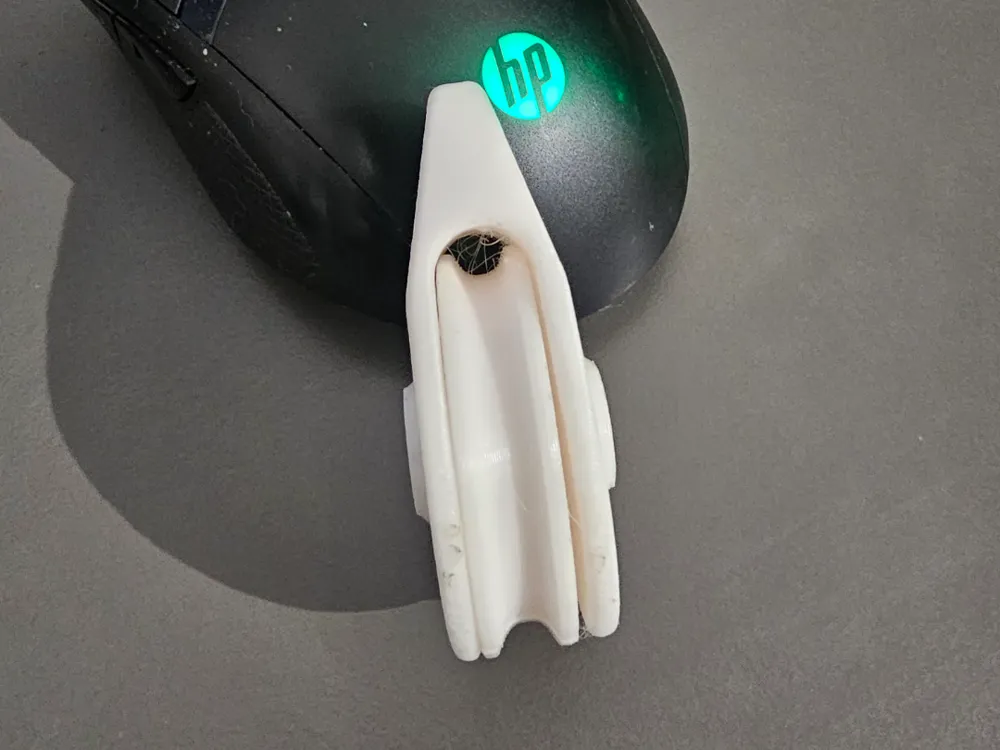

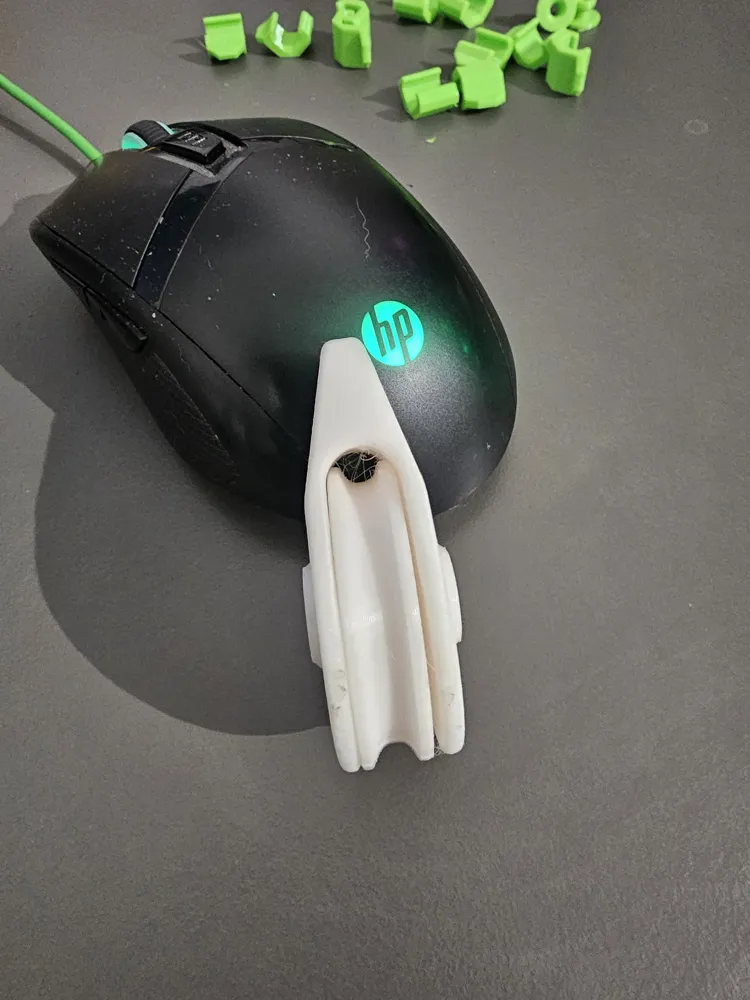

A compact and fully 3D printable pulley system designed for smooth rotation, strength, and ease of assembly.
All parts are optimized for FDM printing with a 0.4 mm nozzle, ensuring reliable performance and clean tolerances straight off the printer.
This model is ideal for functional applications where a simple and effective pulley mechanism is needed, without requiring complex hardware.
š¹ Key Features
- Fully 3D printable design
- Smooth and stable rotation
- Optimized for 0.4 mm nozzle
- Easy and fast assembly
- Strong and durable structure
- Modular and practical design
š¹ Applications
Perfect for:
- DIY and maker projects
- Mechanical systems
- Rope or cable setups
- Prototyping and testing
- Educational use
š¹ Print Settings
- Nozzle: 0.4 mm
- Material: PLA or PETG
- Layer height: 0.2 mm (0.16 for higher detail)
- Infill: 20ā40%
- Walls: 3ā4 recommended
- Supports: Not required (depending on orientation)
š¹ Assembly
Insert the axle through the pulley wheel and mount it into the supports.
Optional spacers can be used to improve alignment and reduce friction.
š¹ Tips
- Light sanding improves rotation smoothness
- Add a small amount of lubricant if needed
- Use PETG for better durability under load
- Make sure your printer is well calibrated for best fit
If you like this model, feel free to like and share your print!
