ATX + SK40 or SK150 Lab Power Supply Case
Print Profile(1)
Description
Please leave comments and share your feedback, it will help me understand the weaknesses of the models and refine them according to your preferences! It's important to me. Thanks!
Boost Me (for free)
Click, don't be shy. 😉

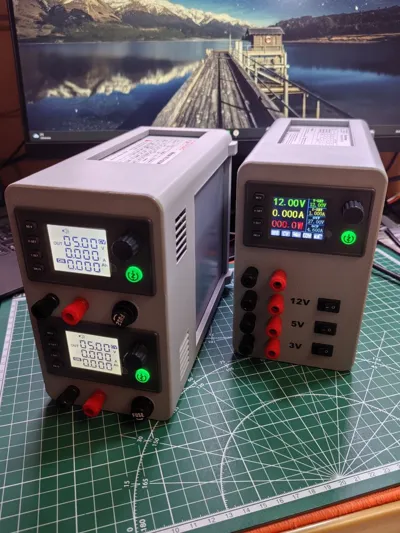

Compact housing for ATX-based laboratory PSU and ZK-SK40 / ZK-SK150 module
Description
This case is designed to assemble a homemade laboratory power supply. It uses a standard ATX computer power supply (fits snugly) and an adjustable step-down converter **ZK-SK40C** (or a similar size, for example ZK-SK150).
Ideal for:
- Standard ATX power supply
- SK40C step-down converter or compatible
- Banana type connectors (4 mm)
- Switches
Features

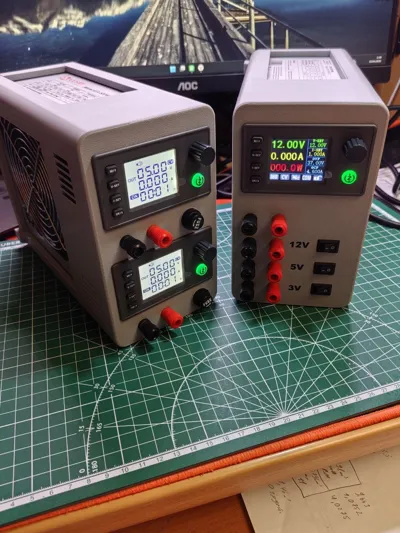

Three model options to choose from:

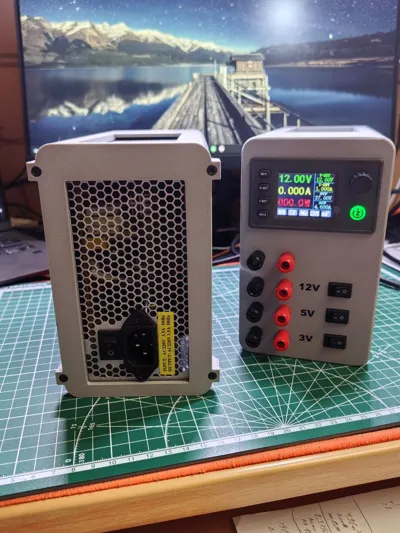

1. 4 outputs – one output from the module, three outputs directly from ATX.
2. Two converters + reinforced ventilation – for more powerful assemblies.
3. Two converters + a place for a fuse holder 5×20 mm.
Other advantages:
- Printing without supports

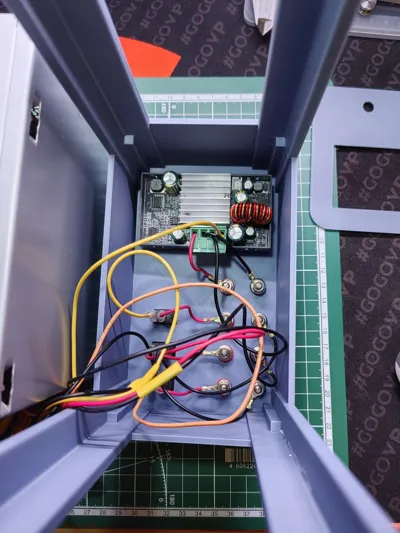

- The housing has holes for 3 mm soldered threaded bushings.
- There are 3 mm screw holes on the lid.
Printing Recommendations
- Material: PETG (Polyethylene terephthalate) – for better heat resistance
- Layer height: 0.2 mm
- Filling in: 20%
- Number of perimeters: 3
If you build such a device, let me know how it turned out. 😉
