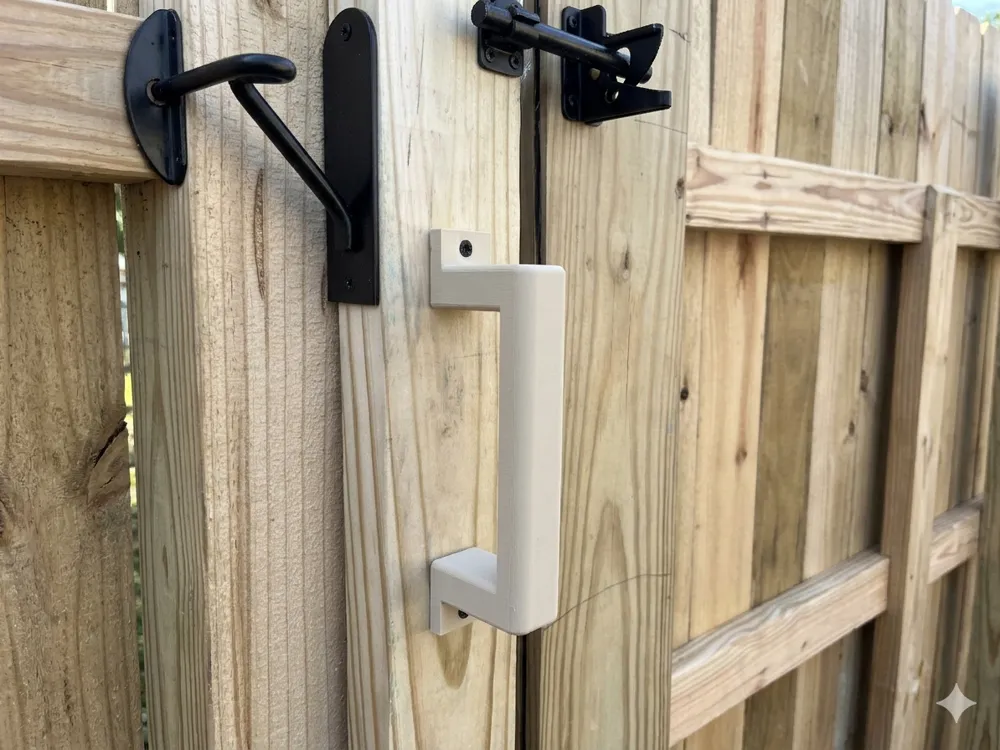

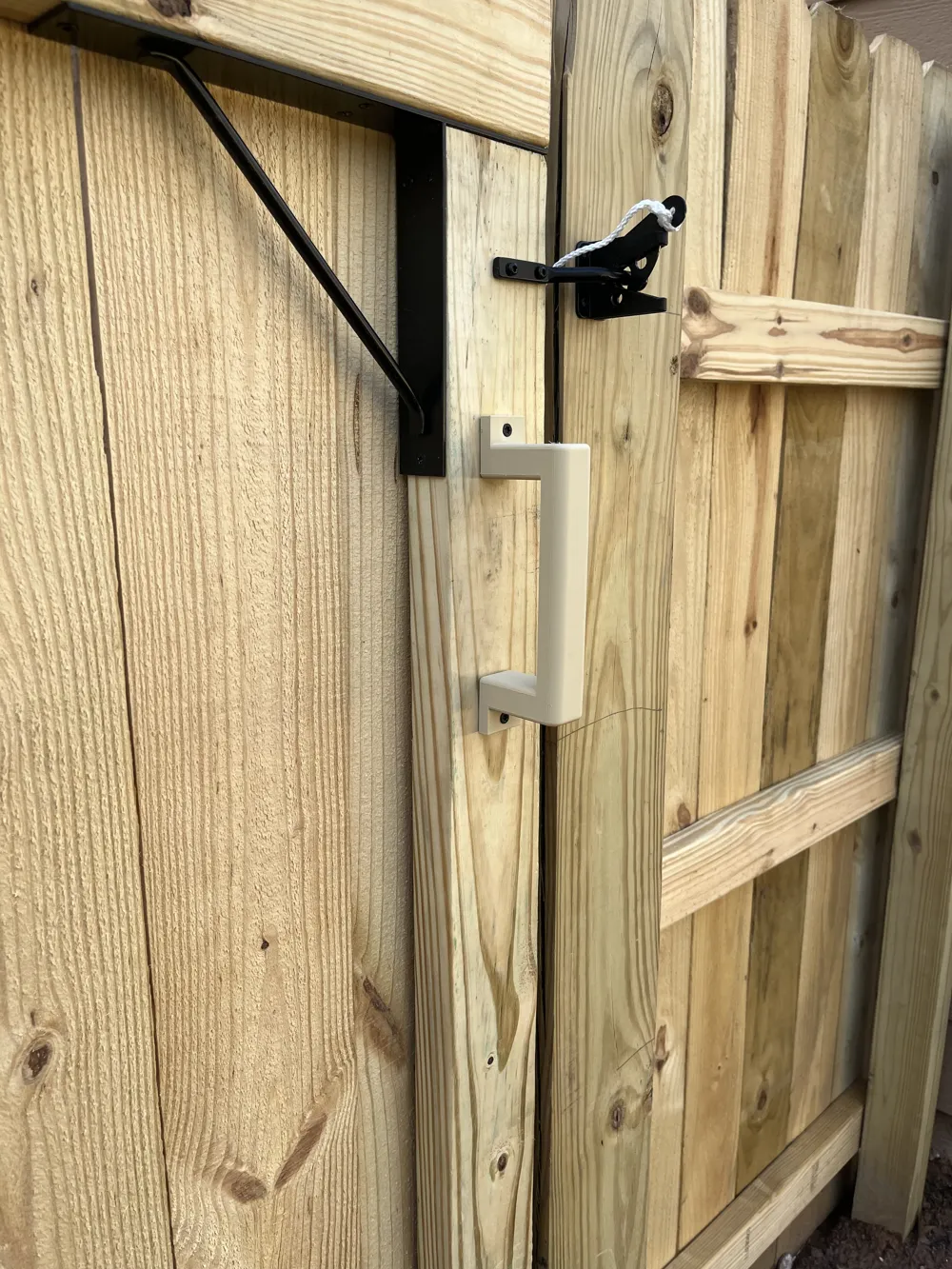

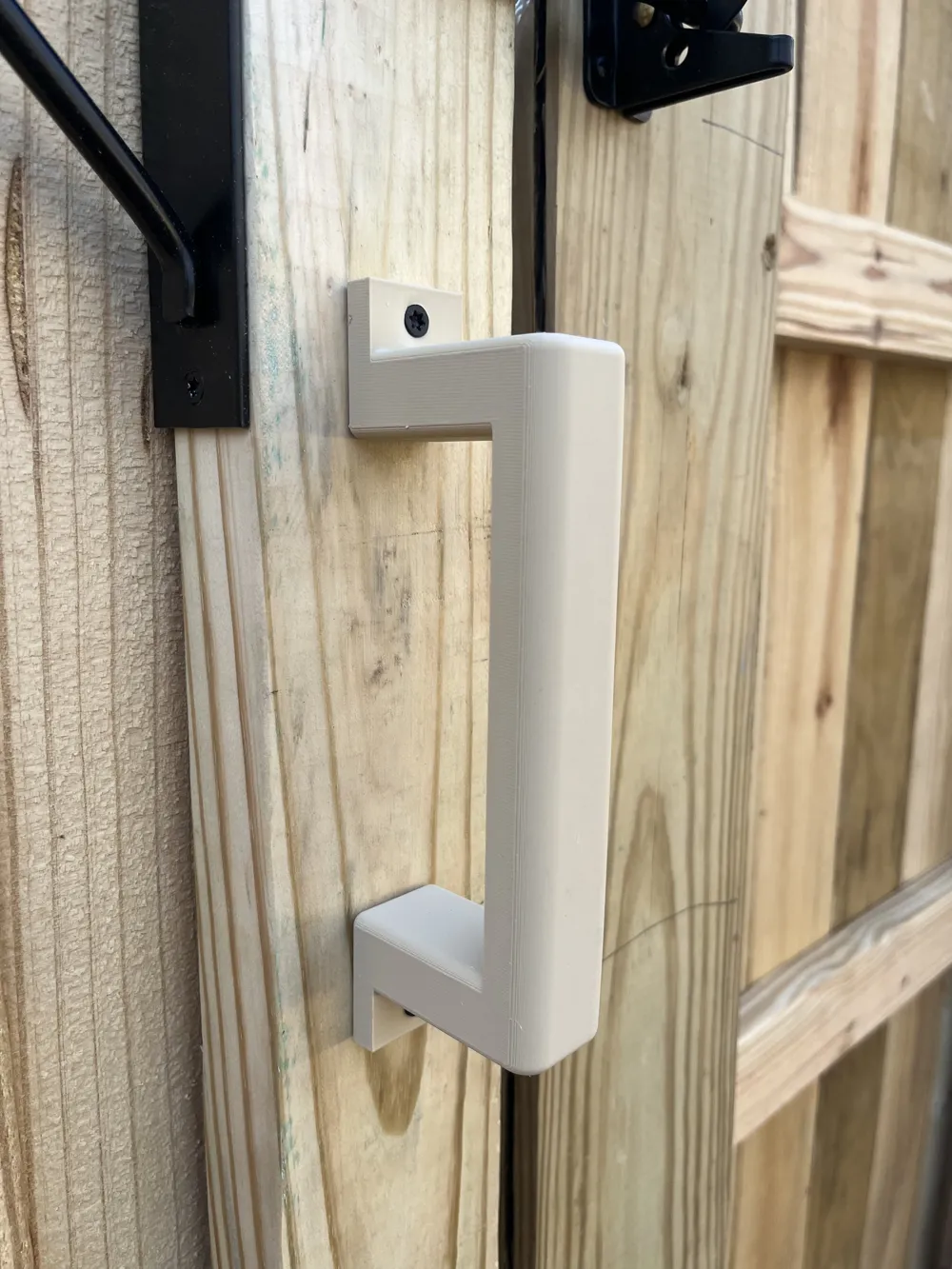

Modern Barn Door Handle

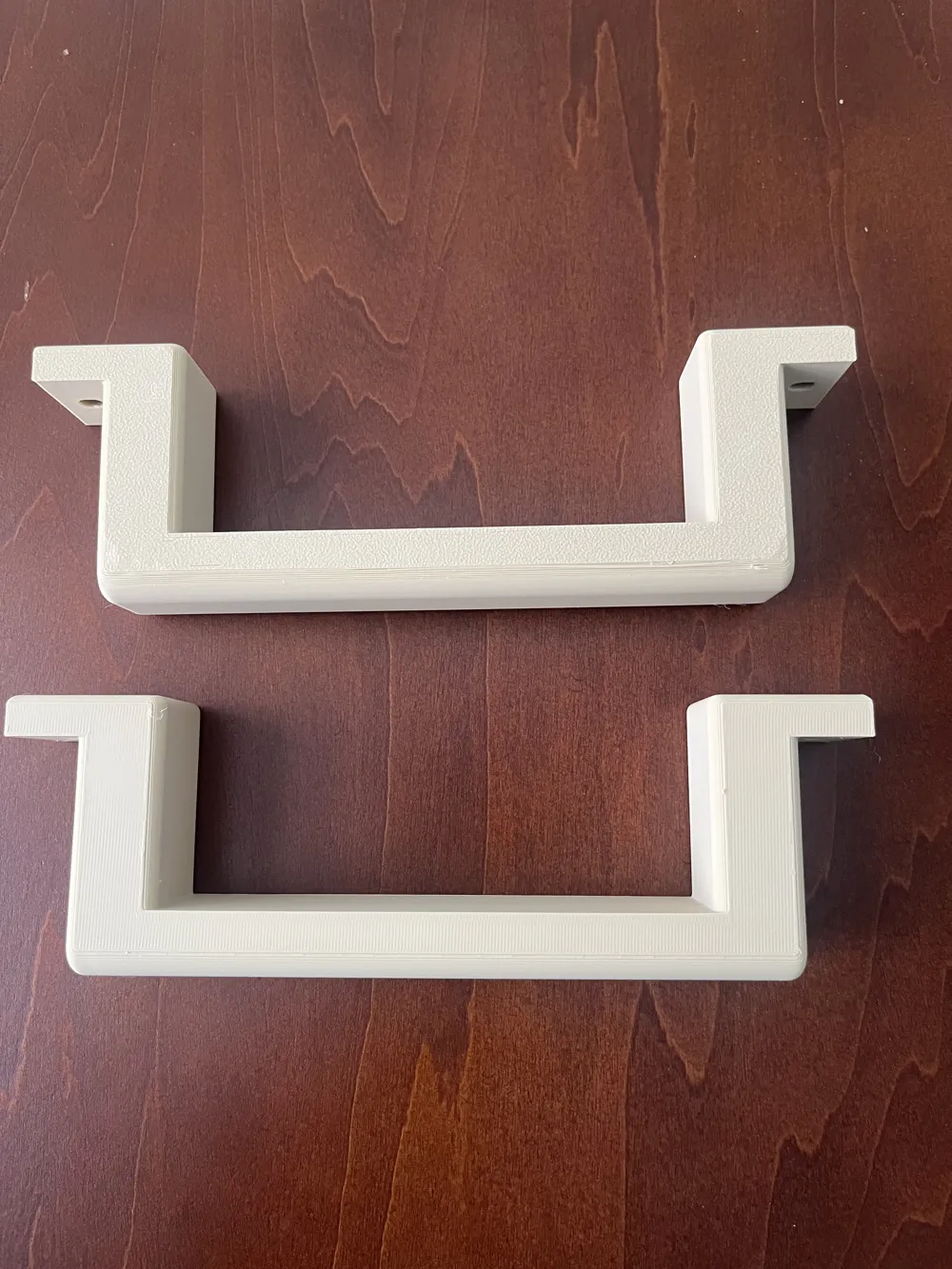

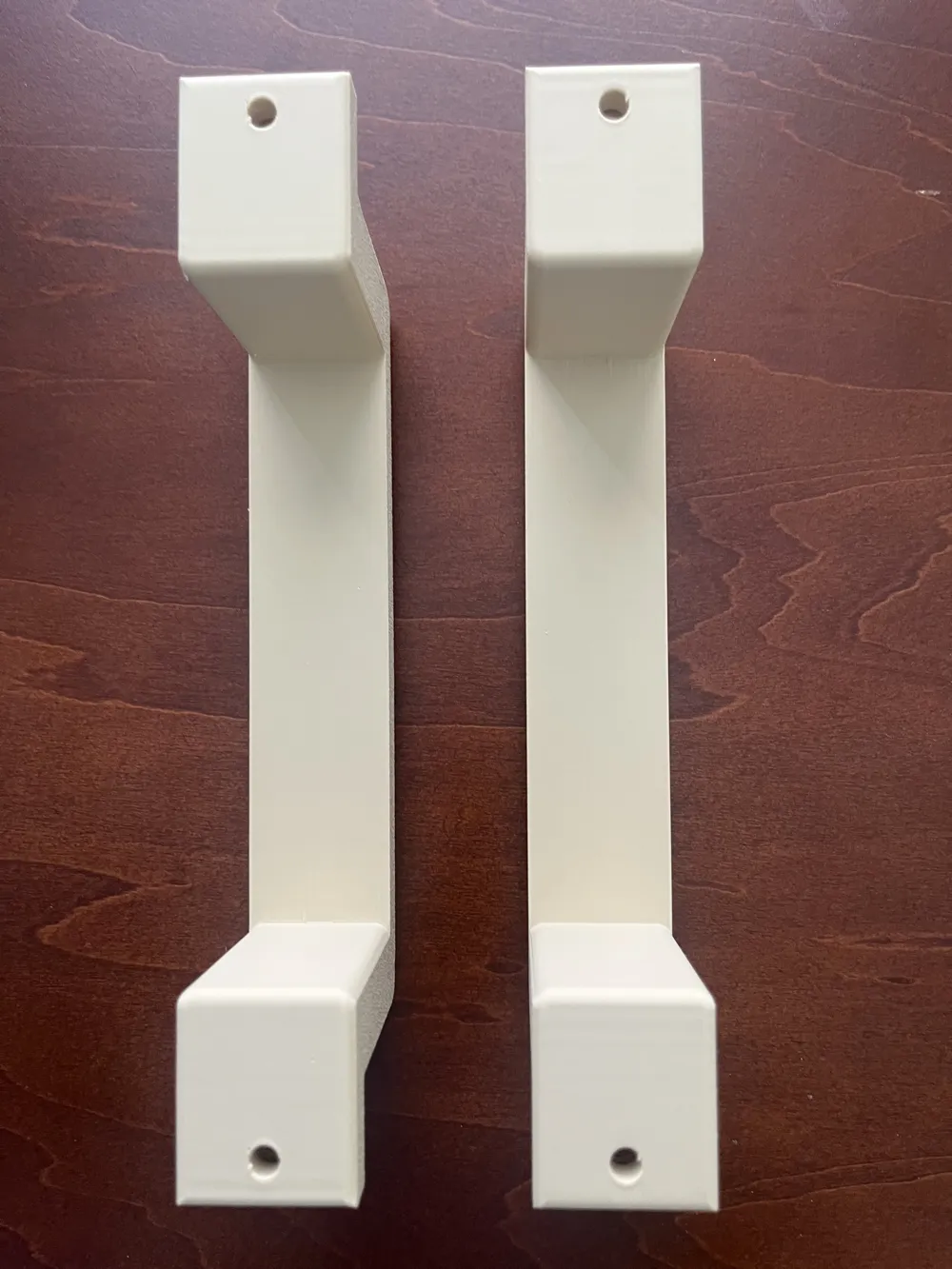

A sleek, heavy-duty barn door handle designed for 3D printing. Built with extra-thick walls and cross-sections throughout so it won't crack or flex under daily use — no compromises on strength.

Design highlights:

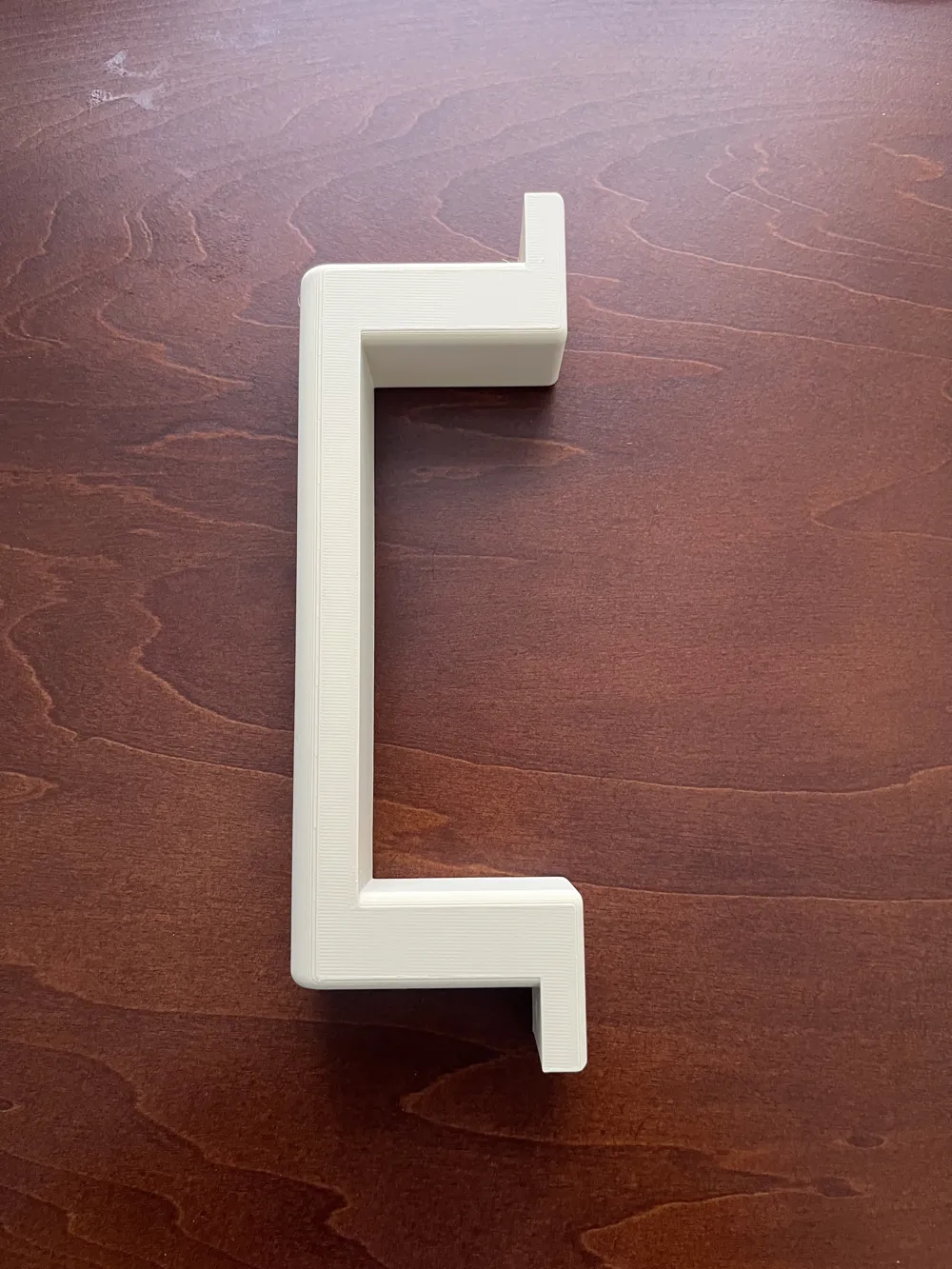

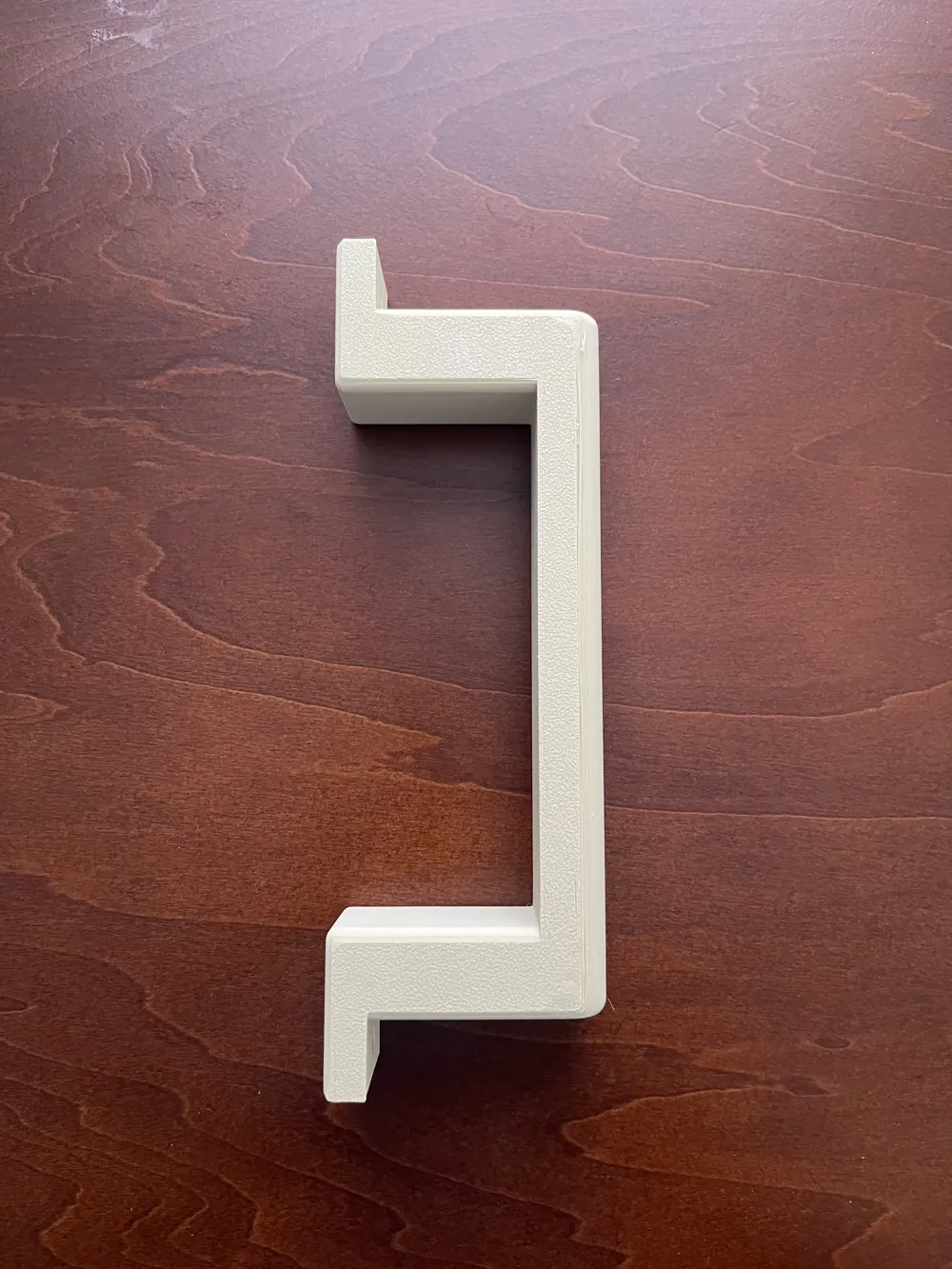

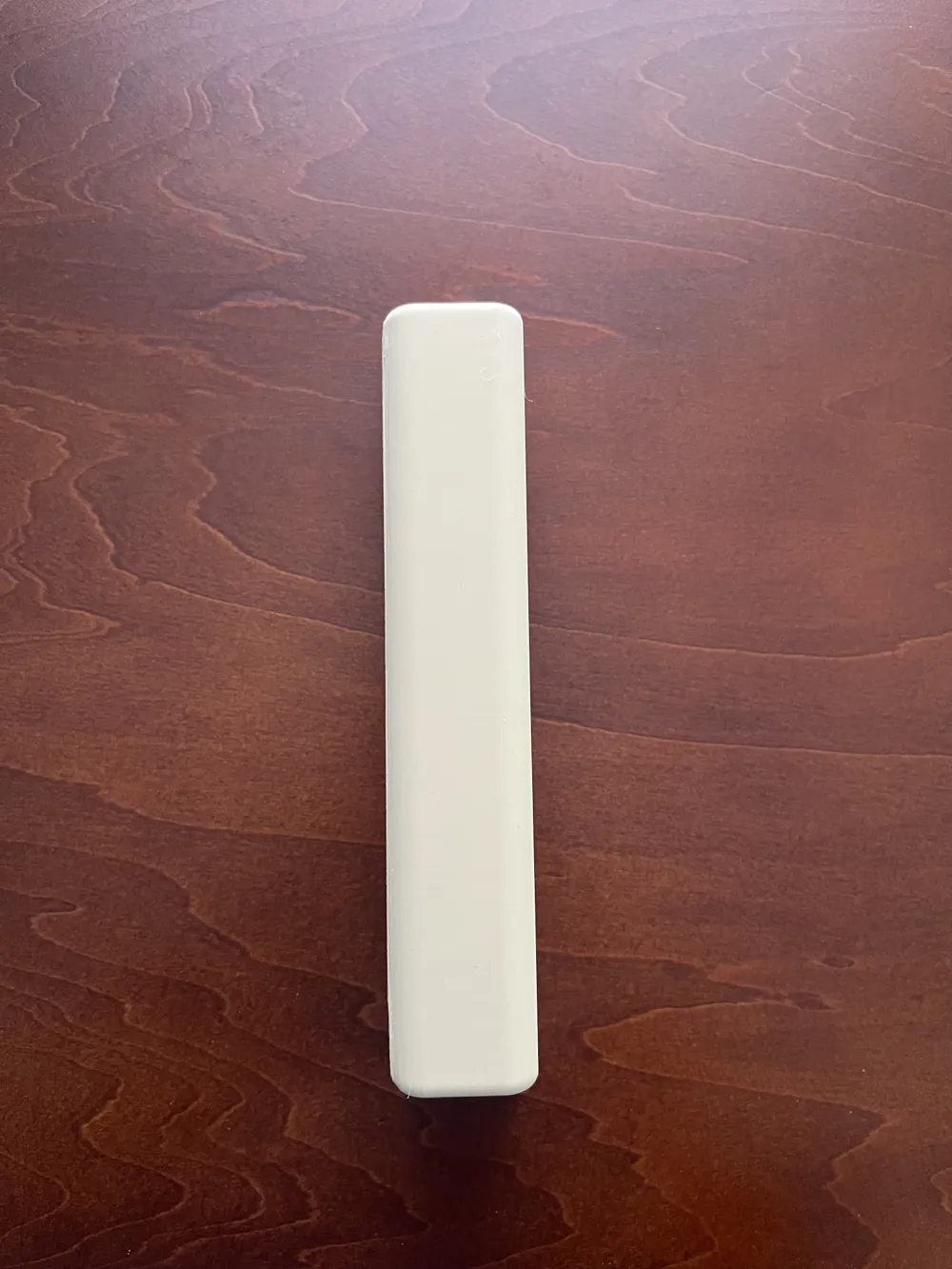

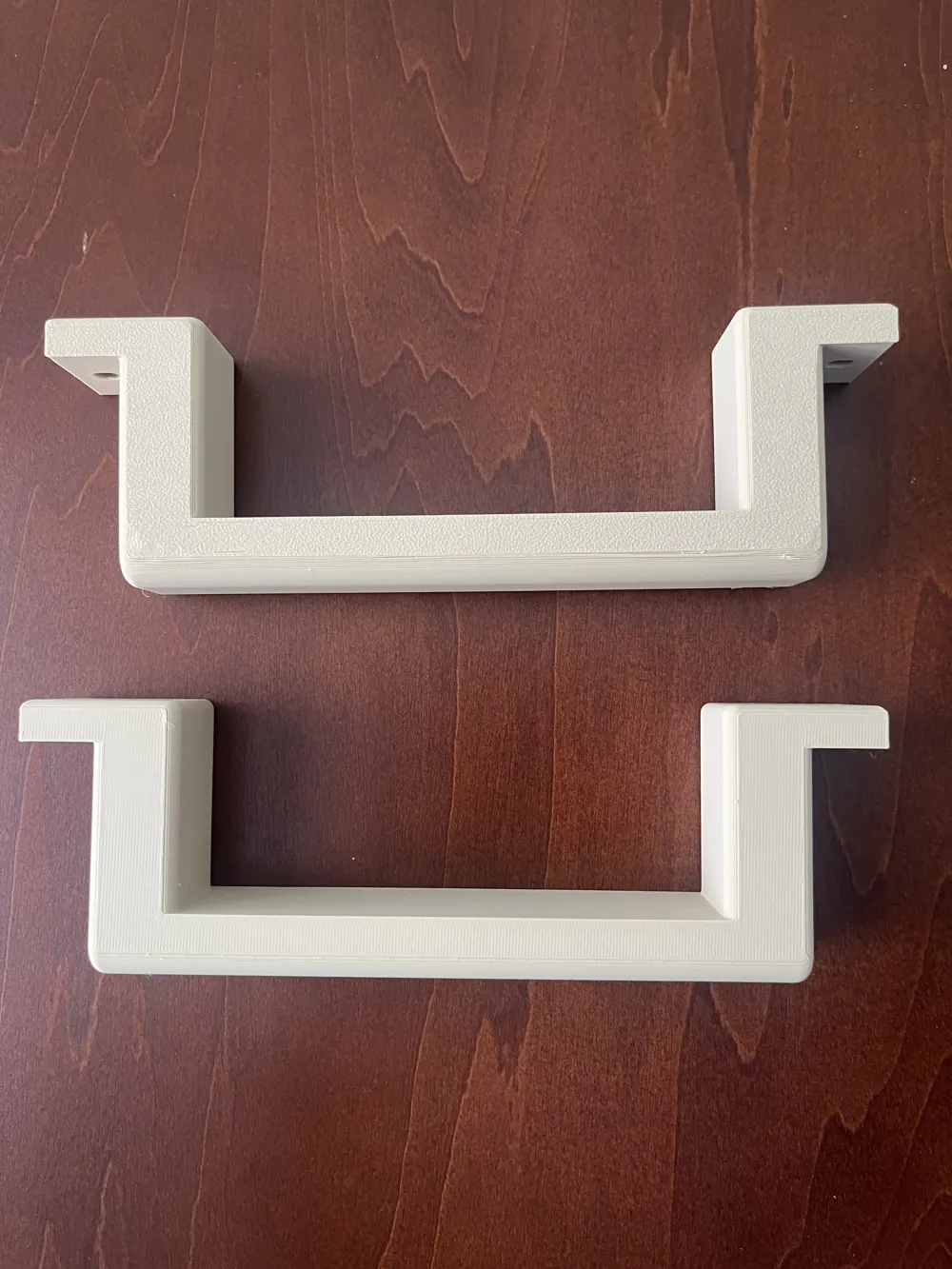

• Clean modern profile with prominent rounded top edges (r=8 mm) and chamfered verticals
• Solid one-piece construction — no thin walls, no weak joints

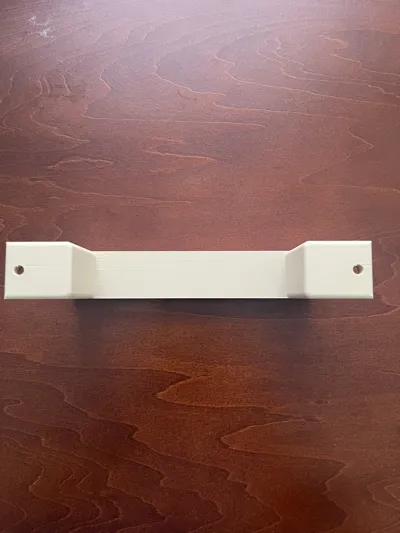

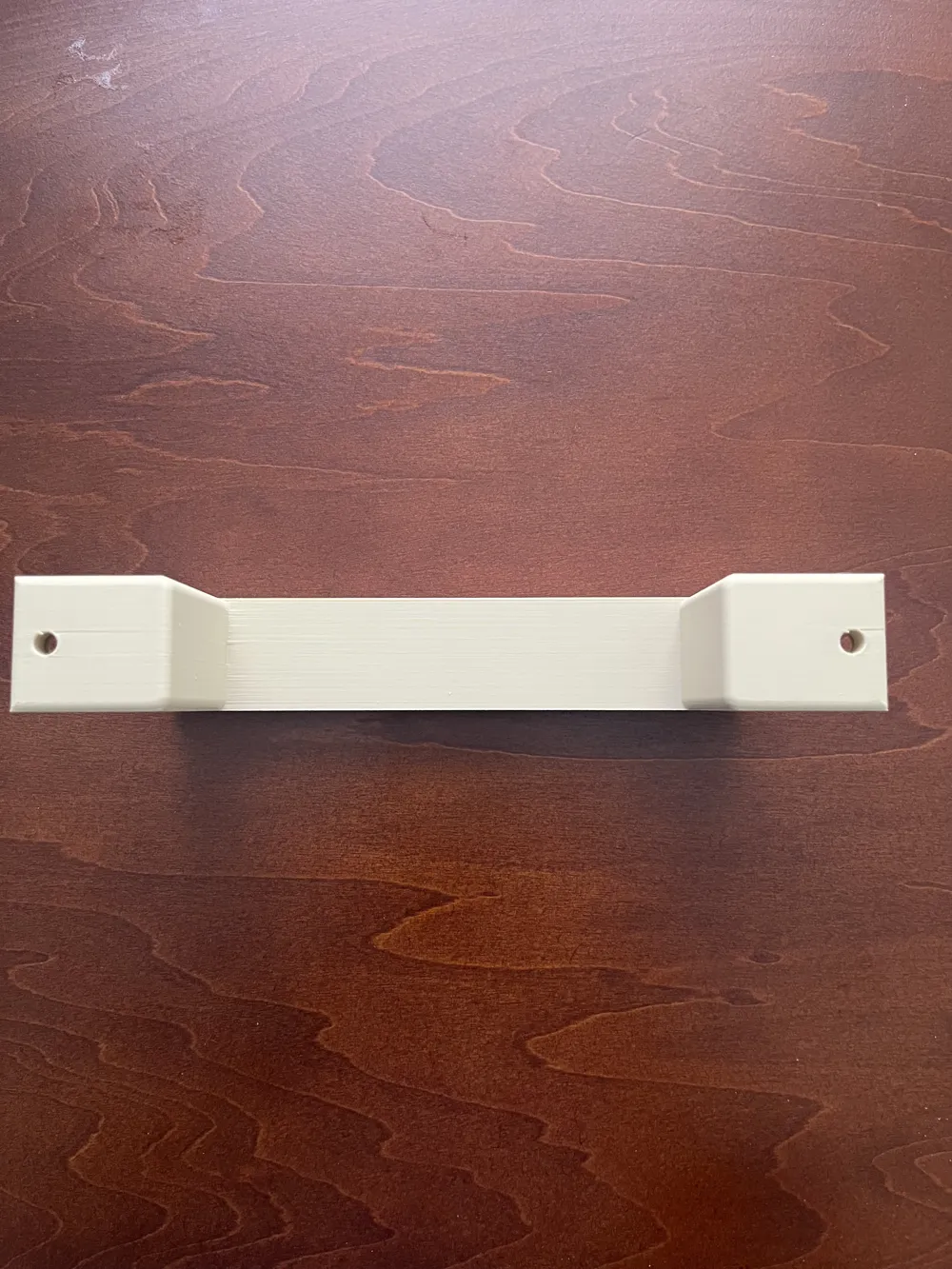

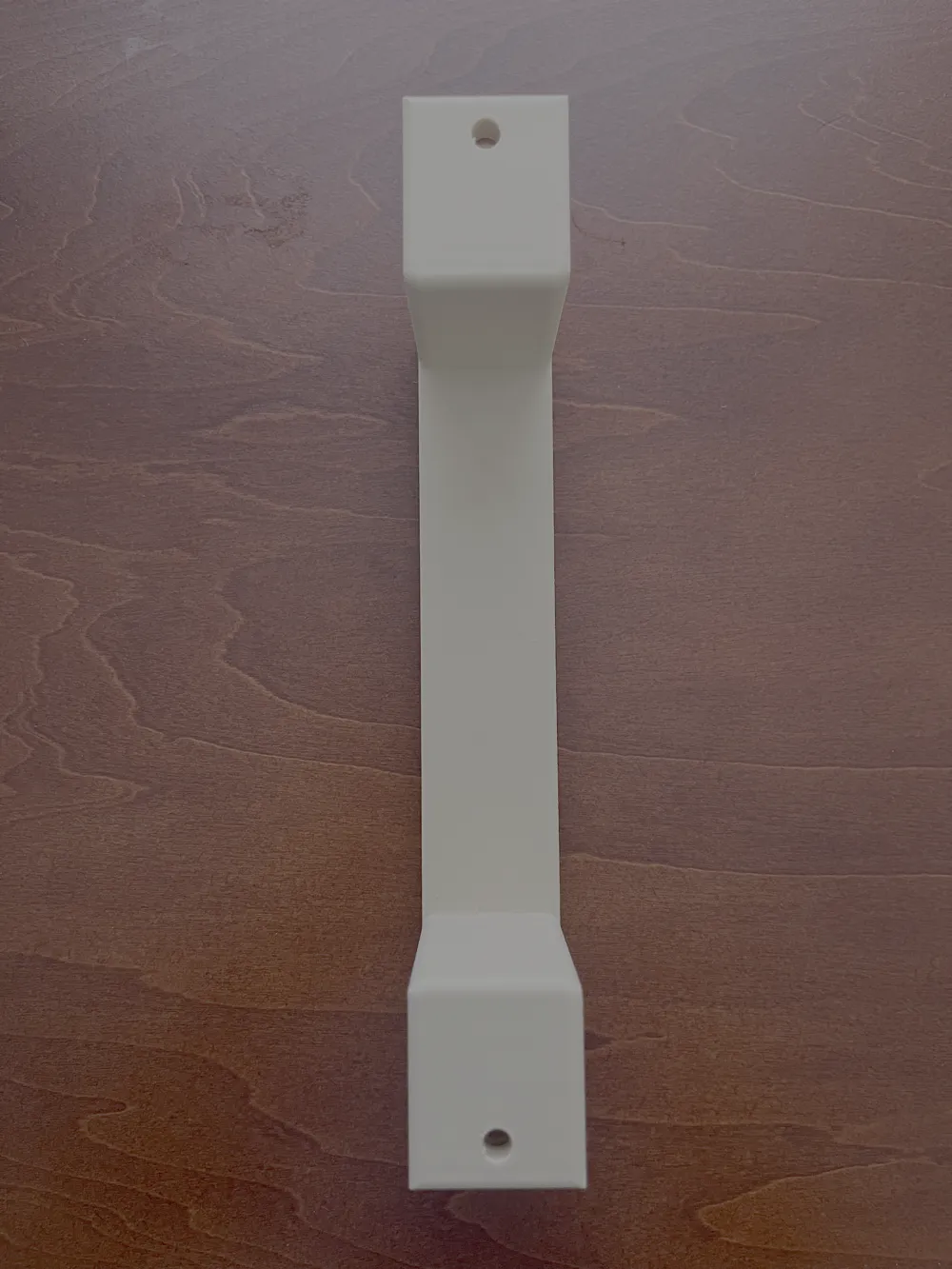

• Countersunk screw holes fit M5 bolts or #10 wood screws flush to the surface
• Matte black finish ready (paint or use black filament)

Dimensions:

• Total length: 205 mm
• Grip clearance: 40 mm (comfortable hand fit)
• Grip bar thickness: 16 mm
• Flange thickness: 10 mm
• Depth: 32 mm
• Hole spacing (centre to centre): 188 mm
