Knog scout cowboy bike vault
Print Profile(1)
Description

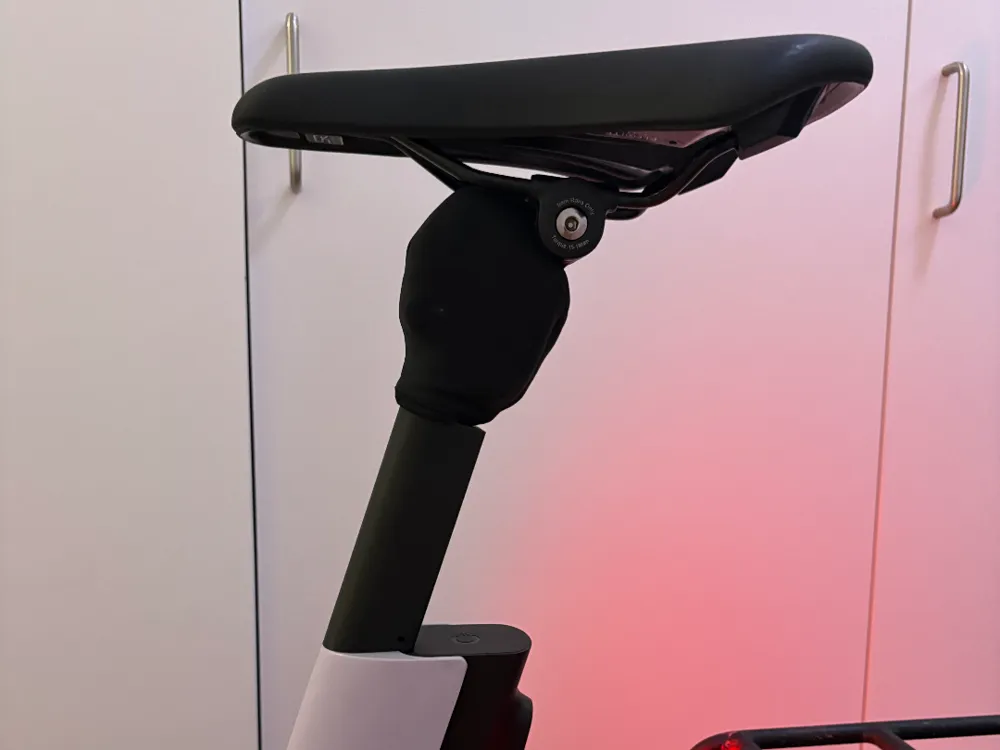

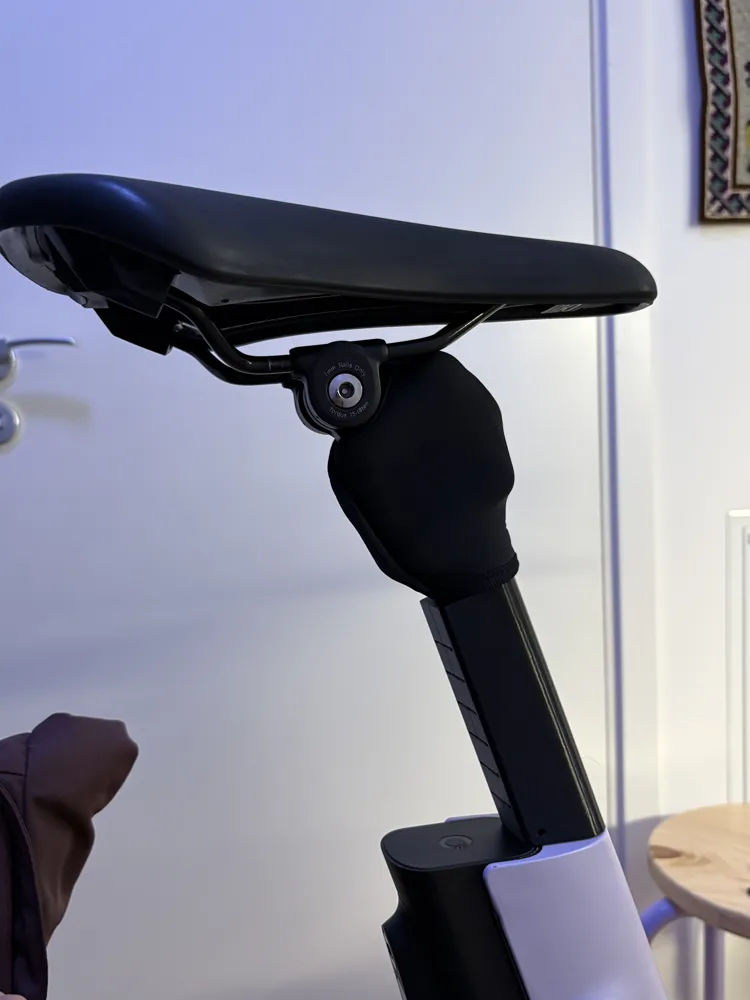

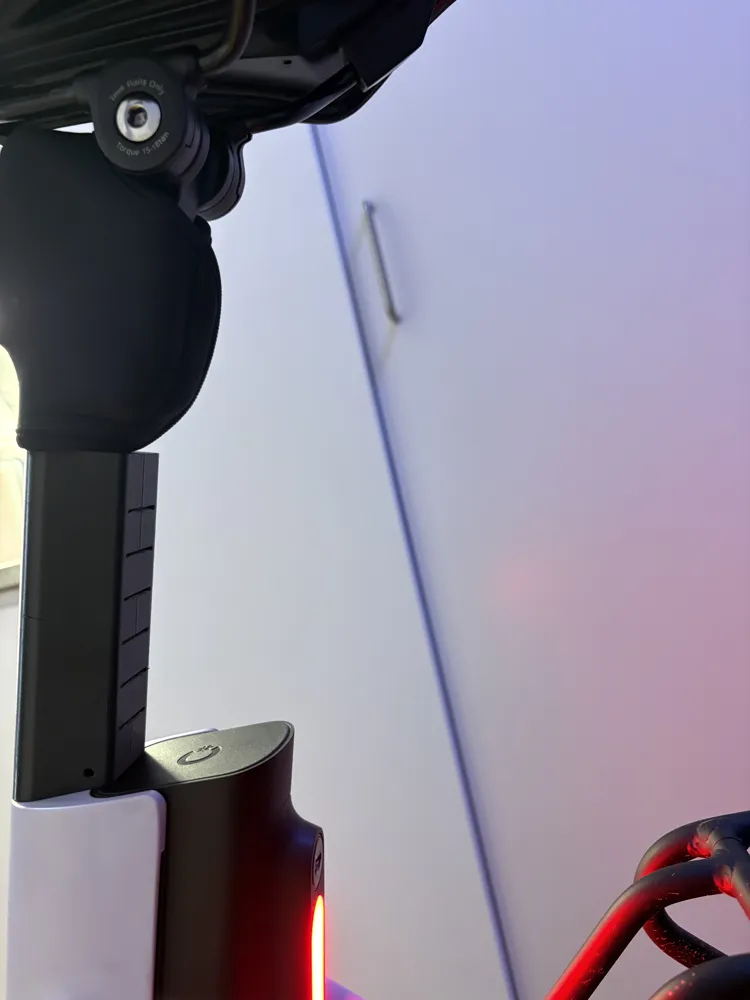

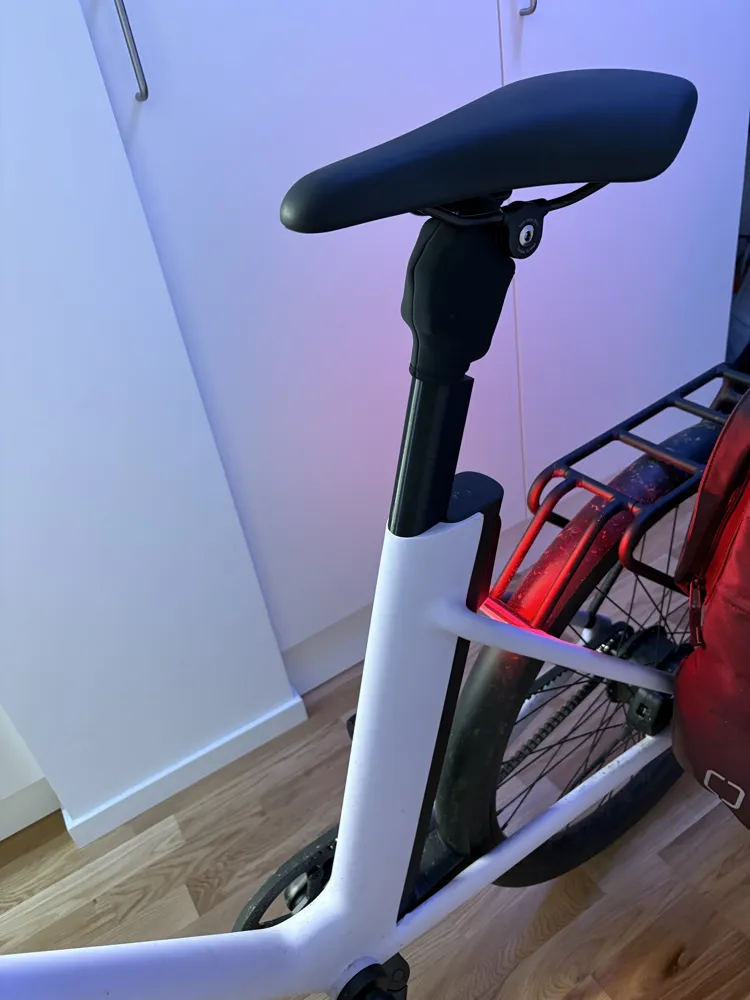

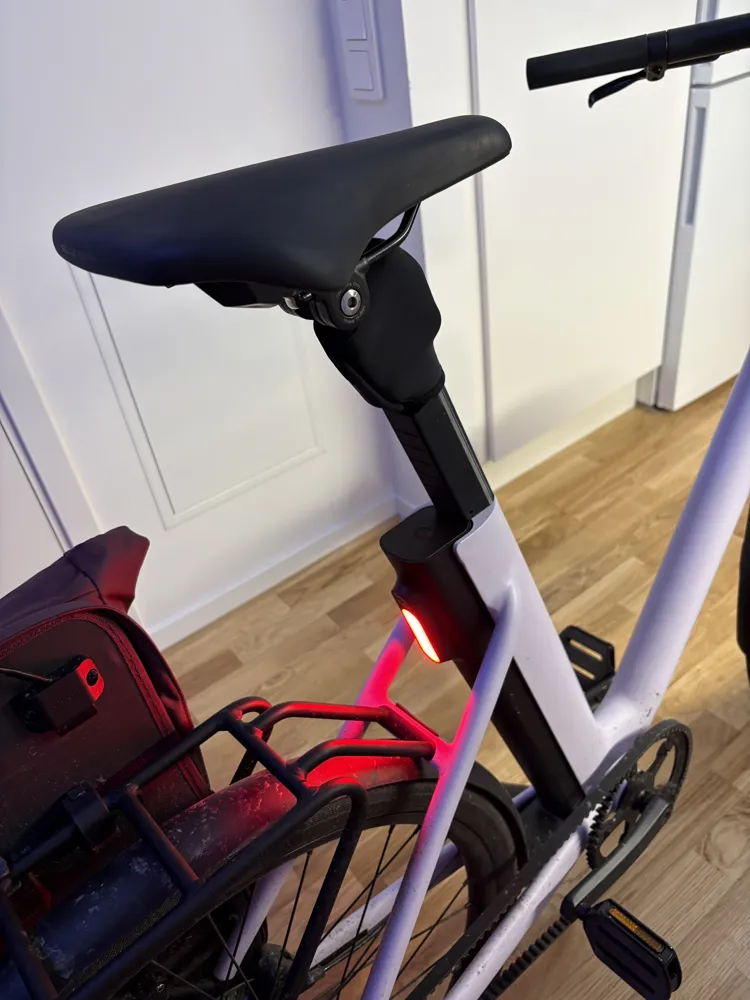

Cowboy bikes don't have standard bottle cage holes, which makes mounting a Knog Scout a nightmare. , so I engineered this armor to be mathematically flush with the Cowboy bike (cruiser ST in my case) seatpost. The 18° angle integrates perfectly, creating a sleek "vault" that looks totally OEM.
Ultimate Security: Because of the way this is designed, if your bike battery is locked in place, or your seatpost is secured with a Hexlox/Pitstopper, it is physically impossible for a thief to remove this mount.
Key Engineering Features:

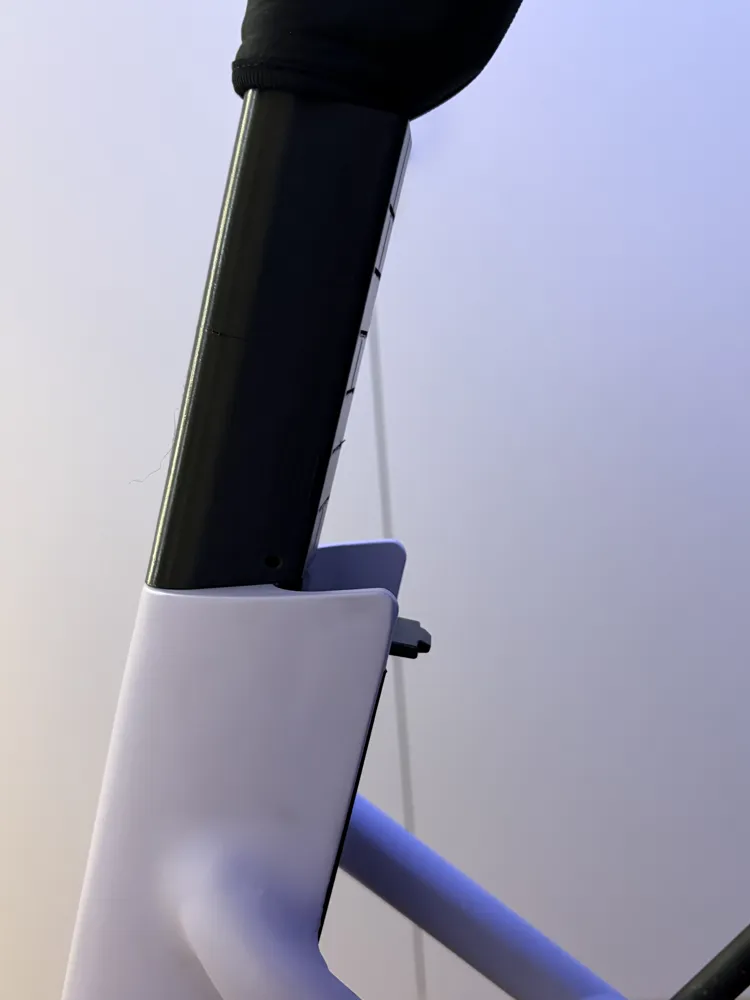

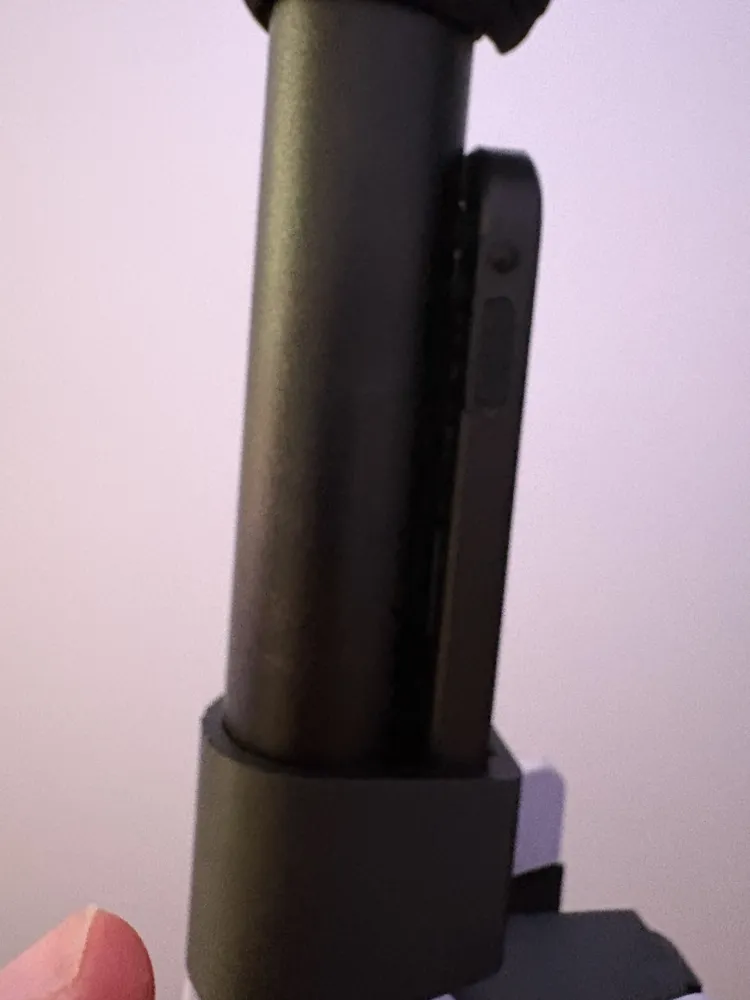

- Zero-Lip Drop-In Loading: No flimsy plastic clips to break. Your aluminum seatpost acts as an unstoppable vault door. Drop the Scout in, slide the seatpost down, and it's physically trapped and silent.
- Acoustic Stealth Vents: Internal vents align perfectly with the Knog's piezo buzzer. No sound is muffled; the 85dB alarm will still scream.
- Battery Anti-Snag: Integrated internal steps prevent your battery wires from getting snagged during installation.
- Universal Drainage: Integrated side ports channel water out, keeping your tracker dry.
Recommended Print Settings:
- Material: PETG/ABS/ASA (Mandatory for outdoor use / I used PETG).
- Infill: 15% (Use 3 Wall Loops—that is what actually provides the strength).
Infill pattern: Honeycomb
Dont forget to Boost if you found this helpful :)
