Unifi US-8-60W 10" rack mount with led indicators

If you like the model, a like or comment means a lot 😊 Got feedback or ideas? Feel free to drop a comment or reach out directly — always happy to hear it.

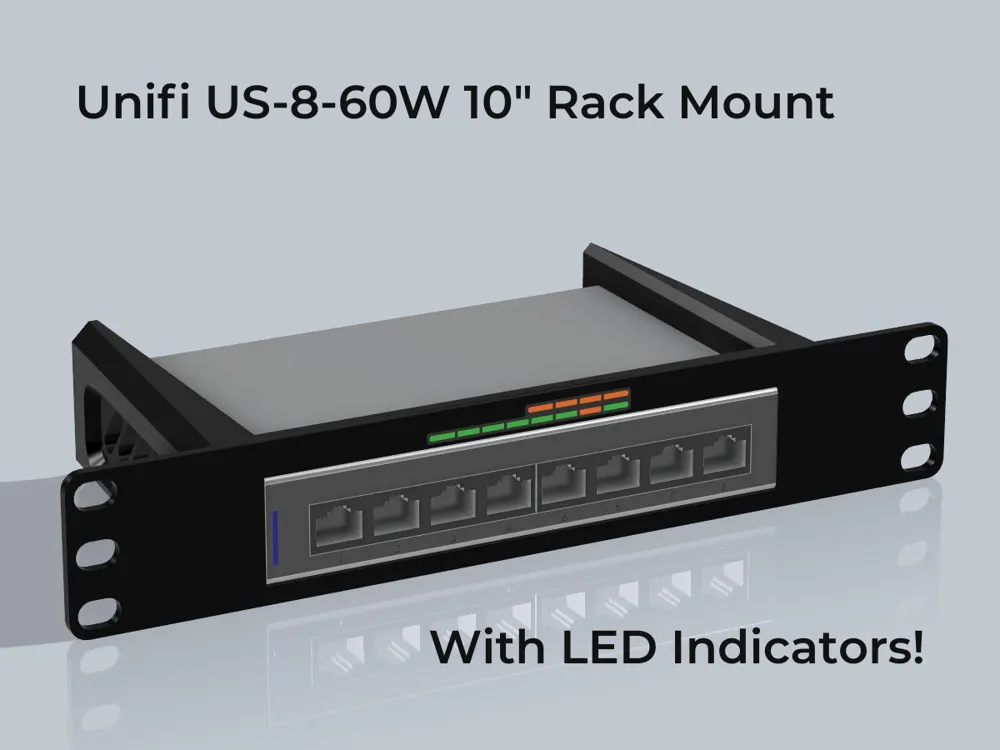

Unifi US-8-60W 10" Rack Mount with LED Indicators

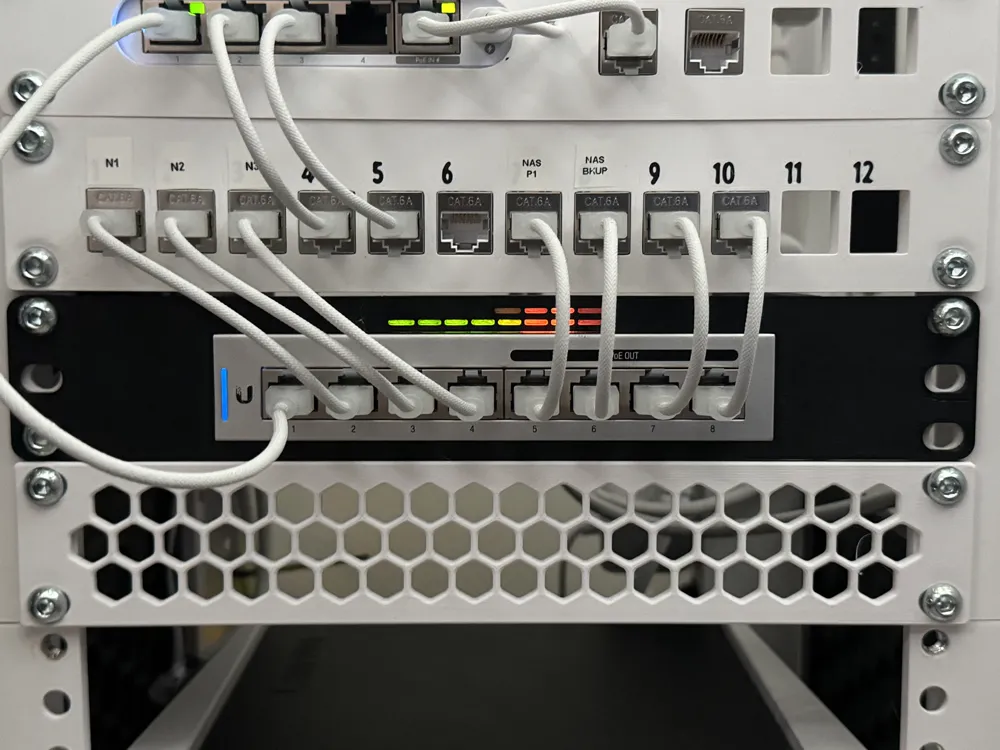

I had this idea — why should rack mounting your switch mean losing visibility of the front panel LEDs? Most rack mounts cover everything up, so I designed this bracket specifically for the Unifi US-8-60W to keep all 8 port LEDs fully visible and readable while sitting neatly in a 10" rack.

What makes this different

 Most rack mounts for this switch completely cover the front panel. This design features a dedicated LED indicator window with translucent PETG deflectors that allow the green and orange port LEDs to shine through clearly. A separate white PETG reflector sits behind the LED window and dramatically improves light transmission — making the indicators easy to read at a glance even from a distance.

Parts

This model consists of two parts:

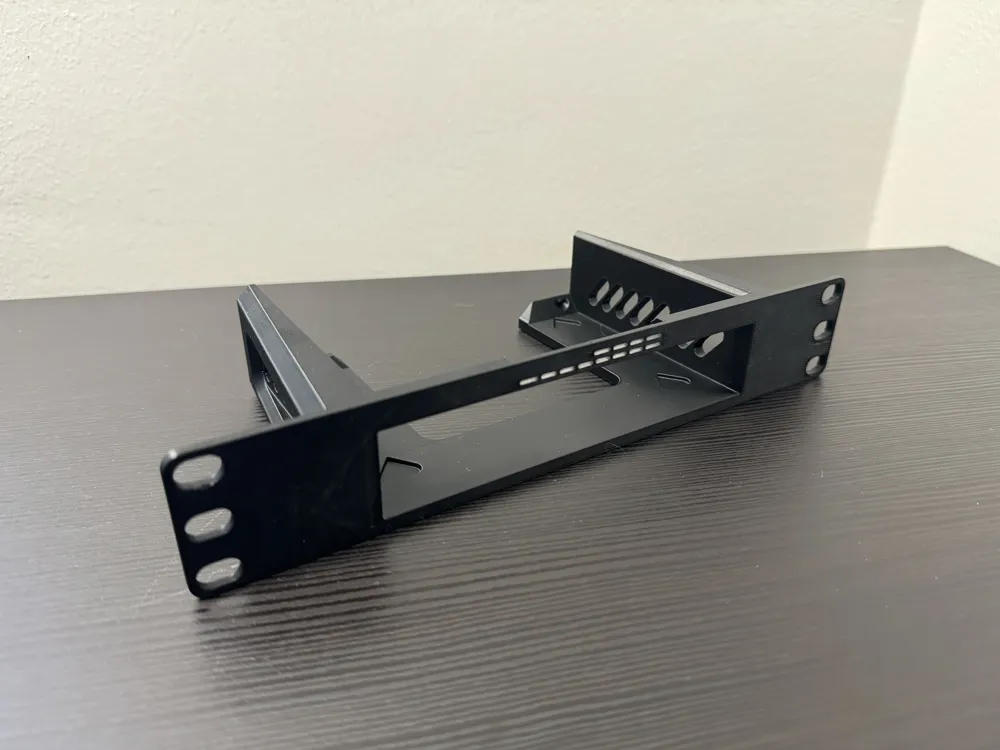

• Main frame — includes the integrated translucent LED deflectors

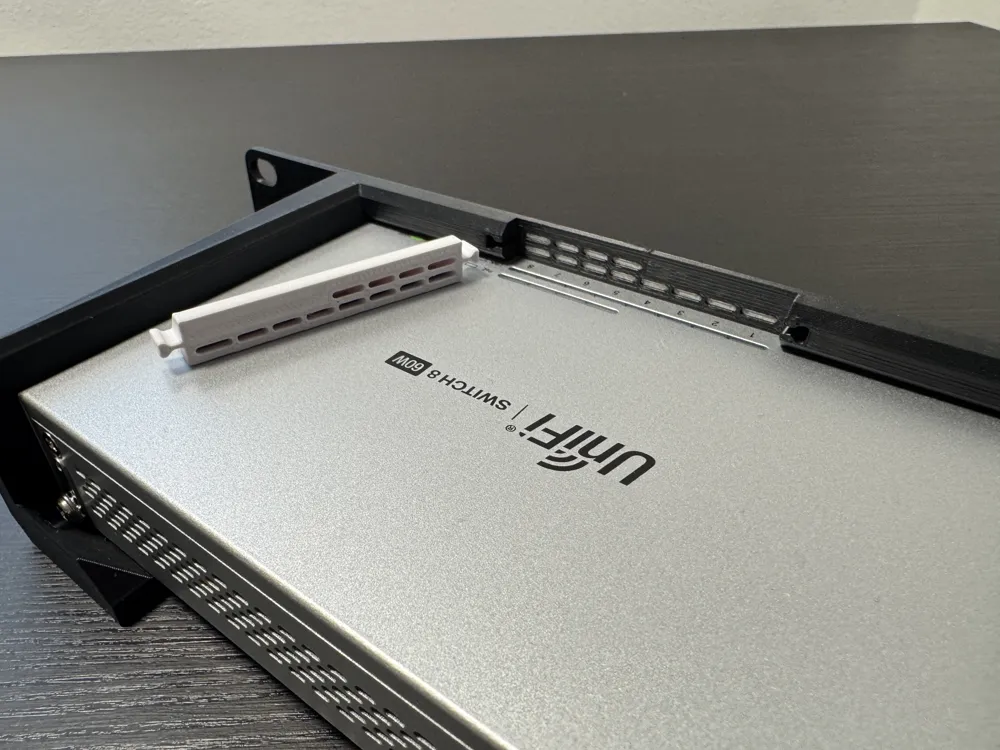

• LED reflector — a separate piece that slides into place after the switch is inserted



Variants

Two variants available — 3mm and 4mm front panel thickness to match other rack panels.

Print settings

• Material: PETG recommended (or higher) to avoid heat deformation
• Layer height: 0.2mm
• Infill: 10% gyroid or higher for sides
• Front panel: 25% gyroid infill, 4 walls, 4/6 bottom/top layers (modifier included in 3MF)
• The reflector should be printed in white PETG for best LED performance
• The LED frame can be printed in any color of your choice — match the body or go with an accent color
• Translucent PETG for the deflectors gives the best result, though leaving them empty may also work
• PETG on smooth PEI: Use a release agent like hairspray/glue to protect your plate and make sure it comes off nicely!

Installation

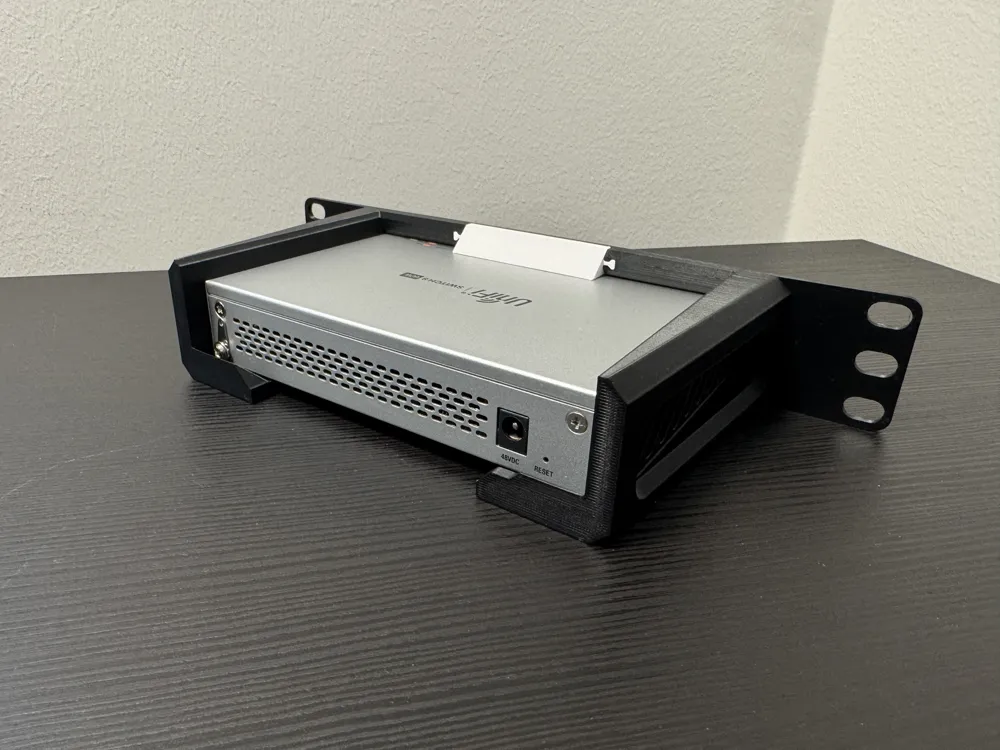

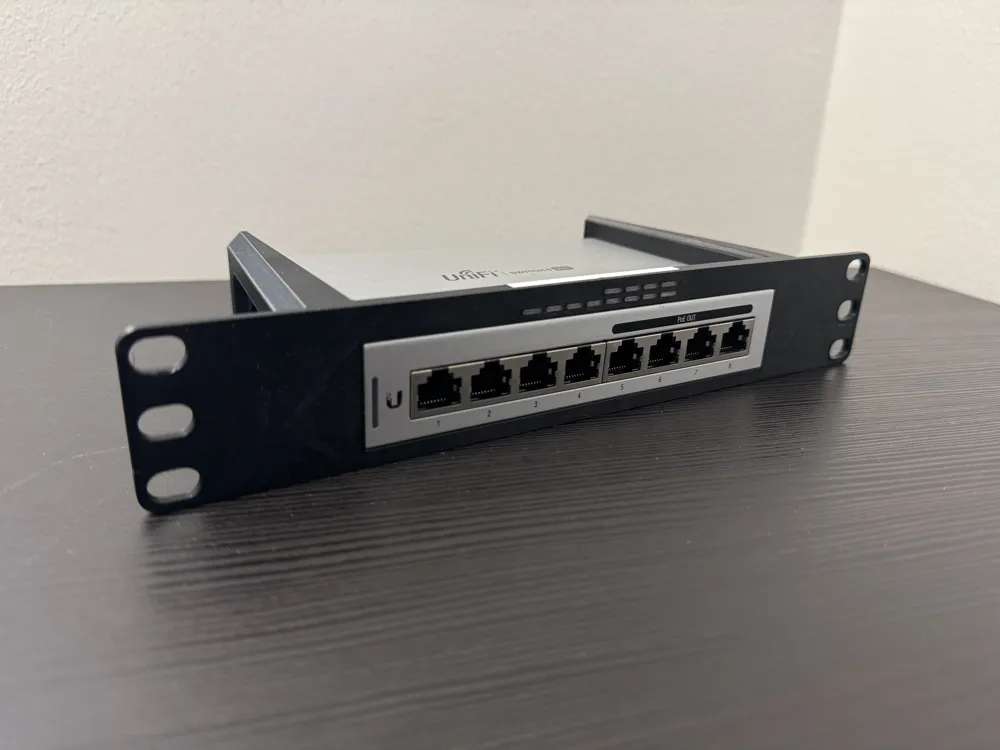

 Slide the switch into the bracket. The reflector slides into position after the switch is in place — you may need to apply light pressure when inserting the switch but it should slide in nicely. Mount to your 10" rack using standard rack screws.

Compatibility

• Unifi US-8-60W
• 10" rack

Notes

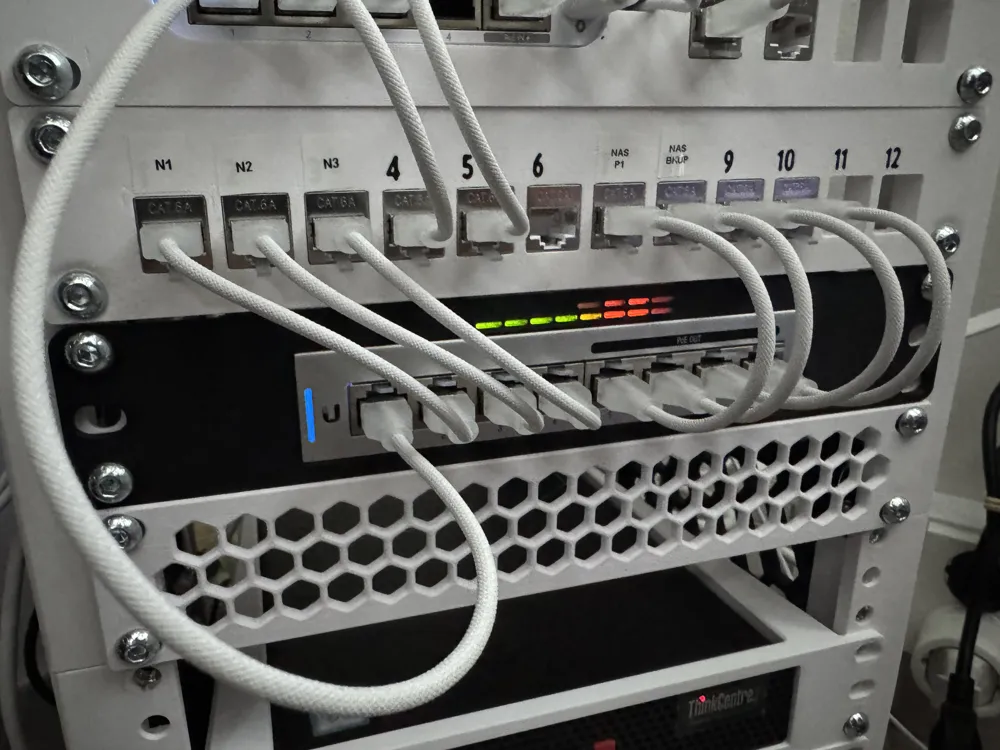

 Under certain lighting conditions — particularly when orange and green LEDs are active side by side — there may be minor light bleed between indicators. This is barely noticeable to the human eye in normal use and is a result of the translucent PETG material. The white reflector significantly improves overall LED visibility and is strongly recommended.


Changelog

5/3/2026

• Reduced amount of mounting holes 6→4
• Made holes smaller 7.5mm→6.5mm since 7.5mm is quite big for M5 screws, so 6.5mm suits well for both. (Tested with KWS and LabRax)
• Combined “2” vent styles to just one which match switch side ventilation
• Added “Updated” profile and renamed old→"Original"
