Non-destructive Screen Window Installation 75mm Magnetic Exhaust Vent (Suitable for 3D Printer Enclosure/Smoke Extraction)
Print Profile(3)
Description
Tired of opening the window for ventilation every time and letting in mosquitoes? Or is it a hassle to install and remove the exhaust duct every time? This is a magnetic quick-release screen window exhaust component designed specifically for 75mm ventilation hoses. You can directly fix the base to the screen window, and the magnetic design allows for one-second connection and detachment. It is perfect for 3D Printer enclosure ventilation, indoor smoke exhaust, or air circulation.
This update adds two versions of the base and two elbow styles (flat tube / round tube) to meet different installation and airflow resistance needs!
🌟 Core Features / Features

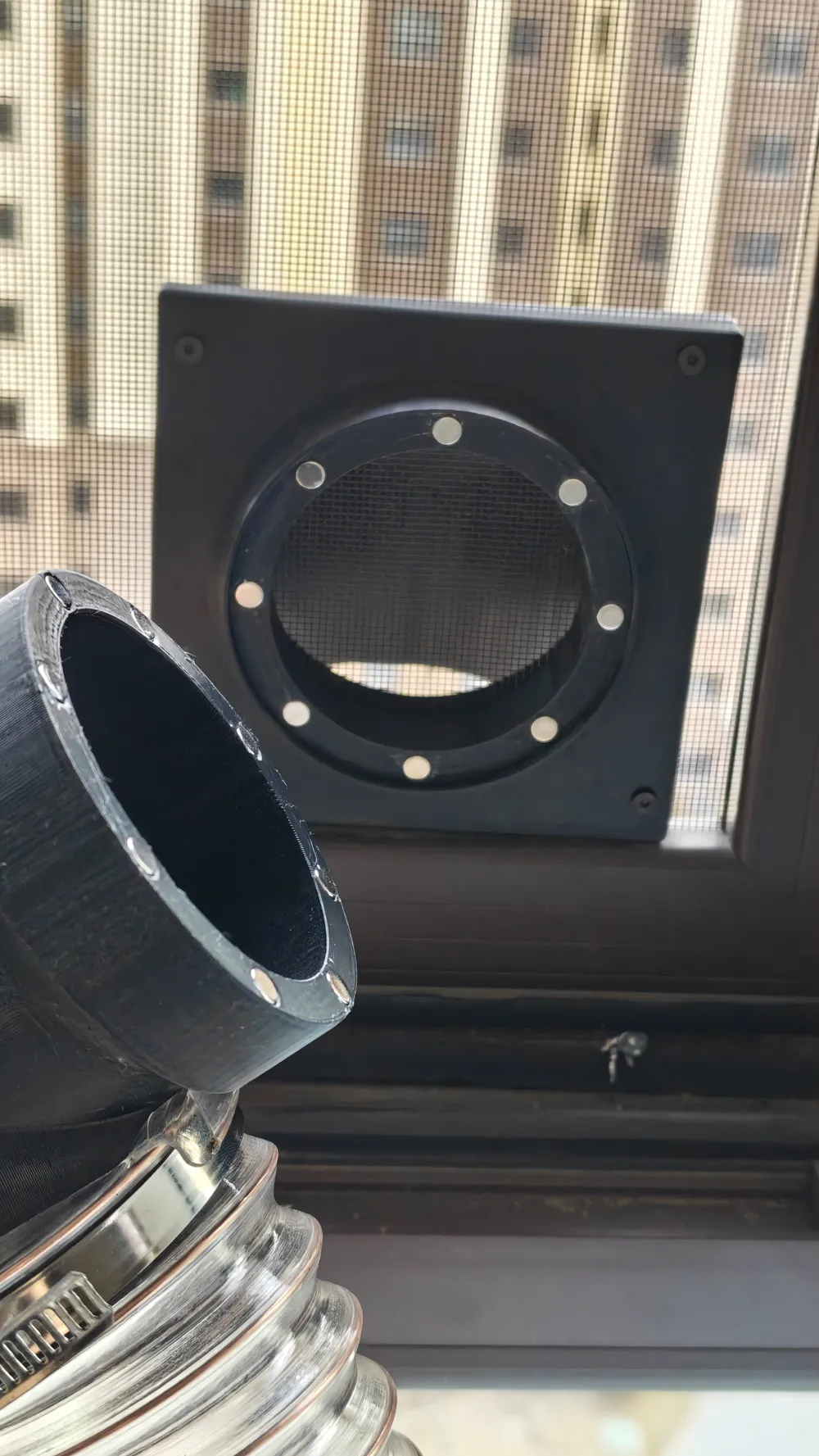

- 🧲 Magnetic Quick Release: Uses [6x3mm] magnets, attaches instantly, detaches with a pull, eliminating tedious fixation.

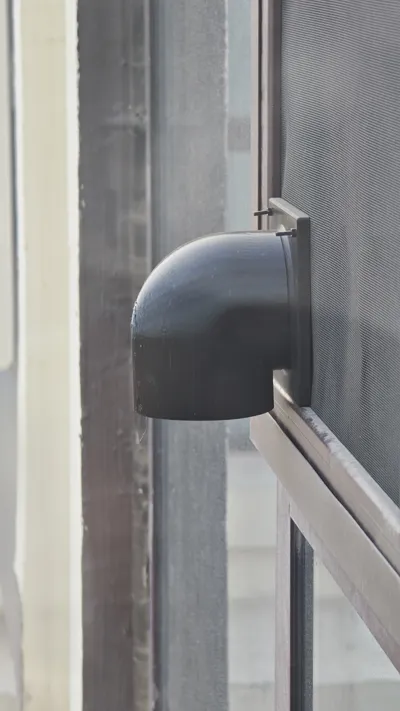

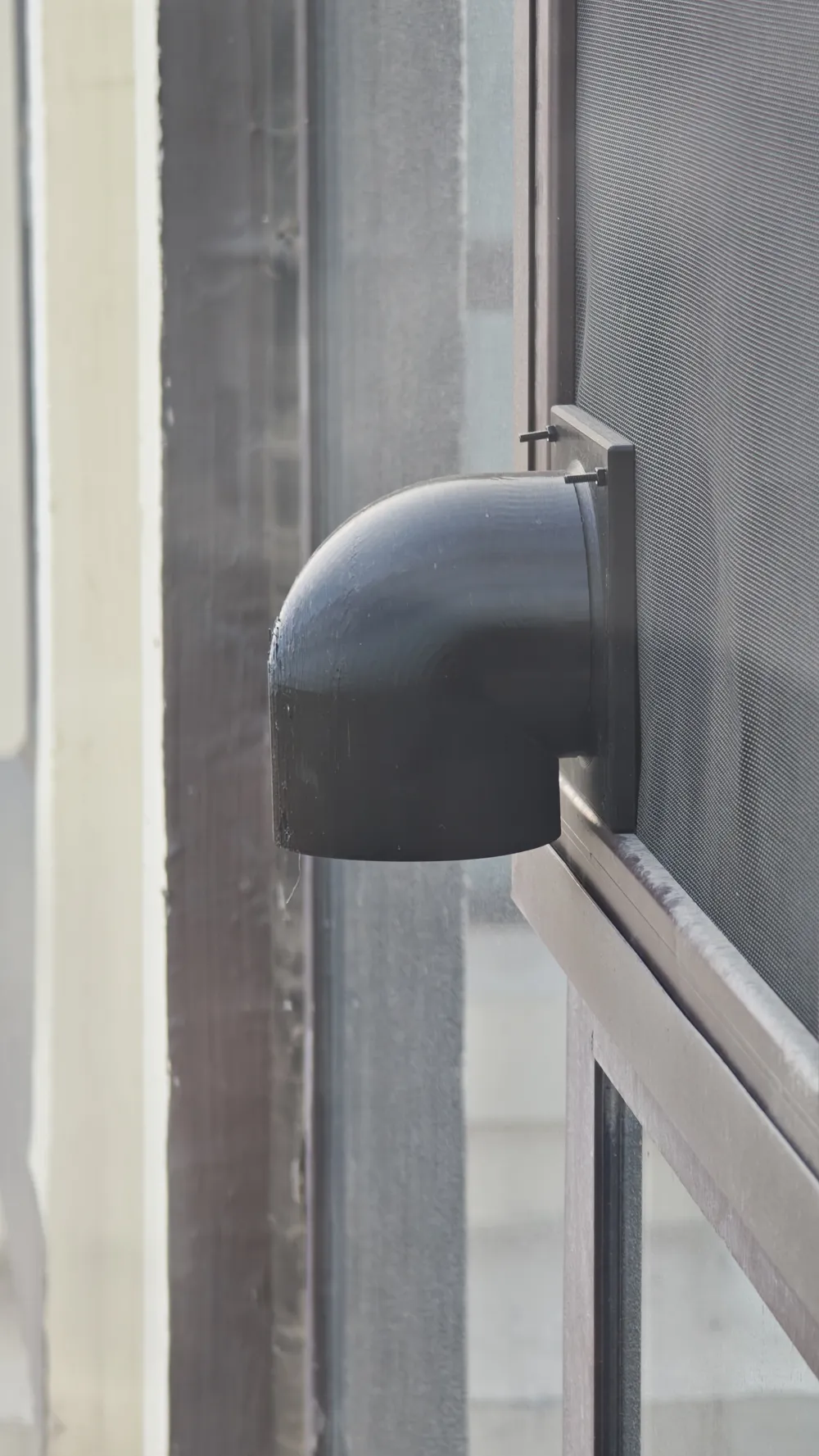

- 🦟 Mosquito and Rain Protection: Split clamping on the screen window, retaining an internal filter to block mosquitoes, and an outdoor 90° elbow for effective rain protection.
- 📍 Raised Dot Positioning: The screw holes feature special raised positioning dots for more precise alignment when drilling screen window holes.
- 🔄 Two Styles, Two Versions: Offers Drill-through version / Magnetic version for the dual base, and two elbow styles: flat tube (easy to clamp) / round tube (low airflow resistance).

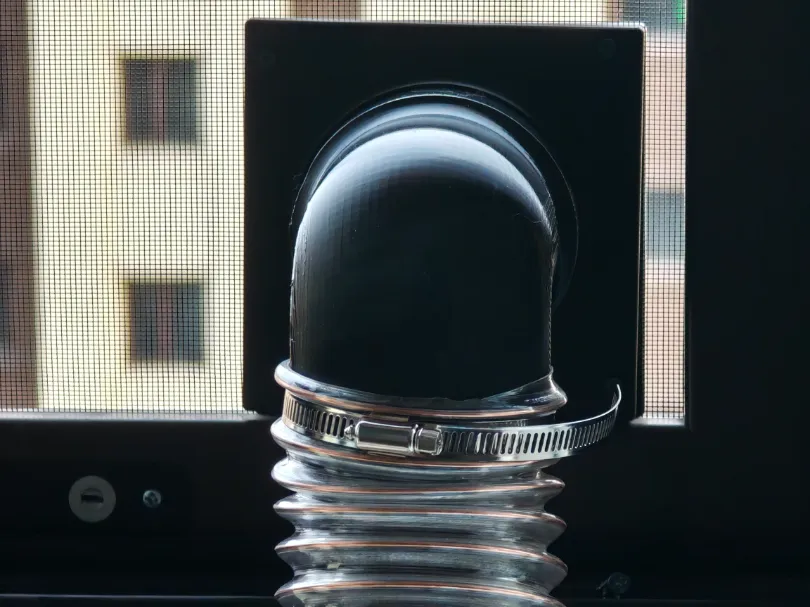

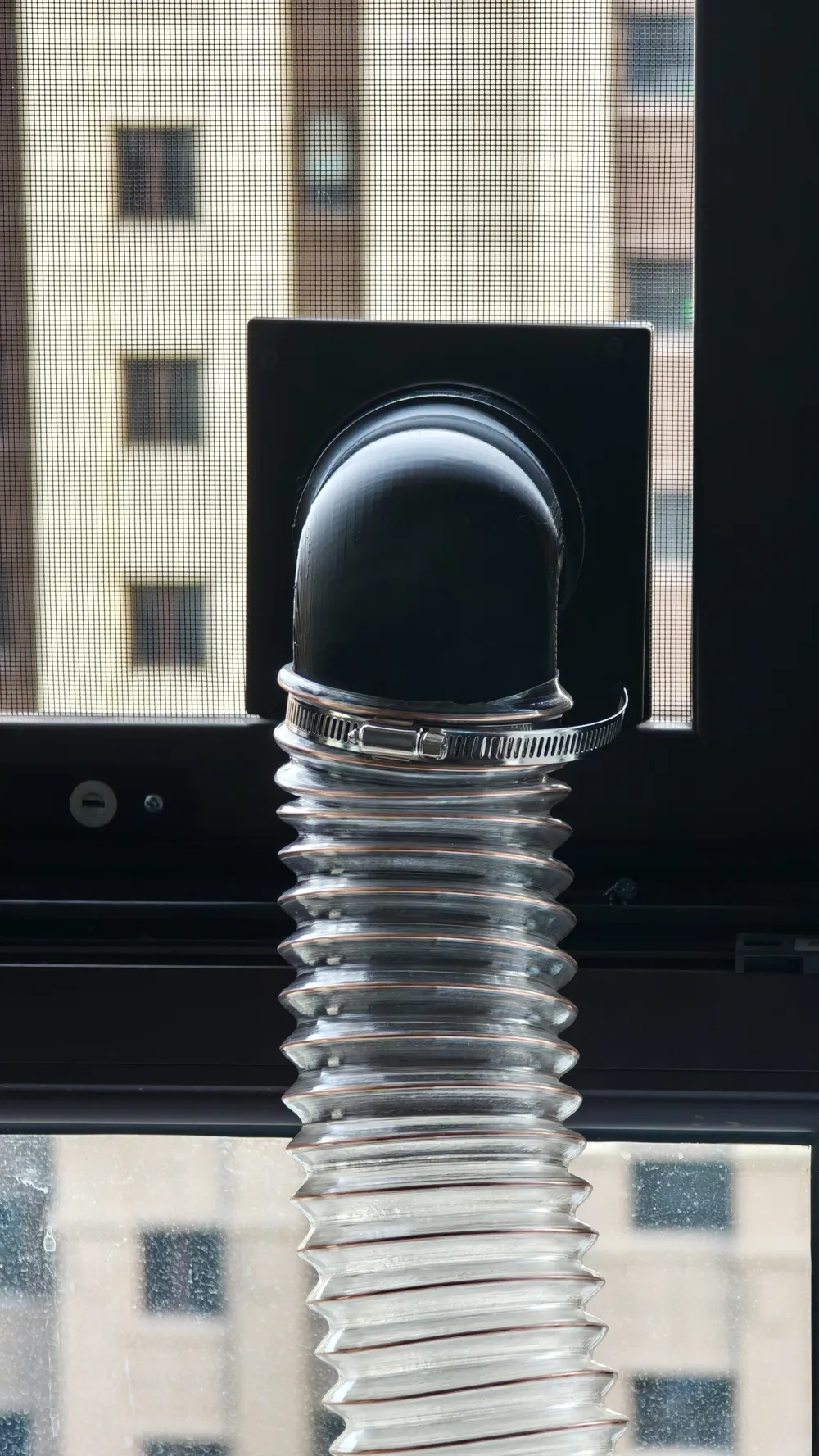

- 💨 Standard Compatibility: Perfectly compatible with standard 75mm exhaust hoses, securely locked with a hose clamp.
🛠️ Required Accessories / Hardware Required
- Magnets: [6x3mm] strong round magnets (pay attention to polarity during installation, adhesive recommended for fixation).
- Screws: M3/M4 screws and nuts (only needed for the drill-through version, fixed through the screen window along the base's raised dots).
- Ducting: 75mm exhaust hose + 75mm metal hose clamp/band clamp.
🖨️ Printing Recommendations / Print Settings
- Material: Recommended PETG / ABS / ASA (PLA is highly susceptible to thermal deformation in summer due to direct sunlight by windows).
- Supports: No supports needed for the base; for elbows (flat tube/round tube), tree supports are recommended.
- Parameters: Layer height 0.2mm, infill 20% - 30%, perimeter count ≥ 3 walls to ensure locking strength.
