2016-2018 Kuga Fog Light Dedicated Adapter for 80mm Diameter Round Projector Lens V2.0 Version
Print Profile(1)
Description

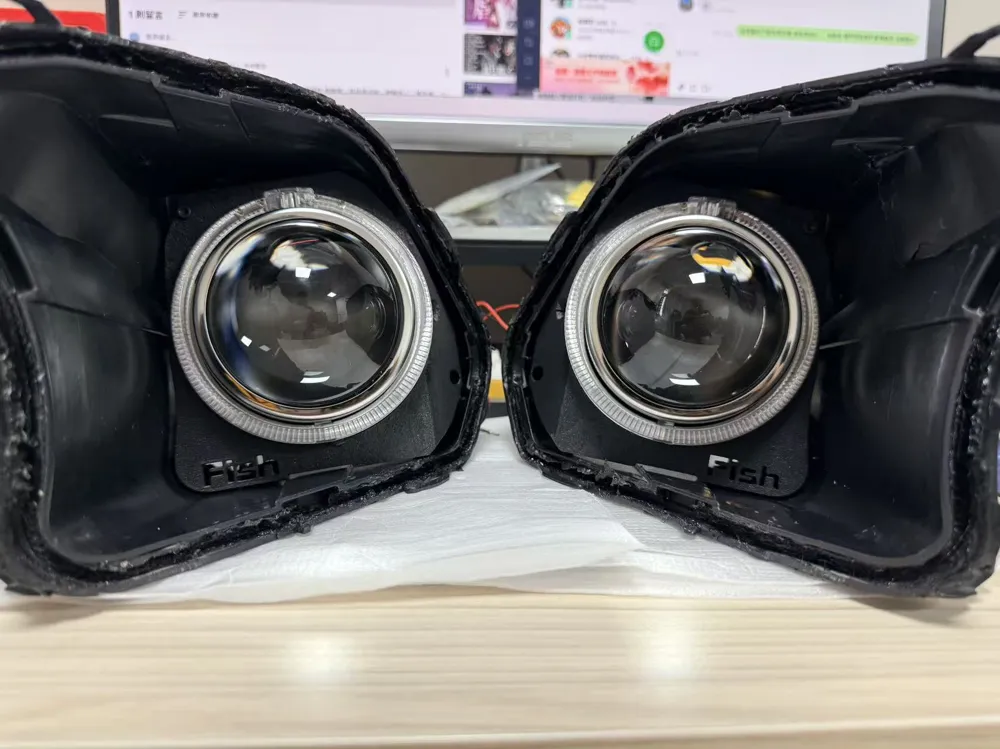

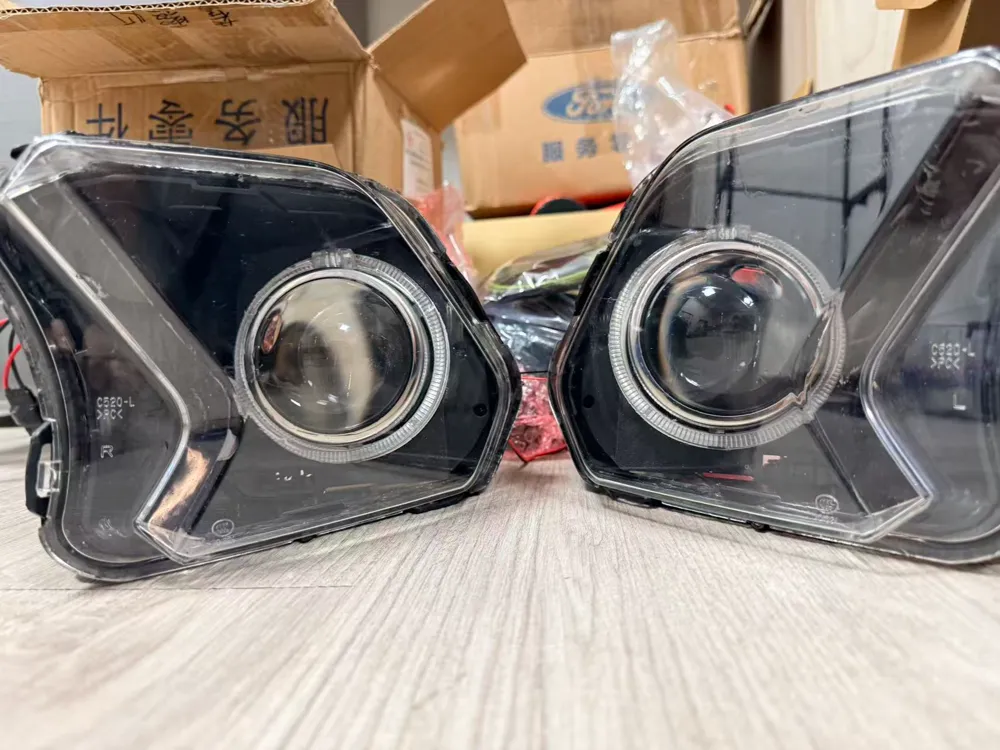

As per title: 2016-2018 Kuga dedicated fog light projector lens adapter V2.0 version
The projector fog light needs to be 80mm in diameter with M5 side-mounted projector lens
Due to potential thermal deformation of the fog light projector lens, the filament for printing should be at least ABS
My chosen material is ASA CF
No supports needed, easy printing
Requires two M5*8 screws to secure the projector lens
M4*25, M4*30 screws, and M4 nuts are needed to secure the adapter to the original base
This is for specific car models only and cannot be used with other series
★★★★★The purchased light fixture requires self-drilling
★★★★★If you lack DIY skills, do not attempt this lightly; I will not be able to assist!!
Below are the purchase links, shared without advertisement. You can also purchase other general products from these sites!!

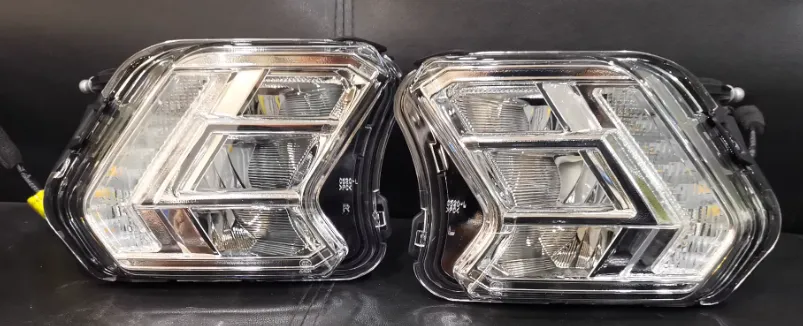

The light fixture can be searched on Xianyu as "Kuga LED Front Fog Light with Daytime Running Light" https://reurl.cc/0mjj3b

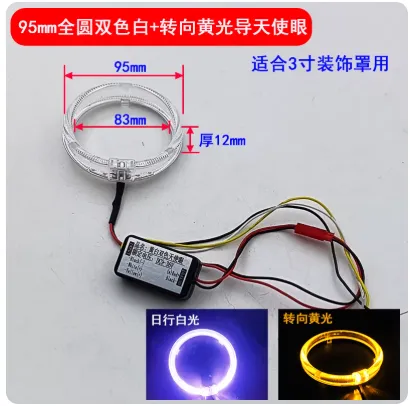

The aperture uses a 95mm style https://reurl.cc/K2AA1q

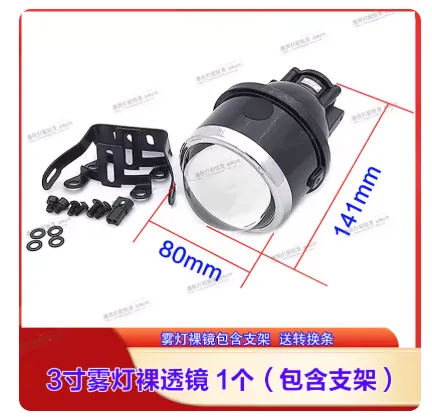

The projector lens uses a 3-inch bare lens https://reurl.cc/YDOOz0

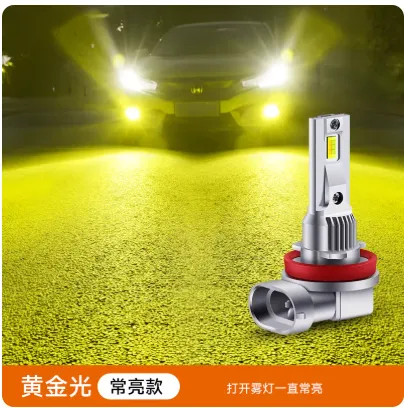

The light body uses a short version LED and cannot have a fan https://reurl.cc/Wb3399
Due to the plastic plate behind the main frame of the Kuga, there will be interference issues
