Remote Screen Dock for CyberPower PR1500LCD

• Designed for the detachable remote screen on the CyberPower PR1500LCD and similar uninterruptible power supplies.
• No Supports Required
• Prints in about an hour
• Tested on Bambu A1 with PLA Matt and Basic

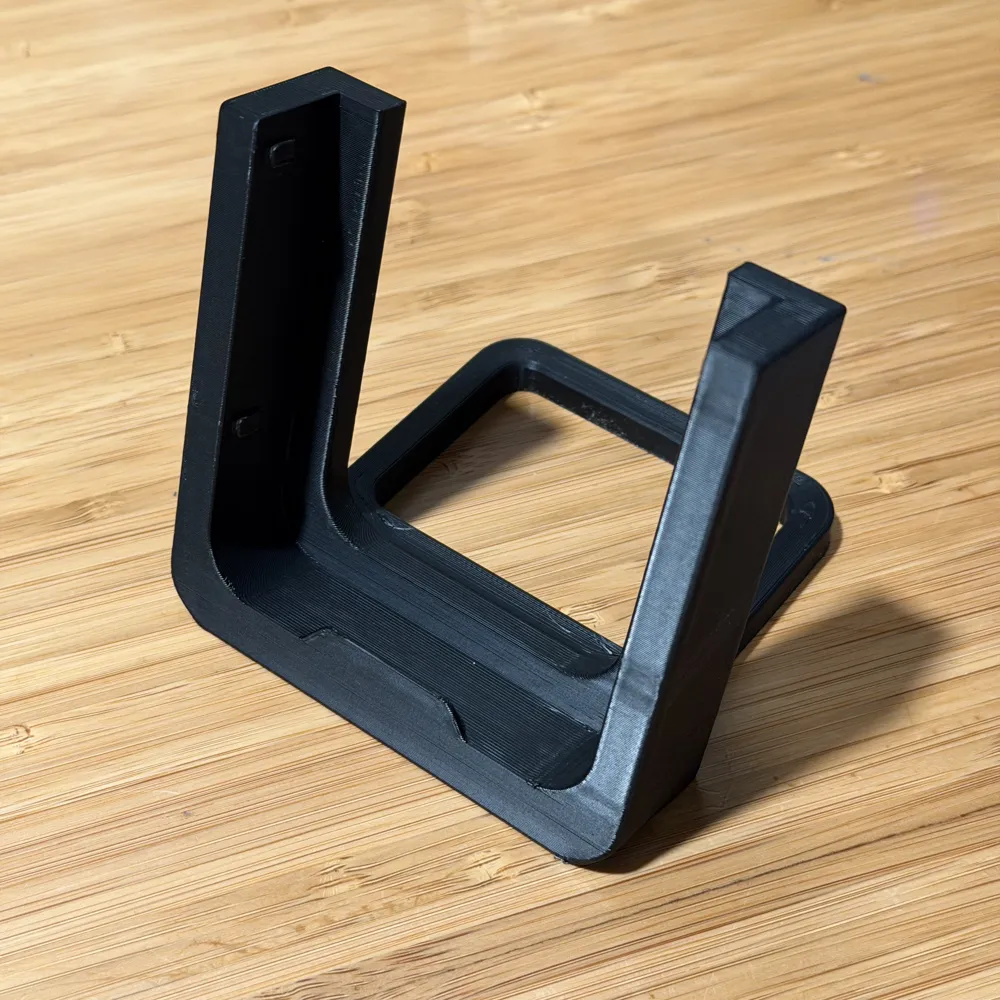

The CyberPower PR1500LCD UPS features a handy, detachable remote display/control panel that can be mounted away from the unit, but didn't give it a way to keep it upright. The panel by itself is frustratingly unstable, ending up laying on its back or face with no built-in way to support it. This model solves this problem by providing a solid foot and displaying it an a convenient angle, while matching the factory design aesthetics so it looks like an accessory that came with the UPS.

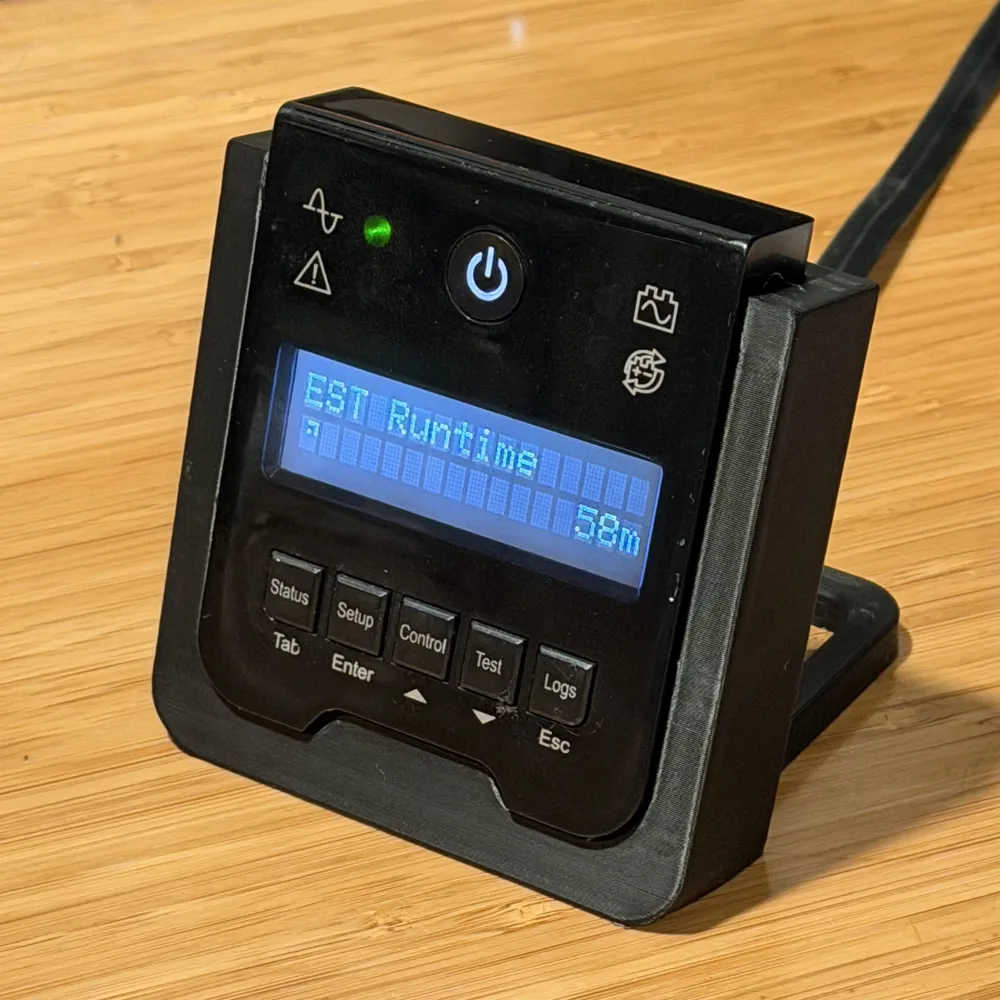

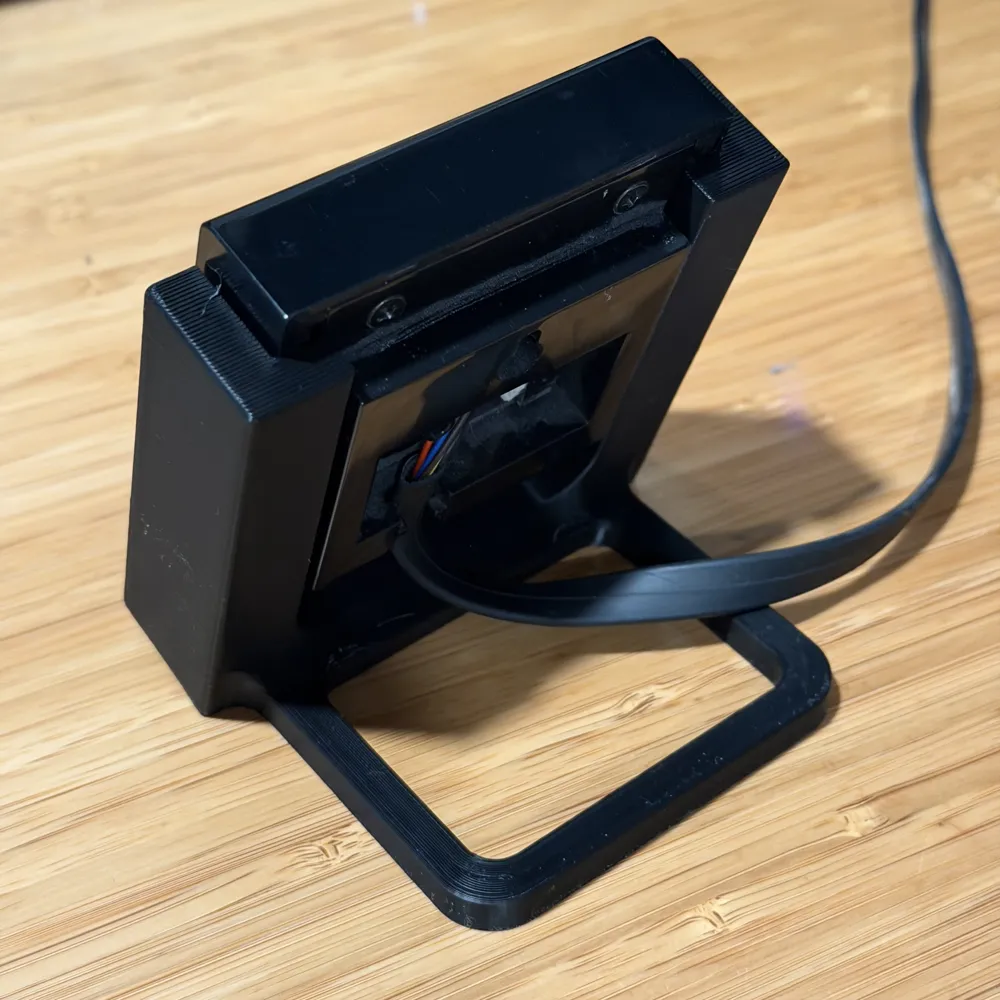

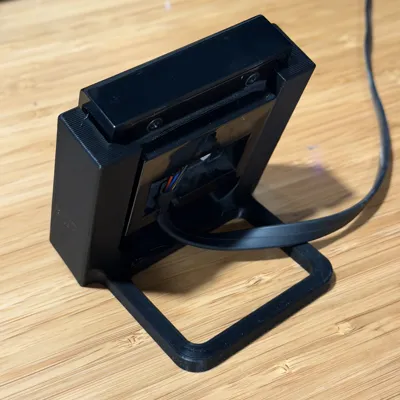

The screen mounts into the dock using the same tab/slot attachment mechanism used to attach it to the main UPS unit, making the attachment to the dock secure, yet easy to install or uninstall without tools. Just line up the tabs to the slots in the dock, press in, then press down to lock into place.

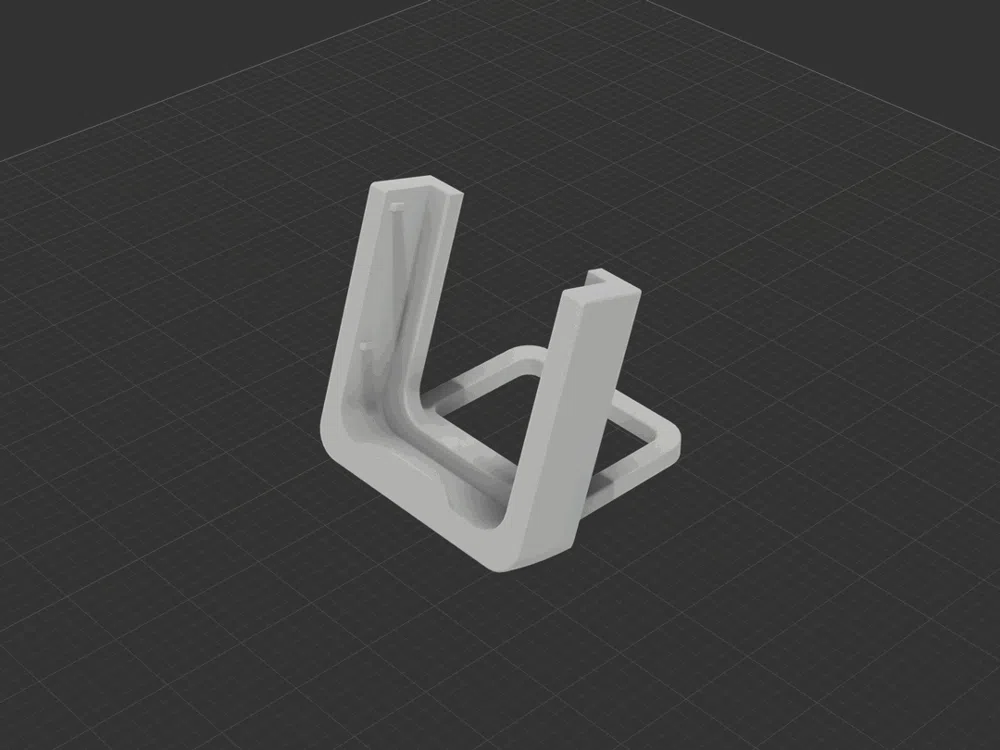

STEP file included so others can remix or adapt the design.
