Hero Quest Dashboard

HeroQuest Stat Tracker.

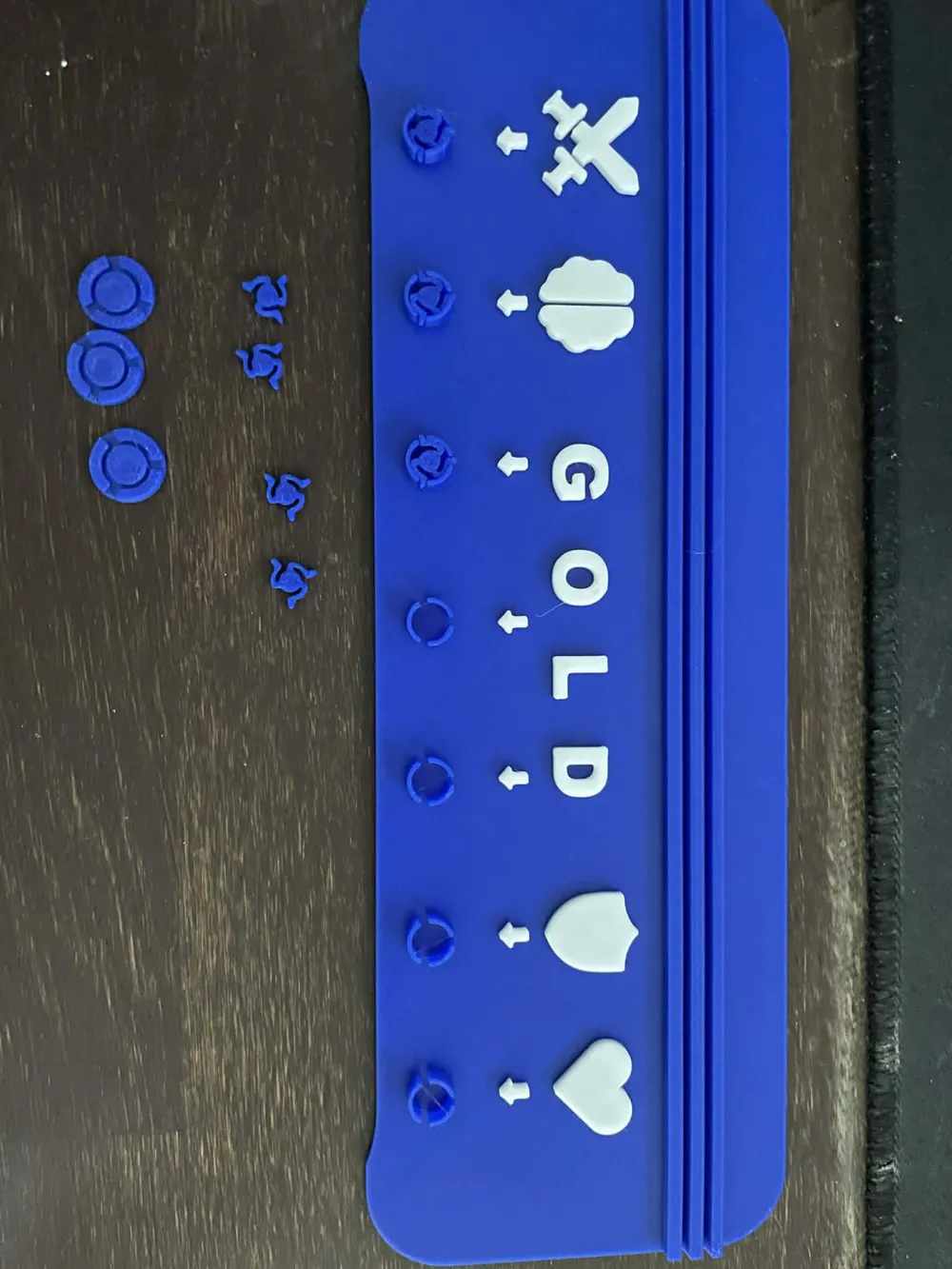

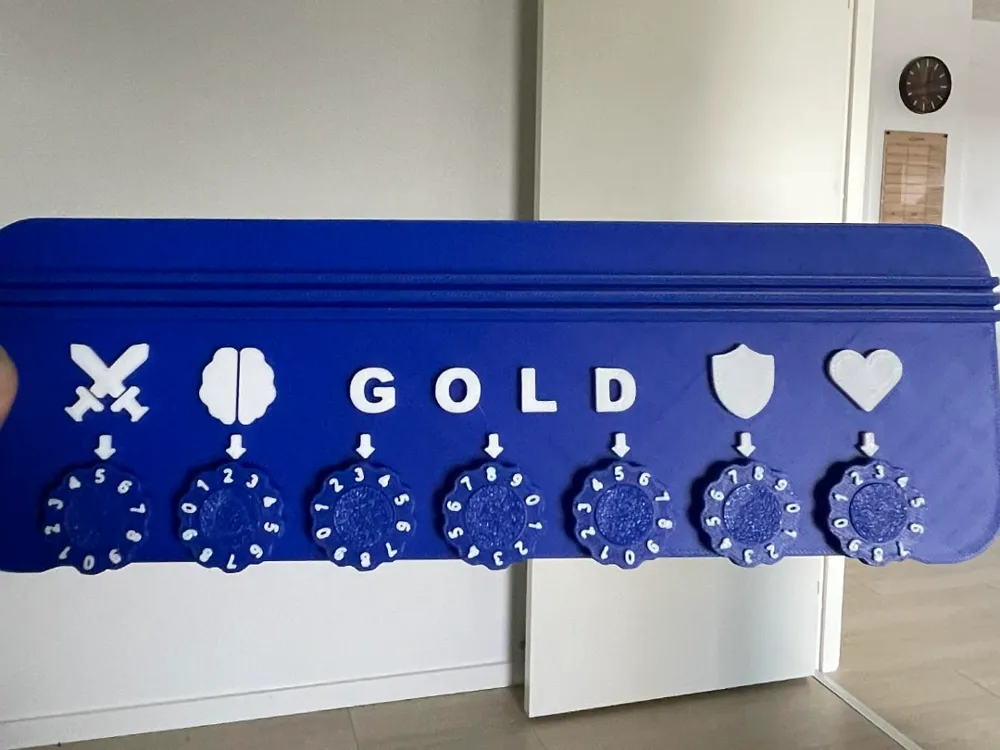

This is a mechanical stat tracker designed specifically for HeroQuest to help players quickly keep track of their character stats during gameplay.

The tracker allows you to monitor:

• ATT (Attack)
• Health
• Mind
• Shield

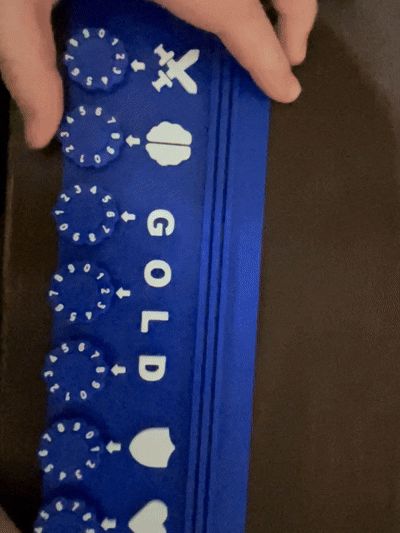

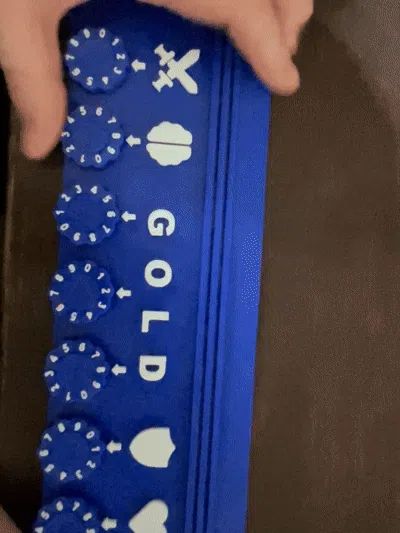

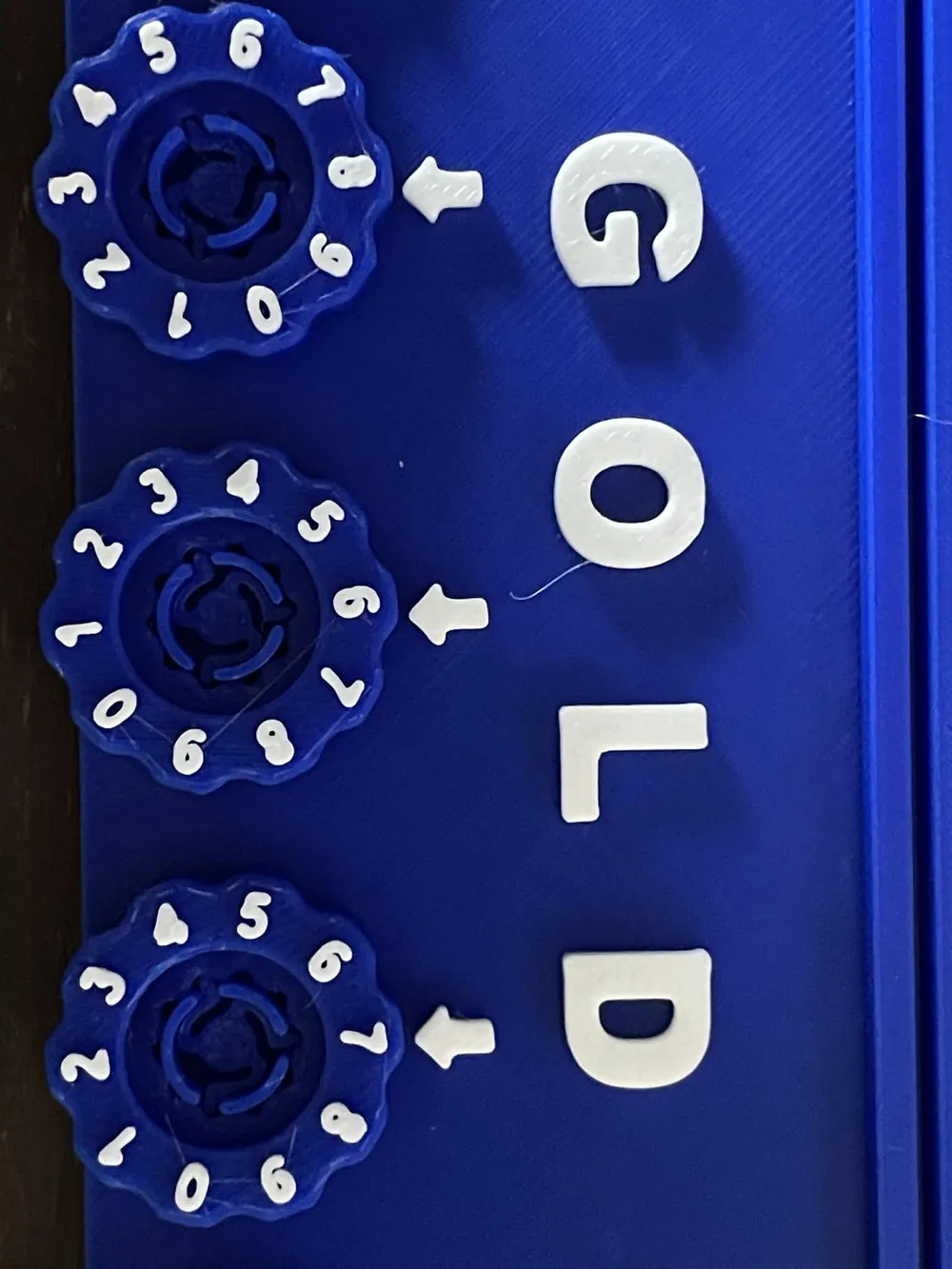

Each stat uses a rotating wheel system, making it easy to adjust values during the game.

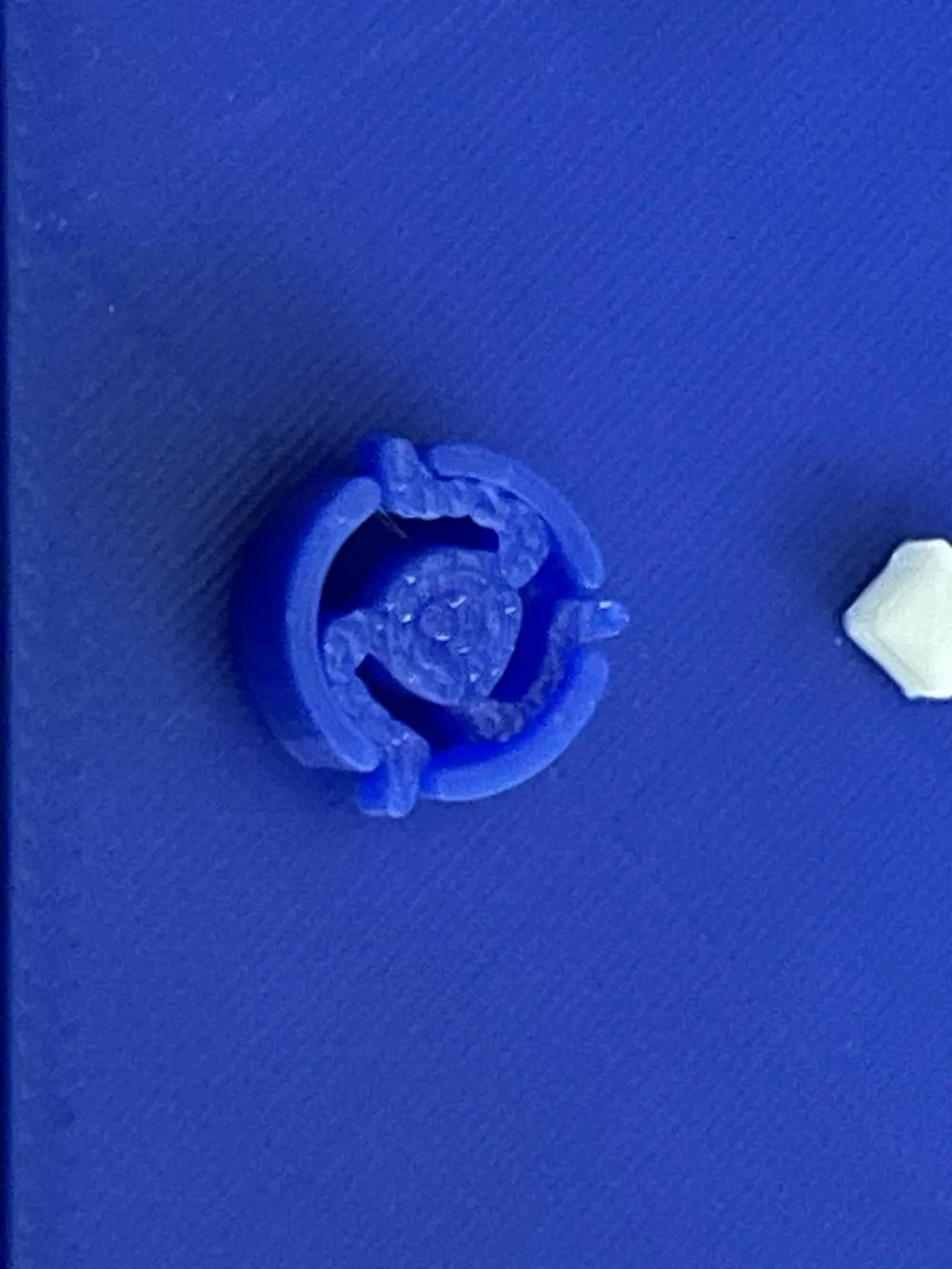

A key feature of this design is the integrated click mechanism.
When rotating the wheel, the tracker produces a tactile click for each step, making it easier to feel the increments while playing.


Print Settings

Recommended settings:

Layer height: 0.2 mm
Wall loops: 2
Infill: 15%

Inspiration & Community Credit

This stat tracker was designed from scratch in Fusion 360, with its own internal mechanism and layout.

While developing the idea, I explored several HeroQuest accessories created by the MakerWorld community.

One example is a tracker by Bauzival that is definitely worth checking out if you enjoy HeroQuest tools and dashboards:

https://makerworld.com/en/models/1322286-heroquest-dashboard-card-holder-score-tracker?from=search#profileId-1358681

If you like HeroQuest related prints, make sure to check out their profile and consider following their work on MakerWorld.

Attribution

Icons used in this design are from Flaticon:


Crossed swords icon
https://www.flaticon.com/free-icon/crossed_11341689

Brain icon
https://www.flaticon.com/free-icon/brain_253568

Shield icon
https://www.flaticon.com/free-icon/computer-security-shield_74662

Heart icon
https://www.flaticon.com/free-icon/hearth_6393355

Arrow icon
https://www.flaticon.com/free-icon/down-arrow_608258
