70mm Ventilation Grille with Sliding Damper
Print Profile(2)
Description
Hello everyone…
As has been happening for a while now, whenever we have a couple of free hours, my partner and I dedicate ourselves to 3D printing, trying to share our creations with all of you as much as possible…
That said, here is a new model:
This ventilation grille is designed for resin 3D printer enclosures, technical enclosures, or small air extraction systems
The model consists of two parts:

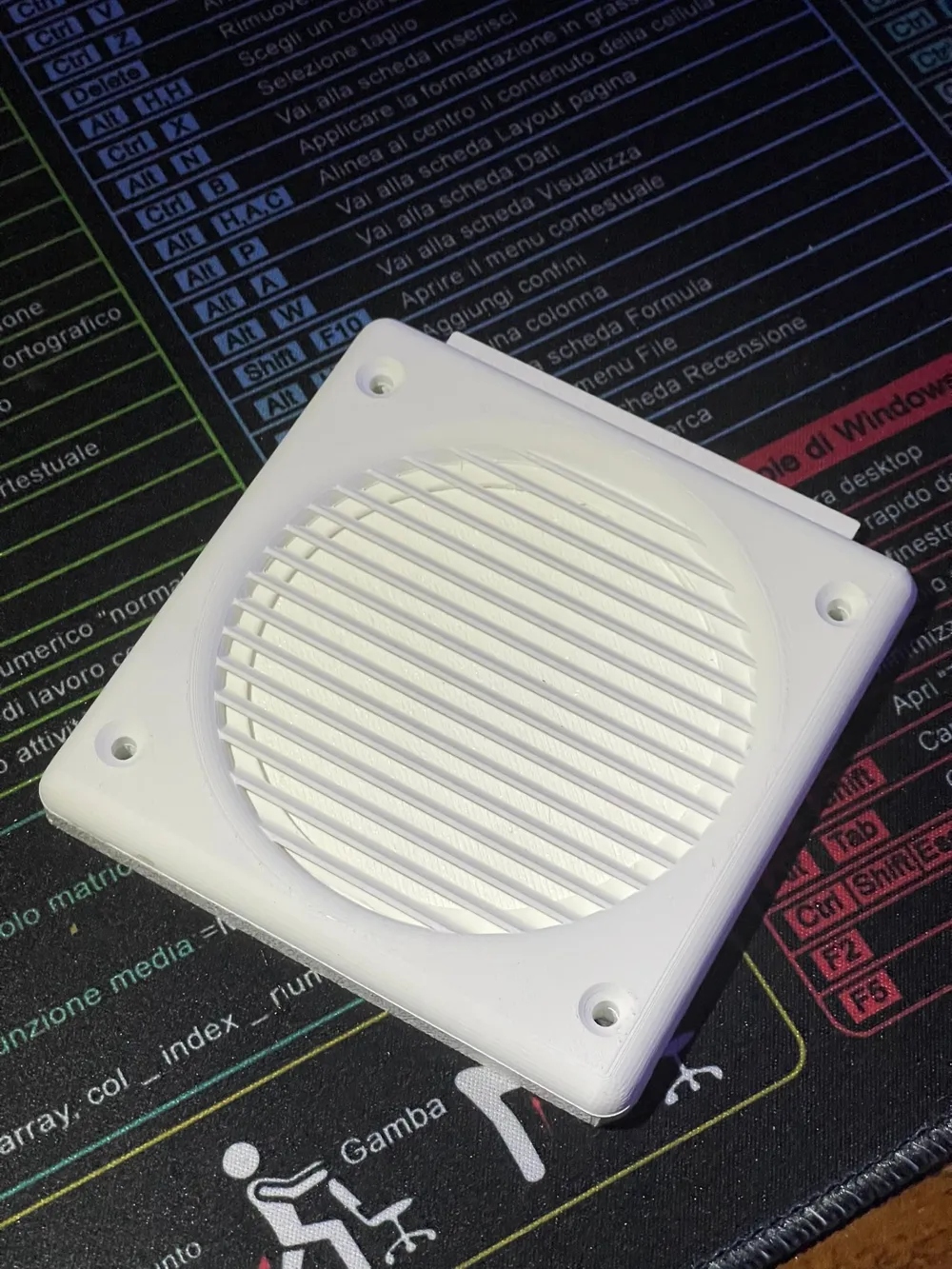

• 100x100 mm front grille with a 70 mm central hole

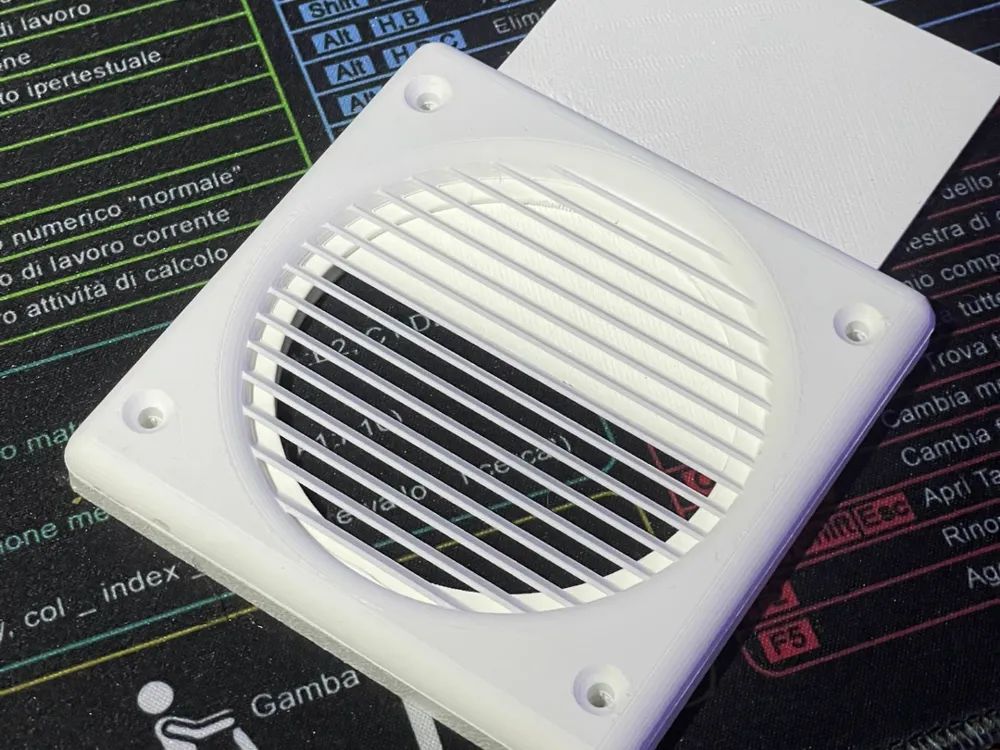

• 45° angled fins that allow air passage but prevent viewing inside the duct

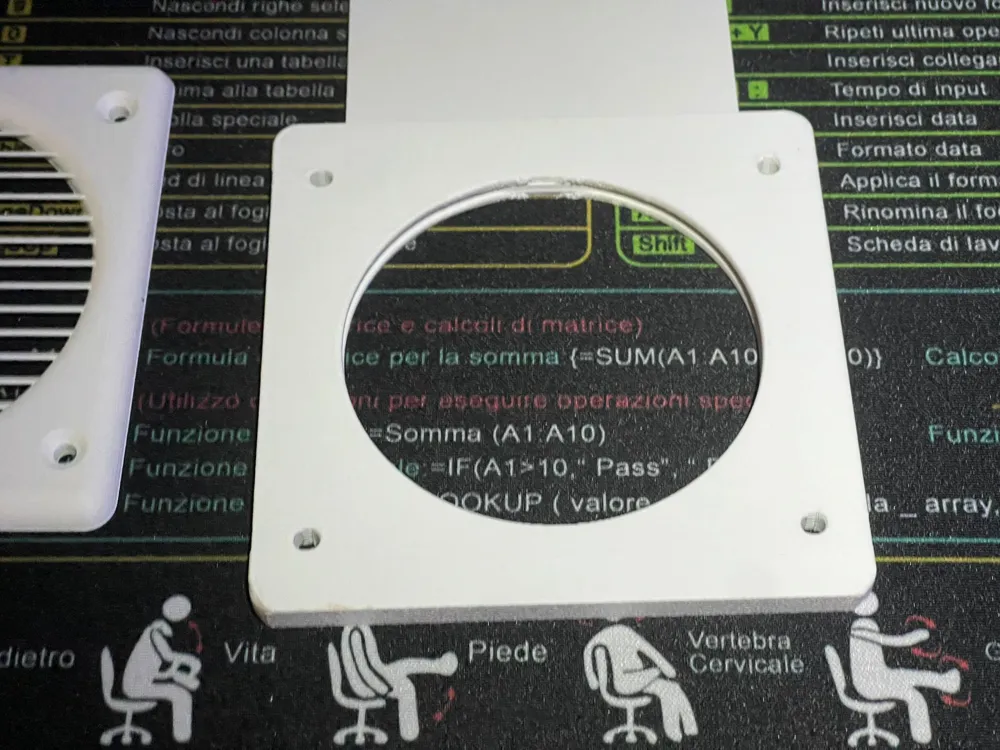

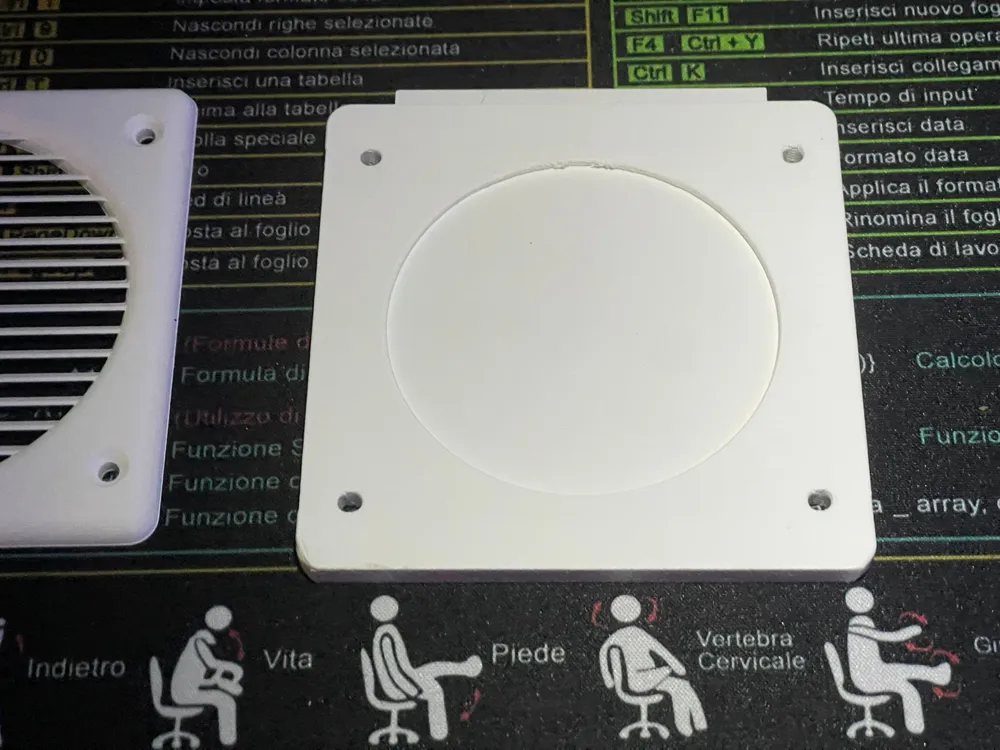

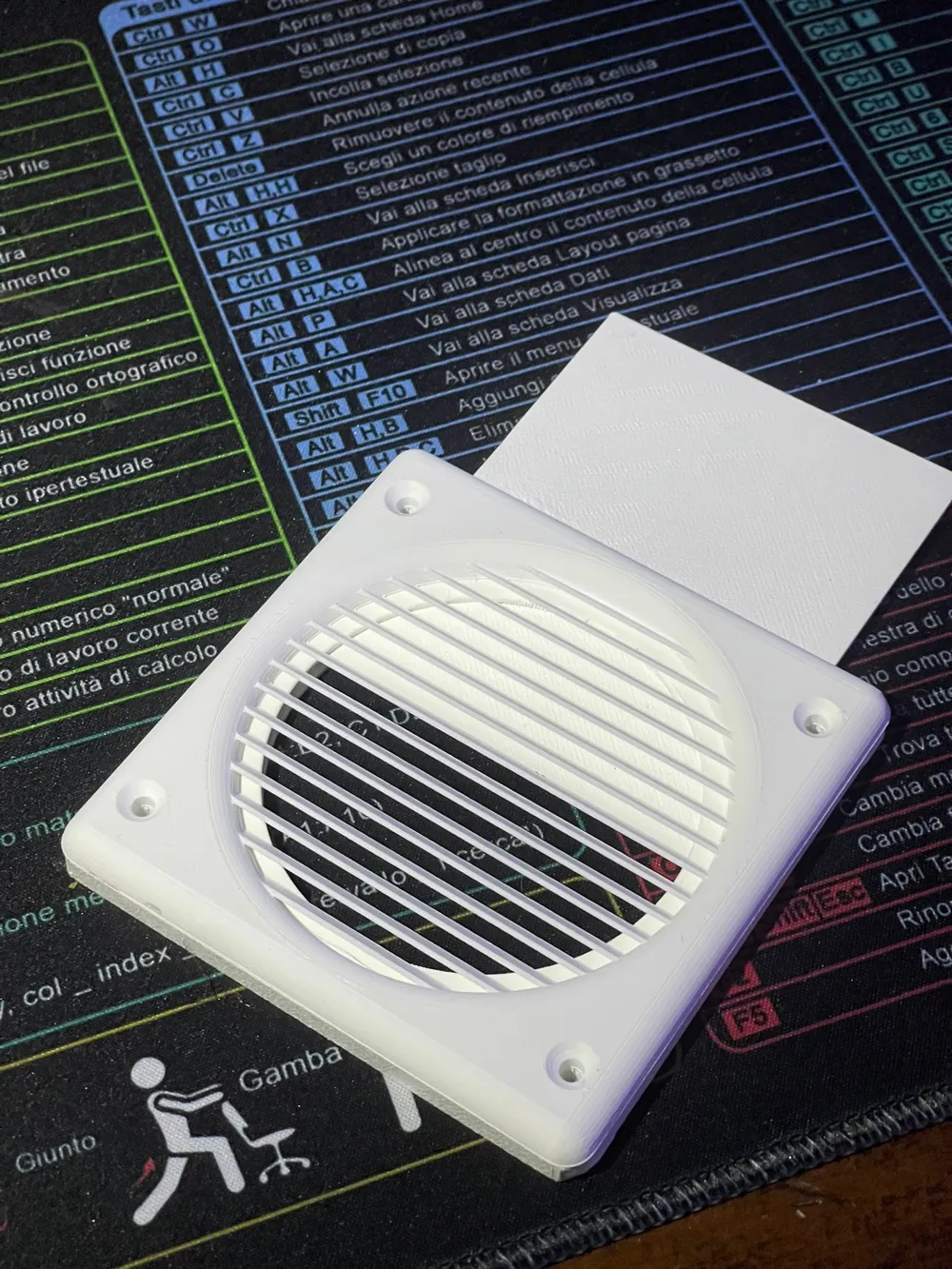

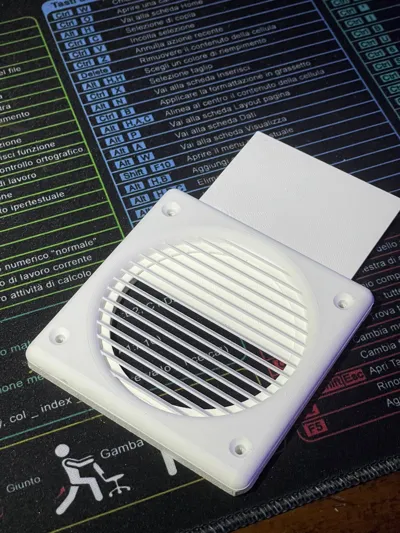

• Lower module with a sliding guillotine that allows you to completely open or close the airflow
The guillotine is useful when the ventilation system is not in use, preventing the re-entry of air, odors, or dust into the enclosure
The 70 mm hole is compatible with many ventilation pipes and extraction systems used in resin printer enclosures
The design is simple, functional, and easy to print without supports
Features
- 100 x 100 mm grille
- Ø70 mm ventilation hole
- 45° angled fins
- sliding guillotine
- manual opening and closing of the airflow
- compact design for enclosures
Applications
- resin printer enclosures
- DIY ventilation systems
- 3D printer enclosures
- technical or electronic cabinets
- air extraction for small spaces
Note :
I have added a profile for closing the grille with a small knob for easier opening and closing
I HOPE YOU LIKE THE MODEL
HAPPY PRINTING EVERYONE
