Reolink Home Hub Wall Mount — Clean & Secure 3D Printed Bracket
Boost Me (for free)
Your boost helps me spend more time creating better designs. And don’t forget to check my other models — you might discover something useful! 😊

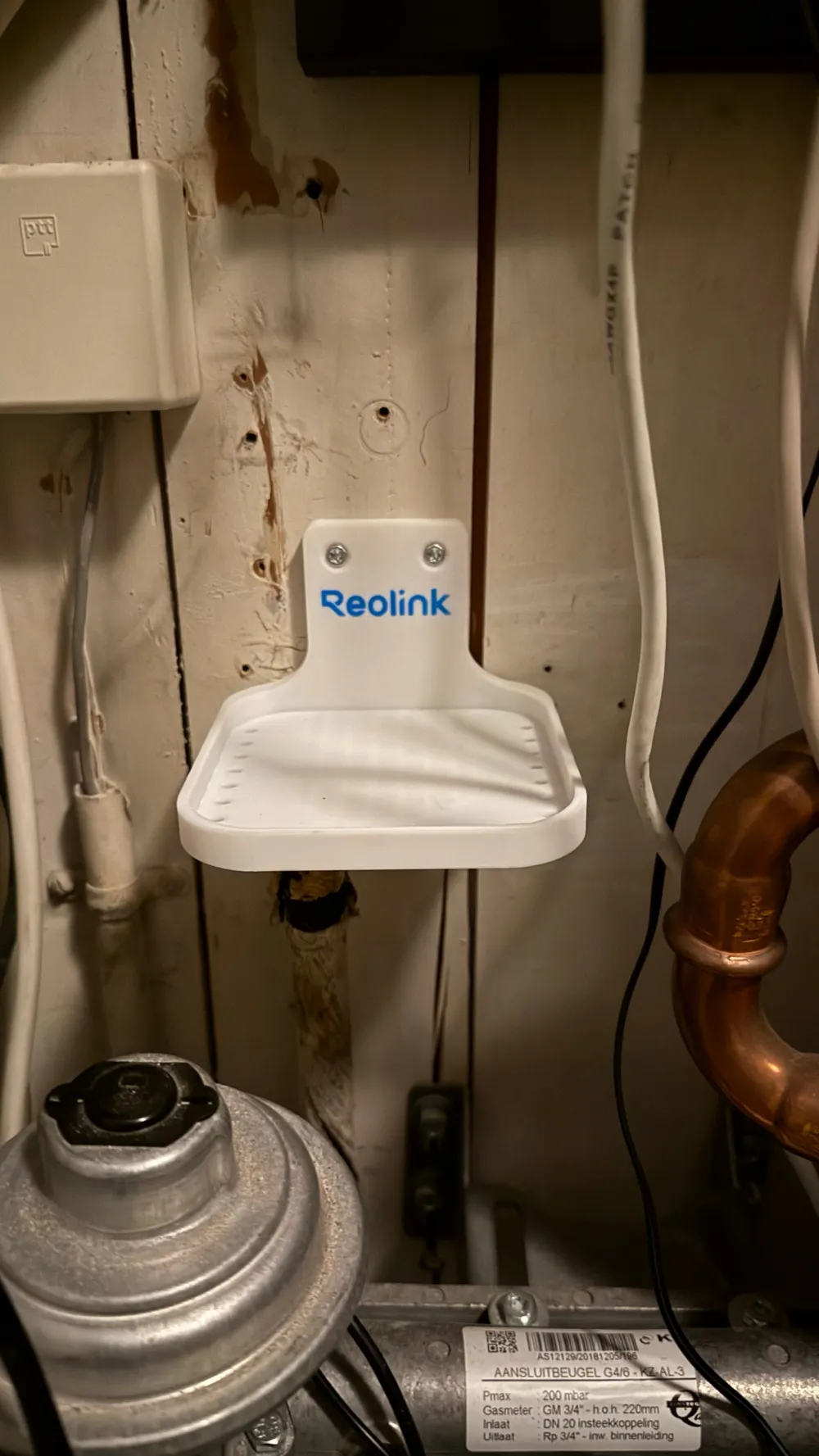

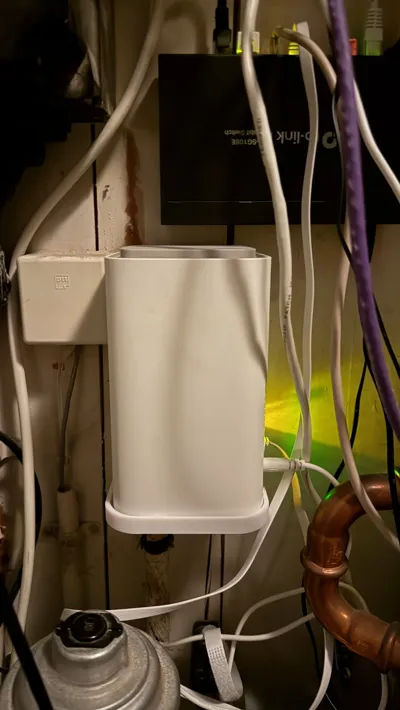

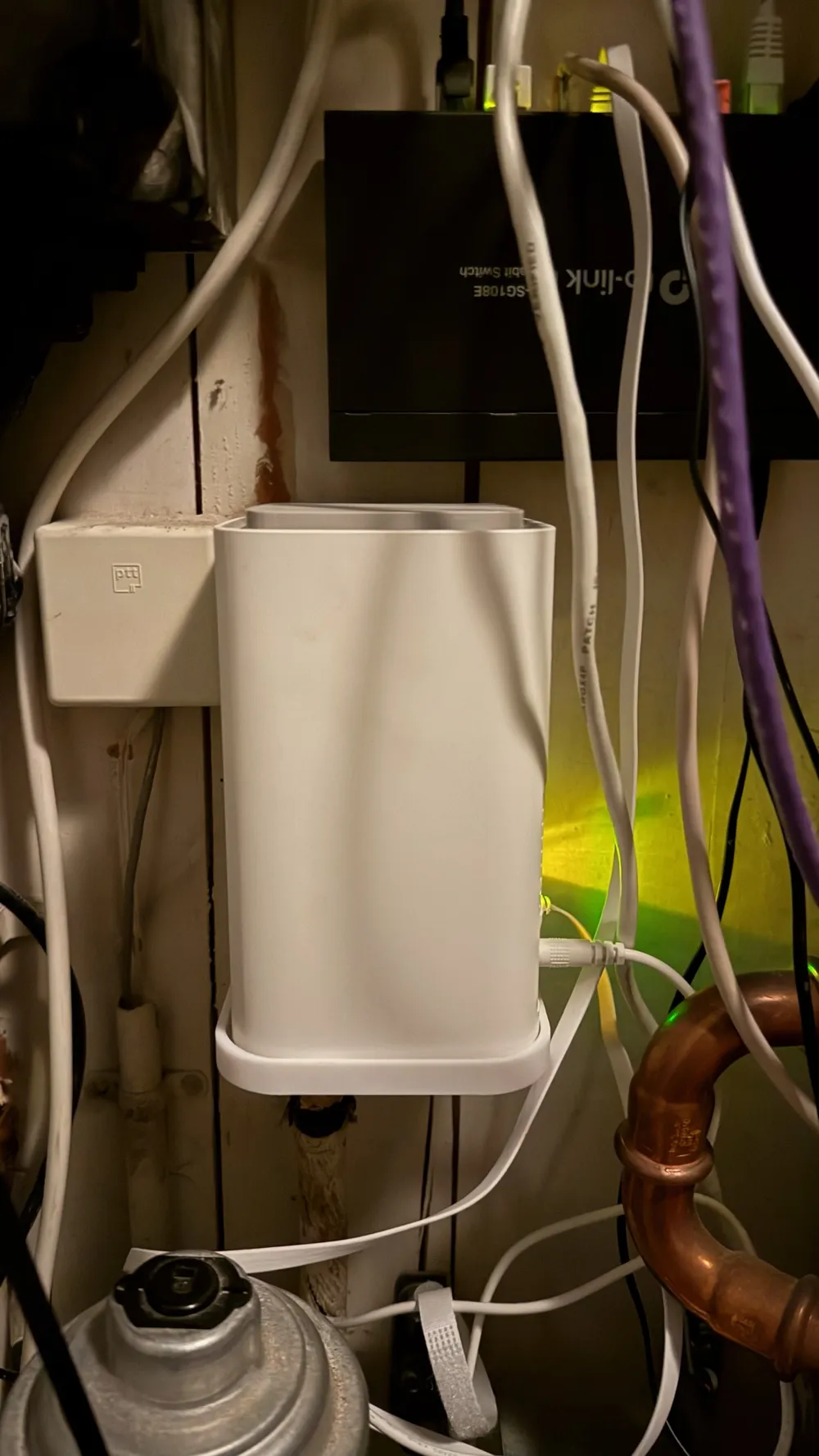

Keep your Reolink Home Hub neatly mounted to any wall or cabinet with this purpose-built 3D printed wall mount bracket. No more resting the hub on a shelf or hiding it behind furniture — this mount positions it exactly where you need it for optimal cable management.

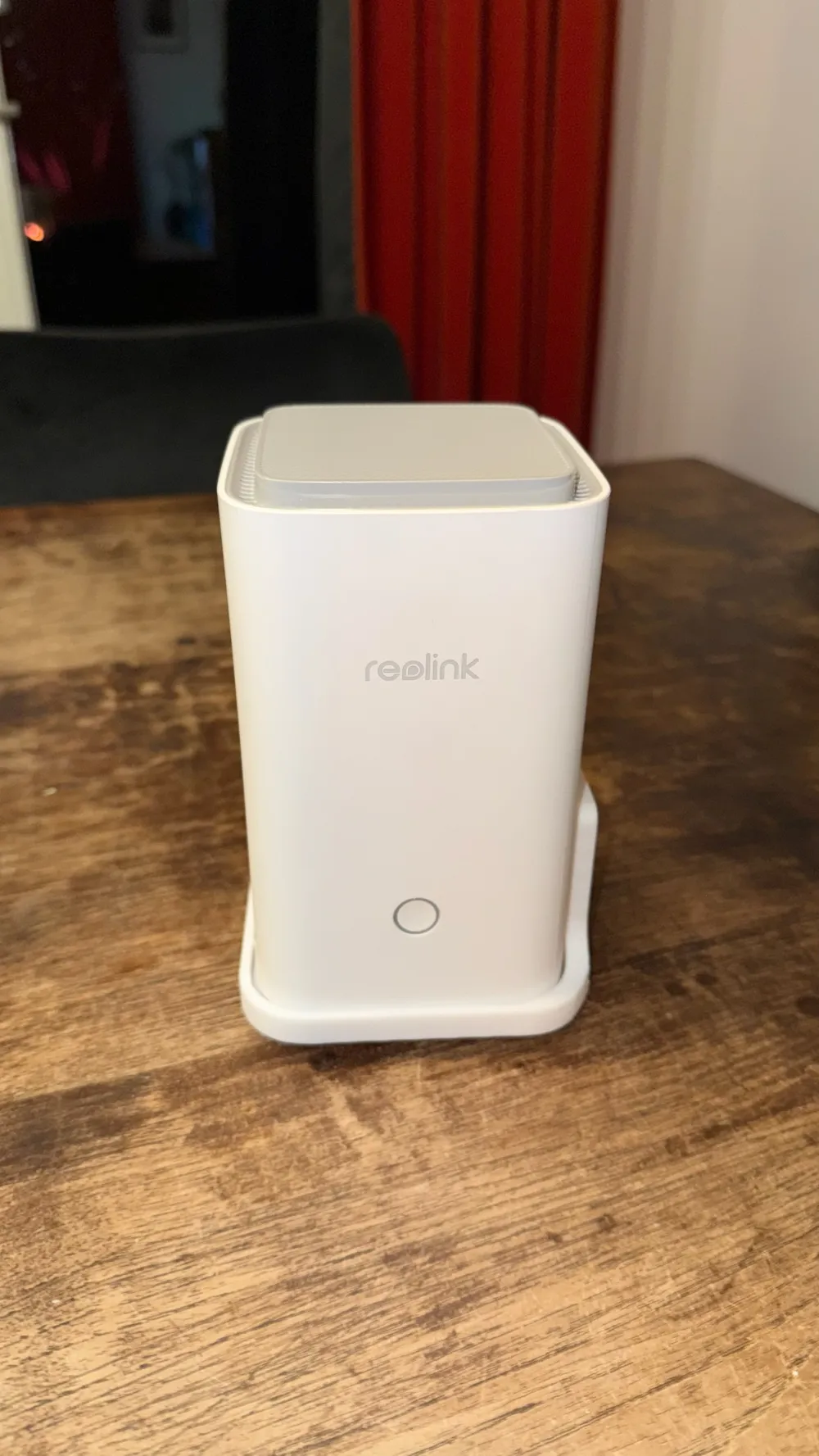

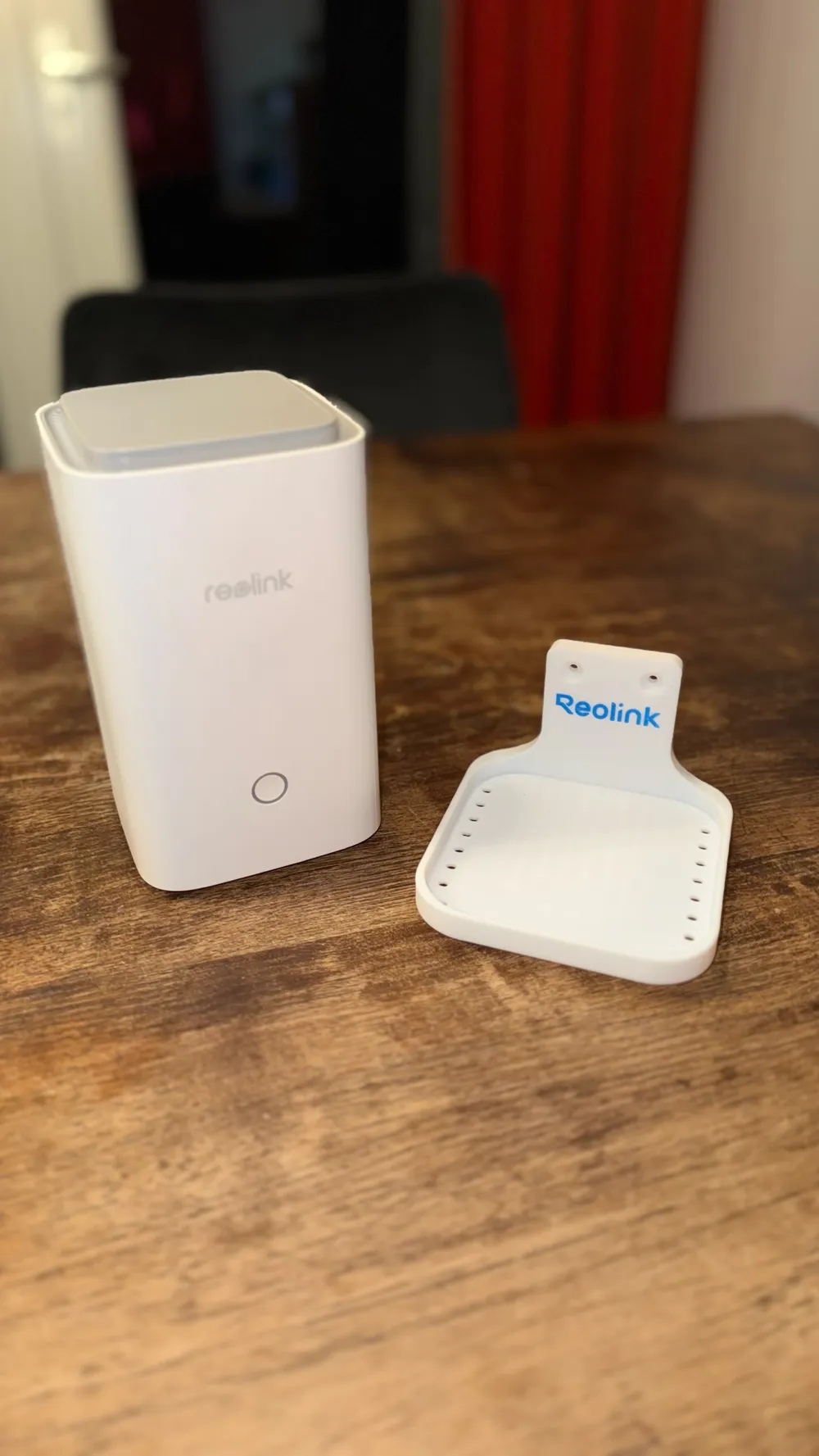

Designed to fit the Reolink Home Hub (standard model) precisely.
✅ Features

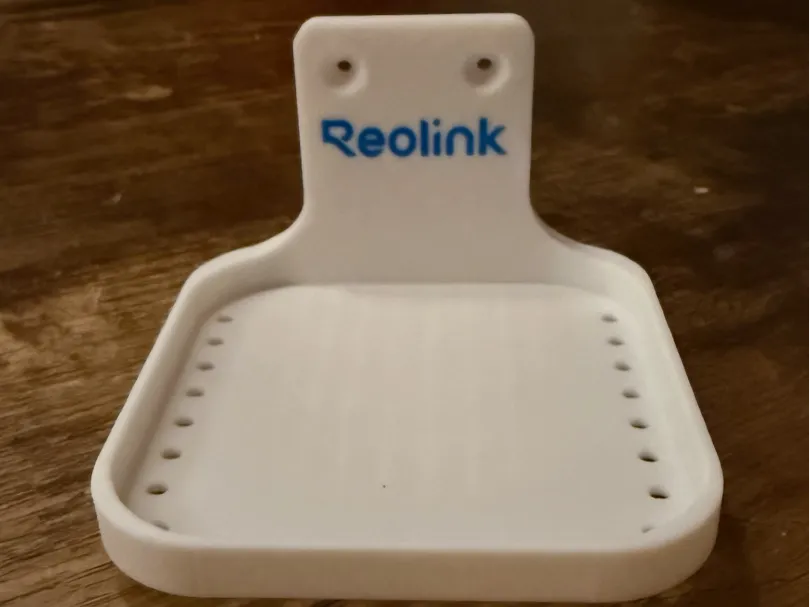

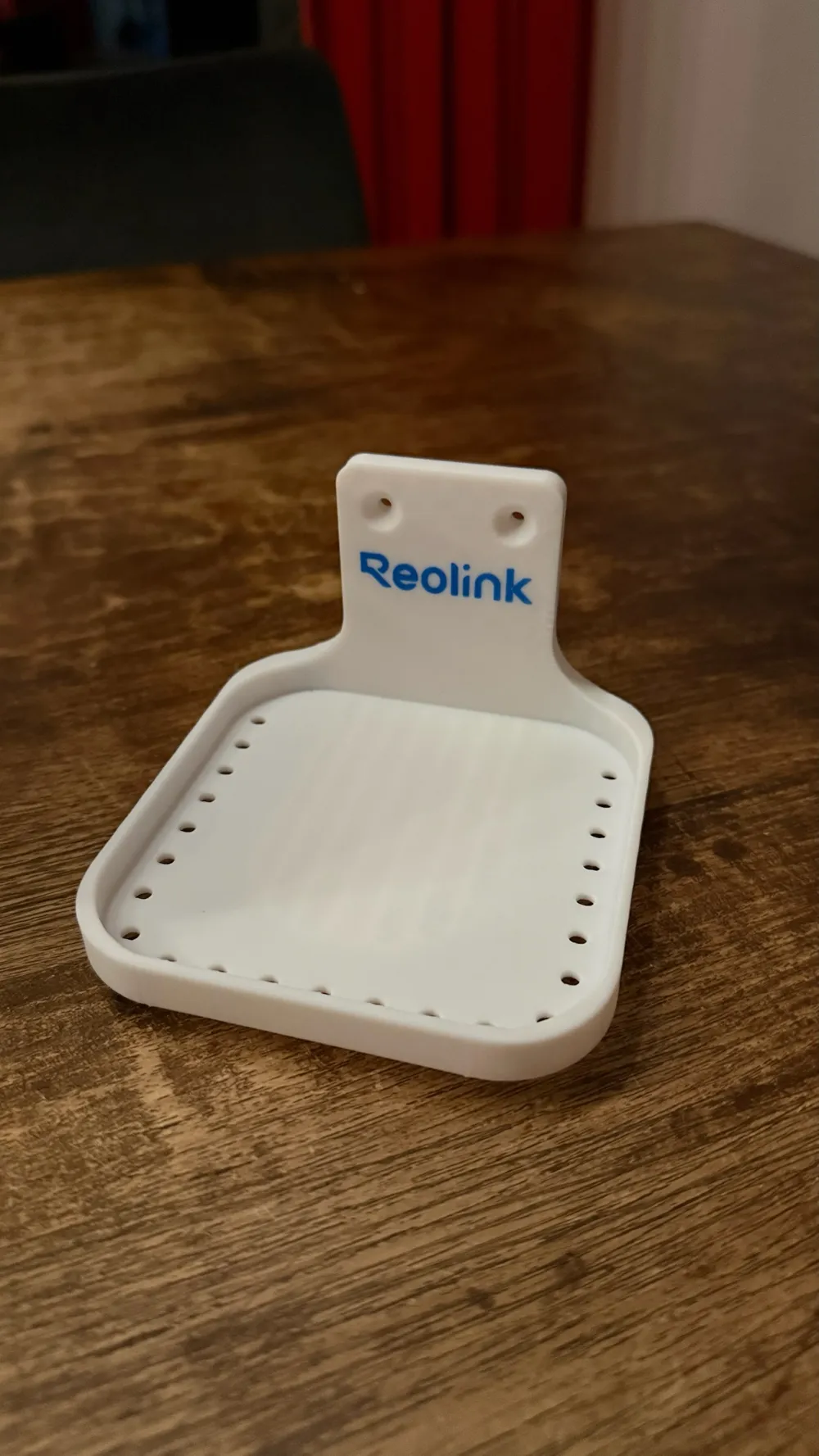

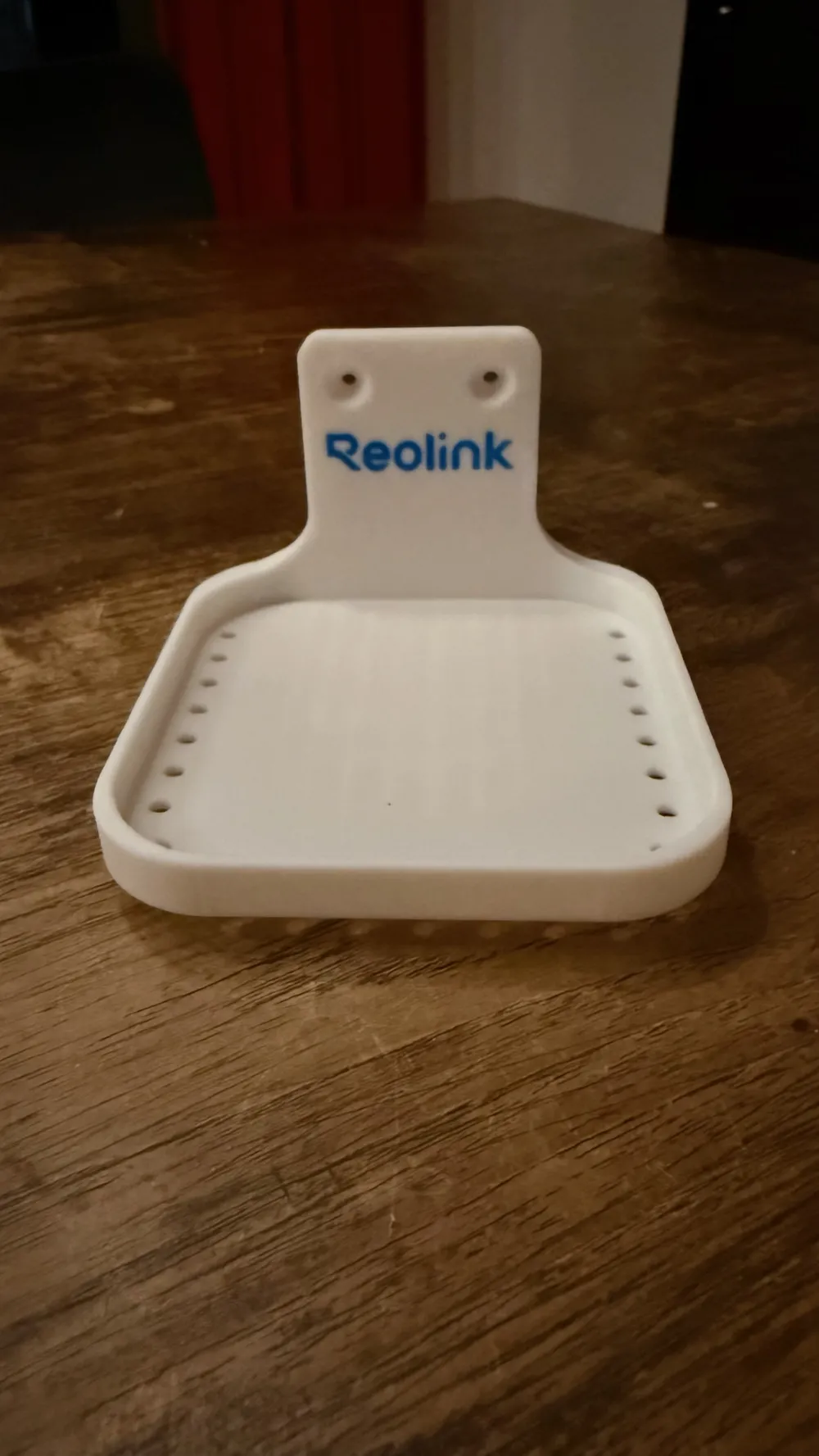

- Snug friction fit for the Reolink Home Hub housing
- Open side design for full access to the power (DC 12V) and Ethernet ports
- Low-profile wall footprint — sits flush against the wall

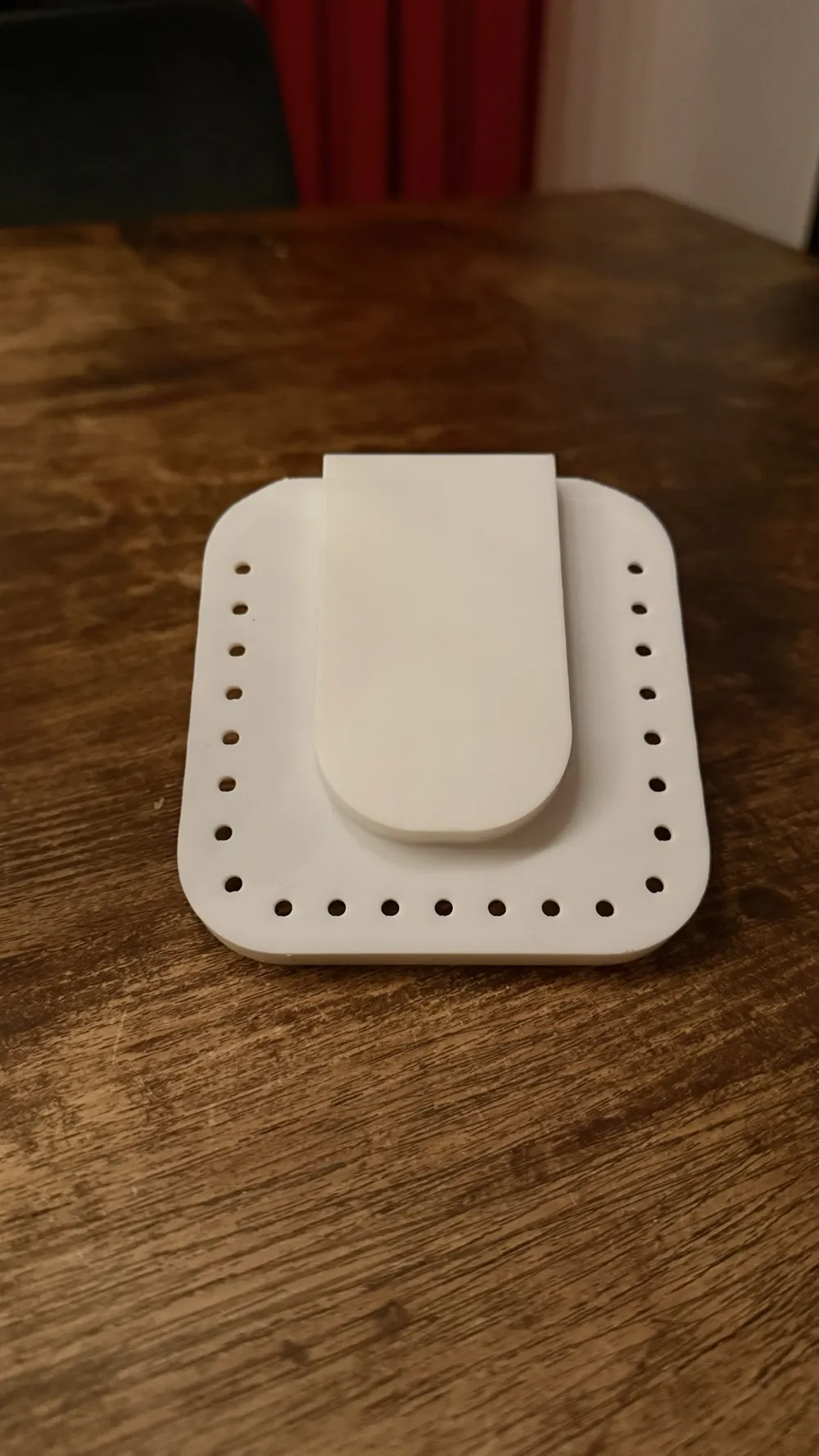

- Two standard screw mounting holes (compatible with typical drywall anchors)
- Minimum supports - Print with logo upwards
- Works indoors
🖨️ Print Settings
| Setting | Recommended |
|---|---|
| Material | PLA / PETG |
| Layer height | 0.2 mm |
| Infill | 15% |
| Supports | Yes |
| Print time | 2h44m |
PETG is recommended if the mount will be placed near a warm router cabinet or in a location that gets direct sunlight.
🔩 Hardware Needed
- 2× M3.5 wood screws
- 2× drywall anchors (if mounting to plasterboard)
🏠 Use Case
The Reolink Home Hub is a wireless security center that manages up to 8 Reolink cameras with local encrypted storage and no monthly fees. This wall mount is perfect for home security setups where the hub needs to be wall-mounted near your router — keeping cables short and the signal strong.
Pairs especially well with setups running the Reolink Home Hub alongside Reolink Argus, Reolink TrackMix, or any other battery/Wi-Fi Reolink camera system.
💬 Notes
Printed and tested in PLA. Let me know in the comments if you have any fit issues — I'm happy to release a revised version.
If this model works for you, a like or boost
is always appreciated! 🙏
