Modular Hot Wheels Display Shelf | 1/64 Scale

Print Profile(1)

All
H2D Pro
H2S
H2D
H2C
A1
P2S

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
6.1 h
2 plates
5.0(1)

Open in Bambu Studio
Boost
31
121
1
1
152
61
Released

Description

Boost Me (for free)

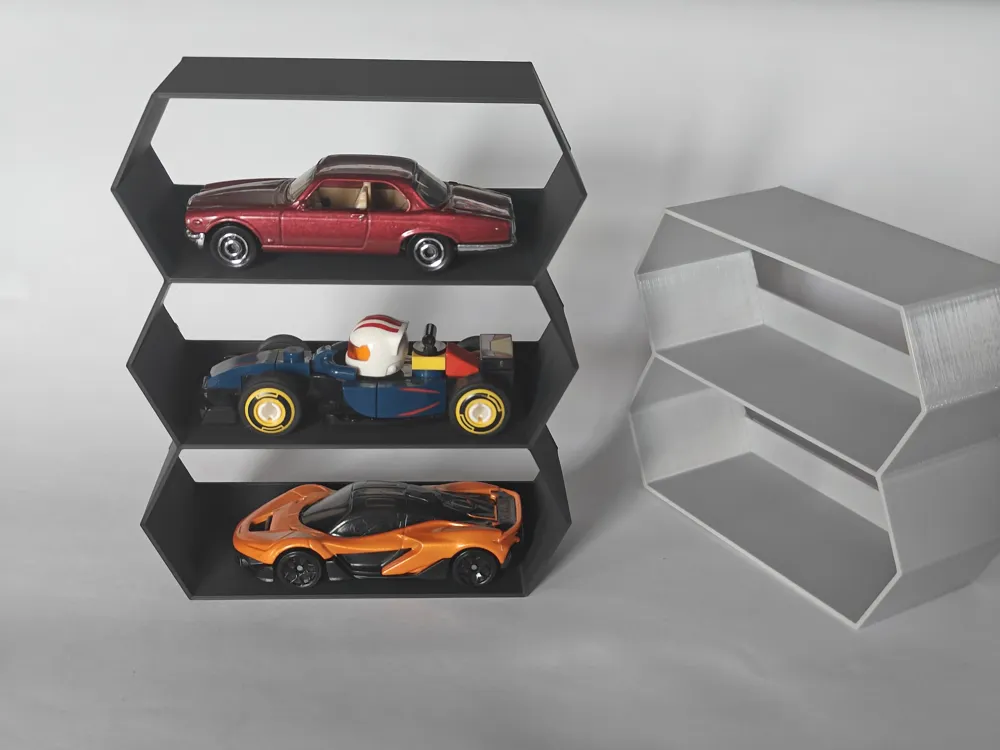

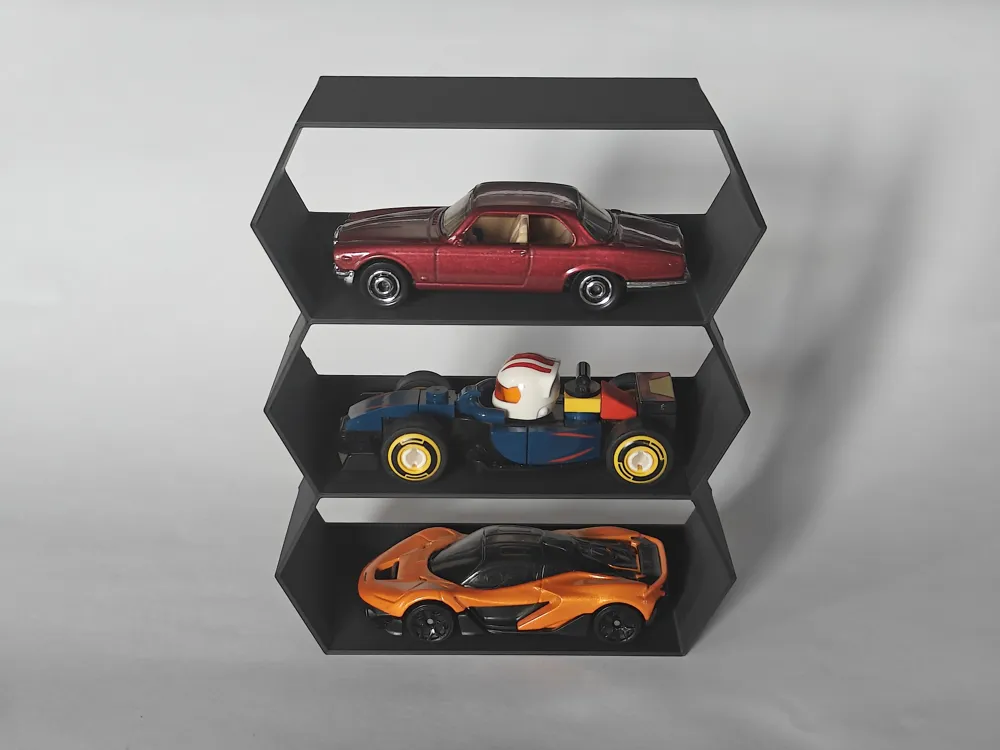

Show off your collection with this clever, fully modular display system! These lightweight shelves are designed specifically for standard 1/64 scale diecast cars, but they also work perfectly for displaying small models or minifigures.

Key Features:

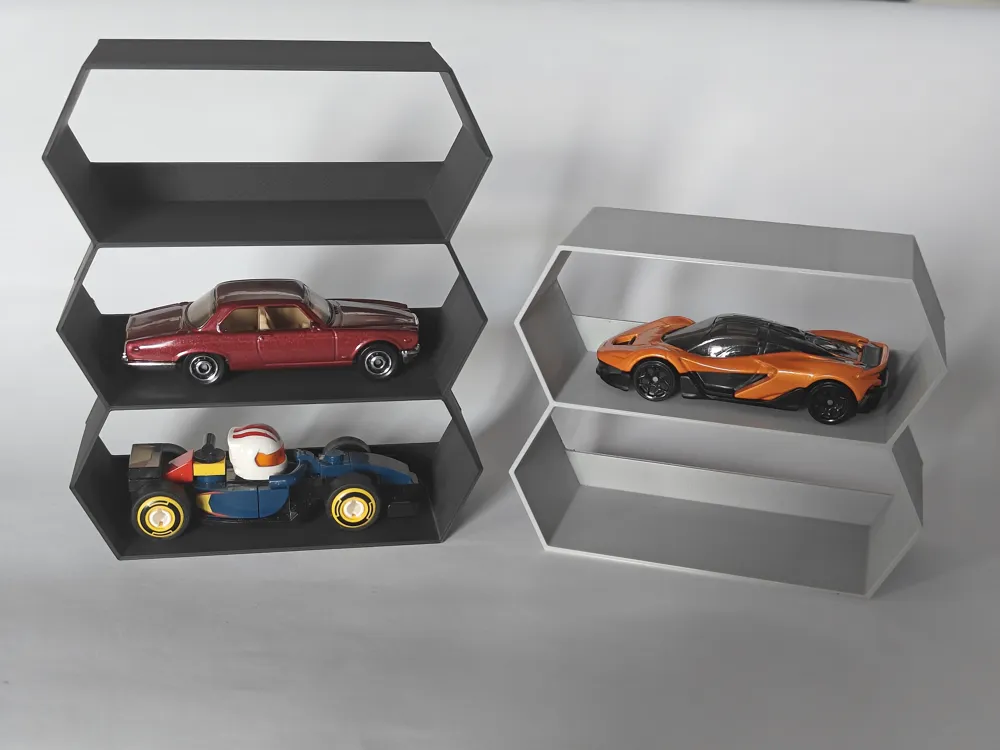

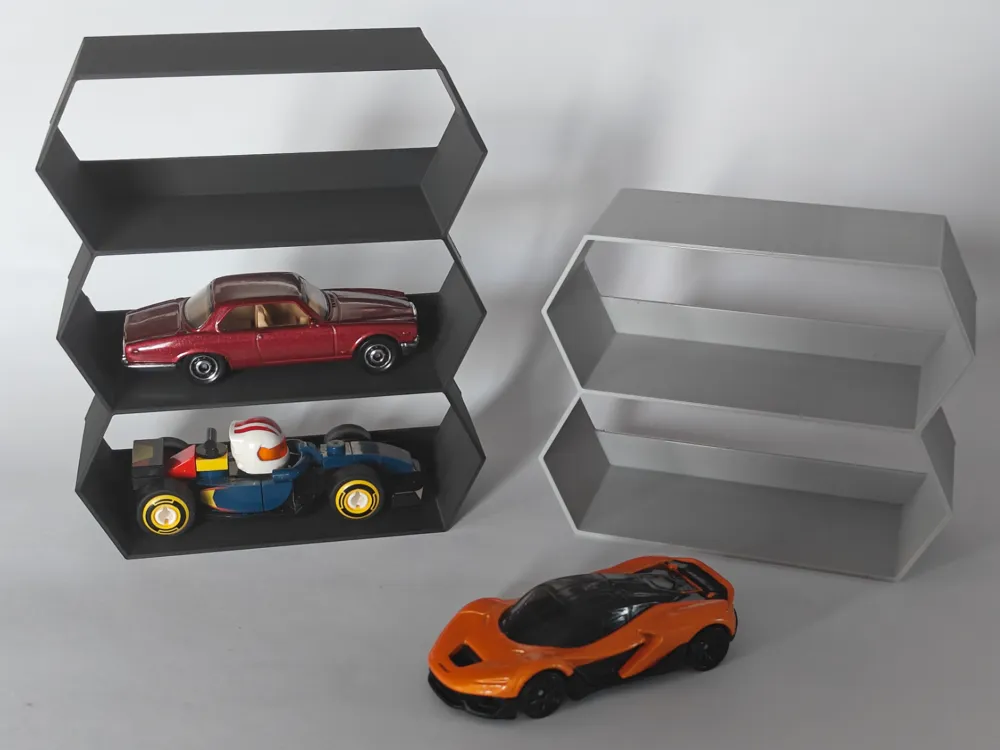

  • Fully Modular (Interlocking): The shelves feature a clever dovetail/puzzle-joint design on the sides. You can slide them together side-by-side to create an infinitely wide display.

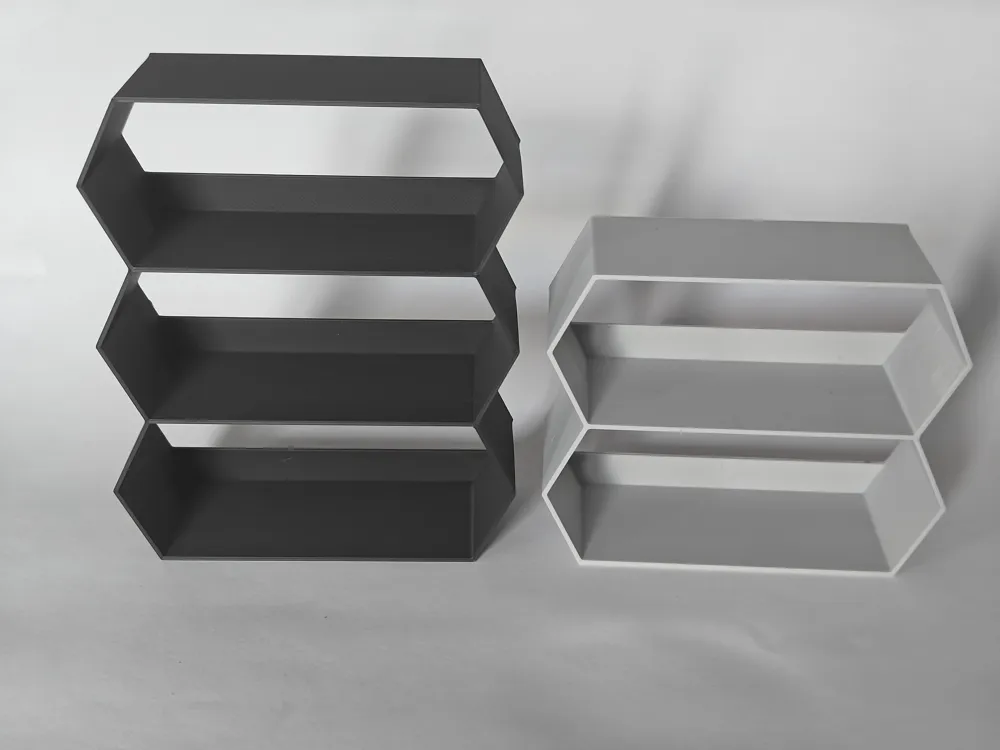

  • Vertical Stacking (2 to 6 rows): Includes multiple height configurations so you can build your display rack exactly how you want it, stacking them safely from 2 up to 6 levels high.
  • Anti-Roll Design: The back edge features a low "beam" (lip) that prevents the cars from rolling out backwards. The whole structure is very stable and won't wobble.
  • Super Lightweight: Uses minimal filament while retaining excellent rigidity.

Printing Instructions:

  • Orientation: Print flat on its back (the side that touches the wall).
  • Supports: NONE. The design is optimized for easy, support-free printing.
  • Material: PLA is perfect for this. PETG or ABS work too if you prefer, but PLA offers the best stiffness for shelves.
