ARLO VMB5000B Wall Mount
Print Profile(1)
Bill of Materials
Description

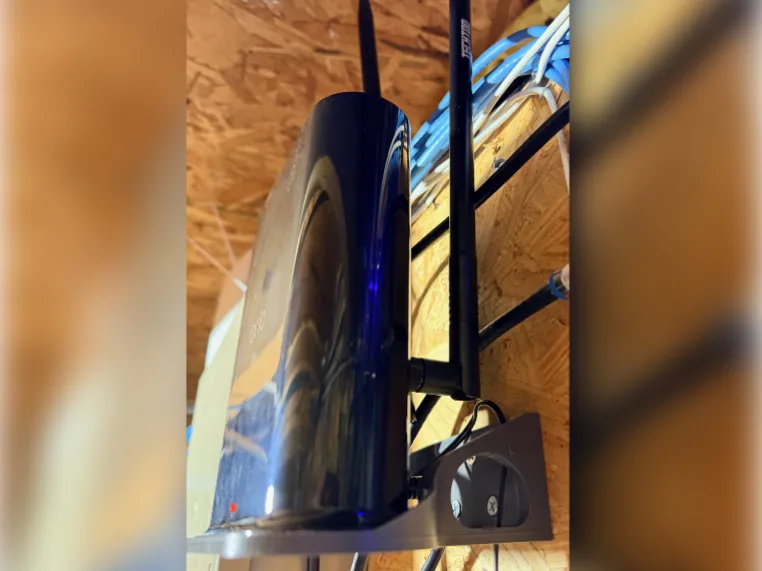

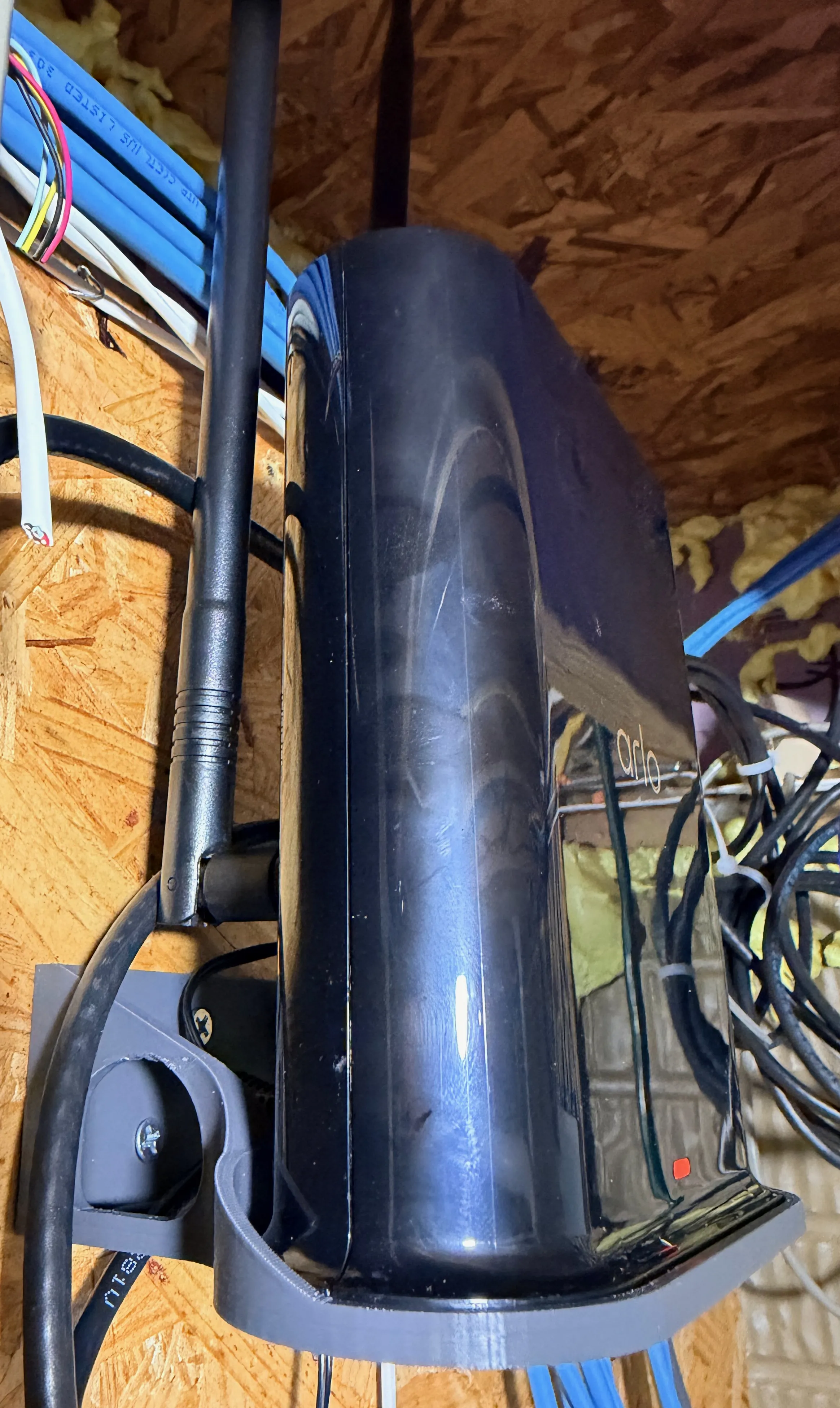

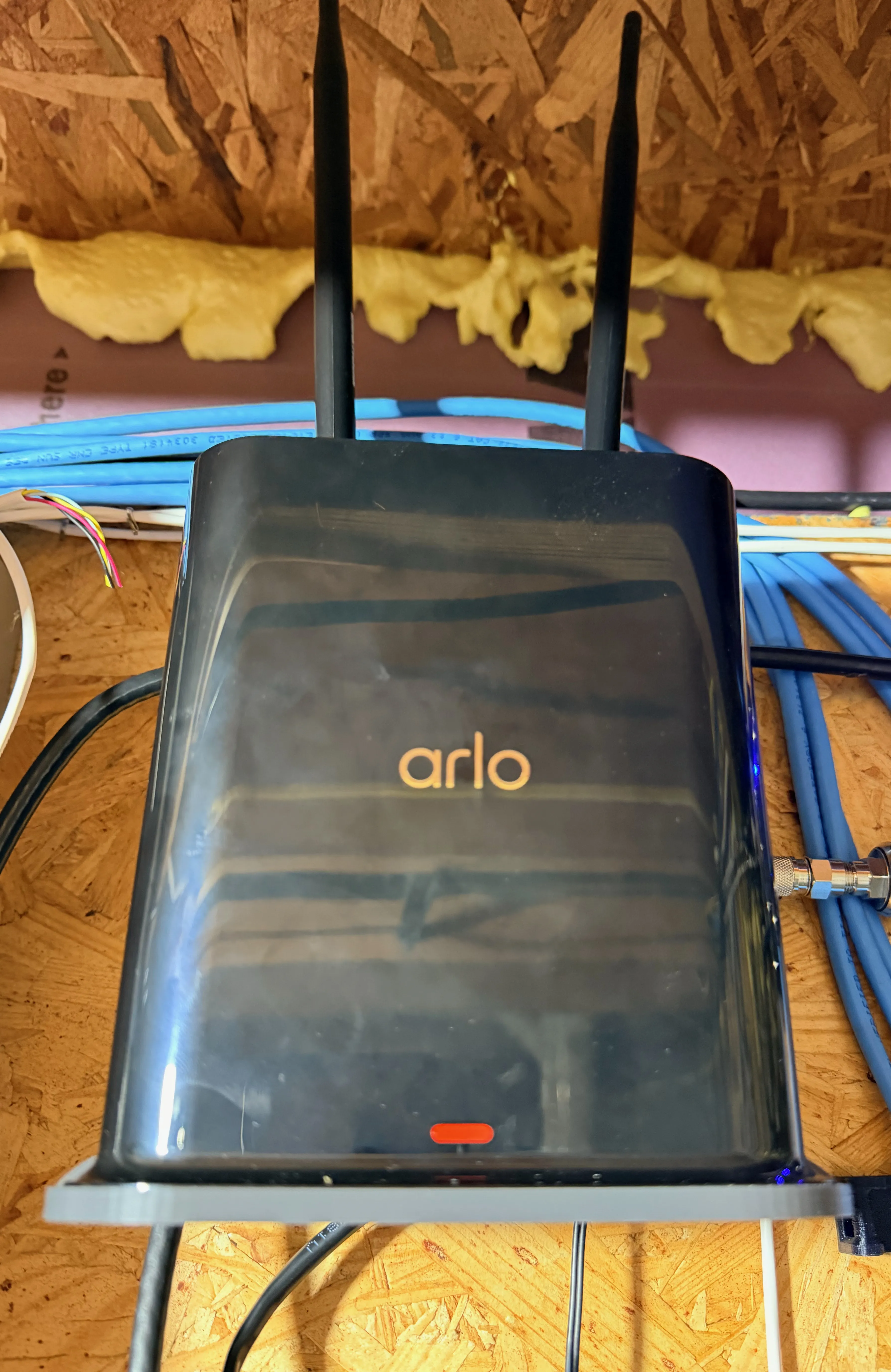

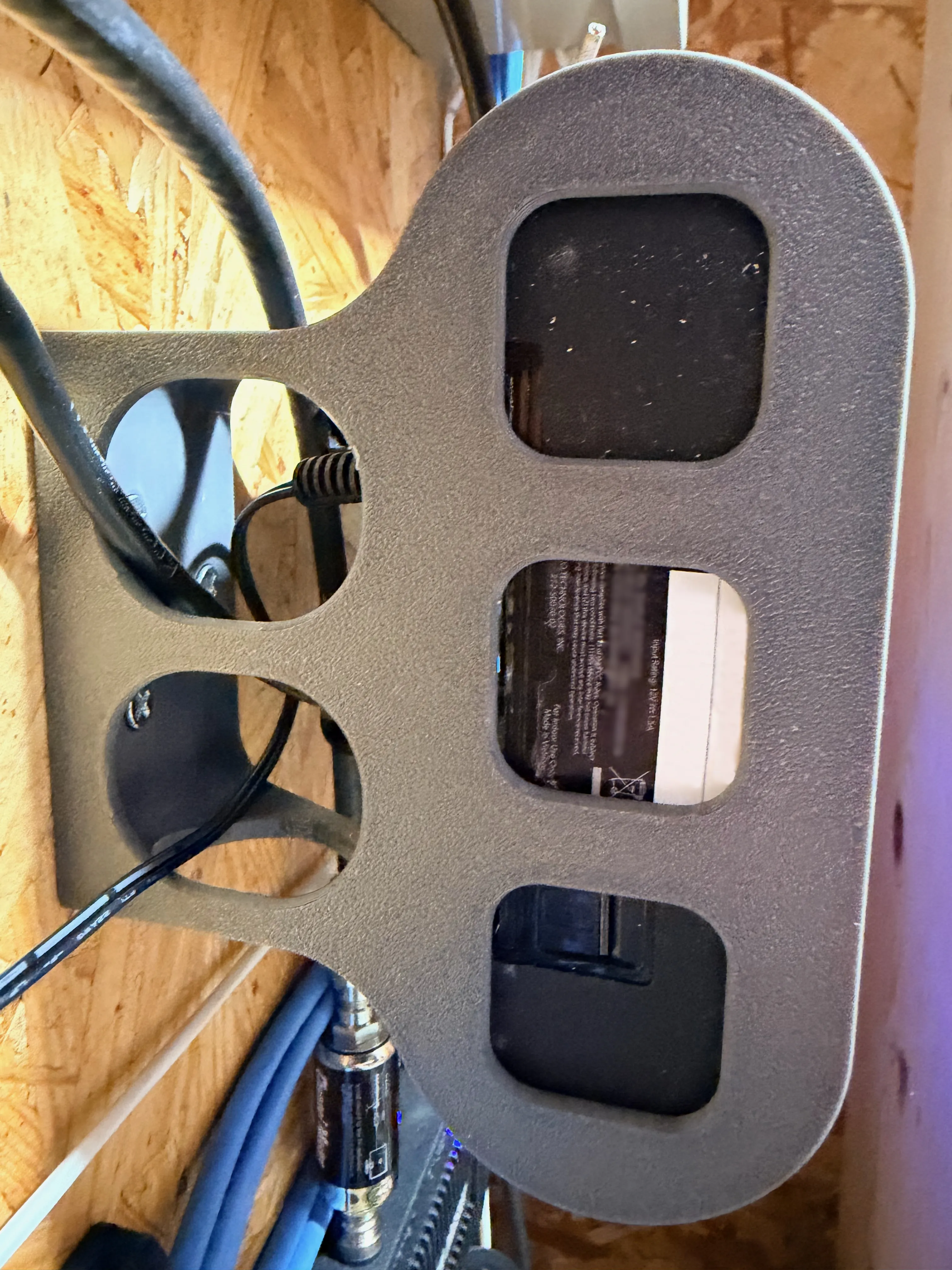

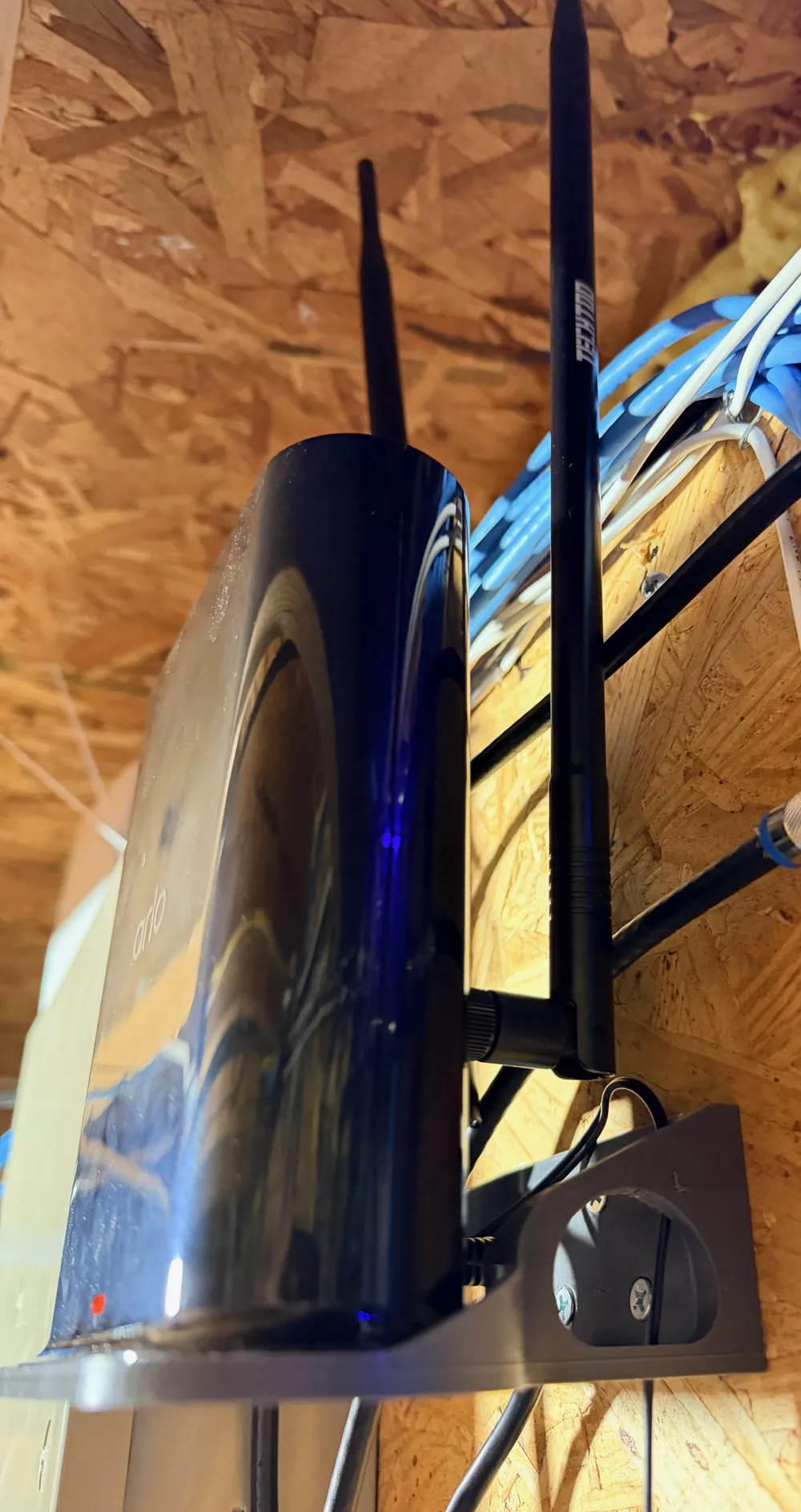

This mount was designed to wall mount our ARLO VMB5000 to the wall. The antenna's off the back of the unit were custom installed to support a farther range to a more remote camera. This wall mount will take into account the antennas as well as all associated cabling facilitating a clean installation.
 |  |  |
*** Modification of your device WILL void the ARLO factory warranty! Any modifications seen here or attempted is done at your own risk and any damage that results from improper modification are your responsibility. ***
The modification was fairly simple, does not require any soldering, but will require opening the case. This requires the removal of the internal antenna's that are replaced by the SMA bulkhead connectors. This does require drilling the housing. If you would like to modify your ARLO Pro Smart Hub below are the parts that I used:

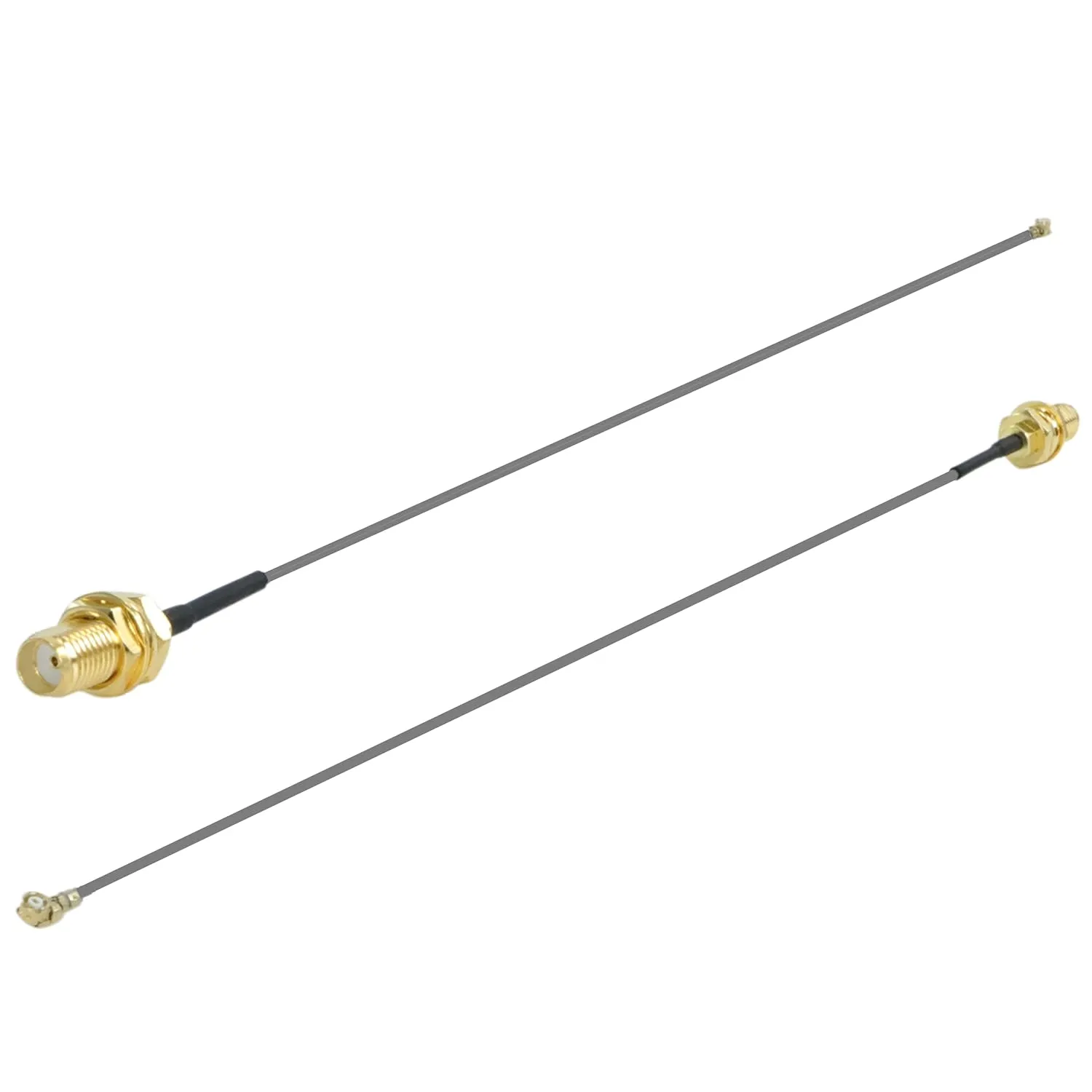

Amazon ANT-105-SMA-2PK Proxicast 8 inch U.FL (IPEX / MHF1) to SMA Female Ultra Low-Loss 1.37mm

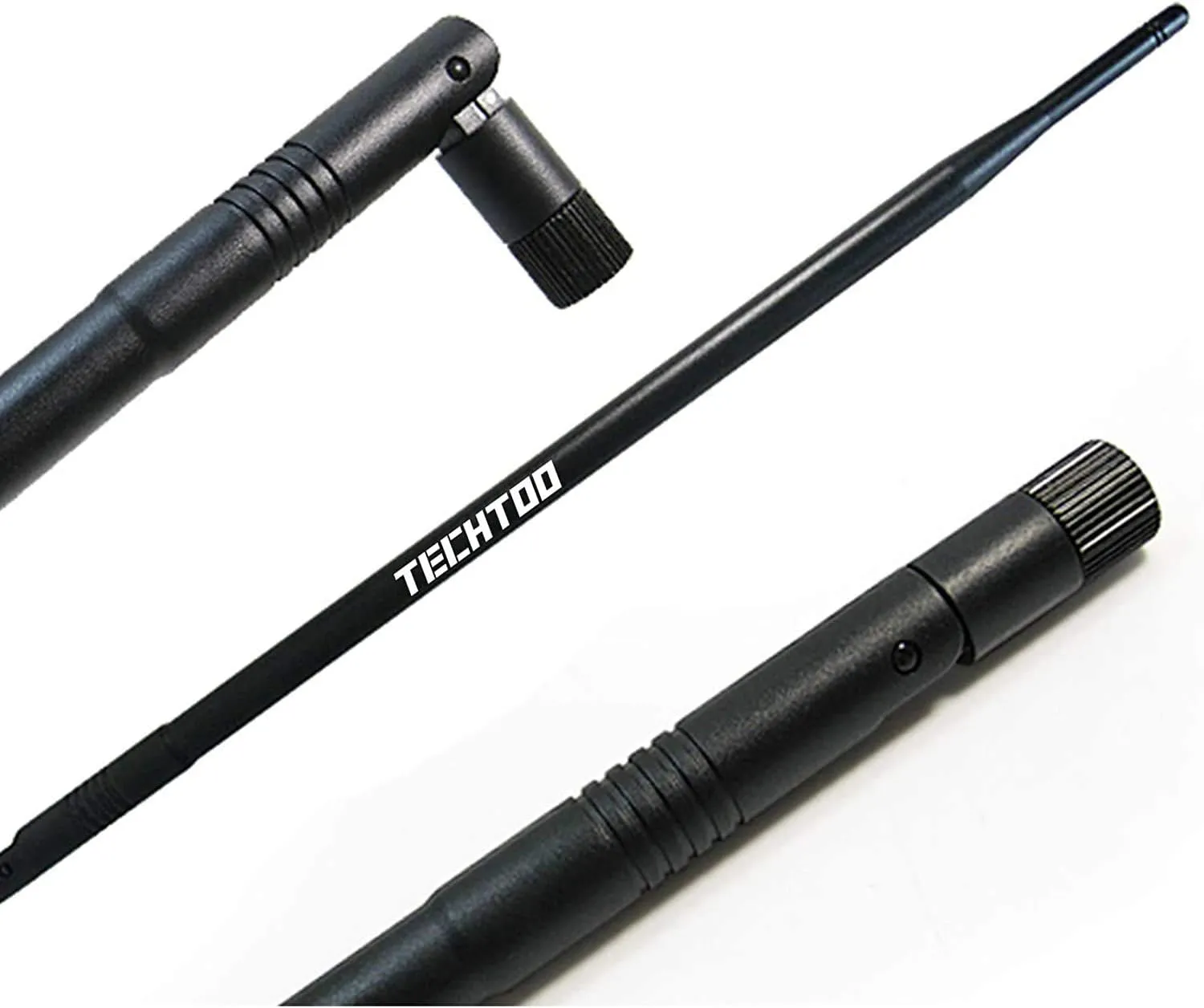

Amazon SMA-Plug 2Pack 9dBi WiFi Antenna with SMA Male Connector
💬 Feedback and any recommendation Welcome!
I’d love to hear your thoughts on this design! If you try it, please let me know how it works for you. I’m always looking to improve the design based on community feedback.
Boost Me (for free)
Your support helps me to improve not only models like this, but also to create other useful tools as well!
