Classic Tournament-Inspired Chess Set

Tired of oversized chess sets, random proportions, mismatched bases, and pieces that feel cheap?

This project was created to solve exactly that.

The goal was to design a clean, classic chess set with consistent proportions and dimensions that closely follow official tournament guidelines. Every piece shares the same base diameter (except the pawns, slightly smaller), creating a balanced and coherent look across the entire set.

The result is a solid, well-proportioned chess set that prints reliably and feels substantial in hand.

I also included multiple printing profiles so the set works well with different printers and board sizes.

Printing Profiles

Three profiles are included depending on printer and board size.

A1 Mini – 40 mm Board Square

Base diameter: 31.25 mm
Pawn base diameter: 29 mm

Print settings:

• 10 external wall loops
• 50% Gyroid infill

Dimensions and weight:

• King — 31.35 × 31.35 × 77.75 mm — 17 g
• Queen — 31.35 × 31.35 × 68.42 mm — 15 g
• Bishop — 31.35 × 31.35 × 63.04 mm — 14 g
• Knight — 31.35 × 31.35 × 57.72 mm — 13 g
• Rook — 31.35 × 31.35 × 52.35 mm — 15 g
• Pawn — 29 × 29 × 31.35 mm — 10 g

A1 (and other printers) – 40 mm Board Square

Same dimensions as the A1 Mini profile.

Base diameter: 31.25 mm
Pawn base diameter: 29 mm

Print settings:

• 10 external wall loops
• 50% Gyroid infill

A1 (and other printers) – 50 mm Board Square

Base diameter: 38.31 mm
Pawn base diameter: 35 mm

Print settings:

• 10 external wall loops
• 50% Gyroid infill

Dimensions and weight:

• King — 38.31 × 38.31 × 95.00 mm — 20 g
• Queen — 38.31 × 38.31 × 83.62 mm — 18 g
• Bishop — 38.31 × 38.31 × 75.00 mm — 16 g
• Knight — 38.31 × 38.31 × 70.54 mm — 15 g
• Rook — 38.31 × 38.31 × 63.97 mm — 18 g
• Pawn — 38.31 × 38.31 × 57.23 mm — 12 g

Materials

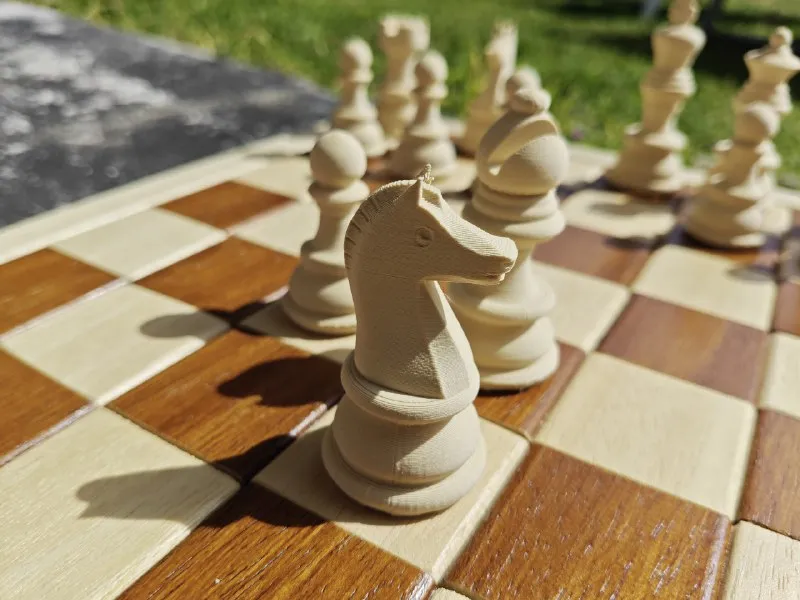

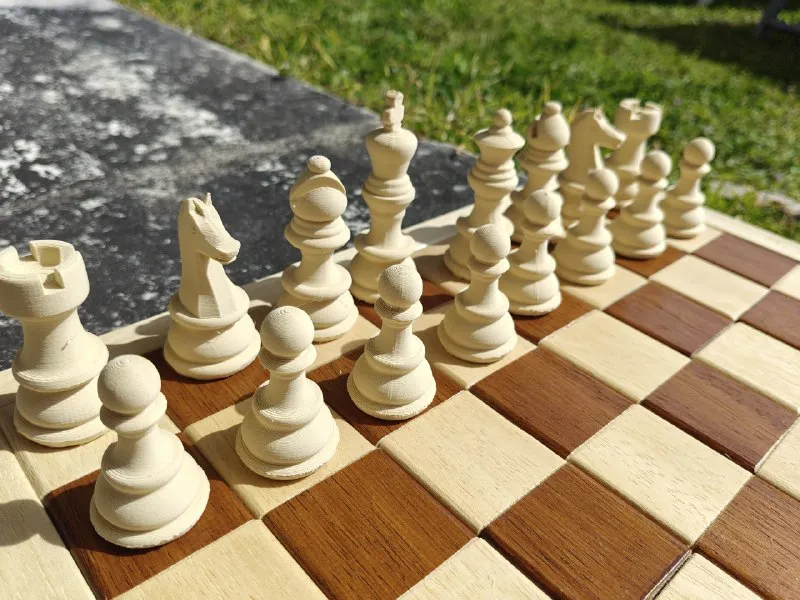

Printed using PLA Wood filaments:

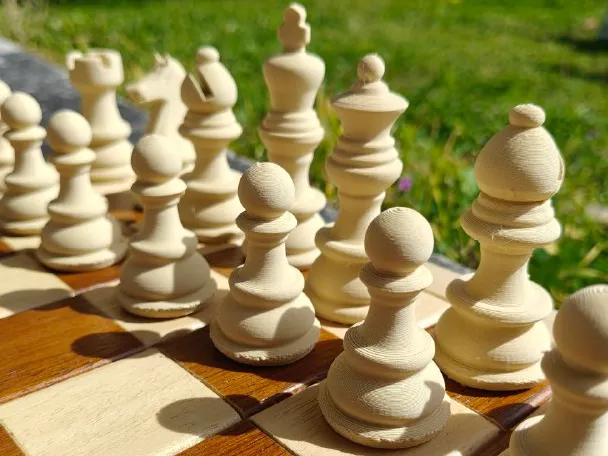

White pieces — PLA Wood Tan Birch
Black pieces — PLA Wood Walnut

The wood-filled filament gives the set a warmer, more traditional look compared to standard PLA.
