IKEA VARMBLIXT No-Drill Wall Mount (Command Strip)

IP Report

Print Profile(1)

All
P2S
H2S
A1 mini
P1S
X1 Carbon
H2D Pro
A1
P1P
H2C
X1
X1E
H2D
X2D
A2L

0.2mm layer, 3 walls, 15% infill
0.2mm layer, 3 walls, 15% infill
Designer
54 min
1 plate
5.0(1)

Open in Bambu Studio
Boost
6
46
1
1
20
16
Released

Bill of Materials

Bambu Filaments
Select all
Clear (32101) / Filament with spool / 1 kg
List other parts
  • Command Medium Picture Hanging Strip x 3:

Description

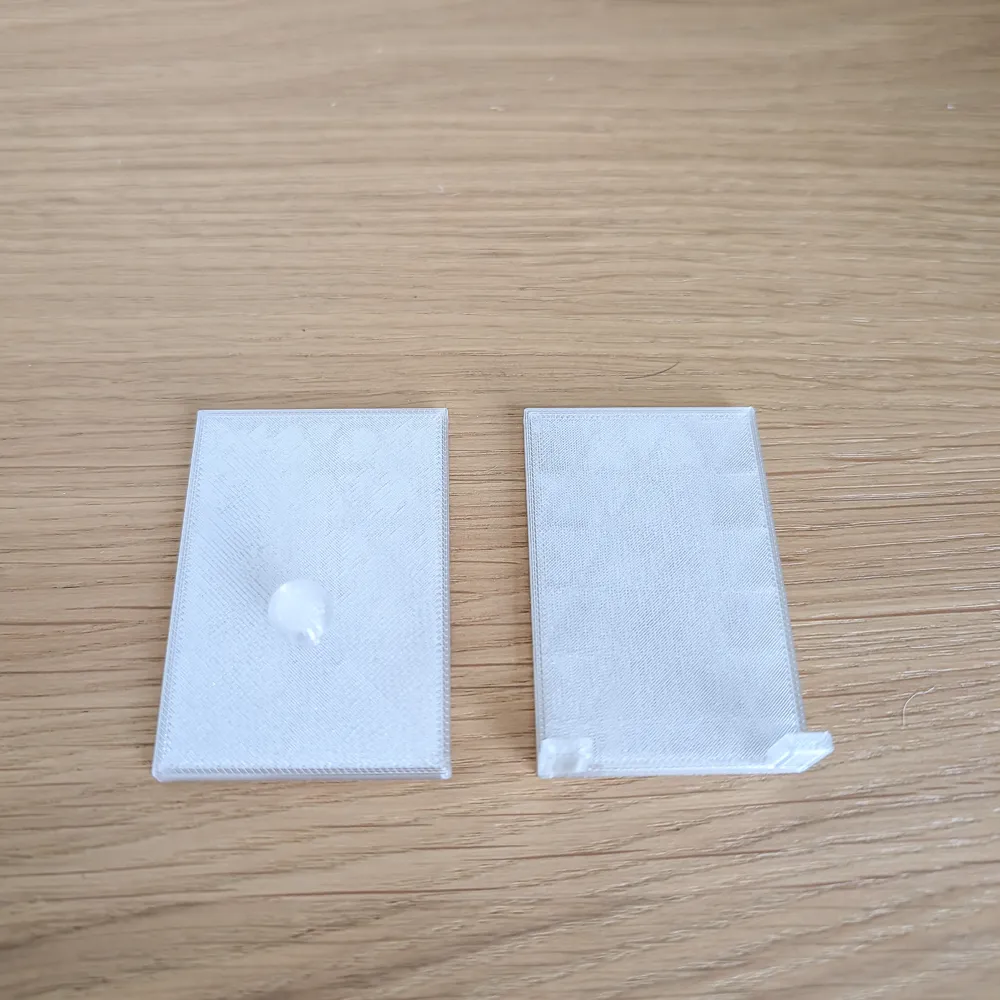

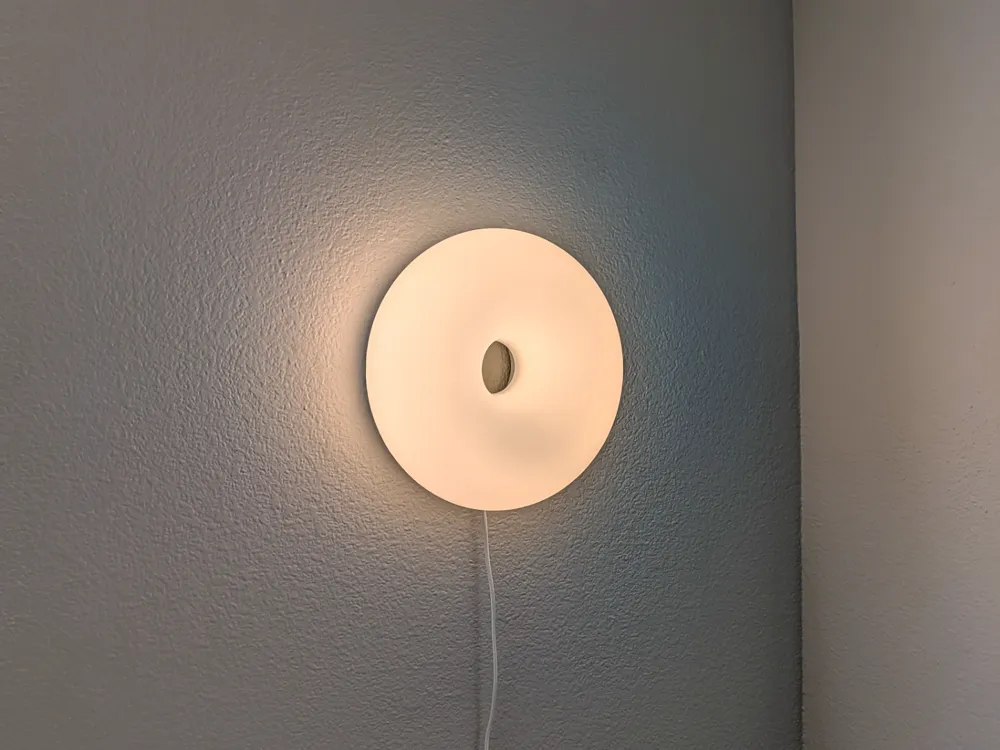

The IKEA VARMBLIXT is a beautiful lamp, but the keyhole mounting system usually requires drilling into your wall. This design is a no-drill alternative that works with Command Medium Picture Hanging (Velcro) Strips. The mount uses a two-piece system (top + bottom) to safely distribute the weight while keeping the hardware cleanly hidden behind the lamp.



Design Features

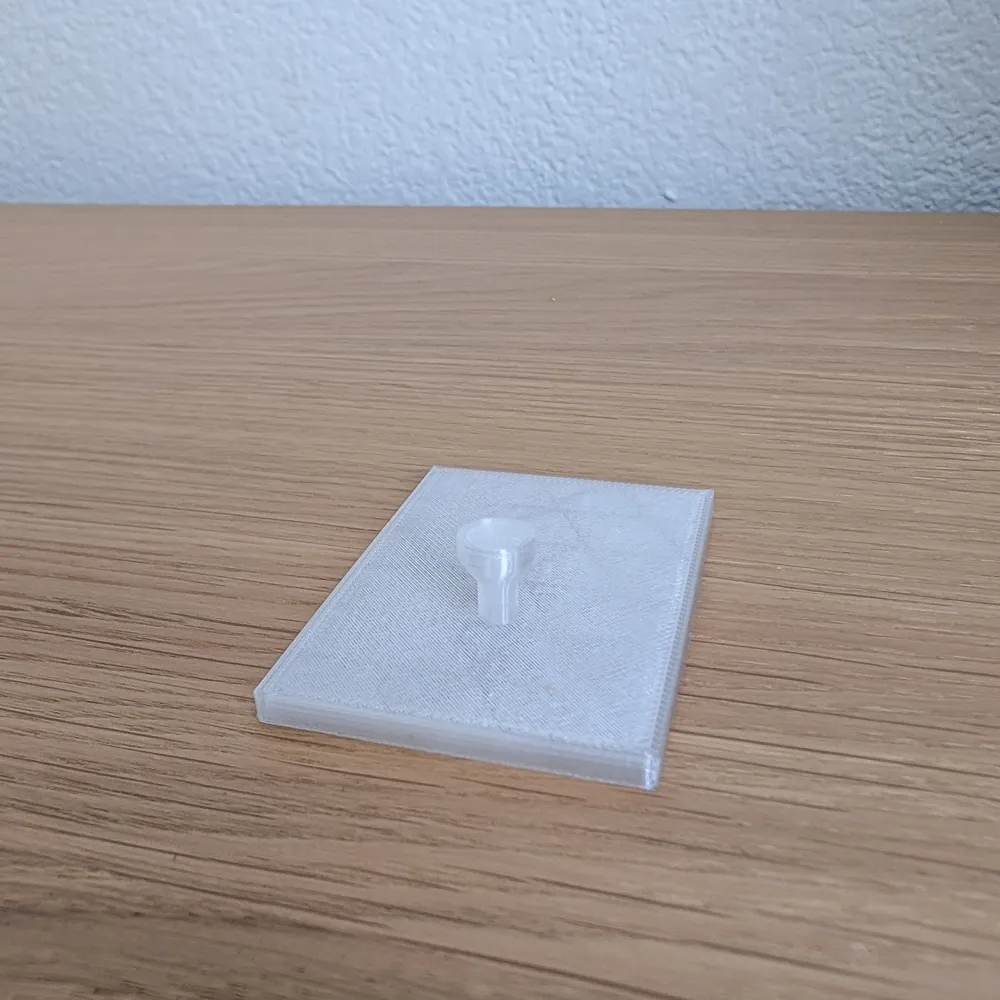

  • Top Mount: Reinforced 45° chamfered “screw” stud that fits snugly into the keyhole mount - prints without supports.

  • Recessed Velcro pockets: 2mm recesses to keep the lamp closer to the wall.

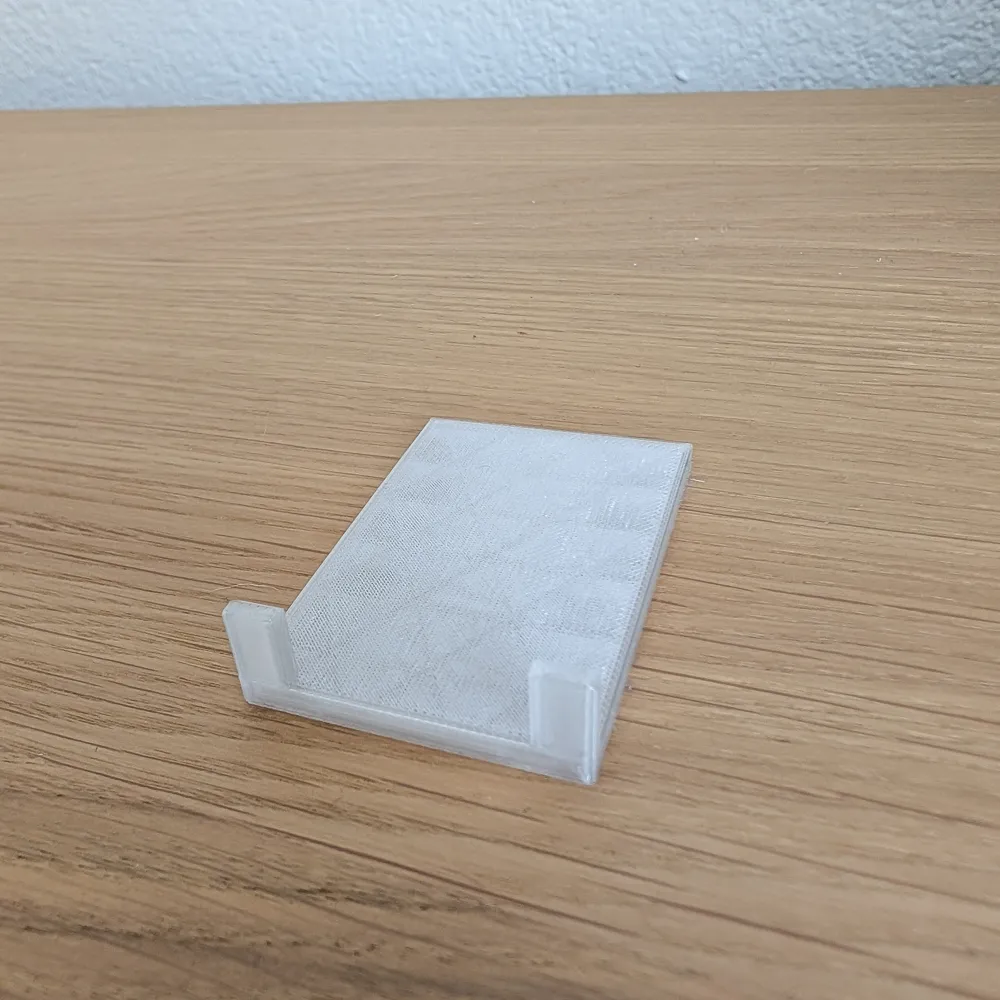

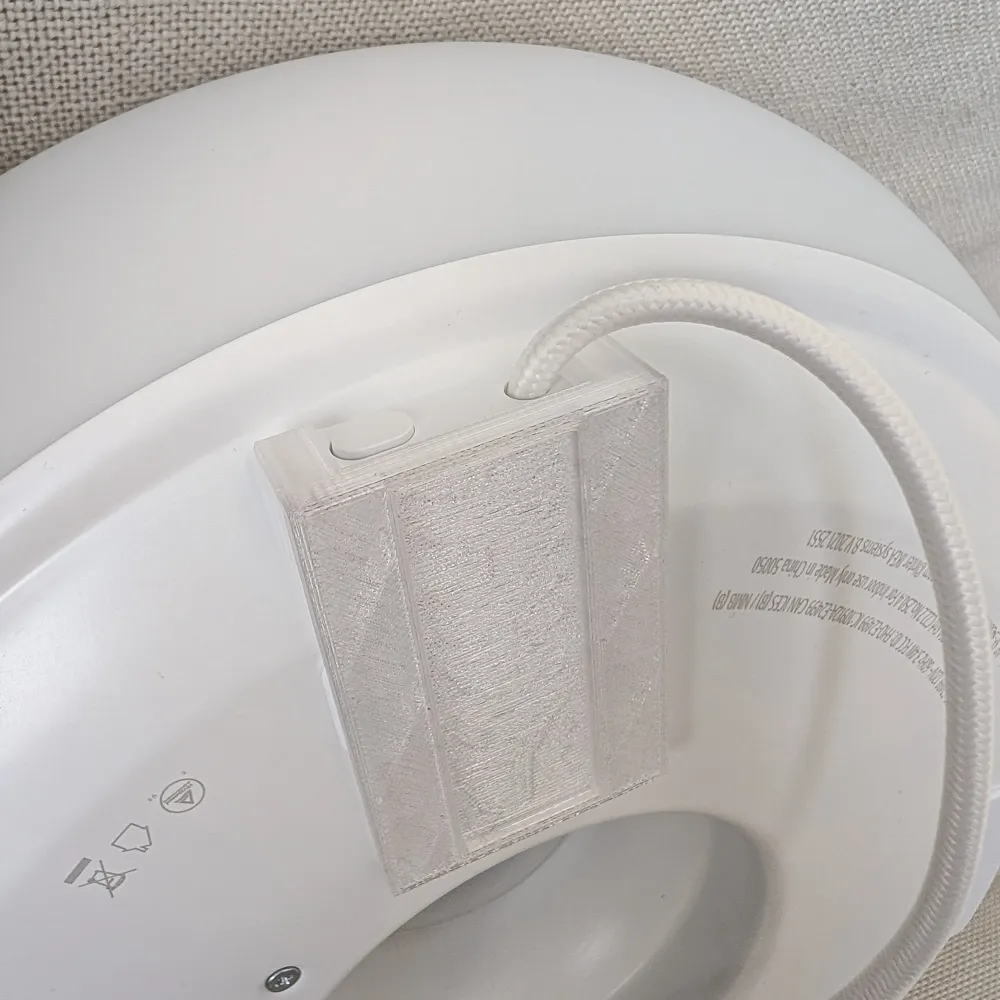

  • Bottom L-Bracket Stabilizer: Secondary support shelf for the bottom rim of the lamp. Includes a U-notch for easy access to the power button and power cable.

  • Hidden Mounting System: Both mounting pieces are hidden behind the lamp for a clean, minimal look.

My Print Settings

  • Material: PETG Translucent
  • Walls: 3
  • Infill: 15%
  • Pattern: Adaptive Cubic
  • Supports: None
  • Brim: None

Other
