Universal NEMA 23 Axis/Axle
Print Profile(1)
Description
German: Engineered for makers who prioritize power and efficiency. This design transforms standard upcycled components into a highly functional, compact linear unit. By combining a powerful NEMA 23 motor with a central 8mm guide, this system offers maximum flexibility with a minimal footprint. Ideal for anyone looking to utilize existing hardware (T8/SCS8UU) without rigid length requirements.
English: Engineered for makers who prioritize power and efficiency. This design transforms standard upcycled components into a highly functional, compact linear unit. By combining a powerful NEMA 23 motor with a single 8mm central guide, this system offers maximum flexibility with a minimal footprint. Perfect for anyone looking to utilize existing hardware (T8/SCS8UU) without being restricted by fixed length requirements.

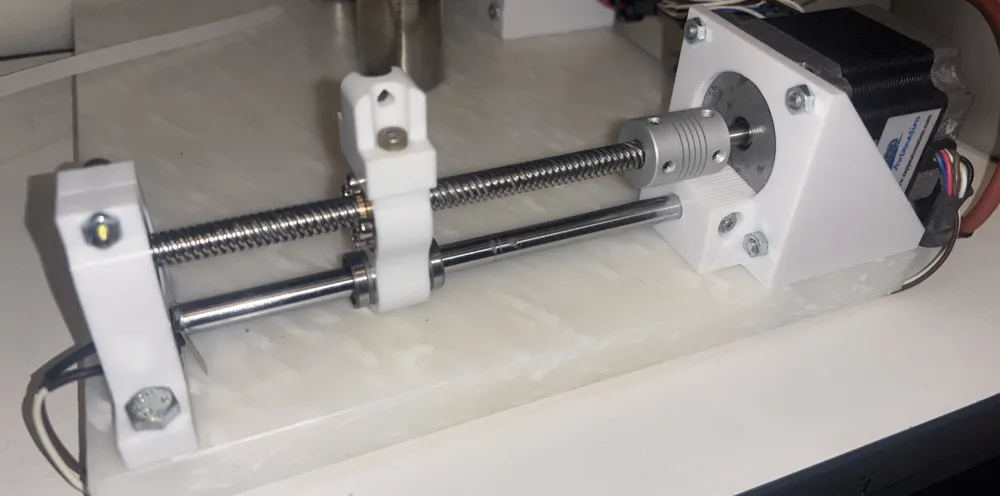

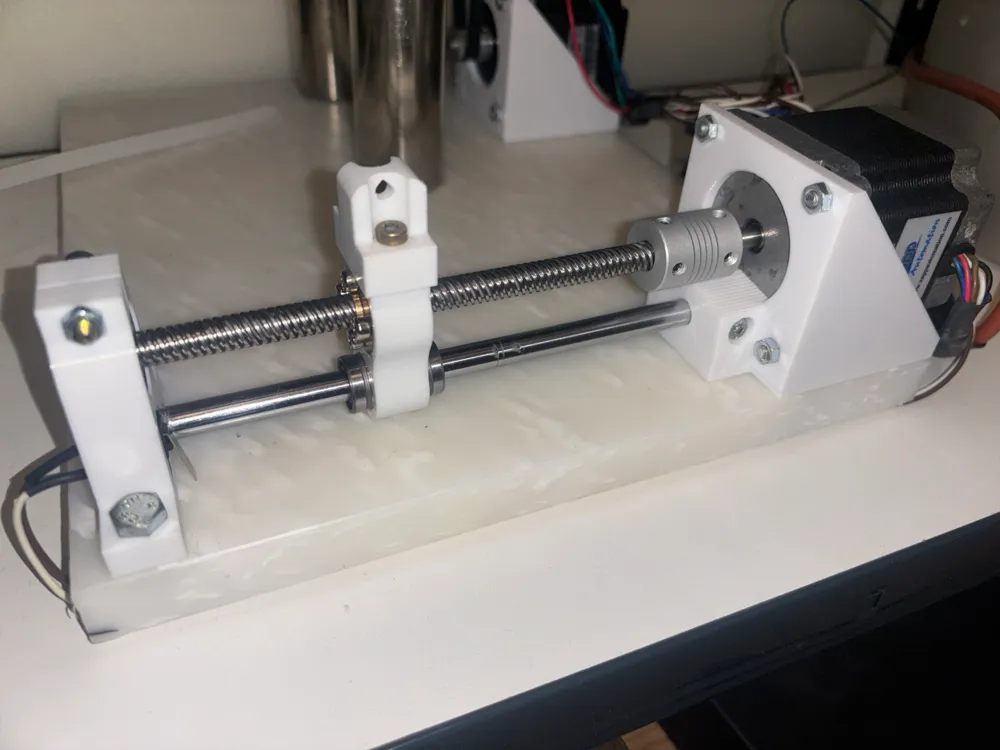

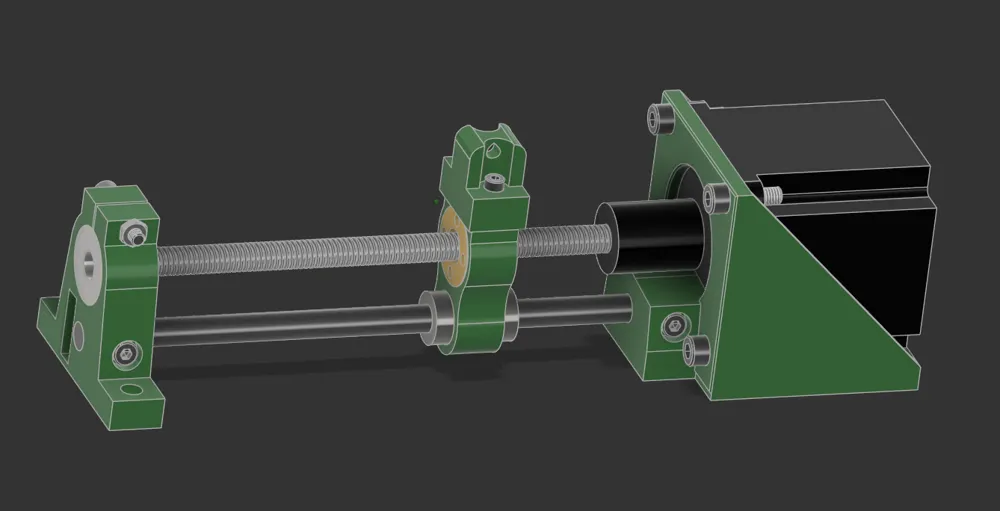

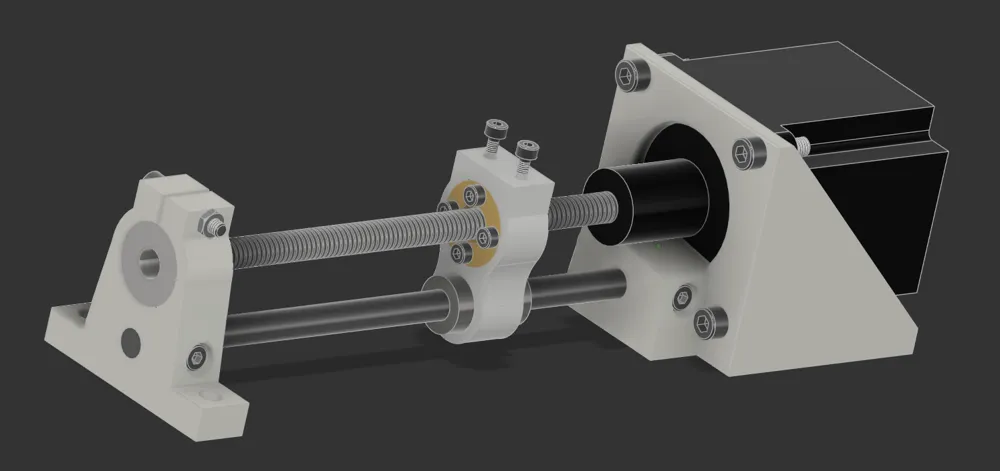

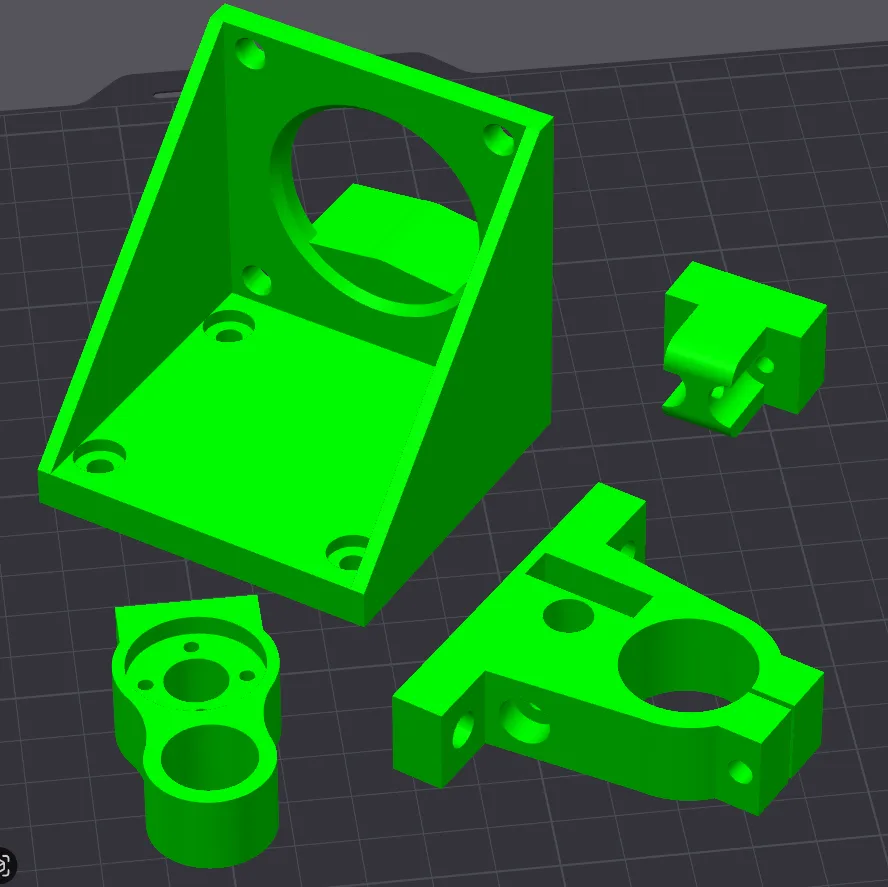

German: Compact linear system with central guidance.

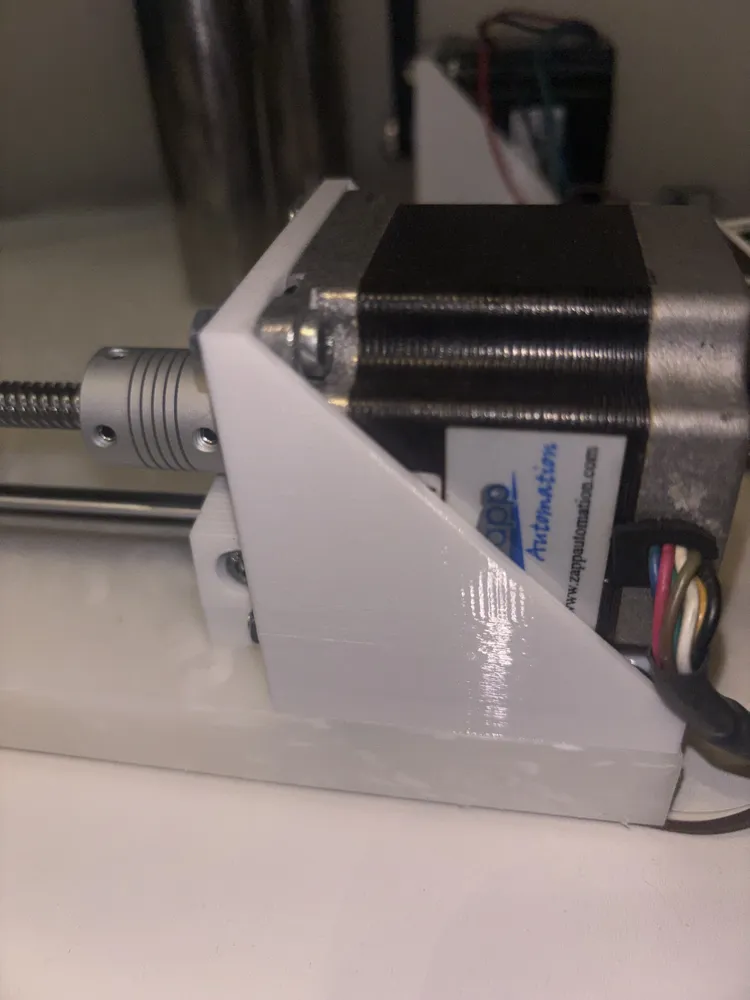

- Motor: NEMA 23
- Linear Shaft: 1x 8mm
- Lead Screw: T8 with brass nut

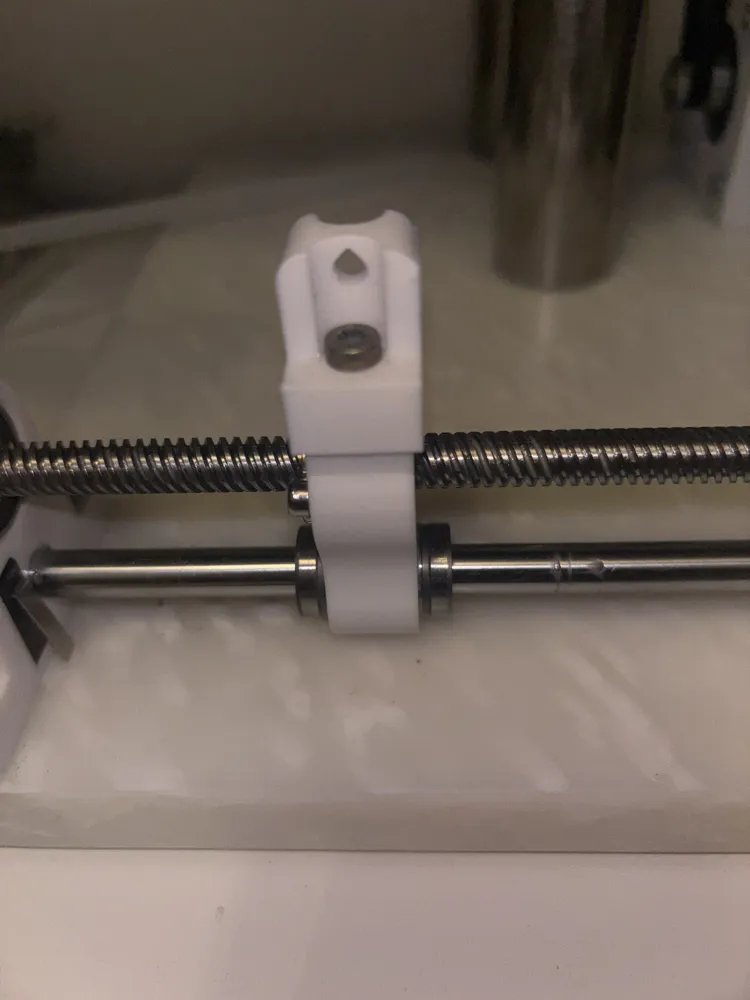

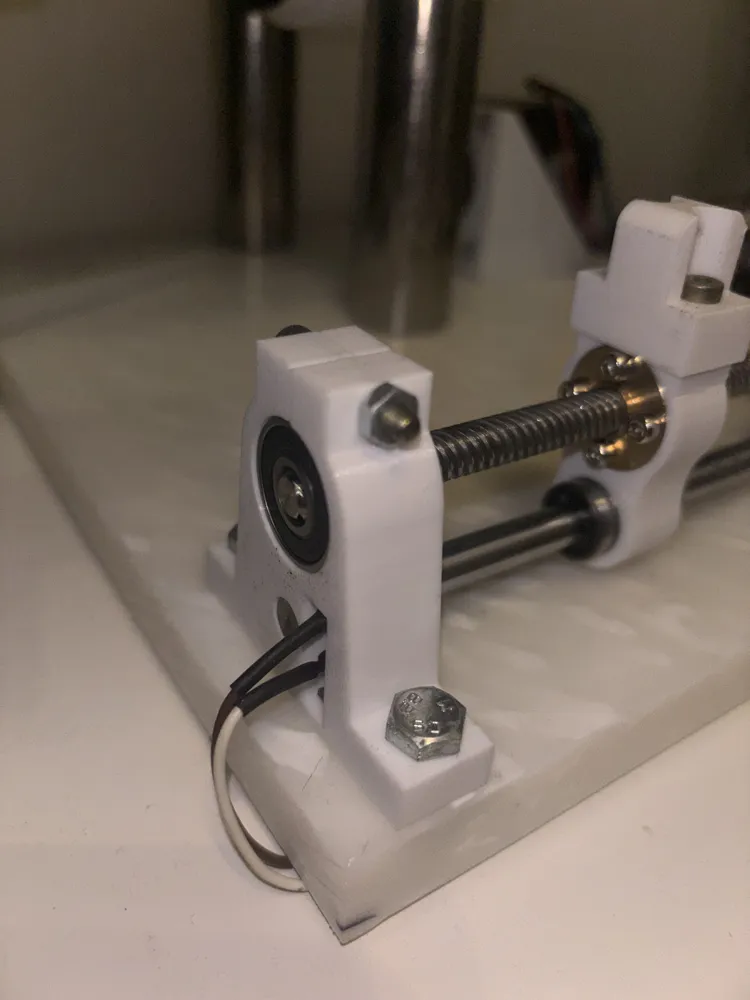

- Bearings: 1x SCS8UU & 2x 608-2RS
- Hardware: M3,M4,M5 & M6 Bolts
English: Compact linear system with central guidance.
- Motor: NEMA 23
- LinearShaft: 1x 8mm
- Lead Screw: T8 with brass nut
- Bearings: 1x SCS8UU & 2x 608-2RS
- Hardware: M3,M4,M5 & M6 Bolts
