AD5X Nozzle Box (click fit)

Nozzle storage box with slide latch

Print time on AD5X 1hr 20m without logo, 1hr 30mins if you add the logo

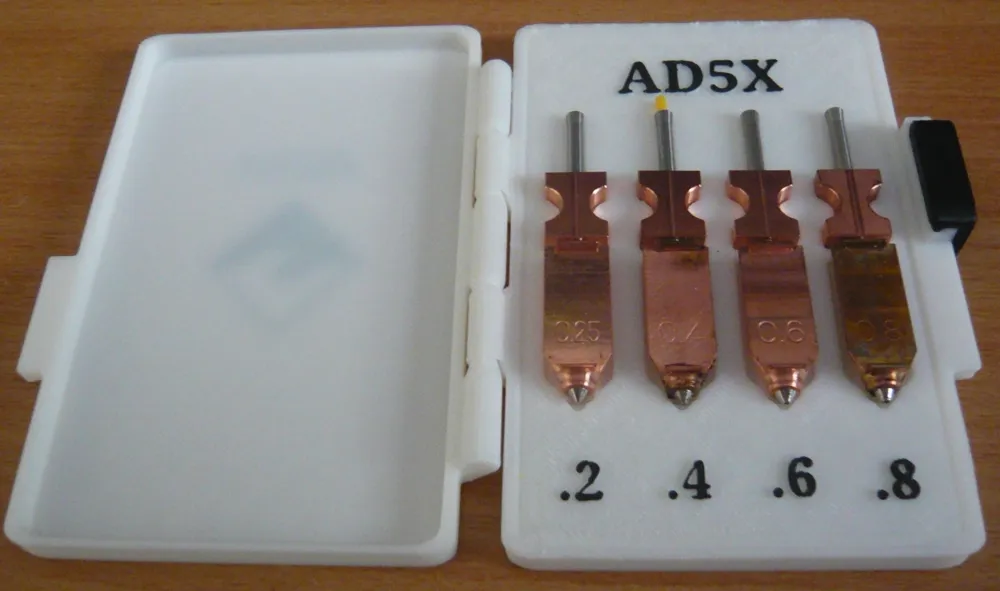

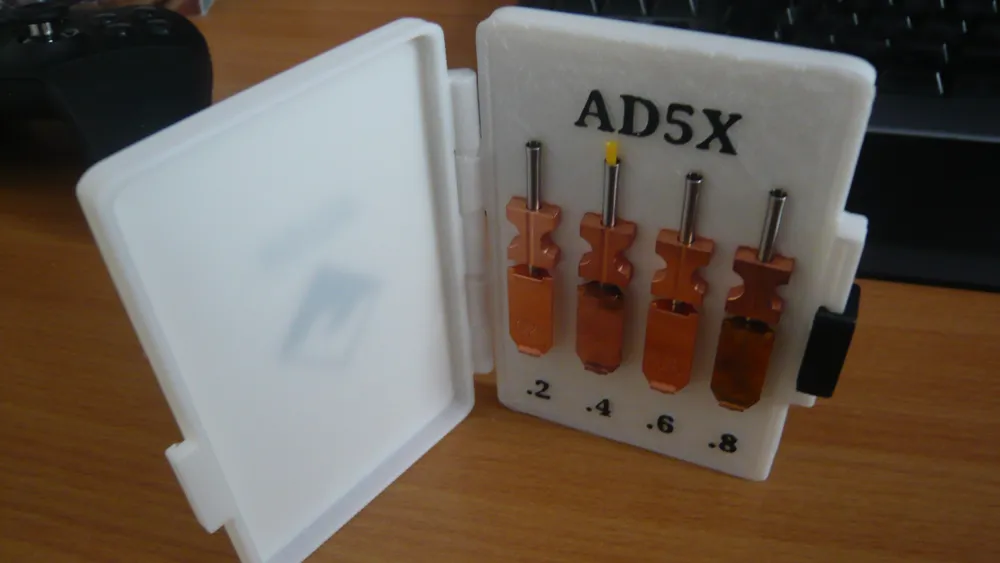

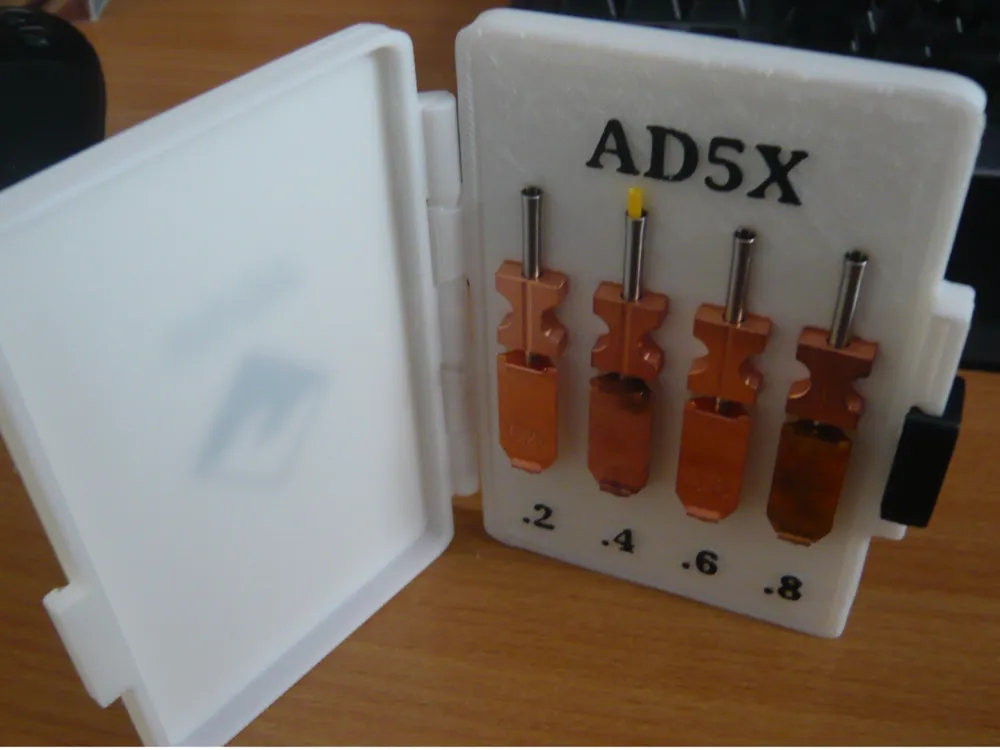

This model has a slide lock and the AD5X nozzles are a “click” fit to the inset nozzle spaces.

The colouring for the text and sizes of nozzle type were simply painted using the fill option, pen size 1.0

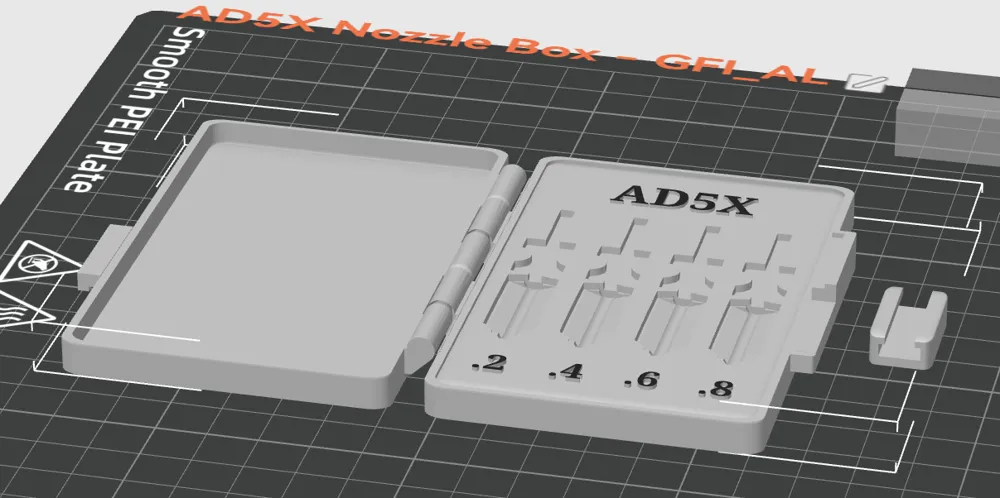

Note: to create the logo on the case, text was added to the plate and a Flashforge logo and then assembled with the box and then printed with the following settings.

Unfortunatly I cannot add my ,3mf file to this site as it is specific to the AD5X

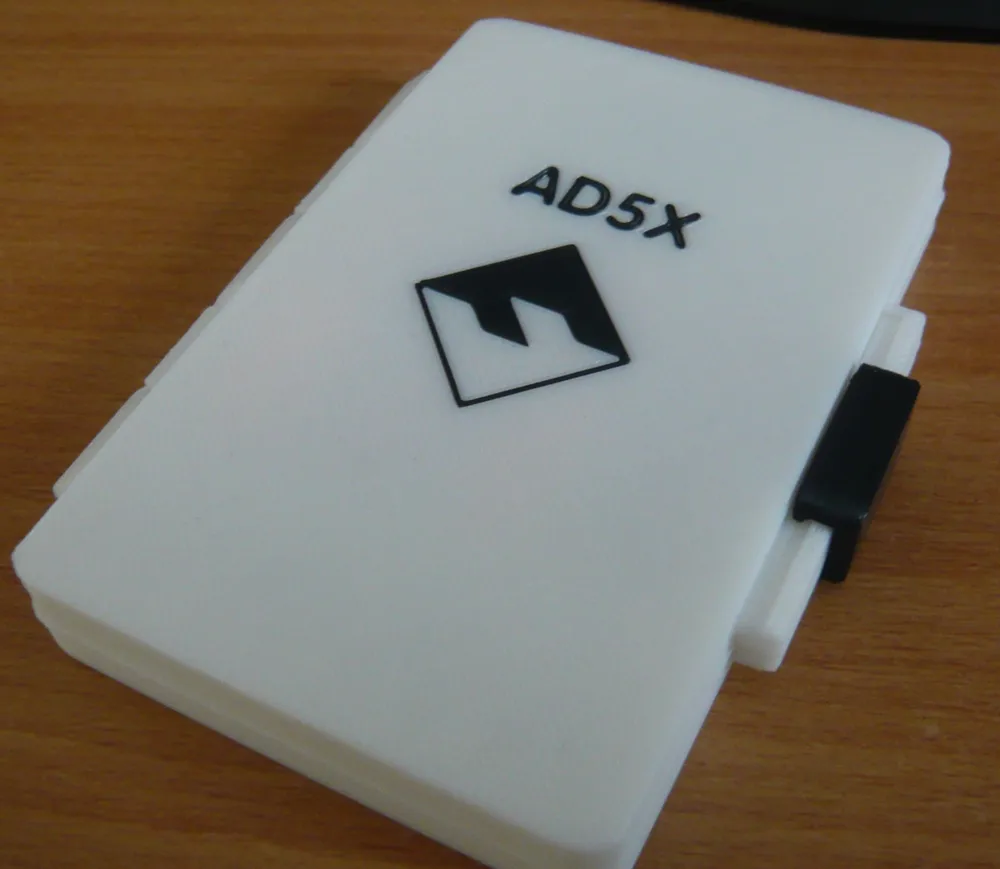

Different filament colours selected for box and logo

Settings for printing with the logo

Quality settings

Wall Generator set to Arachne

Bottom surface flow rate set to 1.01

One wall threshold set to 0mm

Only one wall on first layer selected

Supports required

After printing you may have to clean up the slide lock where the supports have attached, once done the lock works smoothly.

Printed in PLA.
