APEX Torque Block for Downhill Longboarding
Print Profile(1)
Description

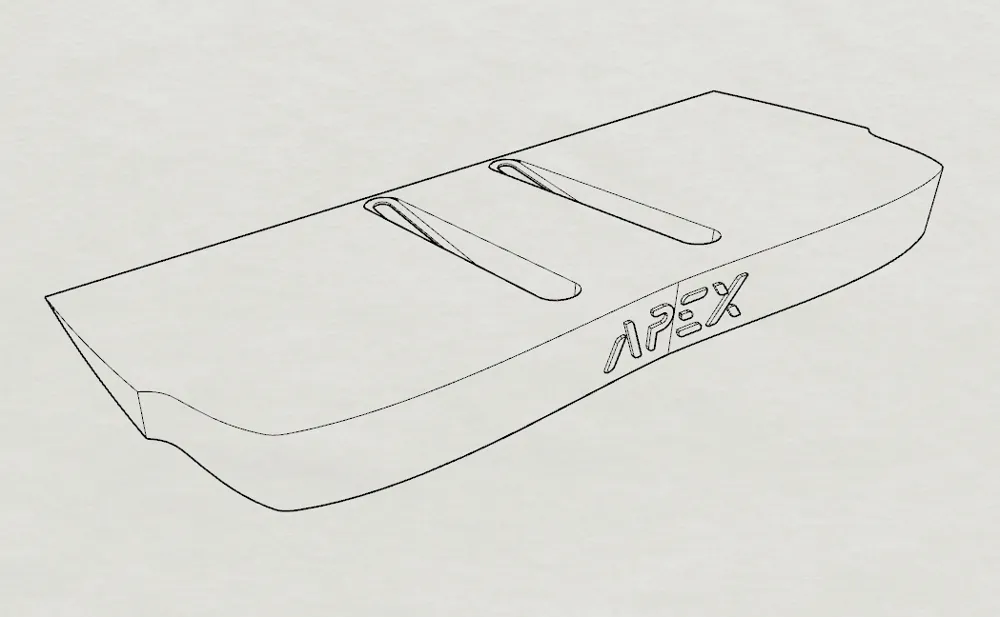

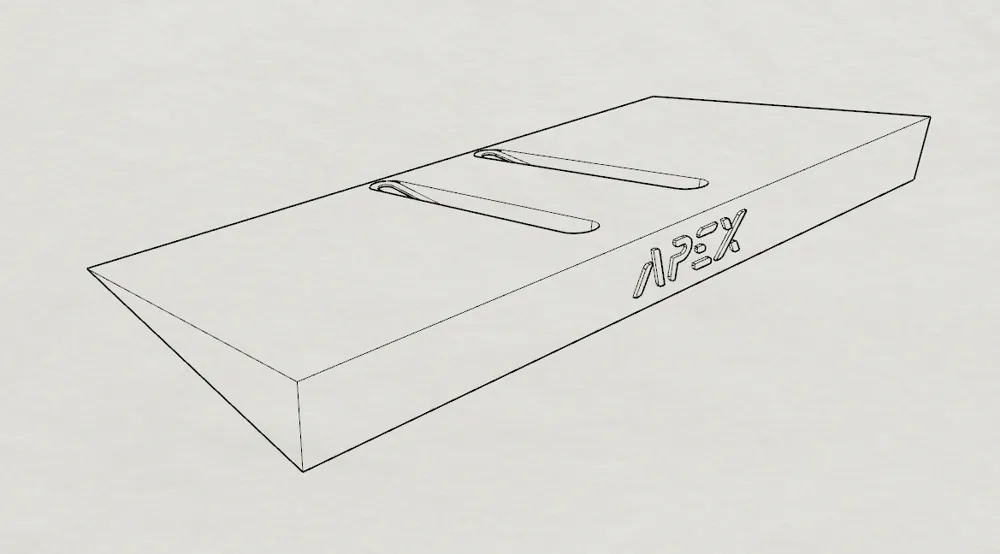

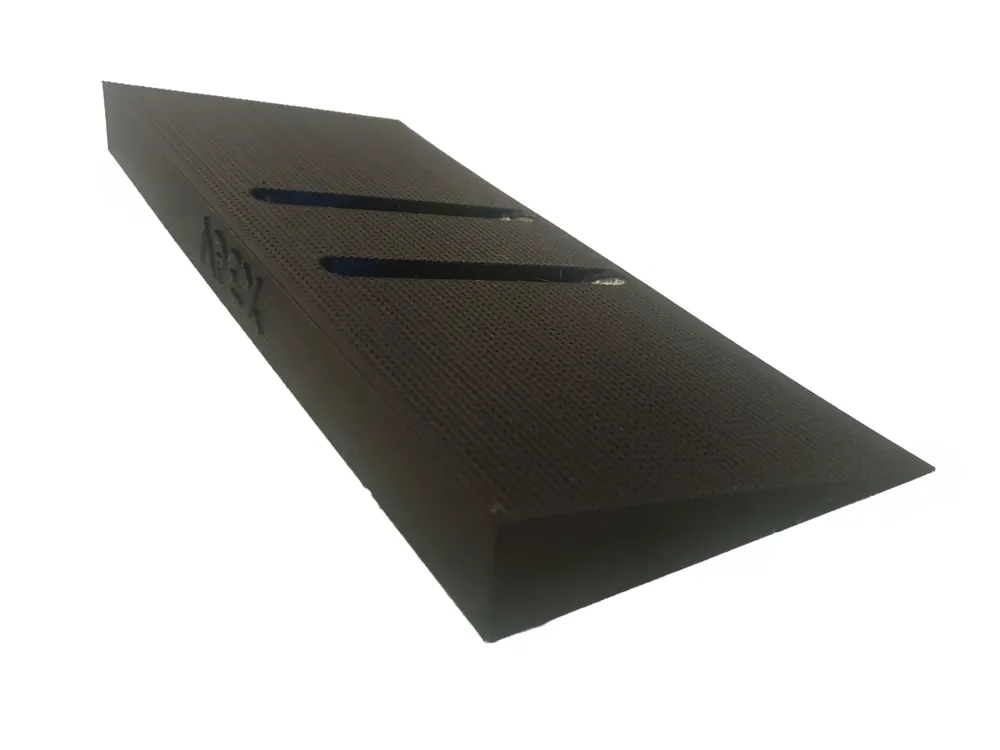

Torque Block
Used mostly in downhill longboarding. Can also be used for cruiser, slalom, and city longboards
Print Settings:
TPU 95A
Bottom layer: 1
Top layer: 3
Infill: Gyroid
Infill: 13% - 20% (Depends on the concave)
Use a 0.8 mm nozzle for faster printing and improved layer adhesion.
Width: 220 mm
Height: 20 mm
Length: 100 mm
— ! READ ! —
Attach it to the board using extra-strong double-sided tape or adhesive Velcro.
Check your gear before use if you plan to apply high forces to your board.
The holes for the mounting bolts between the board and trucks are not intended for mounting the torque block.
They are there to make modifying your setup easier.
ENJOY :)
