Modular plant stand for 120mm flower pots

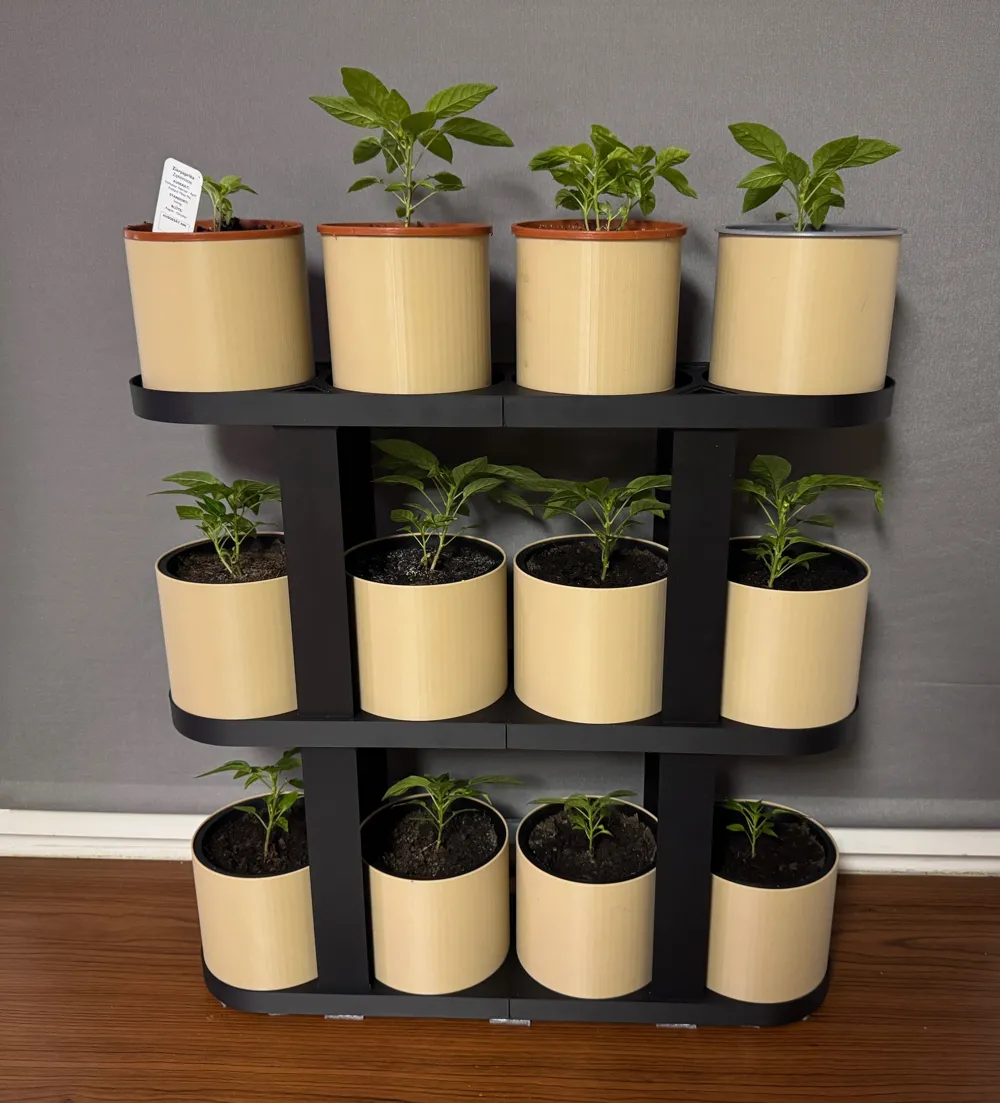

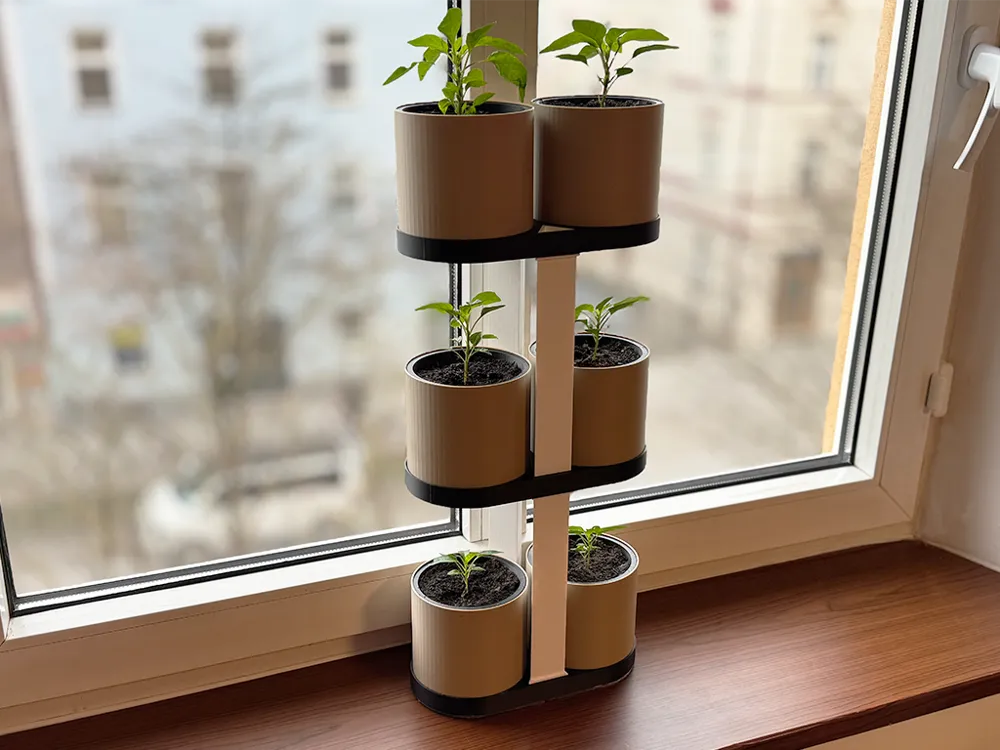

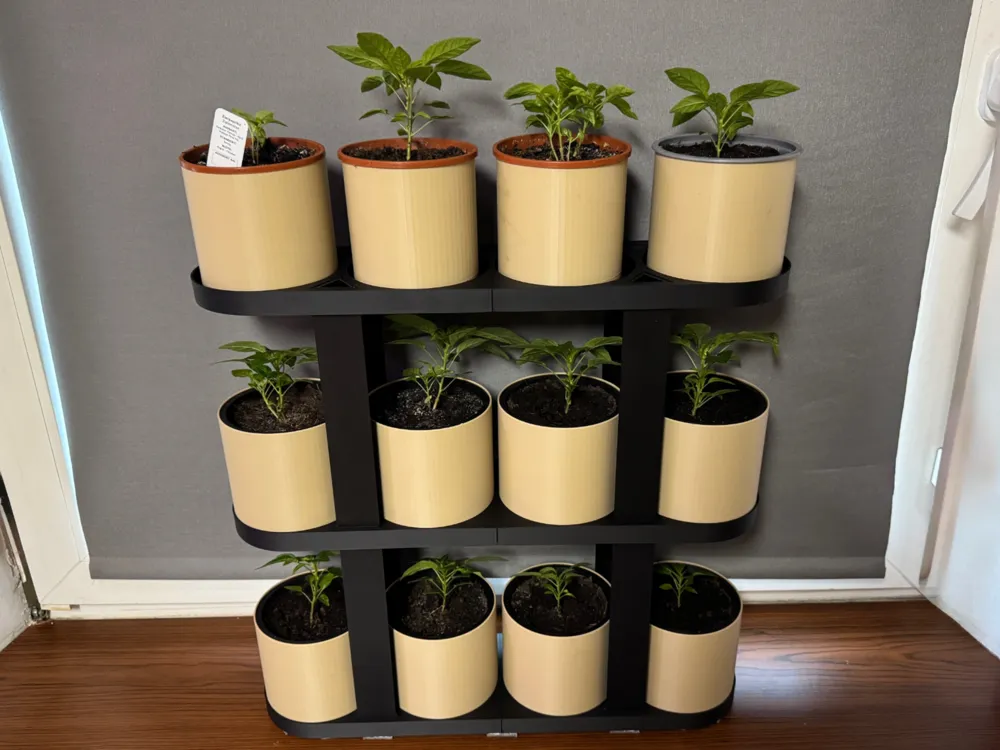

With this modular plant stand, several flower pots can be arranged space-savingly one above the other
Two round flower pots with a diameter of about 120 mm can be placed per level

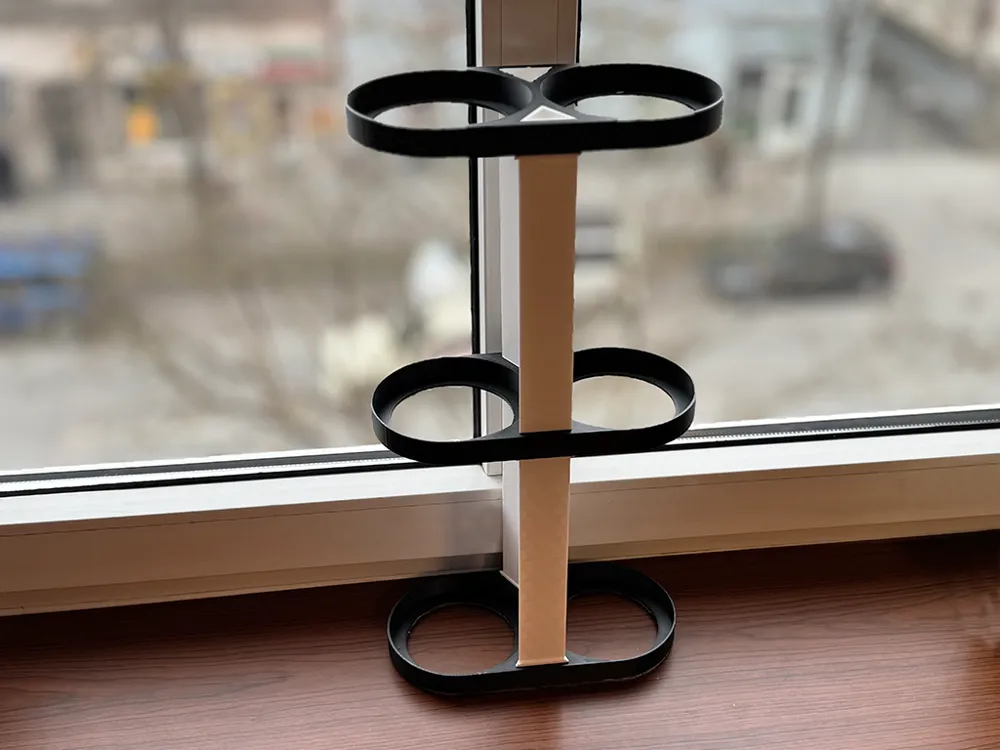

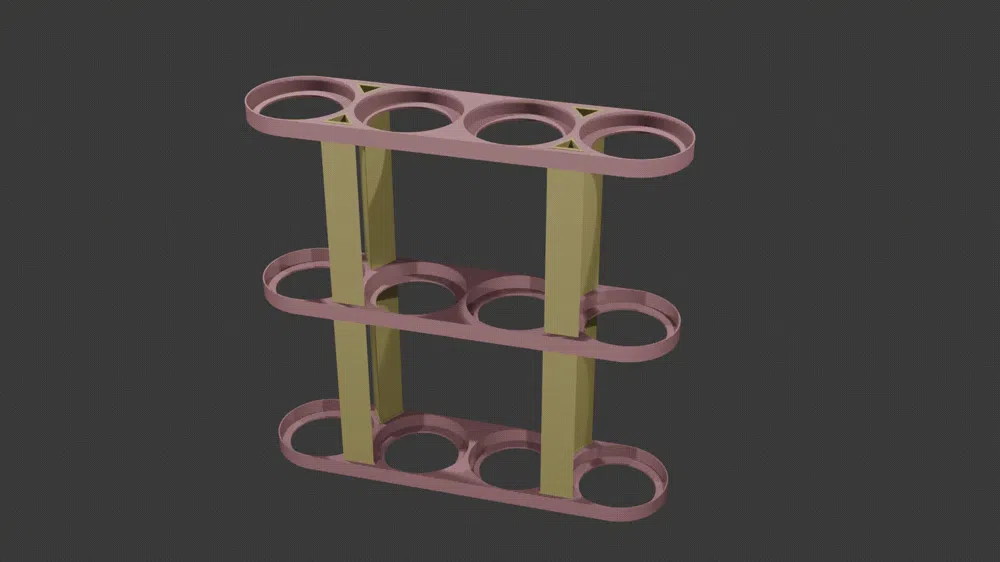

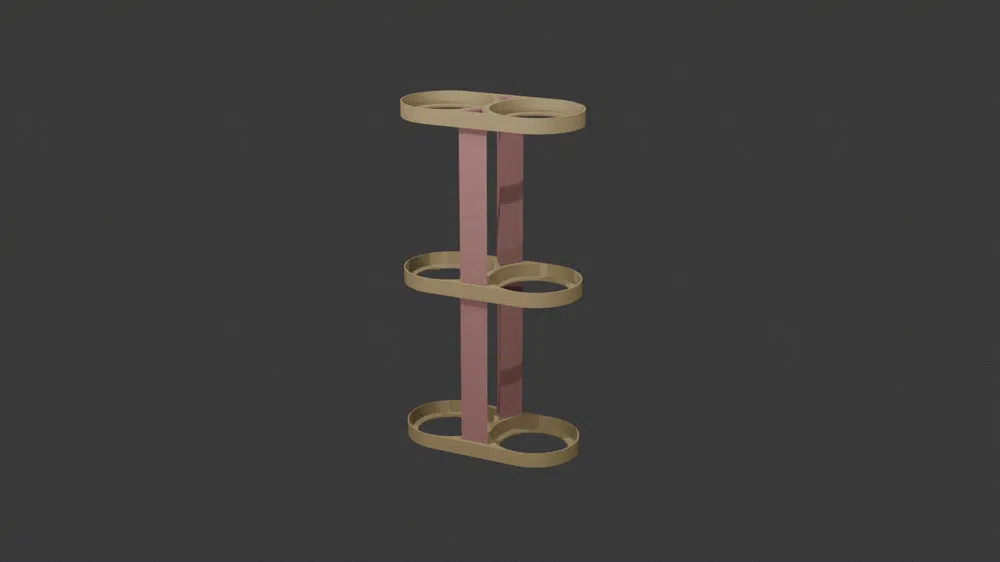

The stand has a modular design and can be expanded

Features

• suitable for round flower pots with approx 120 mm diameter
• 2 / 4 pots per level
• stackable (tested and stable up to 3 levels)
• modularly expandable
• easy assembly (no screws or gluing necessary)

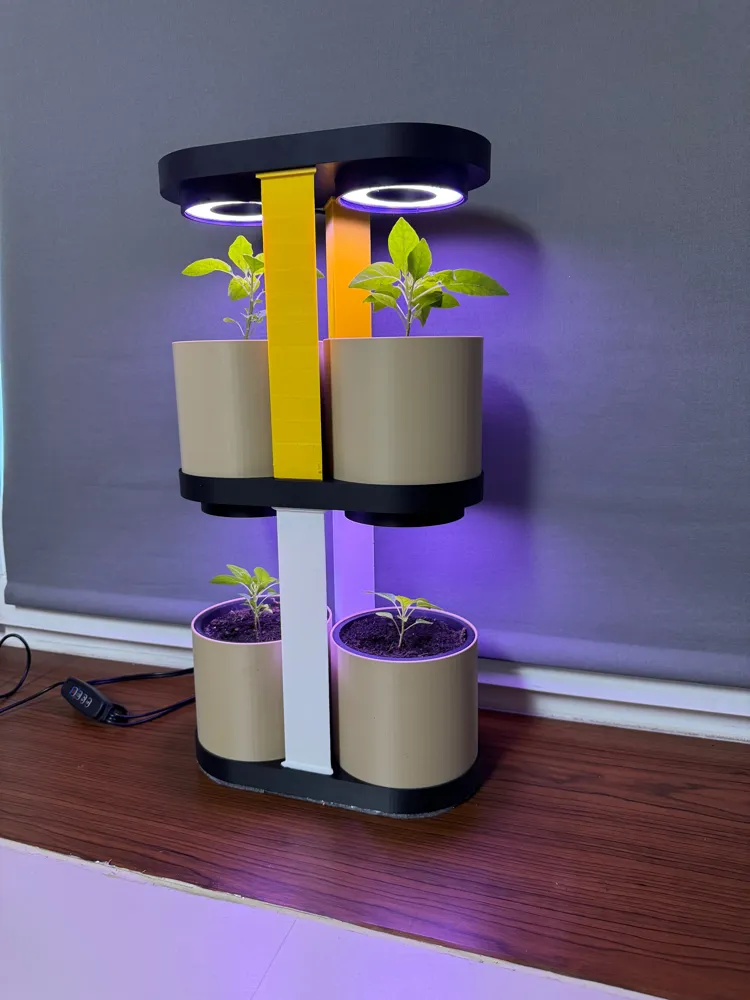

• optional with LED lighting for round 9 cm lights

Important:

• Support & Extension must be printed with 99% scaling

Print Settings

All parts were printed by me from PETG

I printed the supports and extensions with 99% scaling

When printing without supports, slight strings sometimes form which can be removed afterwards. Functionality is not restricted by this

My Setup

I used flower pots with the following dimensions:

120 mm × 120 mm × 116.43 mm

The pots are from the model “Modern Design Flower Pot” by Neko3D

These were printed by me with 192.44% scaling so that the pots have a circumference of 120mm

Assembly

• Print all parts
• Insert the supports into the base plate
• Place the next base plate on top
• Optionally insert the extensions for an additional level
• Then place another base plate on top
