Magnetic Mount for Blink Outdoor 4

Magnetic Mount for Blink Outdoor 4

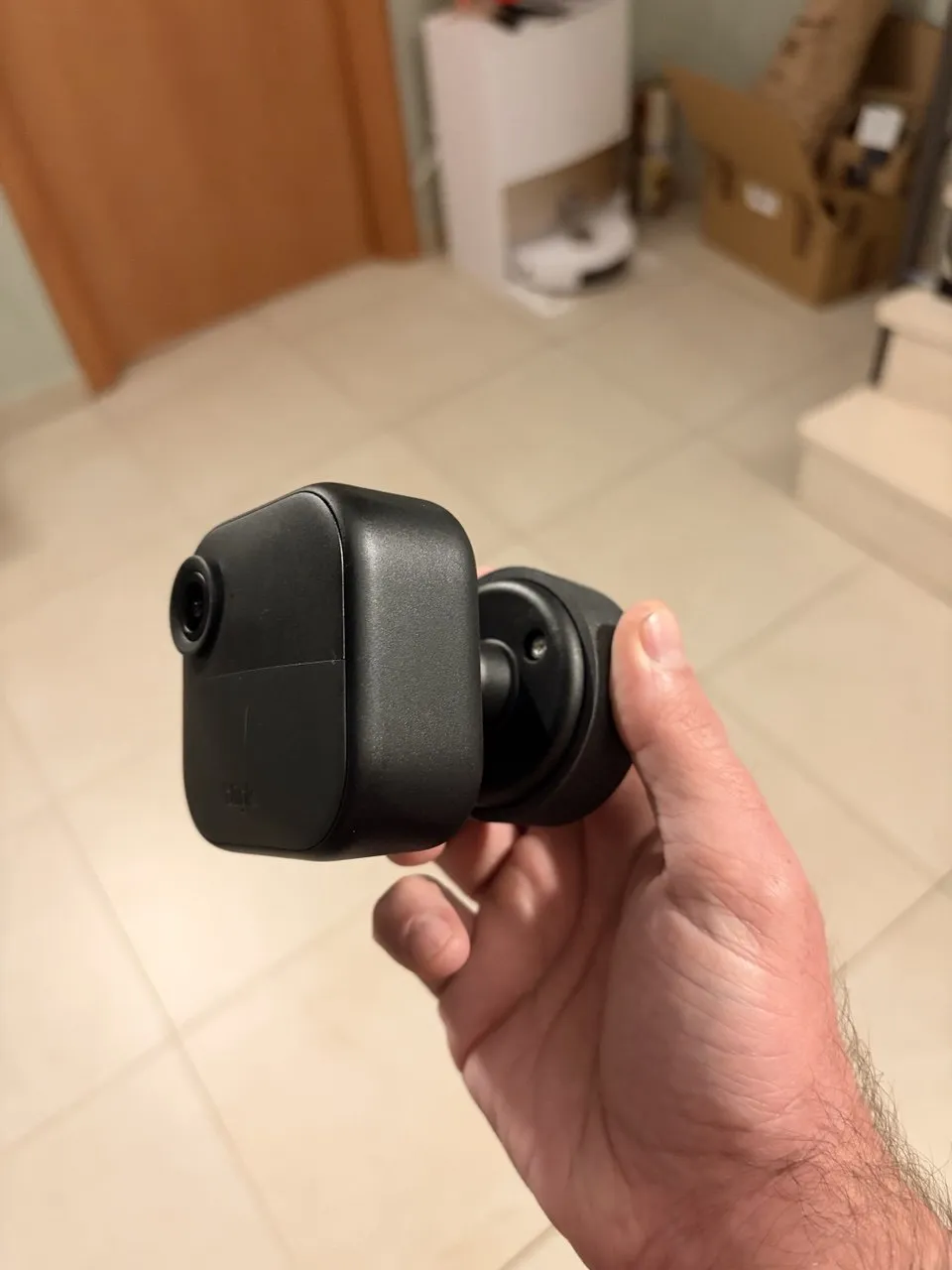

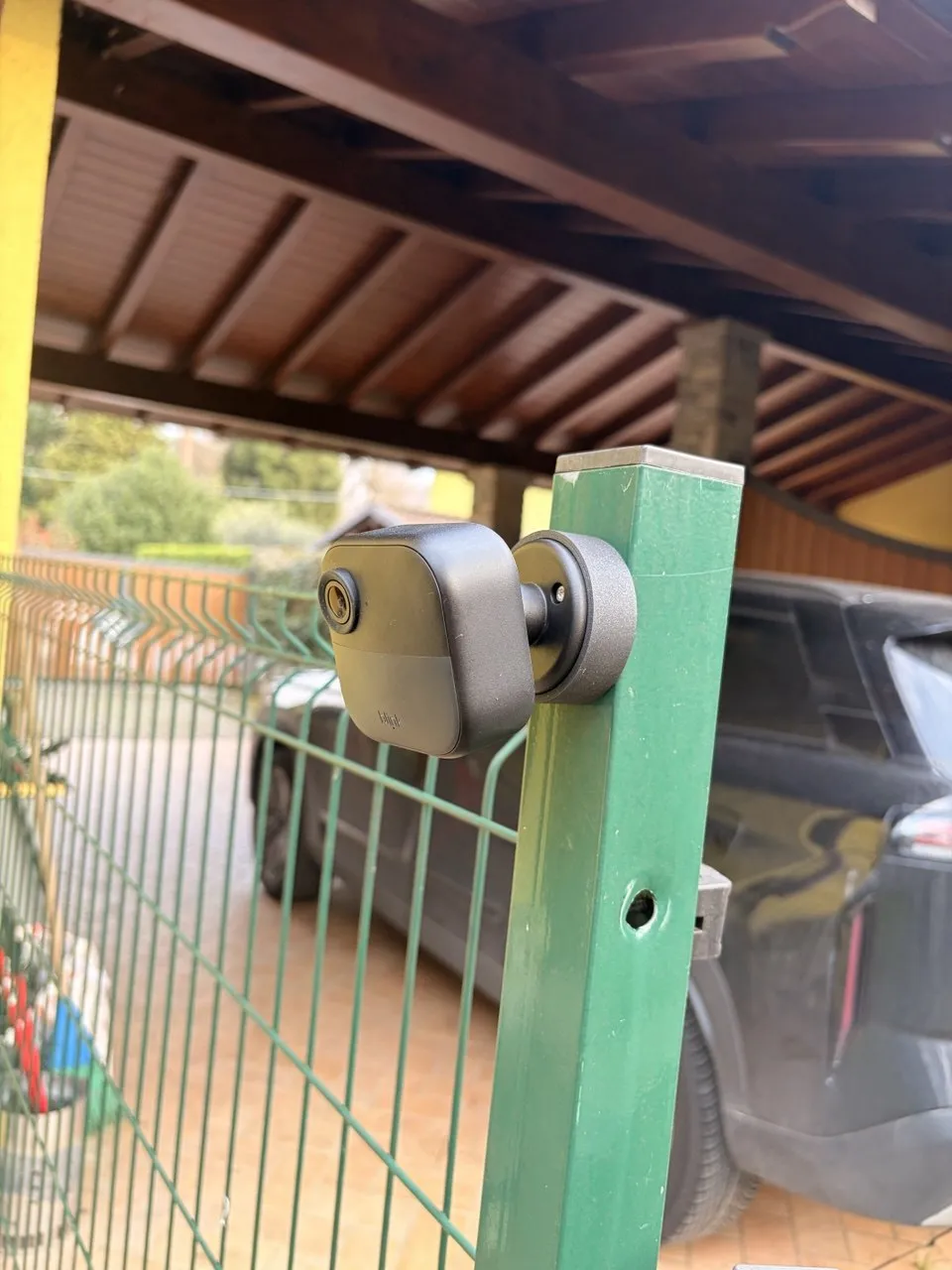

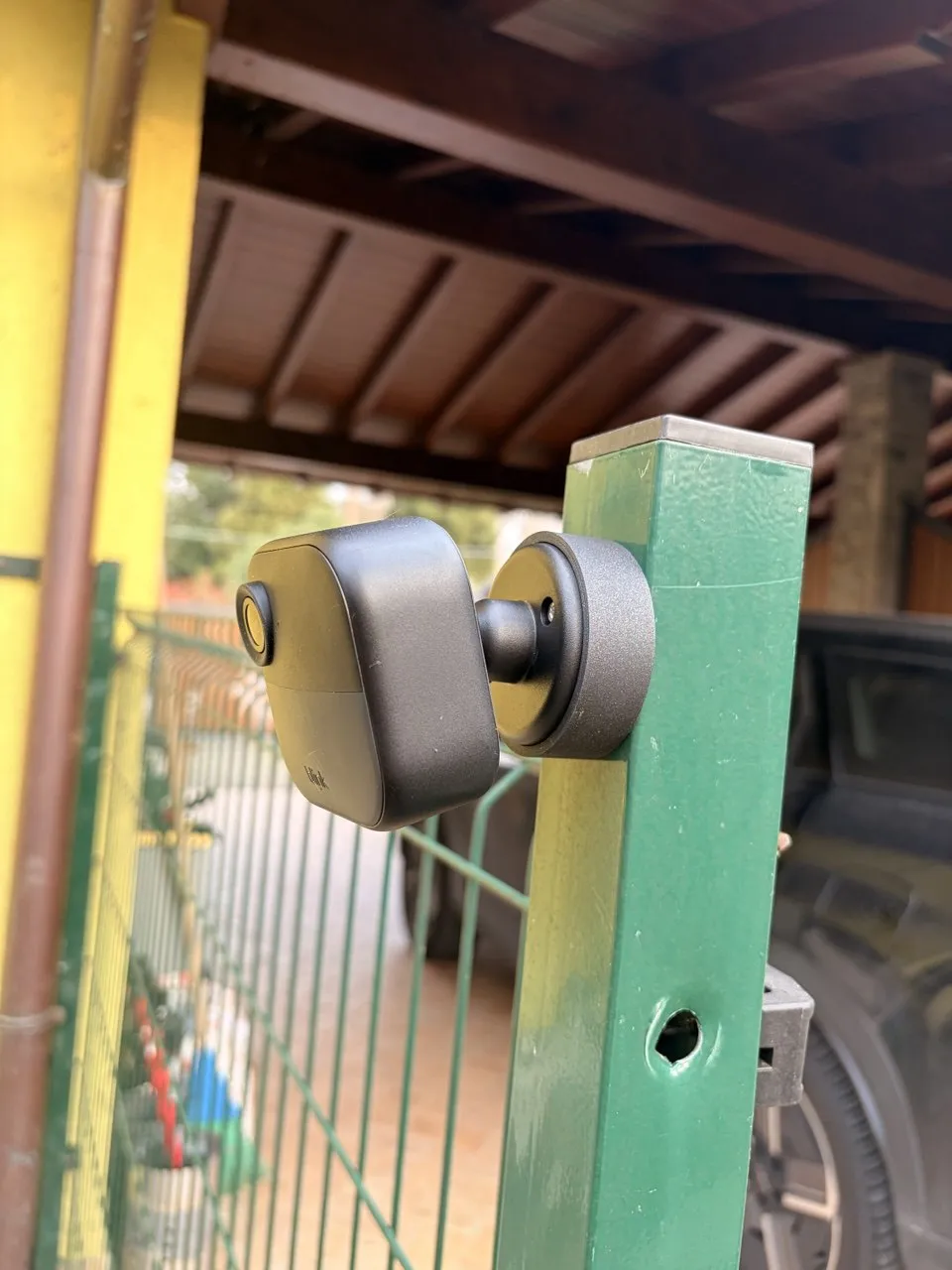

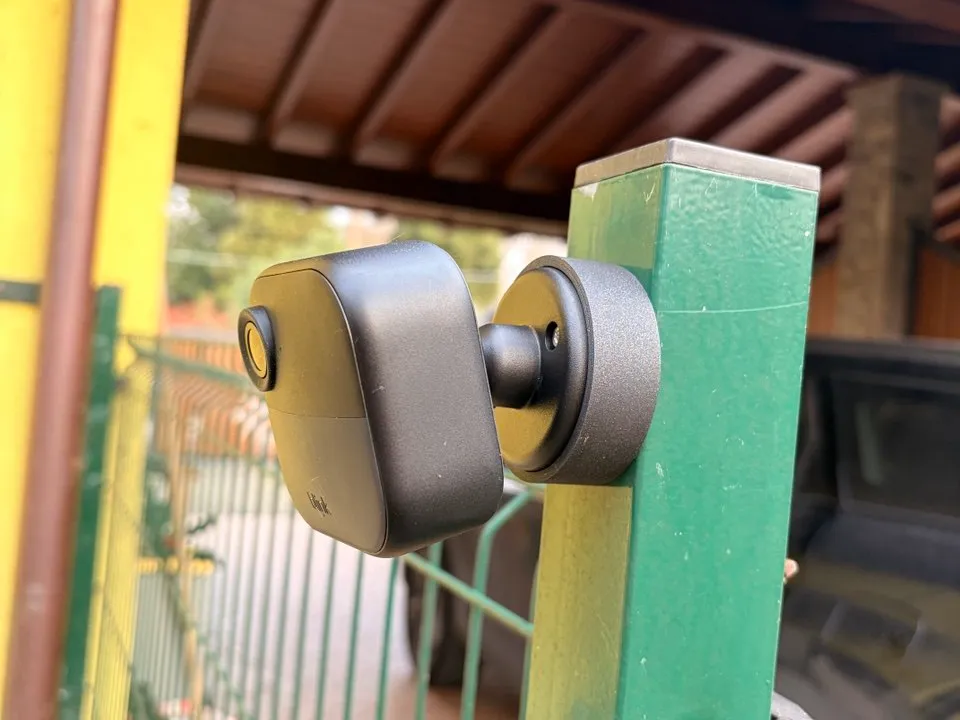

Upgrade your home security setup with this sleek, low-profile magnetic mount specifically designed for the Blink Outdoor 4. This mount offers the ultimate flexibility, allowing you to easily snap your camera on and off for charging or repositioning without fumbling with awkward plastic clips.

Features

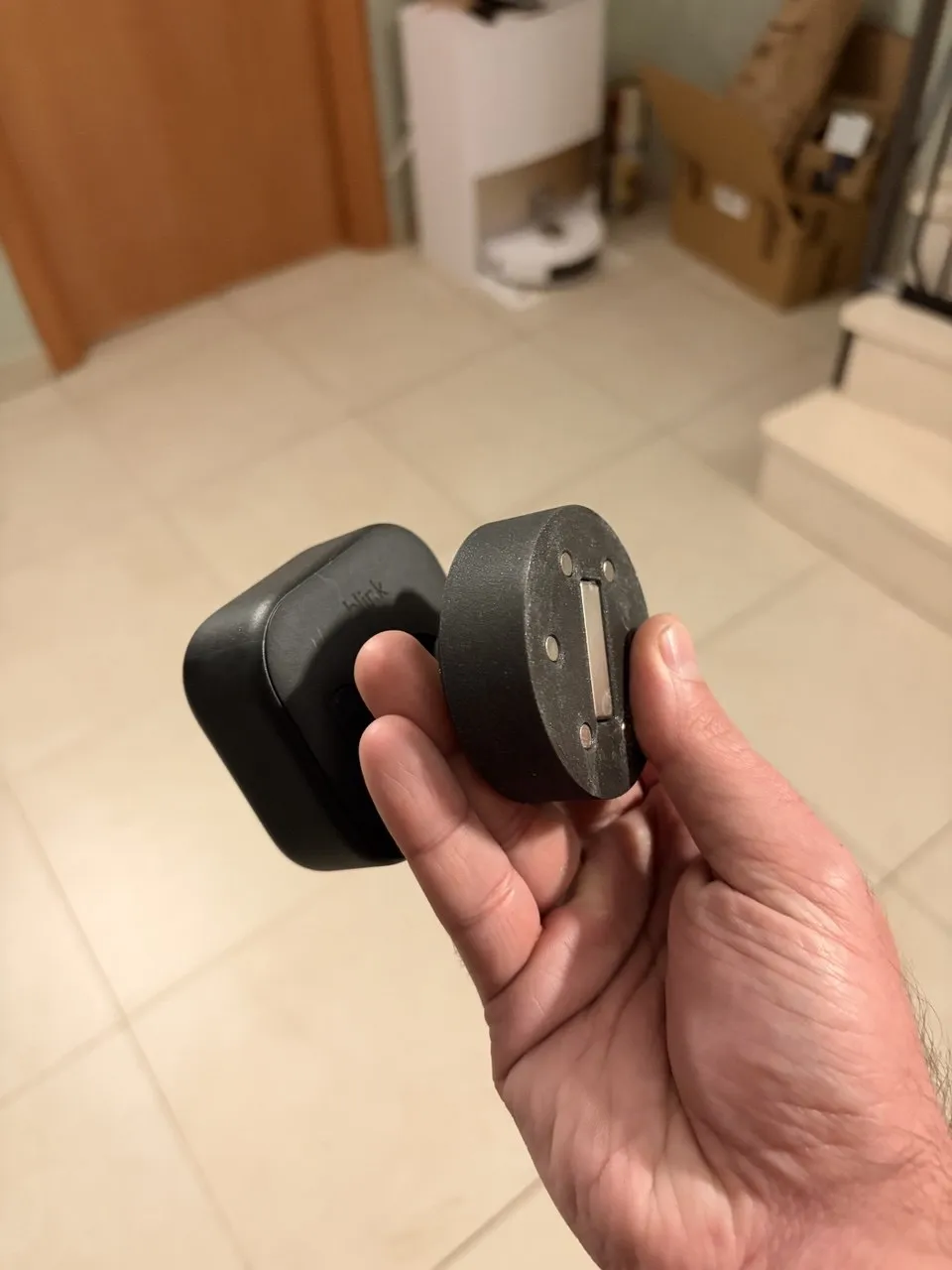

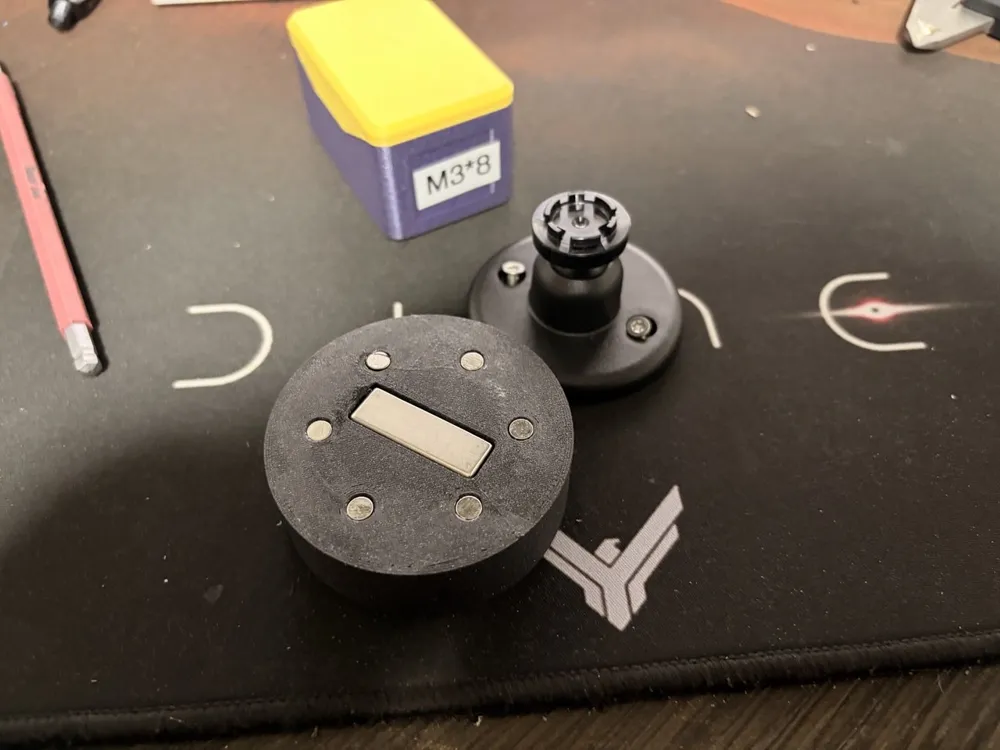

• Strong Magnetic Hold: Features a precision-cut array for 6x (5x3mm) magnets to ensure your camera stays exactly where you put it.
• Optional Heavy-Duty Magnet: Includes a central slot for an optional 30x10x3mm magnet for extra-strong mounting surfaces.

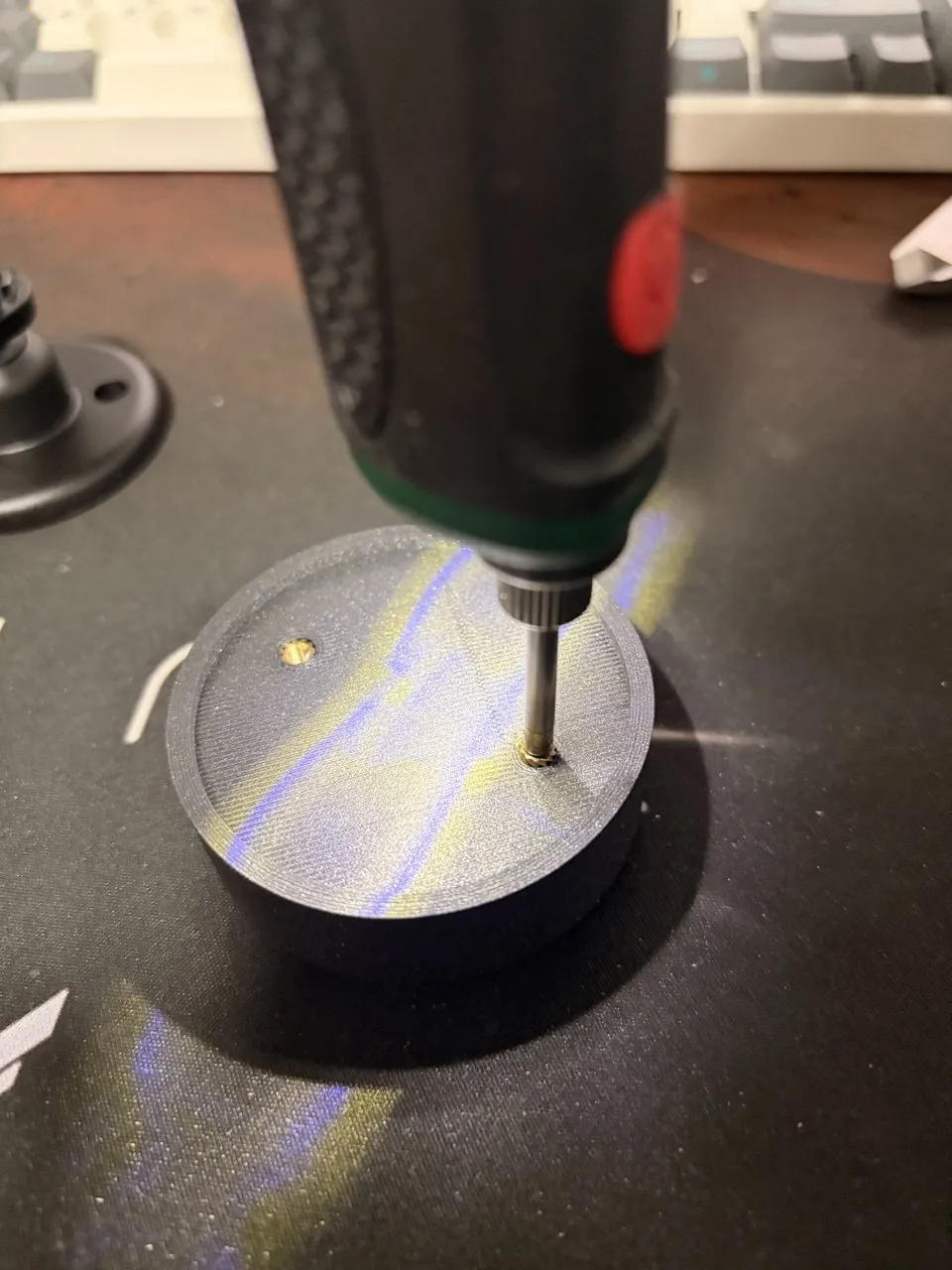

• Durable Construction: Designed to be used with heat-set inserts for a professional, long-lasting mechanical connection.
• Blink Integrated: Specifically tailored to fit the Blink Outdoor 4 mounting geometry.

Hardware Required

To assemble this mount, you will need:

• Magnets: 6x Round Magnets (5x3mm)
• Optional Magnet: 1x Rectangular Magnet (30x10x3mm)

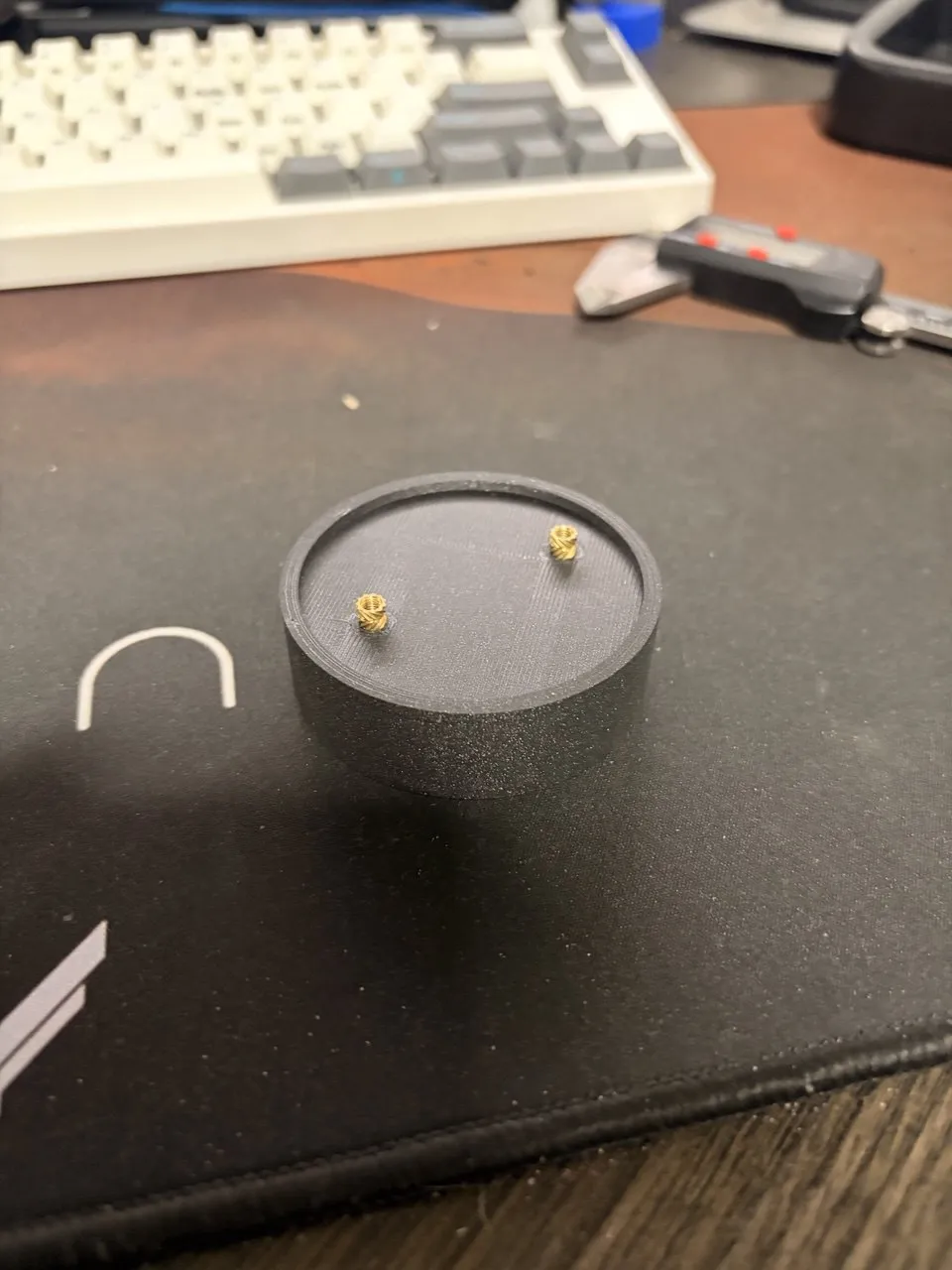

• Inserts: 2x M3 Heat-set Inserts (M3x5,7)

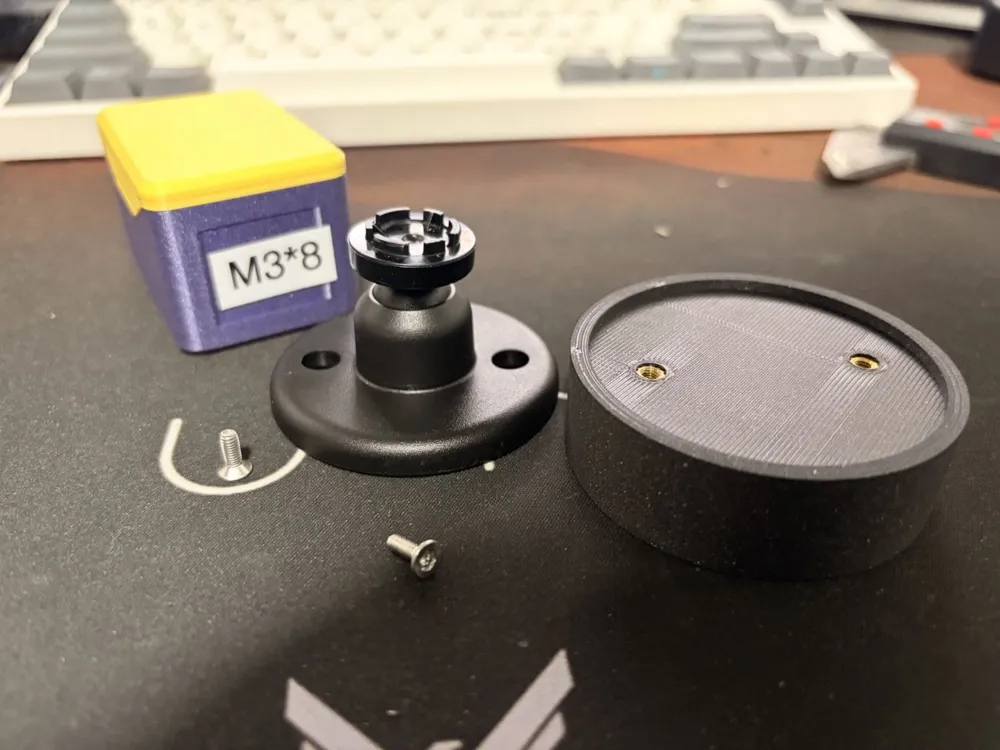

• Screws: 2x M3 Screws (M3x8)

Print Settings

• Material: PLA, PETG or ASA.
• Infill: 15% (Gyroid recommended for strength).
• Walls: 3-4 walls for solid screw/insert retention.
• Supports: No supports required if printed in the correct orientation.

If you like this design, please leave a boost or a 5-star review! It helps me keep creating more functional prints.

Remixes & Source Files

I have included the STEP file to encourage community improvements and modifications. If you decide to create a remix, please:

• Mark it as a Remix of this model.
• Provide a direct link back to this original project page.

I’d love to see what you come up with!
