Electro Controls Light Board

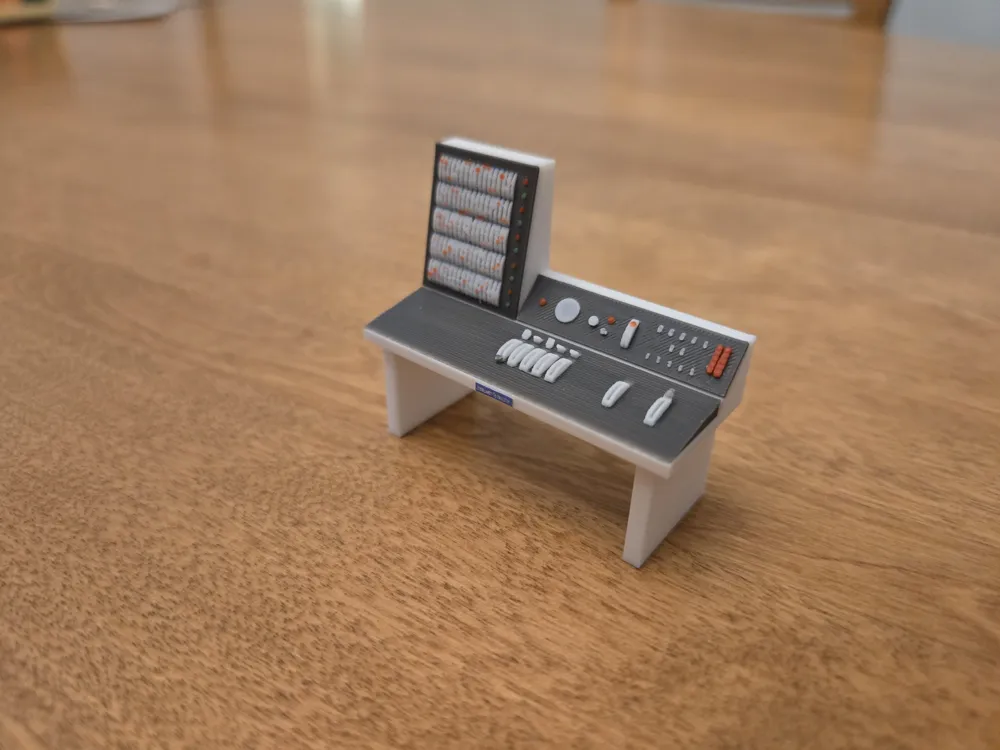

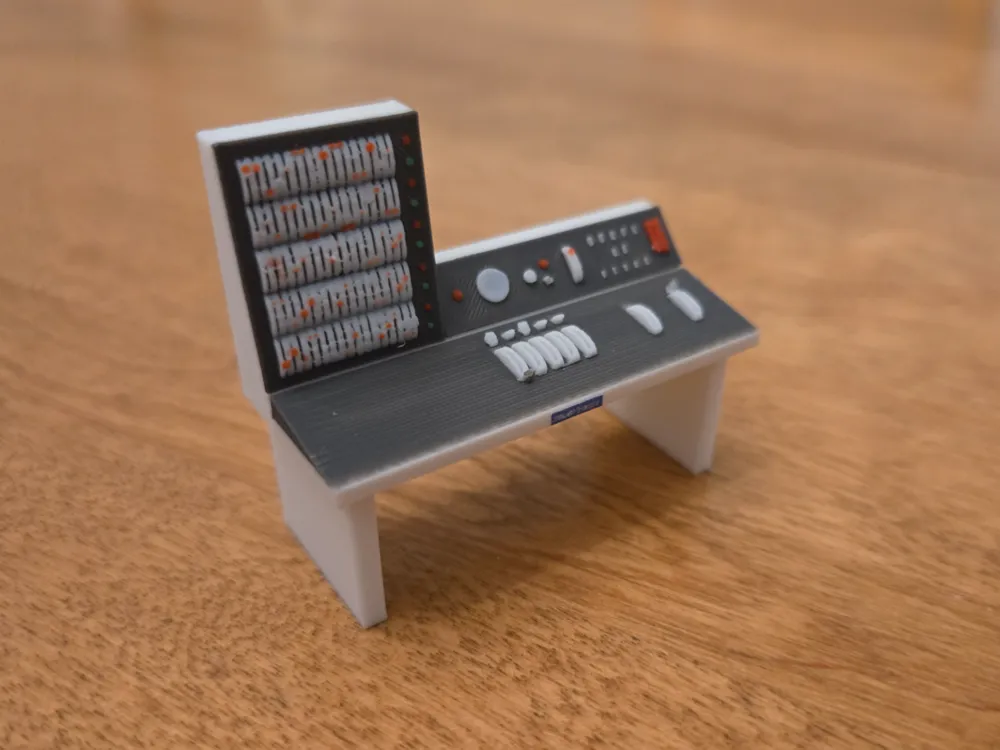

This is a miniature reproduction of a 1970 Electro Controls theatrical lighting controller.  This control board had a 5-scene preset bank on the left, and submaster controls, crossfader, and master on the right.  In addition, it had utility lighting controls for houselights and worklights.  The 0-10v controls were paired with 22 7.2k dimmers.  This is a replica of a board used in a 1,064-seat proscenium community theater.

See also my Electro Controls patch panel model that was part of this system.

This model is rendered at 30% scale, so there is more detail in the model file than in the print.  The Electro Controls logo included here is a printable label at the same scale.
