K40 Nozzle with Cross-Align Lasers and Air Assist
Print Profile(1)
Description

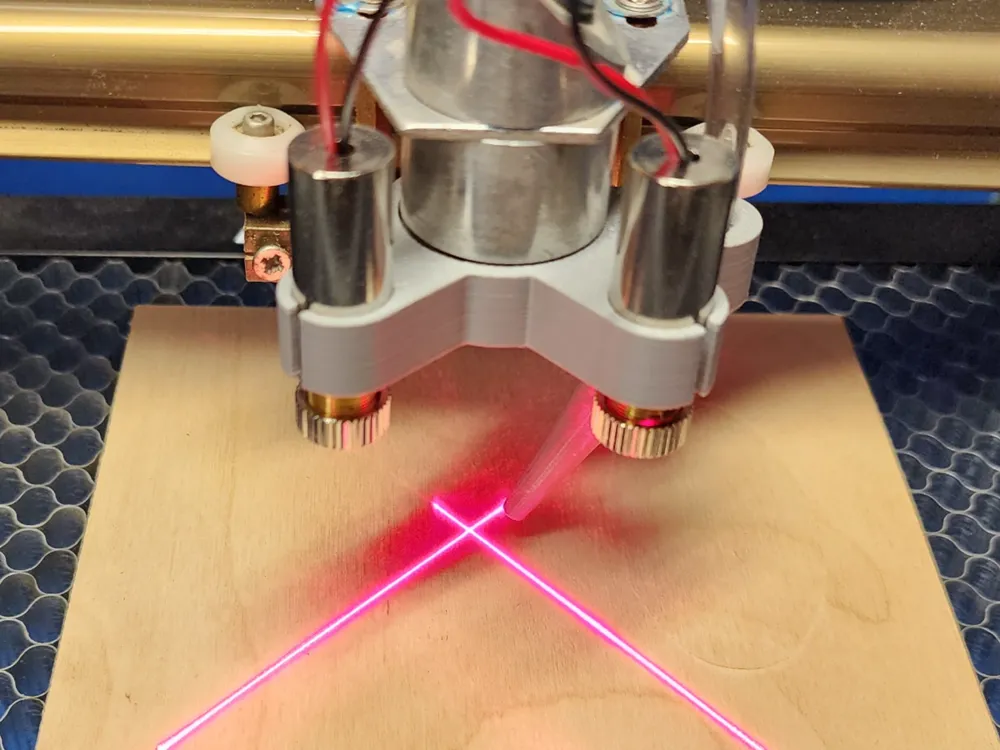

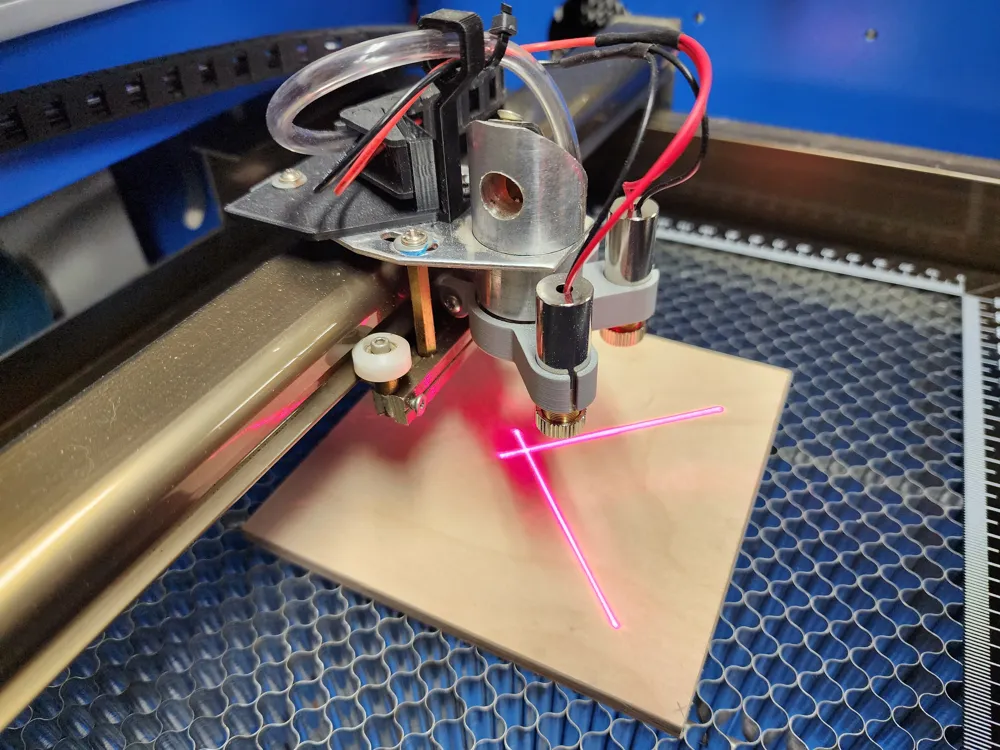

Air assist and laser alignment nozzle add-on for K40 laser engraver/cutter (and the many compatible lasers)

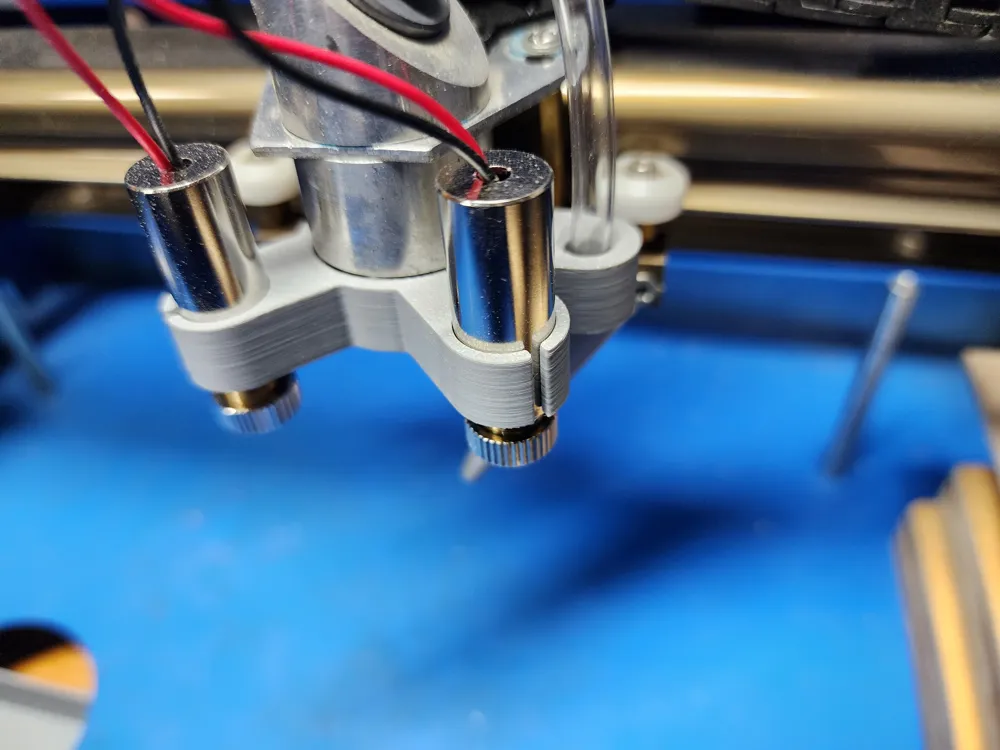

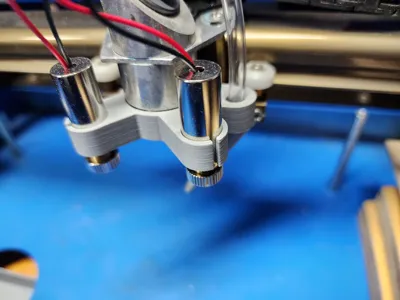

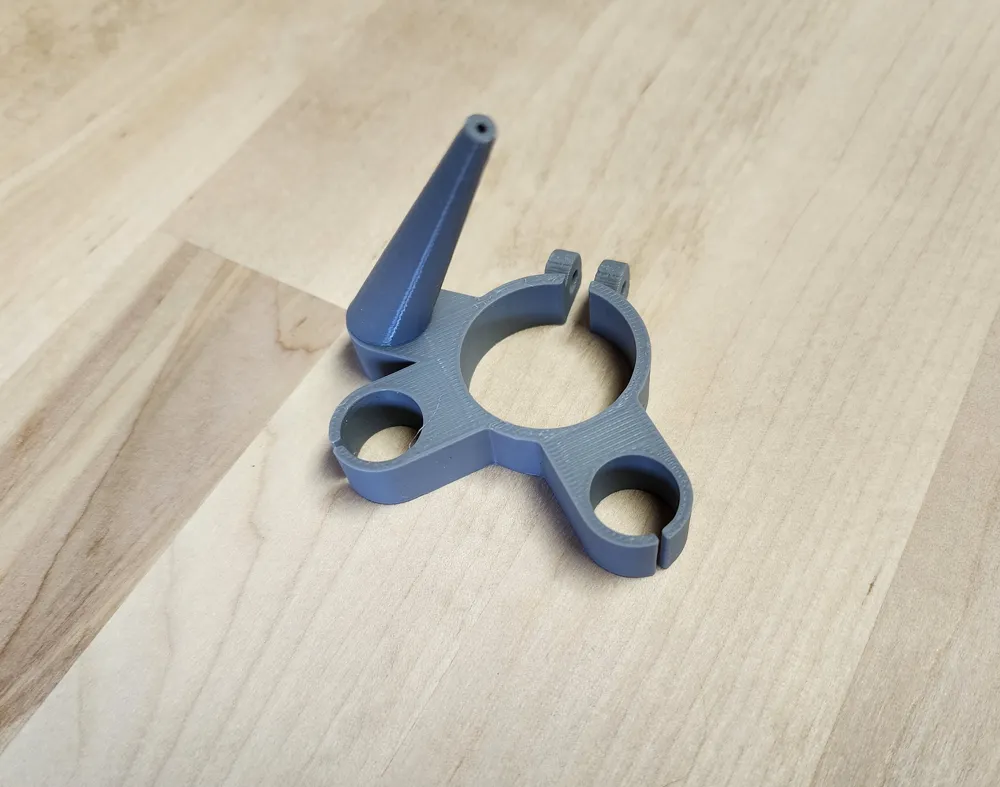

Fits onto standard K40 nozzle (1" dia) and clamps tight using M3-12 screw and M3 nut.

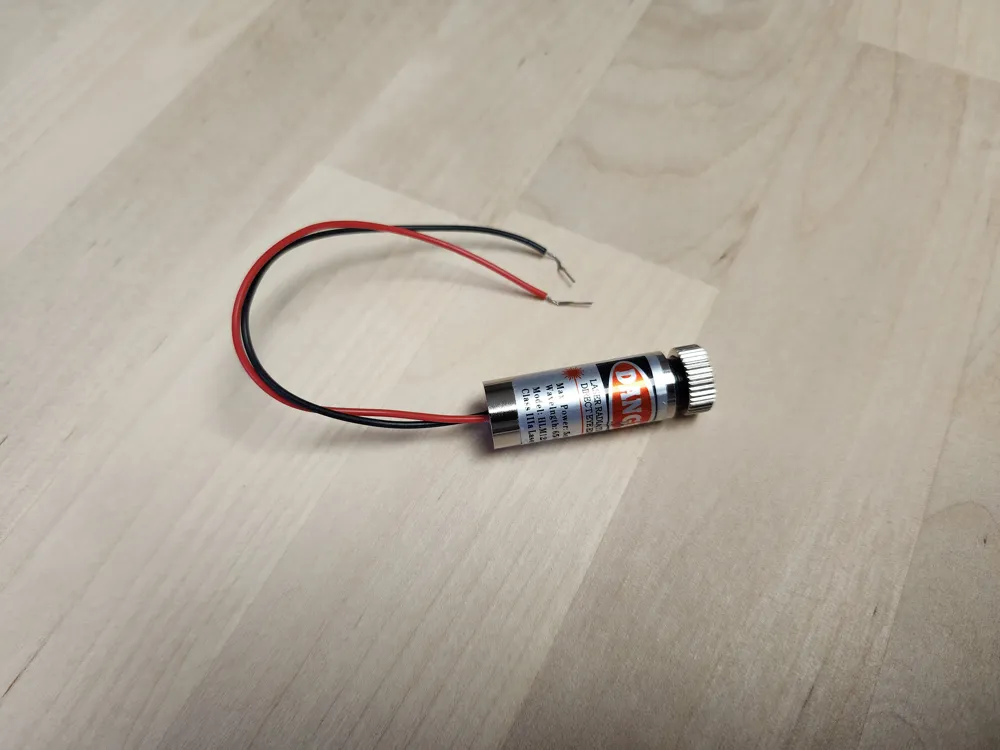

Holds two 5mw line-lasers (12mm dia) using friction fit
Air nozzle receives ¼" (OD) air hose
Link to lasers that I used: https://www.amazon.com/dp/B07L428BDG
Note that air hose and power for lasers is not standard on the K40 and must be added and fed to the head. See my other designs for a drag chain mount and cable tender.
