Lab Rax 10" Server Rack - Bolted Version - 6U
Print Profile(1)
Description
Boost Me (for free)
This took soo long to consolidate and label and make. Please consider boosting, it helps alot.

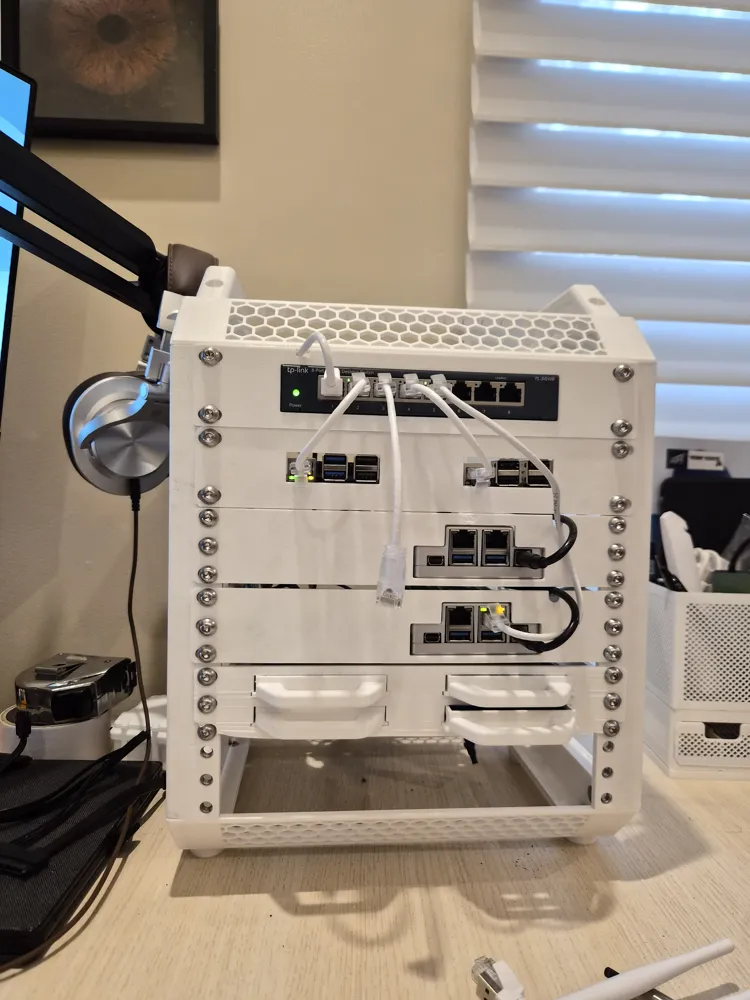

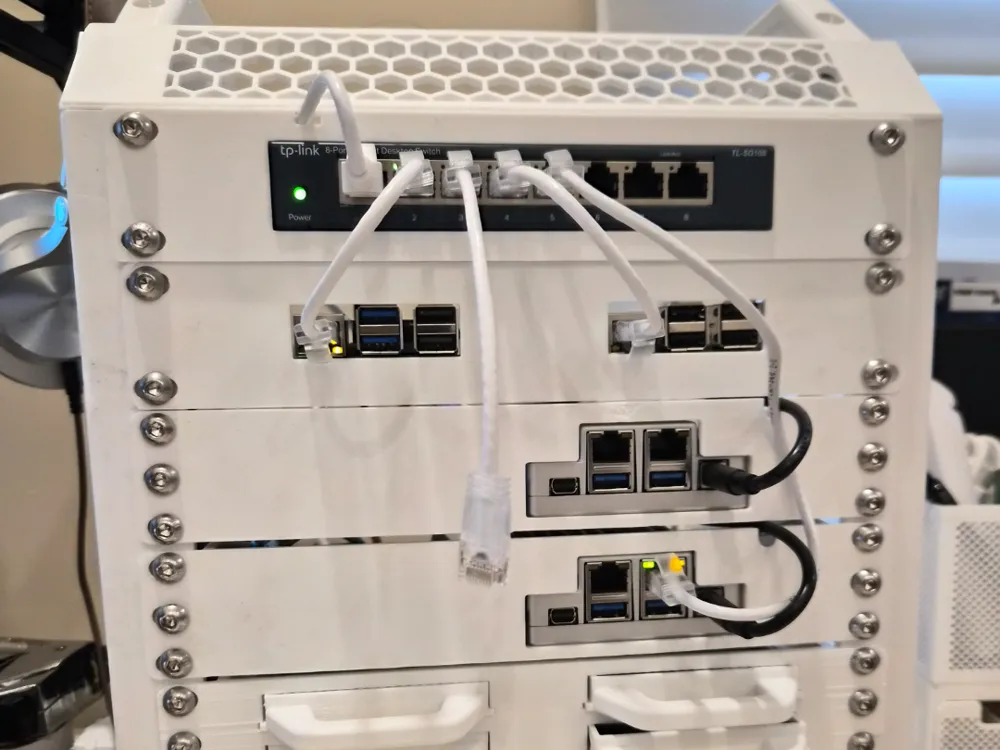

This is a 6u version of the Lab Rax project by mklements. It has been easily labled for easy and no confusion printing.
All you need to complete this 6U rack is:
Metric;
M6x12mm Button Head Screws (16 Required For Frame + Additional For Racks) - Buy Here
Optional Black Version of Above to Match Print - Buy Here
M6 Nuts (16 Required For Frame + Additional For Racks) - Buy Here
Imperial;
#10-32 x 1/2 Button Head Screws (16 Required For Frame + Additional For Racks) - Buy Here
Optional Black Version of Above to Match Print - Buy Here
#10-32 Nuts (16 Required For Frame + Additional For Racks) - Buy Here
There are a total of 23 parts needed.
4 Horizontal Edge Pieces - You can choose one of the 3 options but you have to print 4 of them. You can mix and match.
2 Handles
4 Feet - Can be printed in tpu
4 Regular Edge Pieces - These hold the horizontal edge pieces together
1 Top - You can choose the fan or no fan version
4 Sides - You have to print the plate labeled “Sides Print twice” twice. (I know, shocking) The plate has the 5u side and the 1u side to make it 6u. so after printing, you will have 2 5u sides and 2 1u sides.
4 Verticals - There are 2 6u verticles on each plate.
Assembly is the same, just buy double nuts and screws
ALL CREDIT GOES TO MKLEMENTS. THANK YOU FOR THIS WONDERFUL PROJECT.
