HERO KATTIVI MECHANIC

GARA'S WORKSHOP

I am a dad of two beautiful girls, and I enjoy introducing them to the multiverse through the nerd objects I 3D print

This is one of the models from my small 3D printing workshop
I enjoy designing, testing, and sharing these figures with those who love printing, painting, and collecting miniatures

I am a big Bambu Lab fan, and all my prints are mainly made with P2S and A1 mini

Before publishing a model, I always do several test prints to check stability, supports, and overall quality

------------------------------------------------

RECOMMENDED PRINT SCALE

I often produce test prints at a reduced scale (approximately 10 cm) to check the model's behavior

But there's something important

If you print it larger, around 15 cm, in addition to gaining details, you also gain ease of printing

My advice:
enlarge it as much as you want, but add a few extra supports where needed

Proof that the model prints correctly is in the actual photos in the post

Only a basic knowledge of slicing is required

If you have any doubts, feel free to write to me: if I can help, I always do so willingly

------------------------------------------------

PRINT PARAMETERS USED FOR TESTS

Test scale: approximately 10 cm

PLA Basic white
Layer height: 0.16 extra fine
Supports: hybrid tree
Outer brim: 10 mm
Object spacing: 0 mm

------------------------------------------------

SUPPORT REMOVAL

The supports are designed to be quite delicate

They can be removed without damaging the model, but gently:
one by one, slowly, using tweezers and a bit of patience

No need to go Rambo on the supports…
otherwise something might break, and you'll end up crying in front of the printer

------------------------------------------------

TECHNICAL NOTES (the truth, not poetry)

I prefer to print the figures in single colors and paint them after priming, using acrylic markers or miniature painting techniques

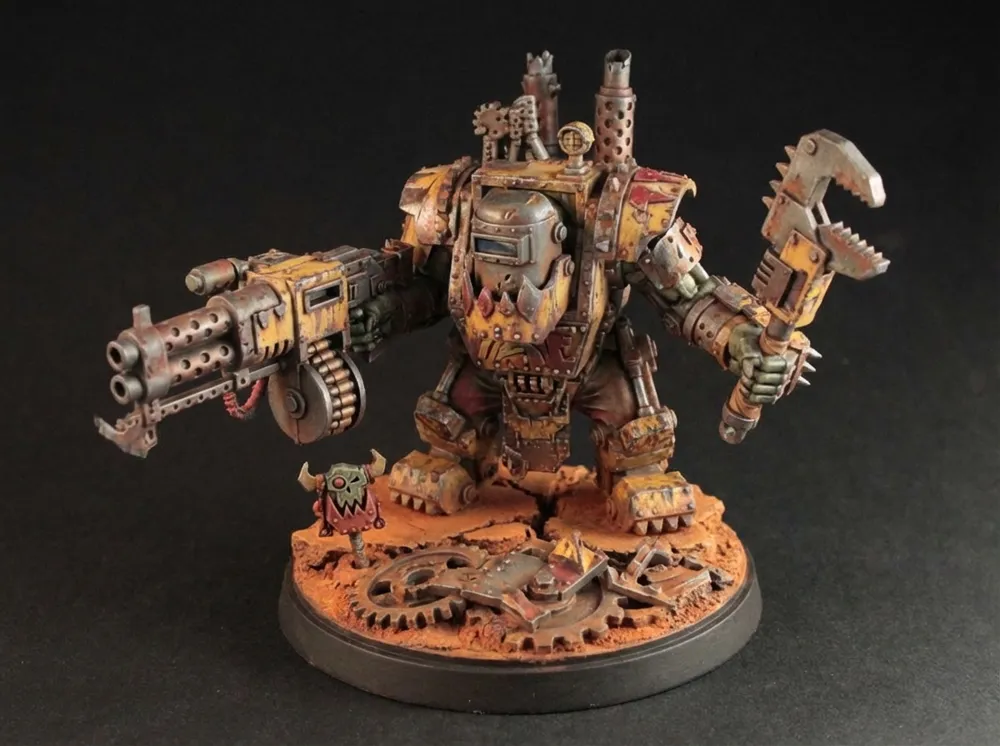

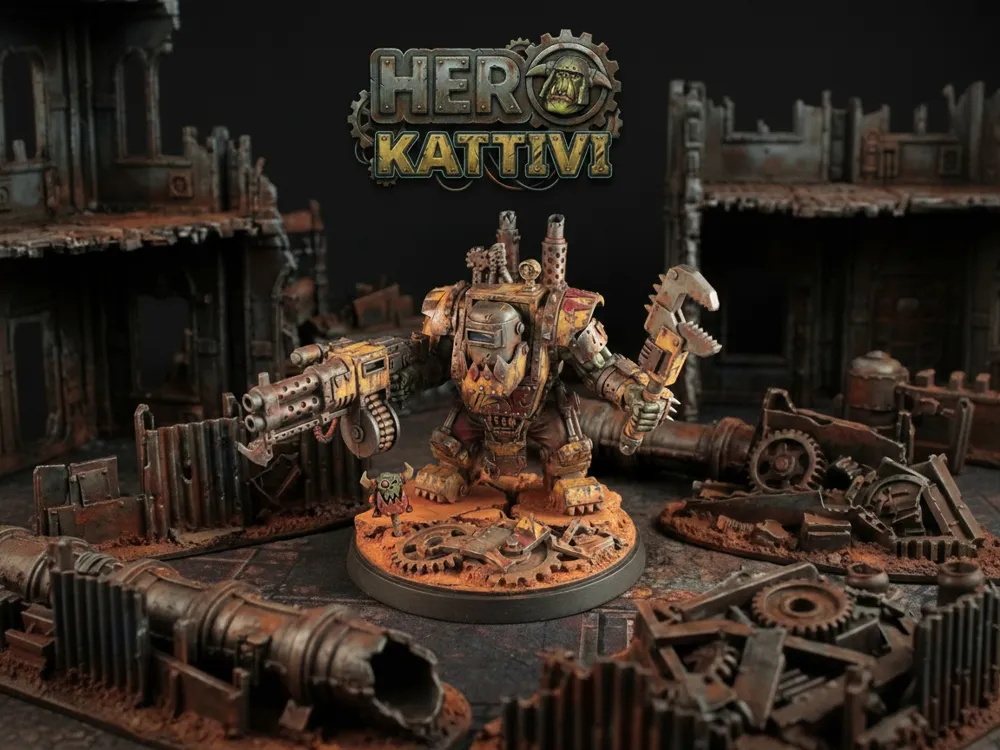

The colored images on the cover are just examples of coloring generated with AI to show possible painting styles

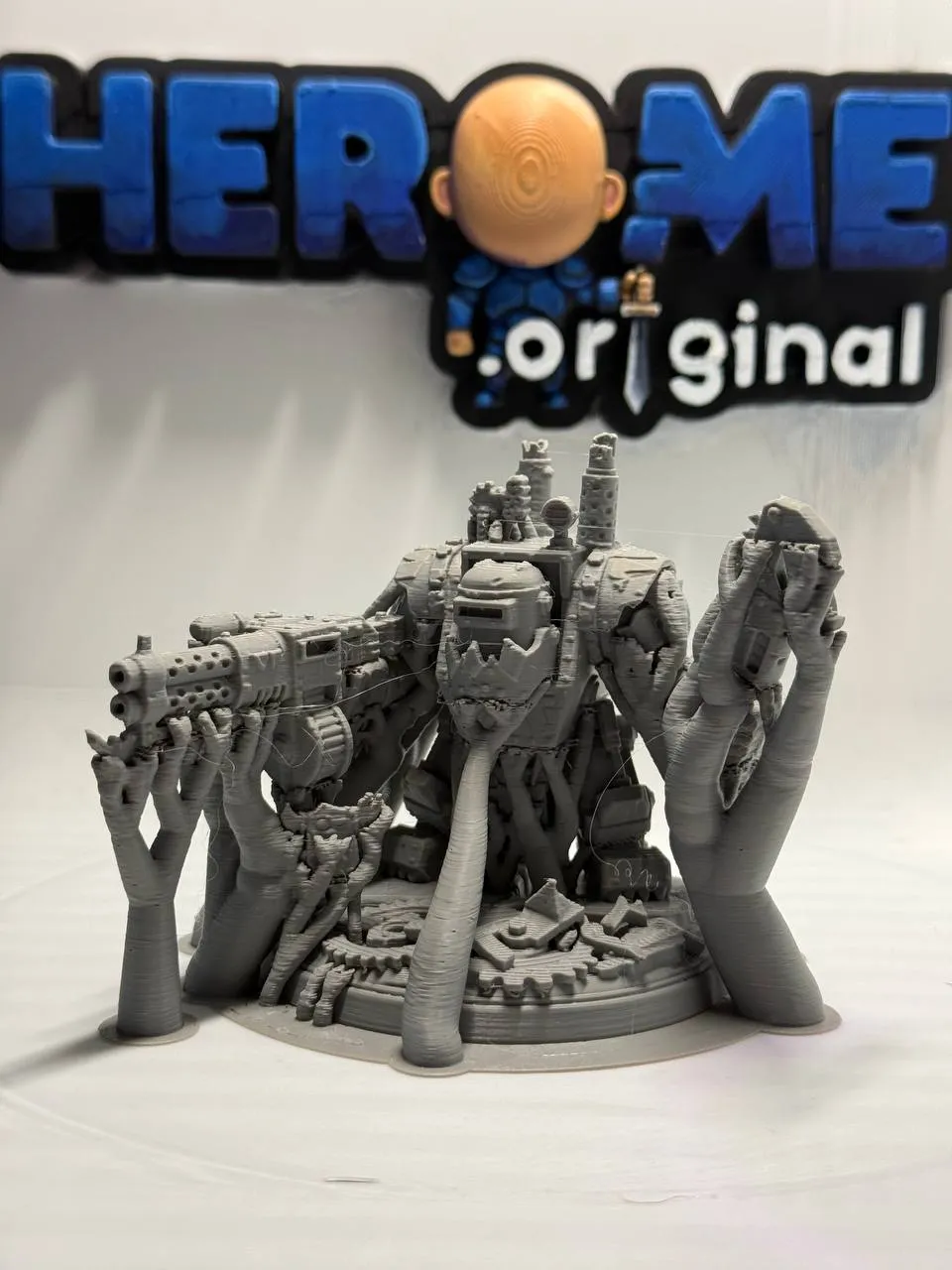

The final result always depends on the personal taste of the person painting the model, I apologize for some imperfections and slight differences between the real model and the AI model, I still need to perfect the method!!!!in any case, you have my photos, both with and without supports, as a reference for the printed model!!!

The design originates from an AI generation (Tripo), subsequently manually refined and tested with FDM printing to ensure real printability

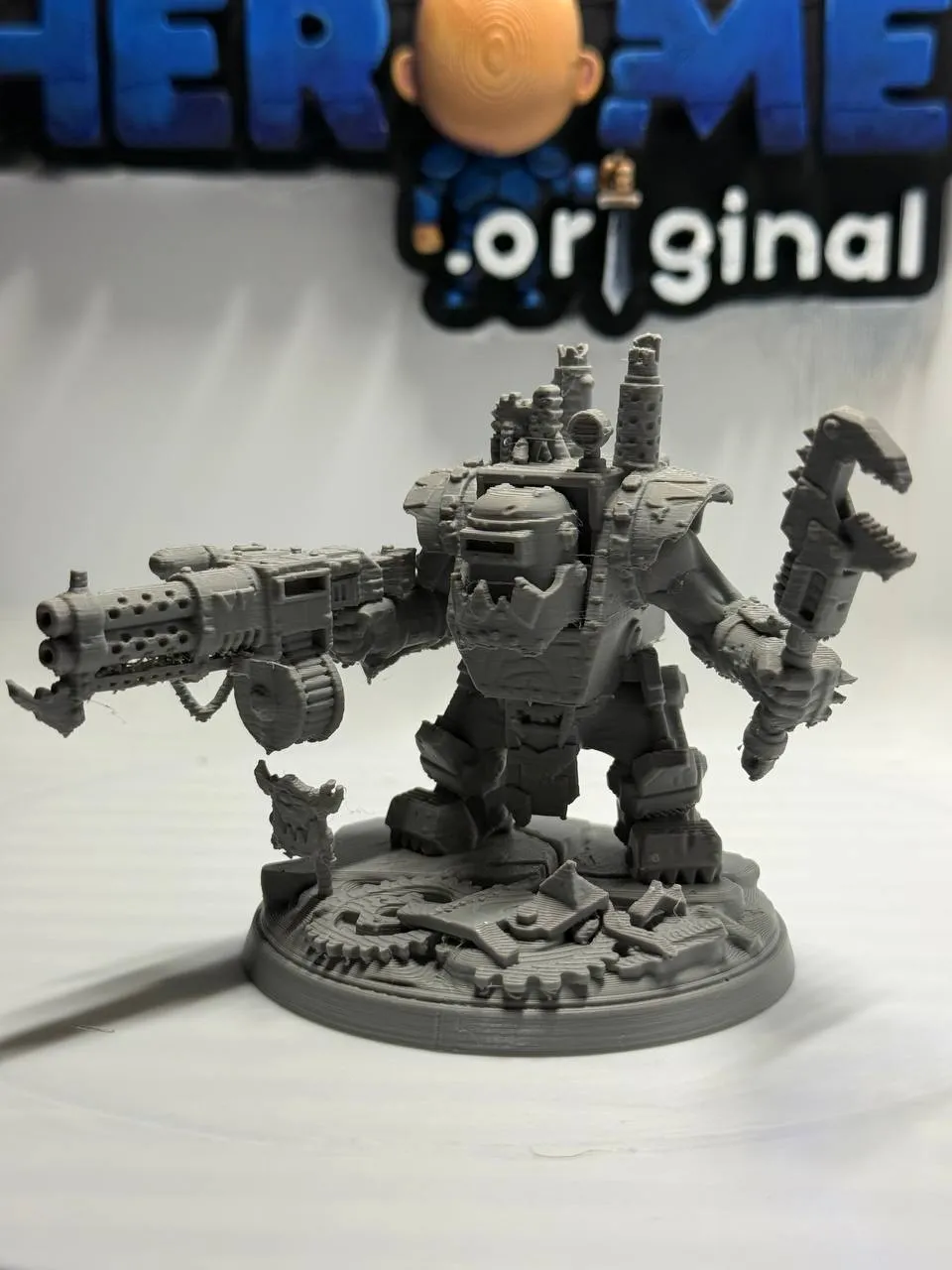

The real photos of the print are the monochrome white or gray ones available in the gallery

------------------------------------------------

THE PART THAT DECIDES IF YOU PRINT OR CURSE

Bed adhesion

I use CryoGrip Pro Frostbite, and the adhesion is so strong that the prints seem to have taken out a mortgage on the print bed: they never come off

I mainly use Bambu filaments and have no issues

If you use a different setup:

• focus first and foremost on bed adhesion
• use dry, high-quality filament
• keep the print bed perfectly clean
• don't be afraid to use brim or extra supports

With these precautions, printing becomes much simpler and more reliable

------------------------------------------------

GARA'S COLLECTION

If you like this model, you can find all the other figures in the collection here:

https://makerworld.com/en/@Gara/upload

Be careful though…

if you start printing them, you'll end up wanting them all

If you like the model, leave a like, it truly helps the project grow a lot
